Stator for KTM 65 SX 2009-2023 / Mini 2018 / SXS 2012-2013 / XC 2009 | Husqvarna TC 65 2017-2023 | OEM # 46239004000

RMSTATOR
SKU: RMS010-106759
In Stock
RMSTATOR

Stator for KTM 65 SX 2009-2023 / Mini 2018 / SXS 2012-2013 / XC 2009 | Husqvarna TC 65 2017-2023 | OEM # 46239004000

$130.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Read more
Stator for KTM 65 SX 2009-2020 / Mini 2018 / SXS 2012-2013 / XC 2009 | Husqvarna TC 65 2017-2020 | OEM # 46239004000
Stator for KTM 65 SX 2009-2023 / Mini 2018 / SXS 2012-2013 / XC 2009 | Husqvarna TC 65 2017-2023 | OEM # 46239004000
$130.89

Details

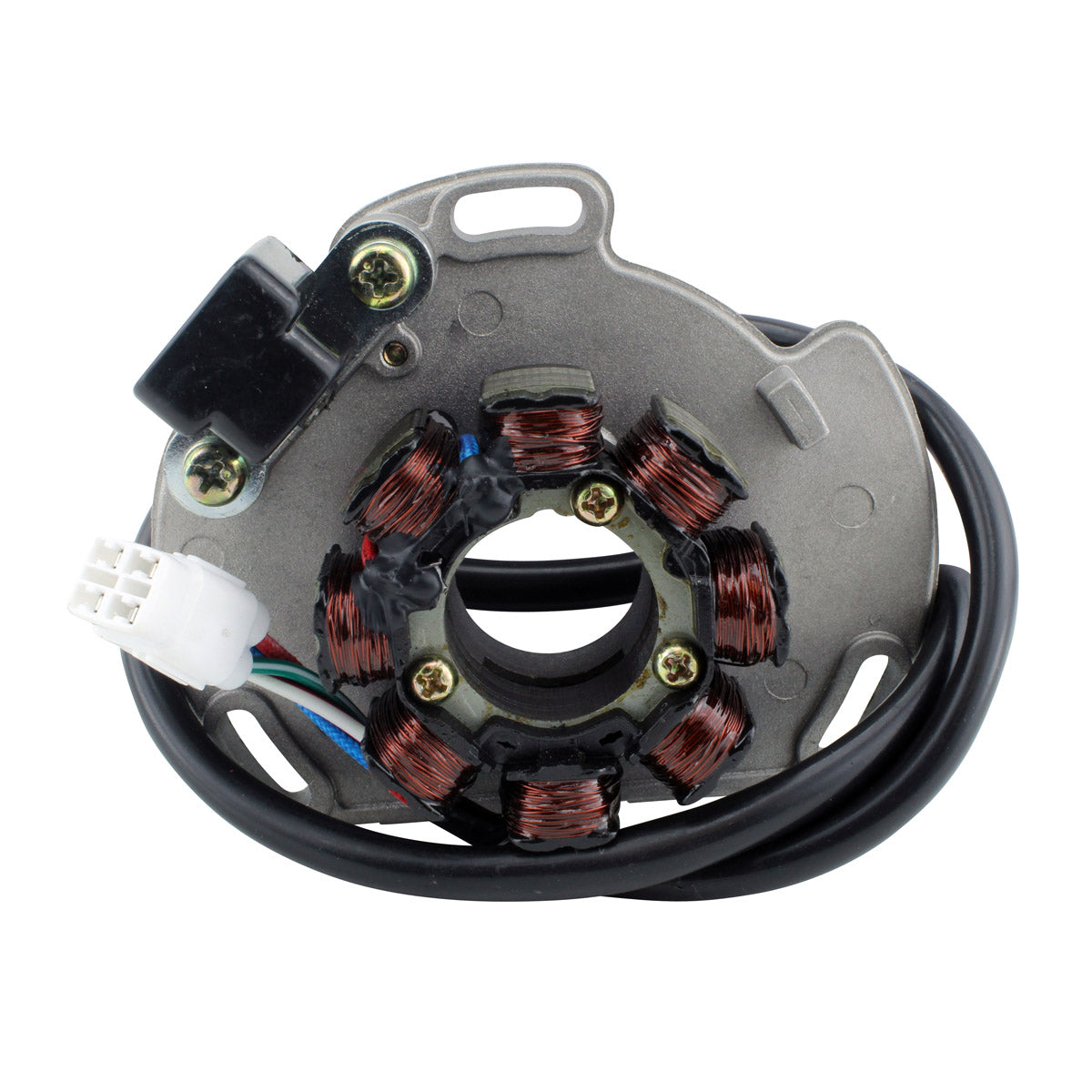

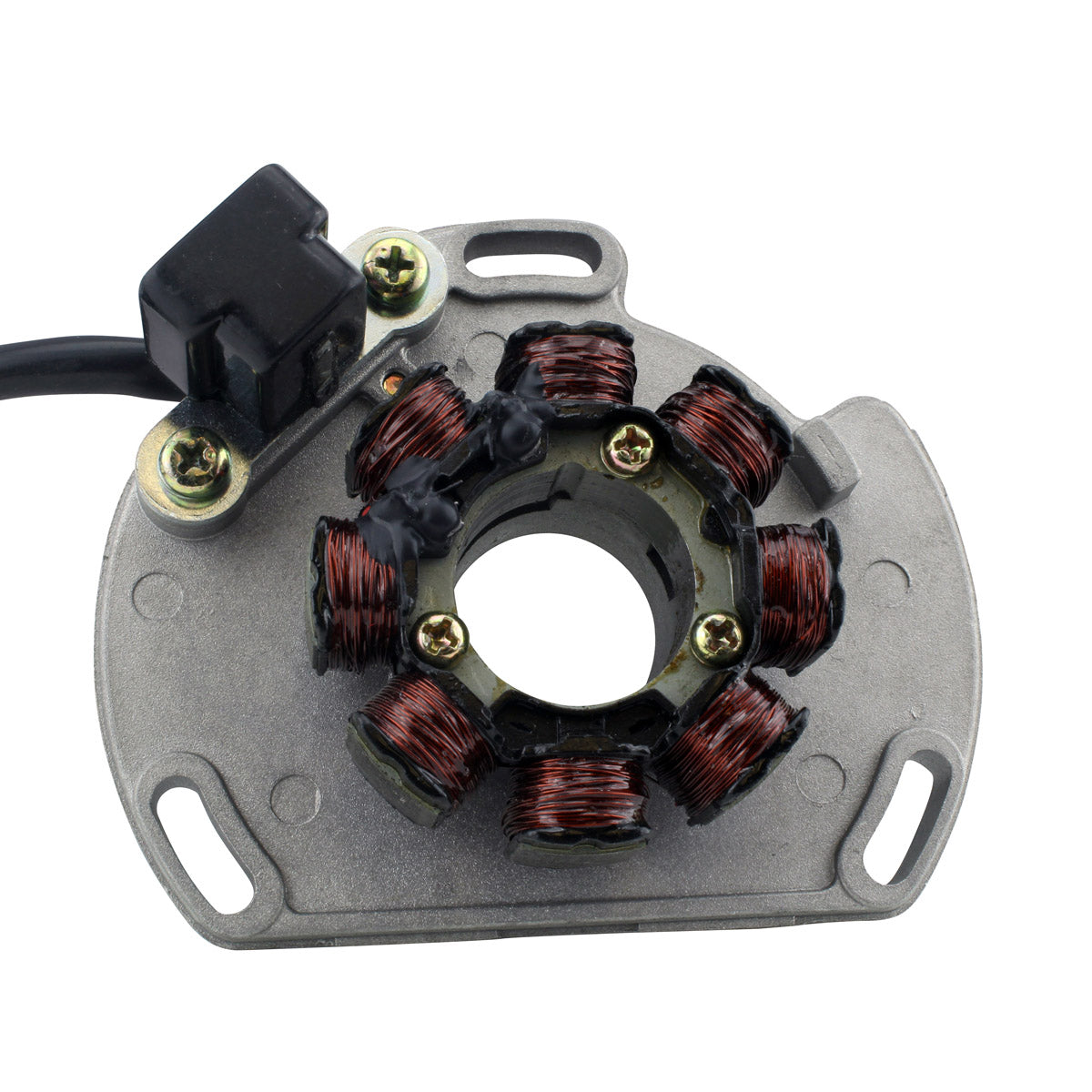

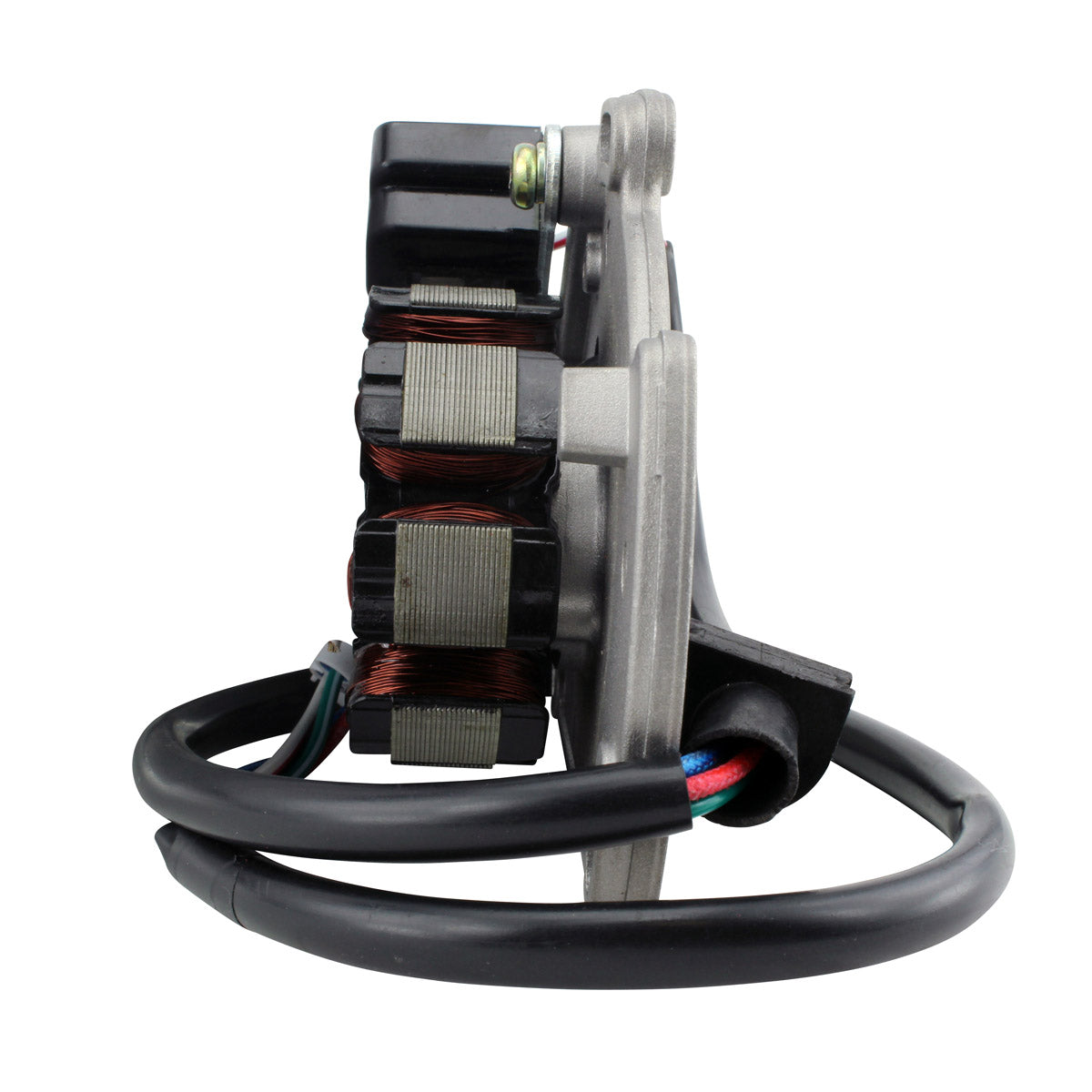

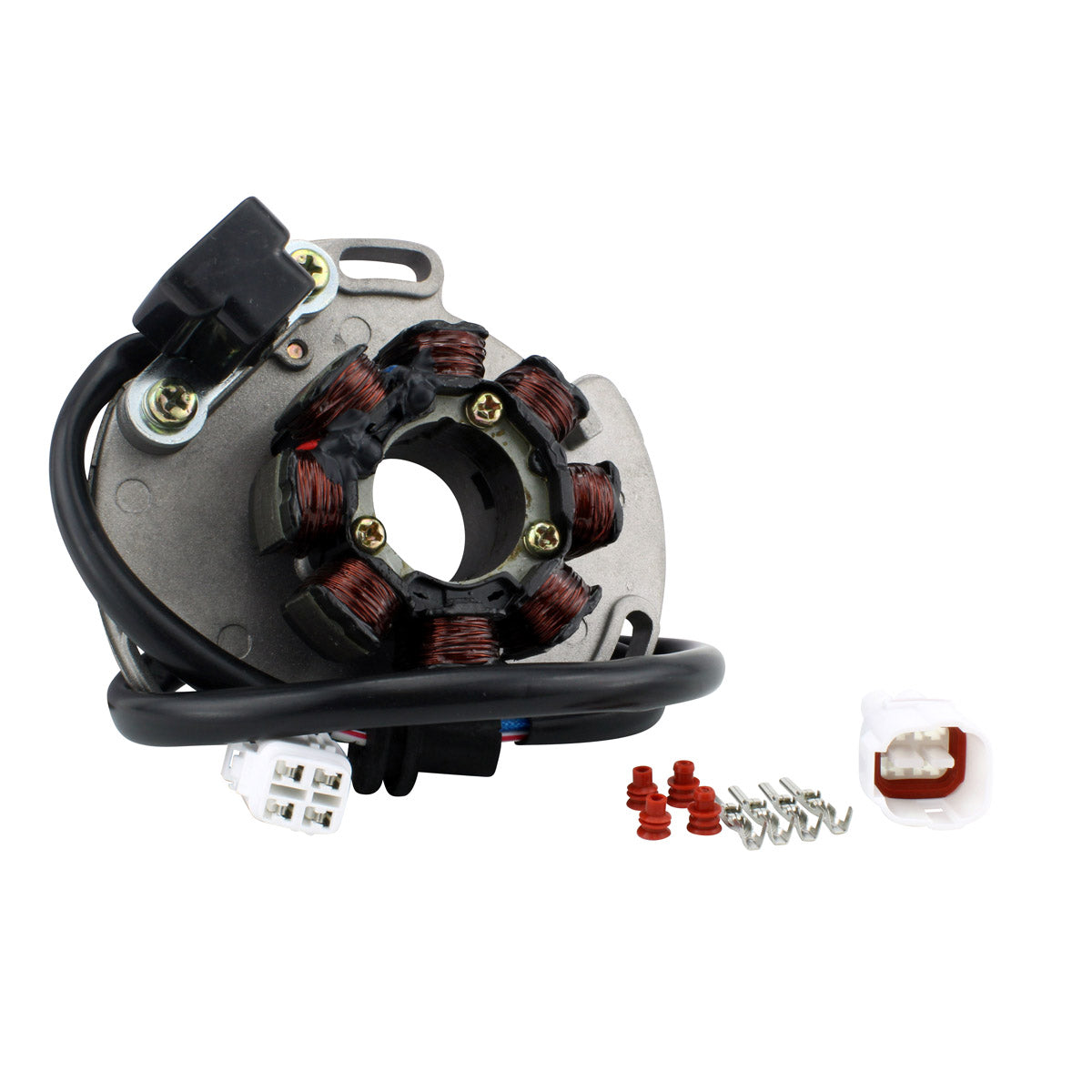

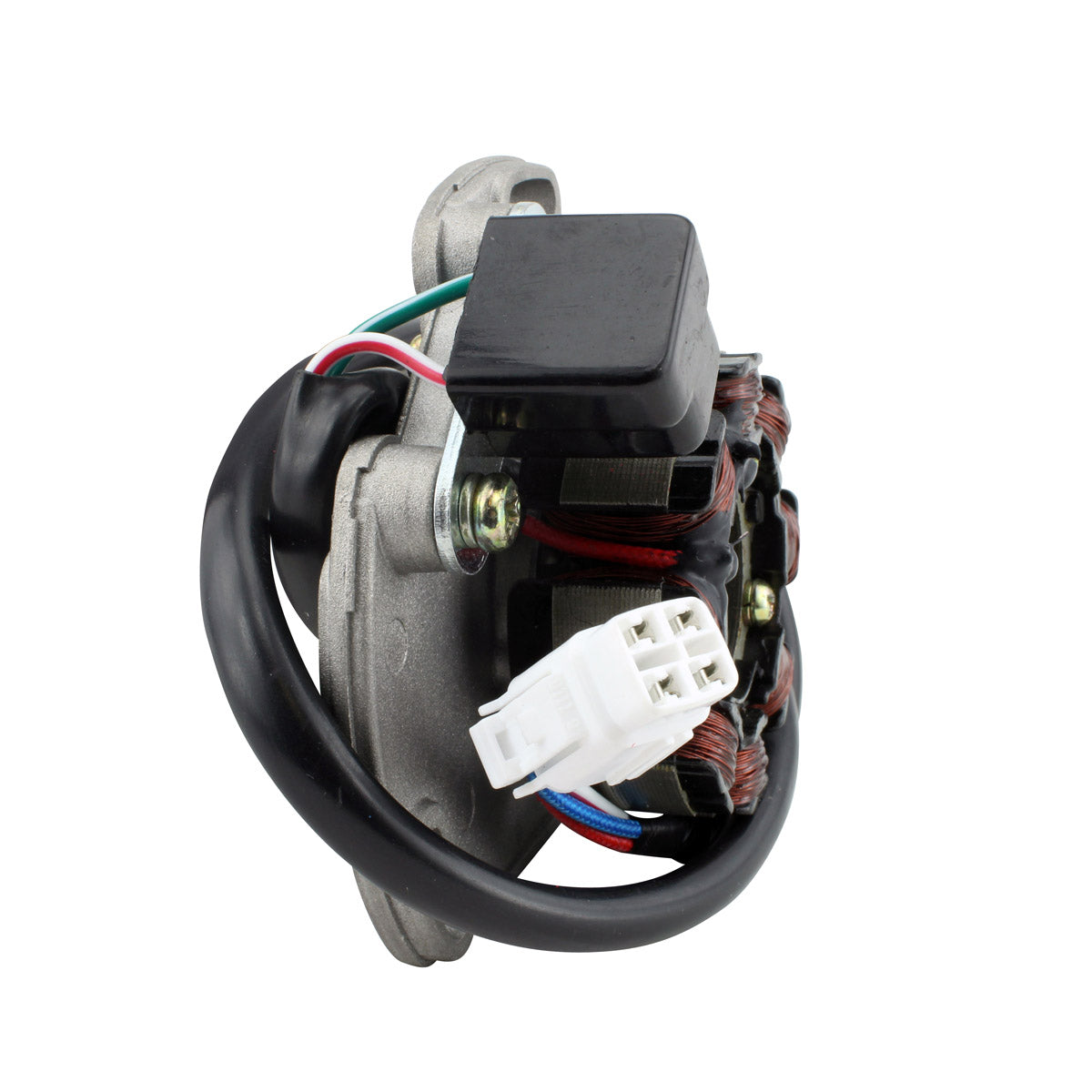

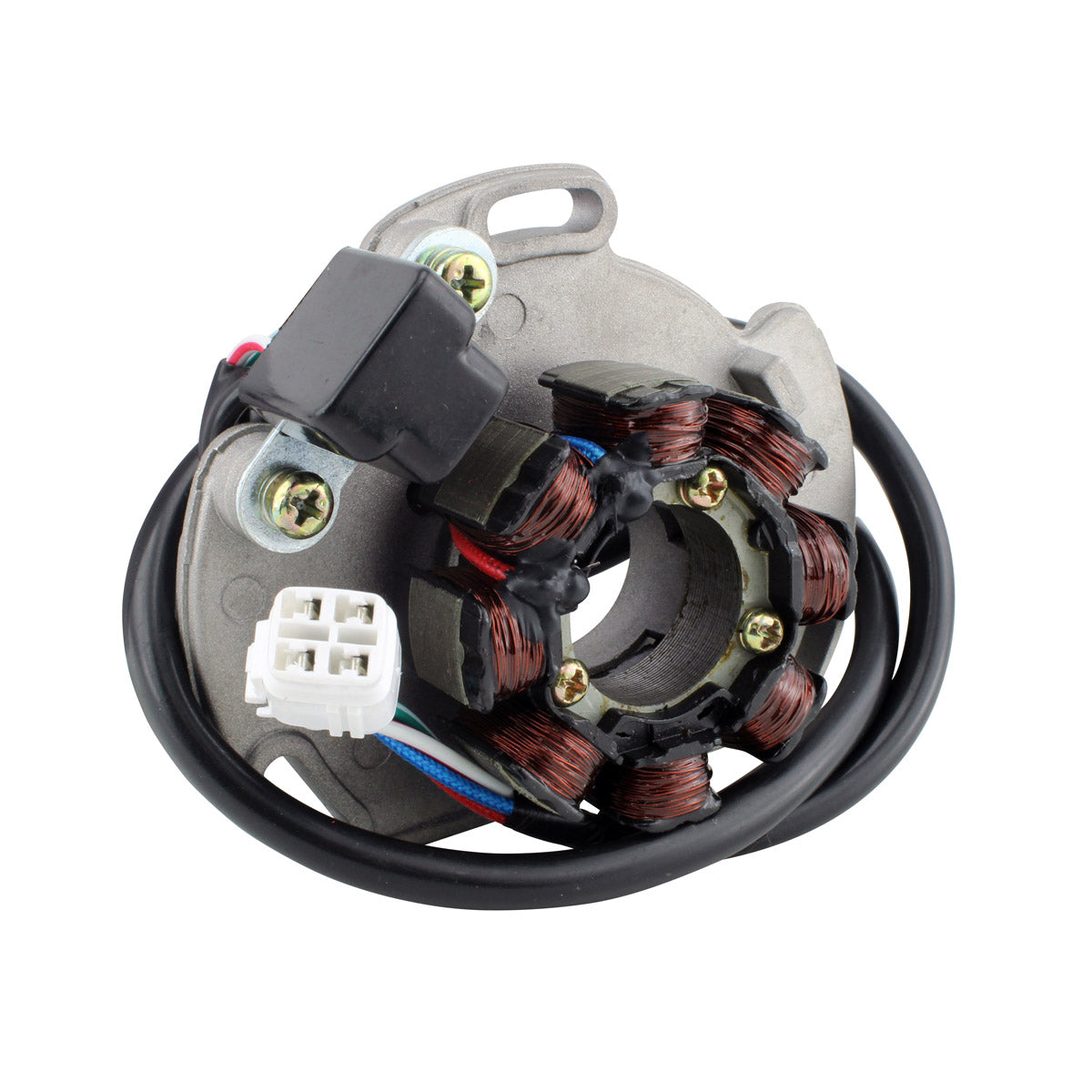

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included

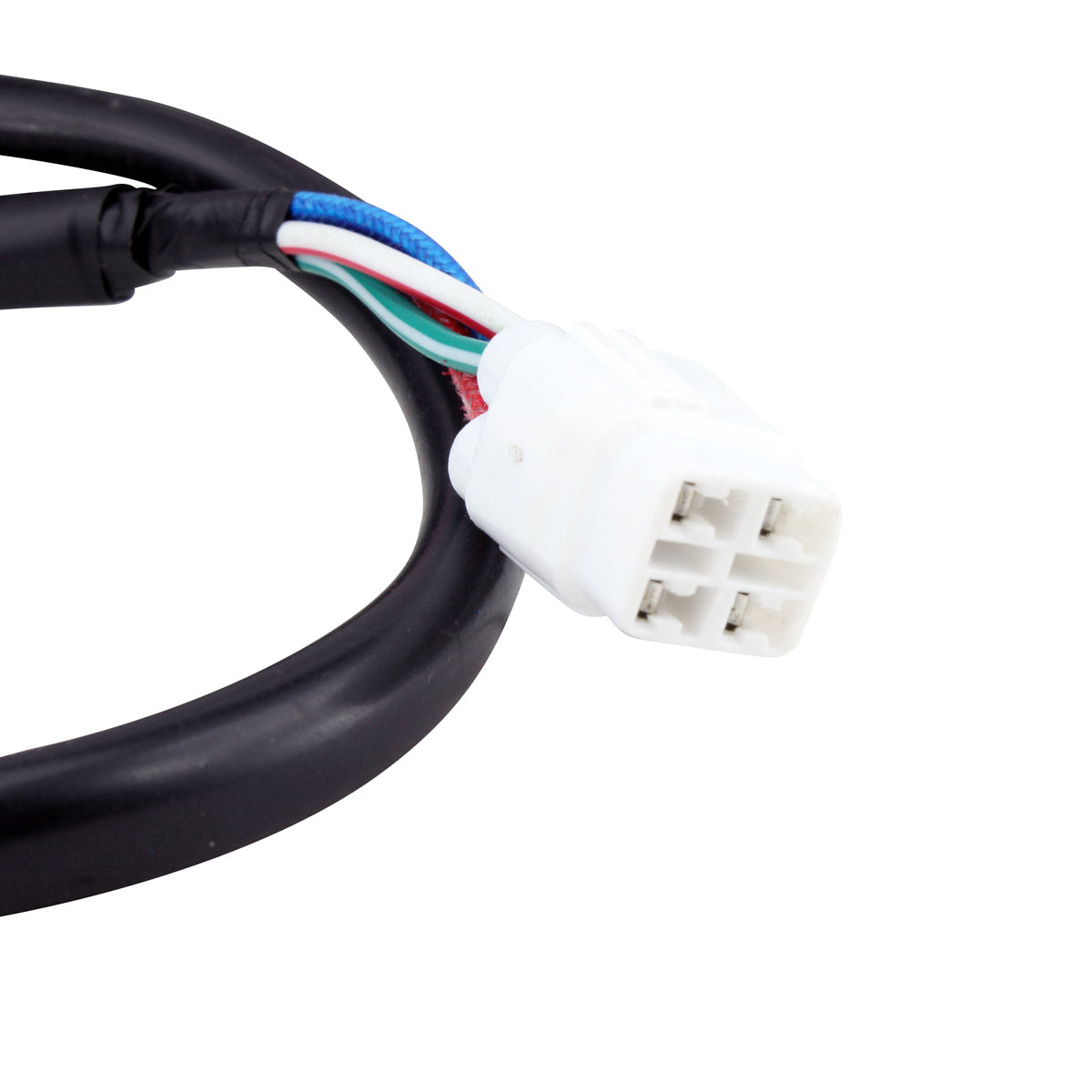

  • Connectors included

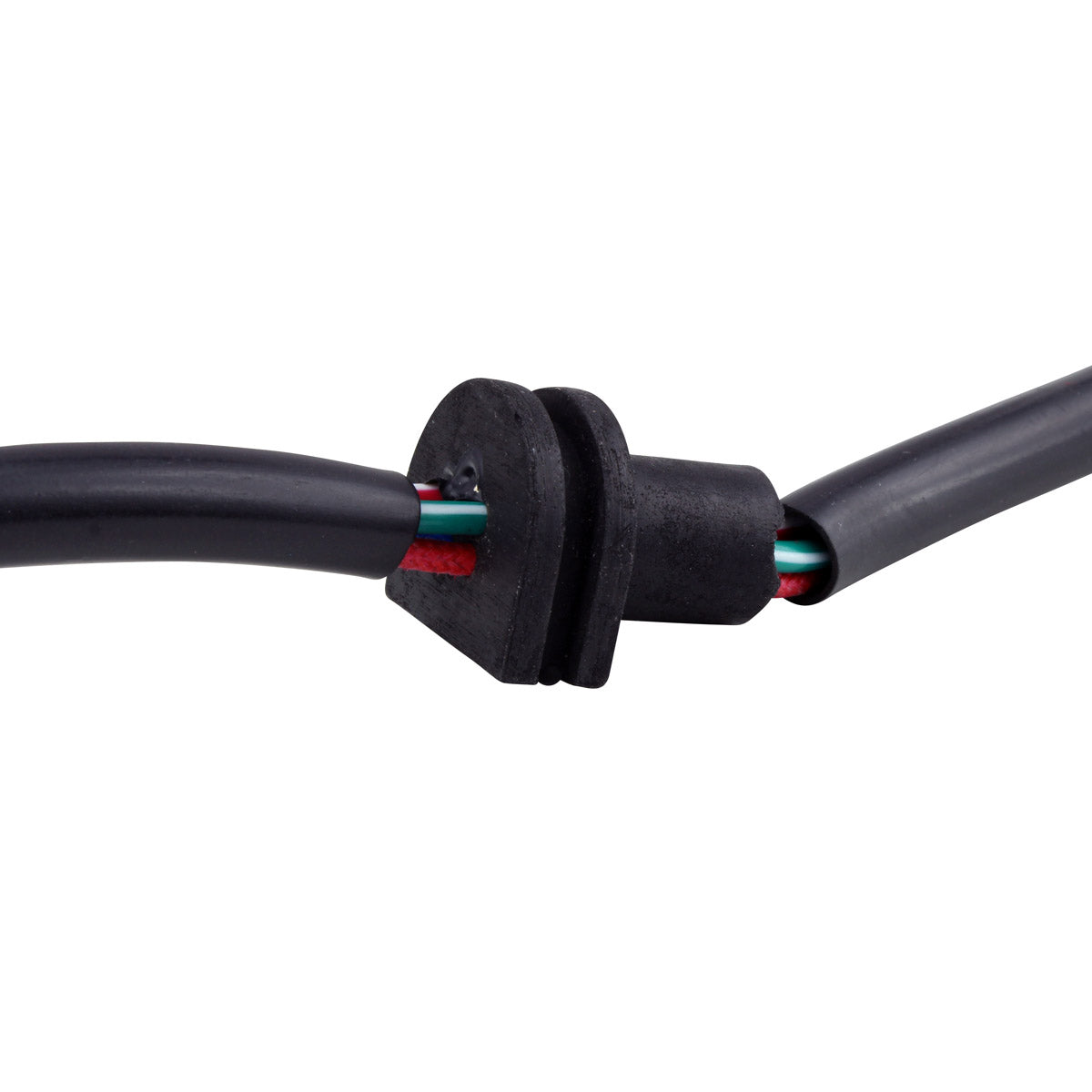

  • Rubber grommet included

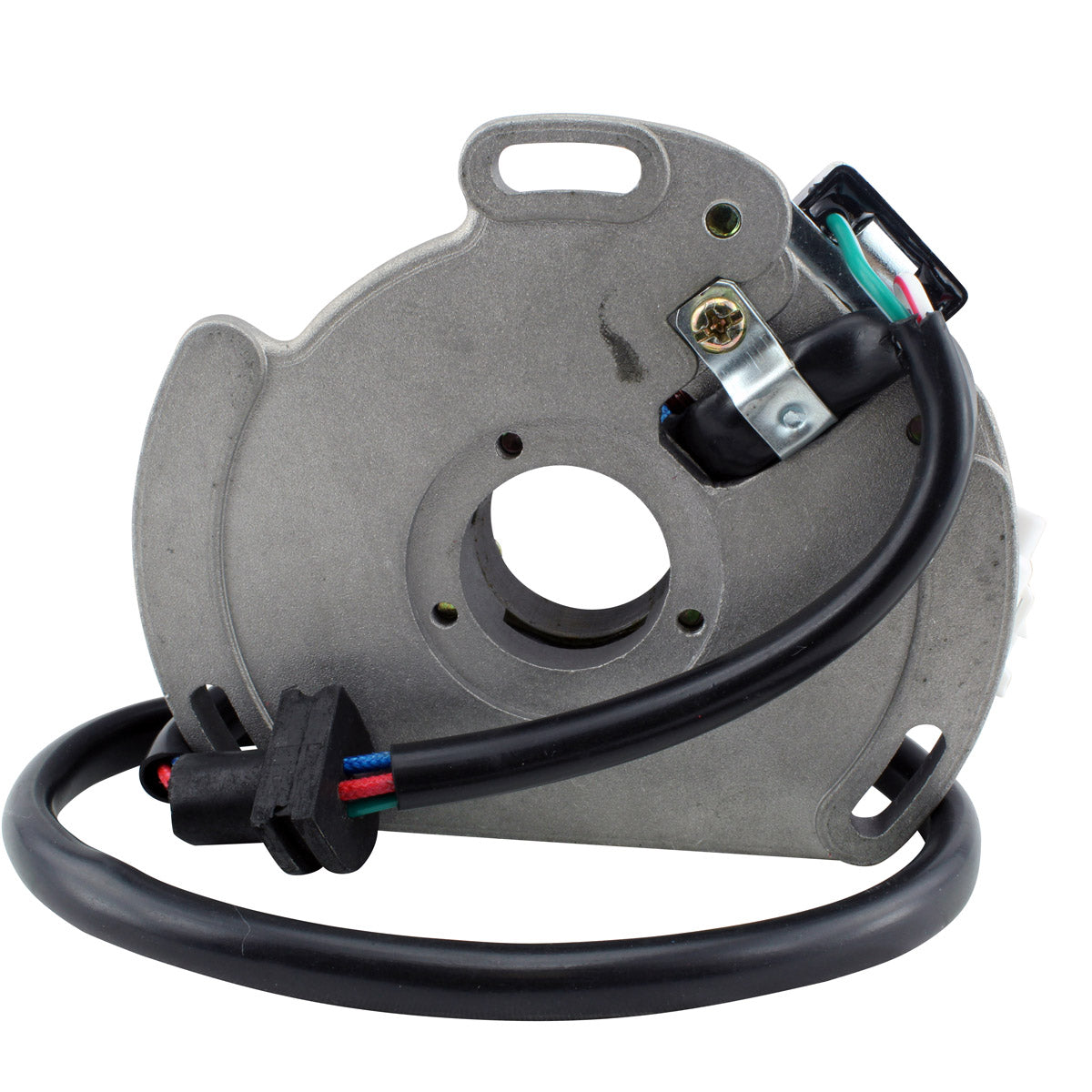

  • Back Plate included
  • All products shipped are tested

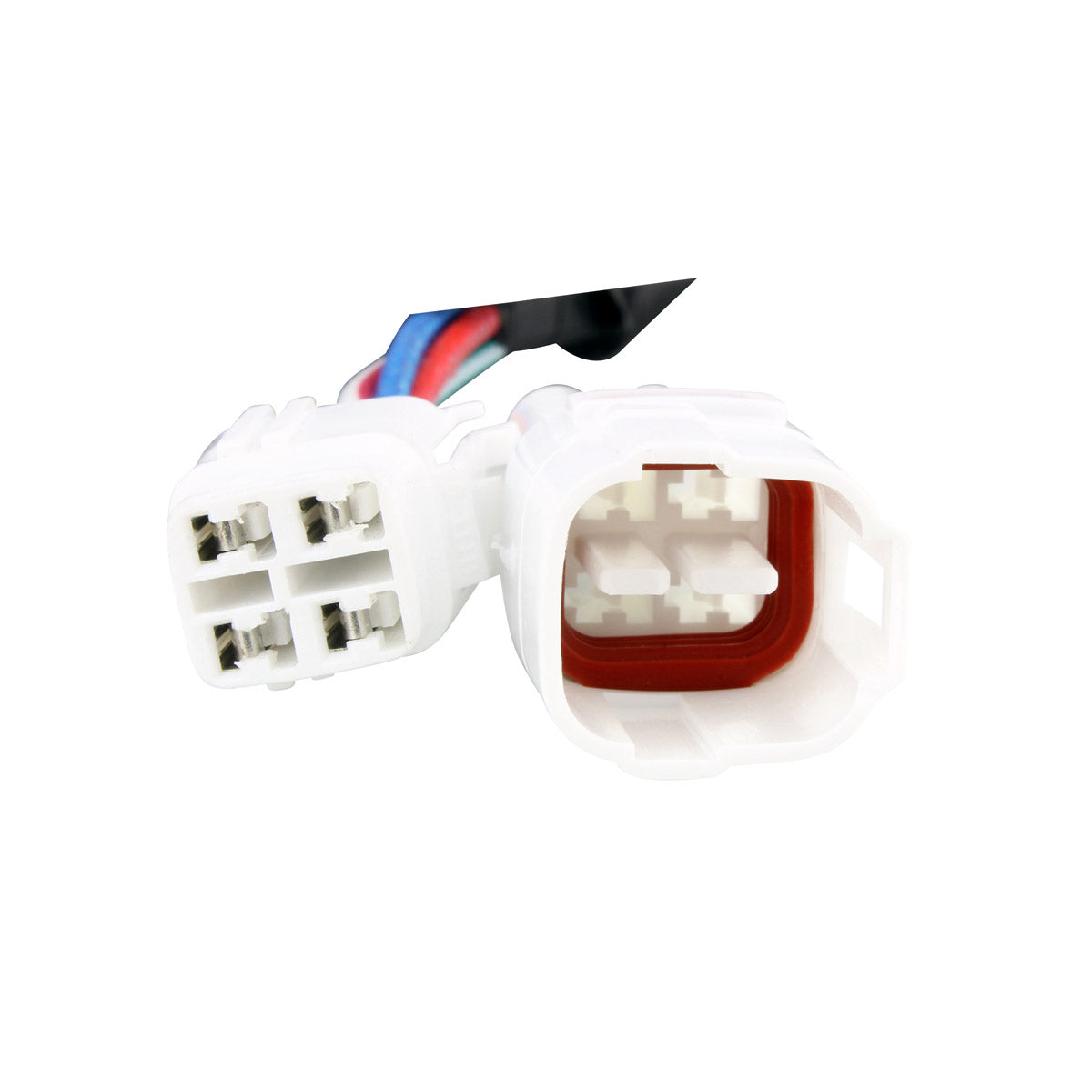

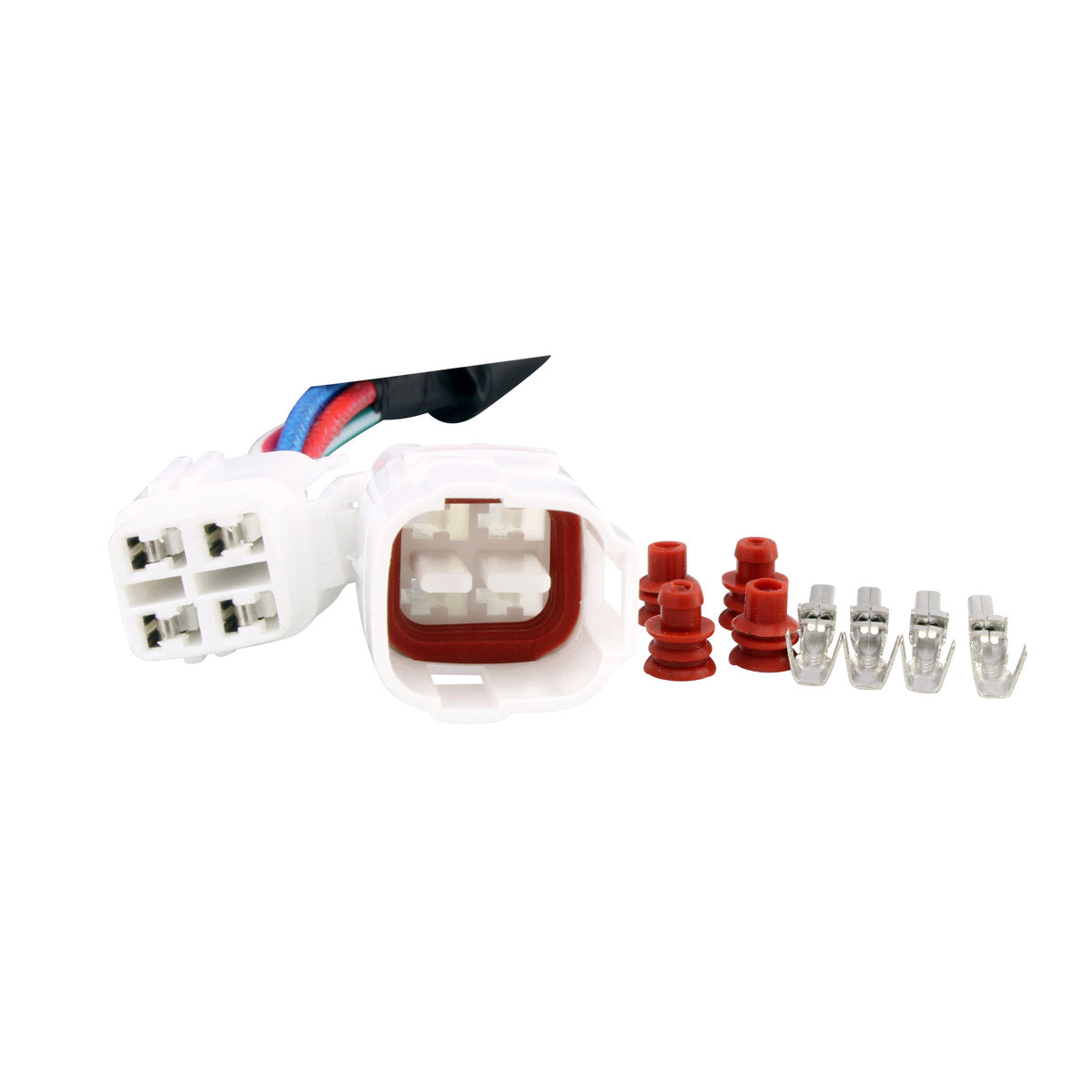

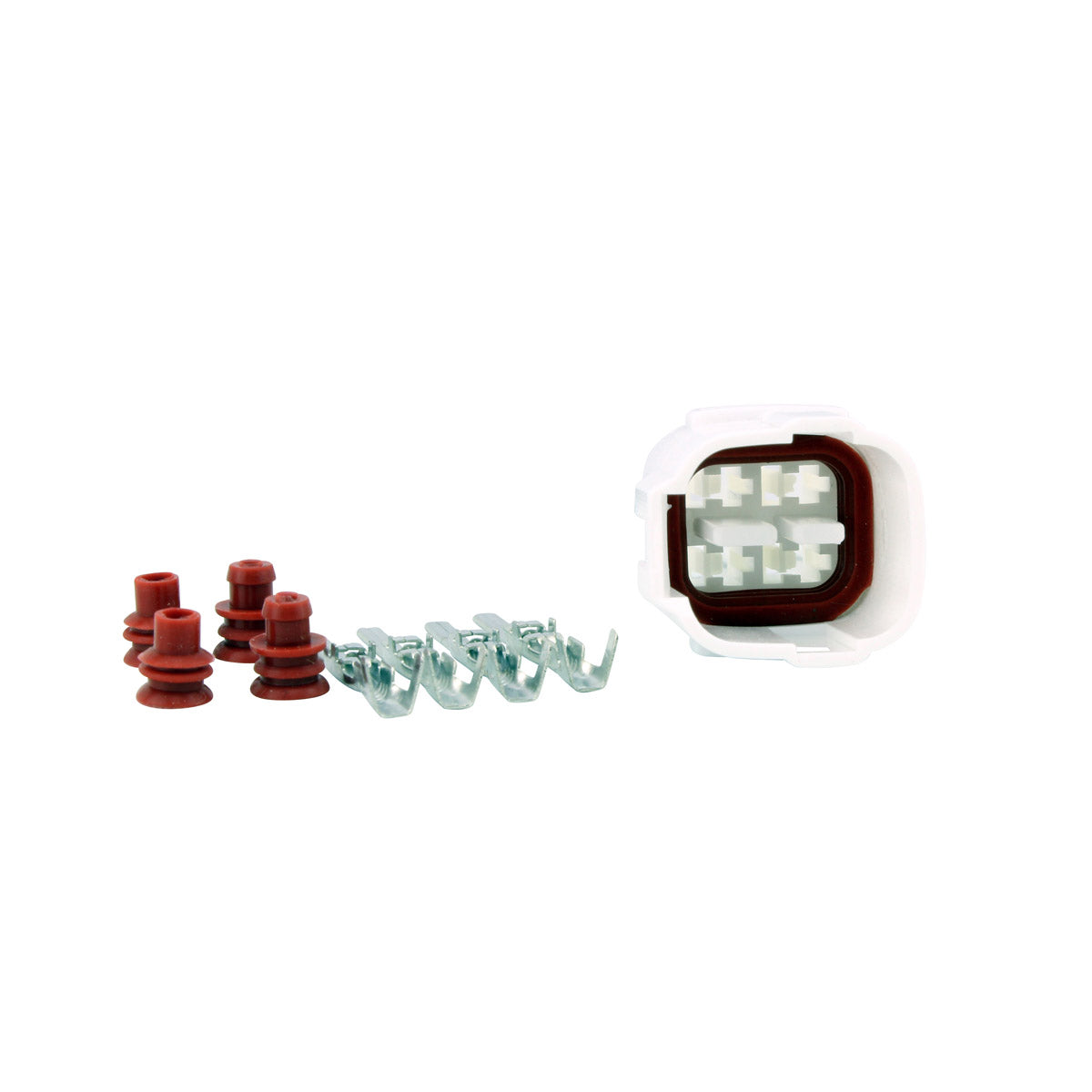

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

Dimensions :
Interior diameter : 28 mm
Exterior diameter : 61 mm
Thickness : 14 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 500 mm

Other specifications :
Number of wires : 4
Number of plugs : 1
Number of pins : 4
Number of poles : 8

Wire to wire resistance :
Source : Red to Blue = 18 ohms +-20%
Pickup : White/Red to White/Green = 100 ohms +-20%

Interchange Part Nº

  • 46239004000

Installation

Before installing your new Stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
