MOSFET Voltage Regulator Rectifier for Polaris Sportsman 450 HO / 550 / 570 X2 / 850 XP / 1000 2010-2020 | OEM# 4012678

RMSTATOR
SKU: RMS020-100174
In Stock
RMSTATOR

MOSFET Voltage Regulator Rectifier for Polaris Sportsman 450 HO / 550 / 570 X2 / 850 XP / 1000 2010-2020 | OEM# 4012678

$134.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

When using this regulator on 2016-2018 Polaris Sportsman 570 models, please pay close attention to the stator and regulator wiring harness routing. The OEM wire routing was very poor, and allowed the harness to rub against the motor, damaging the insulation and damaging the charging system. We recommend routing your stator/regulator wiring outside of the frame rail, and securing the harness to the frame with zip ties. This should prevent any future damage to the wiring harness.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
MOSFET Voltage Regulator Rectifier for Polaris Sportsman 450 HO / 550 / 570 X2 / 850 XP / 1000 2010-2020 | OEM# 4012678
MOSFET Voltage Regulator Rectifier for Polaris Sportsman 450 HO / 550 / 570 X2 / 850 XP / 1000 2010-2020 | OEM# 4012678
$134.89

Details

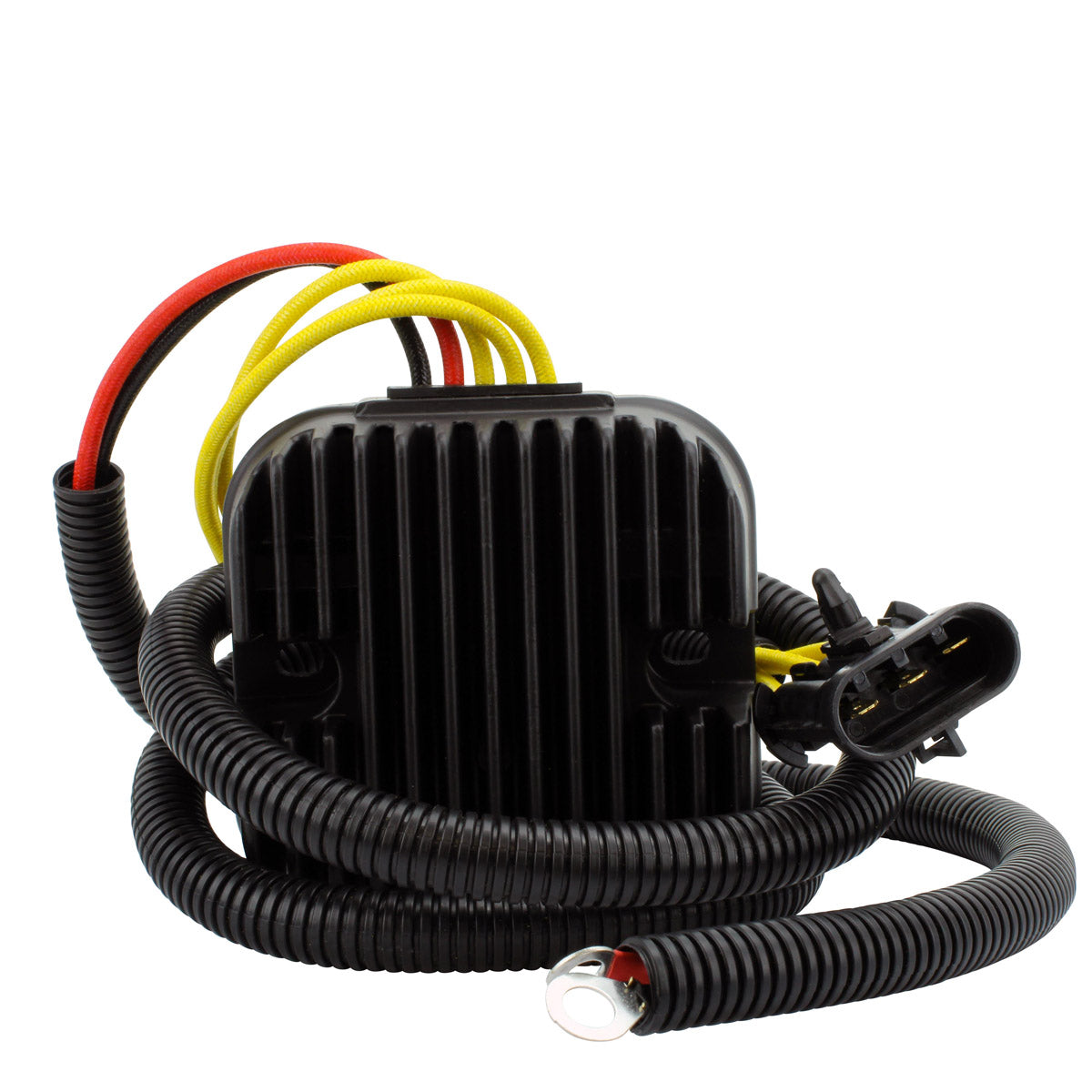

Brand new Mosfet voltage rectifier regulator

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components
  • All shipped products are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.



Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.




Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.



How does a Mosfet regulator rectifier work?




RMSTATOR Enhanced technology=


With
 enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

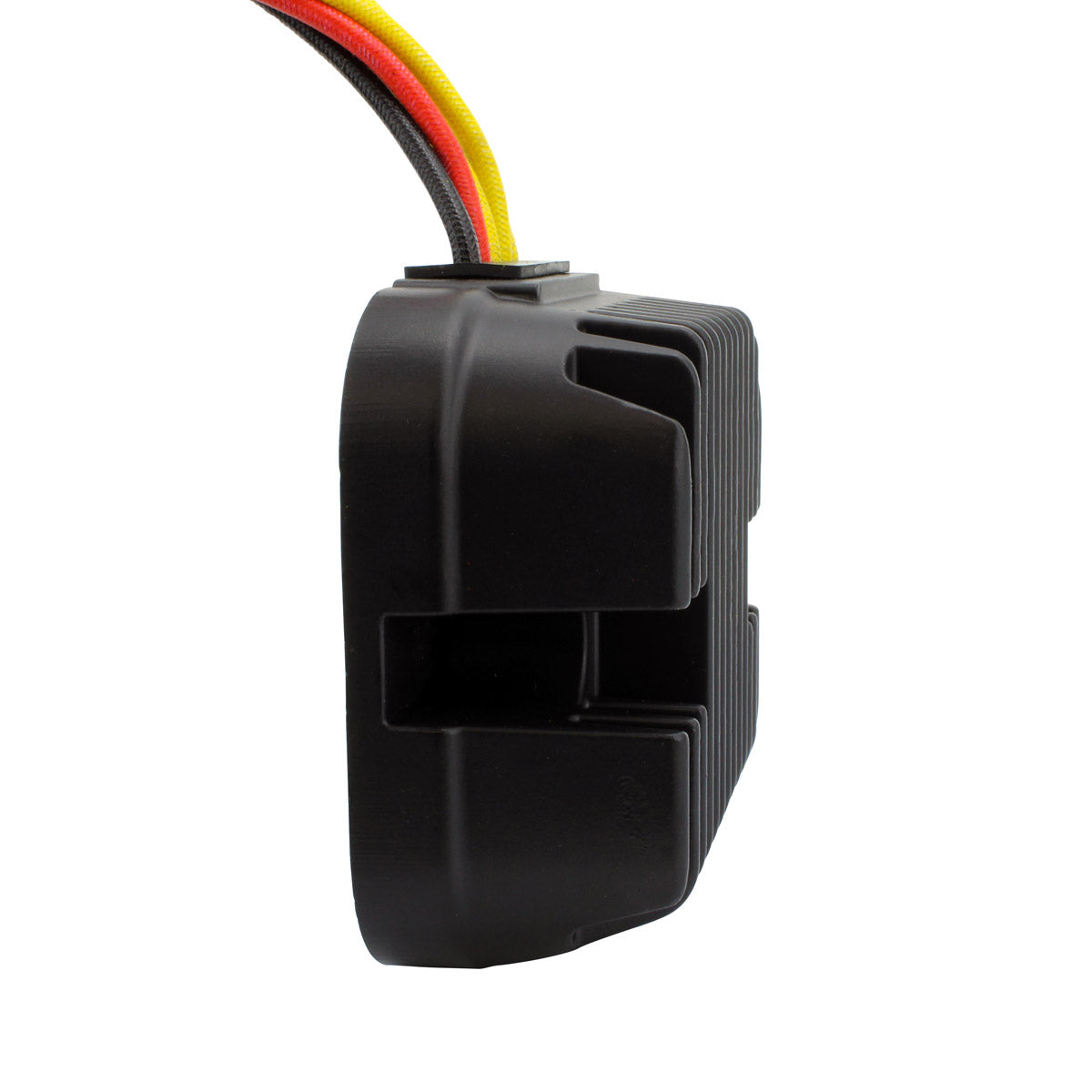

Specifications

Dimensions :
Width : 50 mm
Length : 112 mm
Height : 108 mm
Fixation holes center to center : 84 mm
Wires Length: 600 mm & 1200 mm

Other specifications :

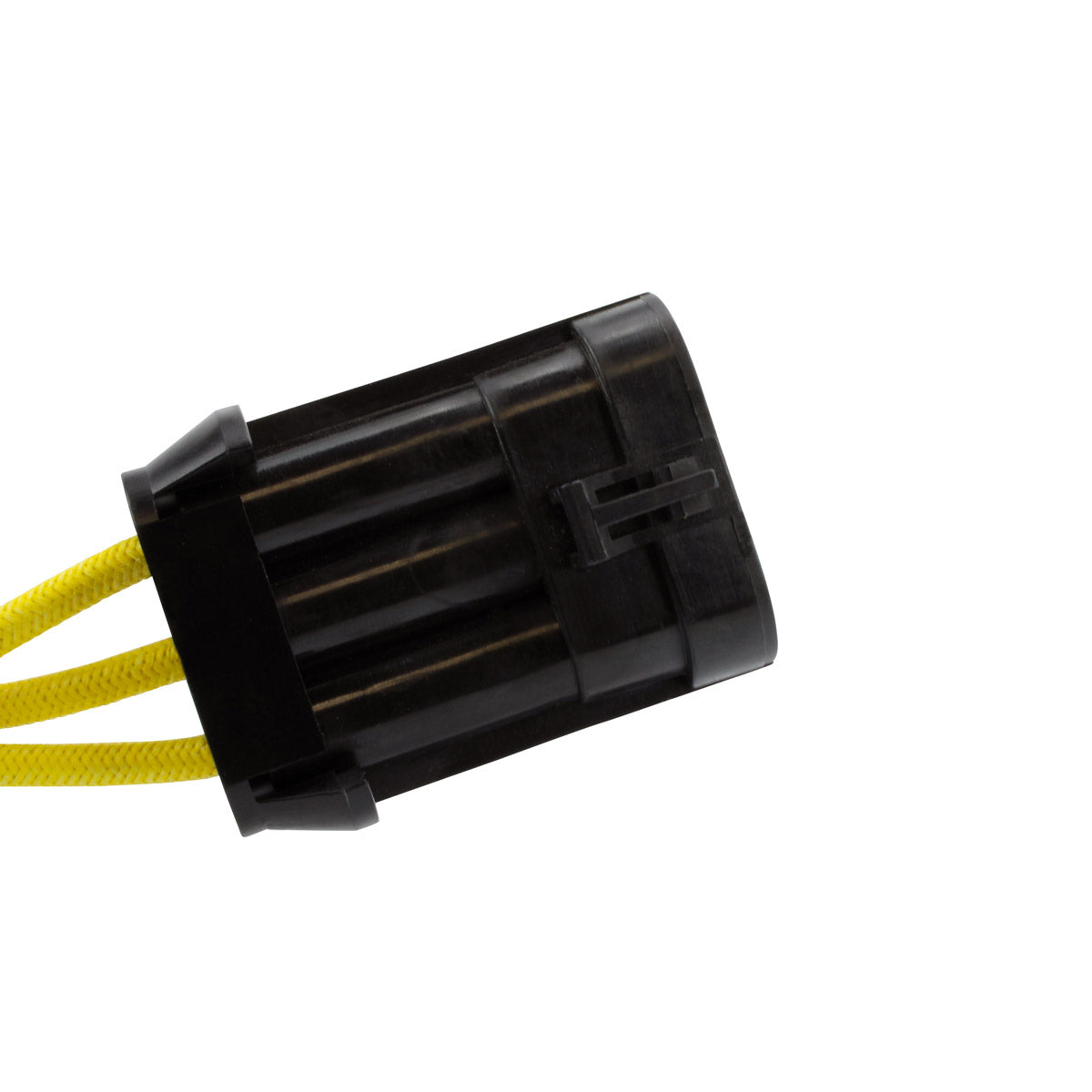

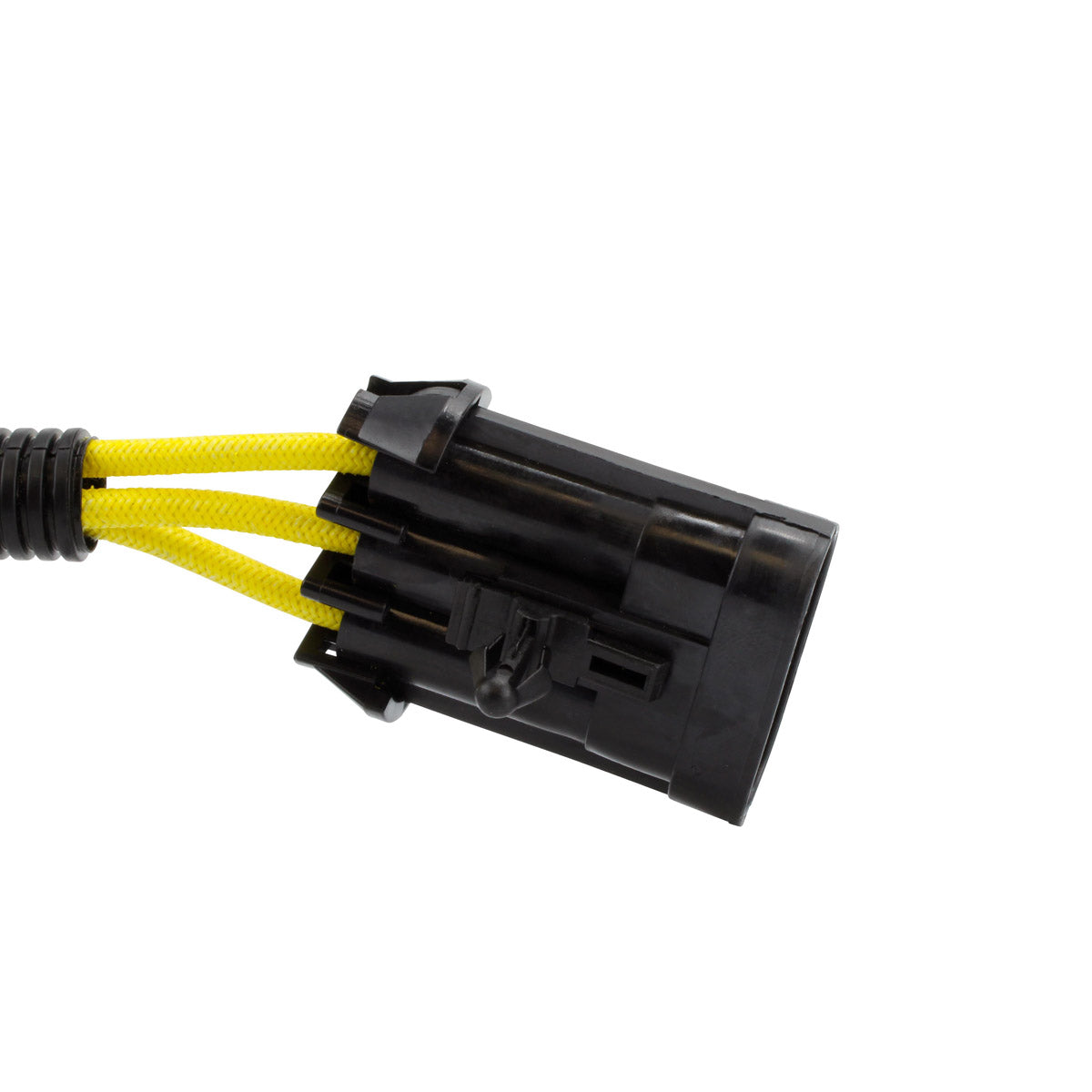

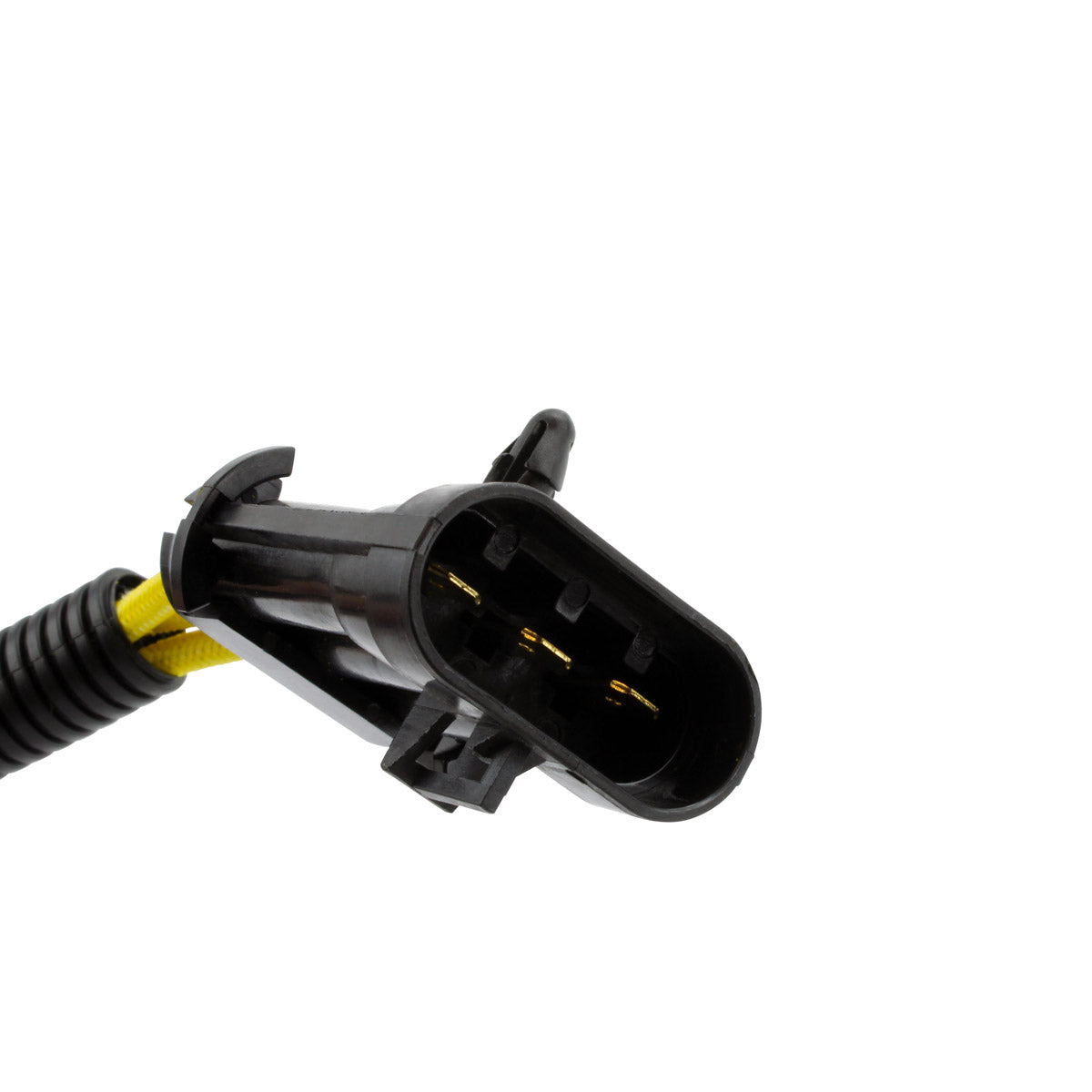

Number of plugs : 3
Number of pins : 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: <15 V
Operation Temperature: -20° to 85°

Interchange Part Nº

  • 4015214
  • 4014543
  • 4014405
  • 4015231
  • 4015230
  • 4012678
  • 2207958
  • 4016136
  • 2208110

Installation

Before installing your new voltage regulator rectifier:
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
