Régulateur for Arctic Cat 400 / 500 1996-1999 | Triumph Bonneville 900 2000-2022 | Suzuki GSXR 750 1996-2005 # 3430-016
RMSTATOR
SKU: RM30405
En stock
RMSTATOR
Régulateur for Arctic Cat 400 / 500 1996-1999 | Triumph Bonneville 900 2000-2022 | Suzuki GSXR 750 1996-2005 # 3430-016
Fermer
Avertissement de compatibilité:
Fermer
Fermer
Shop By Vehicle
L'état de la batterie est extrêmement important. Aucun régulateur de tension ne peut fonctionner correctement avec une batterie défectueuse ou faible. Chargez toujours complètement votre batterie avant de tester le système de charge ou de remplacer des pièces. En cas de doute, faites tester la charge de la batterie ou la remplacer.
Read more
Régulateur for Arctic Cat 400 / 500 1996-1999 | Triumph Bonneville 900 2000-2022 | Suzuki GSXR 750 1996-2005 # 3430-016
Détails
Détails

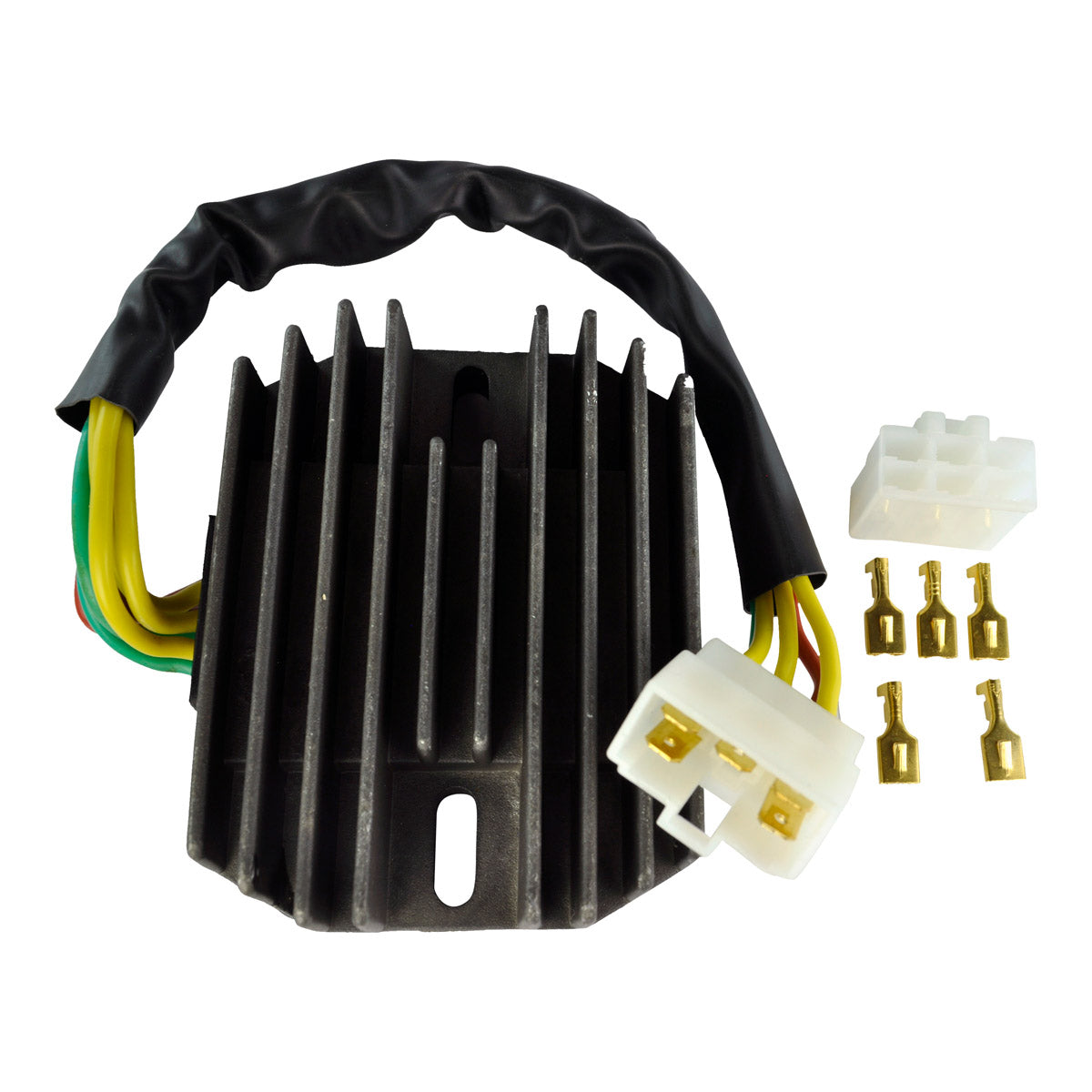

Régulateur rectifieur de voltage neuf
ATTENTION : Le 1996 Bearcat 4x4 et 1997 454 Beaucat 4x4 ont un connecteur différent. S'il vous plait consultez les instructions d'installation avant d'acheter ce produit.- Un remplacement direct a votre unité d'origine.
- Plug-and-play, montage direct, installation facile.
- Aucun assemblage requis
- Plus haut grade de composantes électrique.

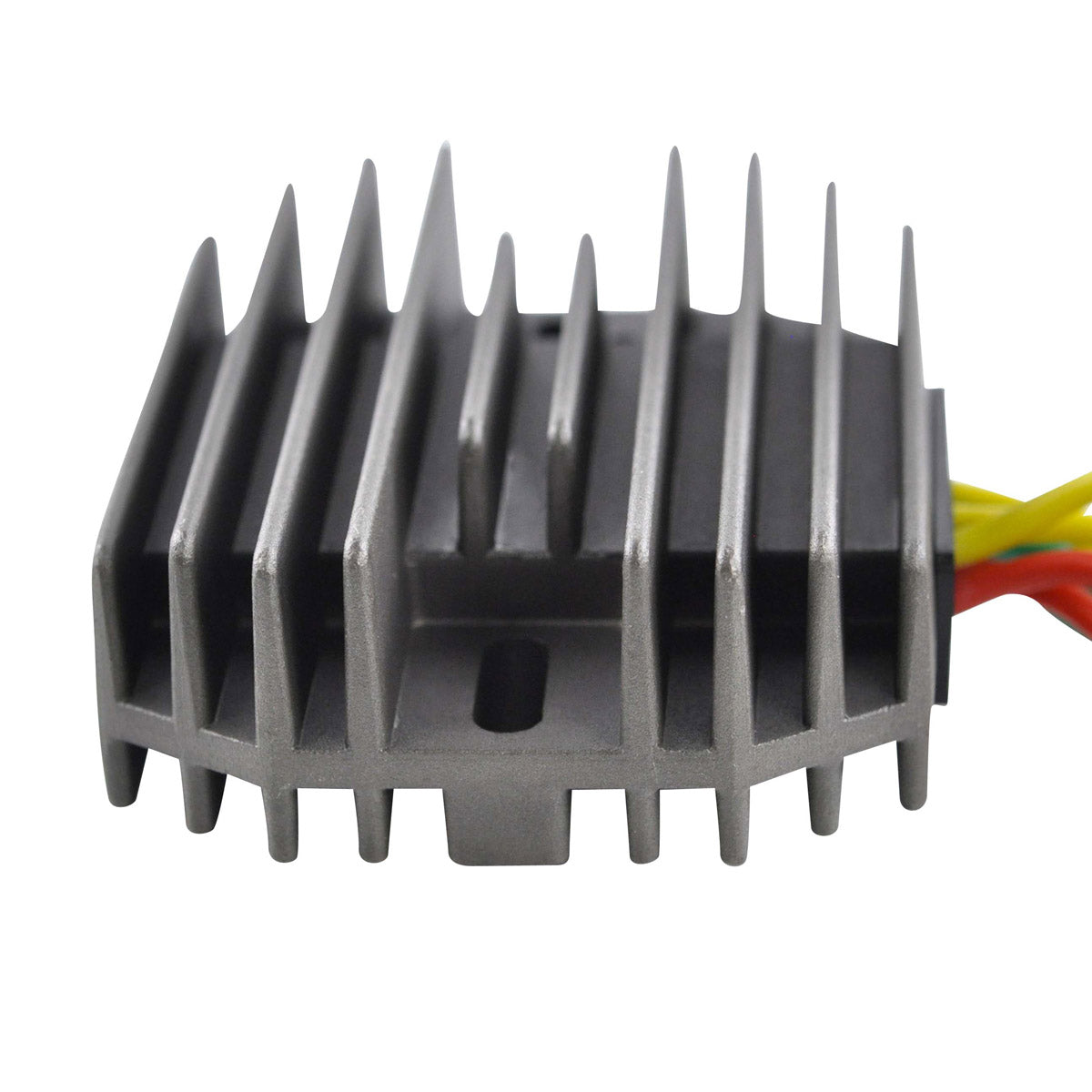

- Dissipateur thermique et capacités de charge améliorée.
- La qualité est supérieure au matériel OEM.
- Tous les produits expédiés sont vérifiés.
En cas de doute, n’hésitez pas à comparer notre article à votre pièce d’origine, en vous référant à nos photos.
Caractéristiques
Caractéristiques
Dimensions :
Largeur : 80 mm
Longueur : 115 mm
Hauteur : 54 mm
Distance entre les trous de fixation : 80 mm
Longueur des fils : 235 mm
Autres spécifications :

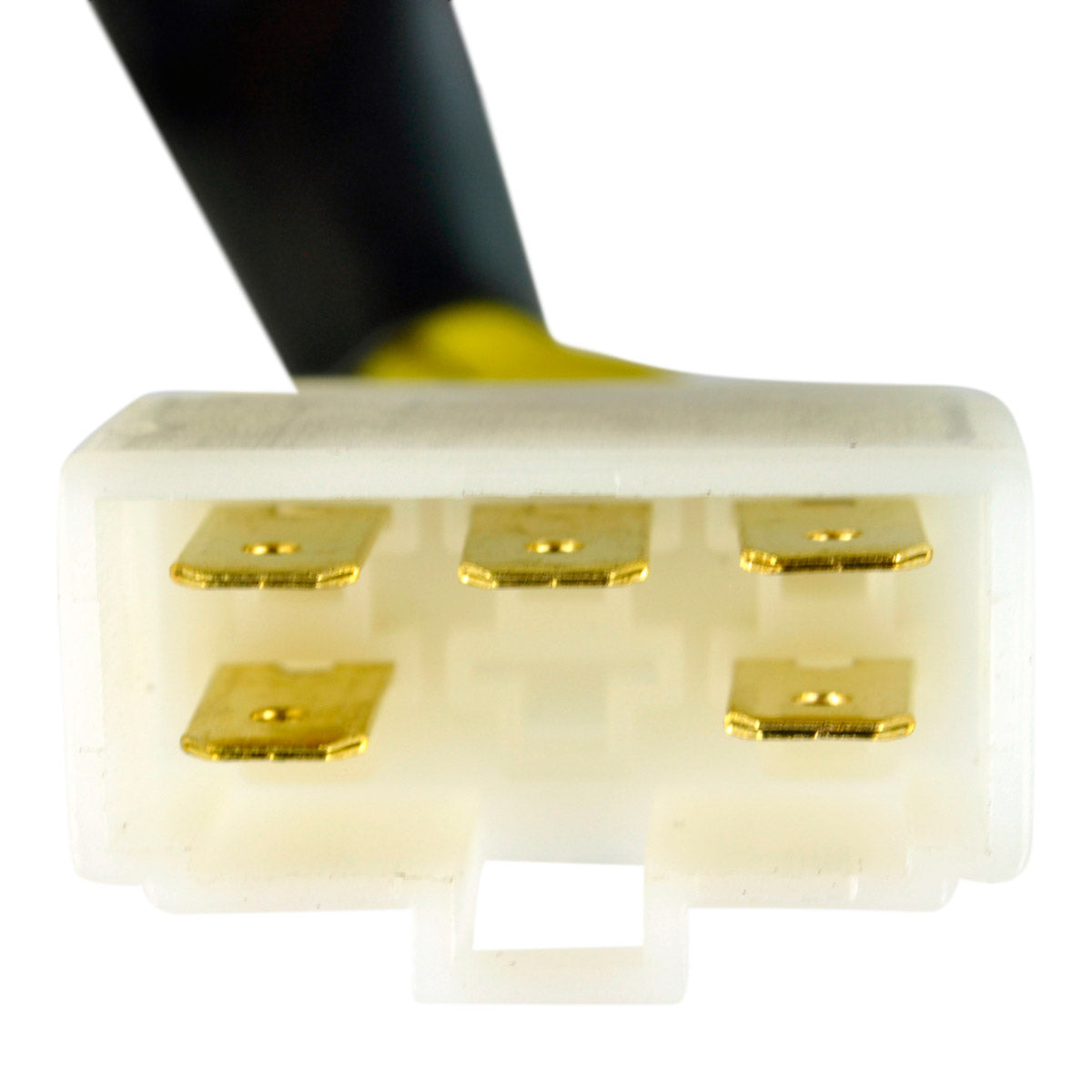

Nombre de connecteur : 1
Nombre de terminaux : 5
Nombre de fils : 5
Tension de charge minimale : 14.5 V +/- 0.5 V
Courant de charge maximum : 50 A / 500 W
Tension de circuit ouvert : < 15 V
Température d'opération : -20°C à 85°C
Numéro de référence
Numéro de référence
- T1300890
- T1300889
- T1300888
- 3430-072
- T1300819
- 3430-037
- 3430-016
- 32800-44D10
- 32800-44D11
- 32800-33E21
- 32800-33E00
- 32800-33E10
- 32800-33E20
Installation
Installation
BEWARE: Arctic Cat split the year on certain models; the RM30405 replaces OEM parts #3430-037 and #3430-016

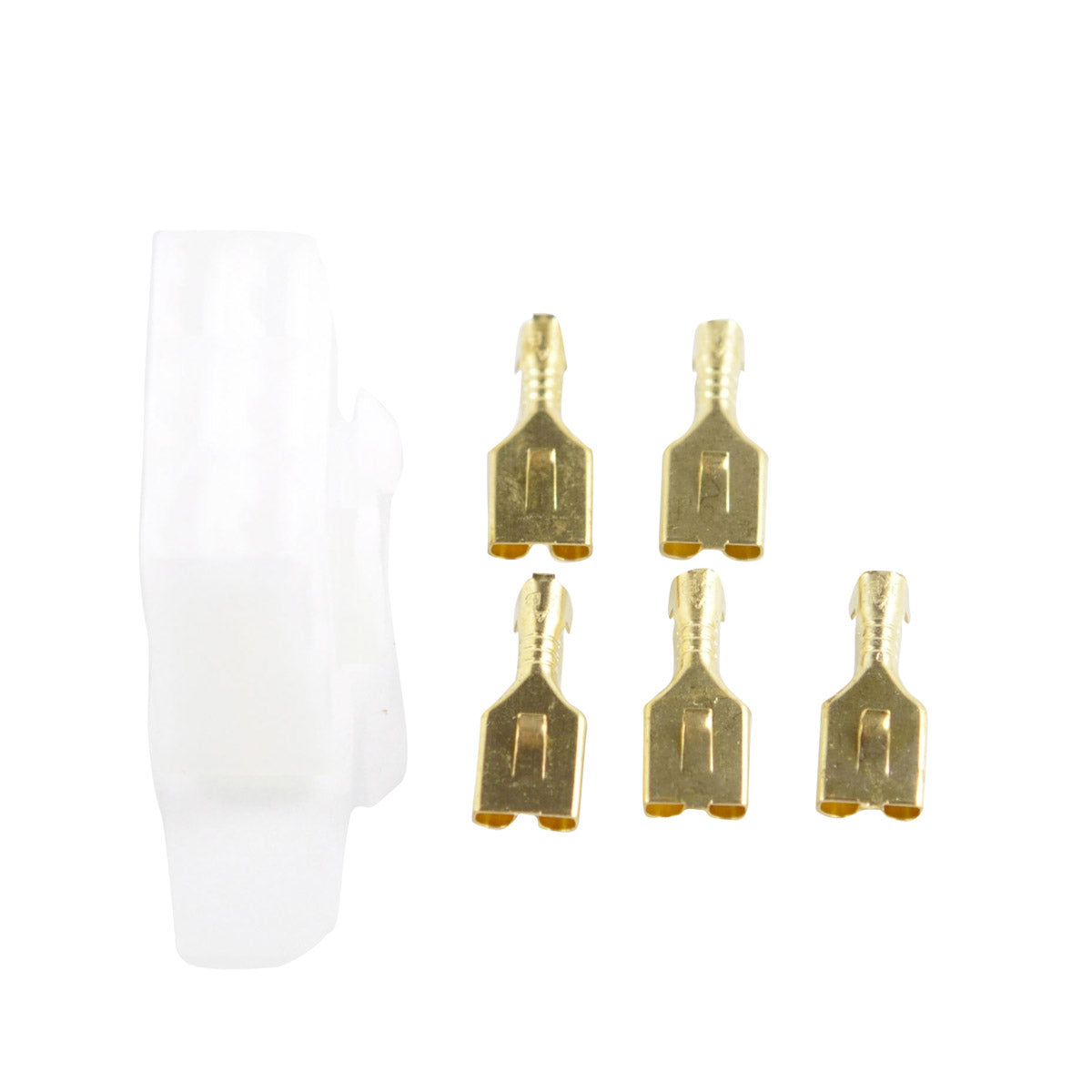

The 1996 and early-1997 454 Bearcat 4x4 has a different plug. You need to install the harness-side included connector on your vehicule. Please following the color code supplied at the end of this page.
Color code for 1996 and early-1997 454 Bearcat 4x4 harness-side connector :
The 3 Black wires to the 3 Yellow's
Black/Red to Red
Black/White to Green
This is the 1996 and early-1997 harness plug :
Before installing your new regulator/rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
