RMSTATOR SPLYT for Can-Am!

Can-Am models have long needed more power and more reliability from their charging system. RMSTATOR provides this with revolutionary SPLYT technology. This system provides over 150 Watts of increased output with peace of mind from dual voltage regulators. Make the upgrade today!

Why use the SPLYT Technology?

As featured by Dirt Trax television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures while providing increased output for accessories. Using a dual output stator with two separate 3 phase windings, this system splits the power generated between 2 voltage regulators. Each regulator then operates with only half the load, allowing them to maintain a lower temperature and increase reliability, even at higher power levels.

Brand new Lithium-Ion Batteries Compatible MOSFET Voltage Regulator

WORKS WITH LITHIUM BATTERIES ONLY

Stop burning your voltage regulator rectifier!
It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all SCR diode-style OEM regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM part
• Higher grade of electric components
• All shipped products are tested.

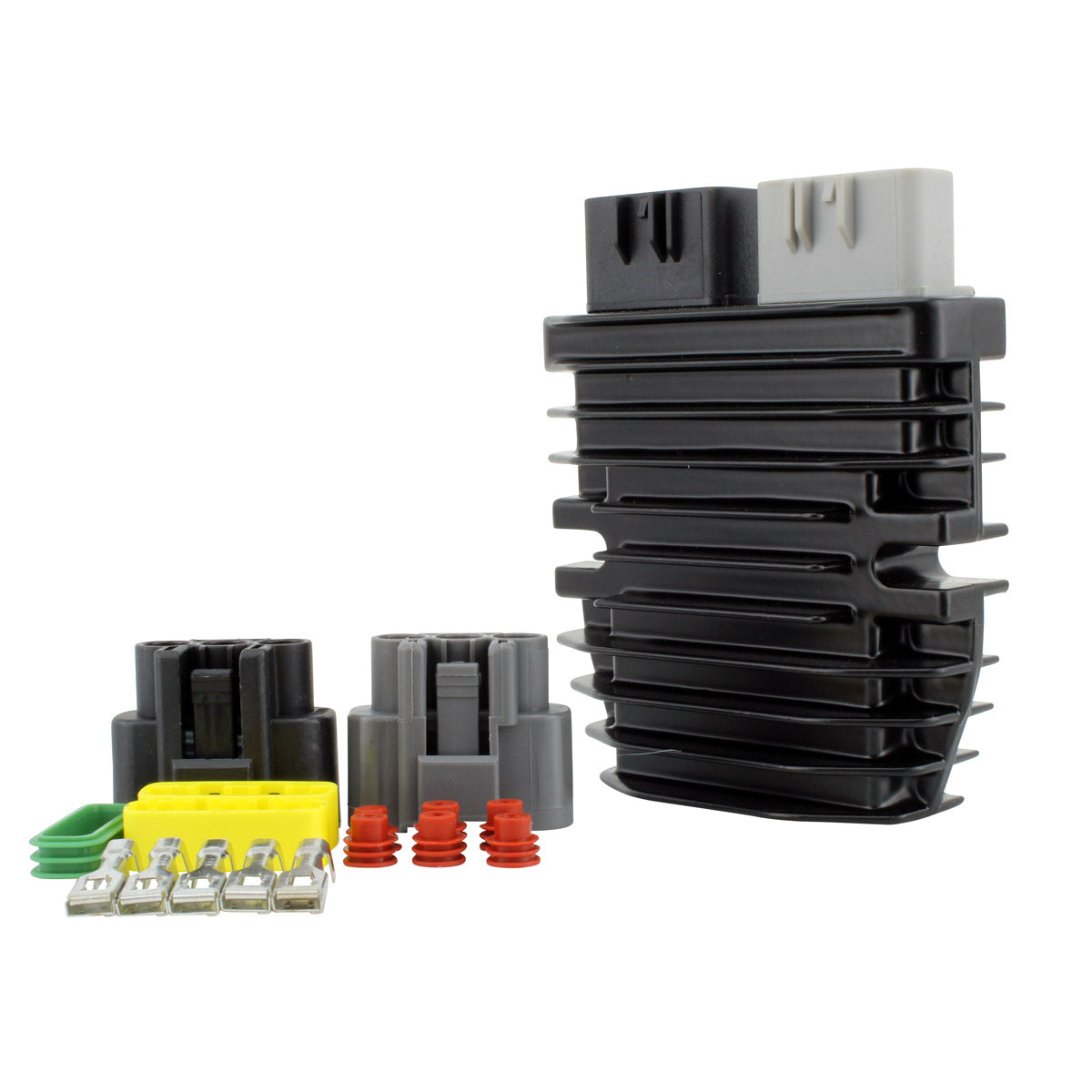

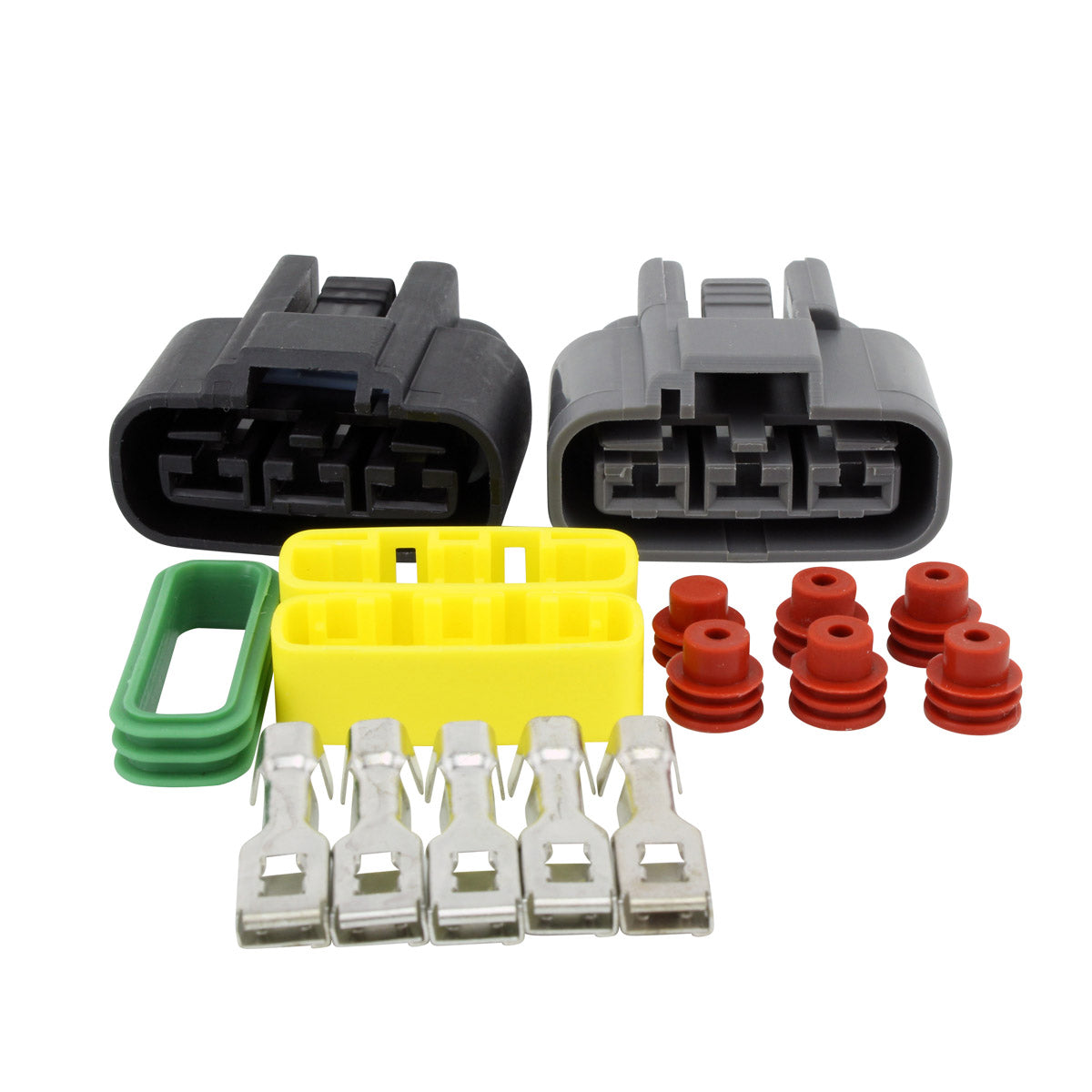

Opposite connector (main harness side) included as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part

Why do you need a different voltage regulator for lithium batteries?

Lithium batteries have different charging requirements than Lead Acid or AGM batteries that can severely affect their lifespan and performance. The key factors in safe and reliable lithium battery charging are the output DC voltage ripple and average output voltage. The RMSTATOR regulator is designed around the optimal parameters for these factors.

The ripple effect is all that matters

Charging voltage ripple in a powersports application is the difference between the highest and lowest voltages from the voltage regulator output. By nature, a common shunt style voltage regulator will have a fairly high voltage ripple due to the regulation shunt switches opening and closing frequently. Each on/off transition will cause some variation in the output voltage, this is unavoidable. Keeping this to minimum is critical for Lithium batteries, and the RMSTATOR Lithium regulator is designed around this feature.

In a perfect world, a ripple of less than 10% of the output voltage (~1.5V for a typical regulator), would be ideal, however is not practical for this type of regulator. The RMSTATOR Lithium regulator is able to maintain a less than 4 Volts output ripple, compared to verified test results of our competitors 8 volts. Keep in mind this ripple voltage is only seen via an Oscilloscope sampling the voltage 1000’s of times a second, and is not the same as your average charging voltage as measured by a multimeter.

Why use Mosfet Enhanced technology?

Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.

Saves gas

Less load on the stator, less work, less fuel is used and you save.

Regulated energy

The power charging your battery is steadier and smooth.



Extended battery life

Extends the battery’s life and cold cranking capacity.

More engine power

Removes stator load resulting in more engine power.

Optimized power

Optimize power delivery by switching the stator coils on or off.

How does a Mosfet regulator rectifier work?

With design

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

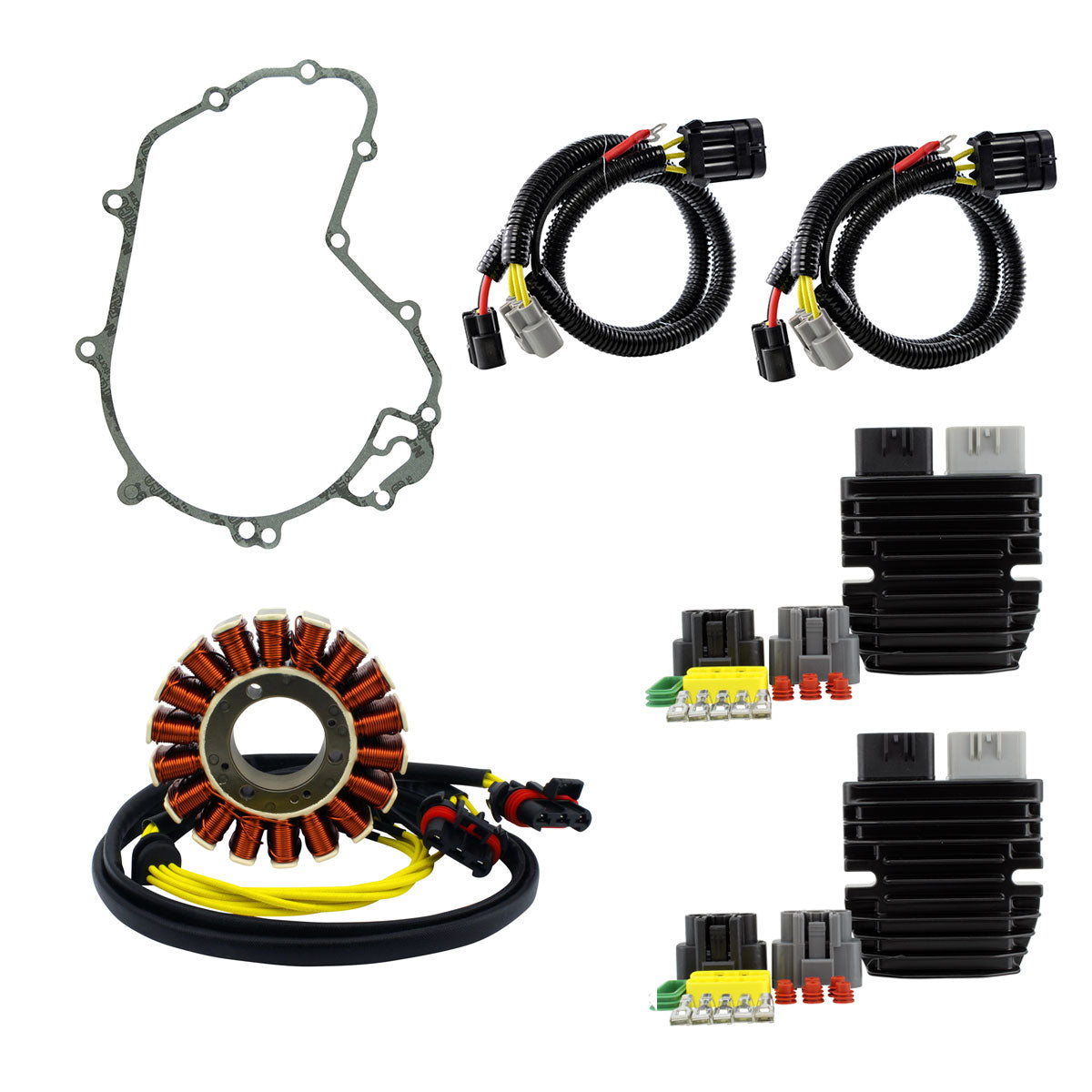

This kit includes:

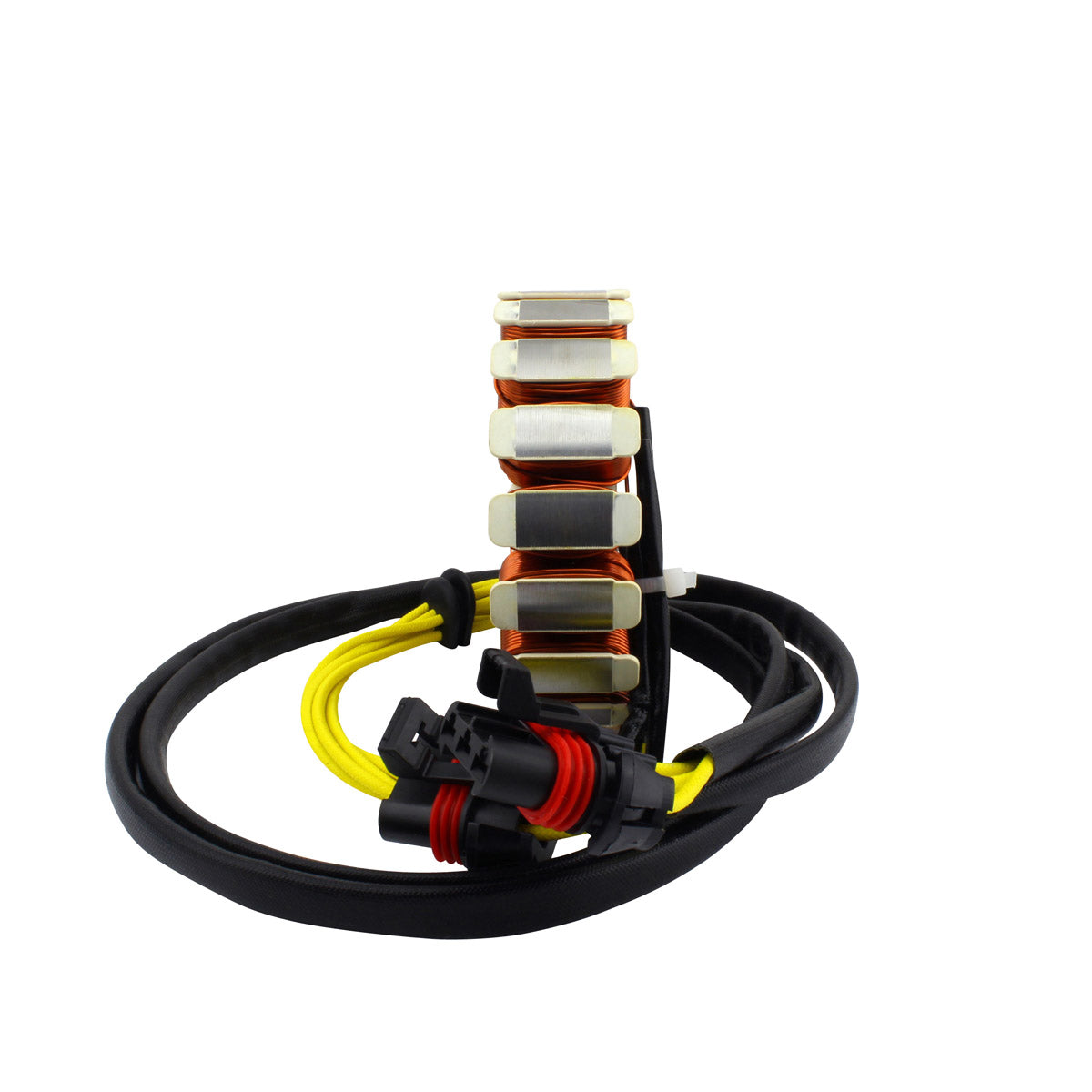

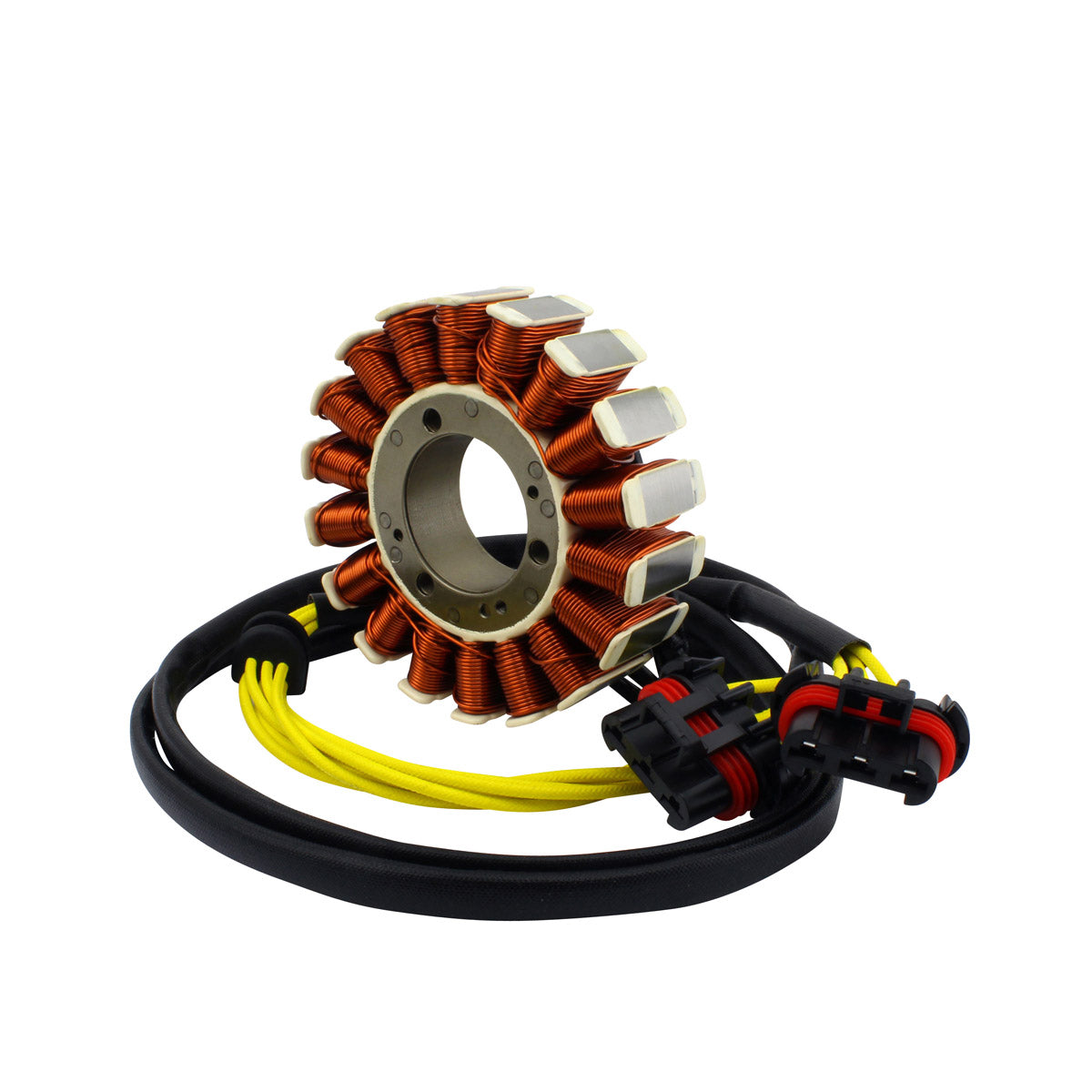

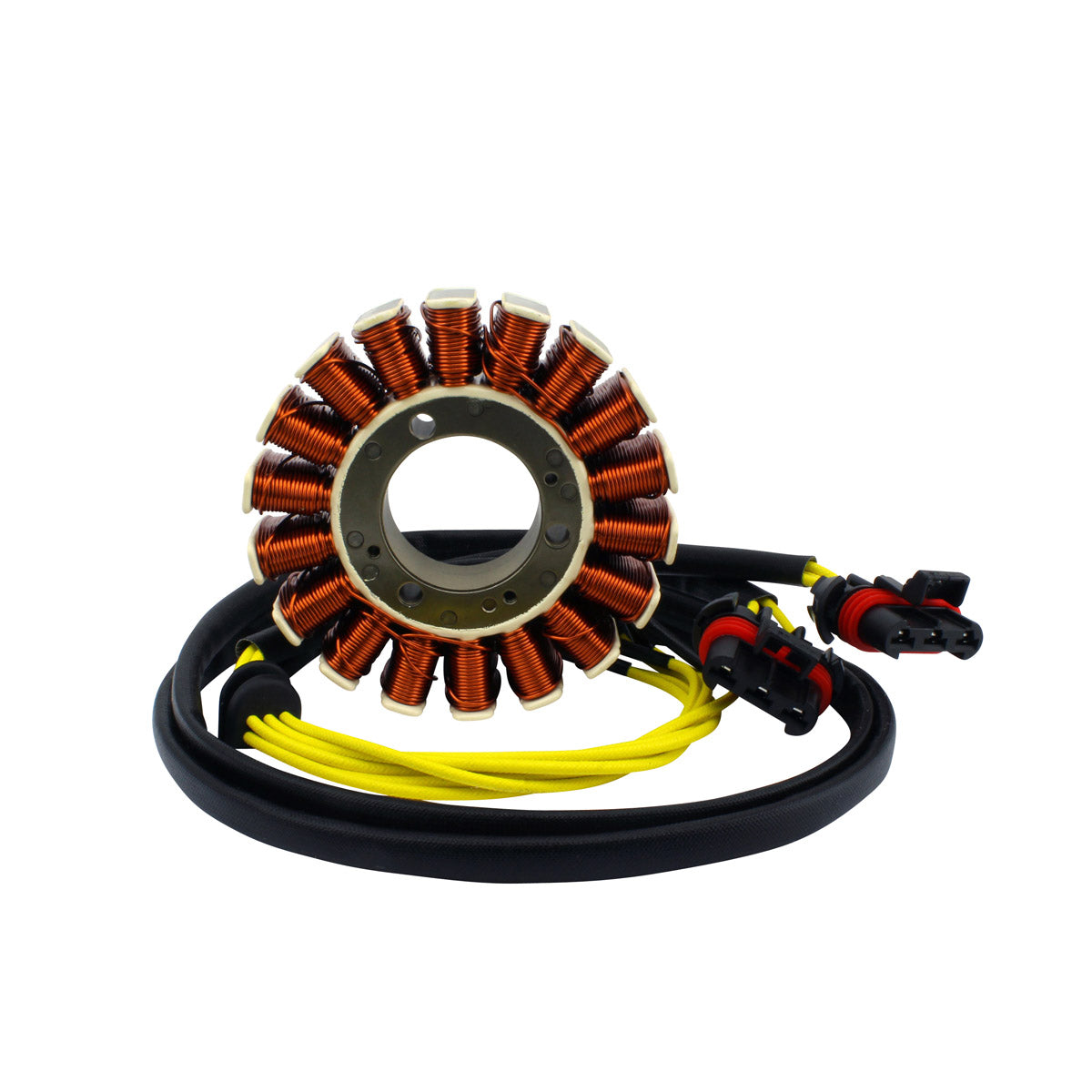

• RMSTATOR SPLYT Stator

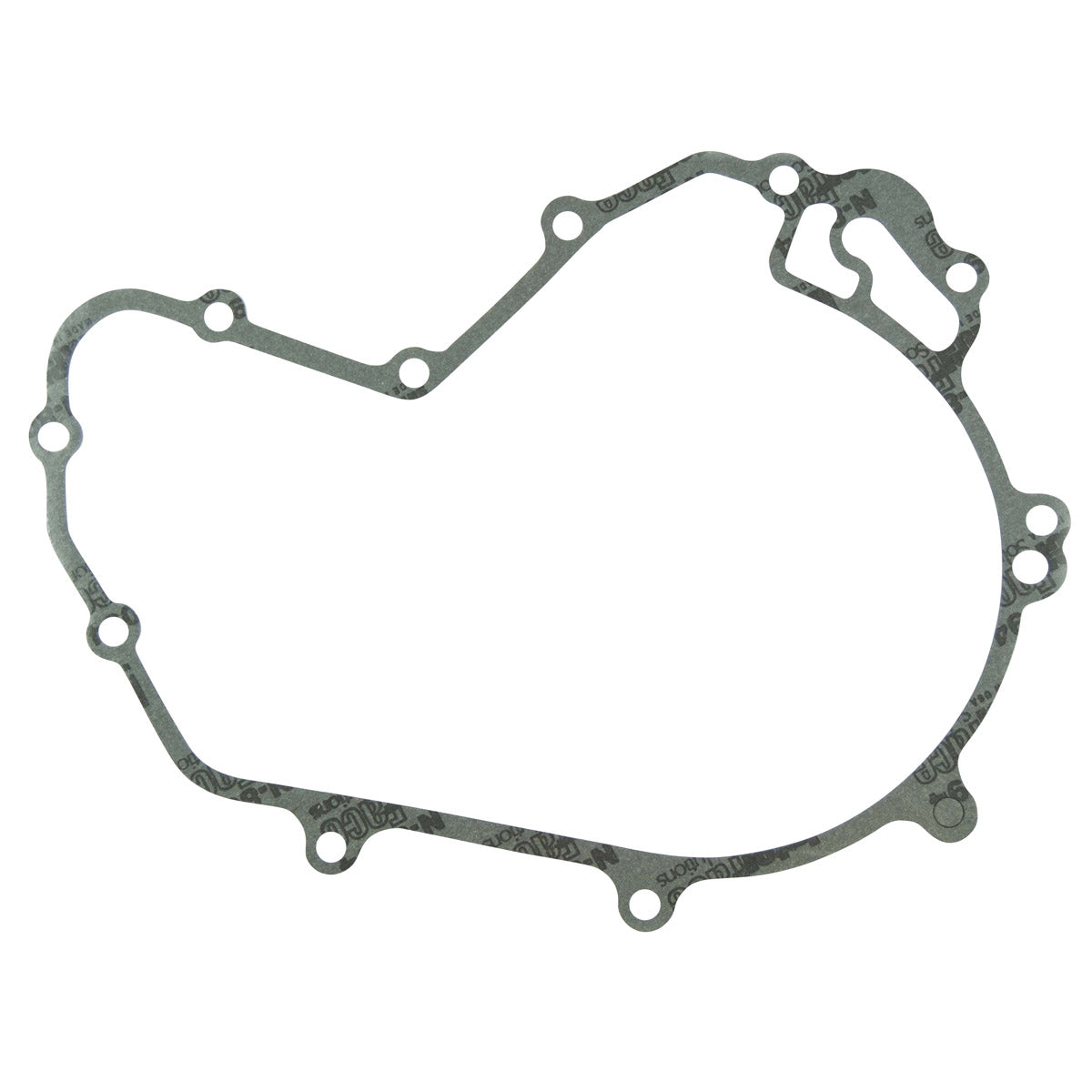

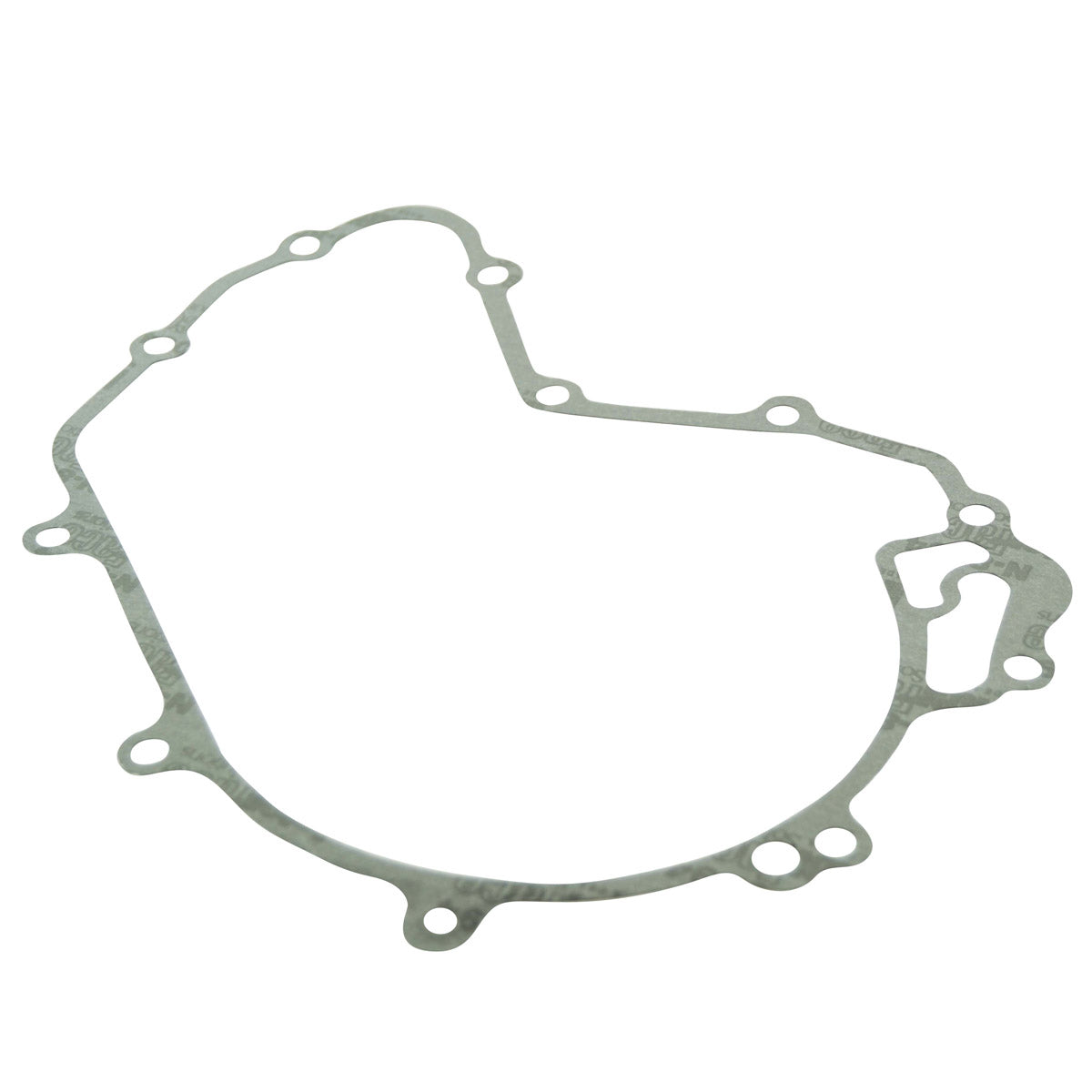

• OEM quality stator cover gasket

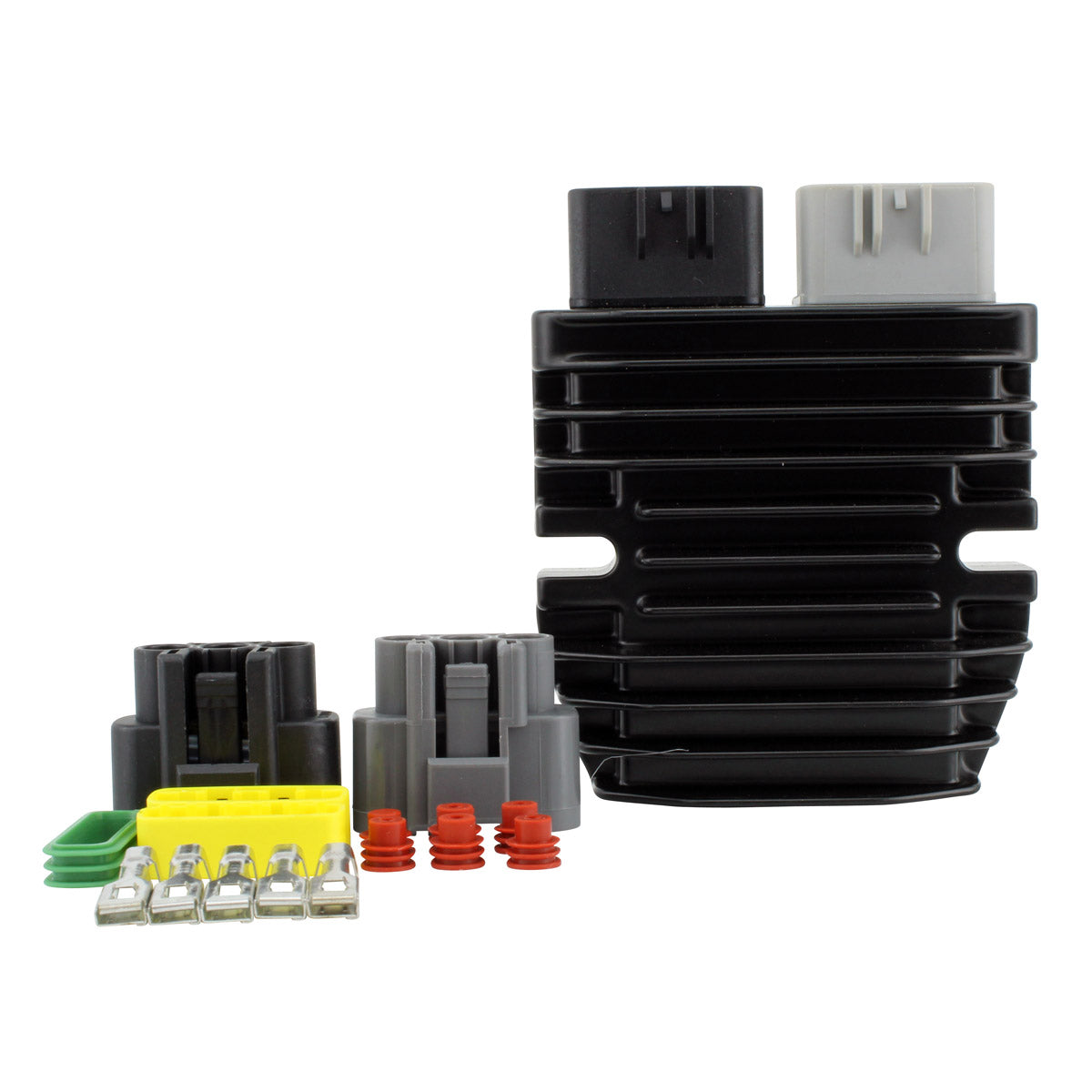

• Two MOSFET Lithium-Ion compatible voltage regulators

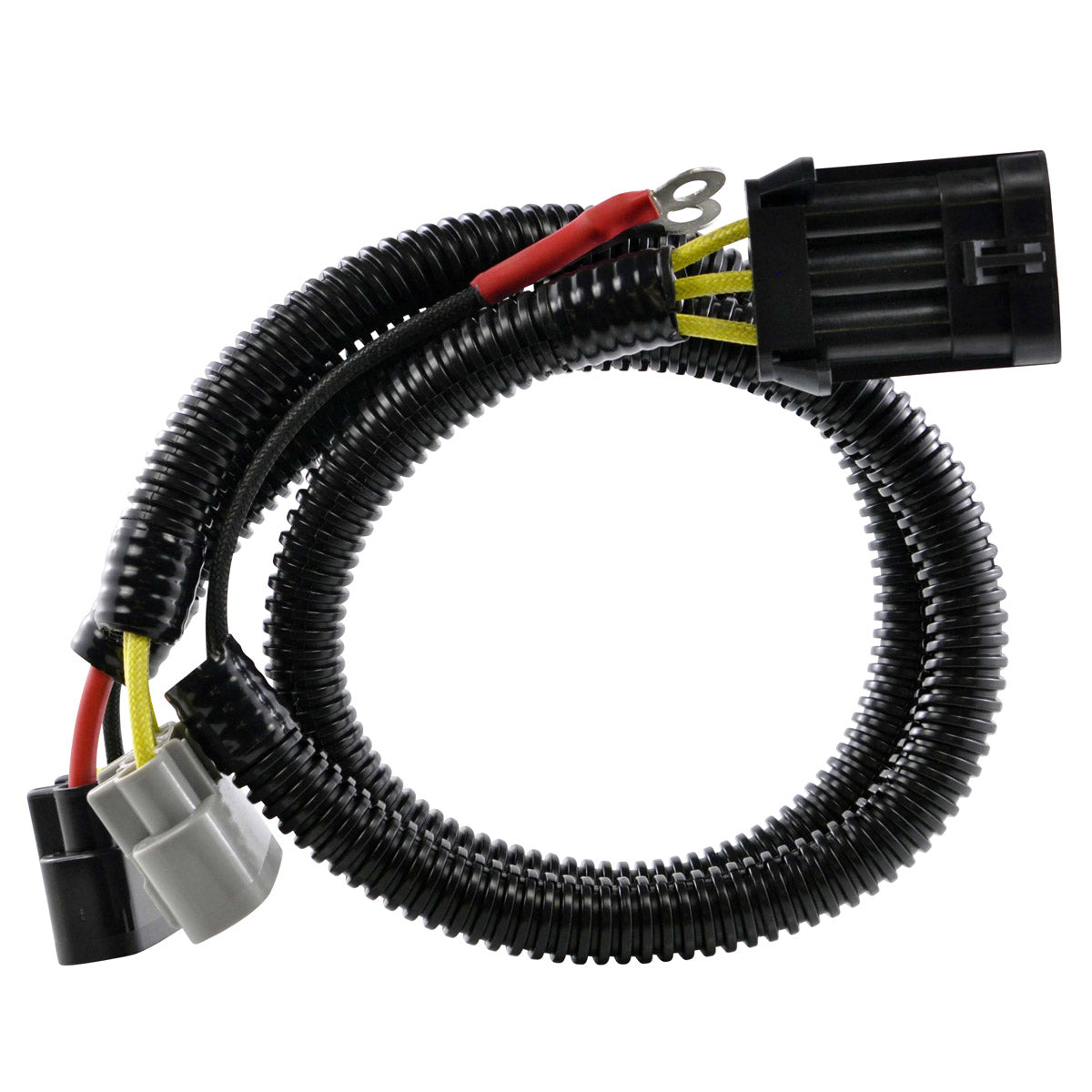

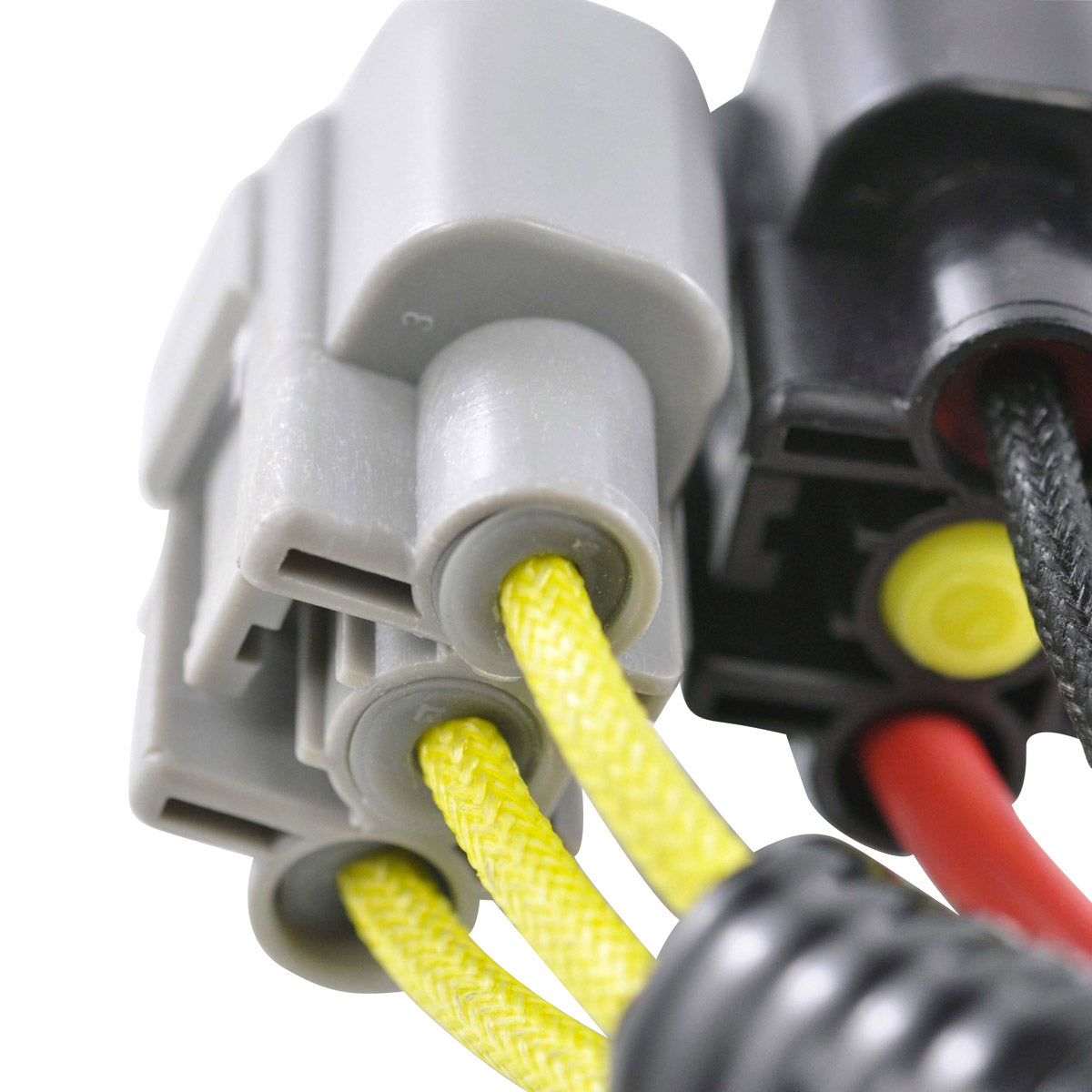

• Two automotive grade wiring harnesses with OEM-quality heavy-duty connectors and terminals
• Complete installation instructions

All item pictures are accurate, matching exactly what you will receive.
