Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
Kit Stator + Voltage Regulator for KTM 125 / 200 Duke 2011-2021 | # 90139004000 93639004000 93011034000
Kit Stator + Voltage Regulator for KTM 125 / 200 Duke 2011-2021 | # 90139004000 93639004000 93011034000
$233.88

Details

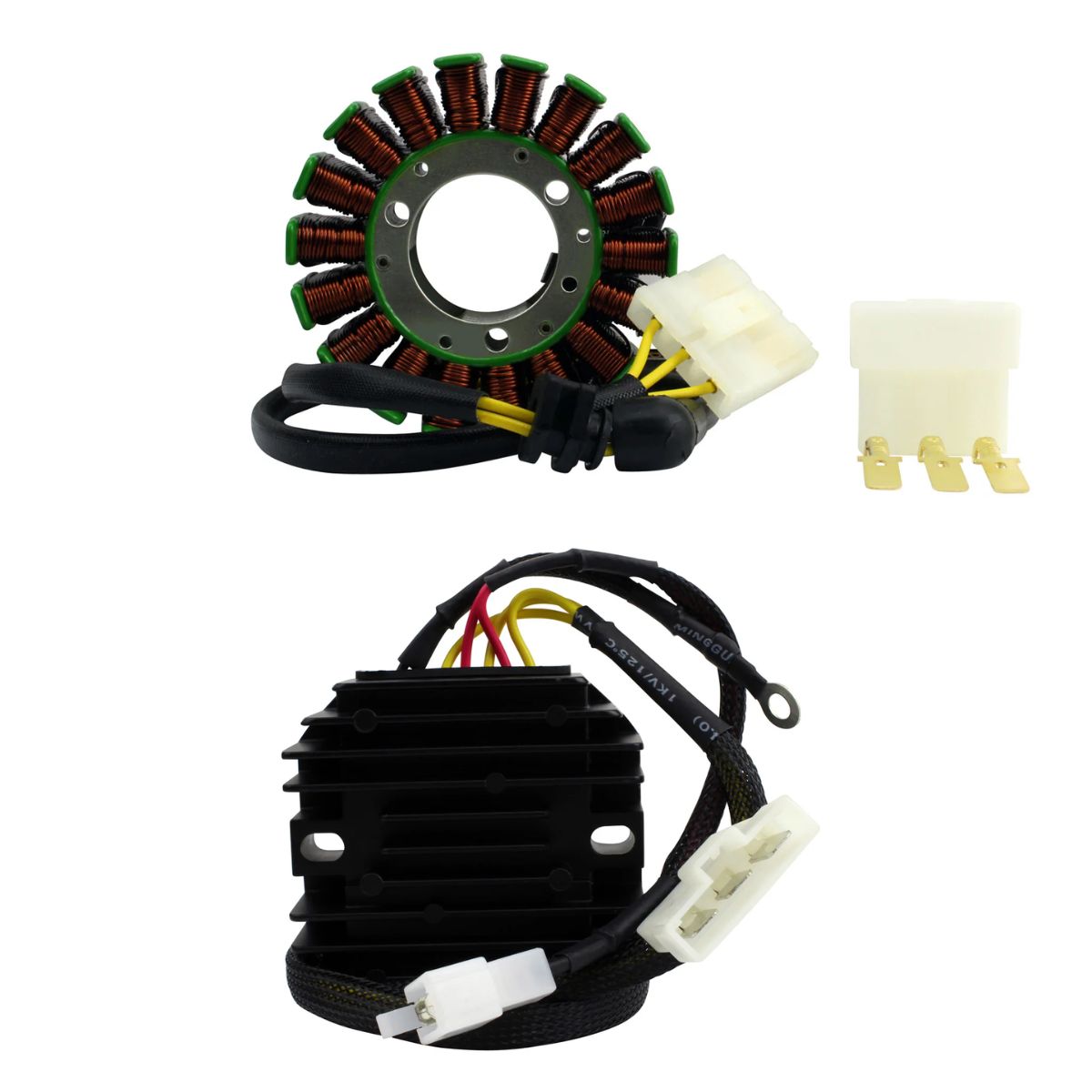

Brand new aftermarket Stator + Voltage Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

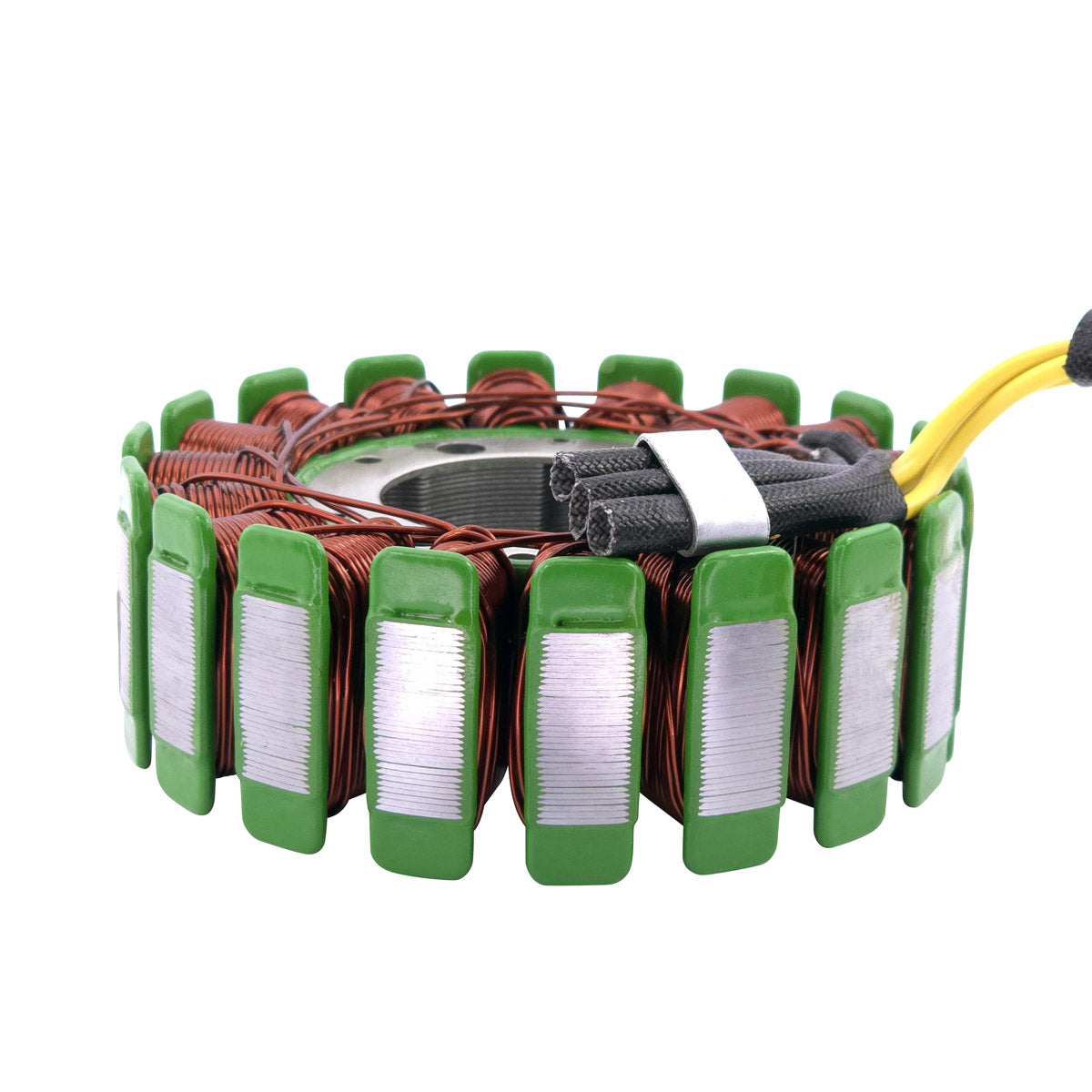

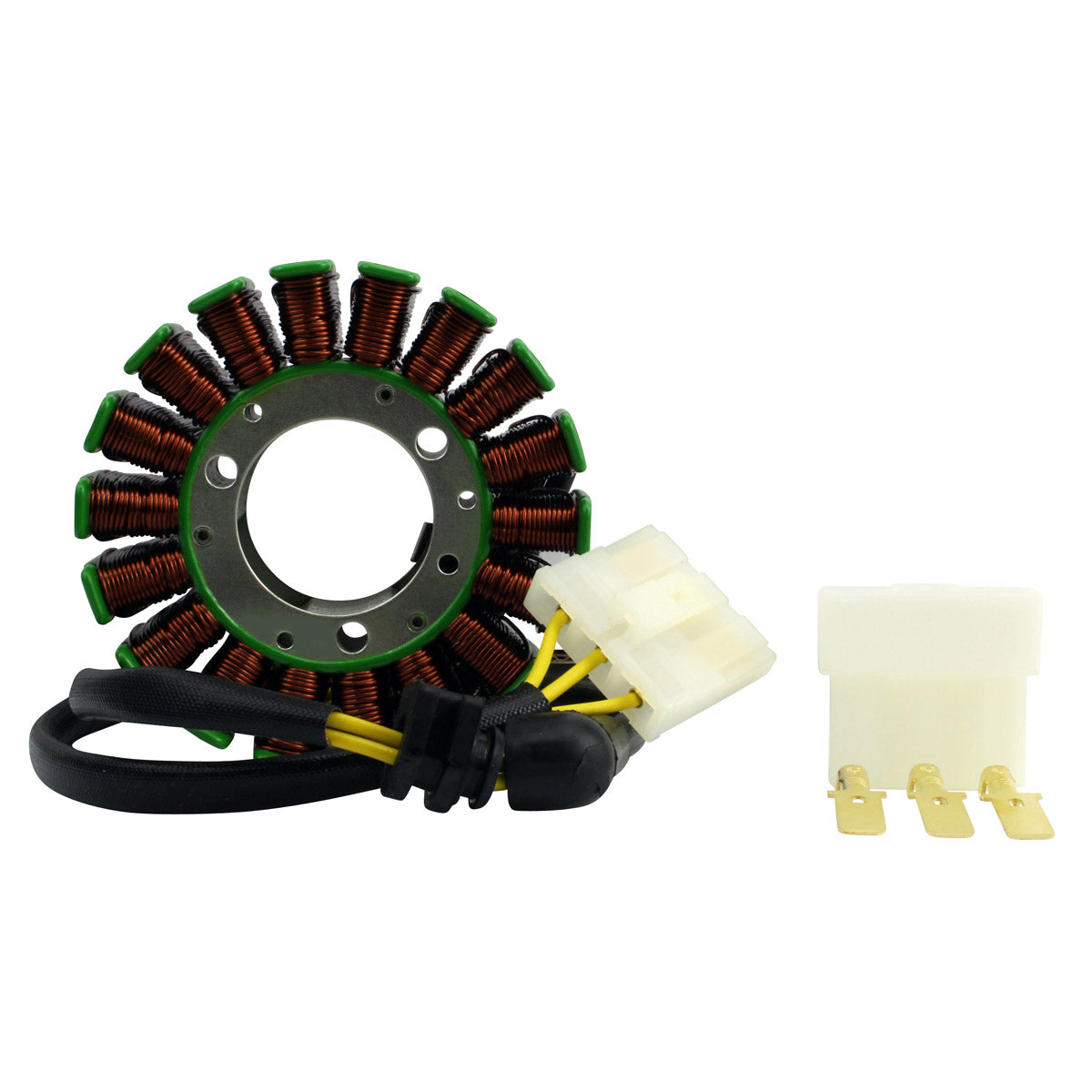

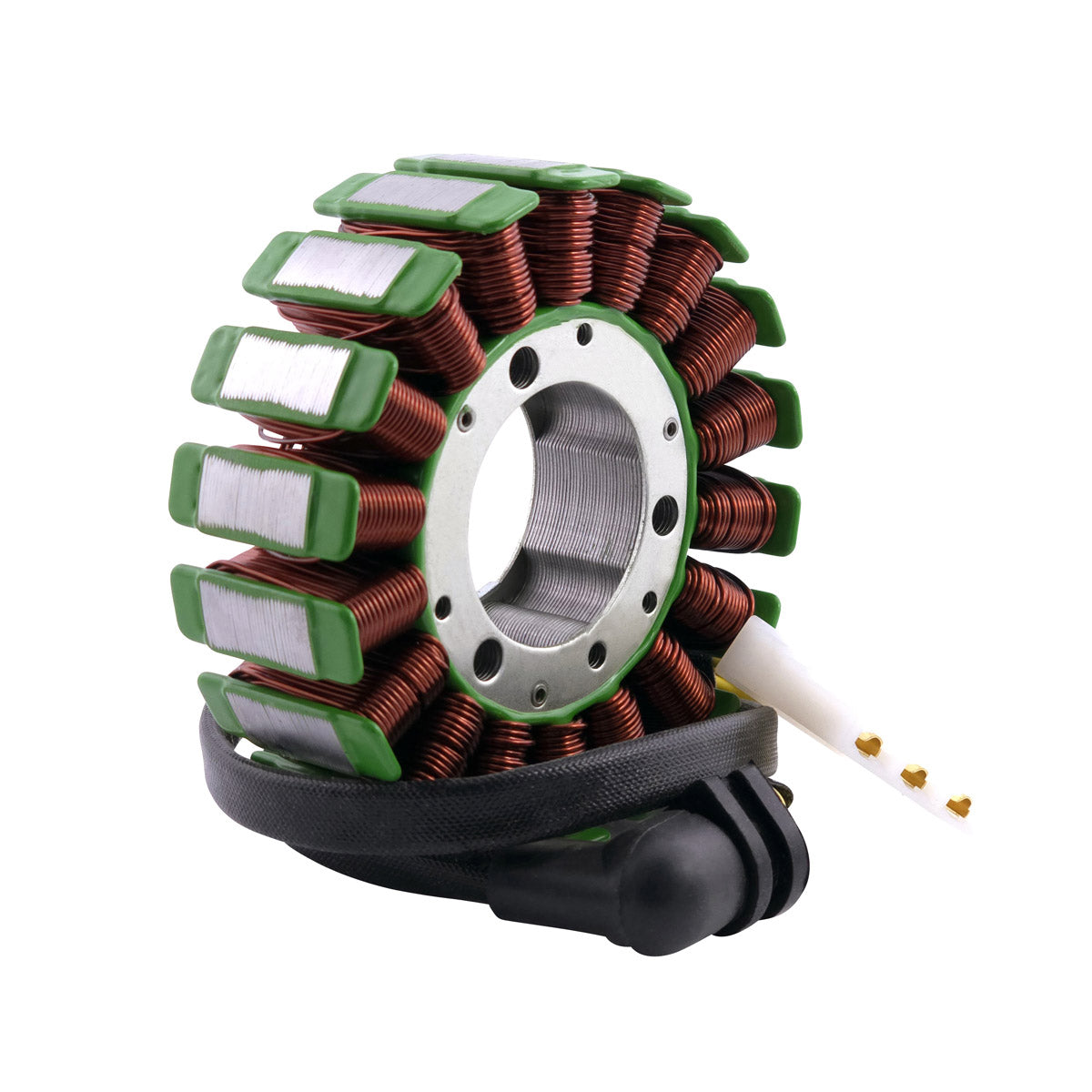

Stator
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included

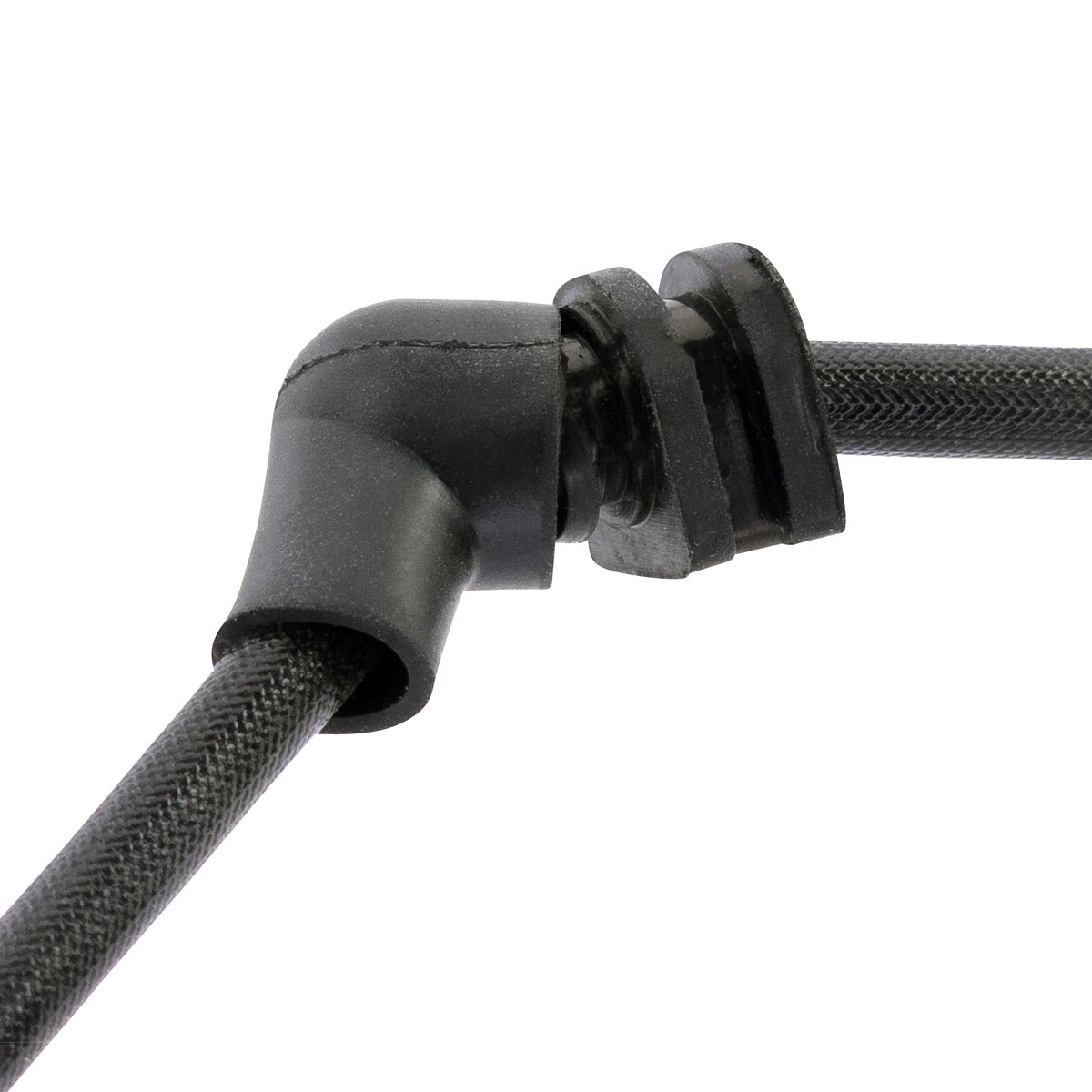

  • Rubber grommet included

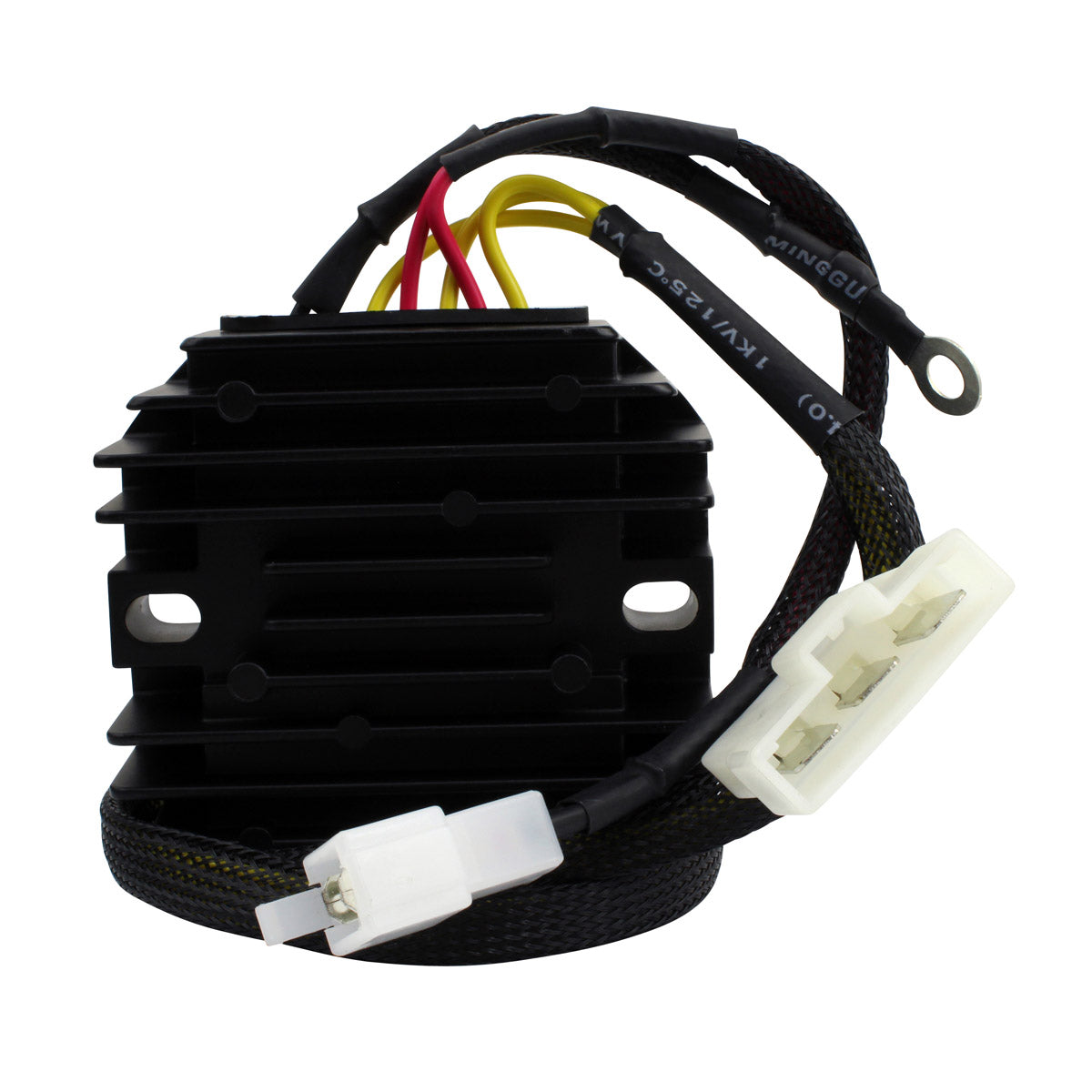

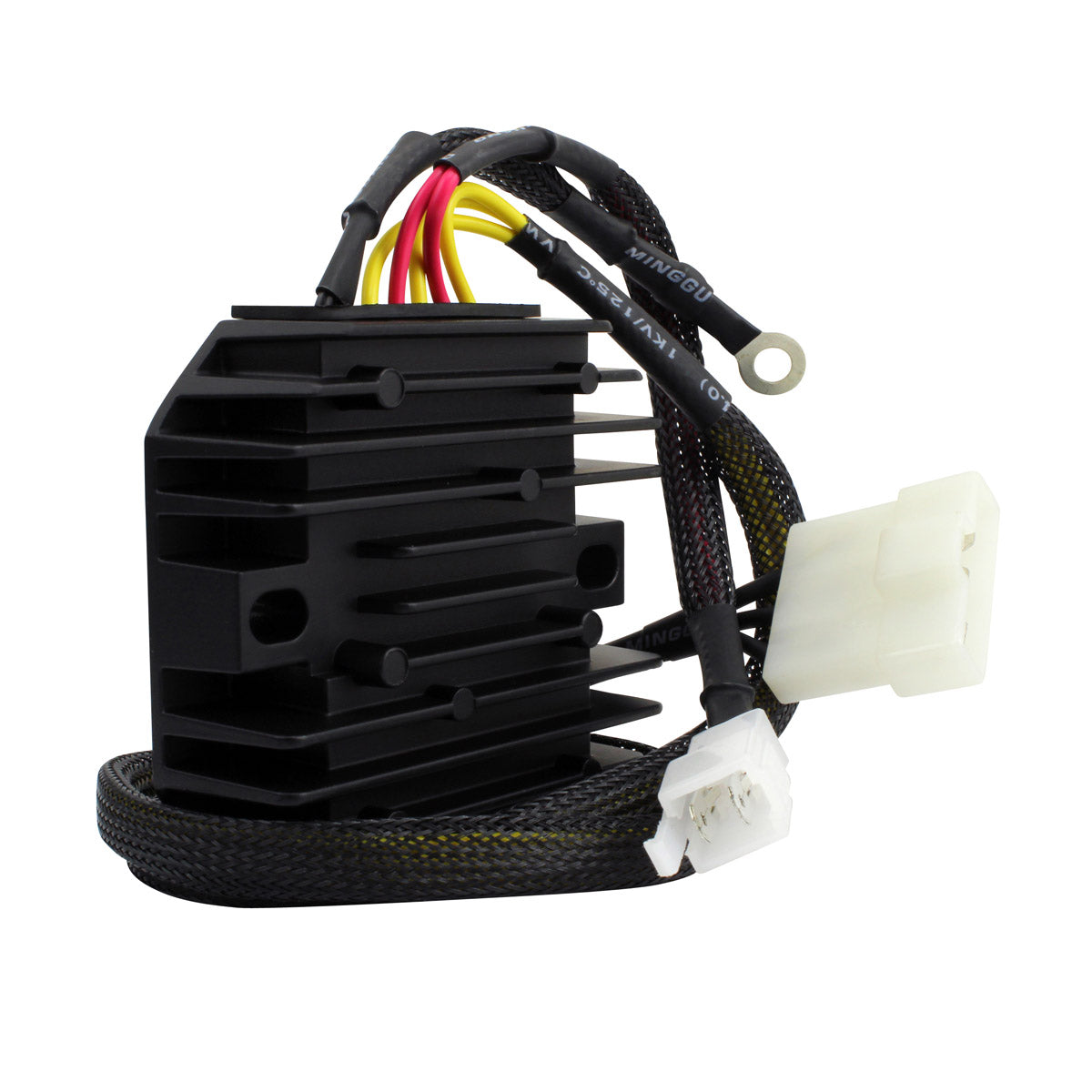

Voltage Regulator Rectifier
  • No assembly required
  • Higher grade of electric components
  • The quality exceeds the OEM equipment

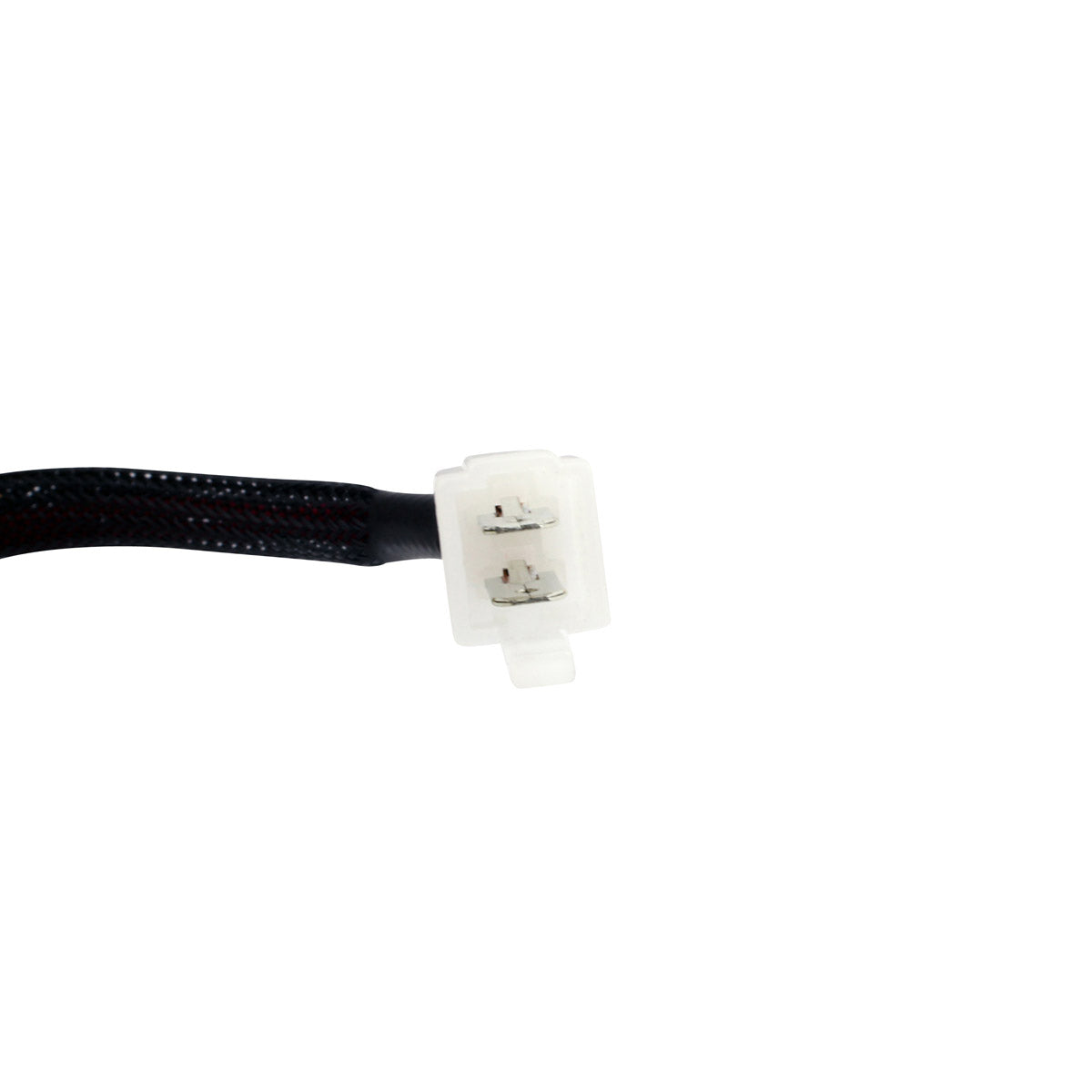

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

Stator:

Dimensions:
Interior diameter: 35 mm
Exterior diameter: 92 mm
Thickness: 20 mm
Length of wires stator to grommet: 200 mm
Length of wires grommet to plug: 420 mm

Other specifications:
Number of wires: 3

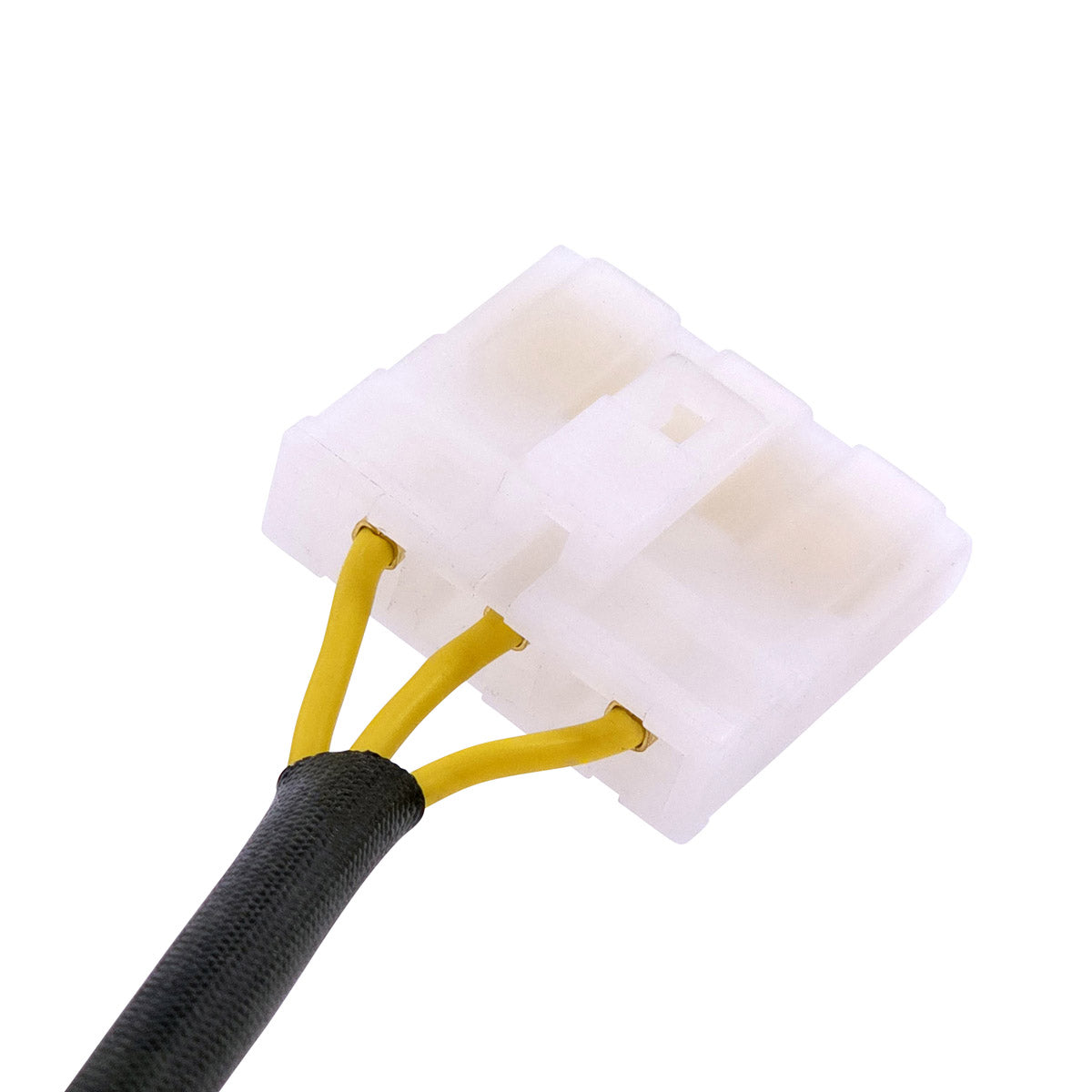

Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.8 ohms +/-20%
Alternator: Yellow to ground = O.L

Voltage Regulator:

Dimensions:
Width: 89 mm
Length: 83 mm
Height: 28 mm
Stator Wire length: 730 mm

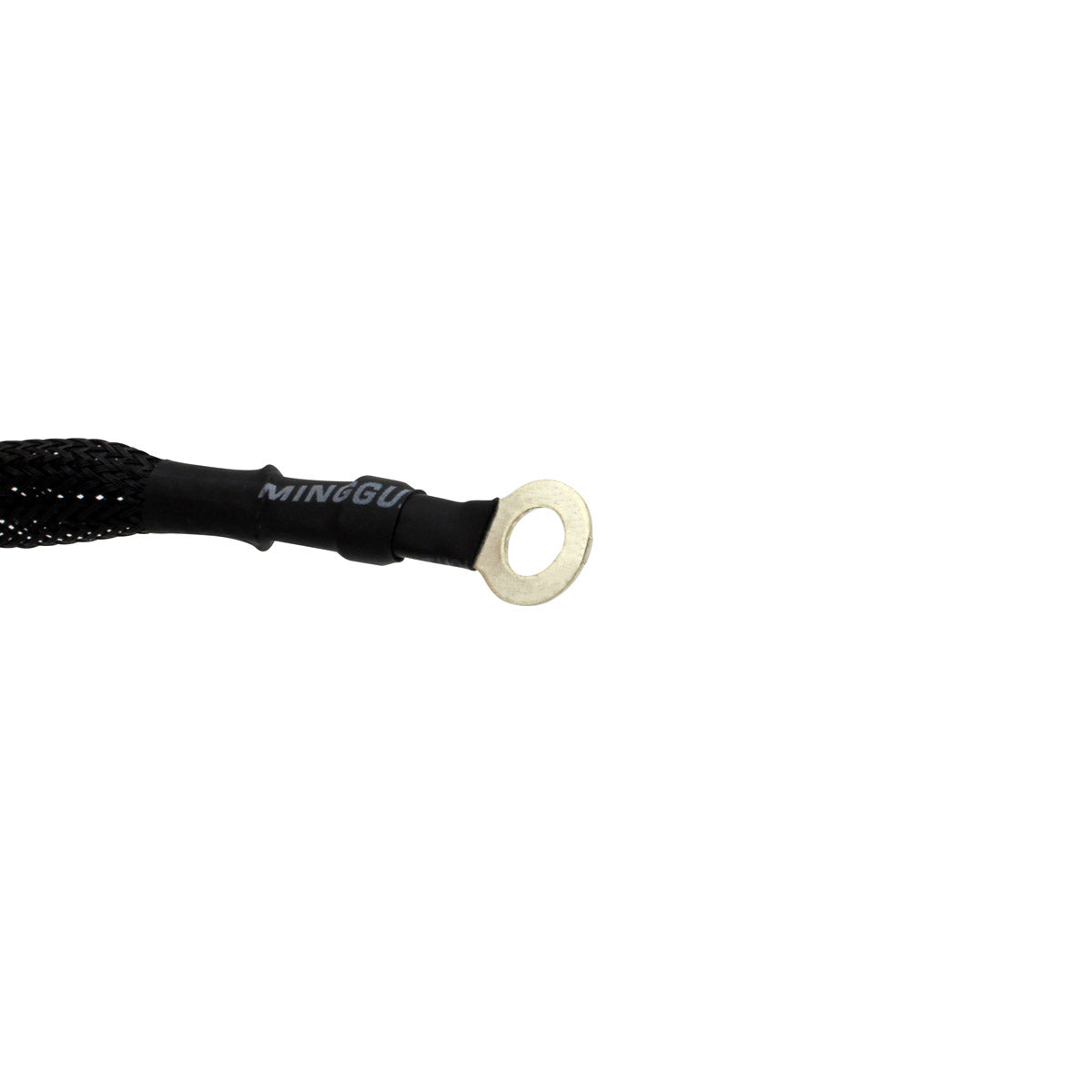

Battery Wire Length: 100 mm & 200 mm
Distance between fixation holes center to center: 70 mm

Other specifications:
Number of plugs: 3
Number of pins: 6
Number of wires: 6
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Interchange Part Nº

  • Stator :

    93639004000
  • 90139004000
  • Voltage Regulator :

    93011034000
  • 90111034000

Installation

Before installing your new Stator + Voltage Regulator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
