Kit 850W Stator + Gasket for Can-Am Maverick / Maverick Max X3 1000RR Turbo 2021-2025 | # 420686363 420431640

RMSTATOR
SKU: RMS900-108694
Out of stock
RMSTATOR

Kit 850W Stator + Gasket for Can-Am Maverick / Maverick Max X3 1000RR Turbo 2021-2025 | # 420686363 420431640

$230.98
Sold out
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
Kit 850W Stator + Gasket for Can-Am Maverick / Maverick Max X3 1000RR Turbo 2021-2025 | # 420686363 420431640
Kit 850W Stator + Gasket for Can-Am Maverick / Maverick Max X3 1000RR Turbo 2021-2025 | # 420686363 420431640
Sold out

Details

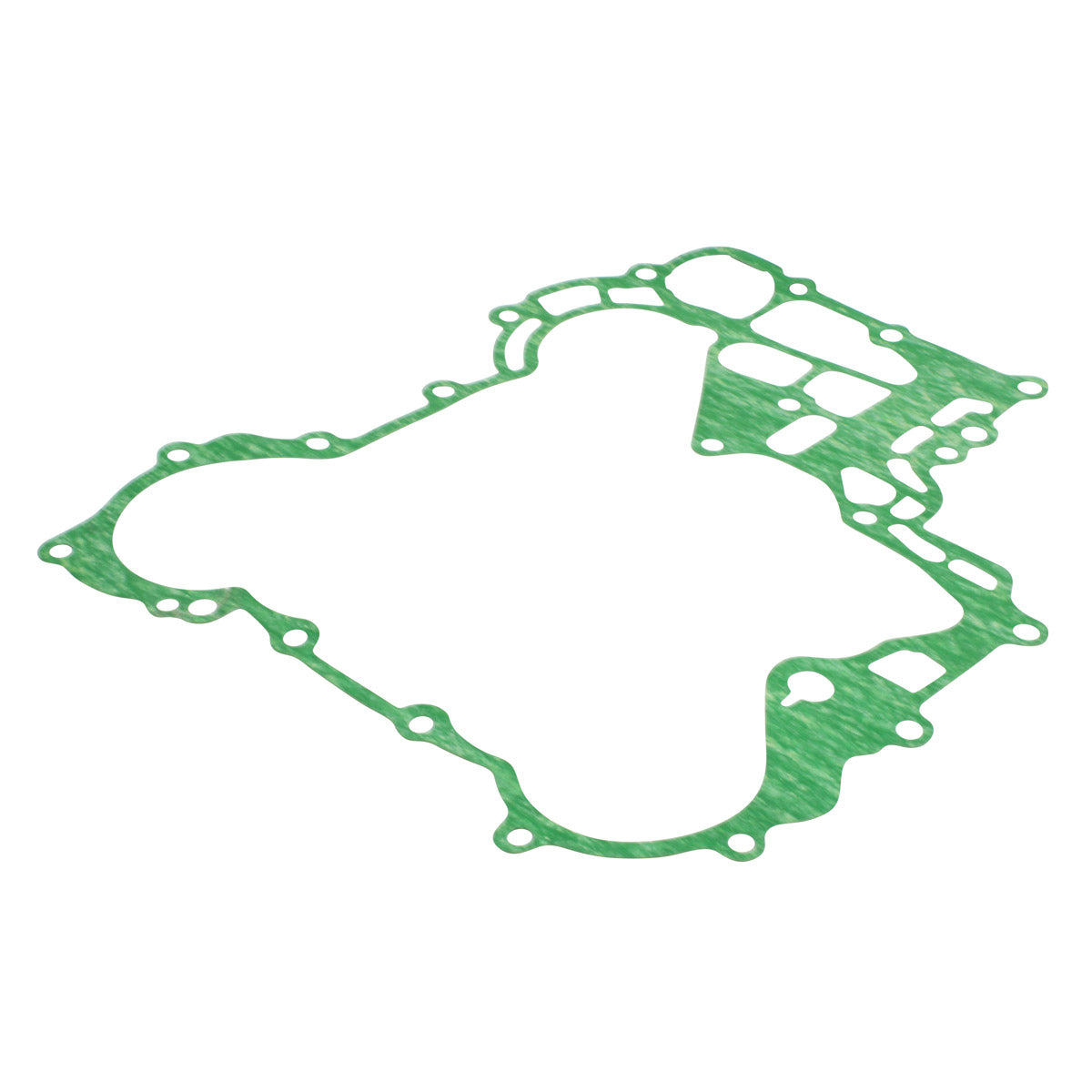

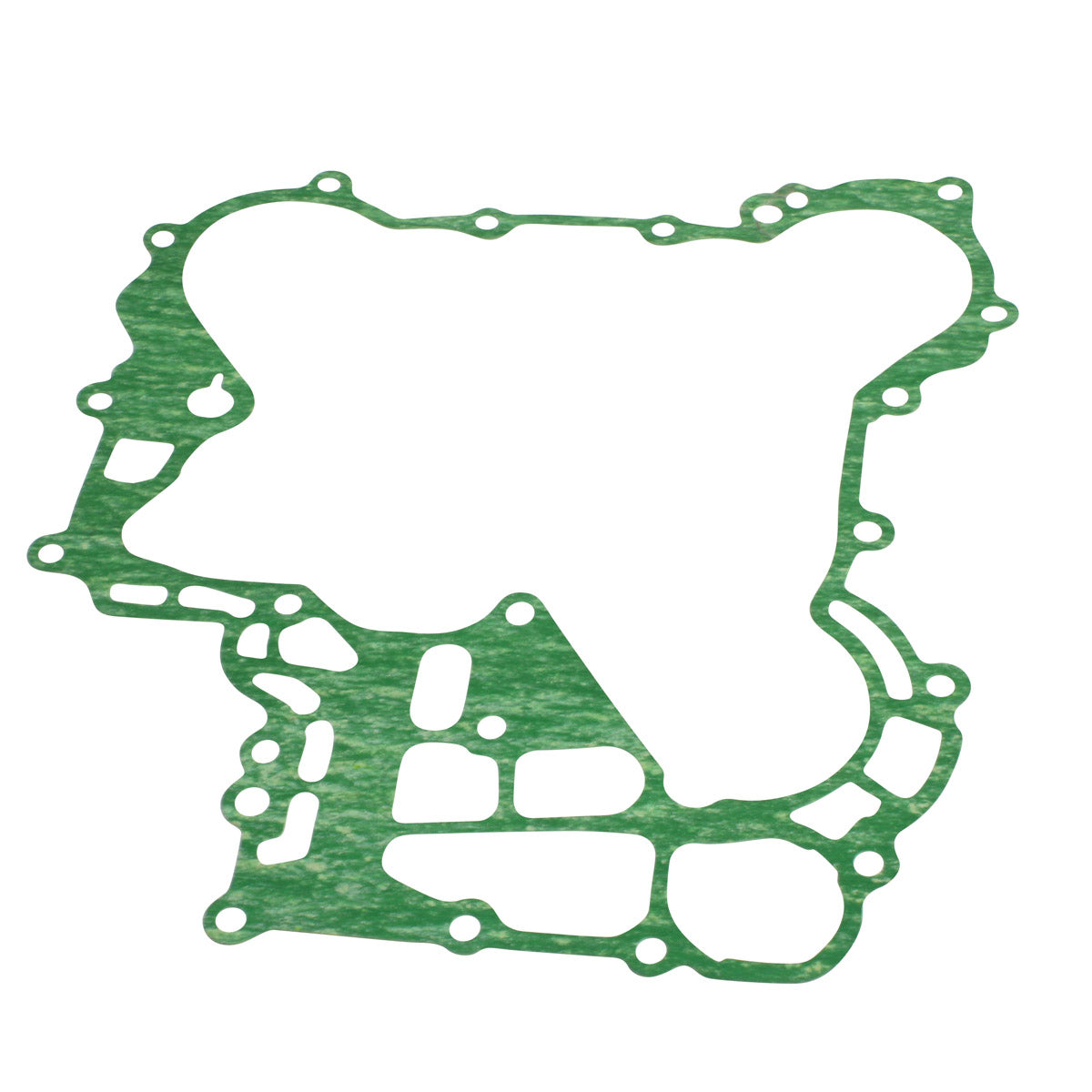

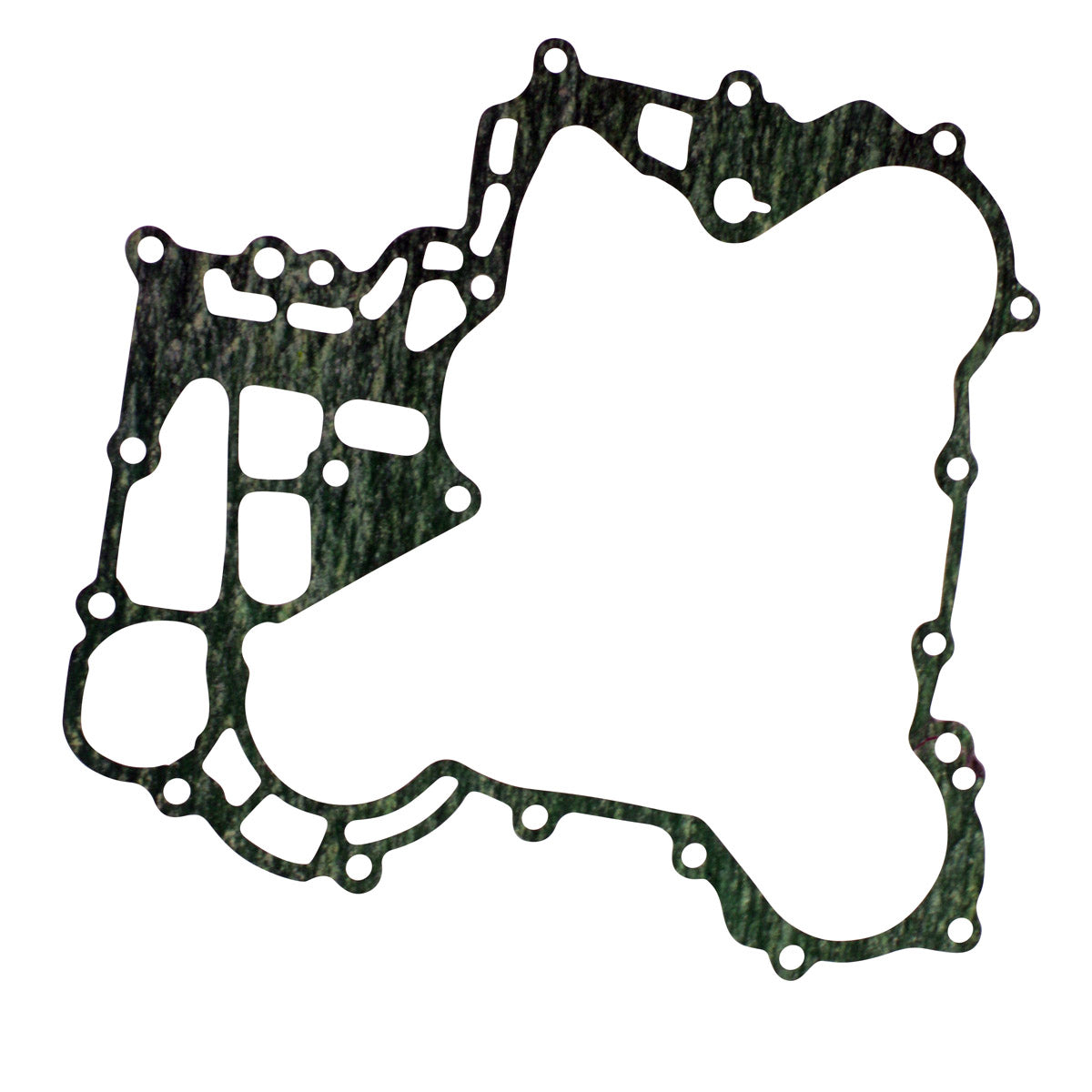

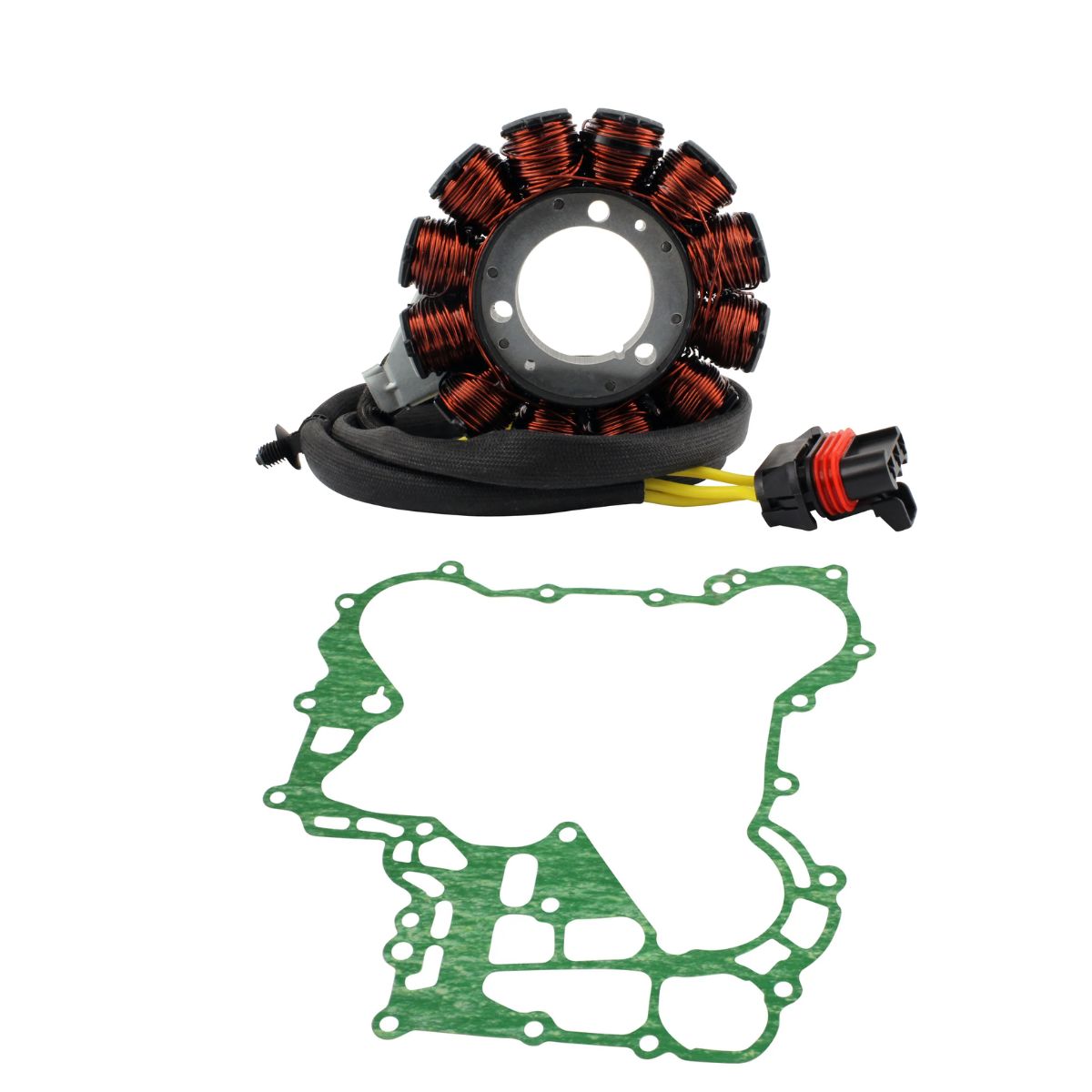

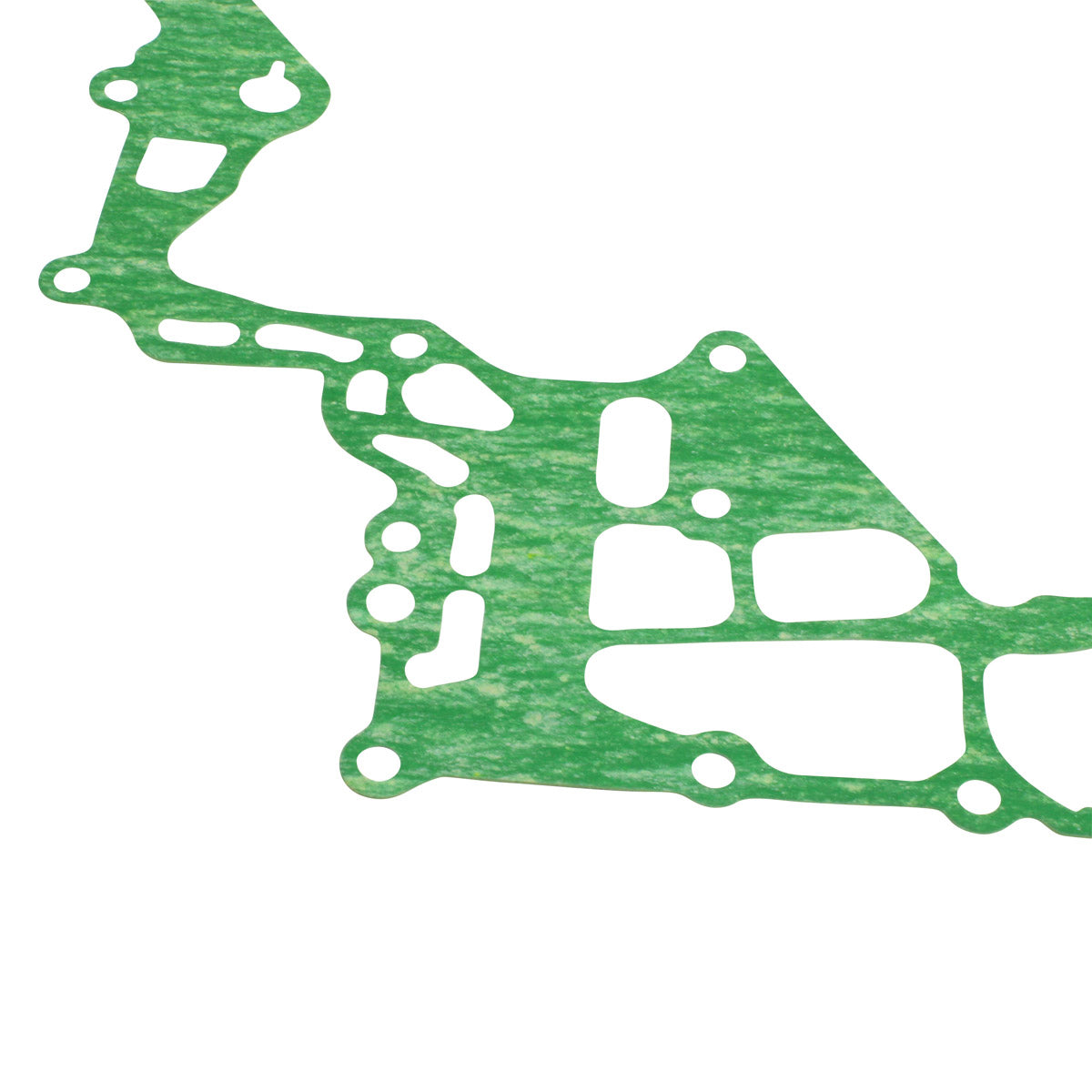

Brand New Kit Stator + Crankcase Cover Gasket

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

Stator:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 17 mm
Length of wires stator to grommet: 280 mm
Length of wires grommet to plug: 995 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.3 ohms +/-20%
Alternator: Yellow to ground = O.L

Interchange Part Nº

  • Stator :

    420686363
  • Gasket :

    420431640

Installation

Before installing your new stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
