Kit High Output Stator + Mosfet Voltage Regulator Rectifier for Kawasaki KVF 650 / 750 Brute Force 2005-13 | 21066-1127
RMSTATOR
SKU: RMS900-108496
Out of stock
RMSTATOR
Kit High Output Stator + Mosfet Voltage Regulator Rectifier for Kawasaki KVF 650 / 750 Brute Force 2005-13 | 21066-1127
Sold out
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
$314.78
Battery condition is extremely important. No Stator or Voltage Regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Kit High Output Stator + Mosfet Voltage Regulator Rectifier for Kawasaki KVF 650 / 750 Brute Force 2005-13 | 21066-1127
Sold out
Details
Details

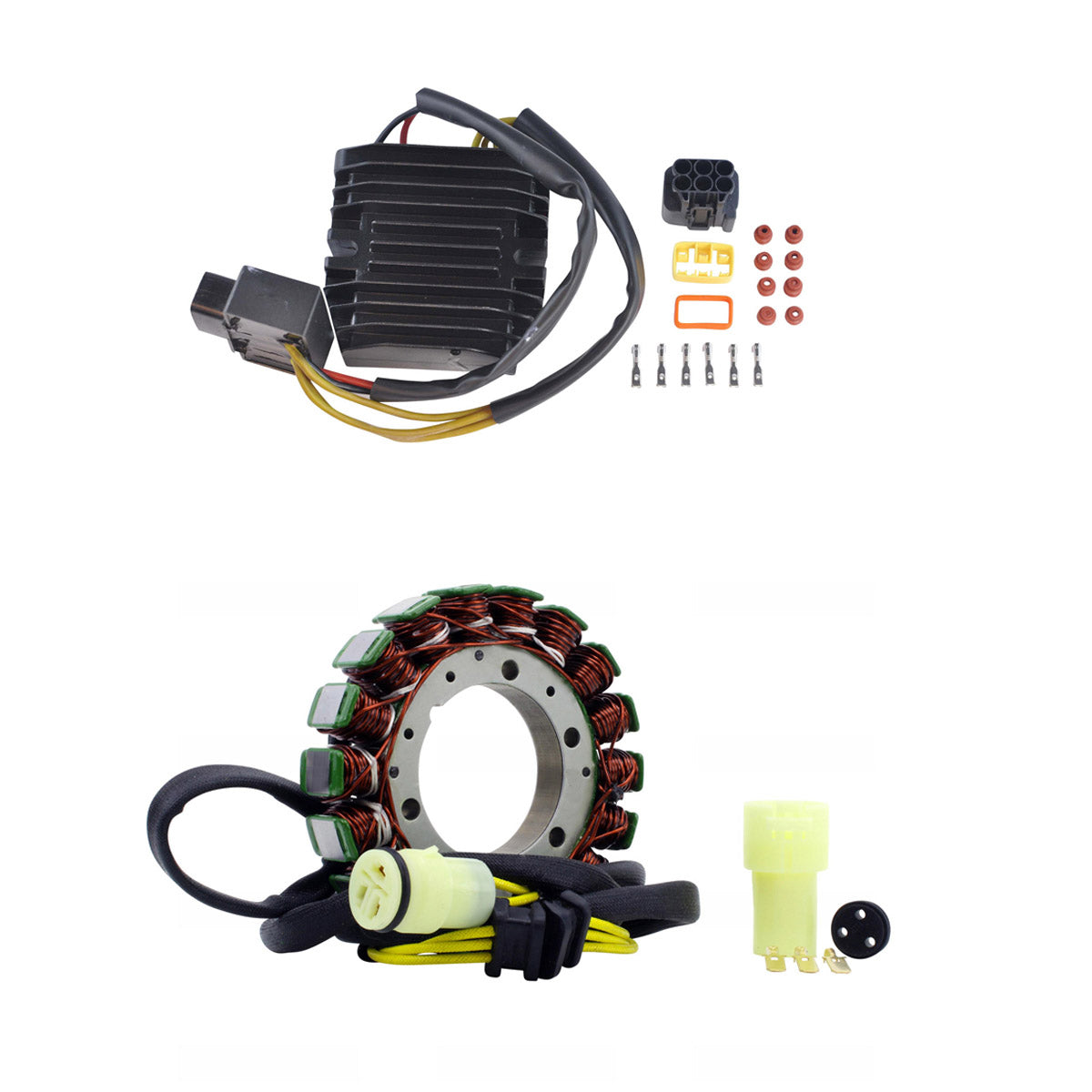

Brand new aftermarket High Output Stator + Mosfet voltage regulator rectifier Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All product shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

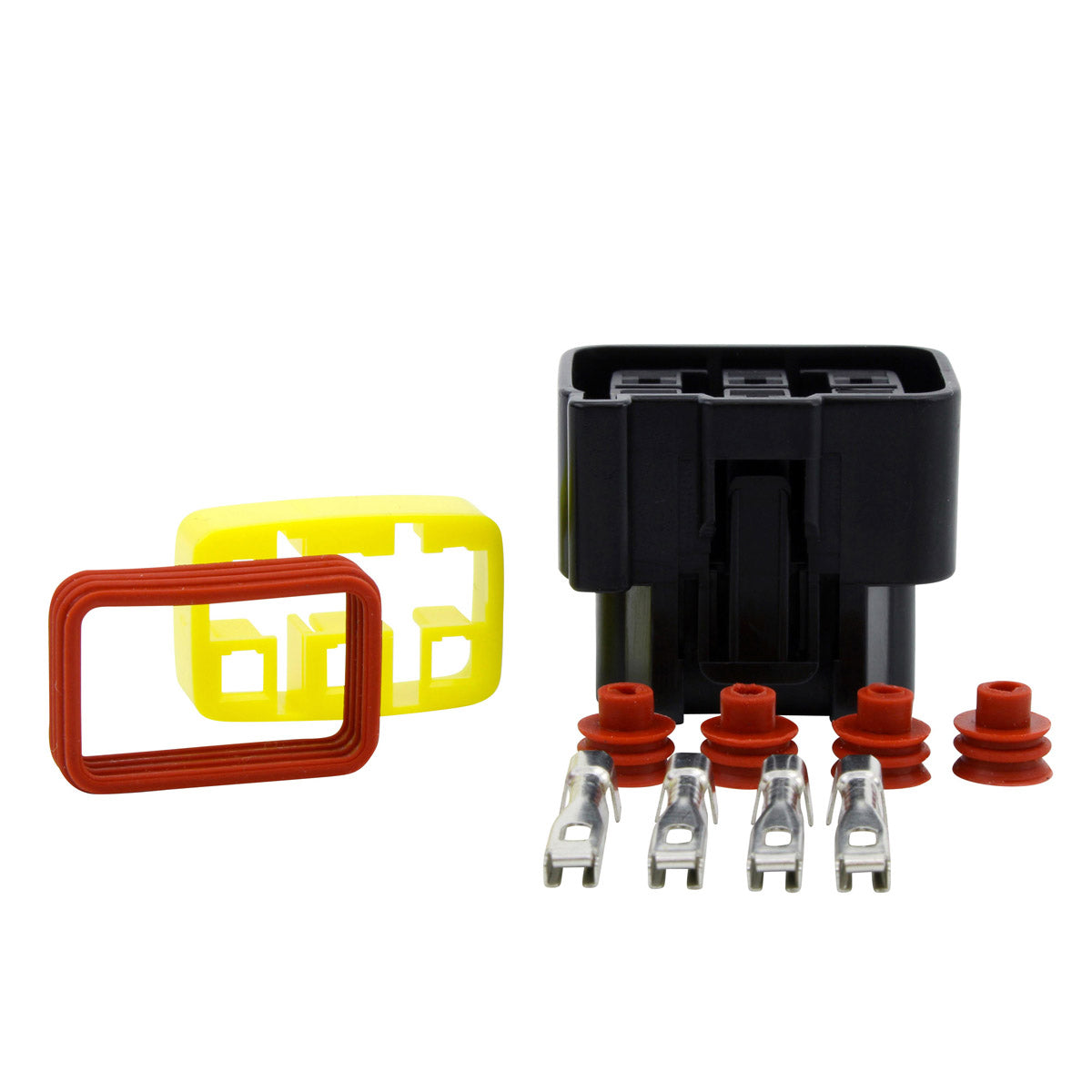

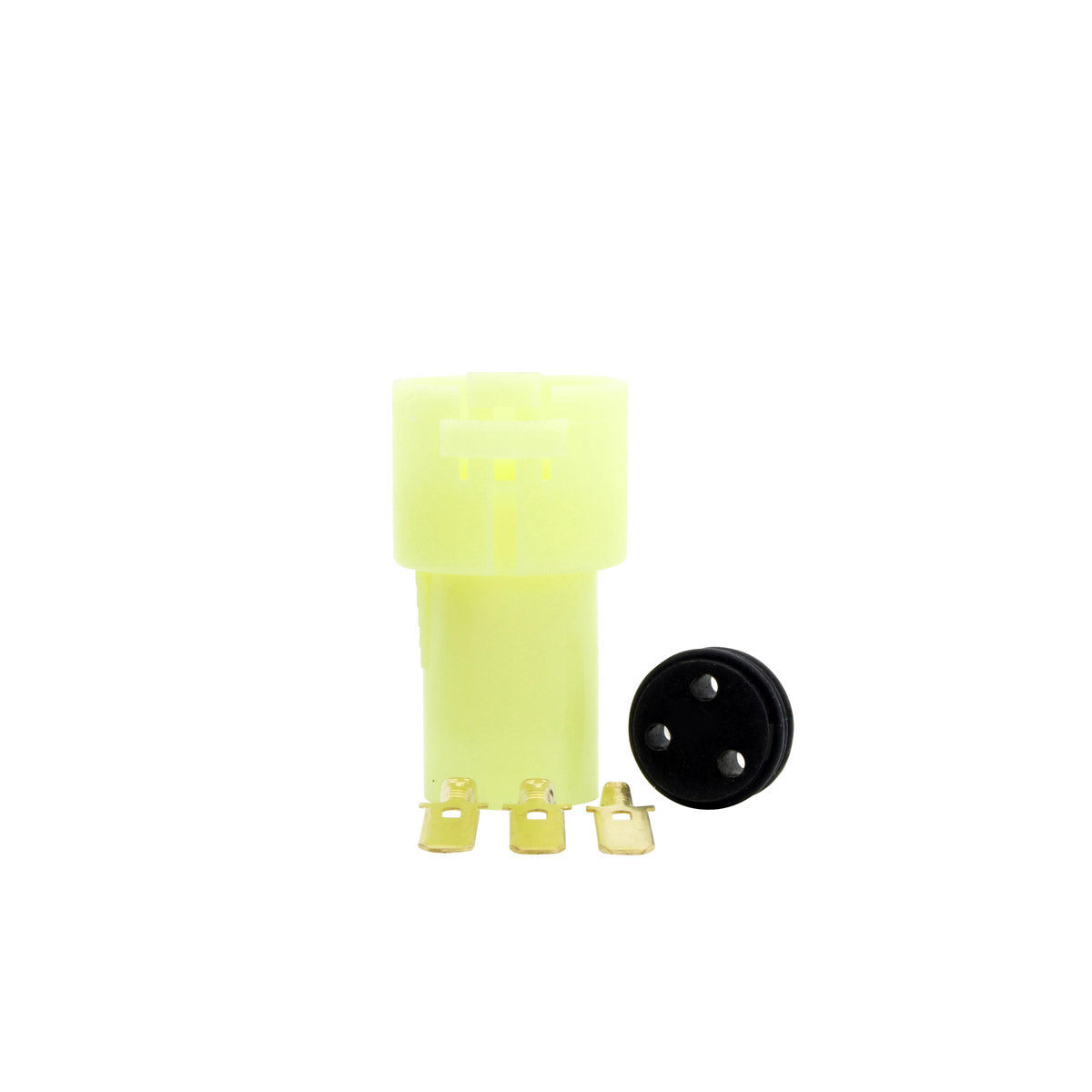

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

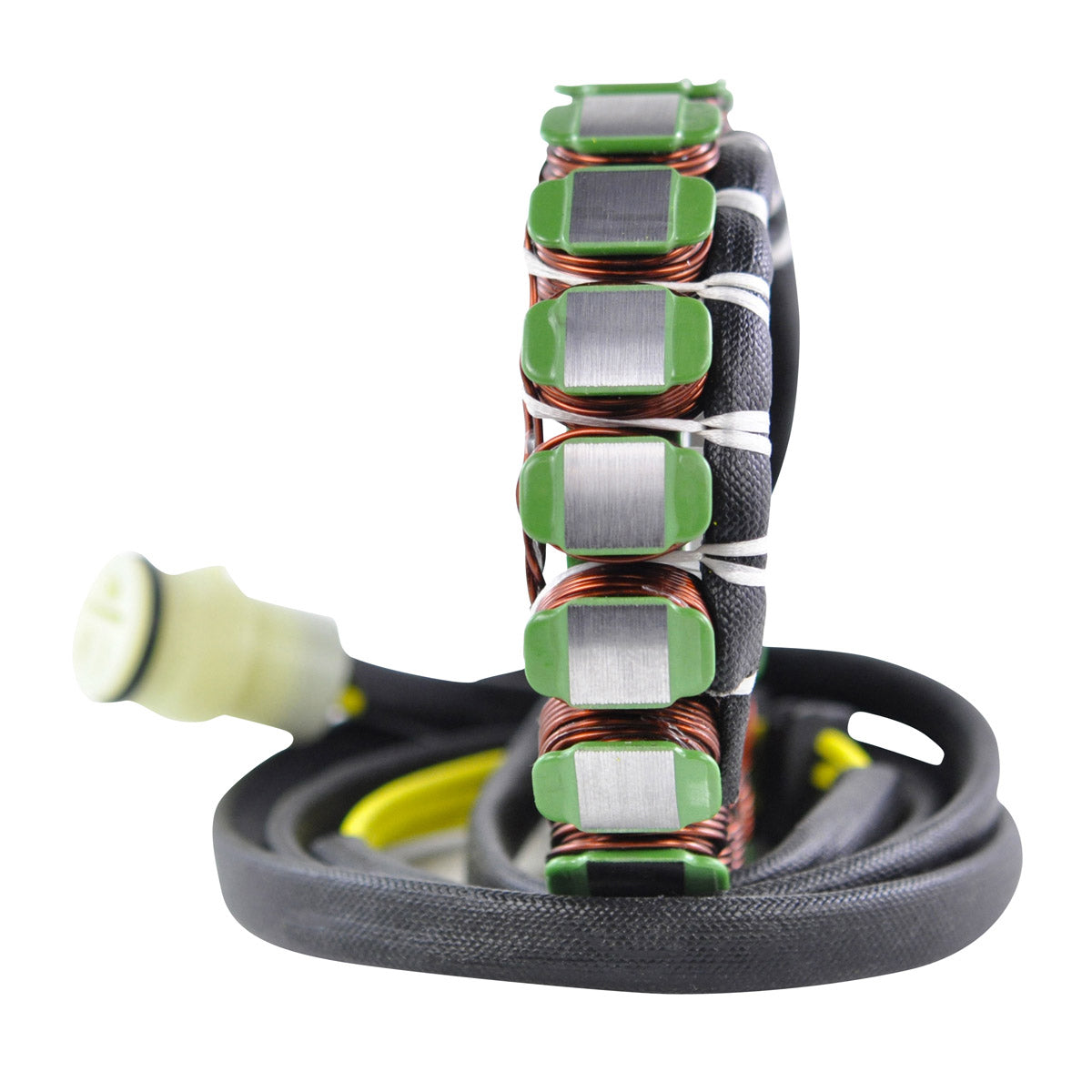

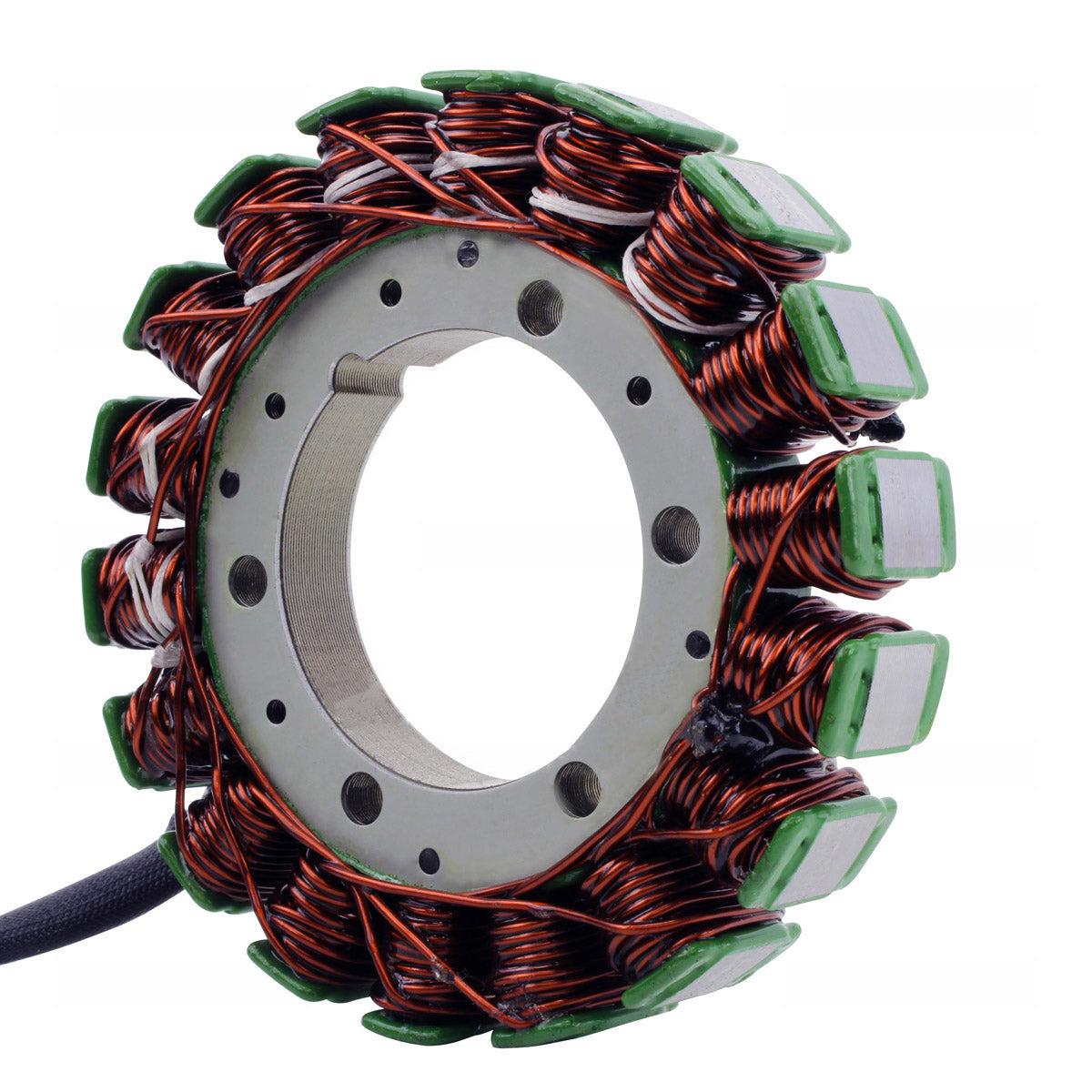

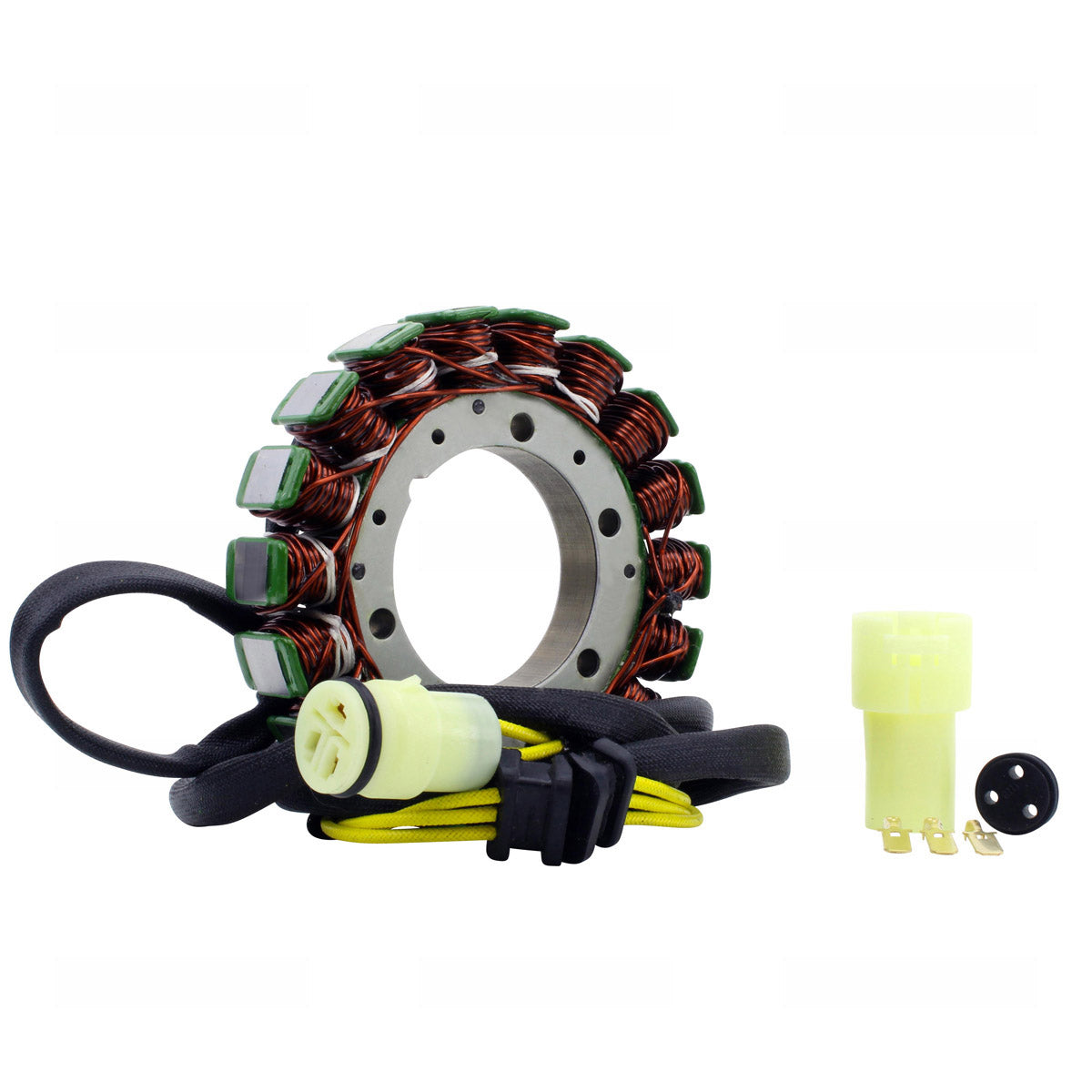

Stator:

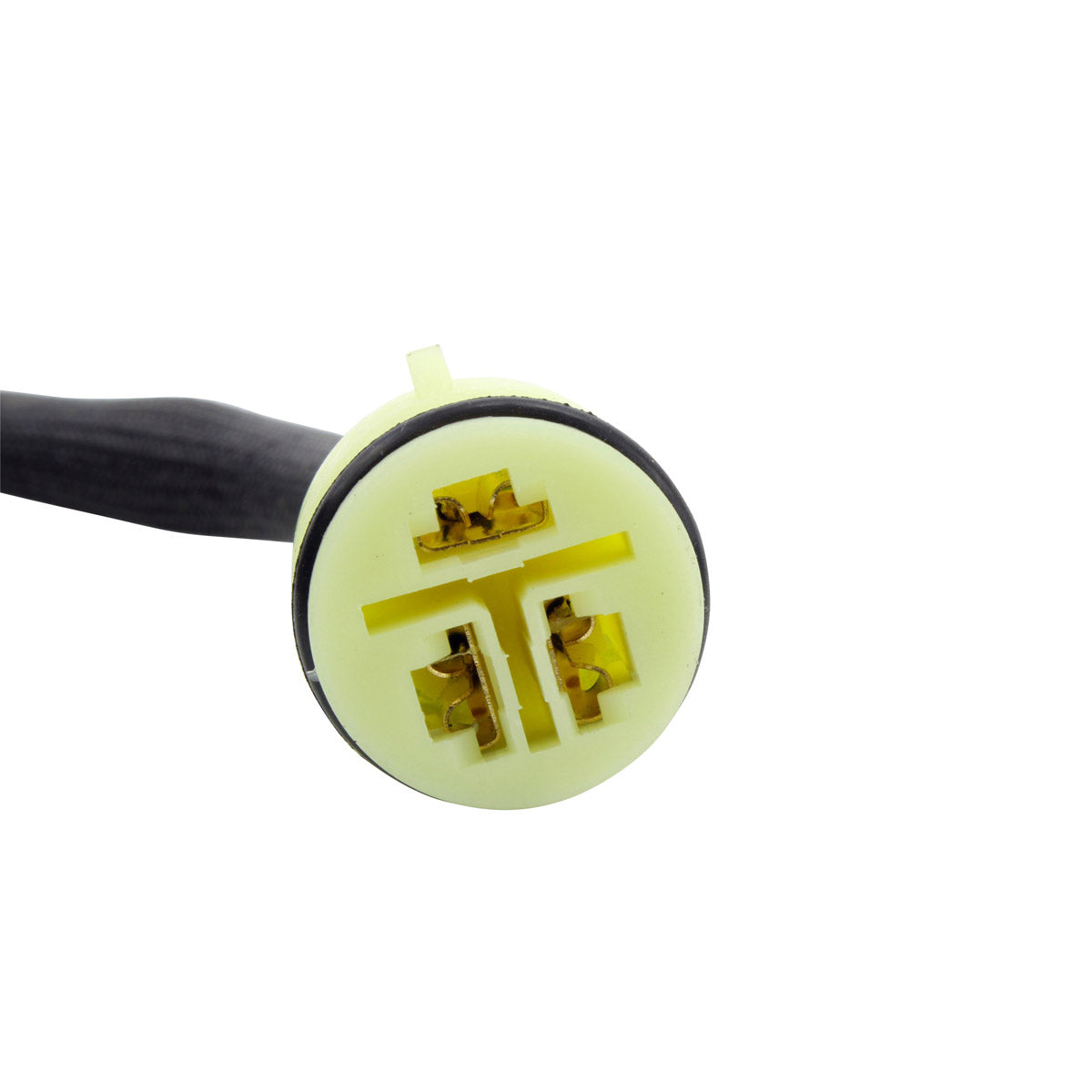

- Connector included
- Rubber grommet included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

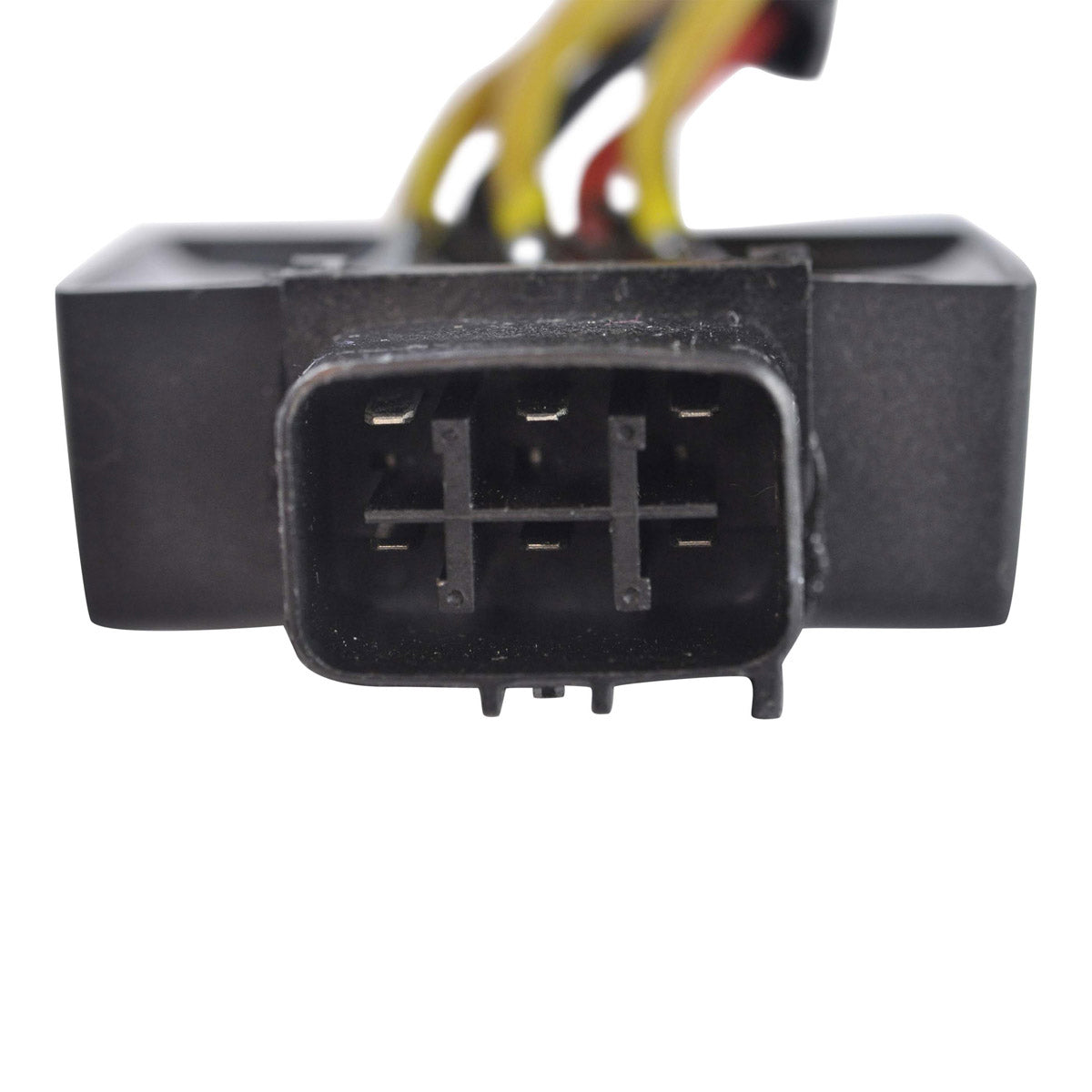

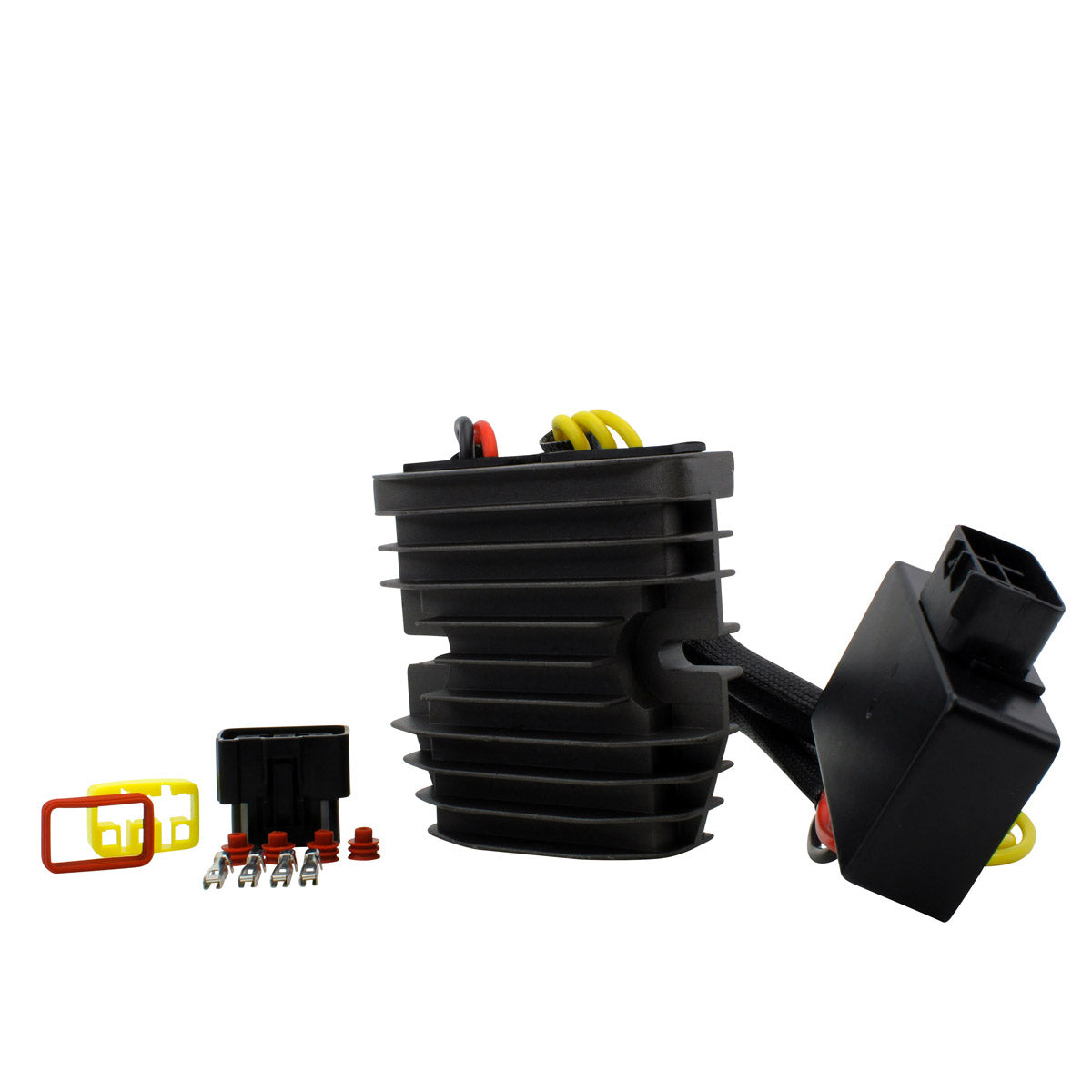

MOSFET Regulator Rectifier:

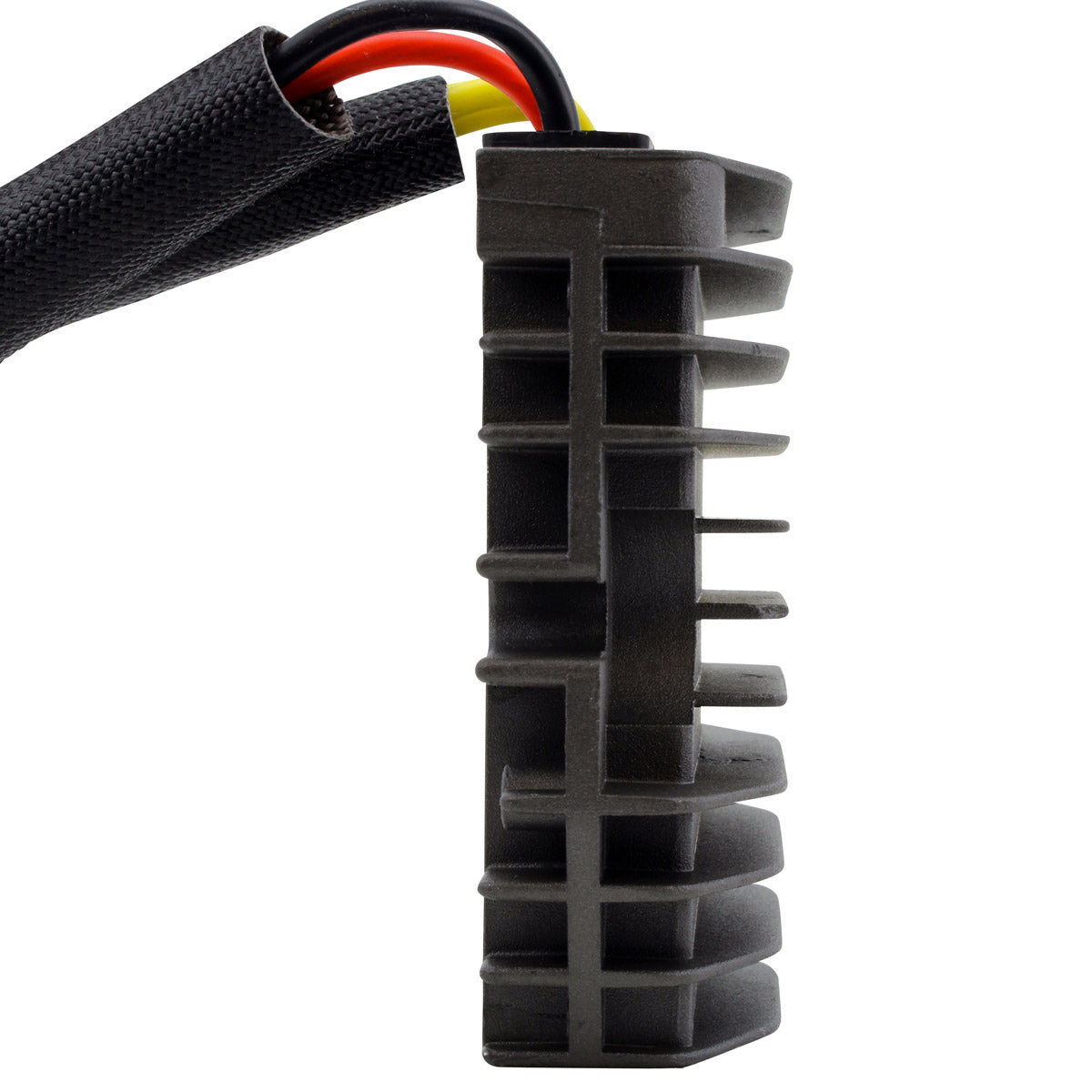

- Improved heat sink and charging capabilities
- Higher grade of electric components
- The quality exceeds the OEM equipment
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
Extended battery life
Extends the battery’s life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
How does a Mosfet regulator rectifier work?
With
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Specifications
Specifications

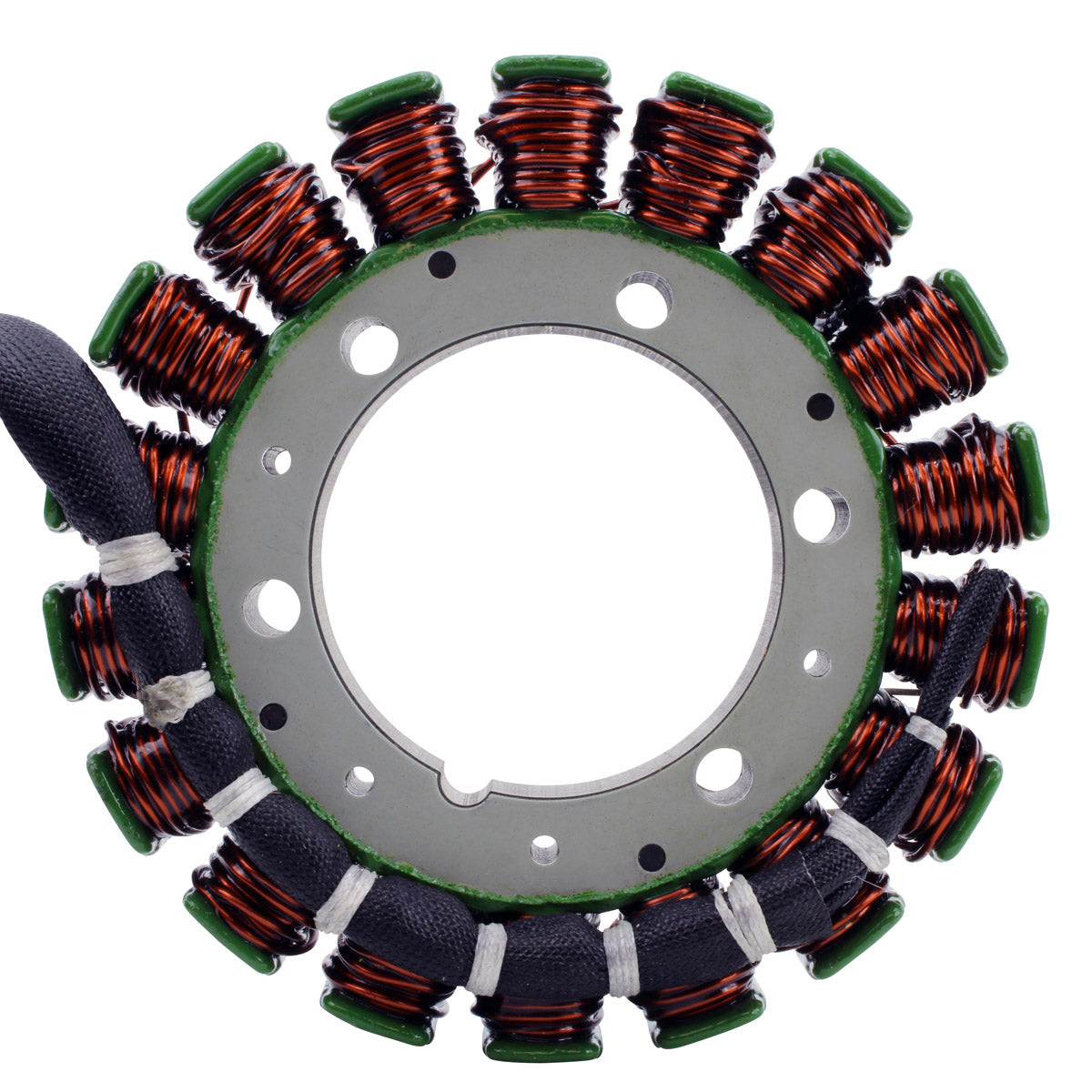

Stator:
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 14 mm
Length of wires stator to grommet: 320 mm
Length of wires grommet to plug: 870 mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.7 ohms +-20%

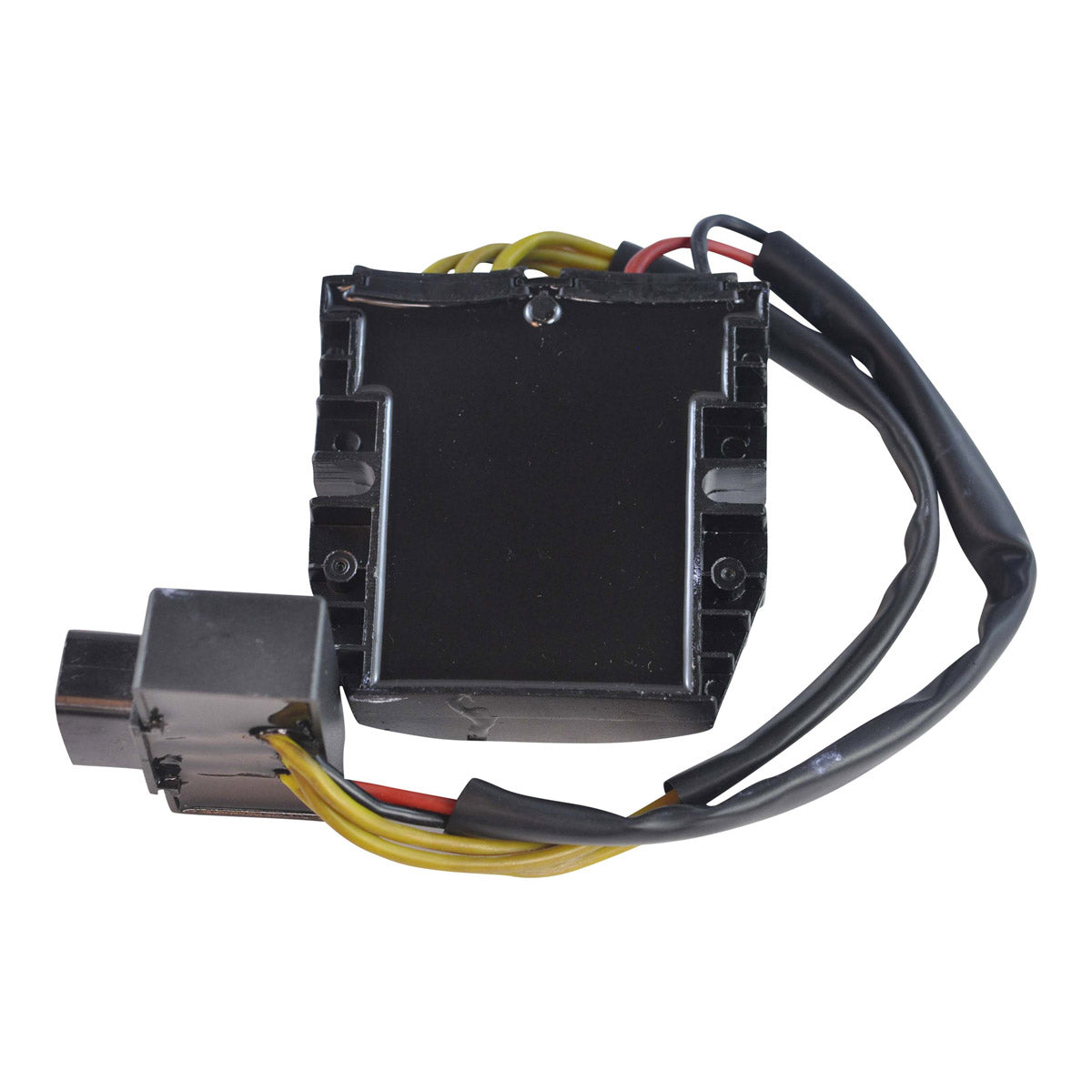

Mosfet Regulator:
Dimensions:
Width: 93 mm
Length: 92 mm
Height: 30 mm
Wires length: 230 mm
Fixation holes center to center: 78 mm
Other specifications:
Number of plugs: 1
Number of pins: 6
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
Interchange Part Nº
Interchange Part Nº
-
Stator :
21003-0093 - 21003-0012
-
Mosfet Voltage Regulator :
21066-0030 - 21066-1127
Installation
Installation
Before installing your new Stator and Voltage Regulator Rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code then youﾒre original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010ﾒﾒ.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
