Kit 850W Stator + Voltage Regulator for Can-Am Maverick / Max X3 1000RR Turbo 2021-2025 | OEM# 420686363 / 710006824
RMSTATOR
SKU: RMS900-108413
Out of stock
RMSTATOR
Kit 850W Stator + Voltage Regulator for Can-Am Maverick / Max X3 1000RR Turbo 2021-2025 | OEM# 420686363 / 710006824
Sold out
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
Read more
Kit 850W Stator + Voltage Regulator for Can-Am Maverick / Max X3 1000RR Turbo 2021-2025 | OEM# 420686363 / 710006824
Sold out
Details
Details

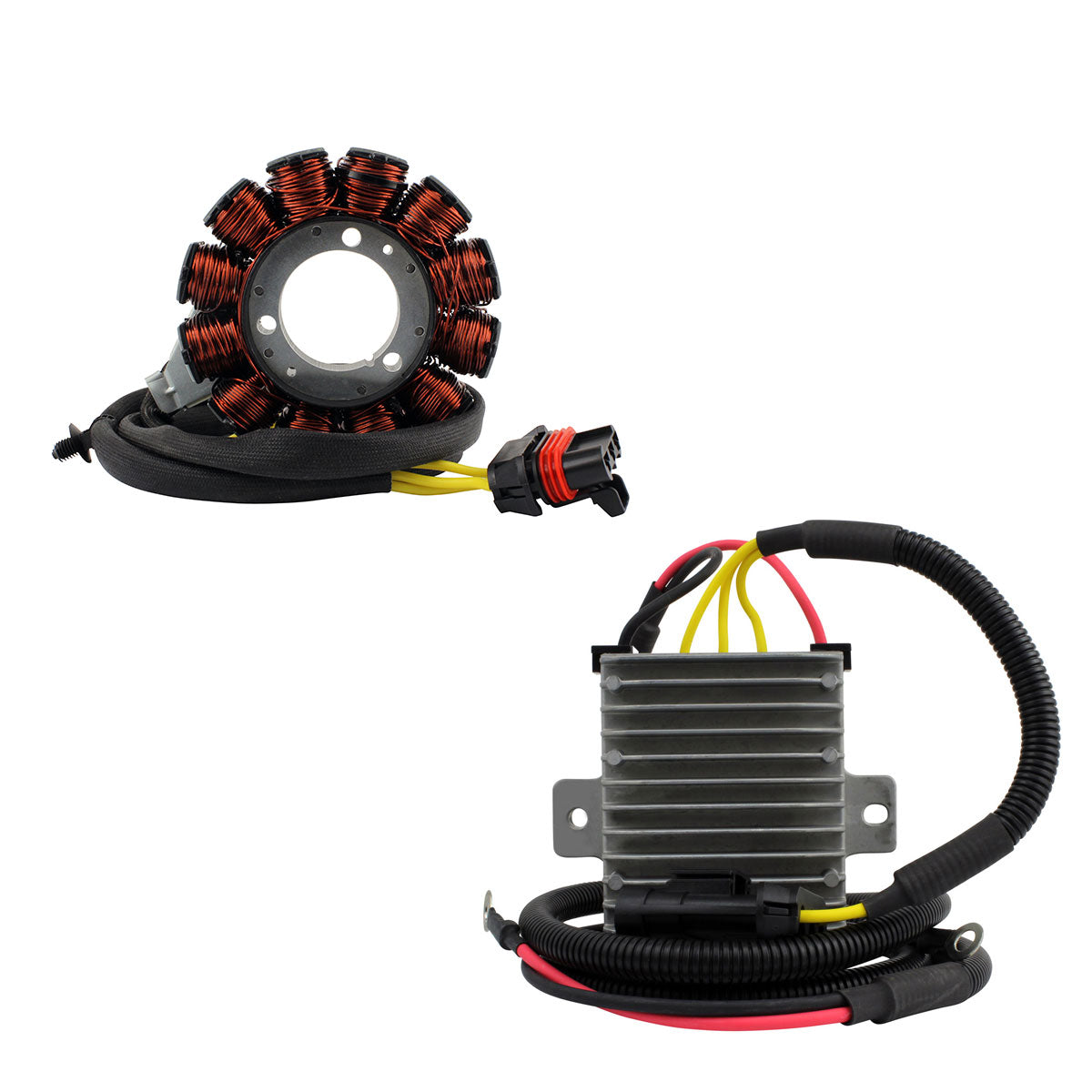

Brand new aftermarket 850W Stator + Voltage Regulator Kit
- Direct replacement to your original units
- Plug-and-play, direct fit, easy installation
- All products shipped are tested

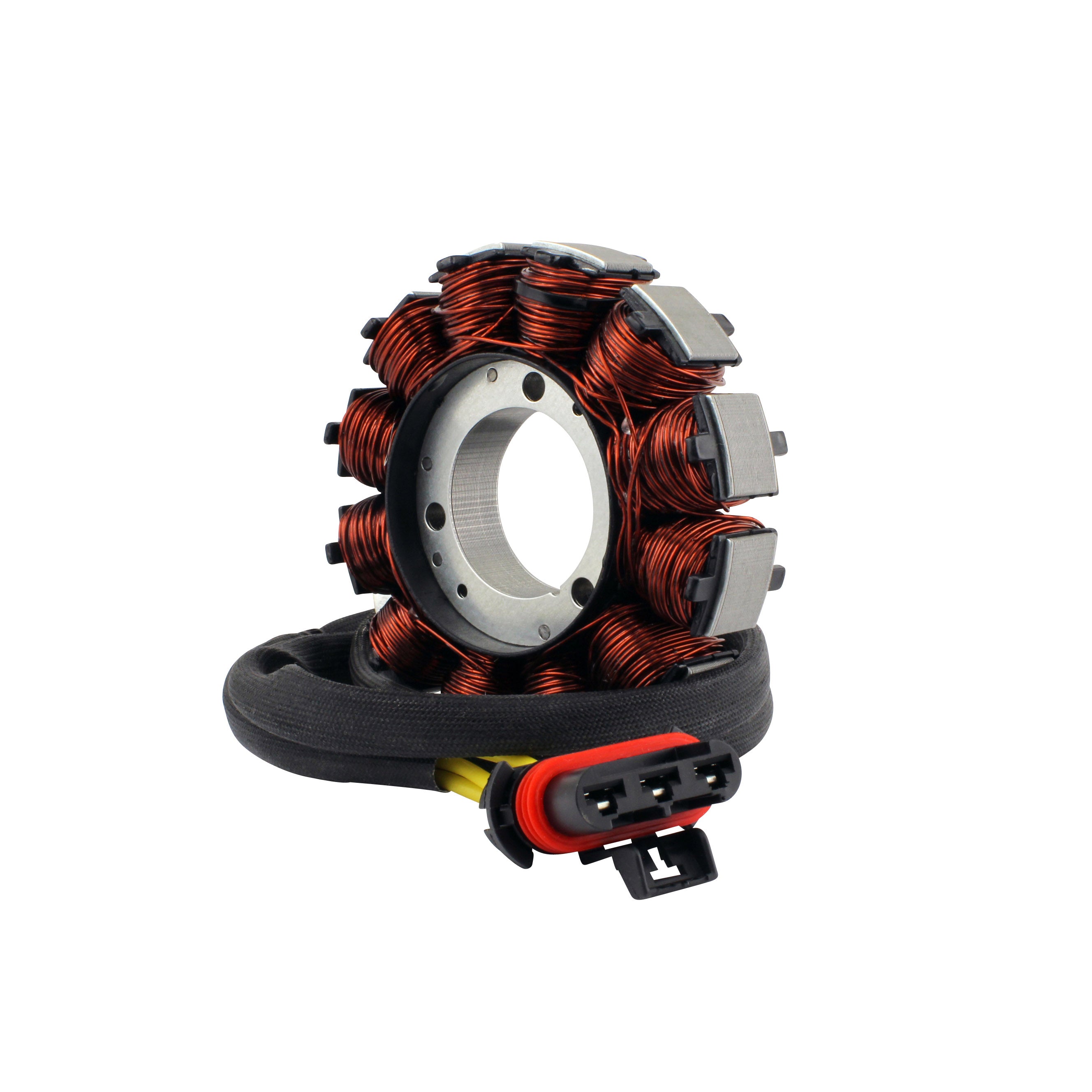

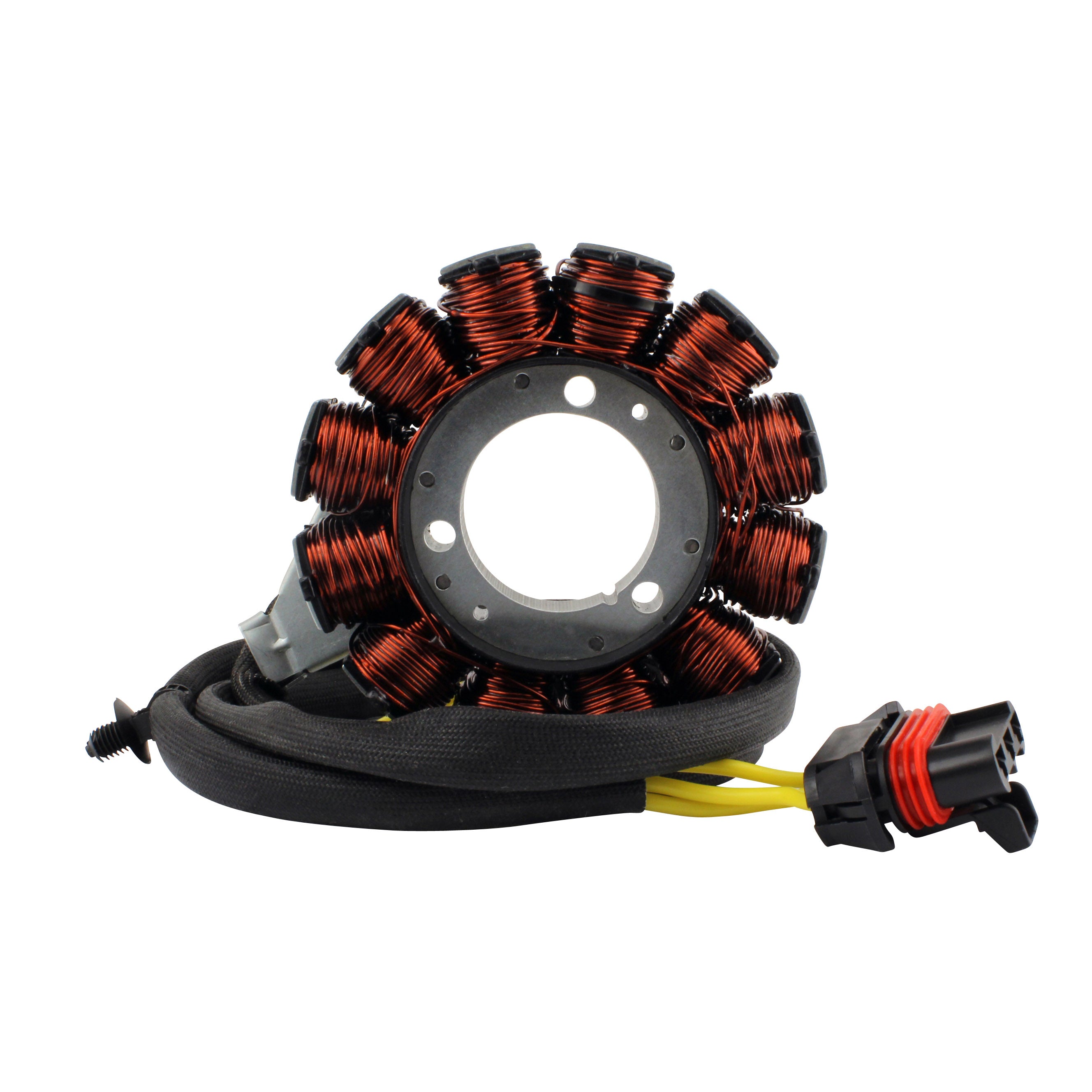

Stator:
- Highest grade of lamination materials

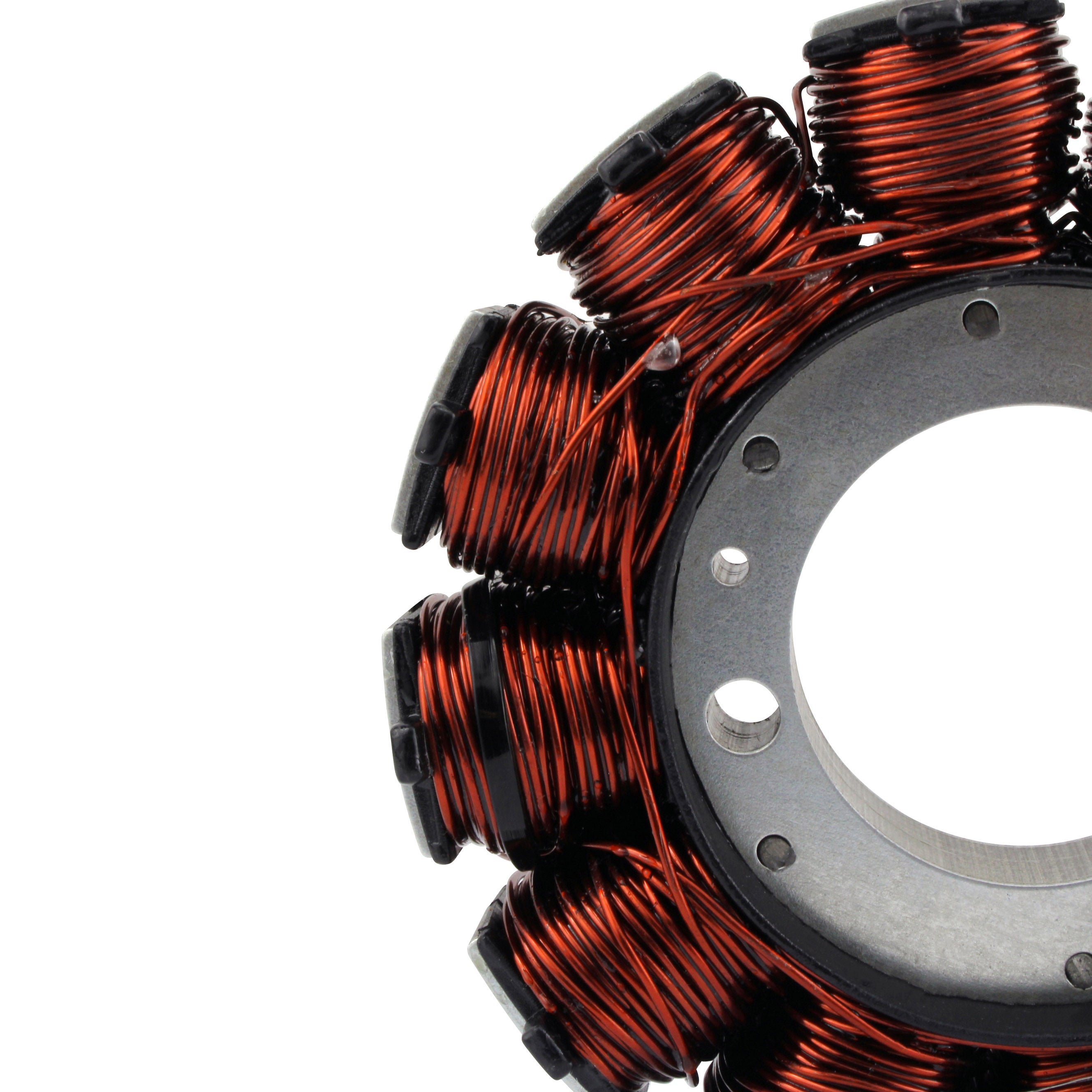

- Highest grade of copper winding, resistant to 200 degrees Celsius

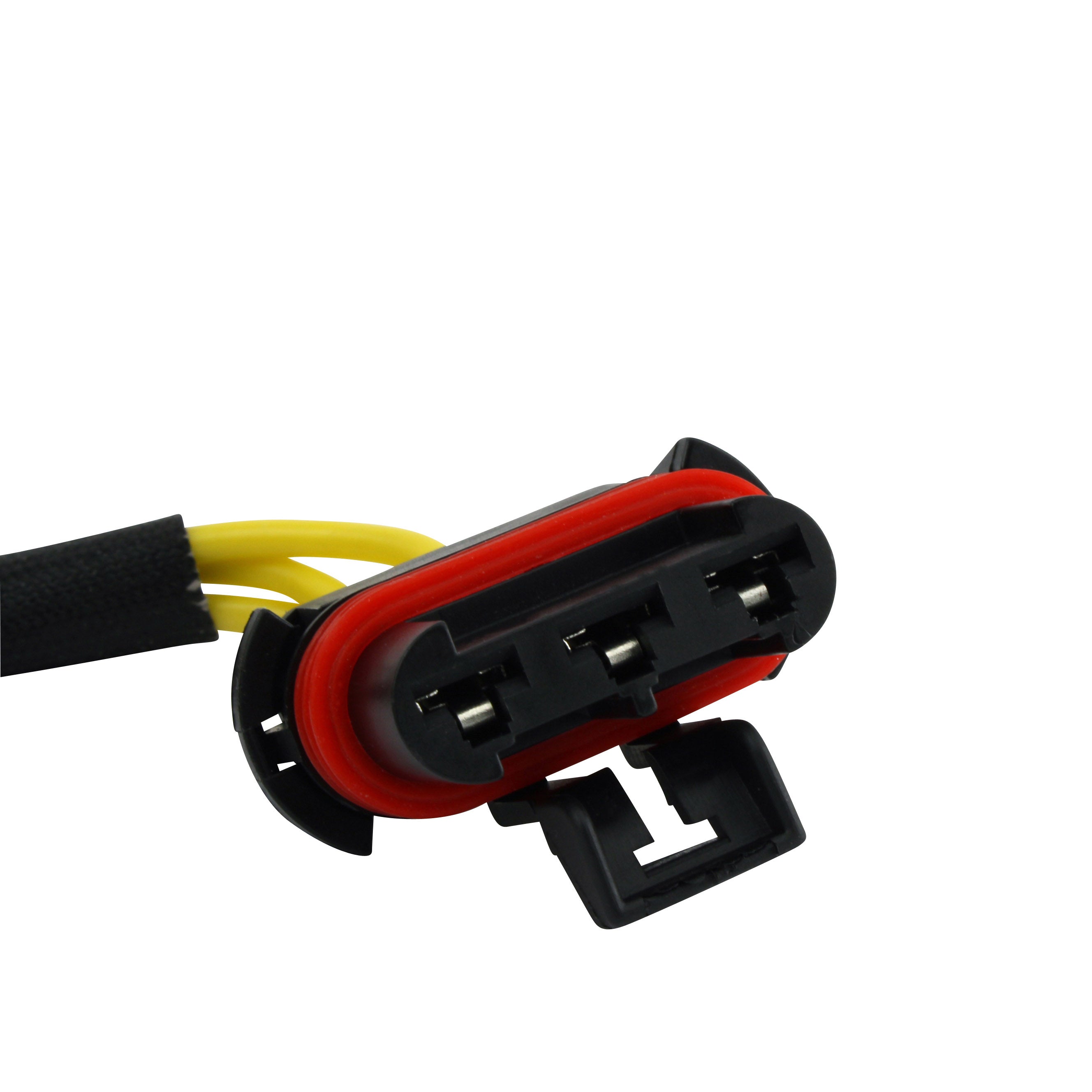

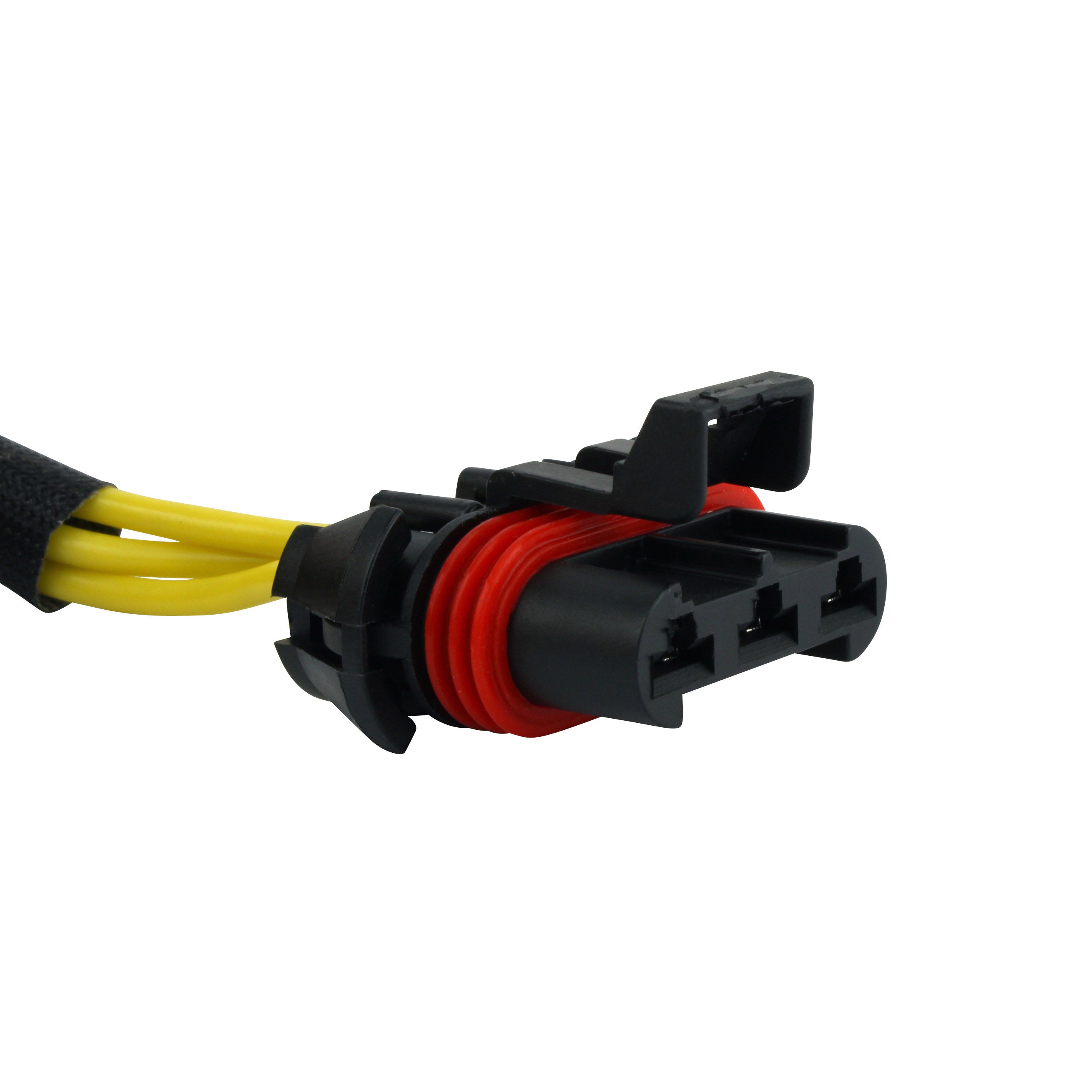

- Connectors included
- Rubber grommet included

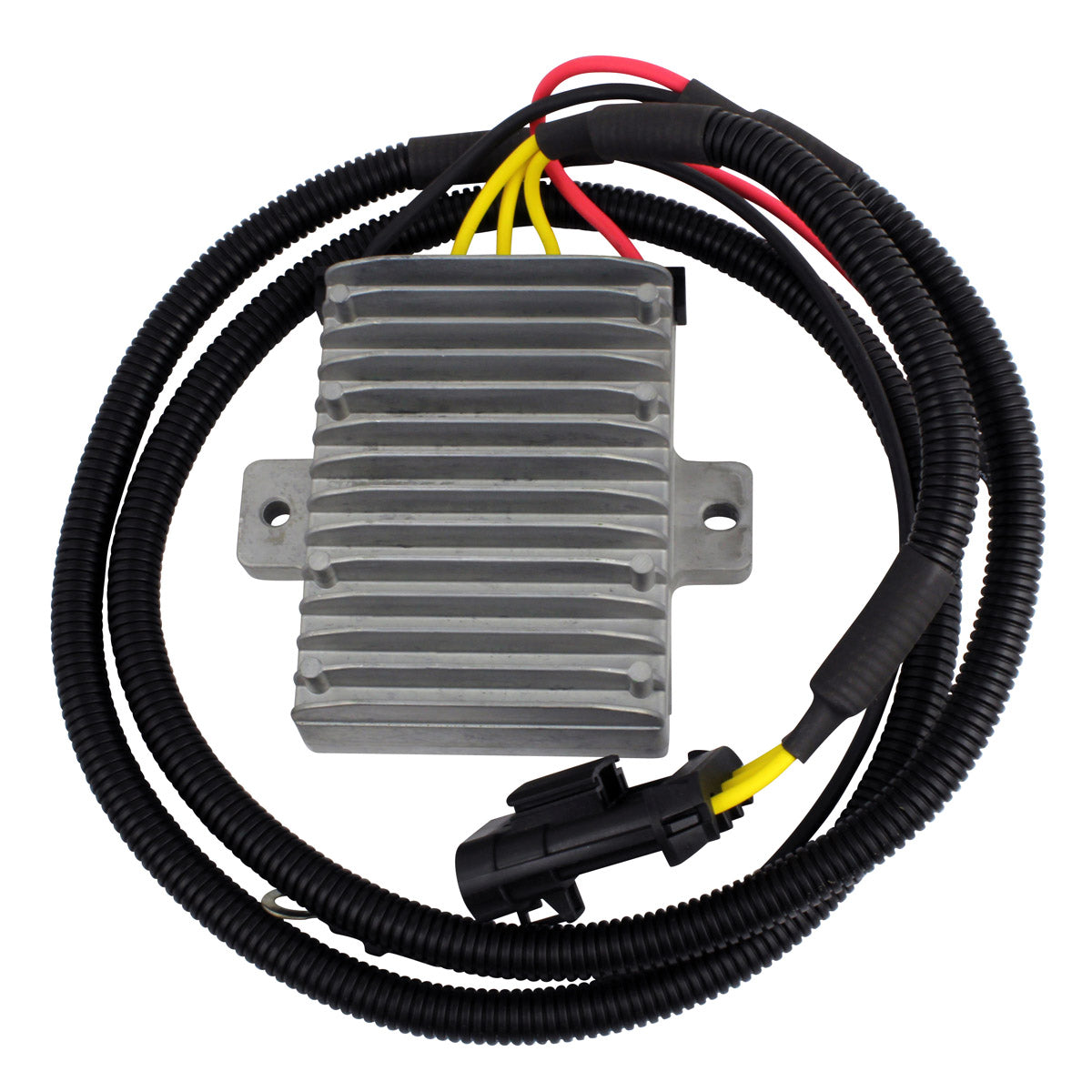

Voltage Regulator:
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
All item pictures are accurate; if in doubt, do not hesitate to compare our items to your original part.
Specifications
Specifications

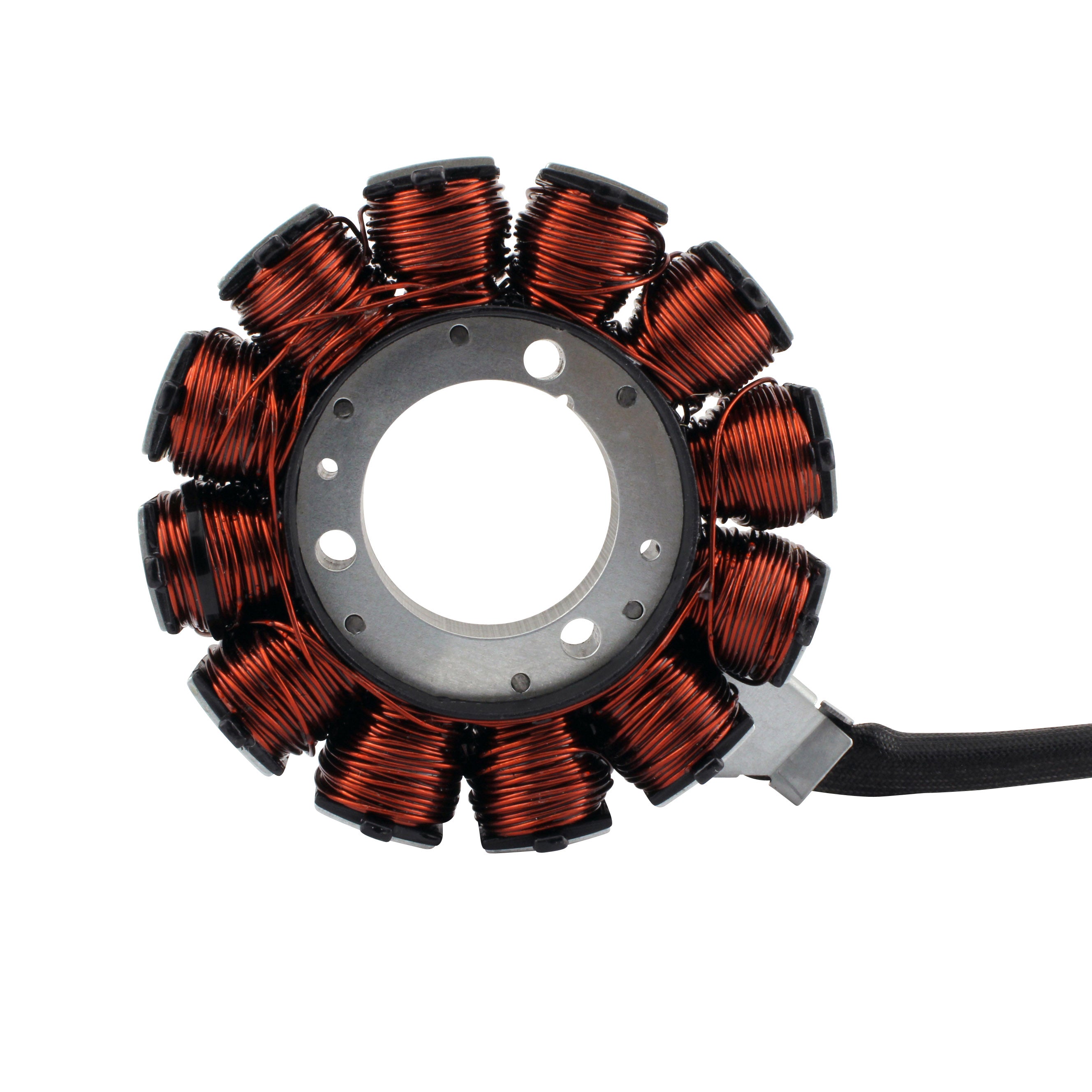

Stator:
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 17 mm
Length of wires stator to grommet: 280 mm
Length of wires grommet to plug: 995 mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.3 ohms +/-20%
Alternator: Yellow to ground = O.L
Voltage Regulator:
Dimensions:
Width: 89 mm
Length: 120 mm
Height: 40 mm
Stator Wires length: 280 mm
Distance between fixation holes center to center: 112 mm
Other specifications:

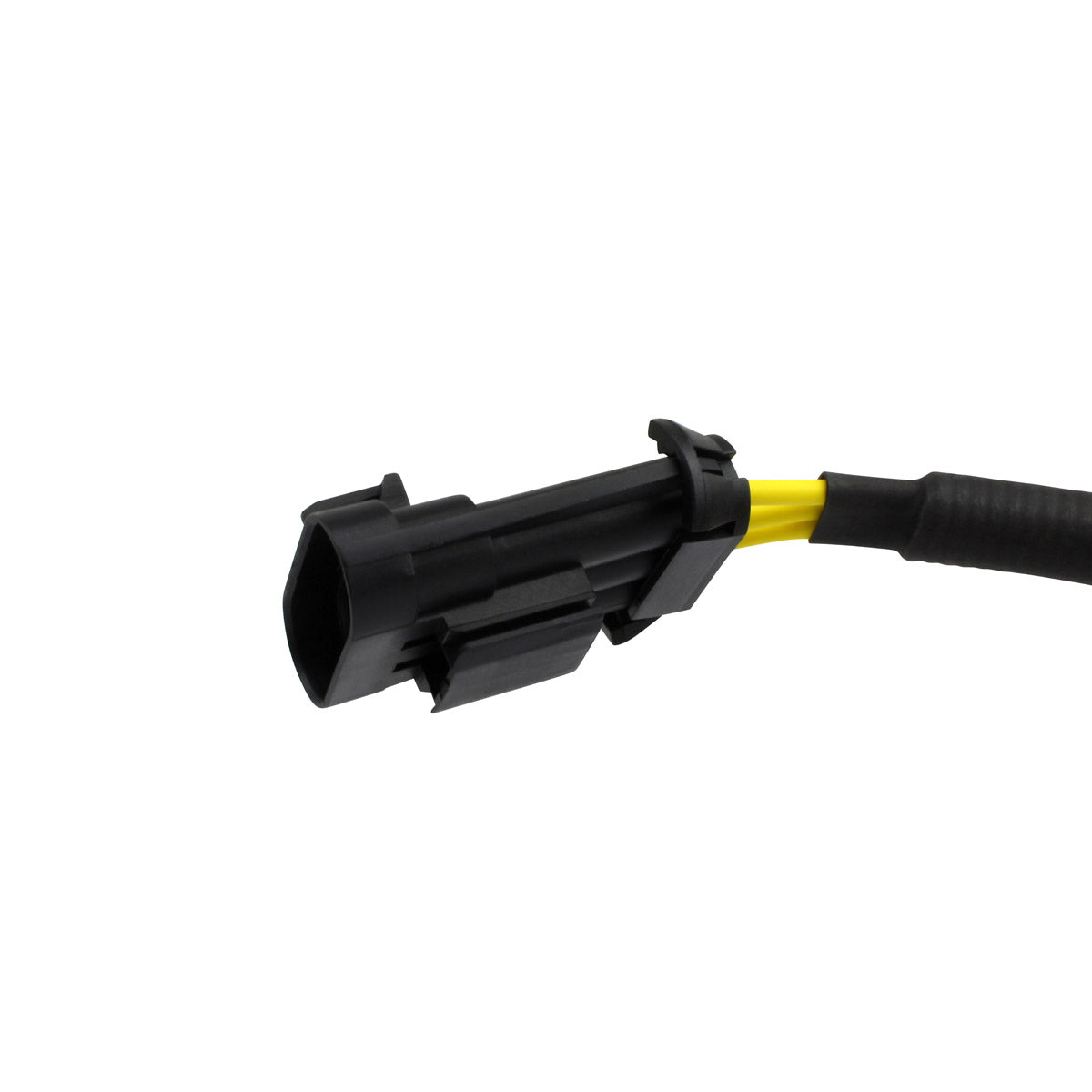

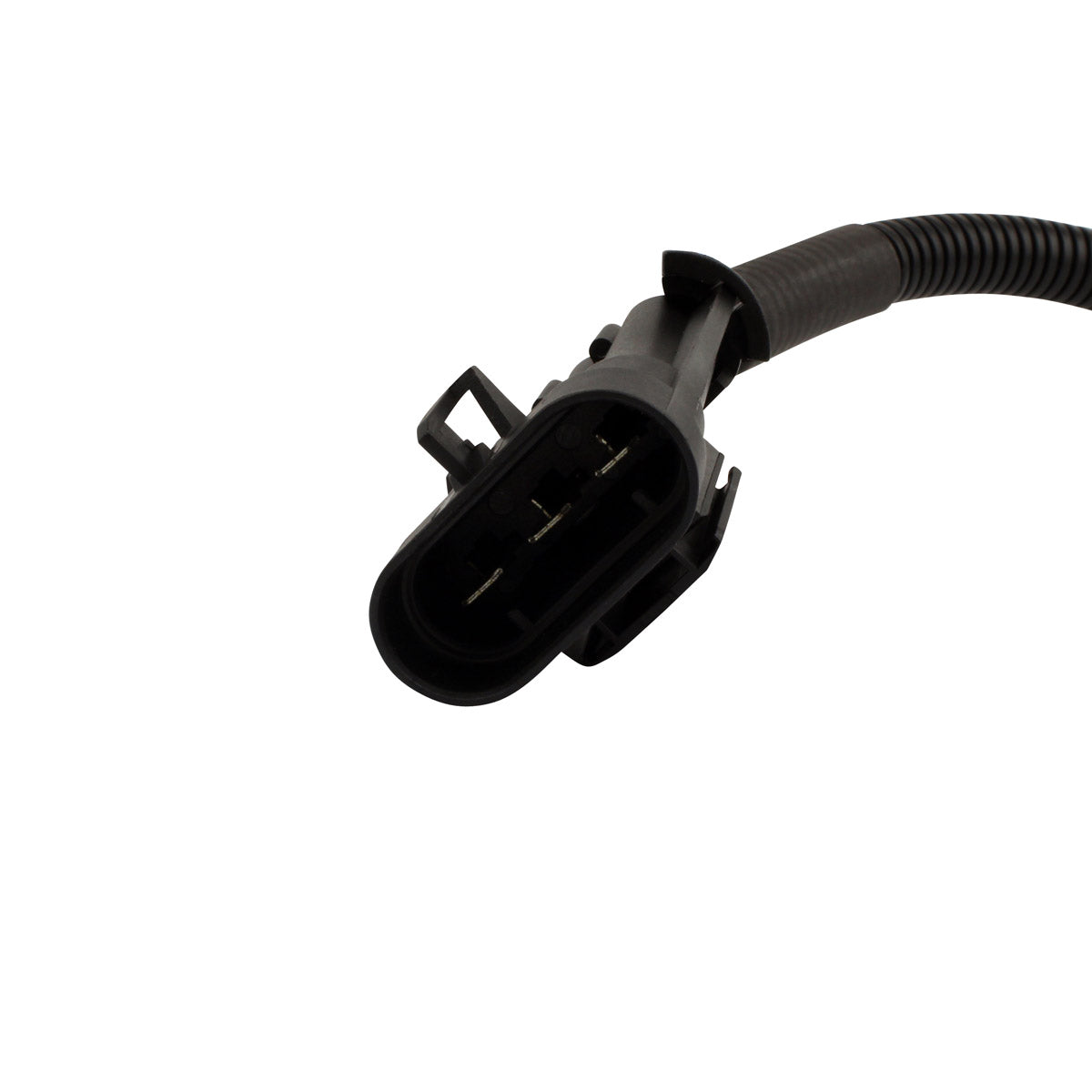

Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 65 A / 850 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
Interchange Part Nº
Interchange Part Nº
-
Stator :
420686363 -
Voltage Regulator :
710006824
Installation
Installation
Before installing your new stator + voltage regulator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
