Kit Stator + CDI Module for Ski-Doo Skandic 500 / 503 SWT | Lynx 6900 FCE / Forest 440 1996-2003 | 420886605 / 420965757

RMSTATOR
SKU: RMS900-108303
Low Stock
RMSTATOR

Kit Stator + CDI Module for Ski-Doo Skandic 500 / 503 SWT | Lynx 6900 FCE / Forest 440 1996-2003 | 420886605 / 420965757

$340.78
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

We would like to share our 15 years of experience with our clients and help them find the right part for the problem. This product has a low defect rate, but a high return rate from customers: Either clients are buying it to resolve a spark issue that is not caused by the CDI box, or they are buying the wrong part for their make, model and/or year.

Before purchasing, please make sure to follow our advice:

  • Always double check our pictures & fitments against the part you physically have on the vehicle (Our pictures are accurate).
  • If you are buying this part for spark issues: these vehicles are notorious for stator failure, please make sure you have properly tested the stator before purchasing.
Read more
Kit Stator + CDI Module for Ski-Doo Skandic 500 / 503 SWT | Lynx 6900 FCE / Forest 440 1996-2003 | 420886605 / 420965757
Kit Stator + CDI Module for Ski-Doo Skandic 500 / 503 SWT | Lynx 6900 FCE / Forest 440 1996-2003 | 420886605 / 420965757
$340.78

Details

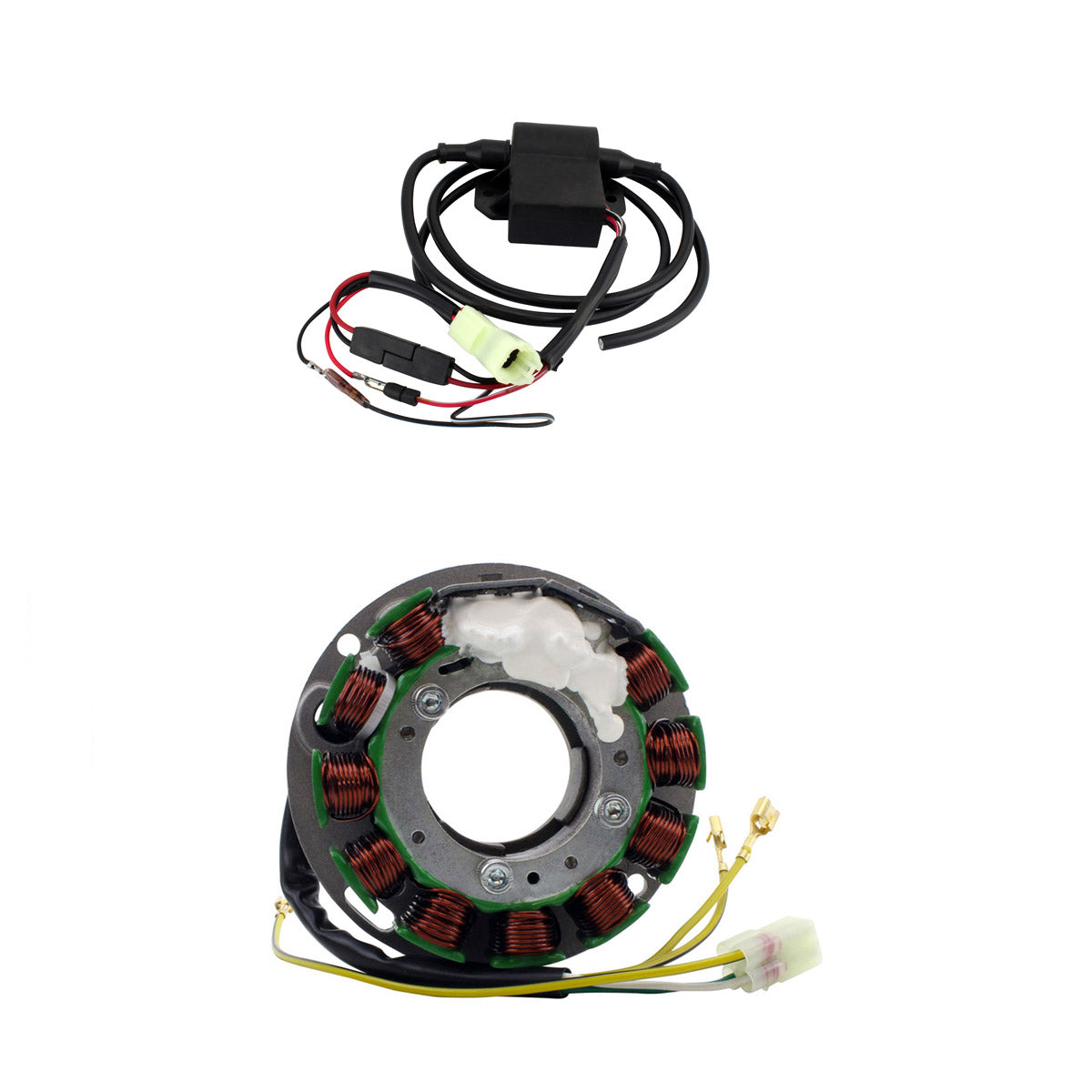

Brand new aftermarket stator + CDI ignition module

All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our items to your original parts.

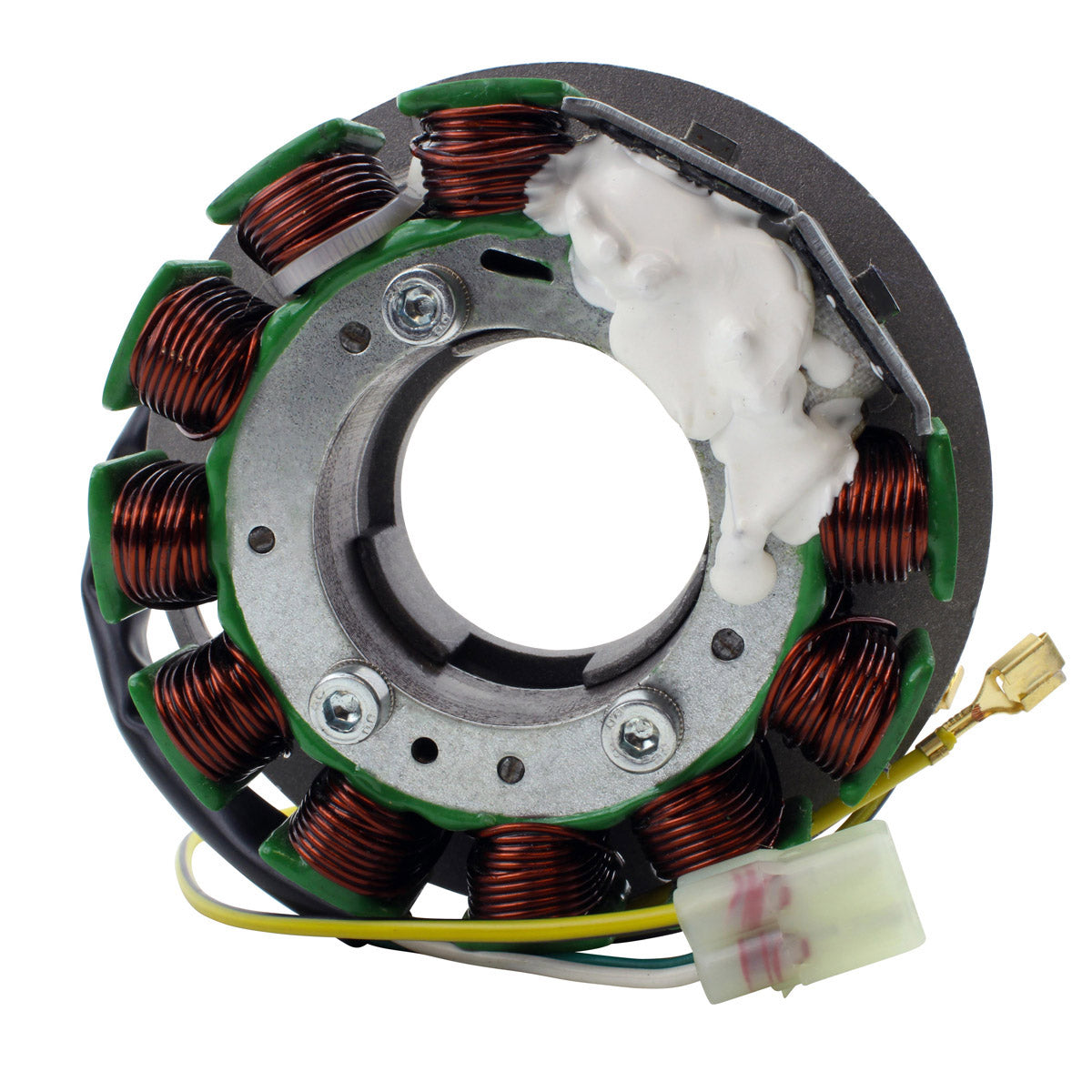

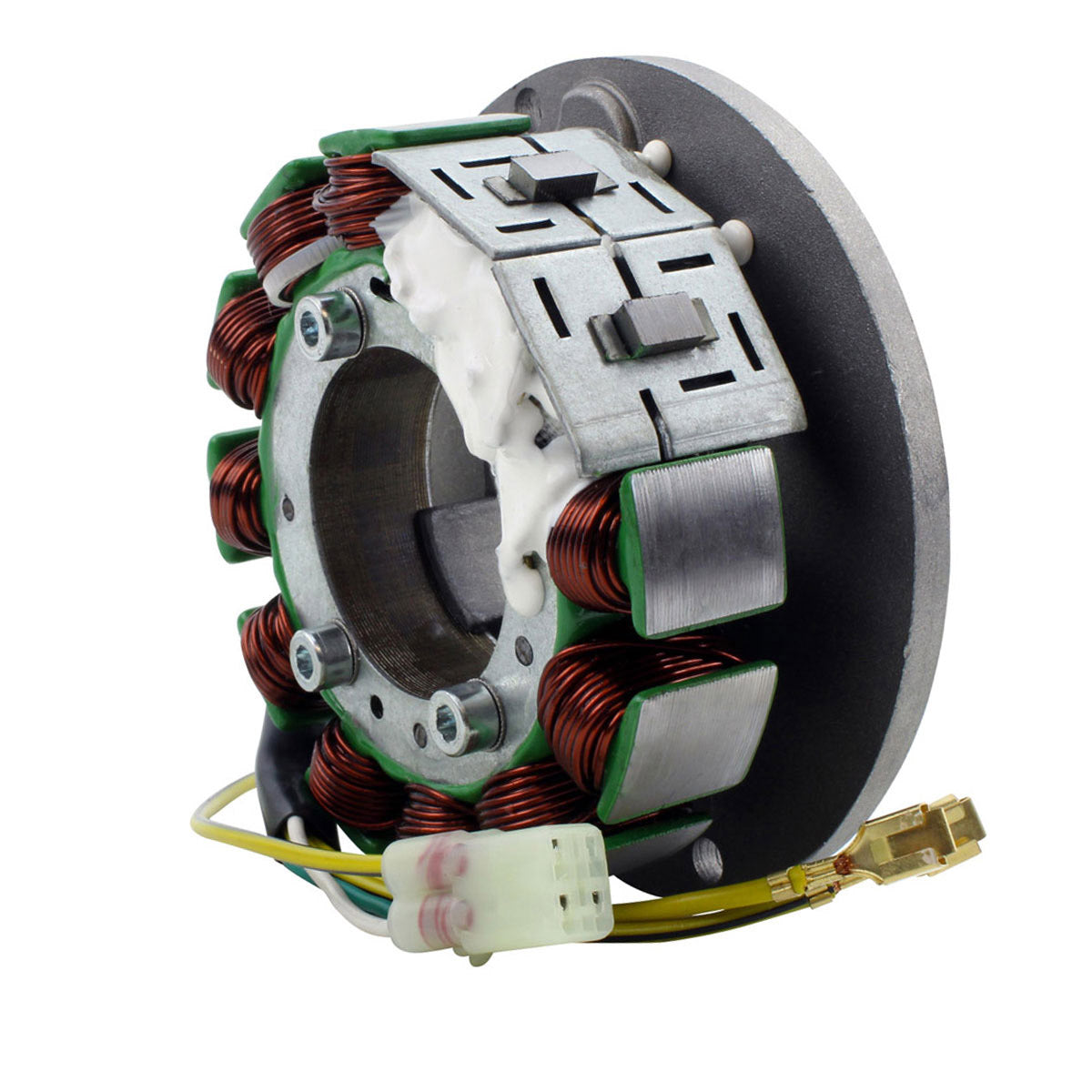

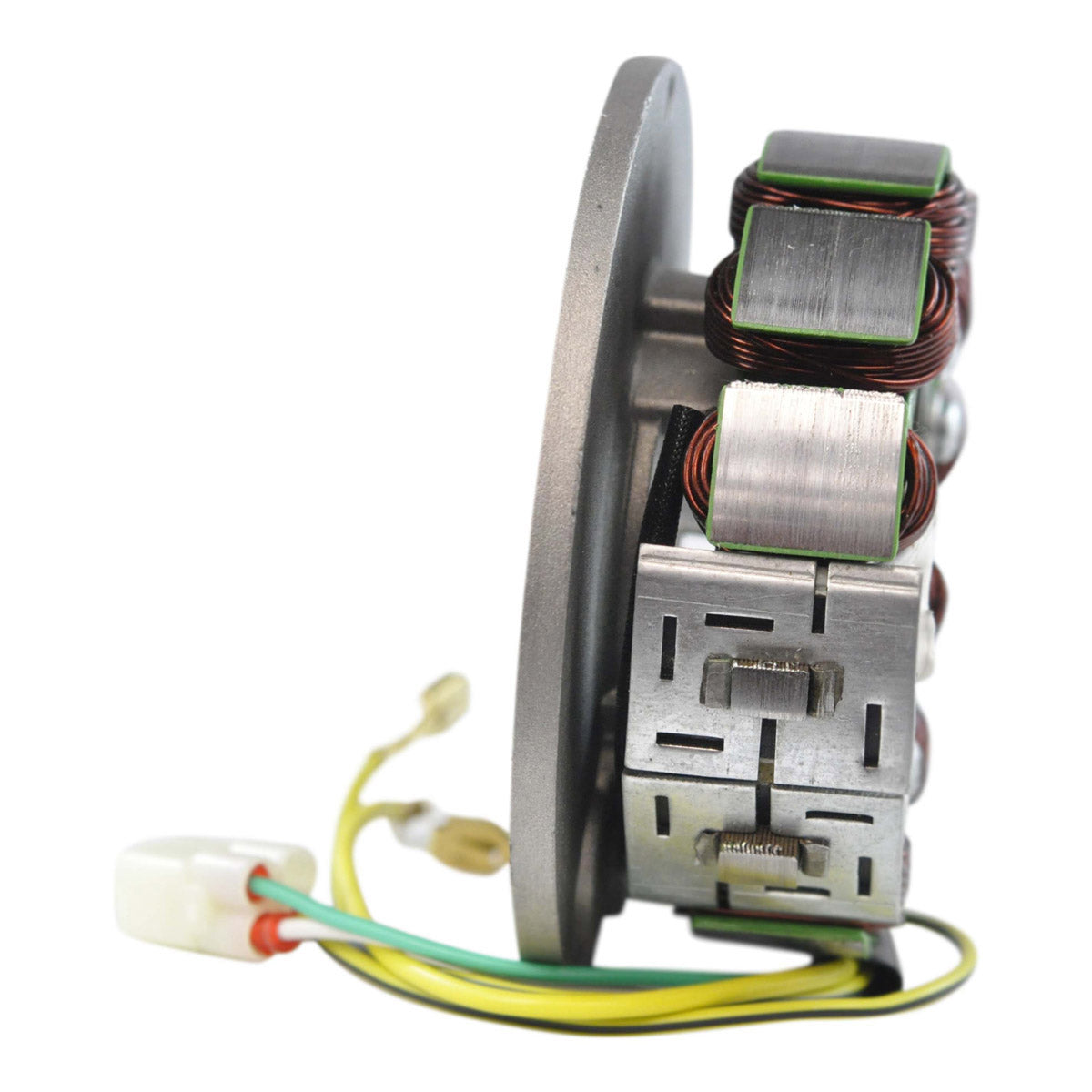

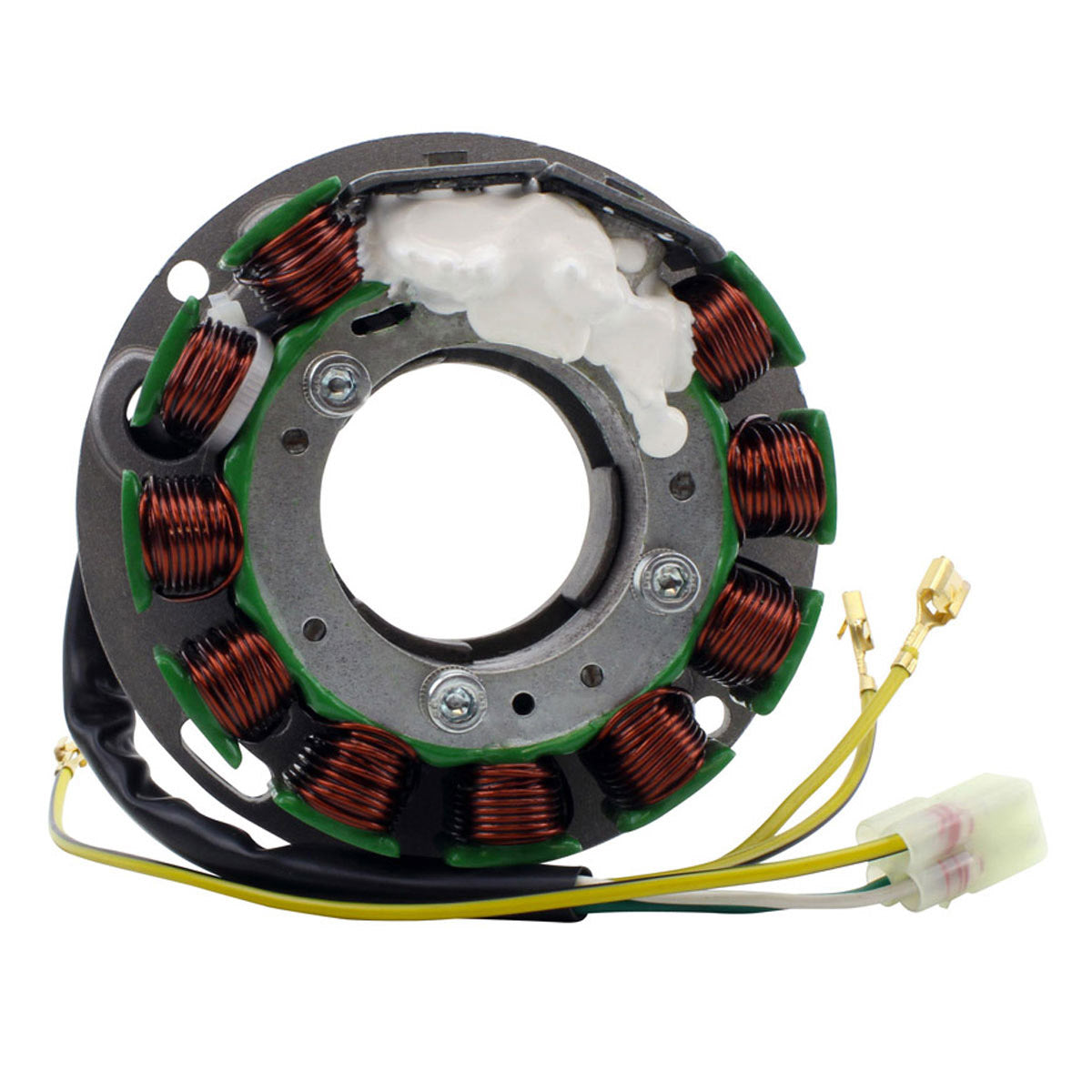

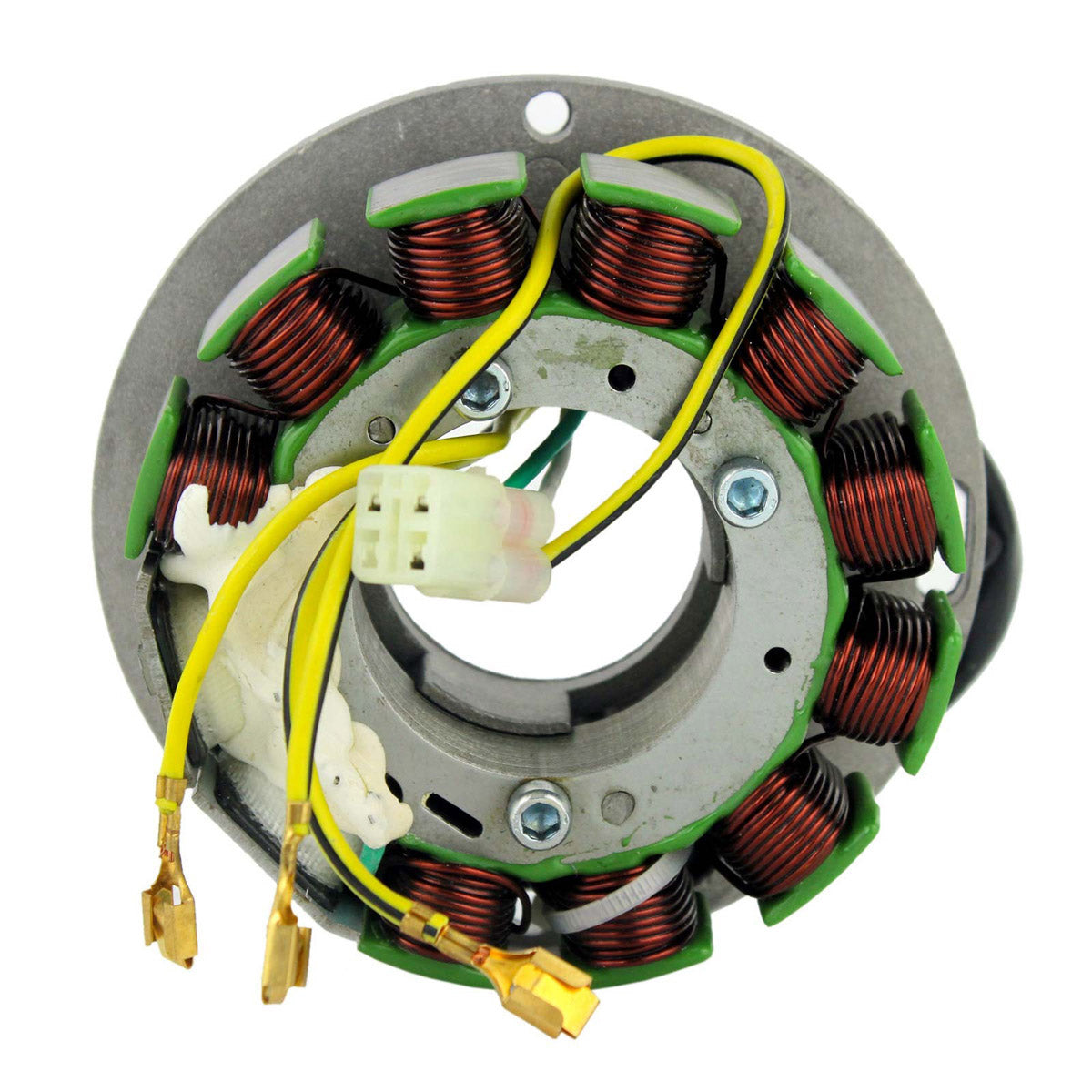

Stator:

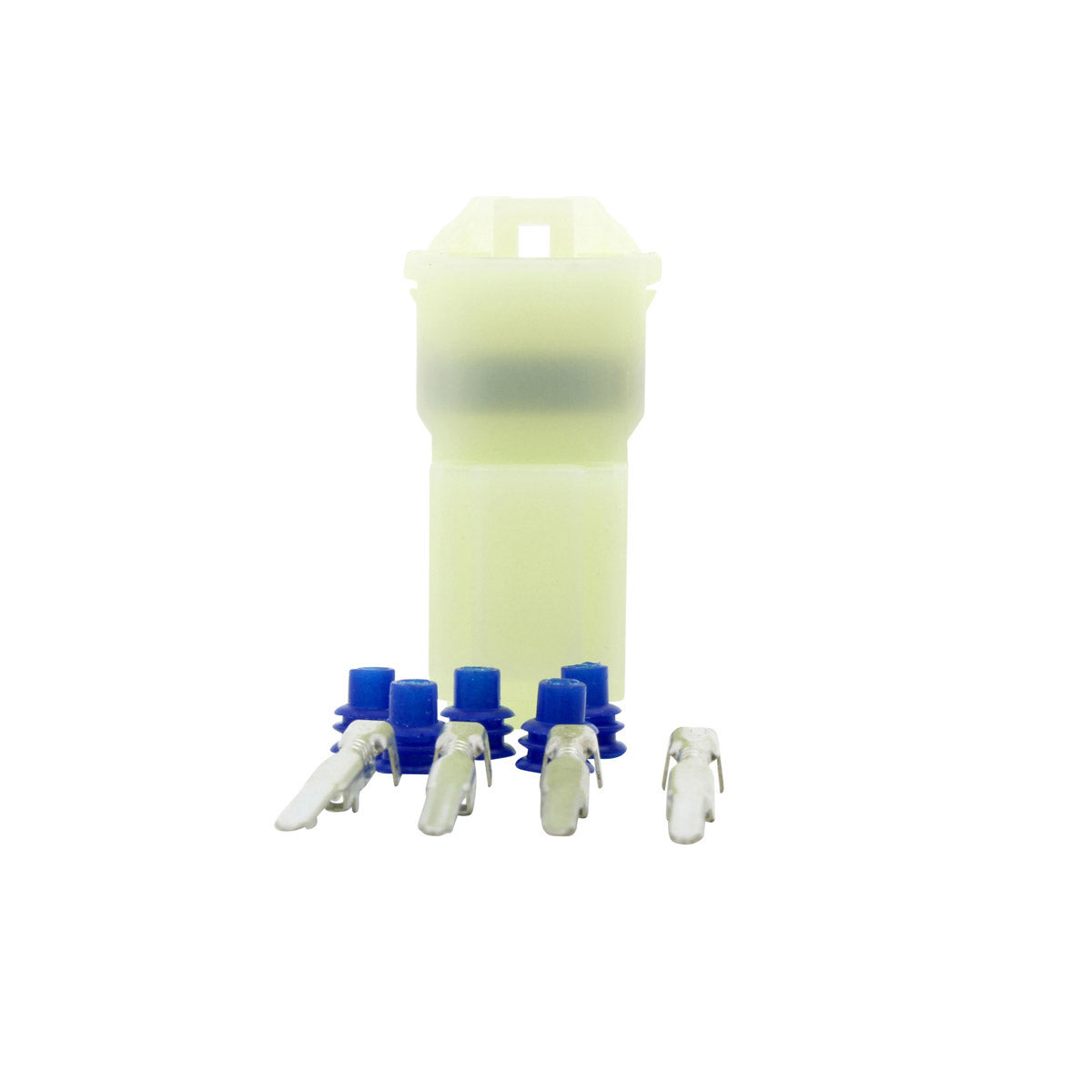

  • You must re-install your original connector and grommet
  • Once your connector and grommet are re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.

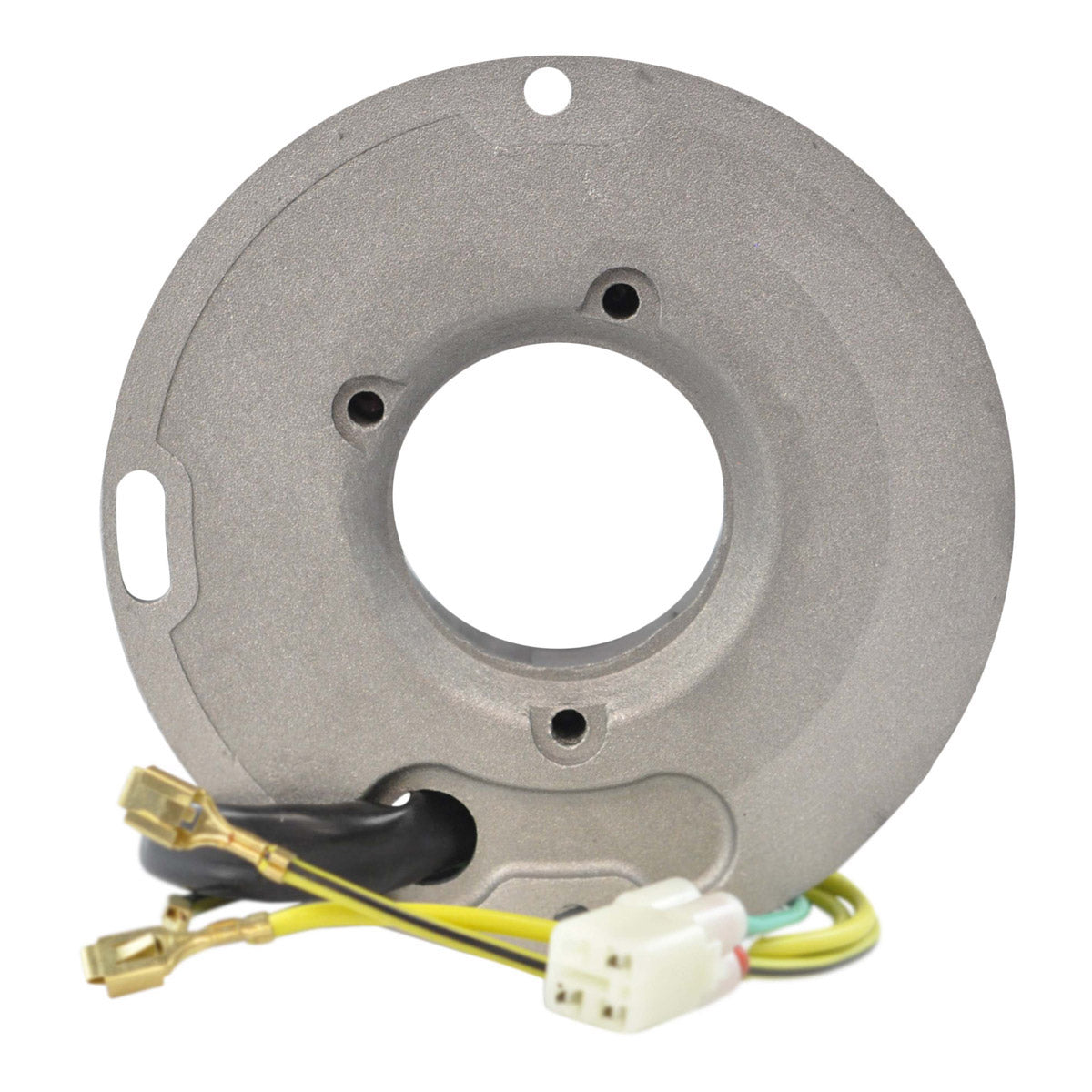

  • Back Plate included

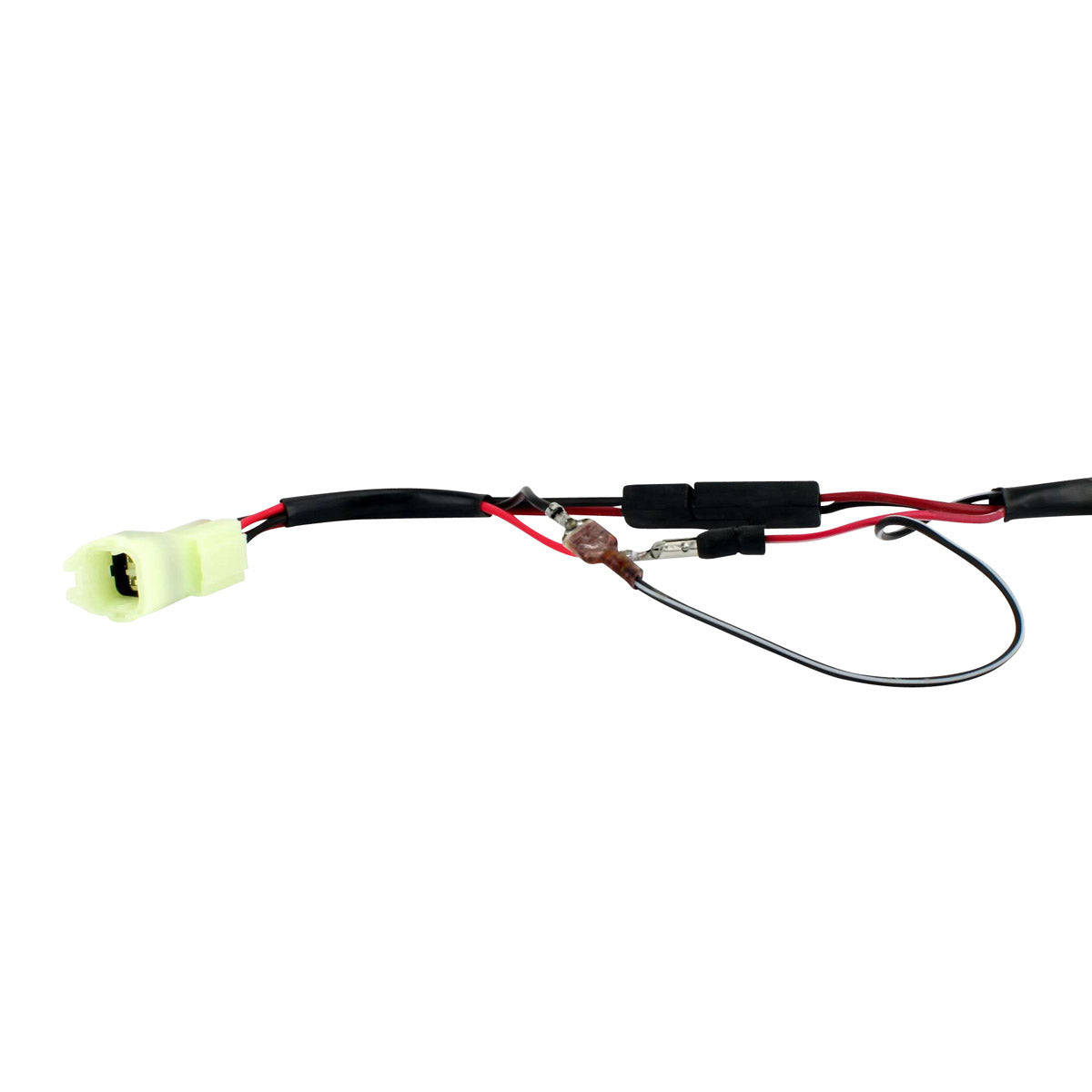

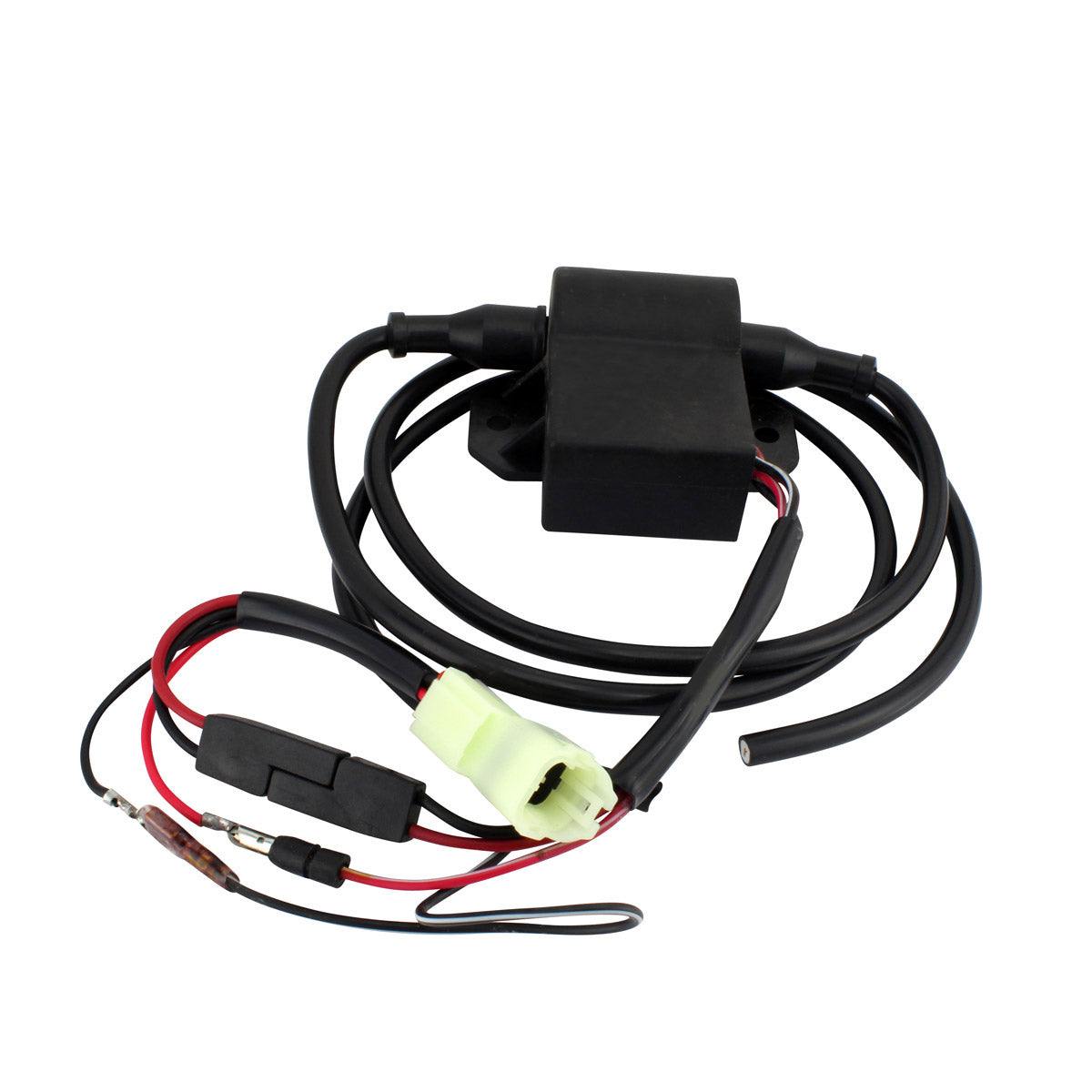

CDI Ignition Module:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Spark plug cap(s) included
  • Higher grade of electric components.

Specifications

Stator:

Dimensions:
Interior diameter: 44 mm
Exterior diameter: 96 mm
Thickness: 21 mm
Length of wires stator to terminals: 180 mm & 220 mm

Other specifications:
Number of wires: 5
Number of plugs: 1
Number of pins: 6
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow/Black = 0.7 ohms +/-20%
Alternator: Yellow to ground = O.L
Source: Green to White = 258 ohms +/-20%

CDI Ignition Module:

Dimensions:
Height: 41 mm
Length: 47.5 mm
Width: 75.5 mm
Fixation holes center to center: 71 mm
Wires length: 620 mm 600 mm 105 mm

Other specifications:

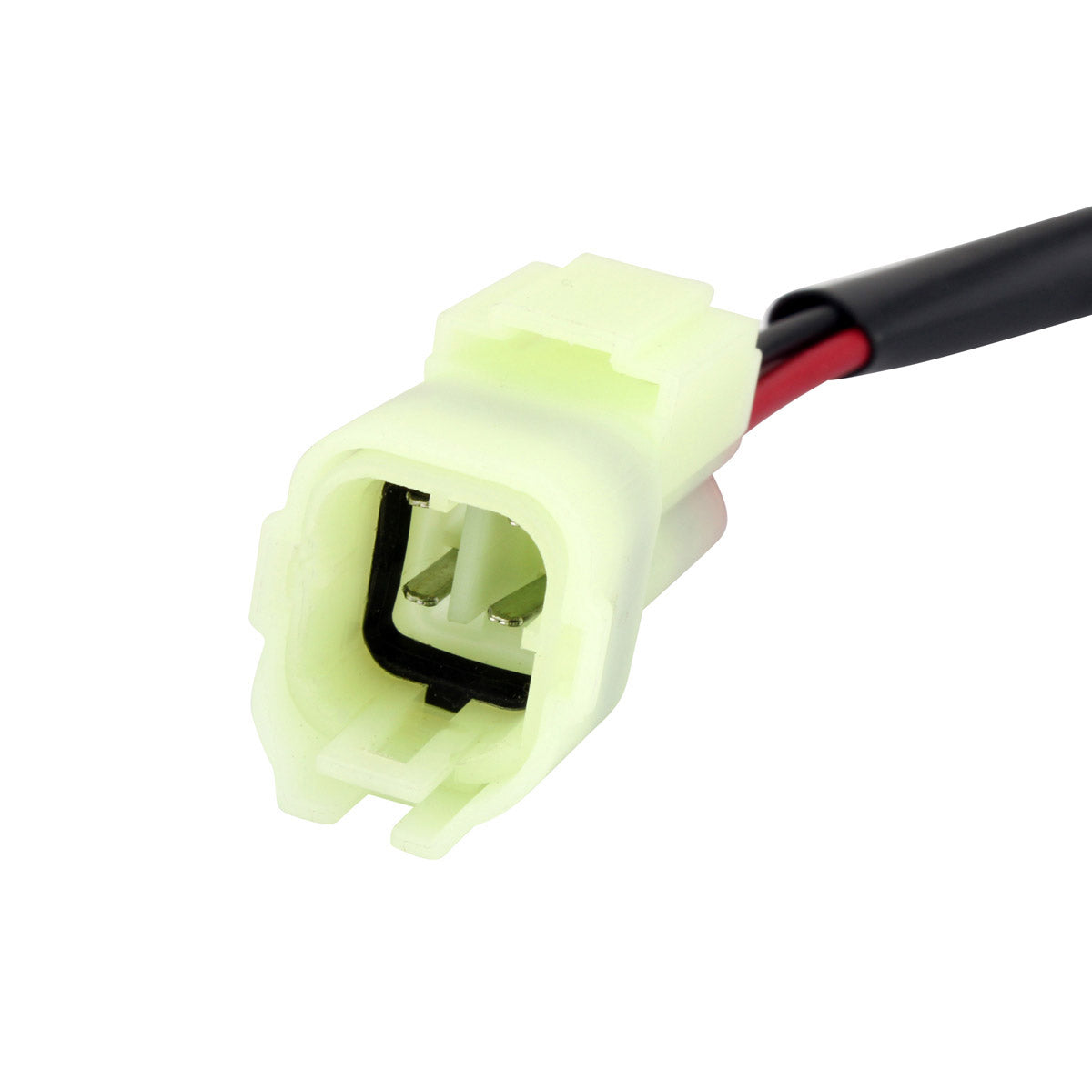

Number of plugs: 1
Number of wires: 4
Number of pins: 4

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

Interchange Part Nº

  • Stator :

    420886605
  • CDI Box :

    420965756
  • 420965757

Installation

Before installing your new stator + CDI ignition module
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • You must re-install your original connector and grommet
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
