Kit Stator + CDI Box for Polaris Indy Lite / GT 340 | Starlite 250 | Sport 340 | 1990-1998 2003 | OEM # 3084258 3083723

RMSTATOR
SKU: RMS900-108214
Out of stock
RMSTATOR

Kit Stator + CDI Box for Polaris Indy Lite / GT 340 | Starlite 250 | Sport 340 | 1990-1998 2003 | OEM # 3084258 3083723

$371.78
Sold out
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
Kit Stator + CDI Box for Polaris Indy Lite / GT 340 | Starlite 250 | Sport 340 | 1990-1998 2003 | OEM # 3084258 3083723
Kit Stator + CDI Box for Polaris Indy Lite / GT 340 | Starlite 250 | Sport 340 | 1990-1998 2003 | OEM # 3084258 3083723
Sold out

Details

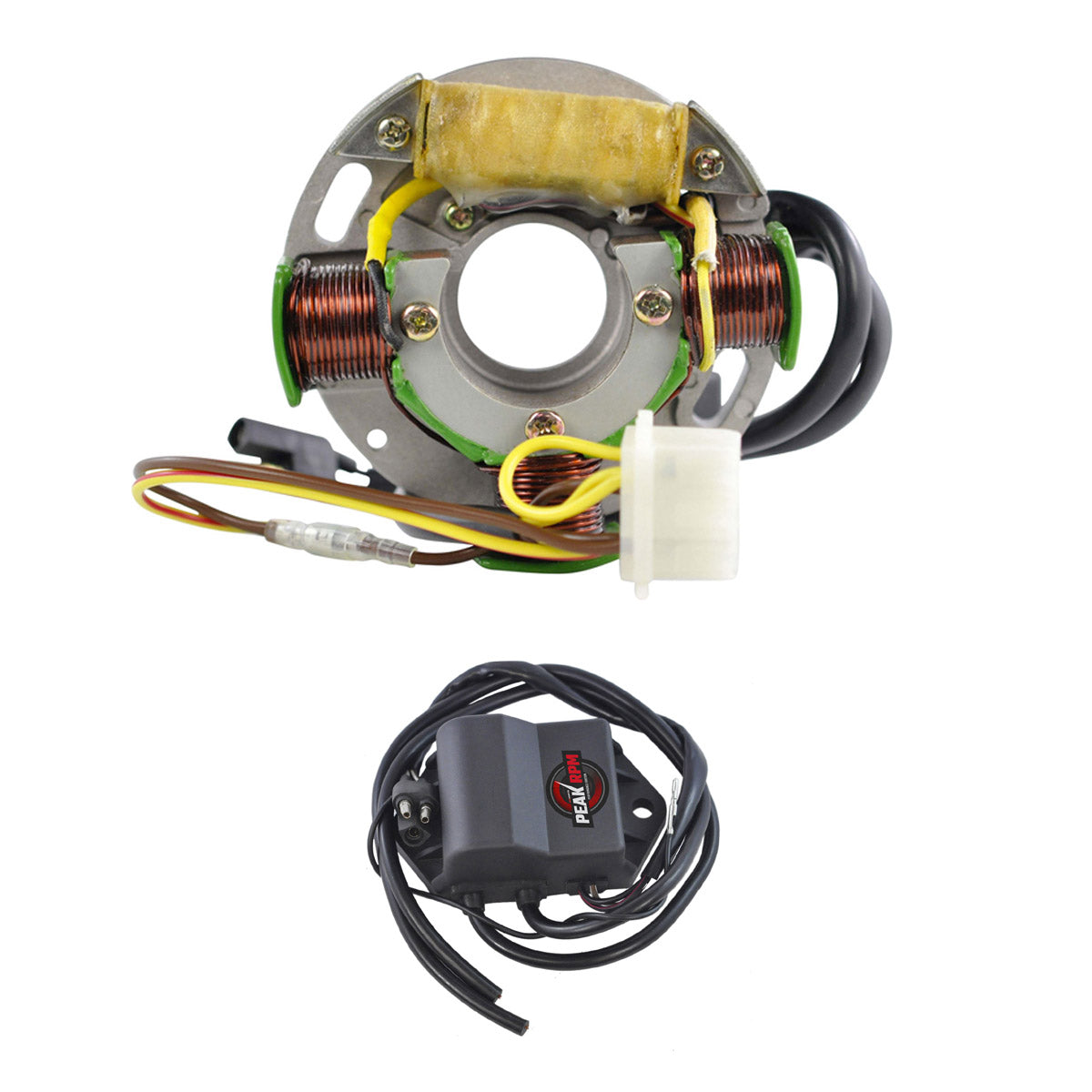

Brand new stator + CDI box

  • All products shipped are tested
  • All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

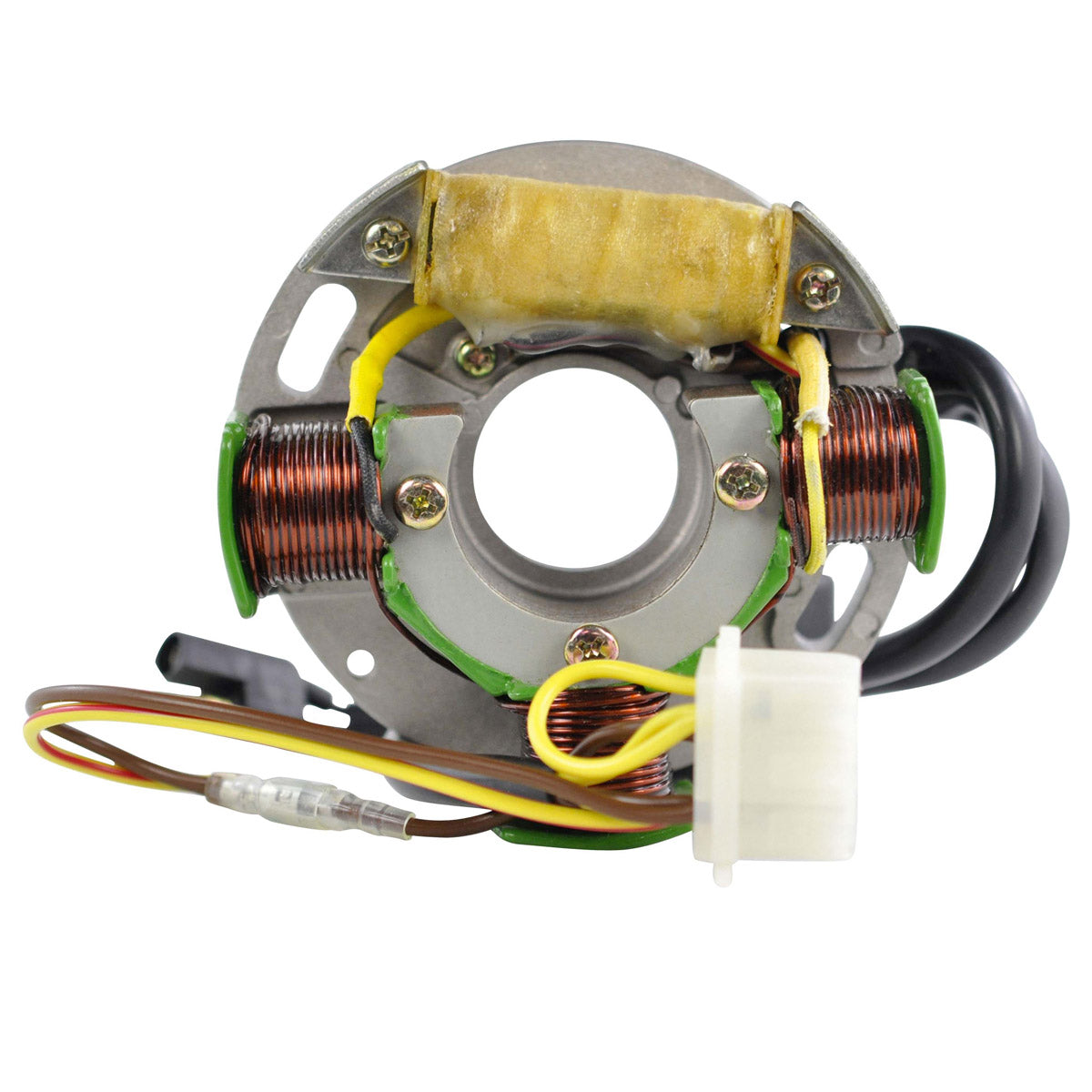

Stator :
  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

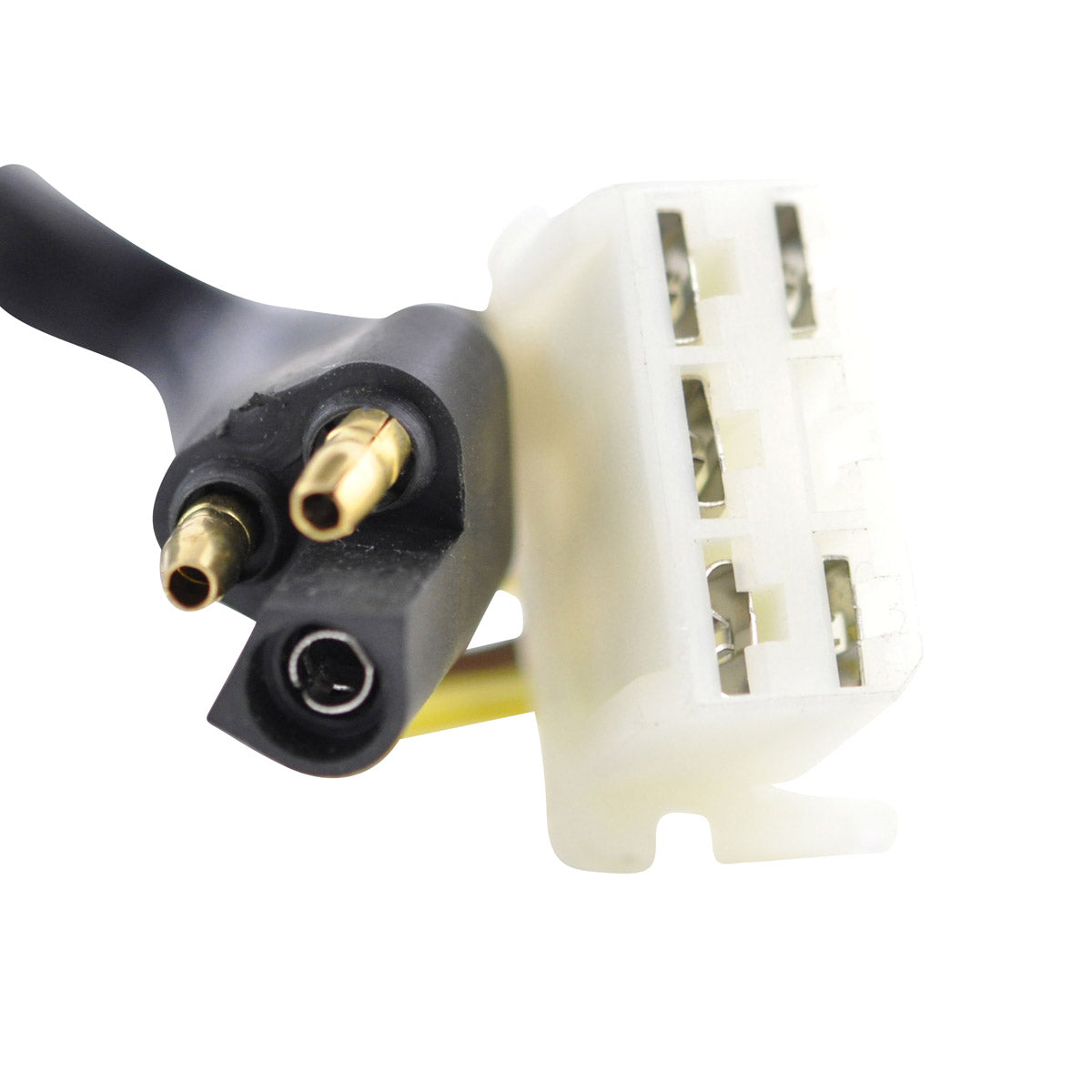

  • Connector included
  • Rubber grommet included
  • Back Plate included

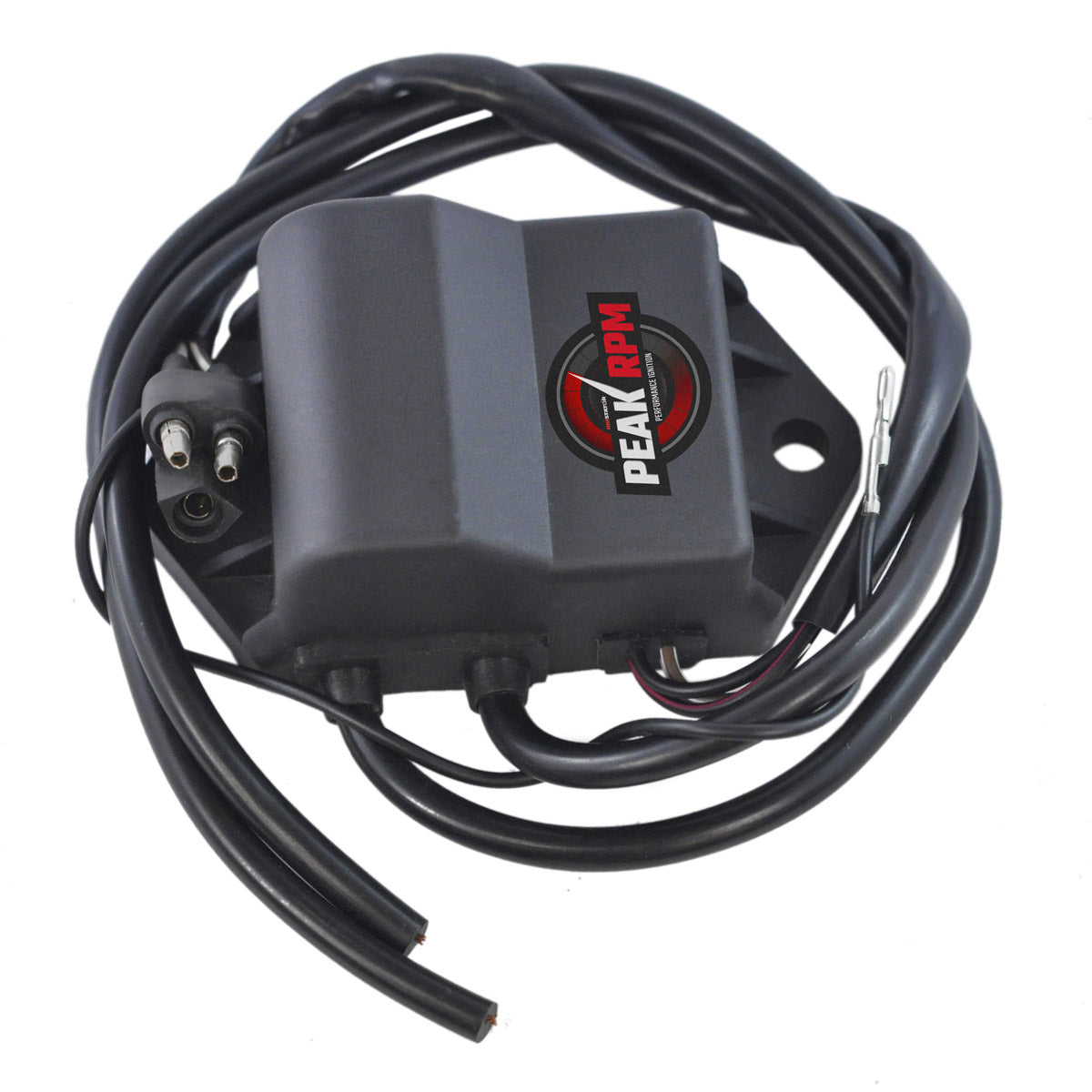

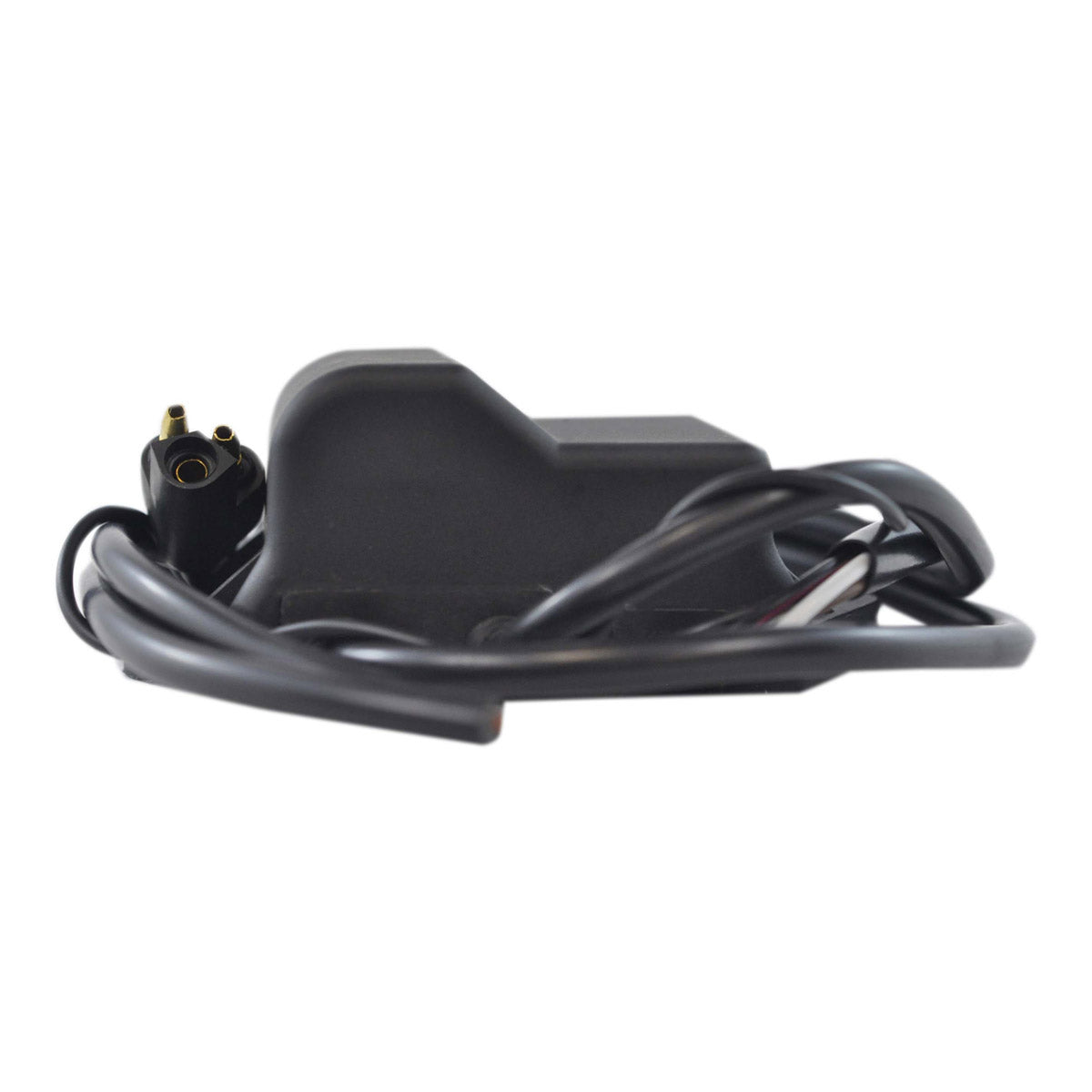

CDI Box :
  • Our PeakRPM CDI Box provides the optimal output for your ride
  • Enjoy fast & easy installation with our plug & play OEM design
  • OEM-grade electronic components and printed circuit boards for long-term reliability and performance
  • 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

Specifications

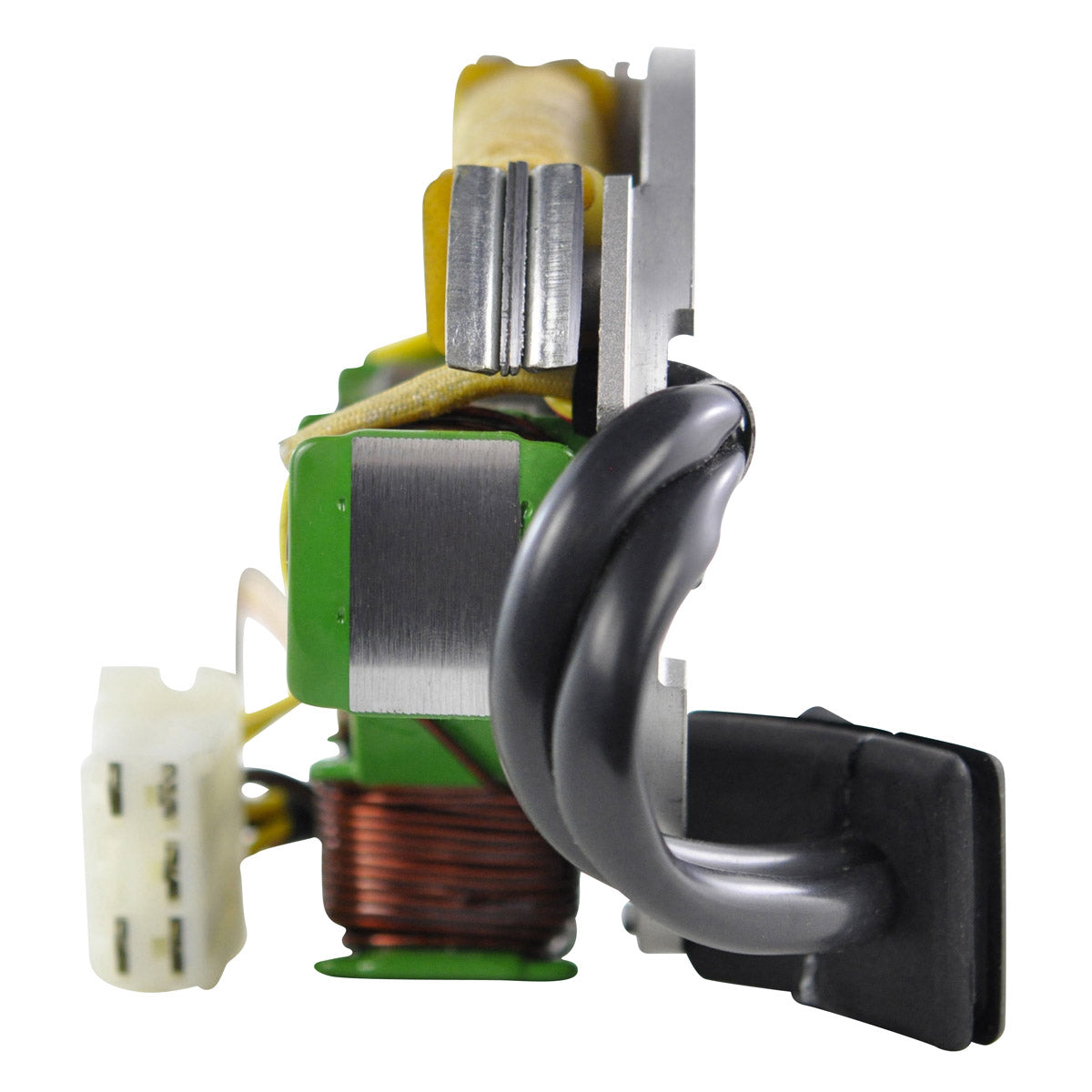

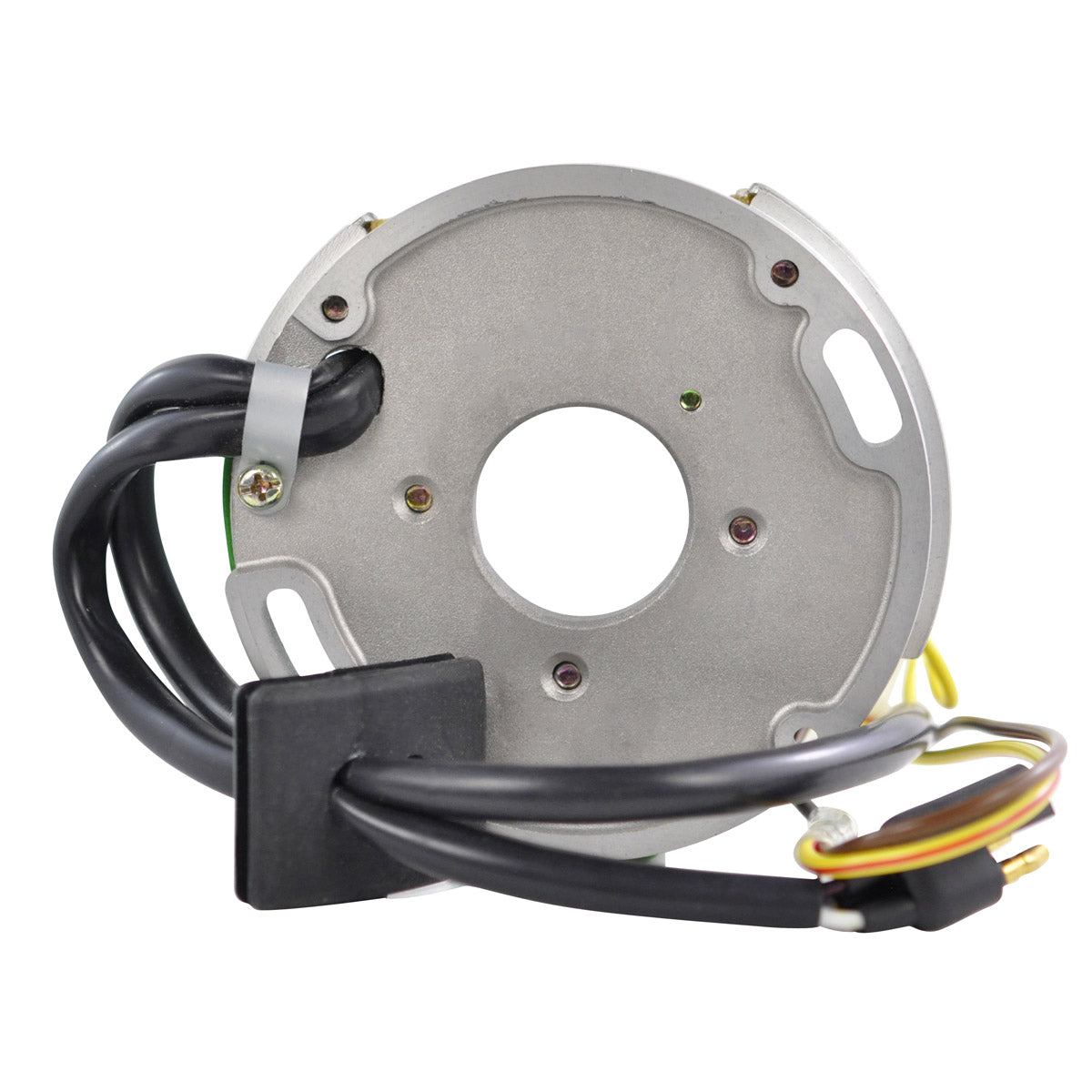

Stator :

Dimensions :
Interior diameter: 32 mm
Exterior diameter: 105 mm
Thickness: 16 mm
Length of wires stator to grommet: 80 mm
Length of wires grommet to plug: 200 mm

Other specifications :
Number of wires: 9
Number of plugs: 2
Number of pins: 9

Wire to wire resistance :
Alternator: Yellow to Yellow/Red = 0.4 ohms +/-20%
Source: Black/Red to Brown/White = 170 ohms +/-20%

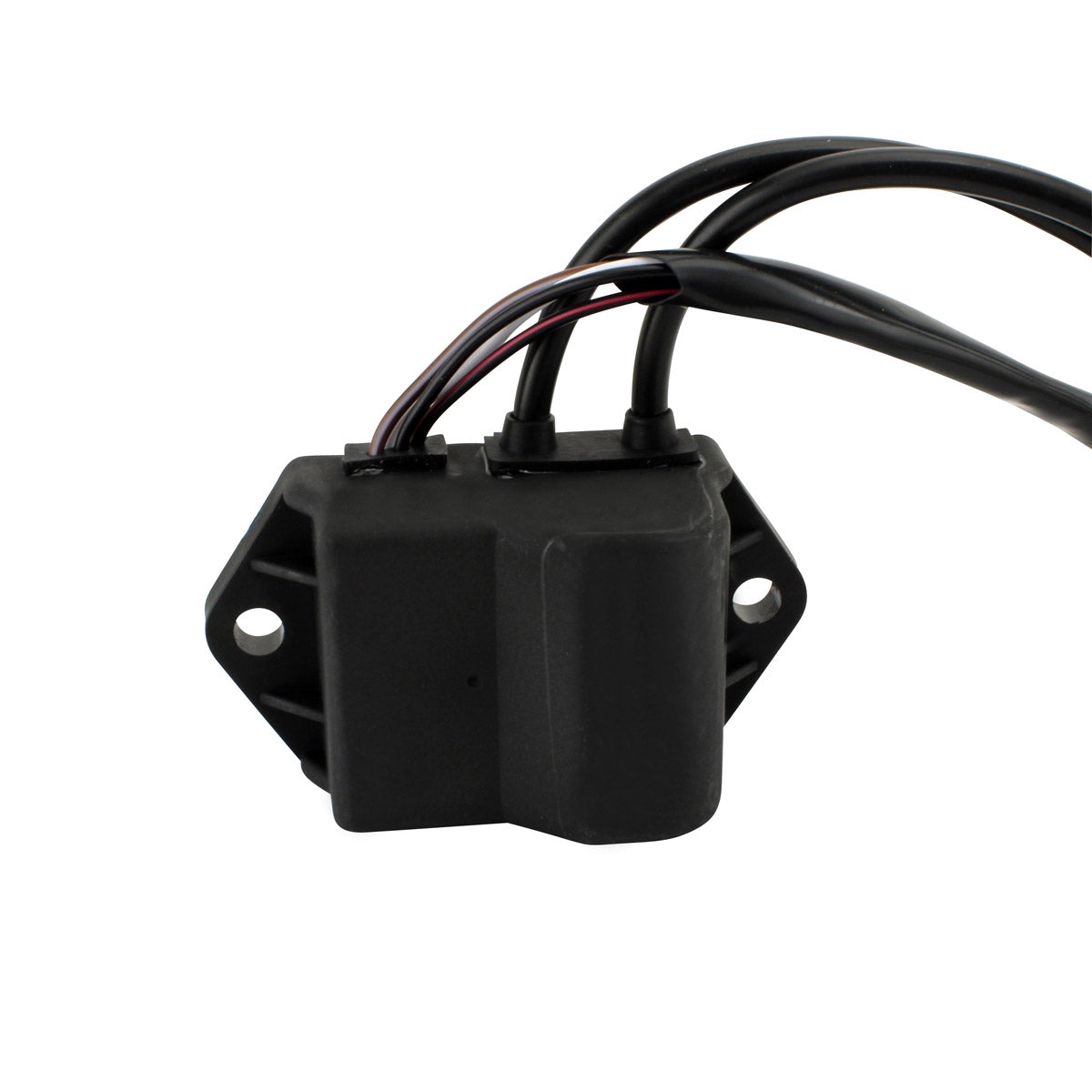

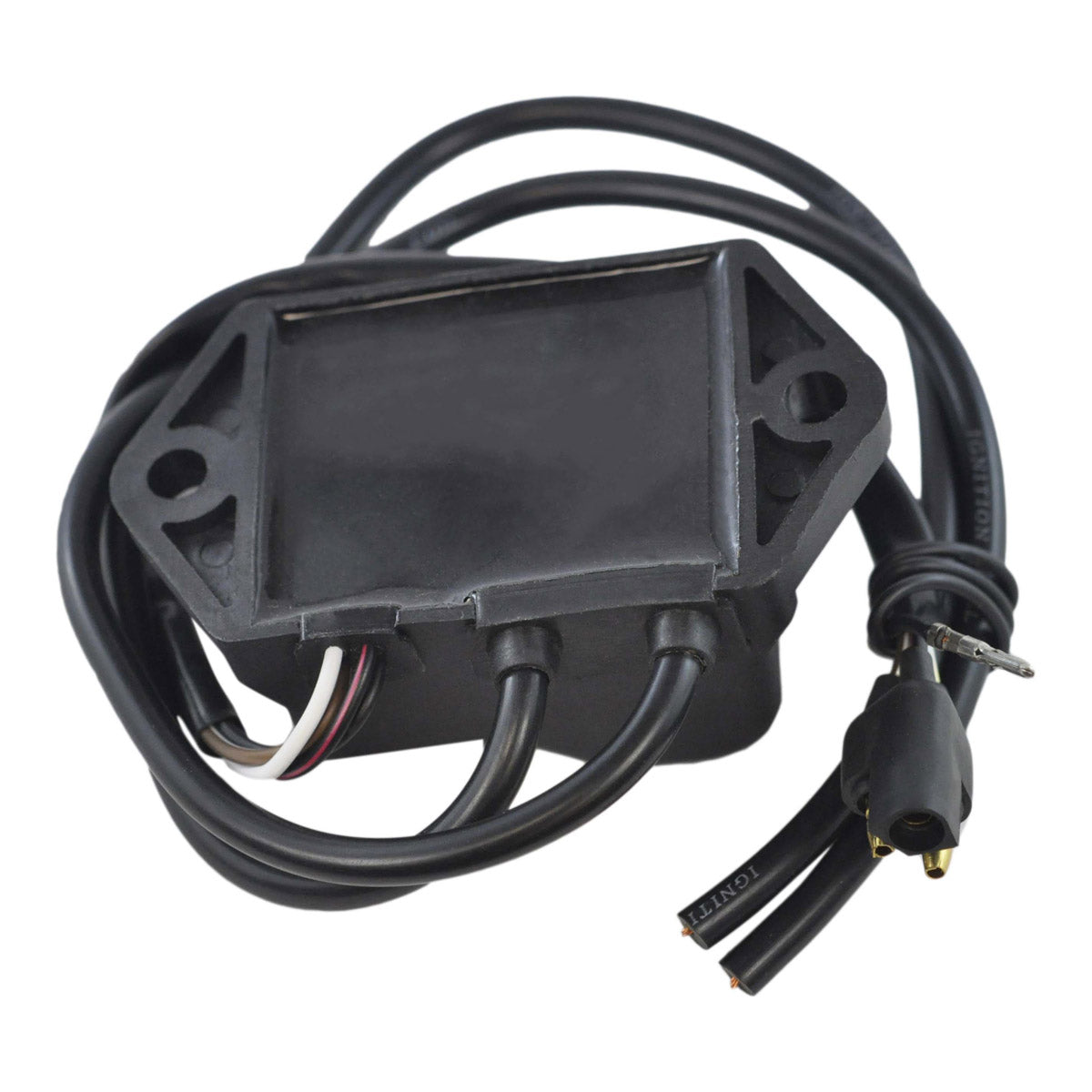

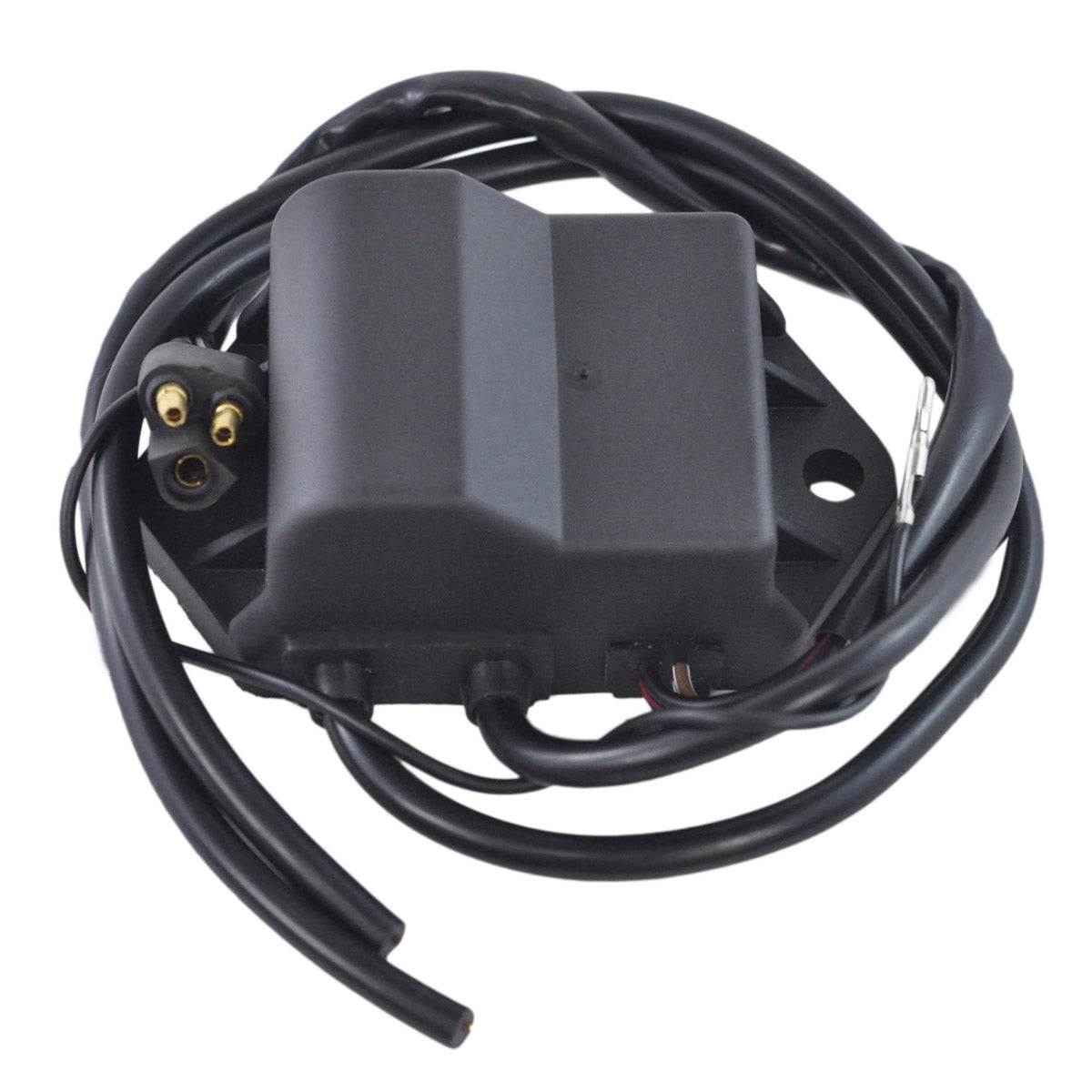

CDI Box :

Dimensions :
Height: 41 mm
Length: 110 mm
Width: 61 mm
Fixation holes center to center: 90 mm

Other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 6

Please note: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

Interchange Part Nº

  • Stator :

    3084258
  • 3083983
  • 3087268
  • CDI Box :

    3083723

Installation

Before installing your new stator + CDI box

Our parts may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator and CDI box are designed as a direct plug-in replacements and should be used as such.

Stator :
  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
