900W Dual Output Stator + Gasket for Polaris RZR XP Turbo / XP 4 Turbo | Ranger 1000 / XP 2018-2022 4017285 4018494
900W Dual Output Stator + Gasket for Polaris RZR XP Turbo / XP 4 Turbo | Ranger 1000 / XP 2018-2022 4017285 4018494
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Details
Details

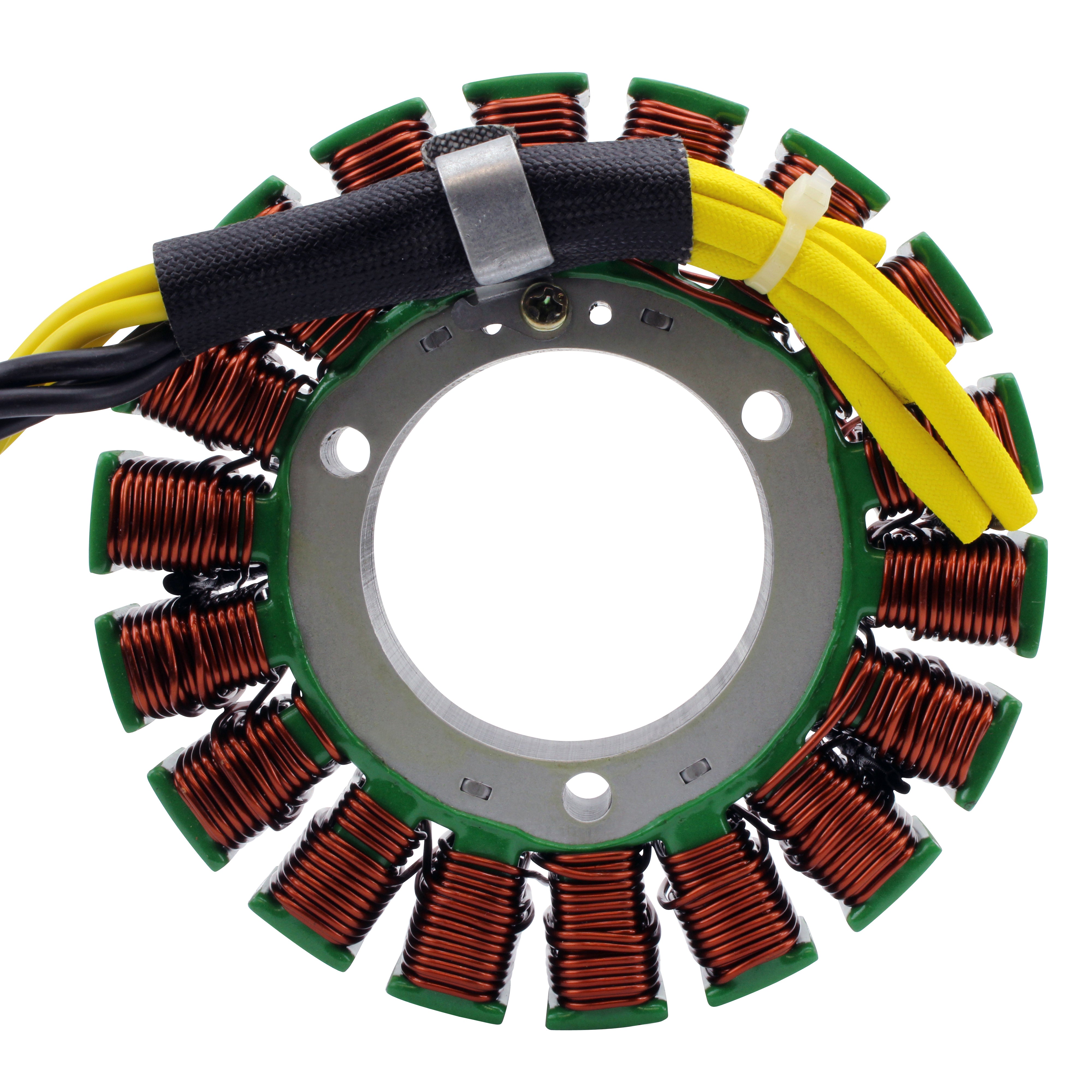

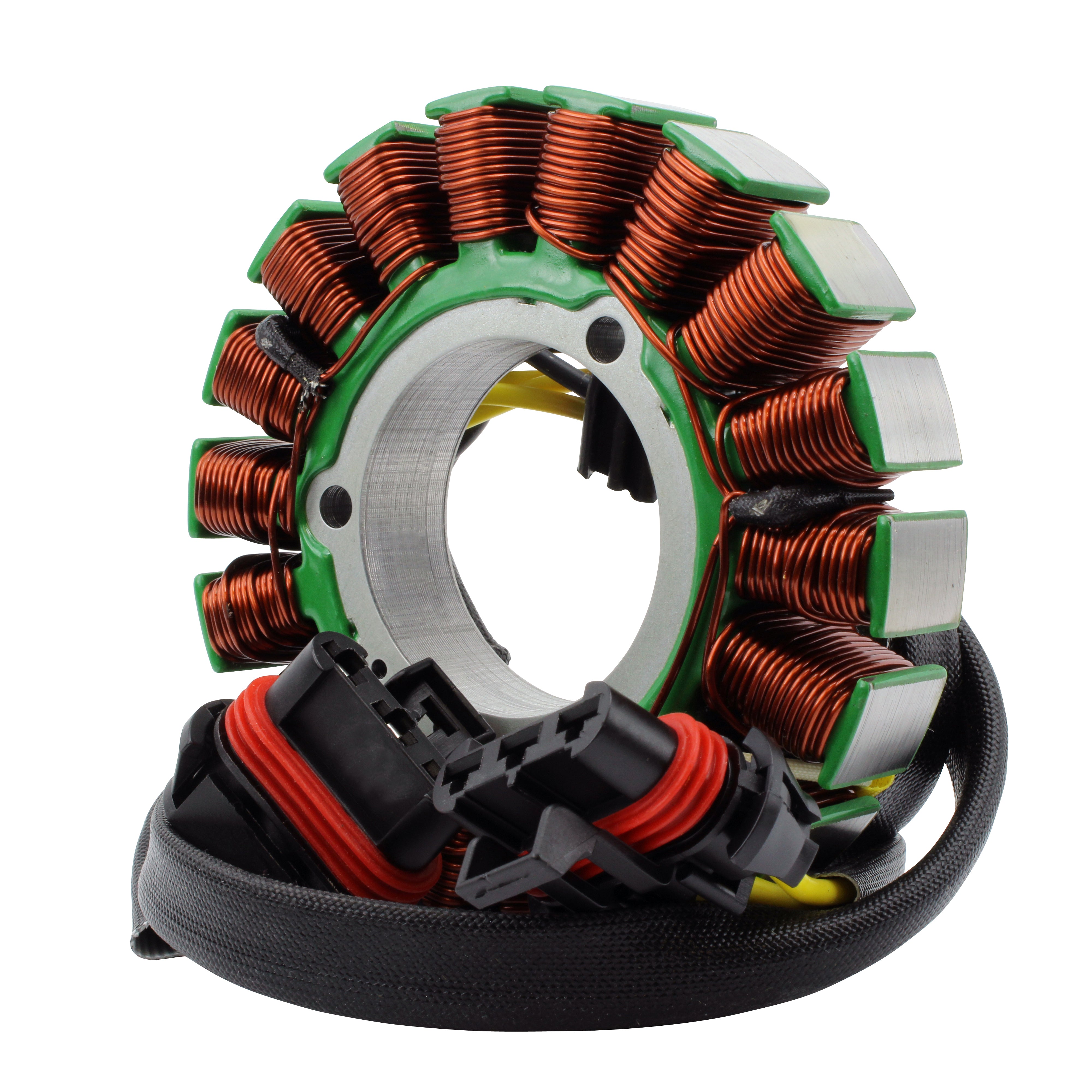

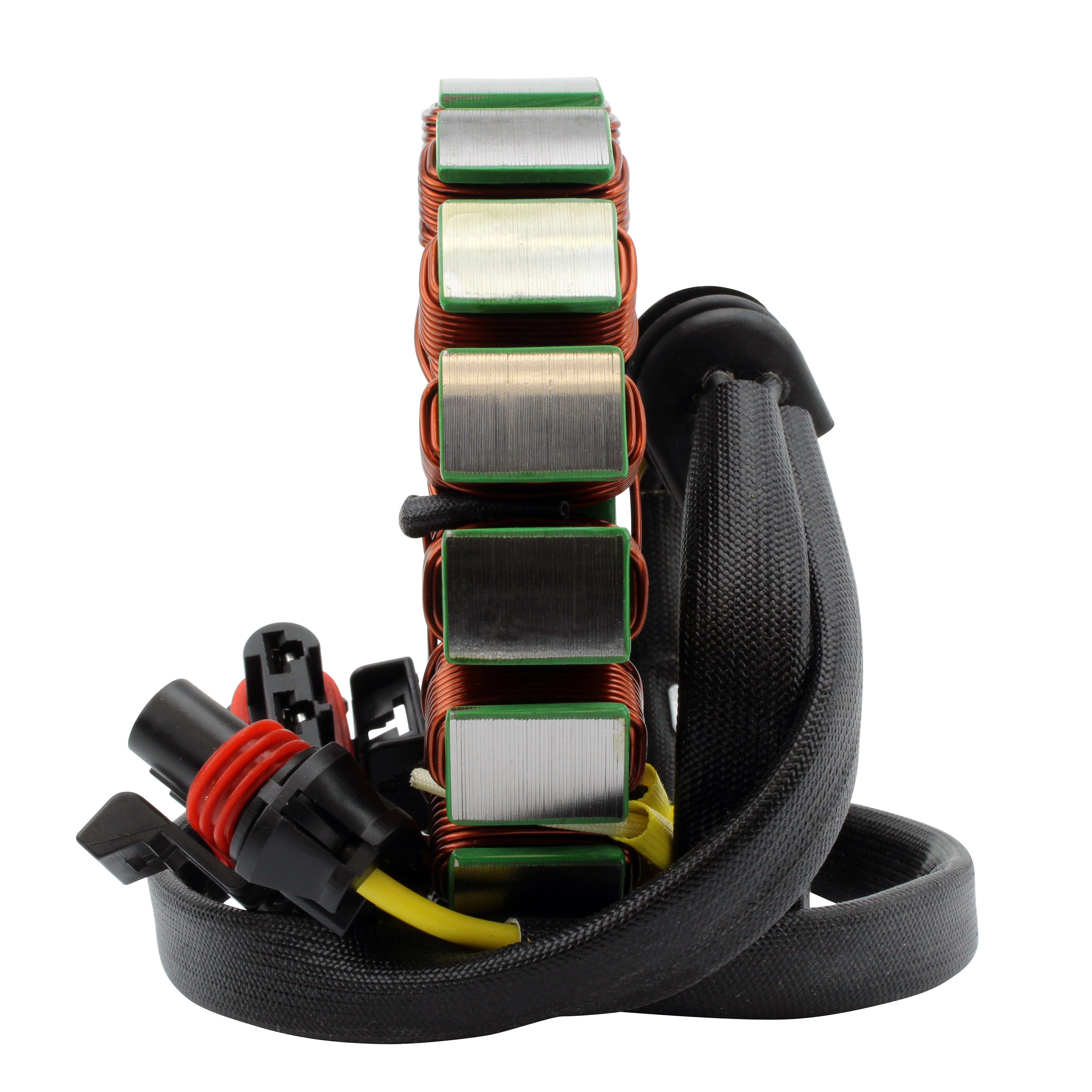

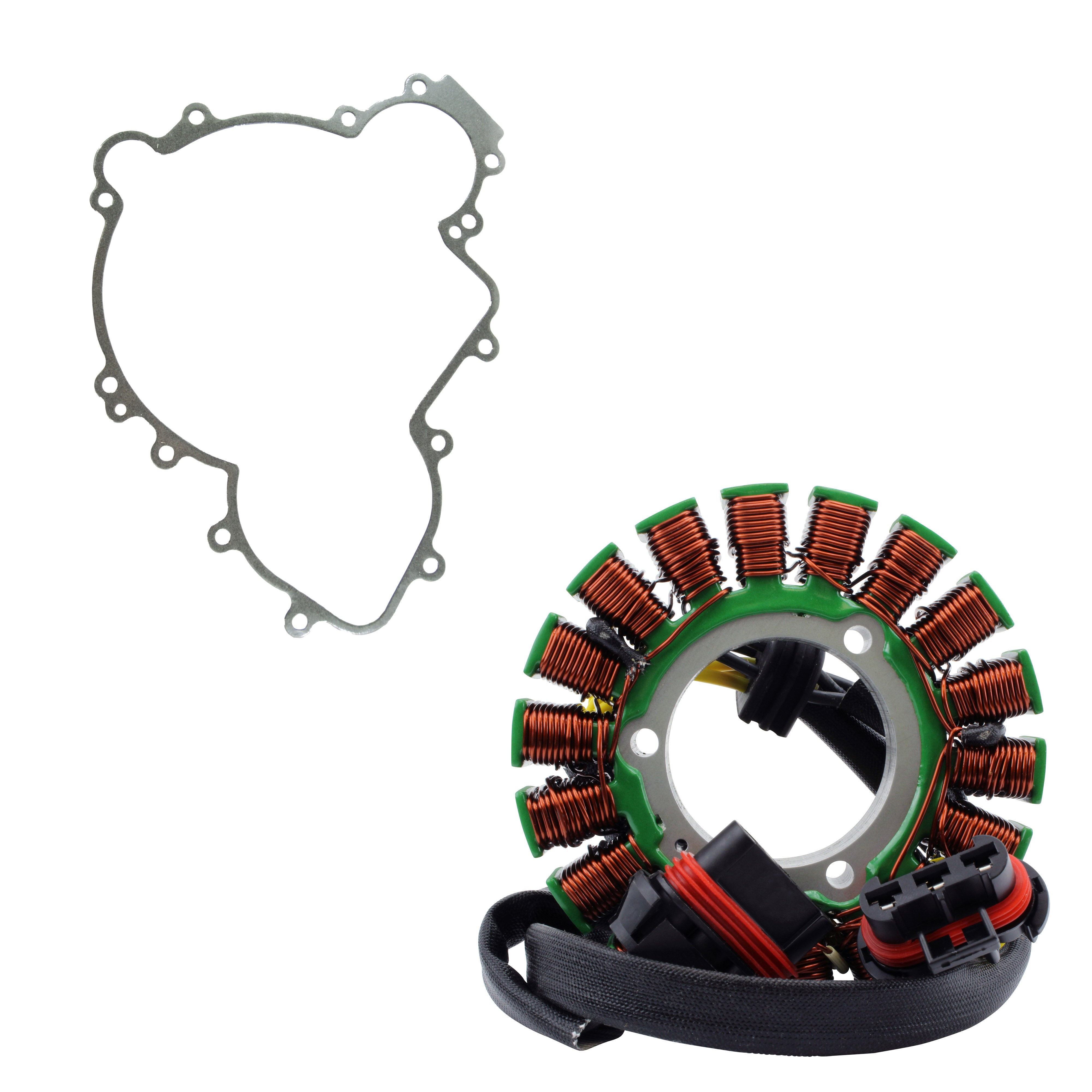

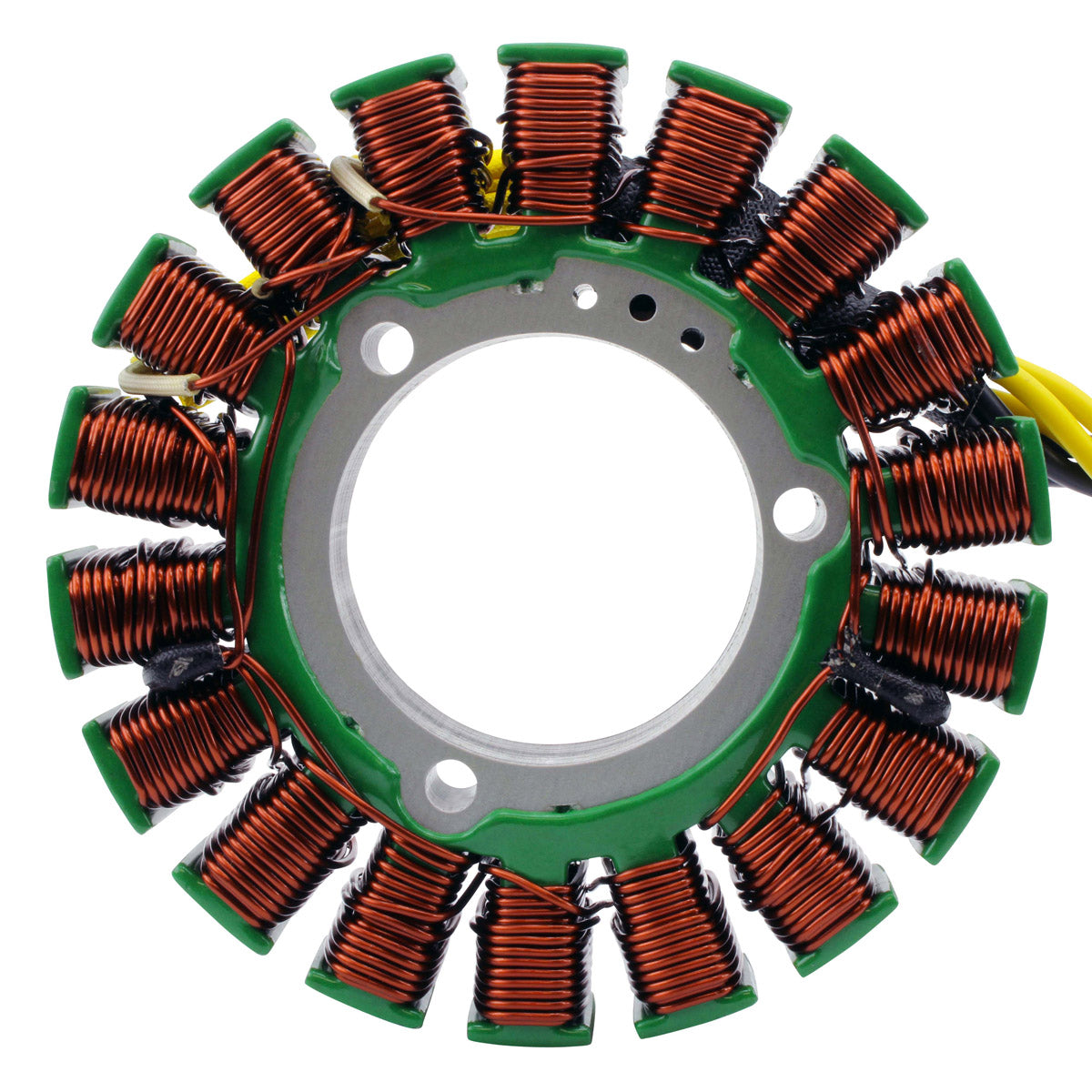

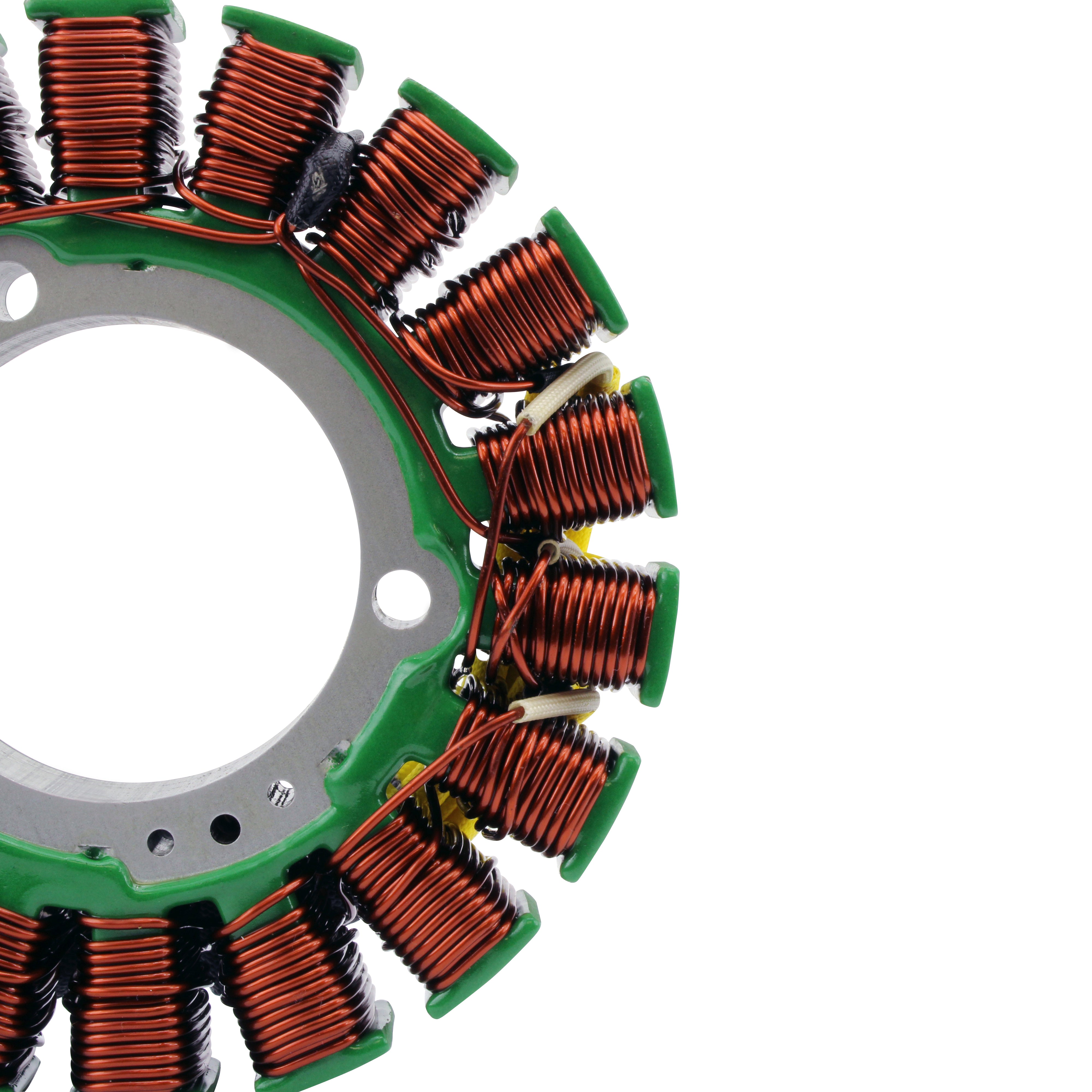

Brand new aftermarket Dual output Stator 900W + Stator crankcase cover gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.

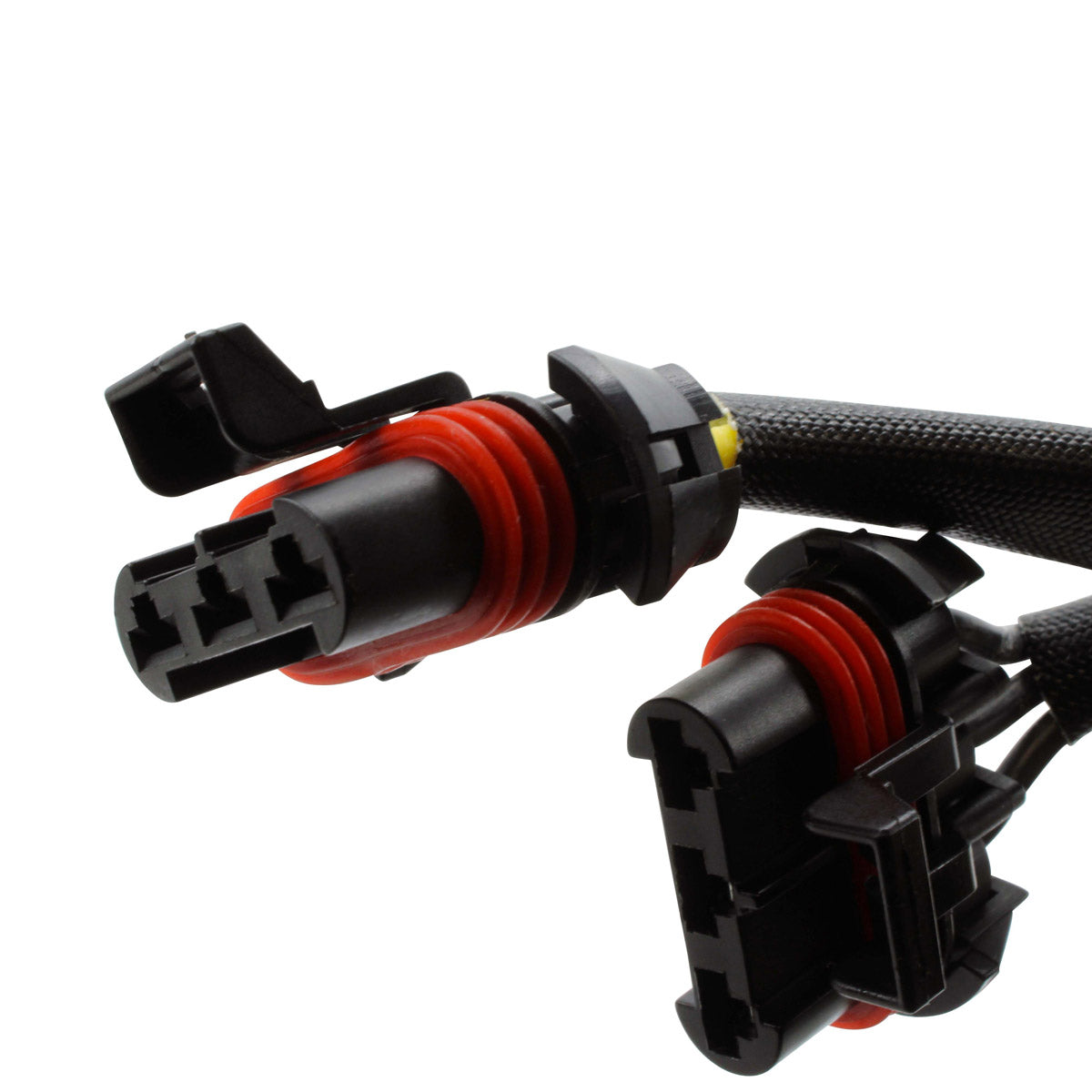

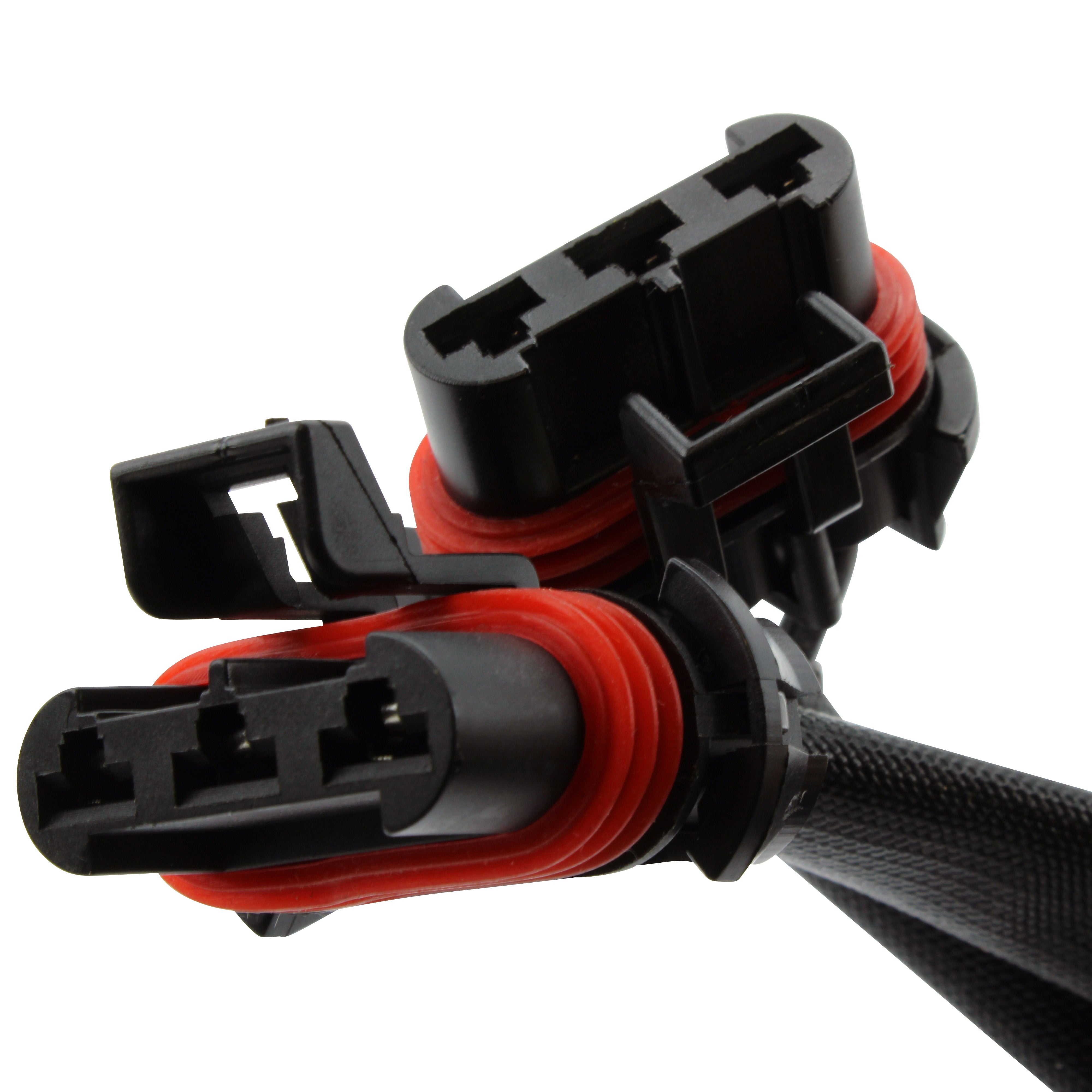

- Connectors included

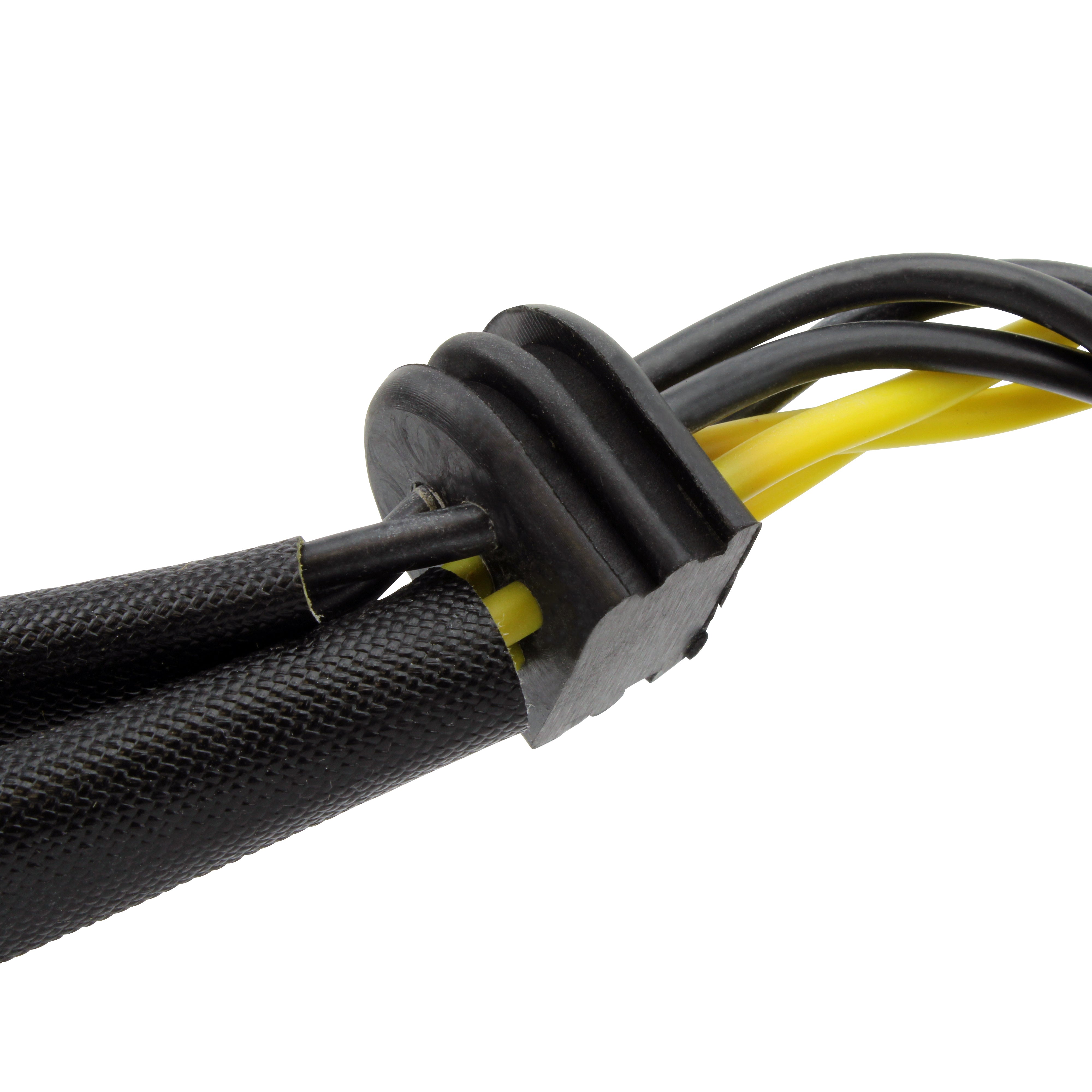

- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications
Specifications

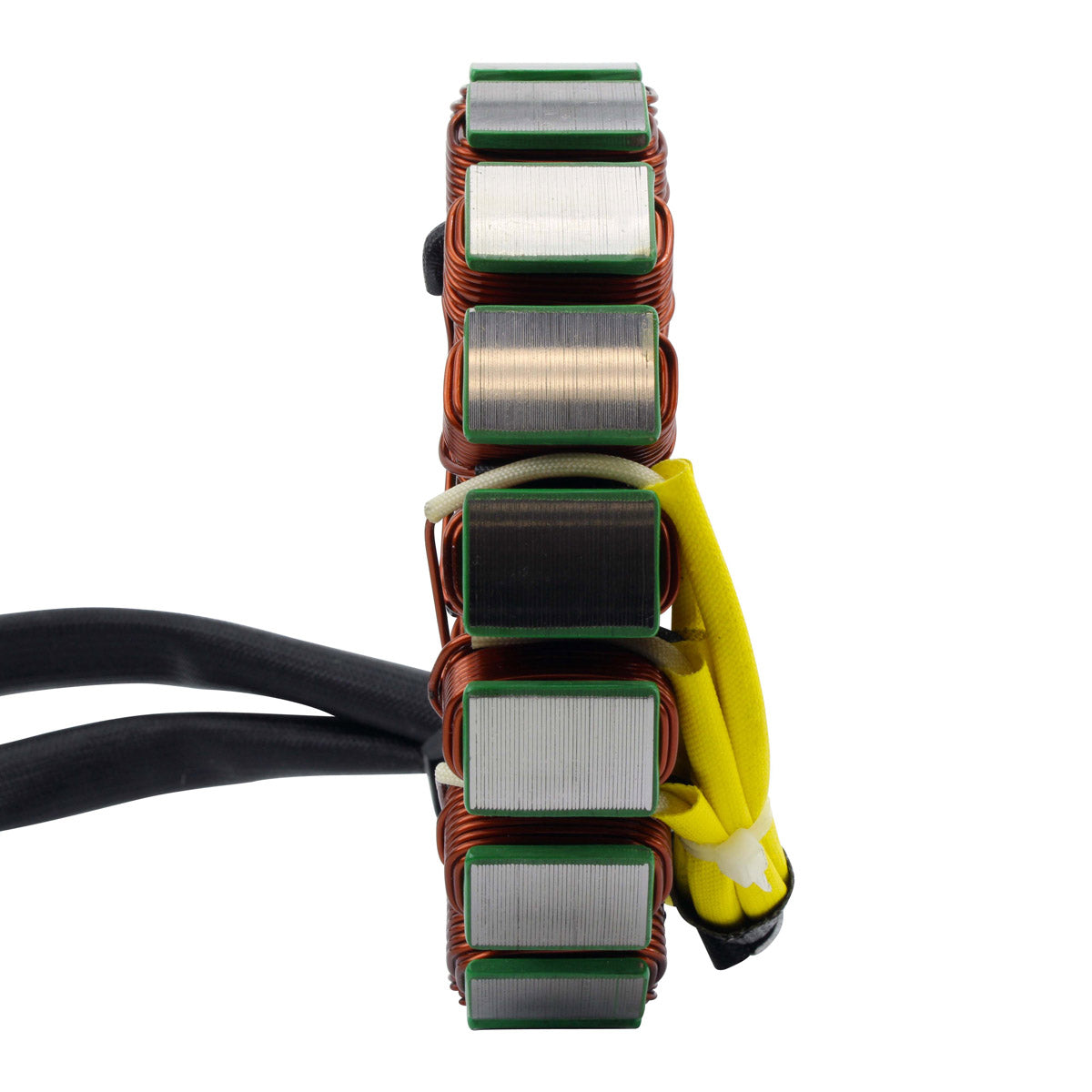

Stator Dimensions :
Interior diameter : 53 mmExterior diameter : 125 mm
Thickness : 26 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 290 mm and 550 mm
Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Number of poles : 18
Wire to wire resistance :
Alternator Yellow / Black to Yellow / Black : = 0.5 ohms +-20%
Interchange Part Nº
Interchange Part Nº
-
Stator :
4080889 - 4017285
- 4018494
-

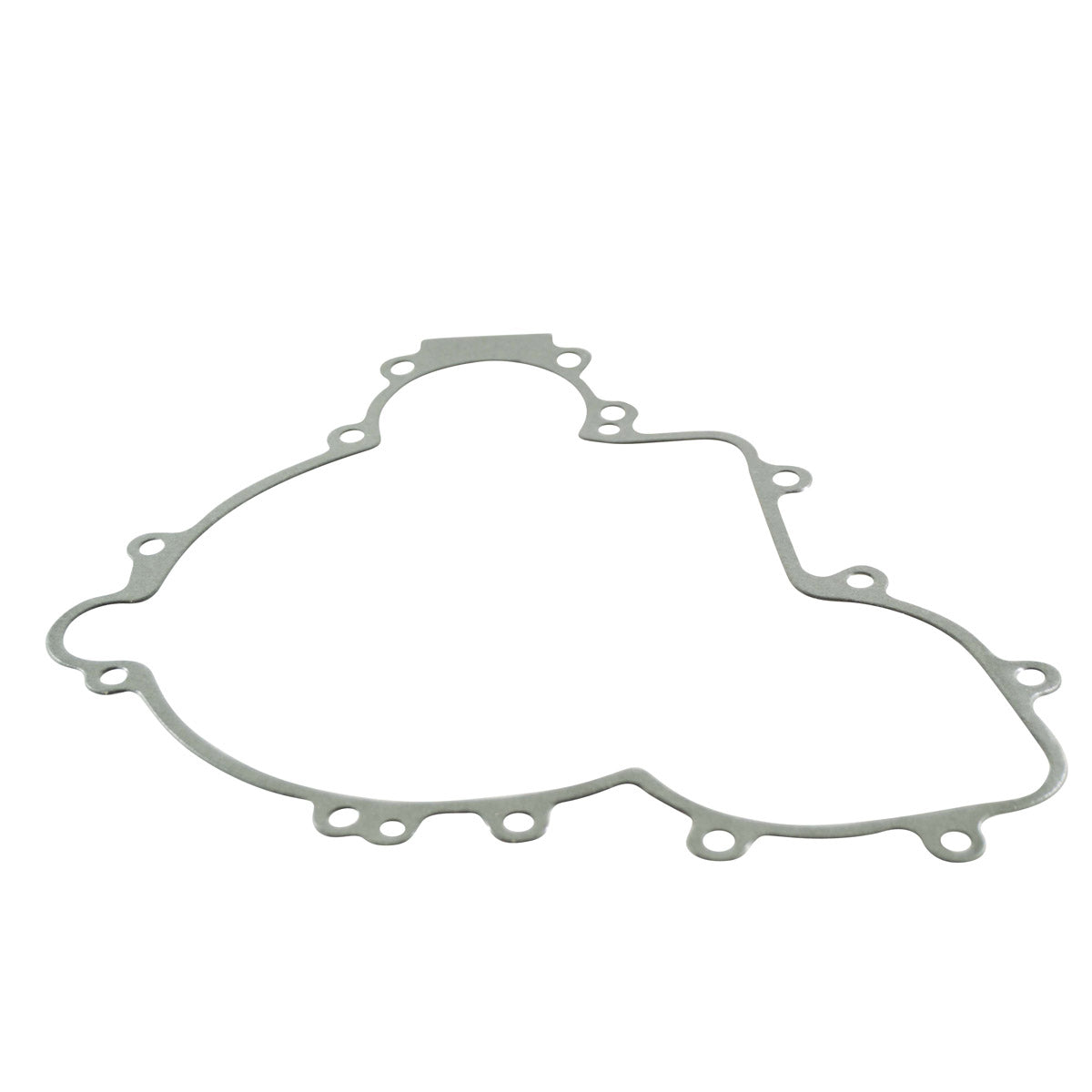

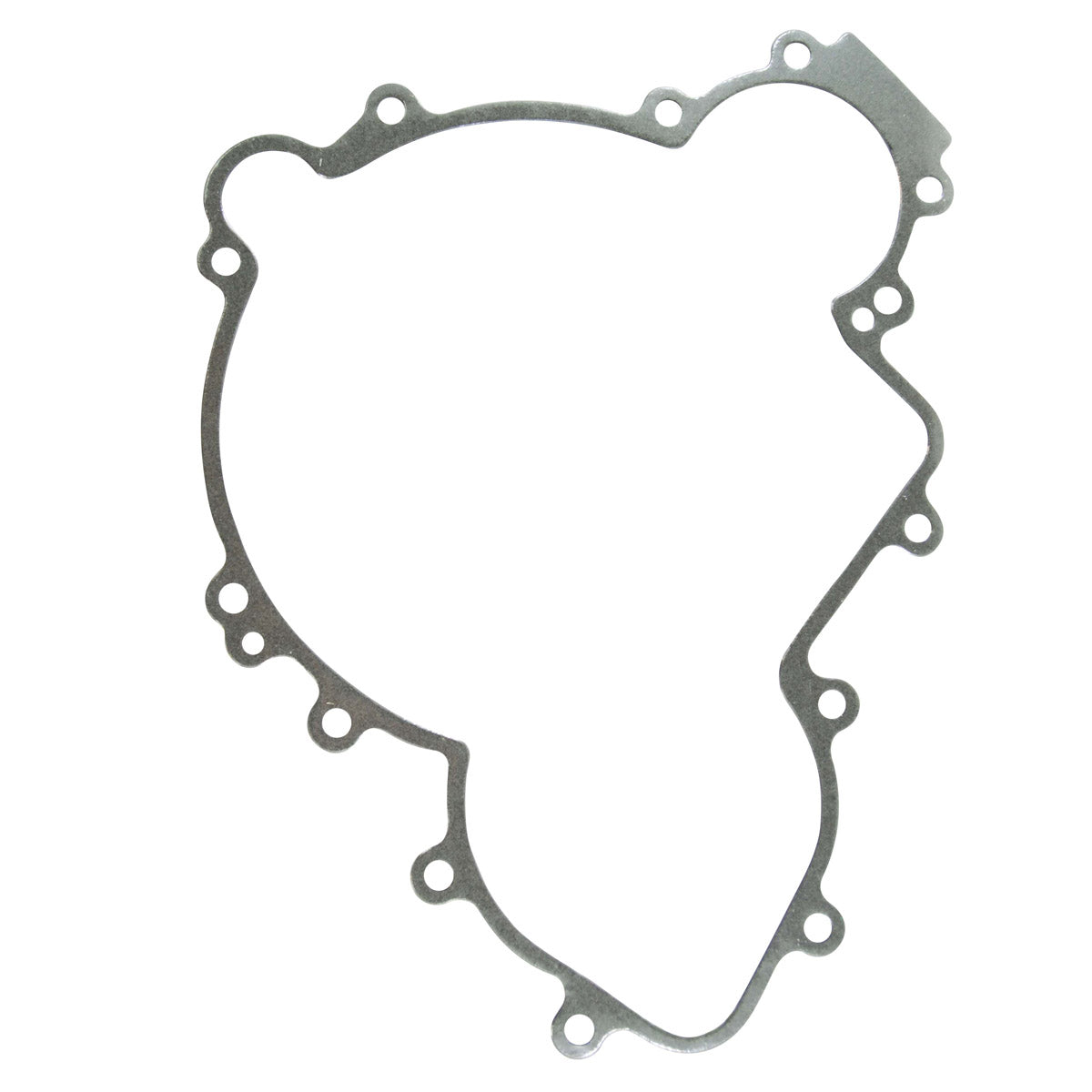

Gasket :
5814160 - 5813758
Installation
Installation
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
