900W SPLYT Stator + Regulator + Dual Battery Isolator + Flywheel + Puller + Gasket for Polaris RZR / Sportsman 2013-2025

RMSTATOR
SKU: RMS900-108164
In Stock
RMSTATOR

900W SPLYT Stator + Regulator + Dual Battery Isolator + Flywheel + Puller + Gasket for Polaris RZR / Sportsman 2013-2025

$849.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Read more
900W SPLYT Stator + Regulator + Dual Battery Isolator + Flywheel + Puller + Gasket for Polaris RZR Ranger 2013-2022
900W SPLYT Stator + Regulator + Dual Battery Isolator + Flywheel + Puller + Gasket for Polaris RZR / Sportsman 2013-2025
$849.89

Details

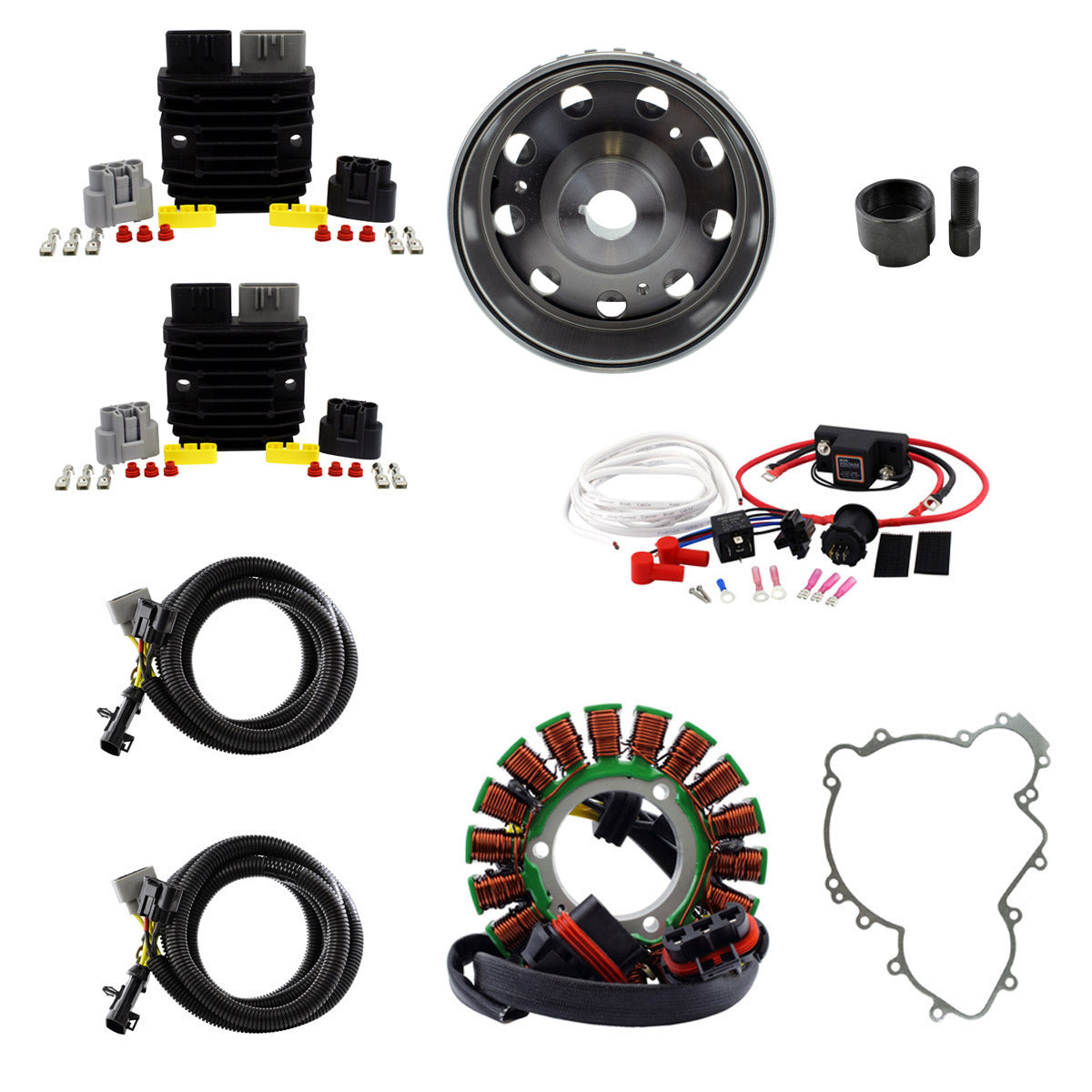

This kit includes:

  • Dual output stator
  • Flywheel
  • Flywheel Puller
  • Two SERIES voltage regulators
  • Two automotive grade relocation wiring harnesses with OEM-quality heavy-duty connectors
  • Complete instructions for voltage regulator relocation
  • RMSTATOR UTV Complete Dual Battery Isolator Connection and Metering Kit

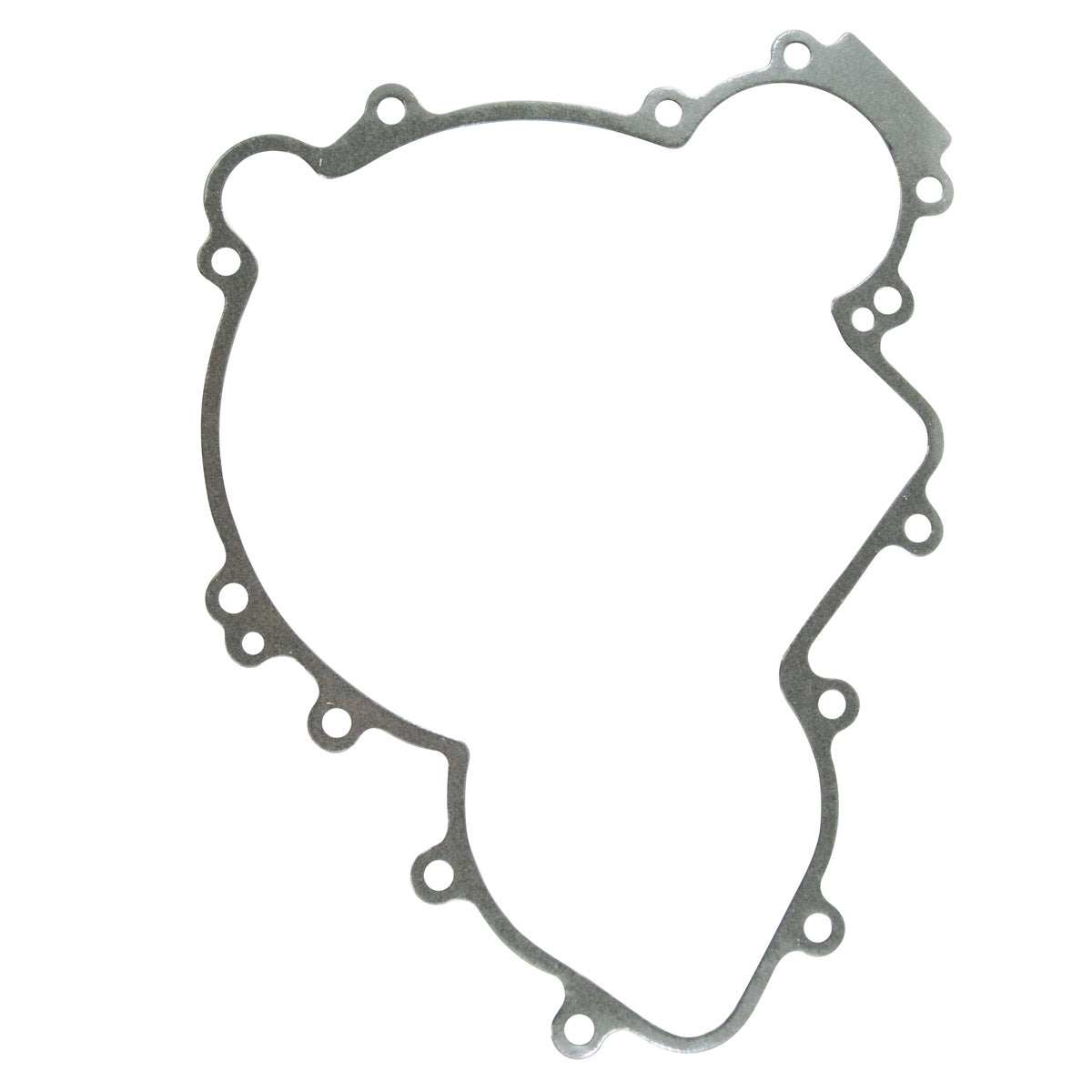

  • Gasket

Why use the SPLYT Technology?

As featured by Dirt Trax Television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures. Using a dual output stator with two completely separate stator windings, this system splits the power generated by the stator into two separate voltage regulators. These regulators then each operate with only half of the load of the original system, allowing them to maintain a lower temperature and increase reliability.



SERIES Voltage Regulation

This system uses a new type of voltage regulator called a SERIES regulator. Rather than shunting excess power to ground like a typical regulator, it protects the battery from high voltage by disconnecting the stator coils from the regulator and preventing current from passing on. This type of voltage regulation generates less heat because current from the stator is prevented from flowing through the regulator.




Ultimate reliability

With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output.


Better design

Contrary to the original OEM stator that uses one three phase stator winding, the SPLYT stator contains two completely separate three-phase coil windings. Each of these two windings then produces half of the power of the stock stator lowering the temperature in each individual coil.

More available power

If you are installing a lot of accessories and electronics on your vehicle, like extra lighting, stereos or a winch, the SPLYT kit is available with an improved flywheel designed to increase power output from 650 Watts to 900 Watts.




Easy to install

All parts use a Plug-and-Play design, just like the original OEM ones, so no special tool or knowledge is needed to install this system.


Harnesses included

Relocation wiring harnesses allow to relocate the regulators anywhere on your vehicle to get better air flow and easier access.

Solve your Polaris RZR & Sportsman charging system issues today, once and for all, with RMSTATOR!

IMPORTANT NOTICE: This kit includes two wiring harness according to Polaris recal # Z-16-01-C (OEM # 2206620, 2206367,2206473). We strongly suggest you to relocate both of your regulators to make sure they do not wear out prematurely due to mud, dust or rocks.

All item pictures are accurate, matching exactly what you will receive.

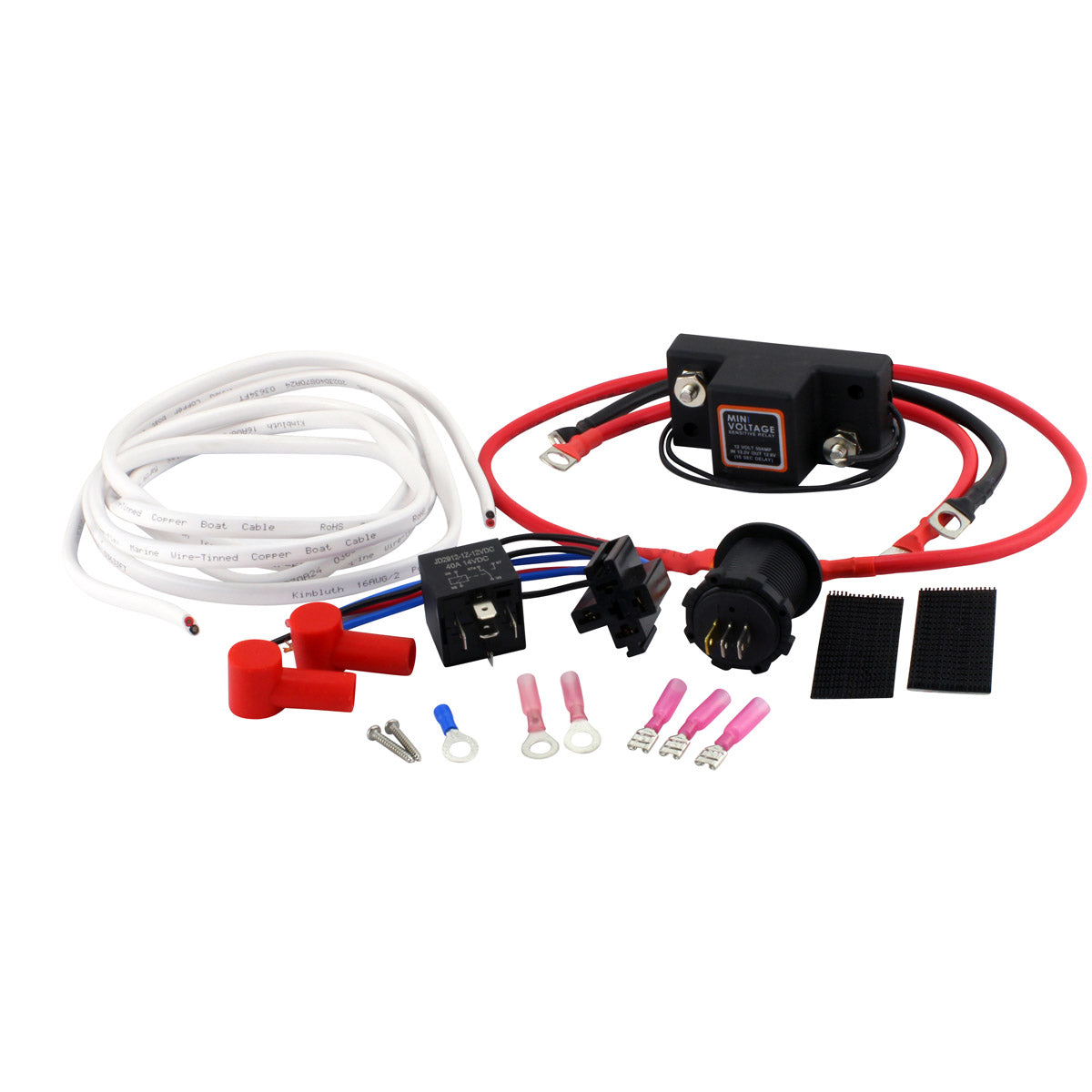

RMSTATOR UTV Complete Dual Battery Isolator Connection and Metering Kit

    As modern UTV’s are improving every year, it is increasingly common to add accessories to them like stereos, lights, and winches. These are great upgrades, until you are stuck with a dead battery and can’t start the engine! RMSTATOR comes to the rescue with the best and most complete kit available to add a second battery to your UTV to power your accessories and monitor the charge of both batteries right from your dashboard!

    The addition of a second battery to your vehicle to power your accessories allows you to safely use them all day without discharging your primary starting battery. If the voltage drops too low on your second battery, it will disconnect and isolate it from the main battery safely and automatically. When the motor is started, the secondary battery will be reconnected and recharged.

    Our included LED dual voltmeter installs on your dashboard, and lets you easily monitor the voltage of both batteries. The included wiring harness and relay allow the voltmeter to turn on and off with your keyswitch.

    Everything you need for a complete installation is included!

    Includes:

    • Dual battery isolator relay
    • 12” Black ground battery cable with terminal lugs
    • 12” Red positive battery cable with terminal lugs
    • 18” Red positive battery cable with terminal lugs
    • Dual Red LED voltmeter (1.4” OD x 1” depth)
    • Keyswitch voltmeter activation relay with socket and wires
    • 96” wire harness for dual voltmeter connection to relay
    • Terminals and connectors

Specifications

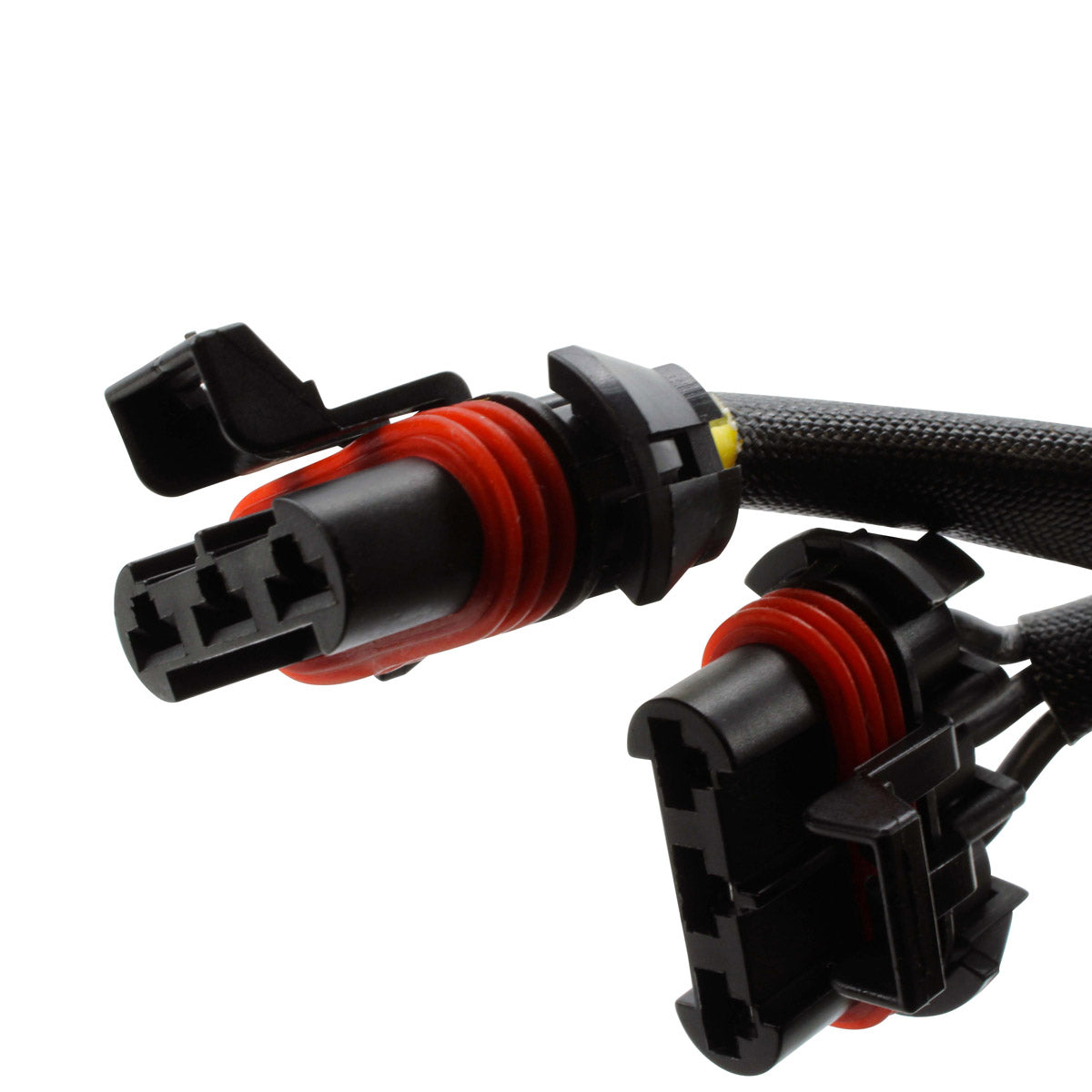

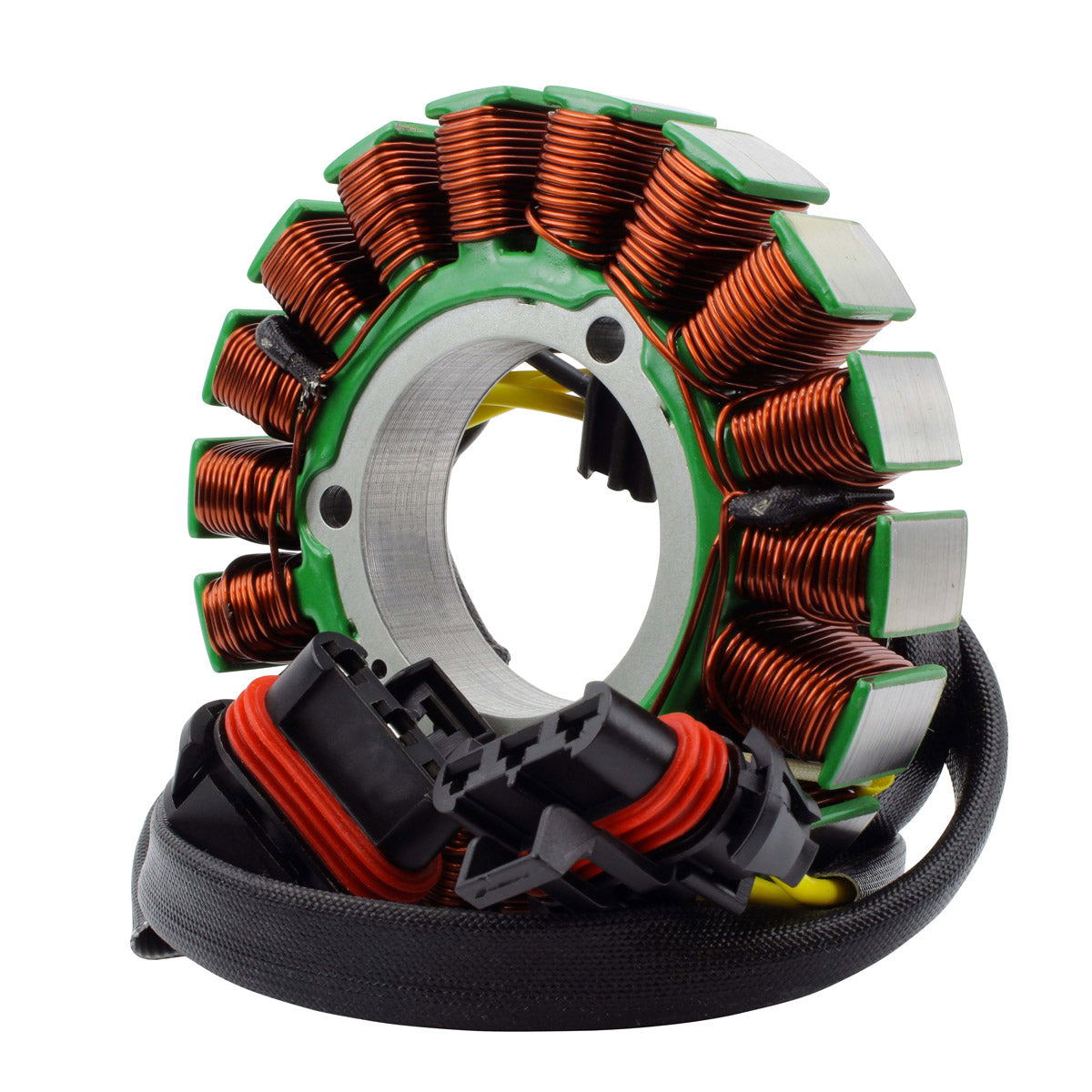

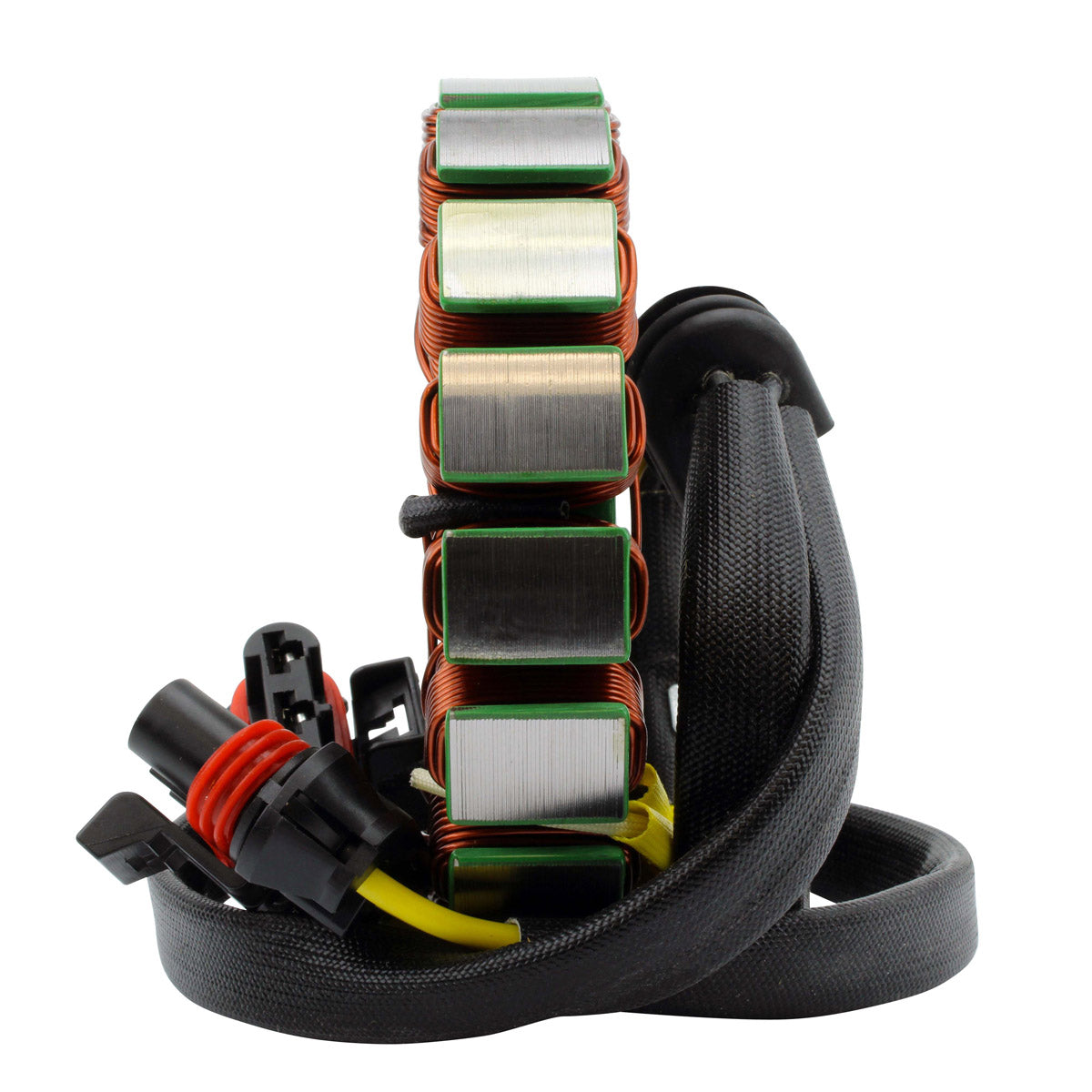

Dual Stator Dimensions
Interior diameter : 53 mm
Exterior diameter : 125 mm
Thickness : 26 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 290 mm & 550 mm

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Number of poles : 18

Wire to wire resistance :
Alternator: Yellow/Black to Yellow/Black = 0.5 ohms +-20%

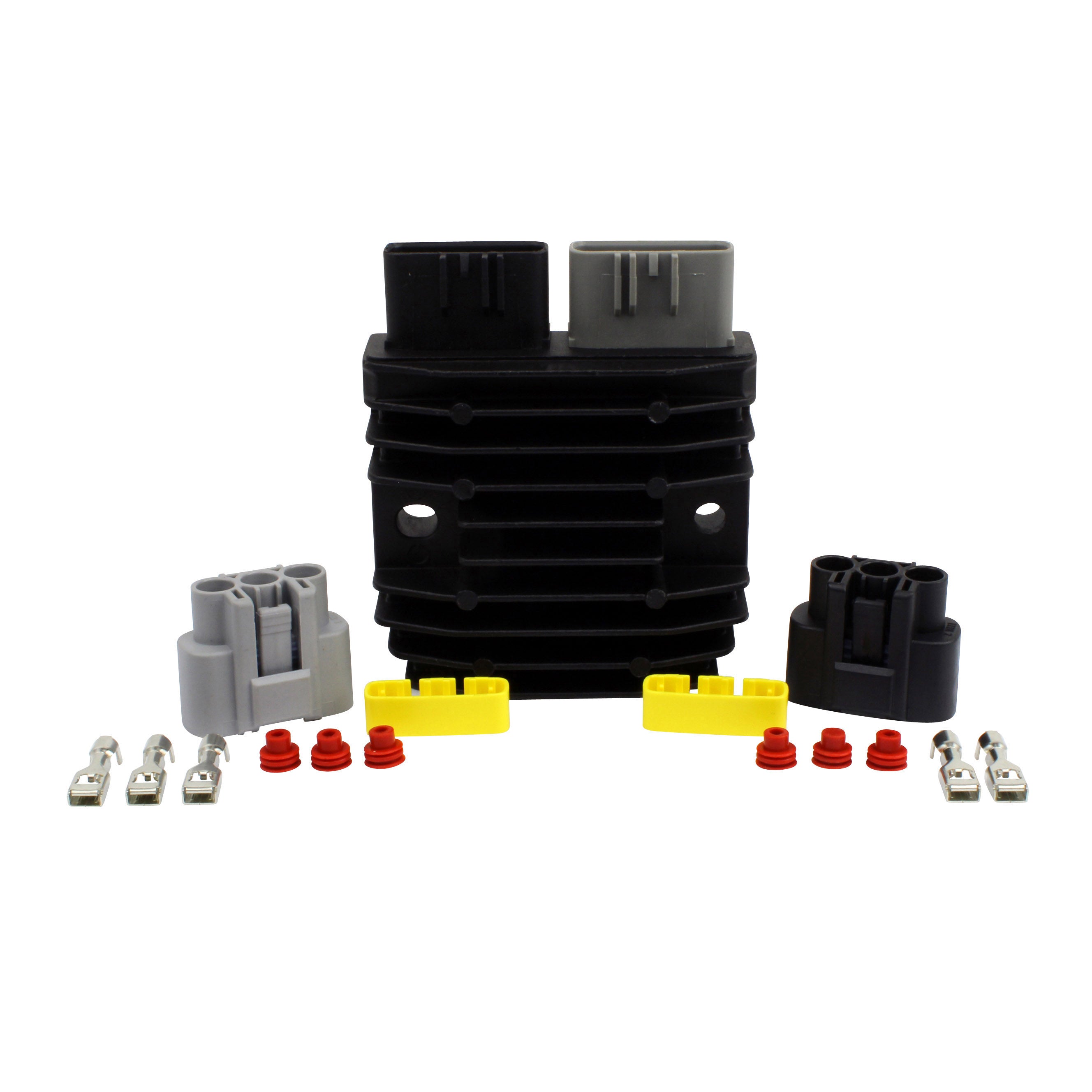

Regulator Dimensions
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20º to 85º

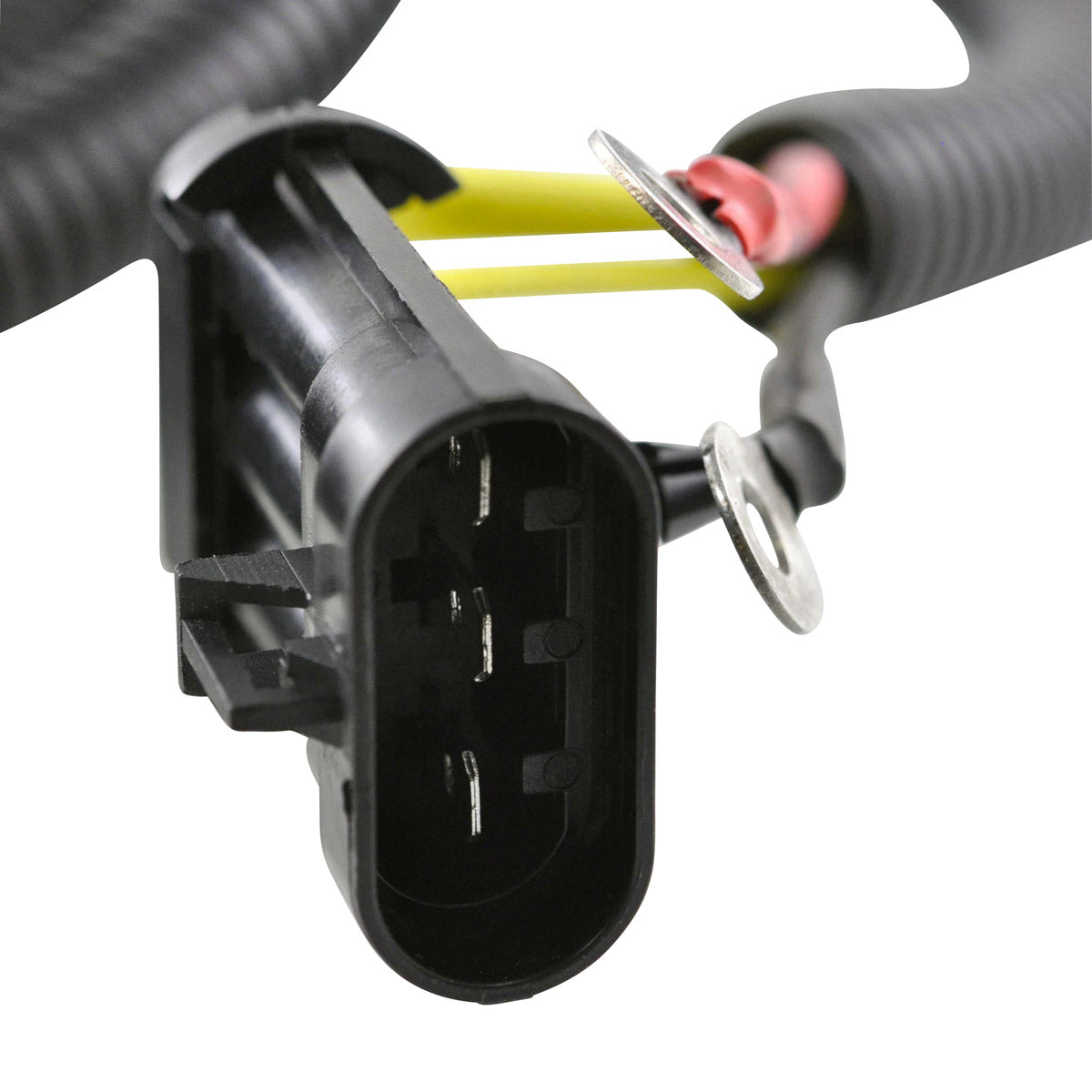

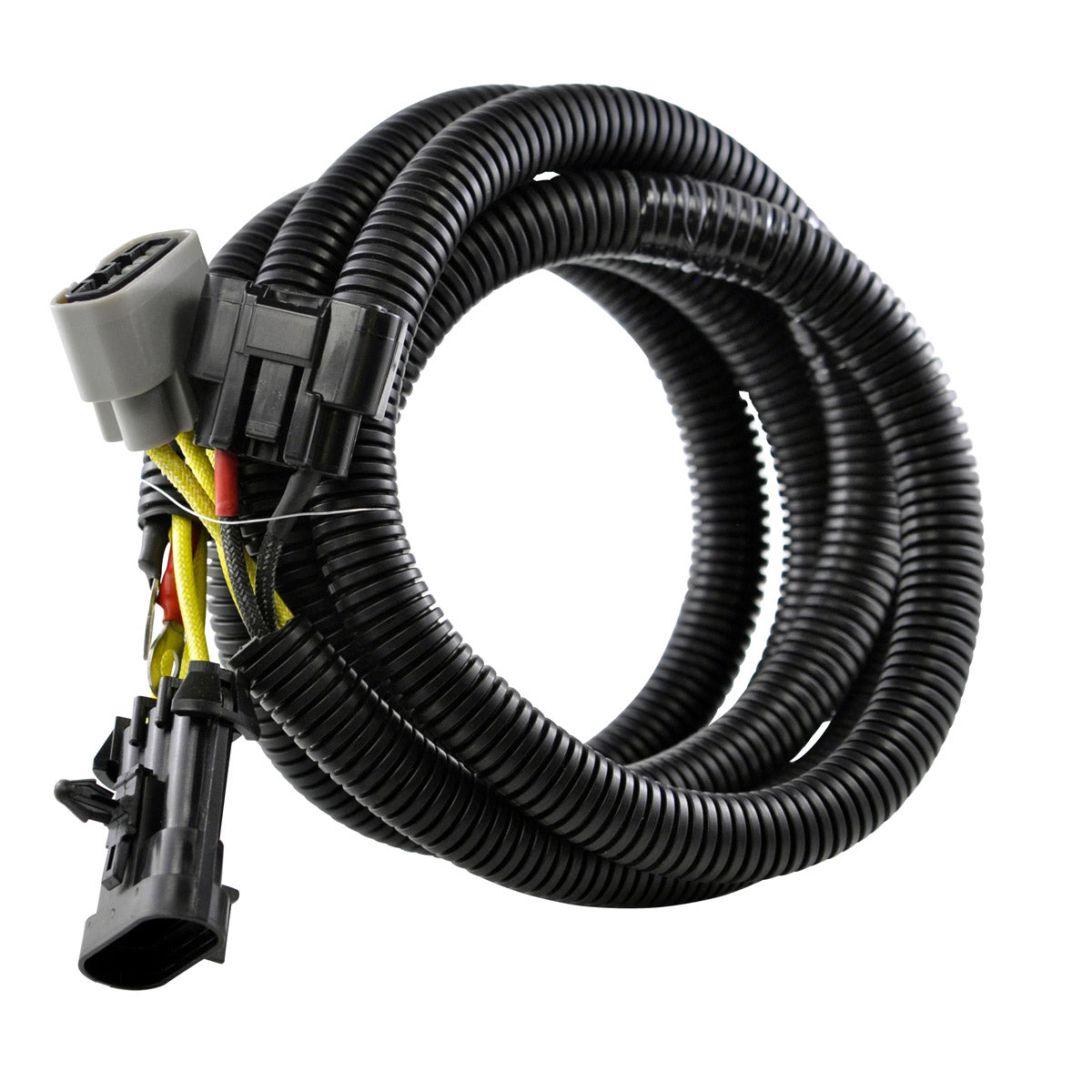

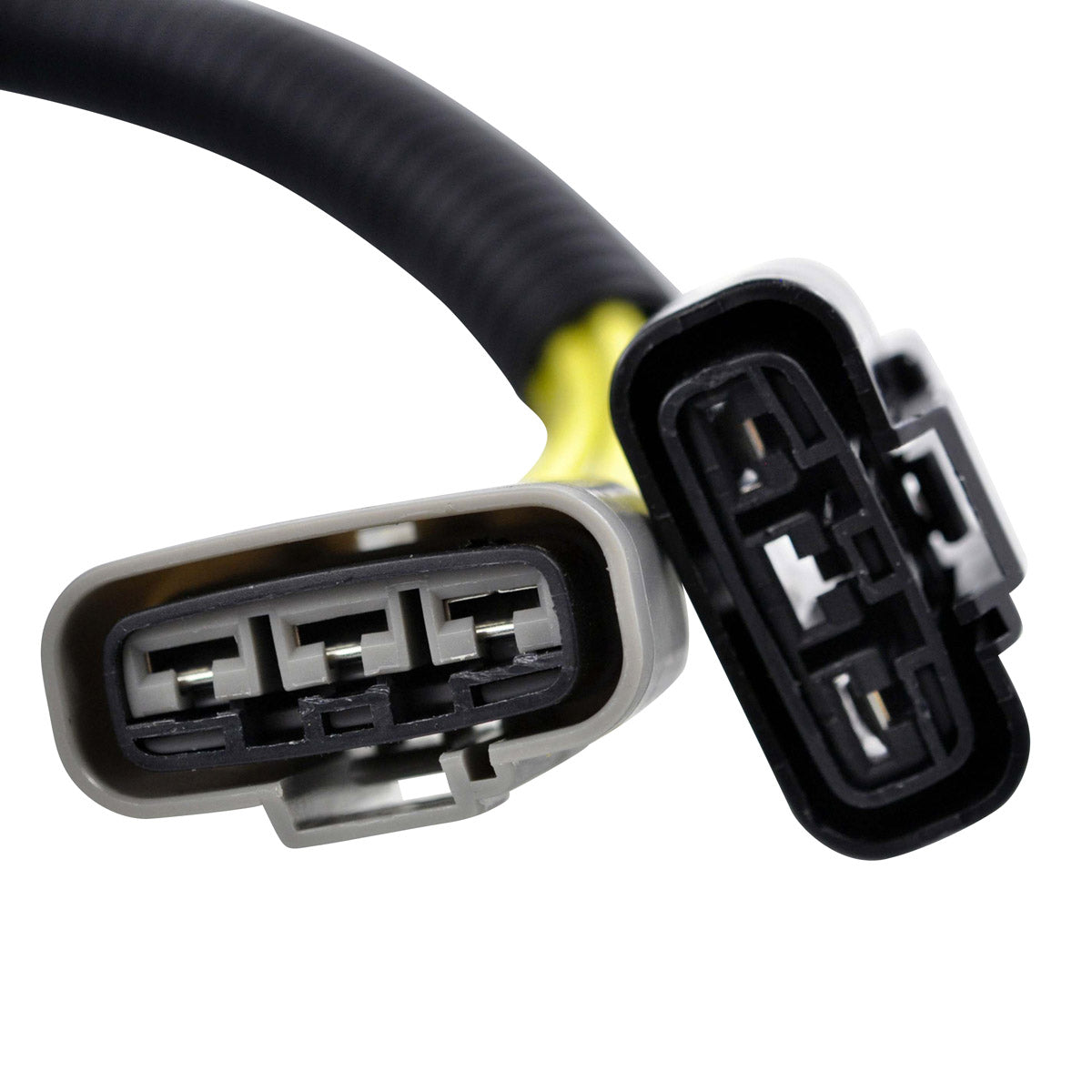

Relocation Harness Dimensions
Wires length : 2400 mm
Number of yellow wires : 3
Number of red wires : 1
Number of black wires : 1
Number of plugs : 2

Complete Dual Battery Isolator Connection and Metering Kit

  • Dual battery isolator relay
  • 12” Black ground battery cable with terminal lugs
  • 12” Red positive battery cable with terminal lugs
  • 18” Red positive battery cable with terminal lugs
  • Dual Red LED voltmeter (1.4” OD x 1” depth)
  • Keyswitch voltmeter activation relay with socket and wires
  • 96” wire harness for dual voltmeter connection to relay
  • Terminals and connectors

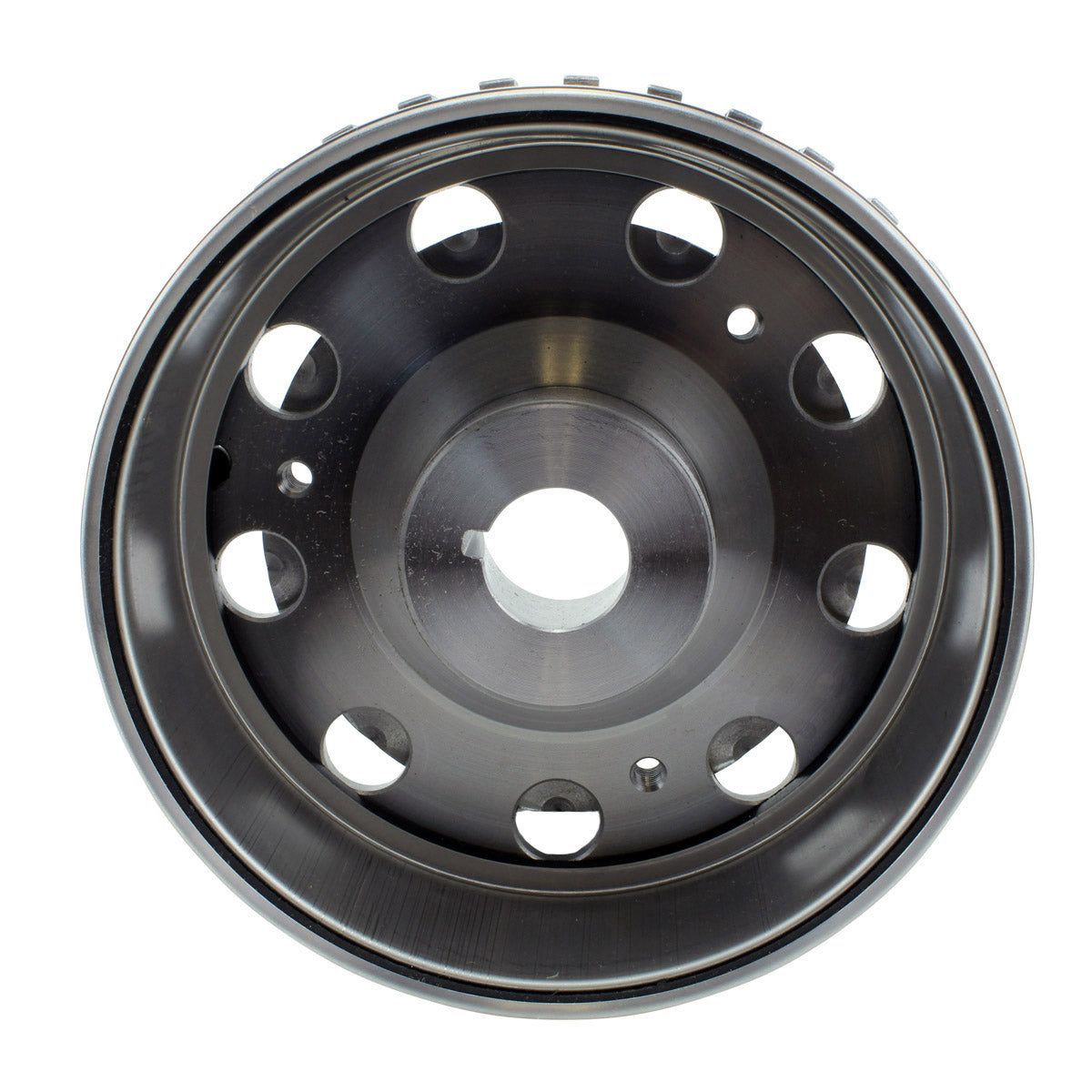

    Flywheel Dimensions:
    Exterior Diameter: 140.6 mm
    Interior Diameter: 127.8 mm
    Interior Diameter Center Housing: 22.4 mm
    Exterior Diameter Center Housing: 50 mm

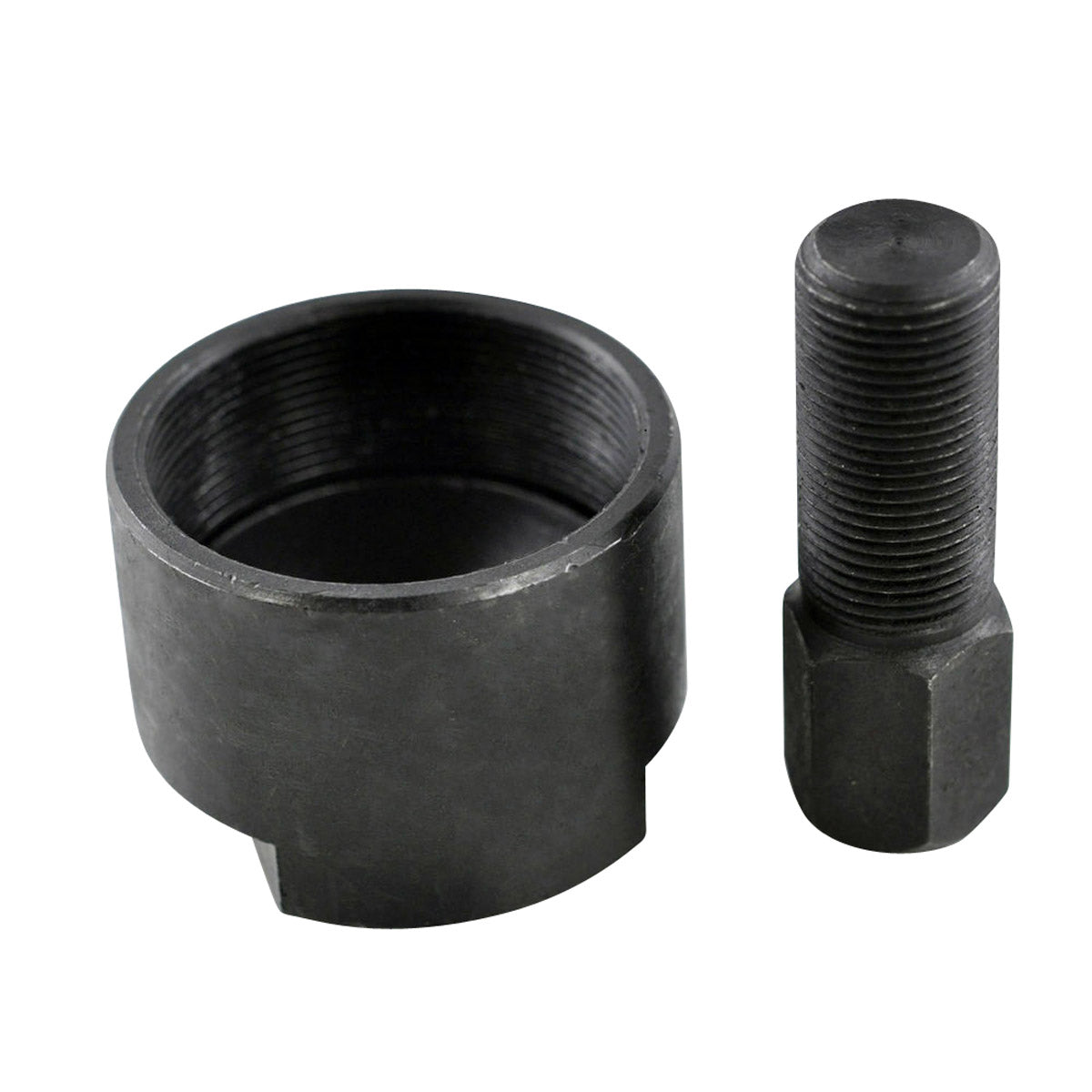

    Flywheel Puller Dimensions:
    Length: 40.6 mm
    Exterior Diameter: 57 mm
    Interior Diameter: 48.3 mm
    Exterior Diameter Center Housing: 20 mm

  • Interchange Part Nº

    • 108164-R00

    Installation

    Removing a Powersport Vehicle's Flywheel / Rotor:

    How it Works

    Flywheel Pullers are very versatile engine service tools and are a must in every toolbox. Our large selection of best selling rotor and flywheel pullers fit just about any motorcycle or ATV. Flywheel pullers are very simple to use, having only an outer body to hold the flywheel and a screw to push on the crankshaft. Some are even simpler, having only a bolt to thread into the flywheel. A taper holds the flywheel or rotor and the crankshaft together. The flywheel is secured to the shaft by applying torque to the fixing bolt.

    An Important Component to use

    Many flywheel or rotor puller tools will include a small cap. This is a crankshaft thread protector, and should always be used if it is included with the puller. You slip this cap onto the end of the inner piece of the puller which presses against the tip of the crankshaft. This keeps the fine threads from being stripped or damaged while removing the flywheel or rotor.

    Actions to Avoid

    Most of the time, removing a flywheel or rotor is painless. But sometimes corrosion, over-torquing the fixing bolt, or heat-cycling can give you a hard time removing the flywheel. We too often see mechanics use a larger breaker bar or air impact tools to ease the flywheel off. These two techniques will damage the flywheel, the flywheel puller, or the crank. Avoid using them if you want to keep it cheap.

    Tips to break a stuck flywheel loose:

    Torque Wrench

    How do you know if it's stuck? You simply have to set your torque wrench to 50 ft-lbs and try to ease the flywheel off. If the flywheel is not stuck, you should be able to remove it with even less torque than this. If it is stuck, don't use more torque or you might break your wrench.

    Ball Peen Hammer

    If 50 ft-lbs does not do the trick, go fetch something like a 12 or 16 oz ball peen hammer. Hit the end of the flywheel puller with a medium blow. Many times, the shock you create will successfully remove your flywheel. Be prepared to catch the flywheel since the shock of the hammer can make the flywheel jump off. Once again, getting into that situation will be pricey. And don't forget your safety glasses.

    Propane Torch

    The hammer is not a be-all, end-all solution. Sometimes, you will have to find something more powerful, and that's where the propane torch comes in. As a last resort solution, the heat should expand the flywheel but not the crank, since it is too massive to expand as fast. That way, the flywheel will become looser and will come off easier.
    Important Security Tips: In order to not set fire to your garage, your vehicle, or yourself, certain precautions are necessary prior to heating the flywheel:

    • Clean any oil or flammable liquids off the flywheel;
    • Make sure your work area is free of any flammable liquids and that you work in a well ventilated area;
    • Make sure to remove the gas tank, and set it aside at a safe distance.

    Make sure the flame of your torch is focused, and heat only the center of the flywheel. This is due to the fact that some flywheels use adhesive or other fixing compounds to locate the magnets in the rim that can be damaged by concentrated heat. Here again, the wheel might fall off the crank, so be prepared to catch it. And remember that you just heated it, so make sure you can catch it without burning yourself.

    With these tips and techniques, you are now equipped to handle any stuck flywheel without throwing your flywheel puller at it; unless you have a habit of working with machines that have been in a lake for months!

    Battery Isolator installation instruction :

    Download our complete installation instruction (PDF)

    SPLYT System installation instructions :

    Download our complete installation instruction (PDF 15Mo)

    Warning:

    Risk of electric shock. Disconnect the battery before servicing.
    Ensure proper installation by a qualified technician to avoid malfunction.
