High Power 300W Stator + Flywheel + Mosfet Voltage Regulator for Yamaha YFZ 450 R / X 2009-2024 | 18P-81410-00-00
RMSTATOR
SKU: RMS900-108156
Out of stock
RMSTATOR
High Power 300W Stator + Flywheel + Mosfet Voltage Regulator for Yamaha YFZ 450 R / X 2009-2024 | 18P-81410-00-00
Sold out
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
$594.67
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

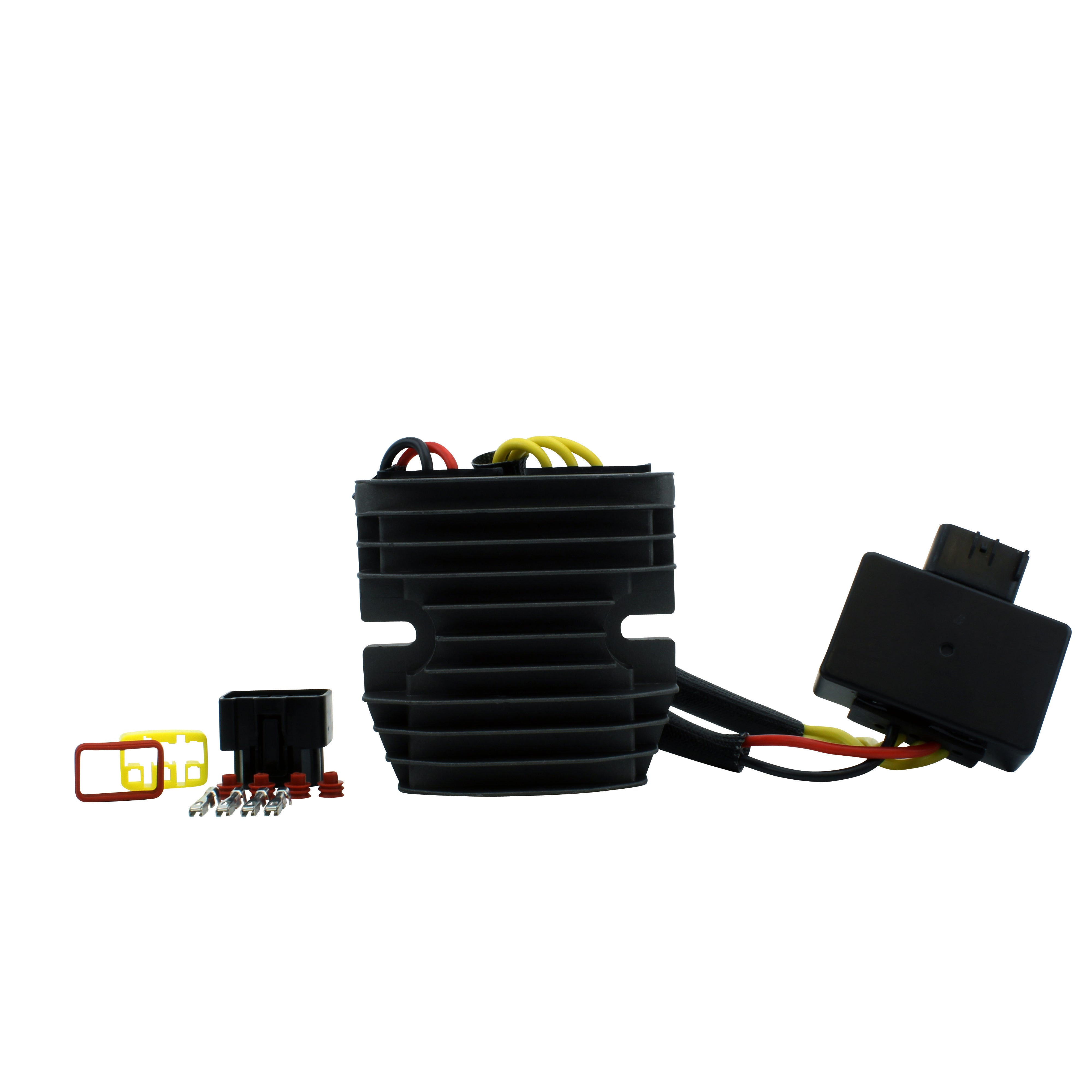

Our RM30801H is an improved MOSFET voltage regulator with a much larger housing than the original YFZ450R regulator. It will not fit in the original mounting location. It will plug in to the stock connector with the attached wiring harness, but will require you find a new mounting location on your vehicle.
Read more
High Power 300W Stator + Flywheel + Mosfet Voltage Regulator for Yamaha YFZ 450 R / X 2009-2024 | 18P-81410-00-00
Sold out
Details
Details

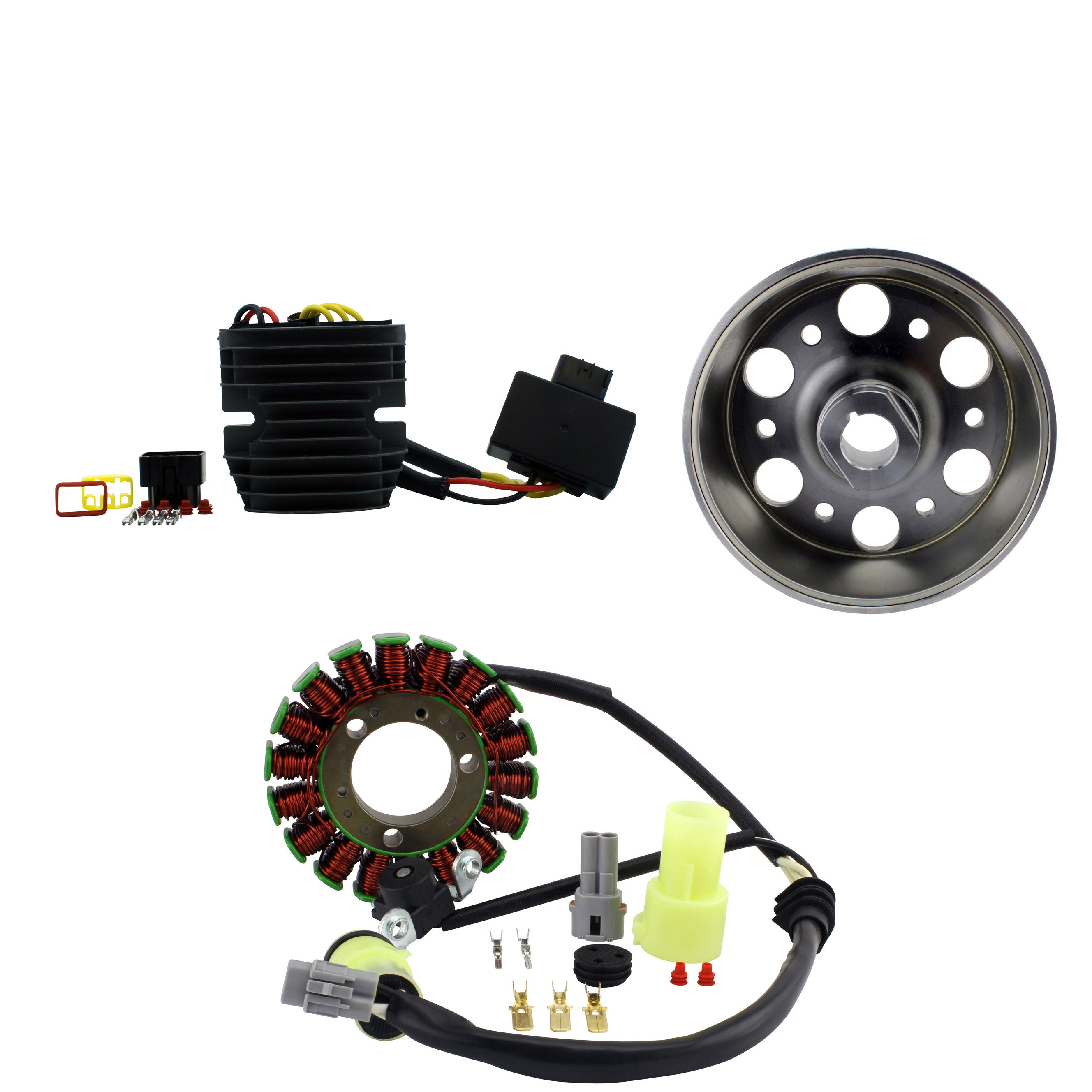

Brand new aftermarket Kit Stator Magneto Flywheel Rotor and Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included

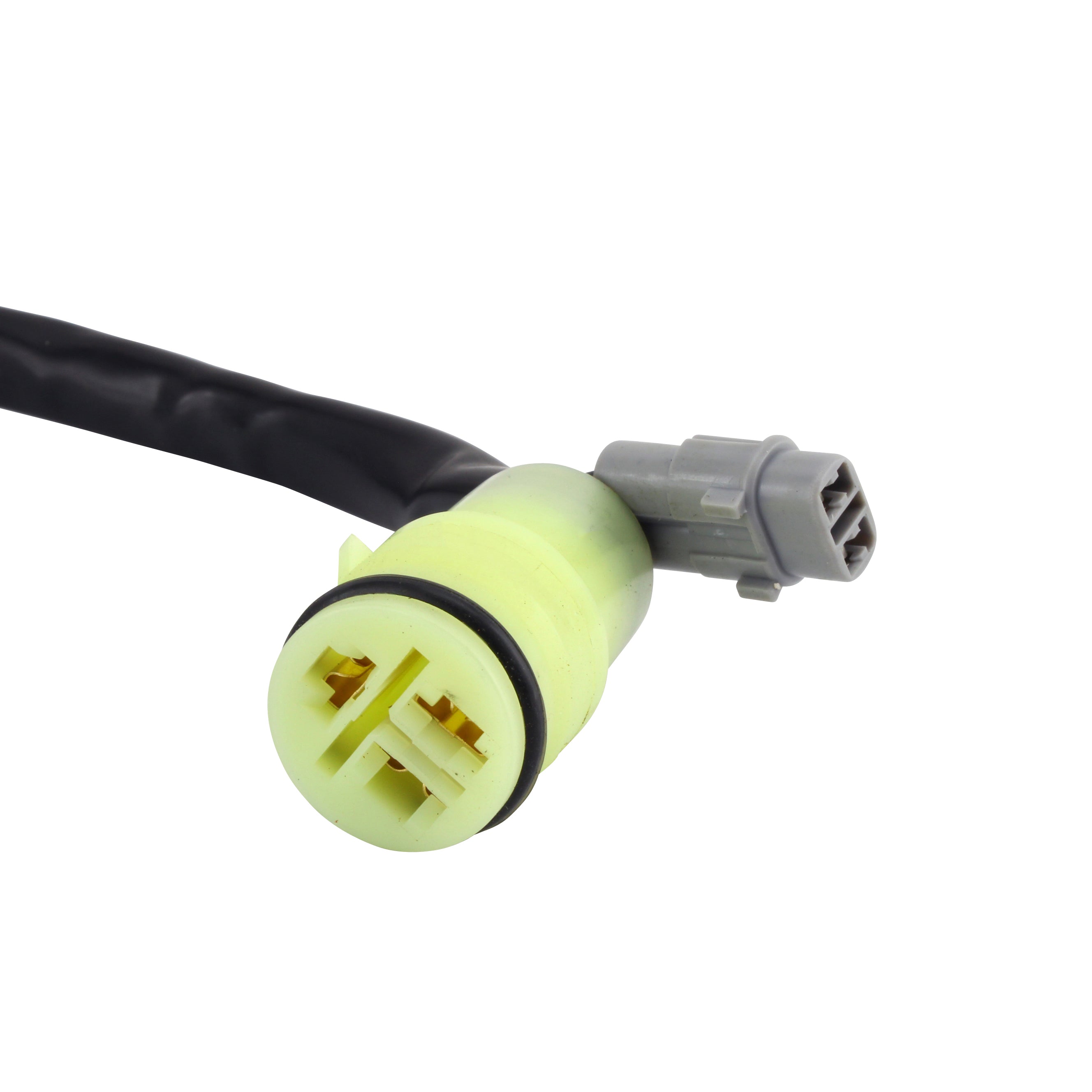

- Connectors included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
Extended battery life
Extends the battery’s life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.Brand new Mosfet Voltage Regulator Rectifier
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Specifications
Specifications

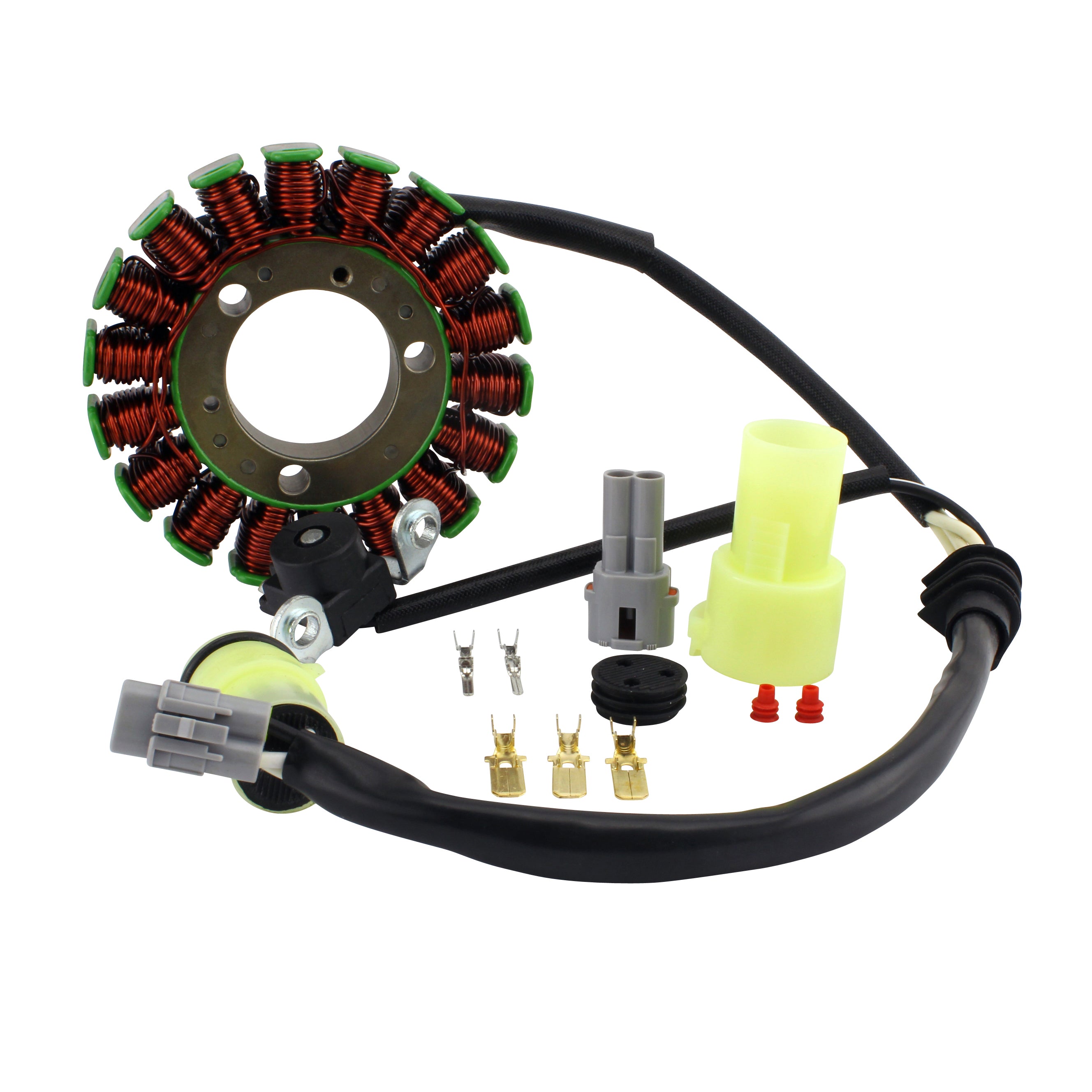

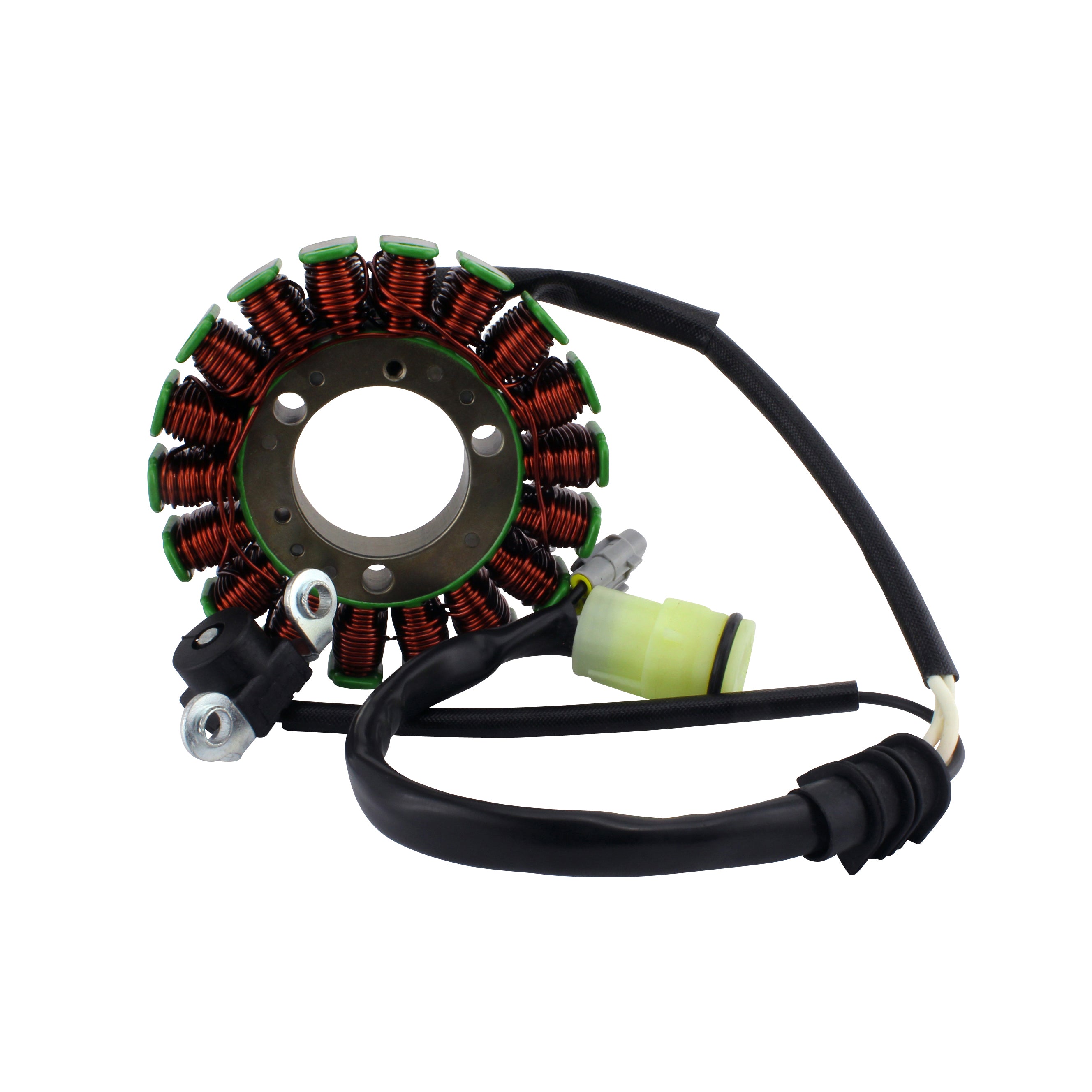

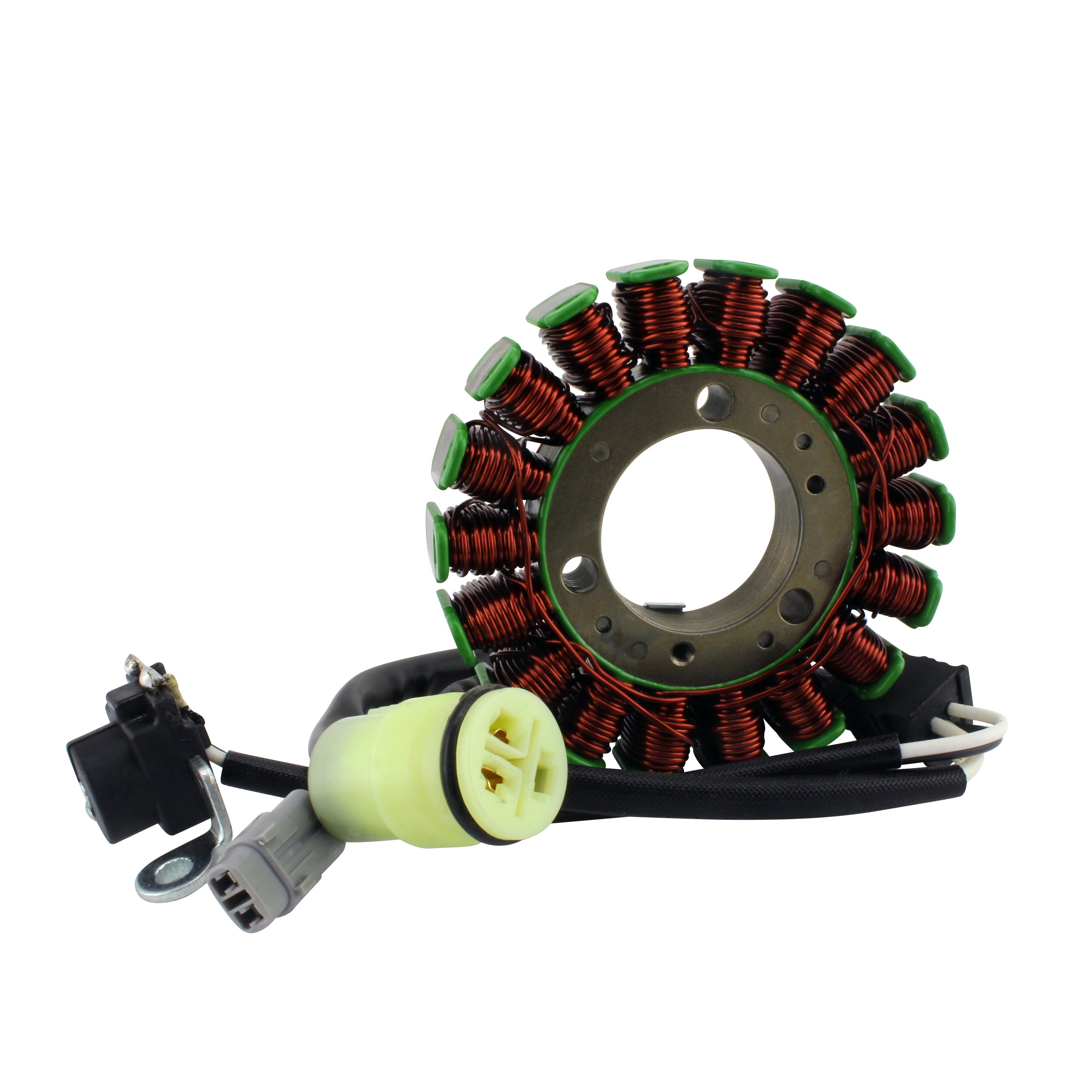

Specifications of Stator:
Dimensions:
Interior diameter: 37 mm
Exterior diameter: 97 mm
Thickness: 14 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 180 mm
Length of pickup coil's wire to grommet: 180 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.2 ohms +-20%
Pickup: White to Black = 260 ohms +-20%

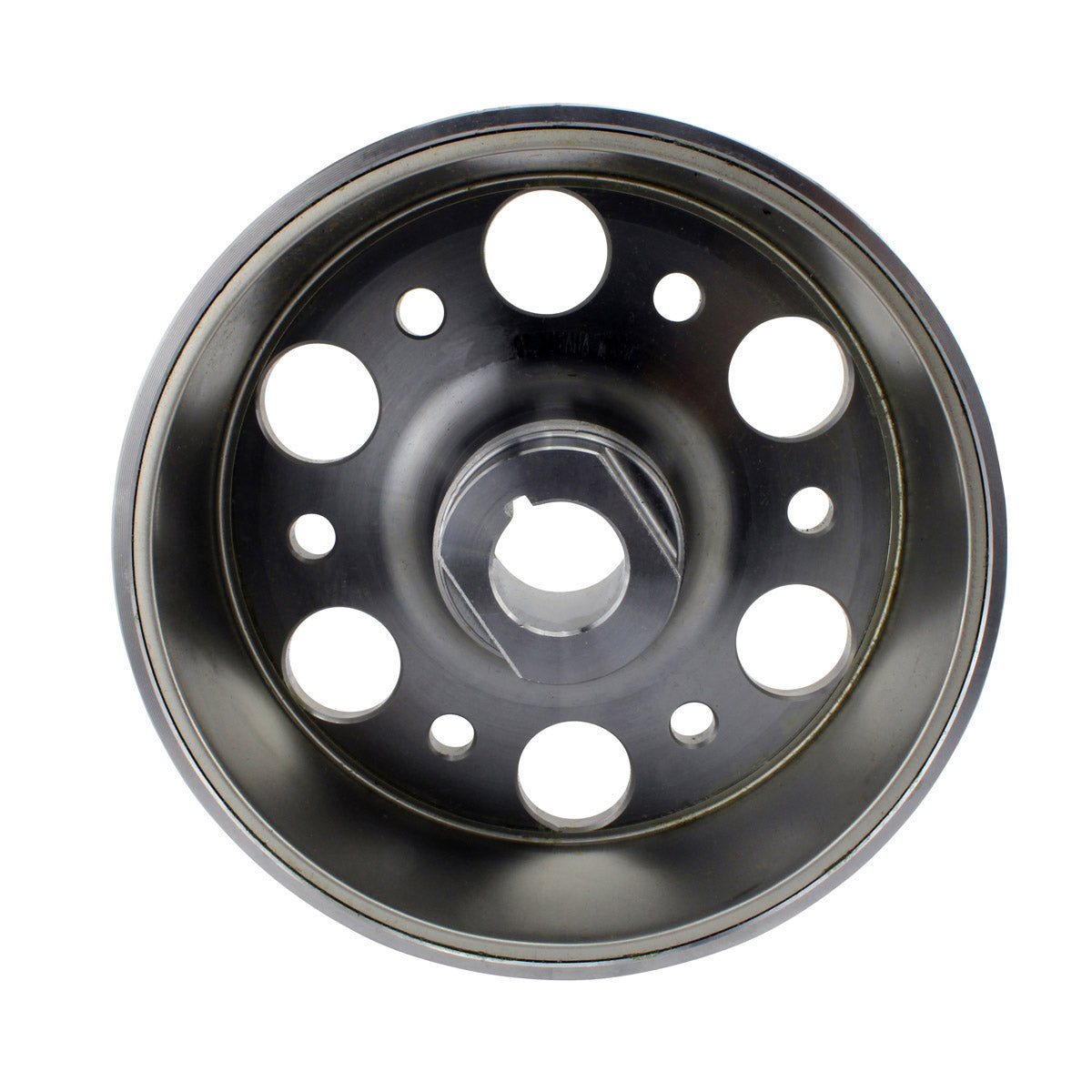

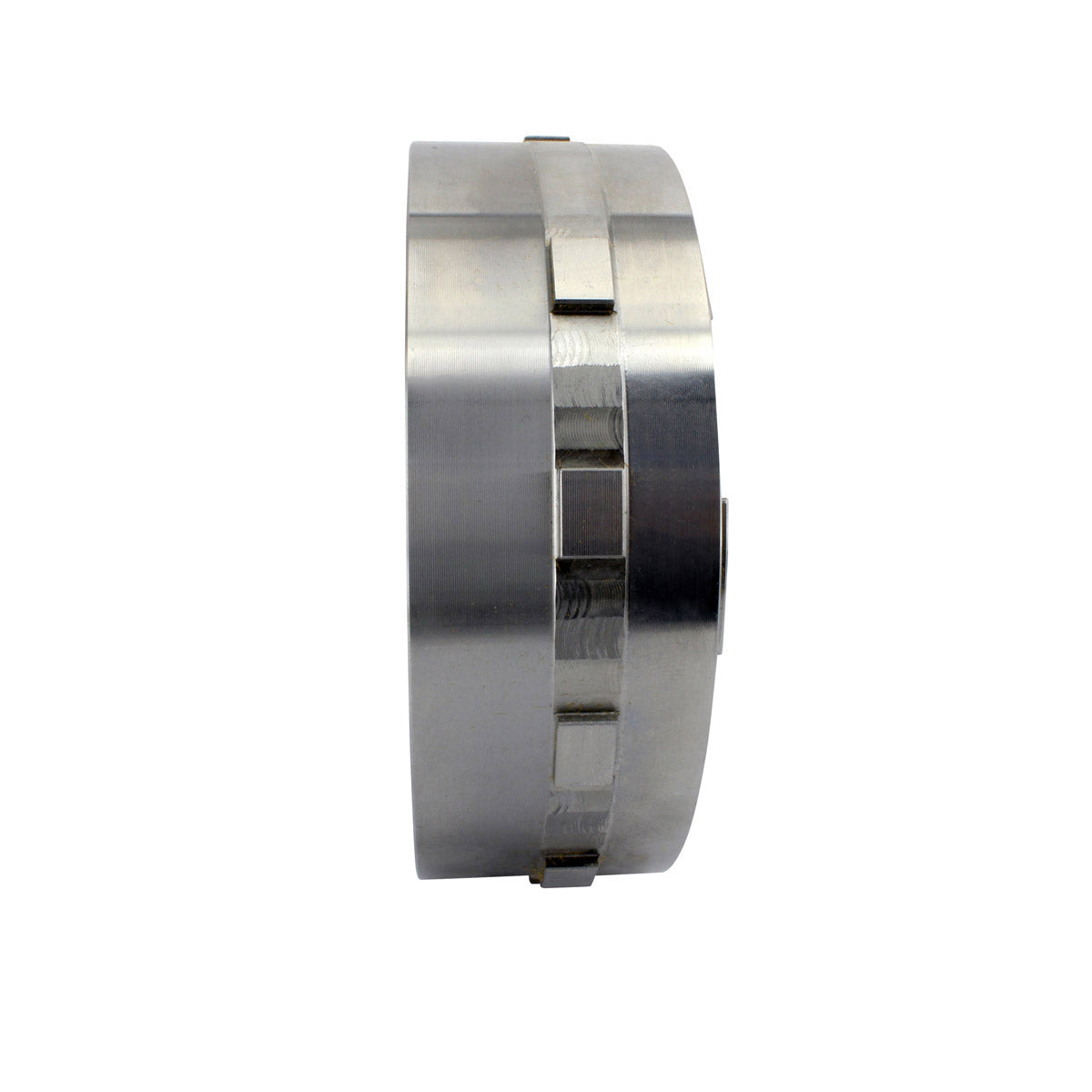

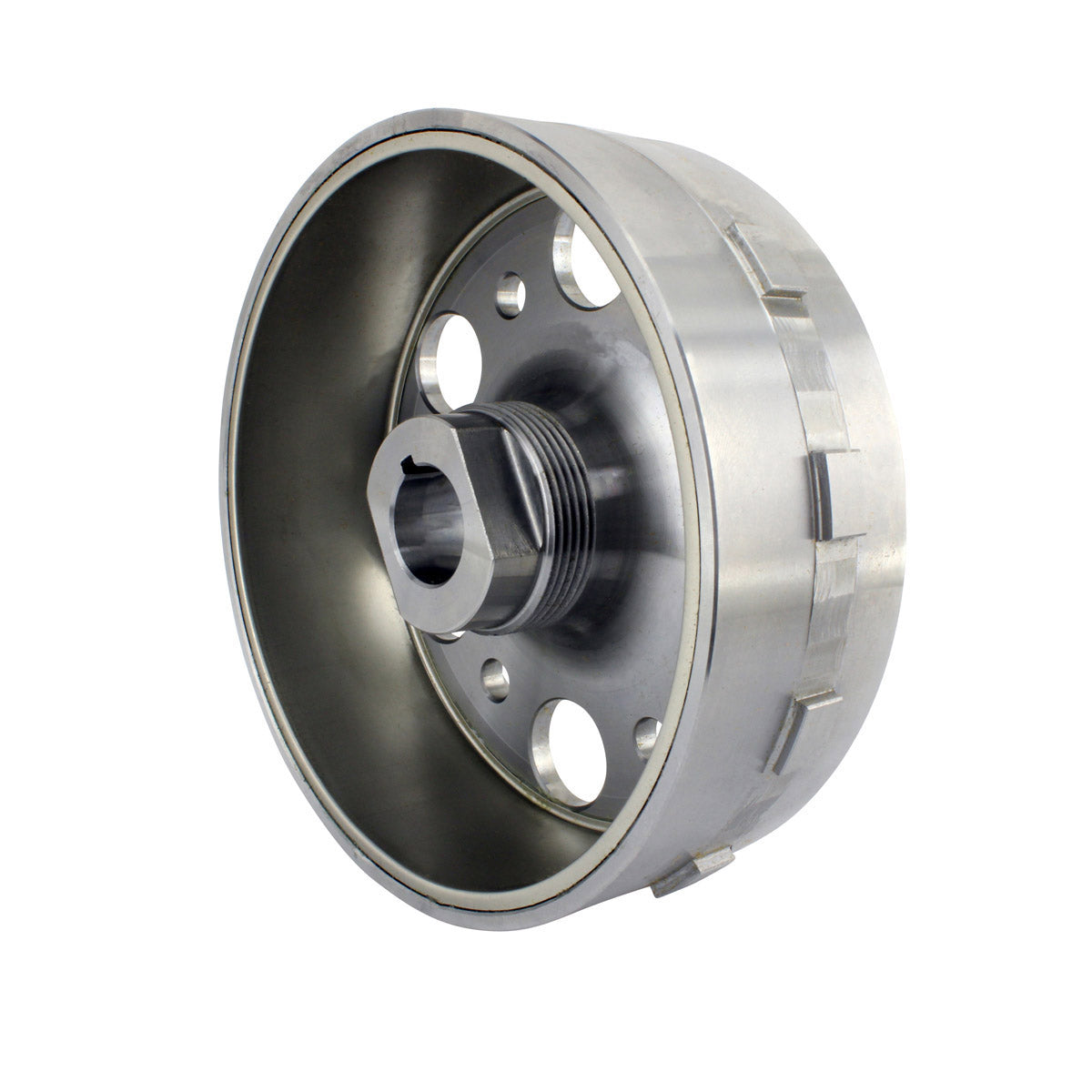

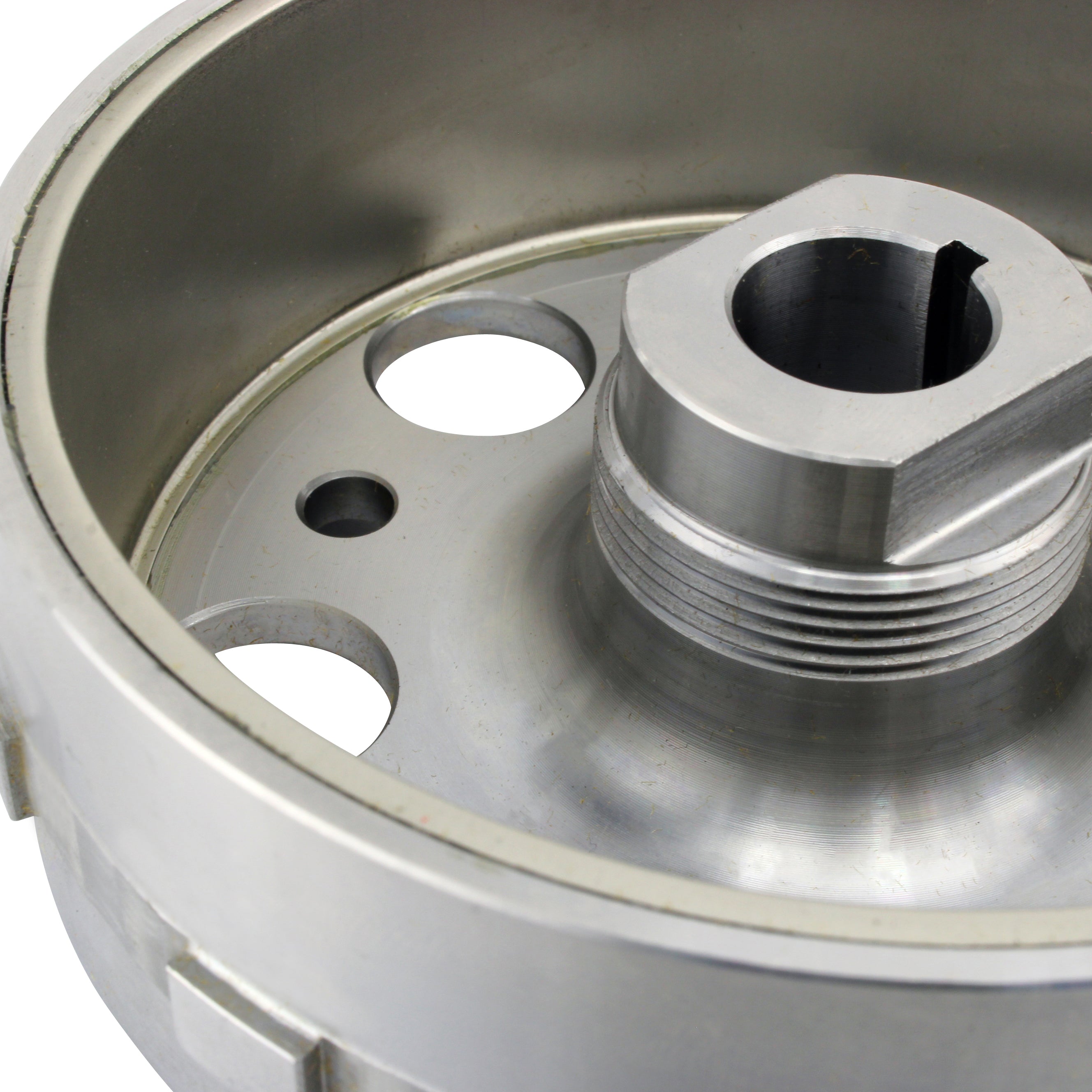

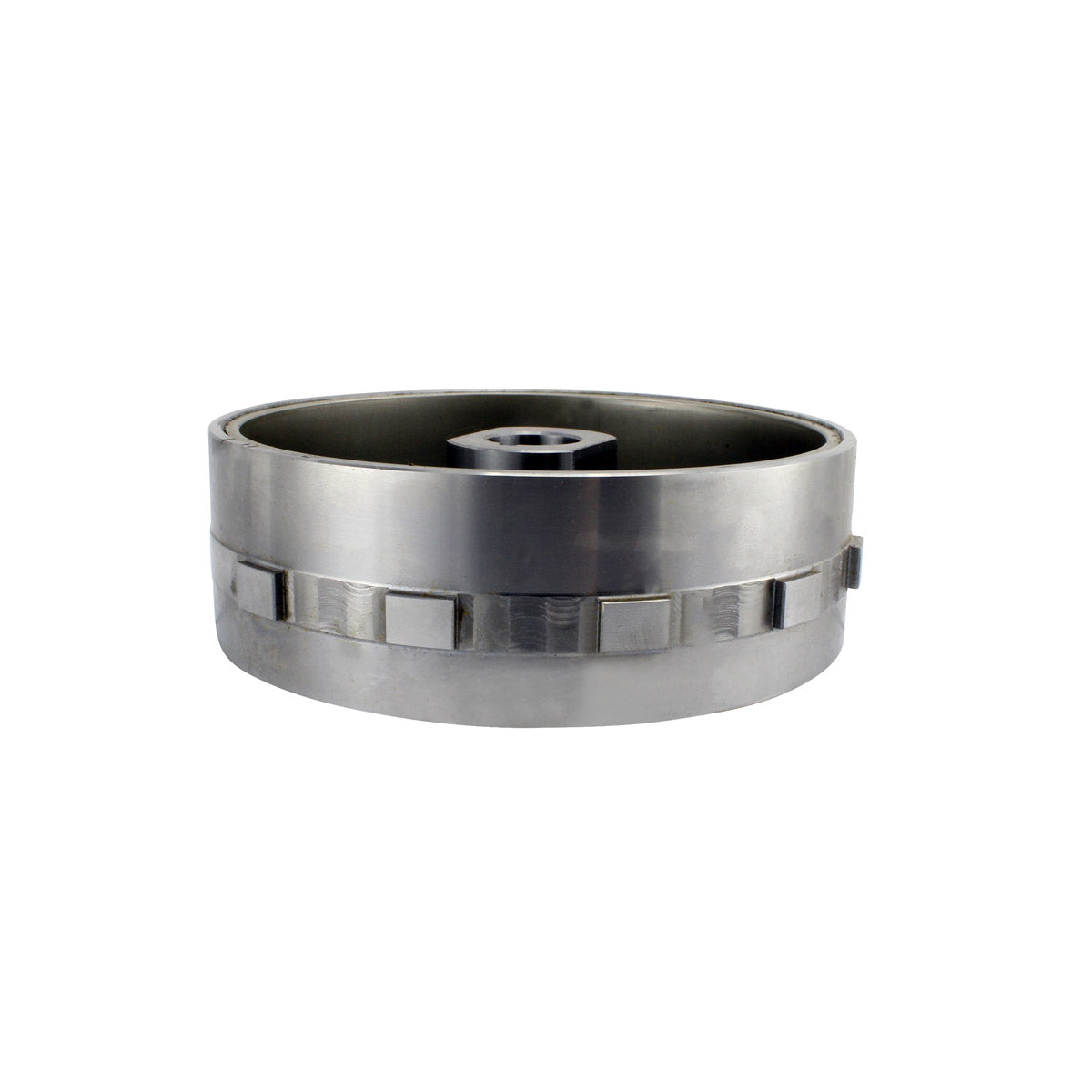

Specifications of Flywheel:
Dimensions:
Exterior Diameter: 110 mm
Interior Diameter: 99 mm
Interior Diameter Center Housing: 30 mm
Exterior Diameter Center Housing: 33 mm
Thickness (exterior): 31 mm
Thickness (interior): 38 mm

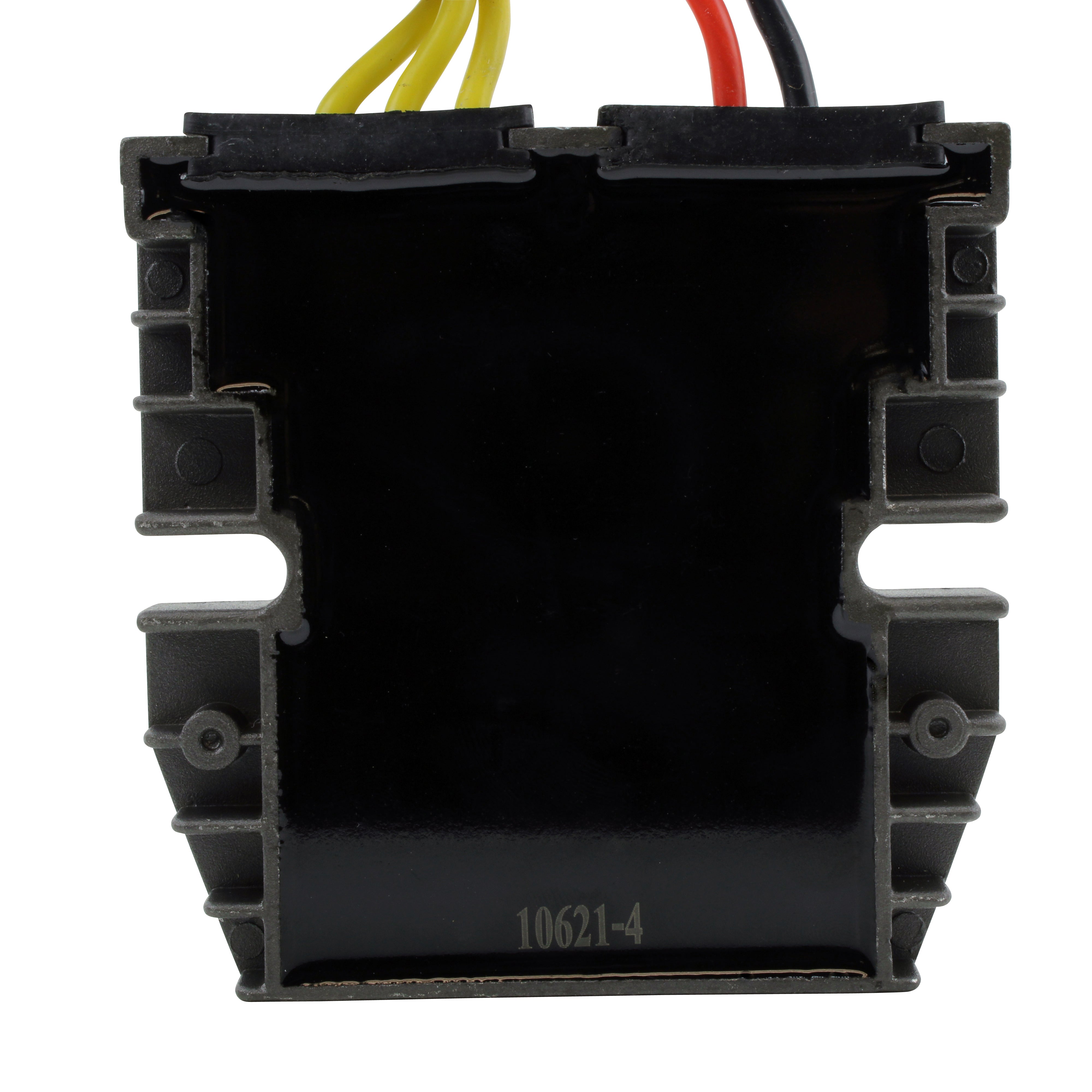

Specifications of Regulator:
Dimensions:
Width: 93 mm
Length: 27 mm
Height: 102 mm
Fixation holes center to center: 72 mm
Other specifications:
Number of plugs: 1
Number of pins: 6
Interchange Part Nº
Interchange Part Nº
-
Stator :
18P-81410-02-00 - 18P-81410-00-00
-
Flywheel :
18P-81450-01-00 - 18P-81450-00-00
Installation
Installation
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Before attempting to start your Yamaha, adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010".
Before installing your new Voltage Regulator Rectifier:
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
