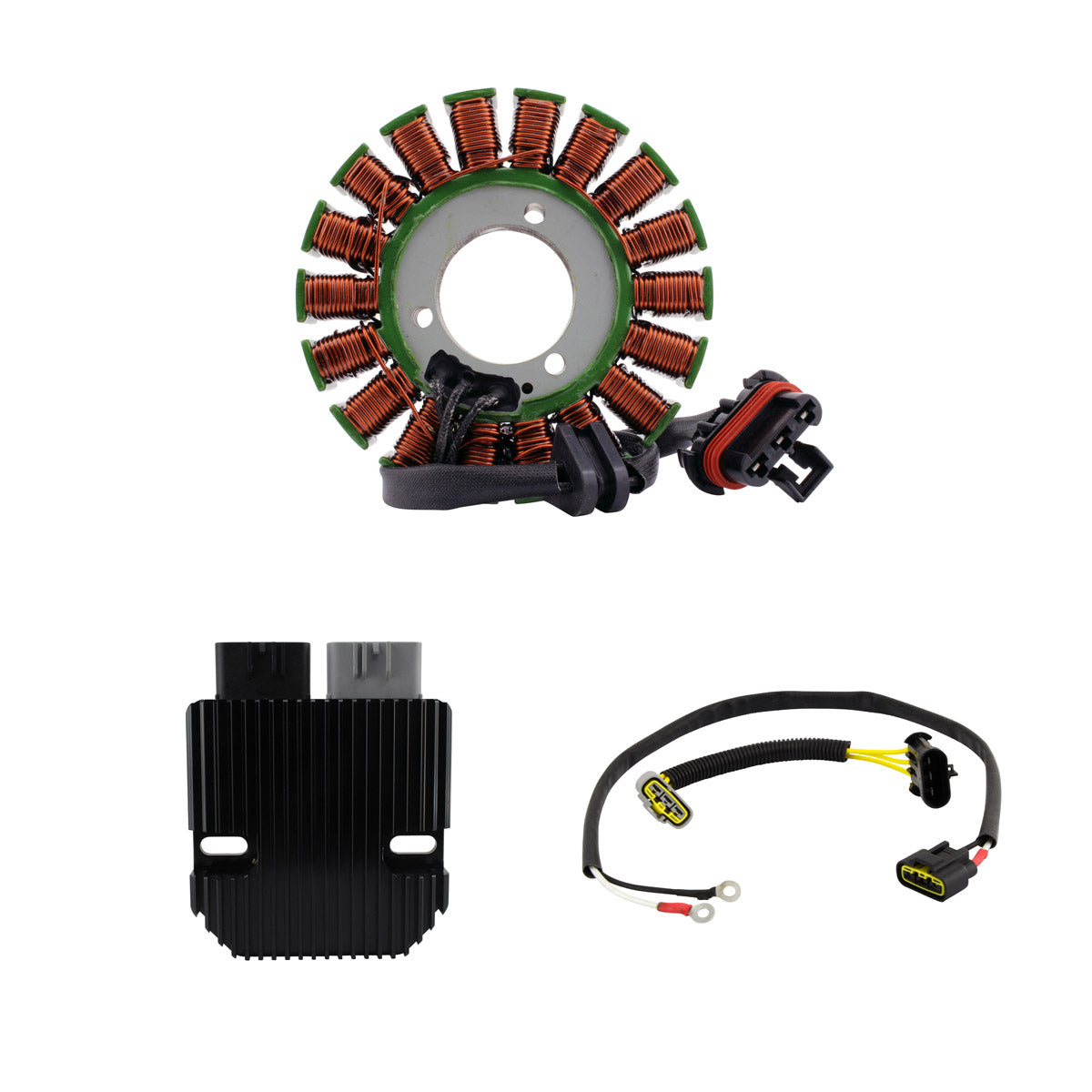

REVOLT Regulator + Stator for Victory Cross Country | Cross Roads | Hard Ball | Vision | Magnum 2008-2017 OEM# 4012238
REVOLT Regulator + Stator for Victory Cross Country | Cross Roads | Hard Ball | Vision | Magnum 2008-2017 OEM# 4012238
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
PLEASE NOTE : The OEM 2204532 is corresponding to the kit Stator + Rotor offered by Victory. Our part corresponds to the stator in this kit. WE DO NOT INCLUDE the rotor.





Details
Details

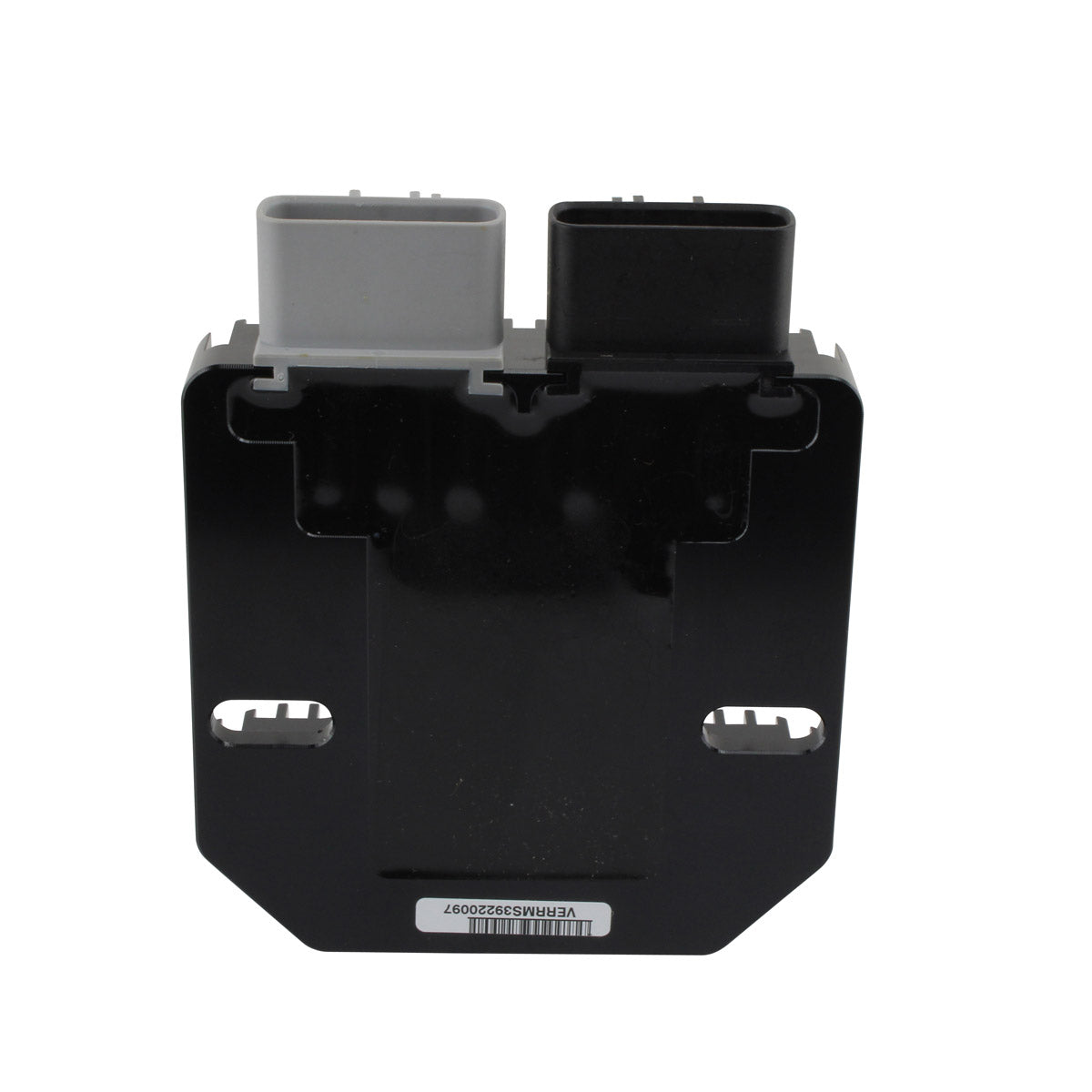

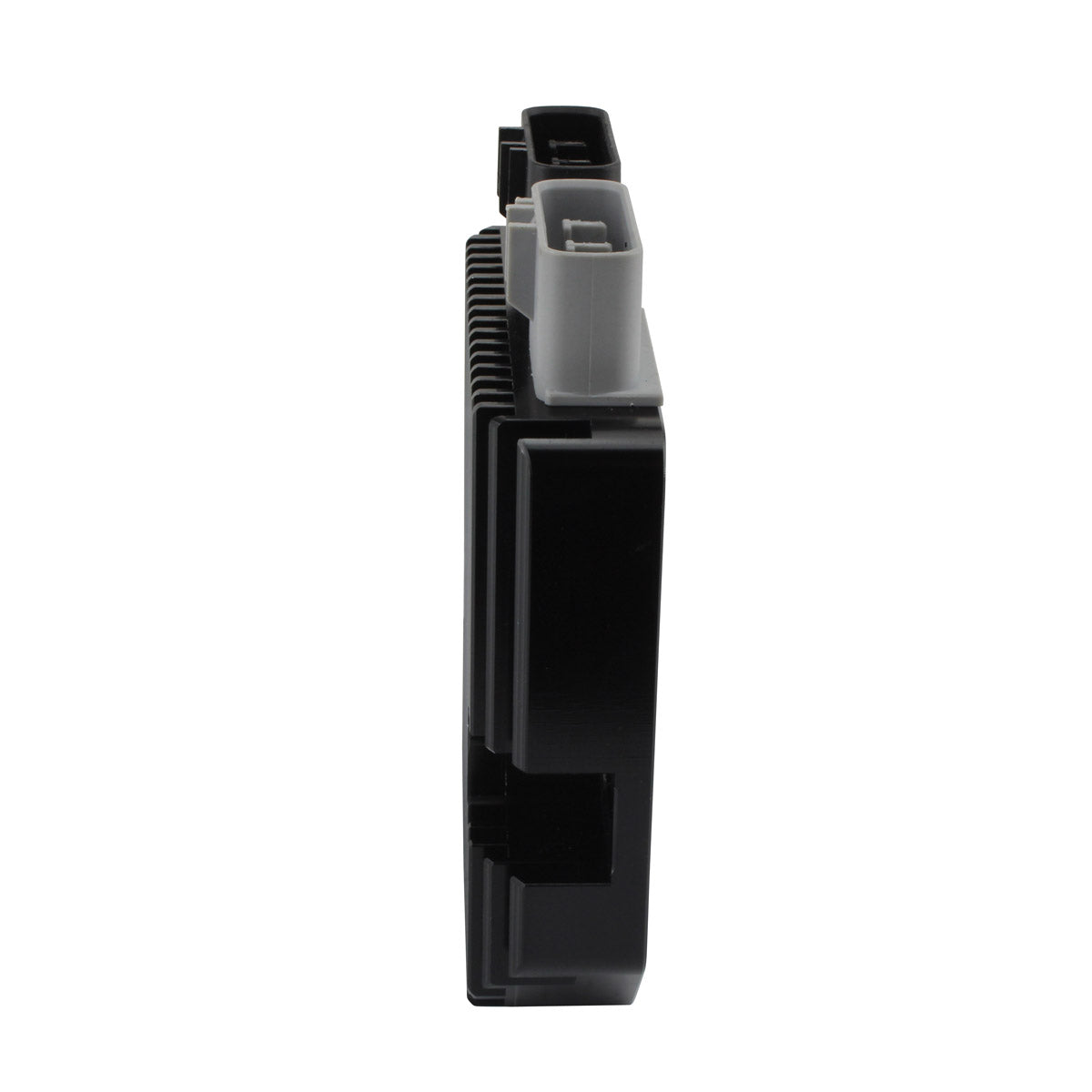

Brand new REVOLT Voltage Regulator
Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

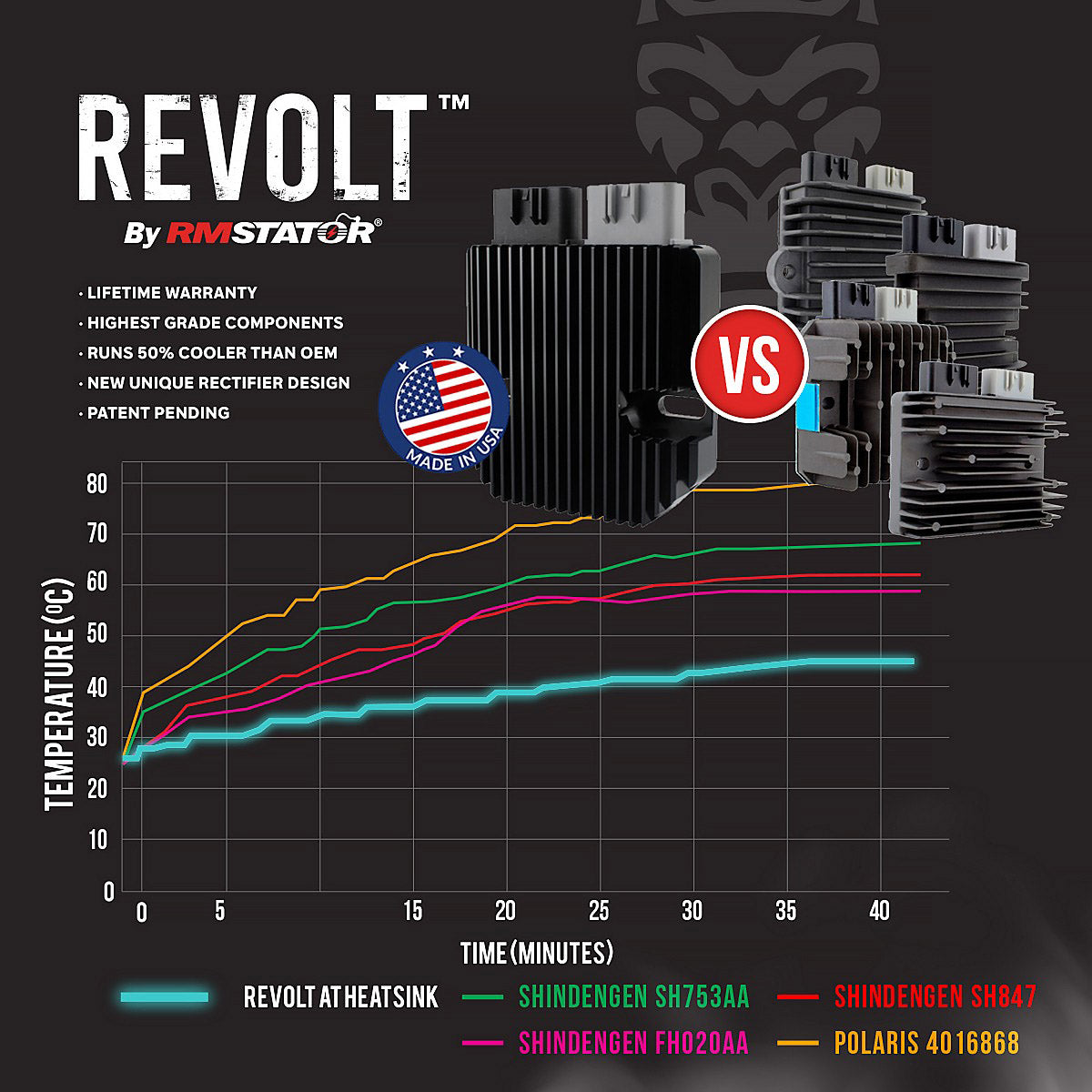

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market
SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market uses Active Rectification to considerably improve the rectifier reliability.
DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.
PROUDLY MADE IN NORTH AMERICA
REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.
LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.
Join REVOLT, the new era of voltage regulation!

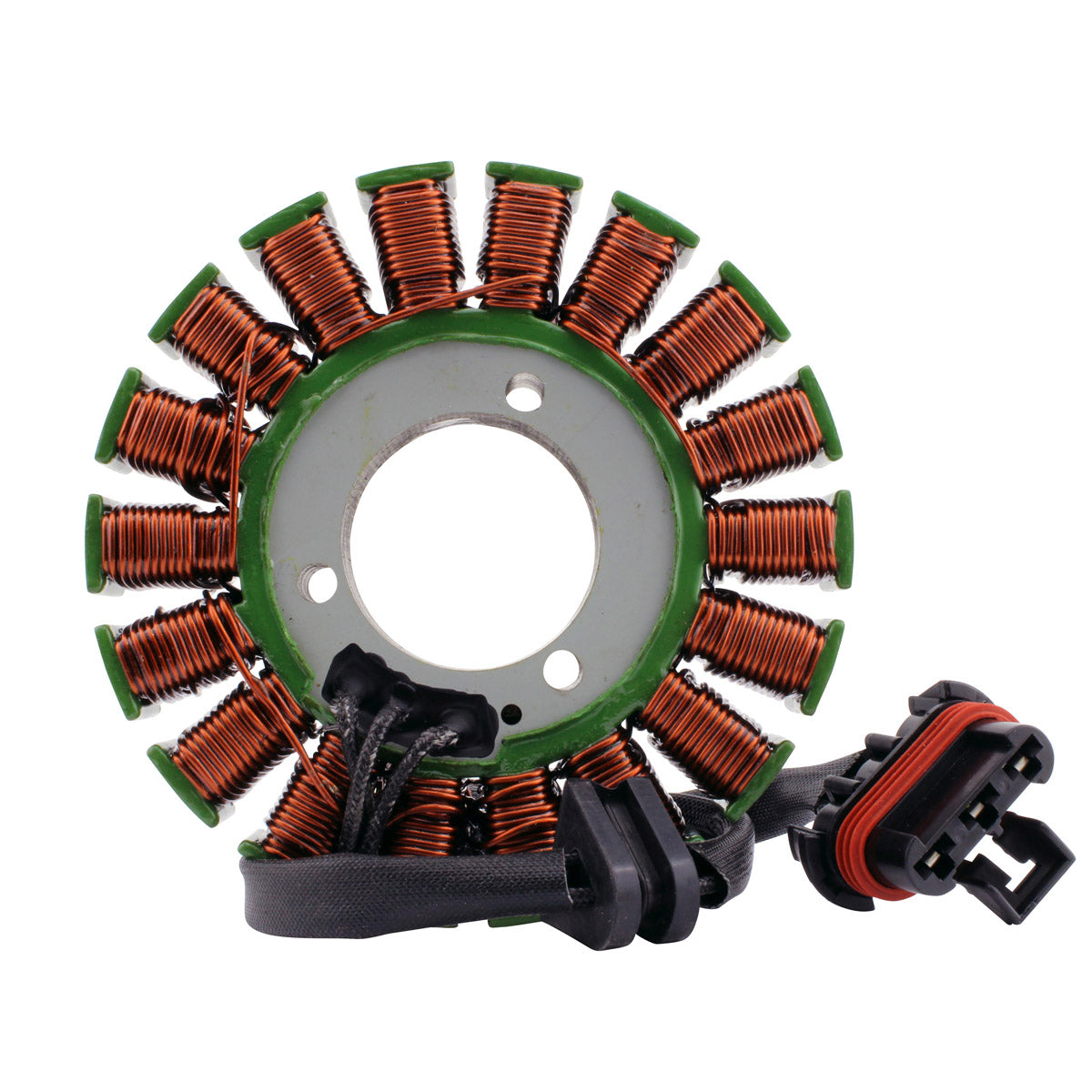

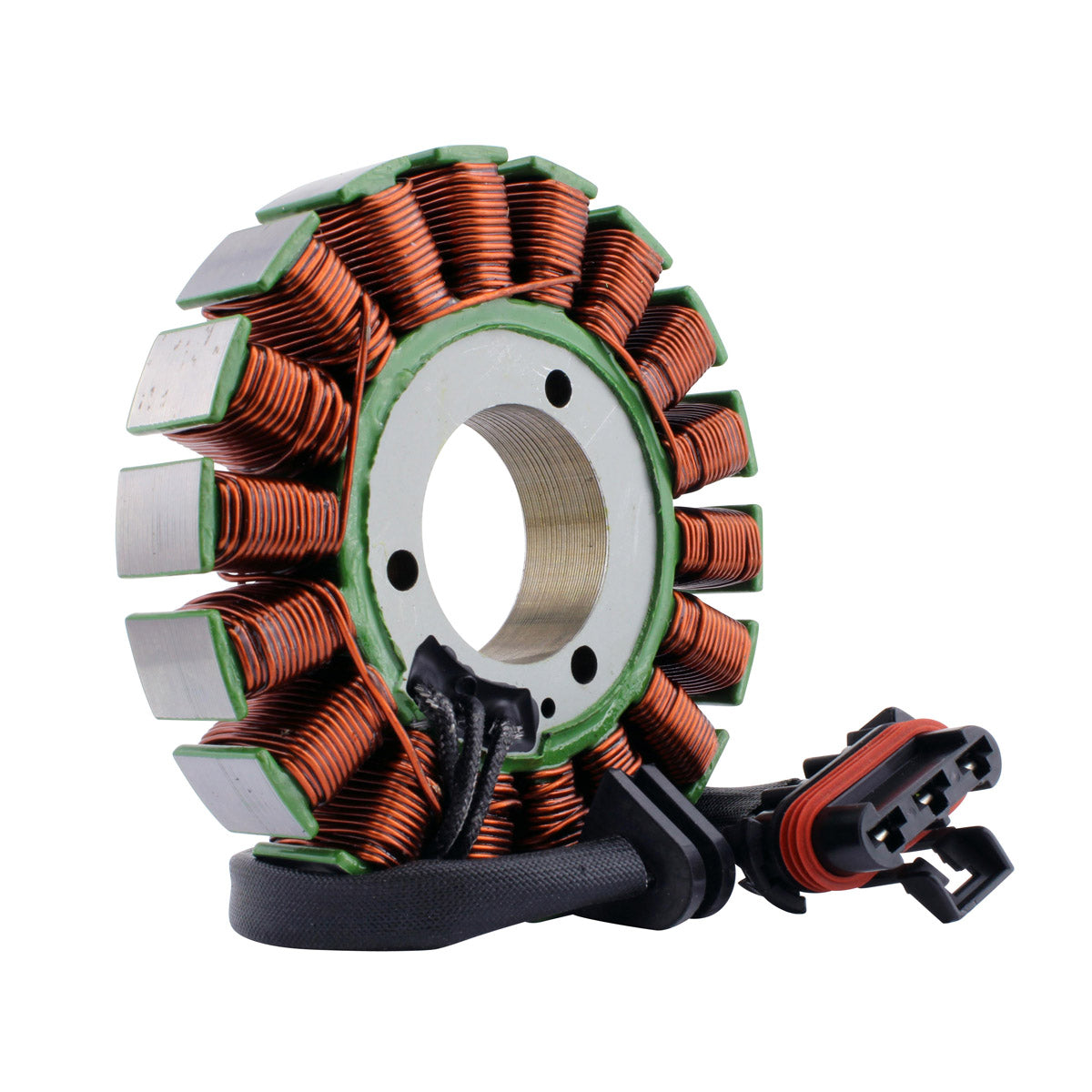

Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

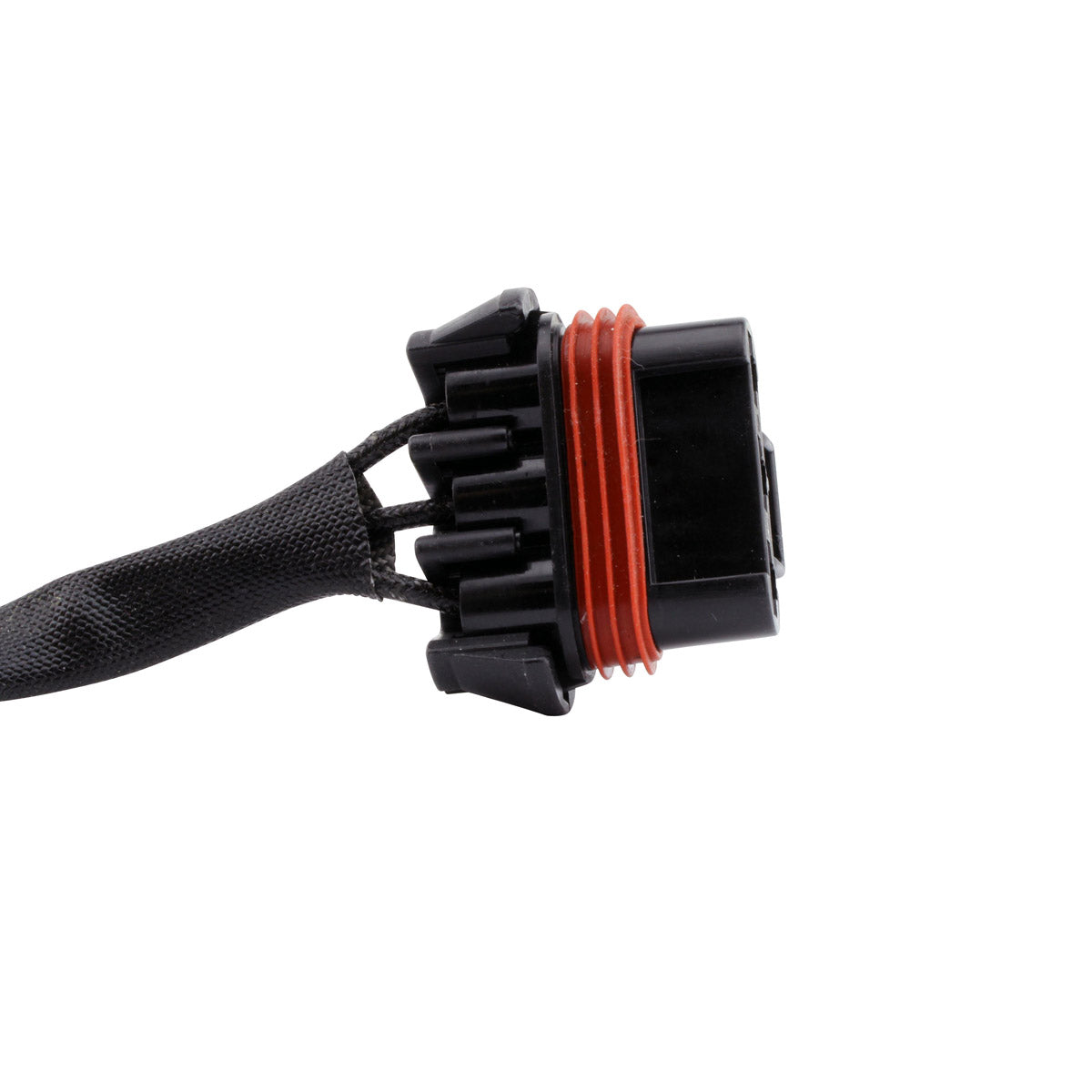

- Connectors included

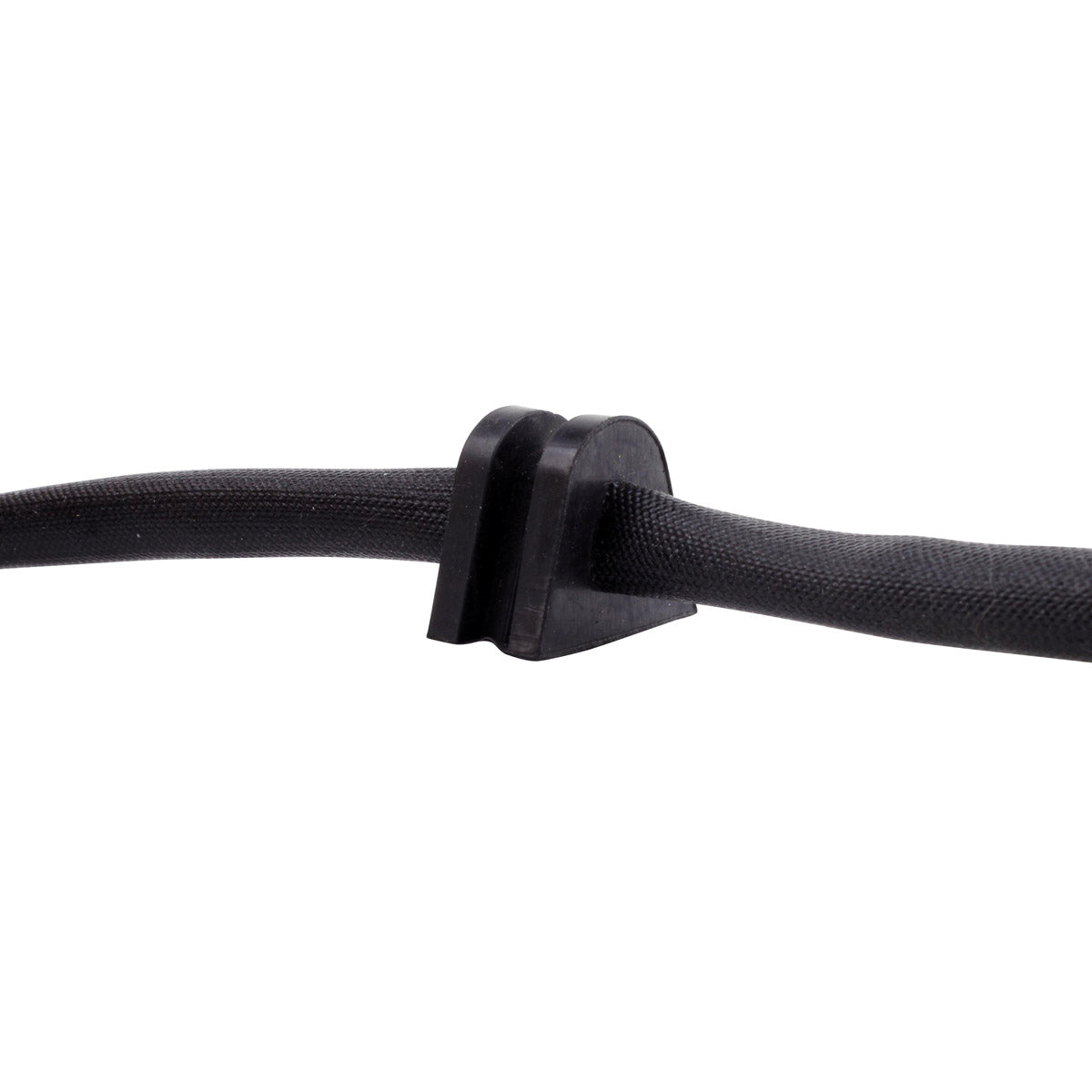

- Rubber grommet included
- Back Plate included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications
Specifications
Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.6 V +/- 0.3 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 125 mm
Thickness : 21 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 250 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Black to Black = 0.3 ohms +/-20%

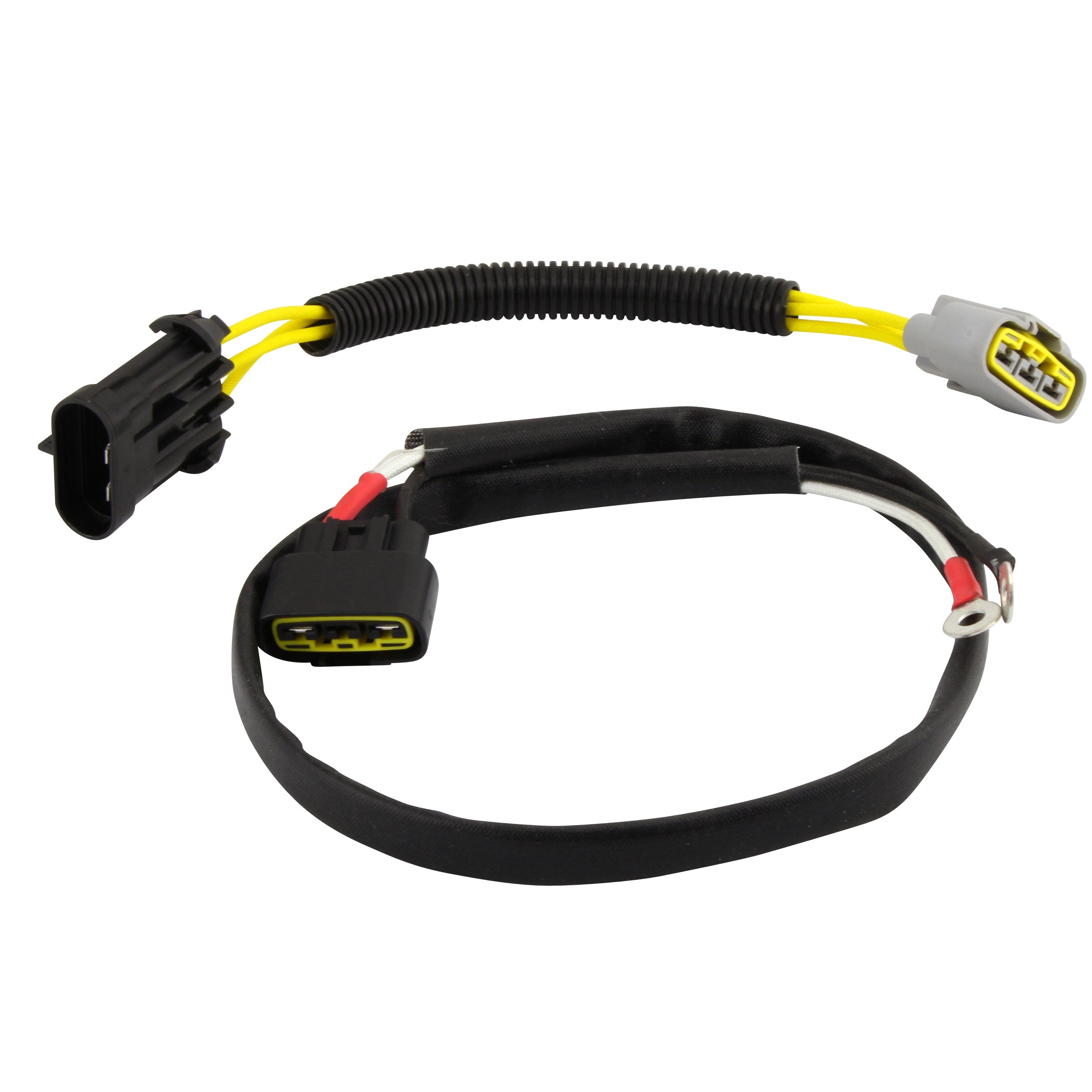

Wires length : 720 mm
Wires length : 250 mm
Number of yellow wires : 3
Number of red wires : 1
Number of green wires : 1
Number of plugs : 2
Interchange Part Nº
Interchange Part Nº
- 108114-R00
Installation
Installation
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
