100W AC to DC Lithium Compatible Stator + Regulator for 4-Stroke KTM 450 525 530 EXC / EXC-R 2007-2011 | # 80039004000
RMSTATOR
SKU: RMS900-107506
Out of stock
RMSTATOR
100W AC to DC Lithium Compatible Stator + Regulator for 4-Stroke KTM 450 525 530 EXC / EXC-R 2007-2011 | # 80039004000
Sold out
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No stator, nor regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
100W AC to DC Lithium Compatible Stator + Regulator for 4-Stroke KTM 450 525 530 EXC / EXC-R 2007-2011 | # 80039004000
Sold out
Details
Details

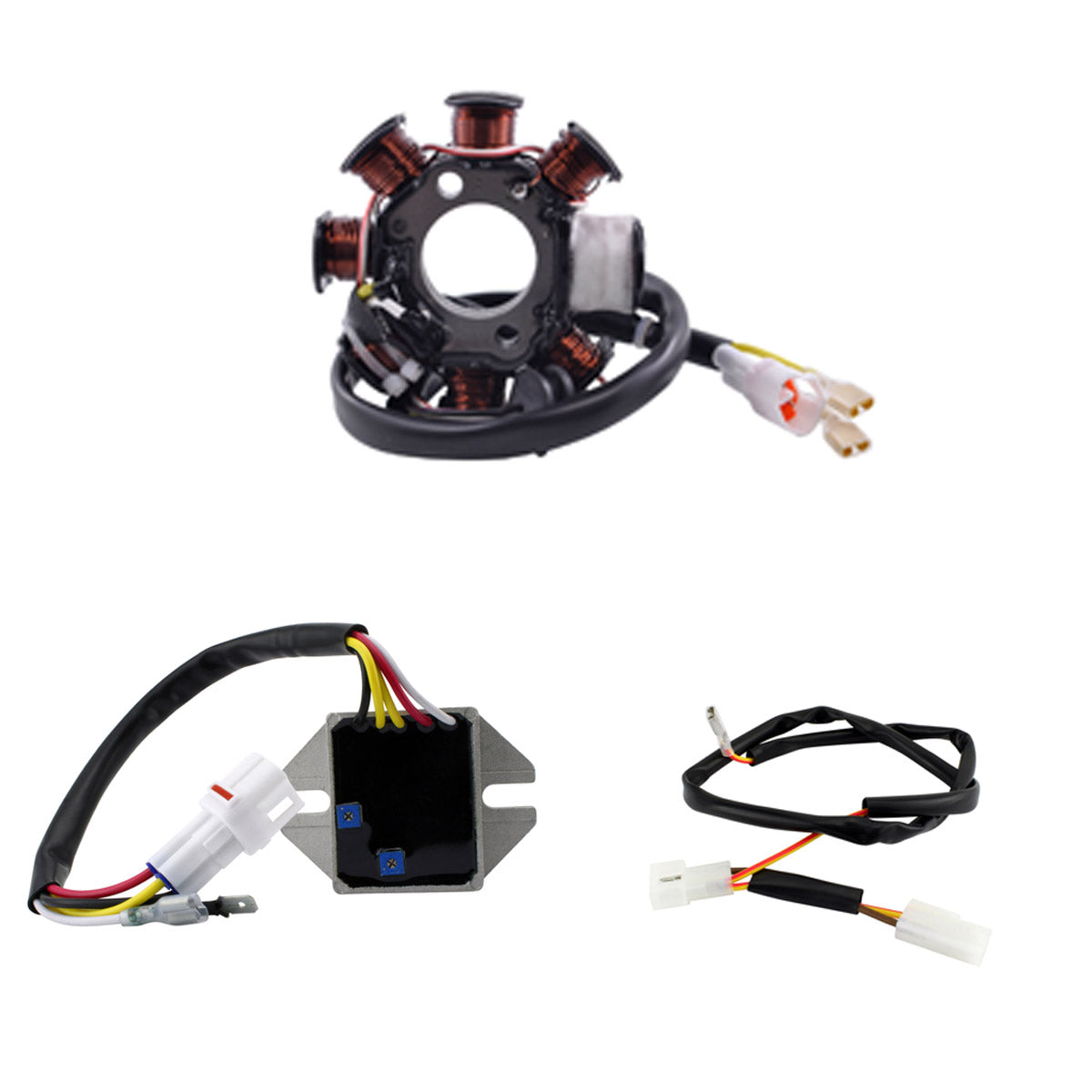

100W Lithium-Ion Compatible Converted AC to DC Kit Stator + Voltage Regulator Rectifier
- 100 Watt DC charging system
- Replace the OEM stator with 100W high output stator
- Convert your AC system into a high power DC one
- All products shipped are tested

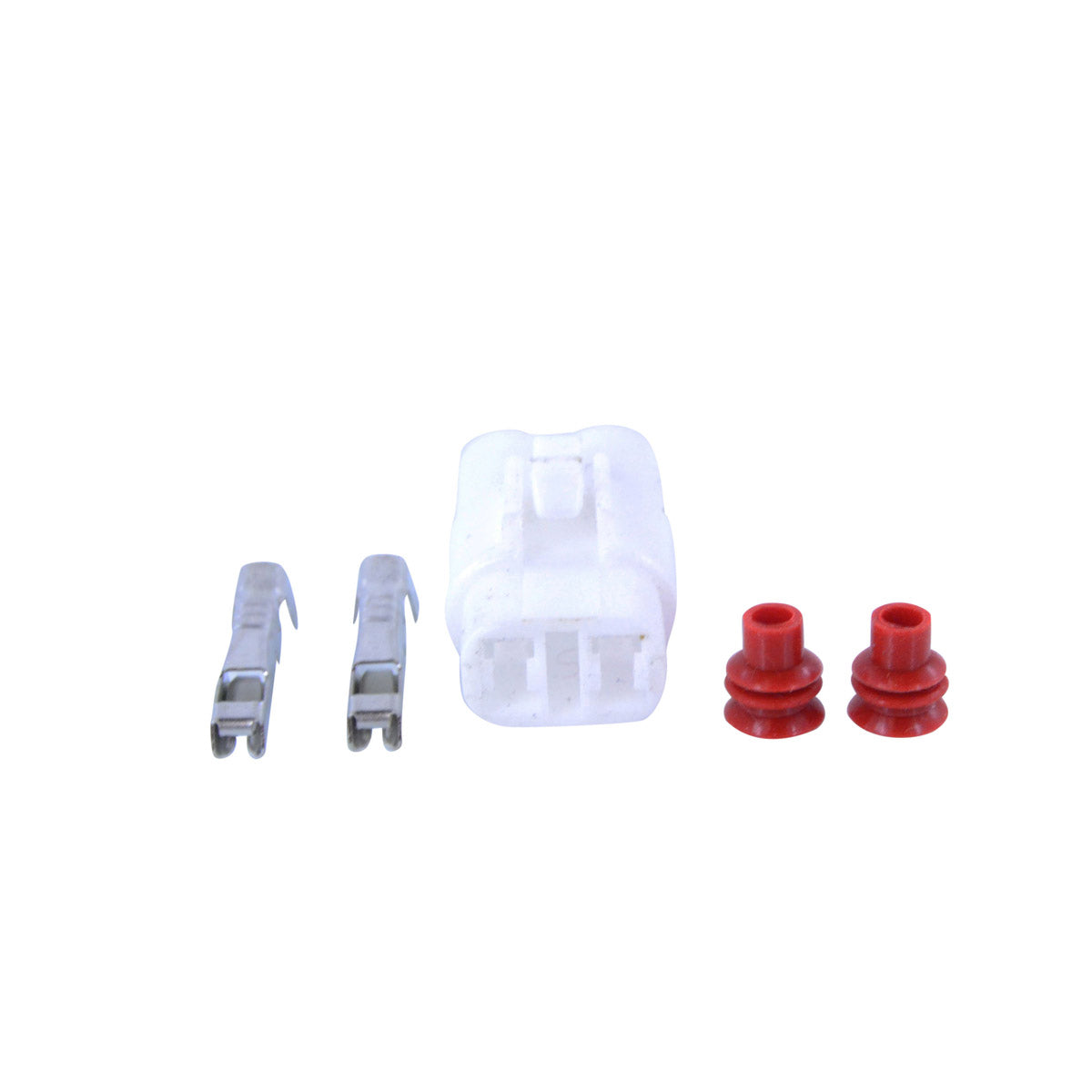

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

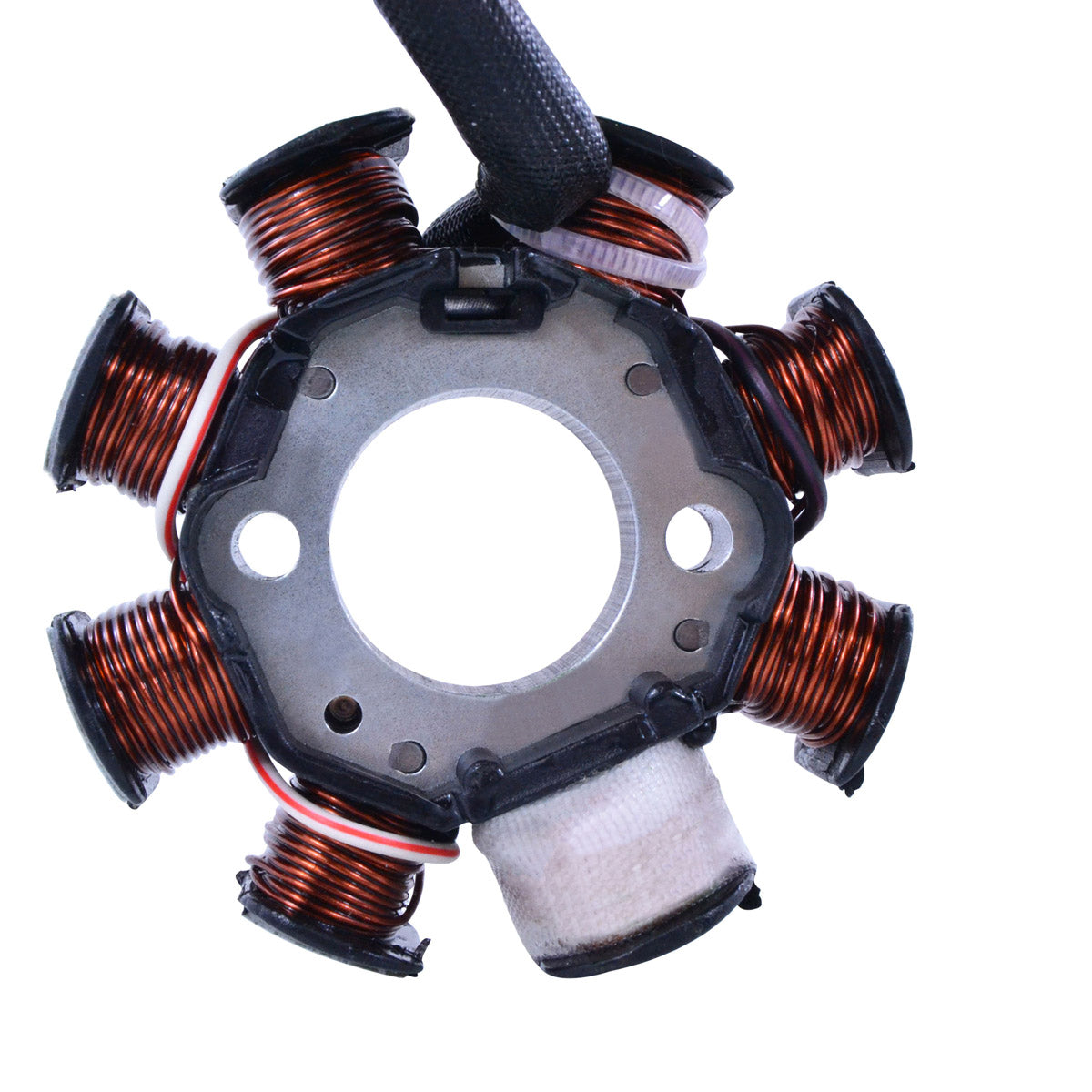

Brand new aftermarket Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included

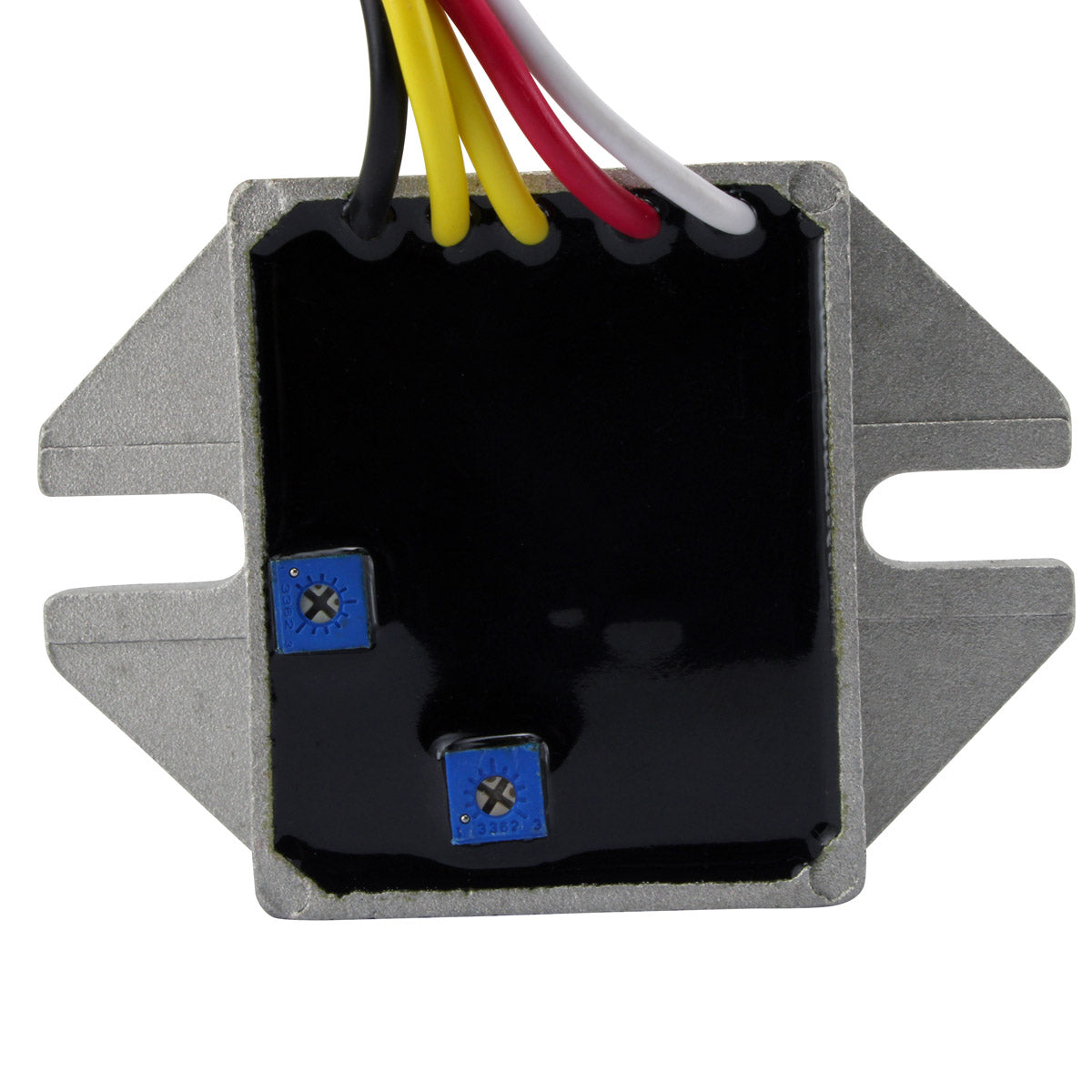

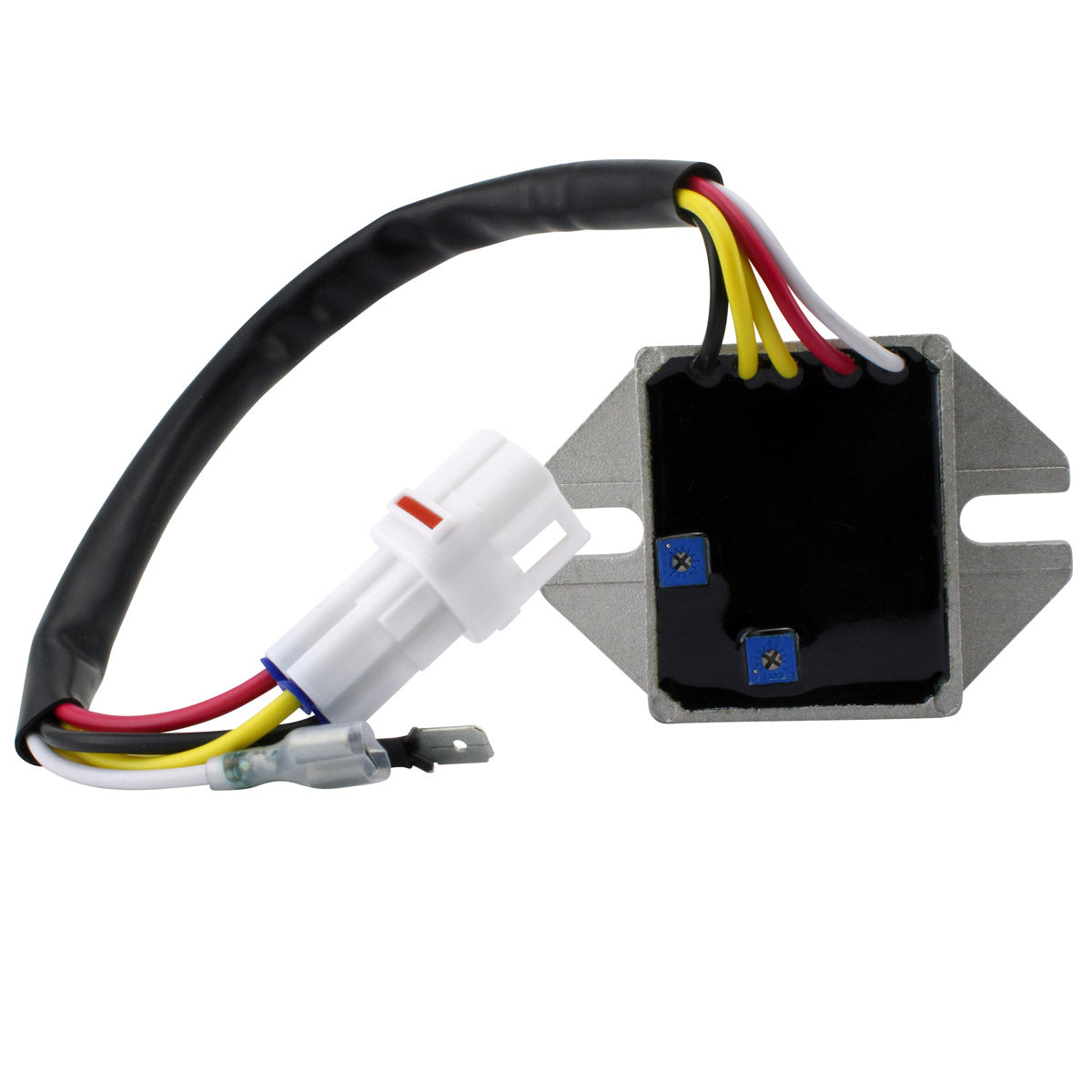

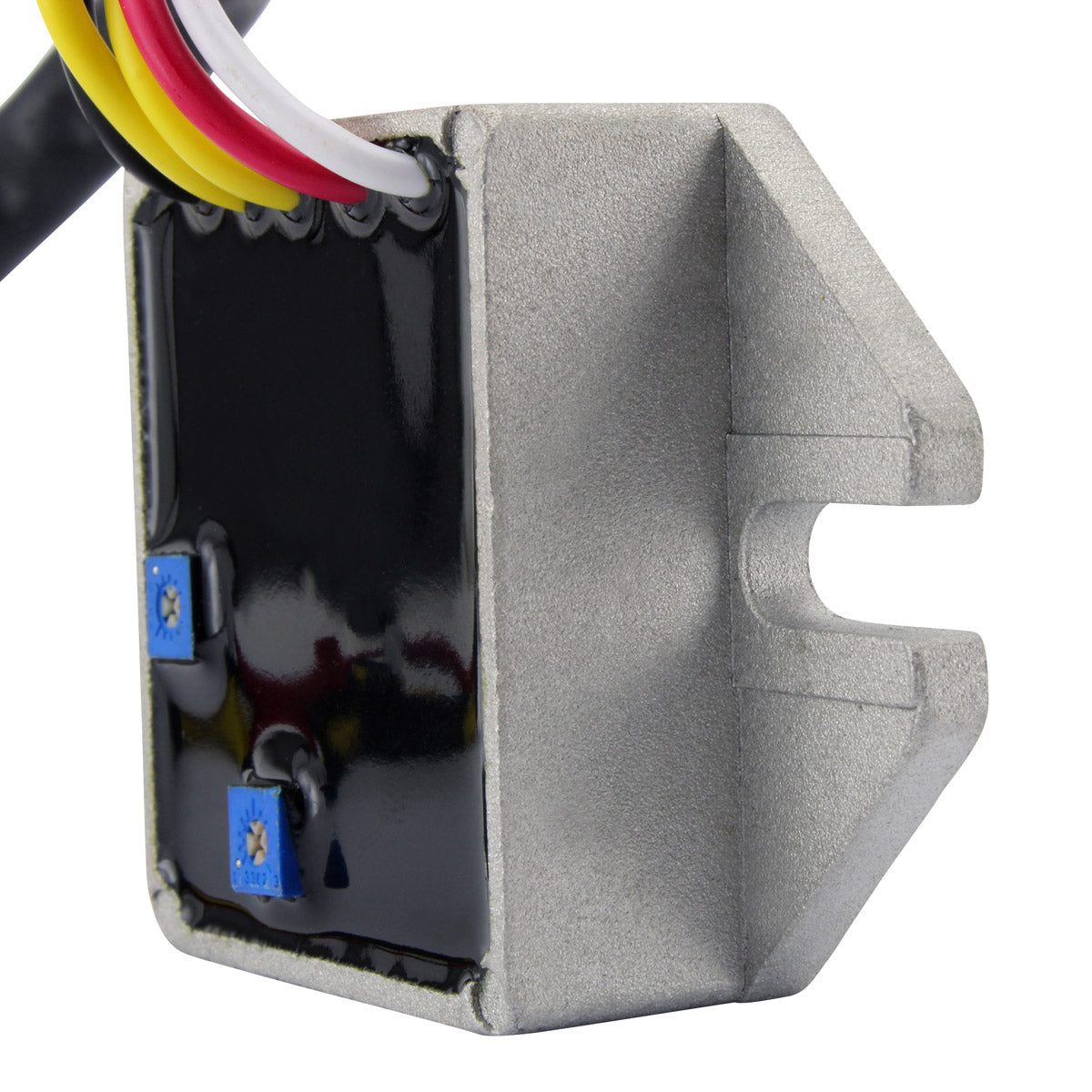

Brand new aftermarket adjustable voltage regulator rectifier
- Adjustable voltage regulation point from 14-15V
- No assembly required
- Higher grade of electric components
- The quality exceeds the OEM equipment
Specifications
Specifications
Stator Specifications:
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 83 mm
Thickness: 13 mm
Length of wires stator to grommet: 60 mm
Length of wires grommet to plug: 490 mm
Other specifications:
Number of wires: 4
Number of plugs: 3
Number of pins: 4
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.5 ohms +/-20%
Source: Black/Red to Red/White = 30 ohms +/-20%
Regulator Rectifier Specifications:
Dimensions:
Width: 54 mm
Length: 80 mm
Height: 22 mm
Wires length: 235 mm
Distance between fixation holes center to center: 65 mm
Other specifications:
Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: Adjustable 14-15 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

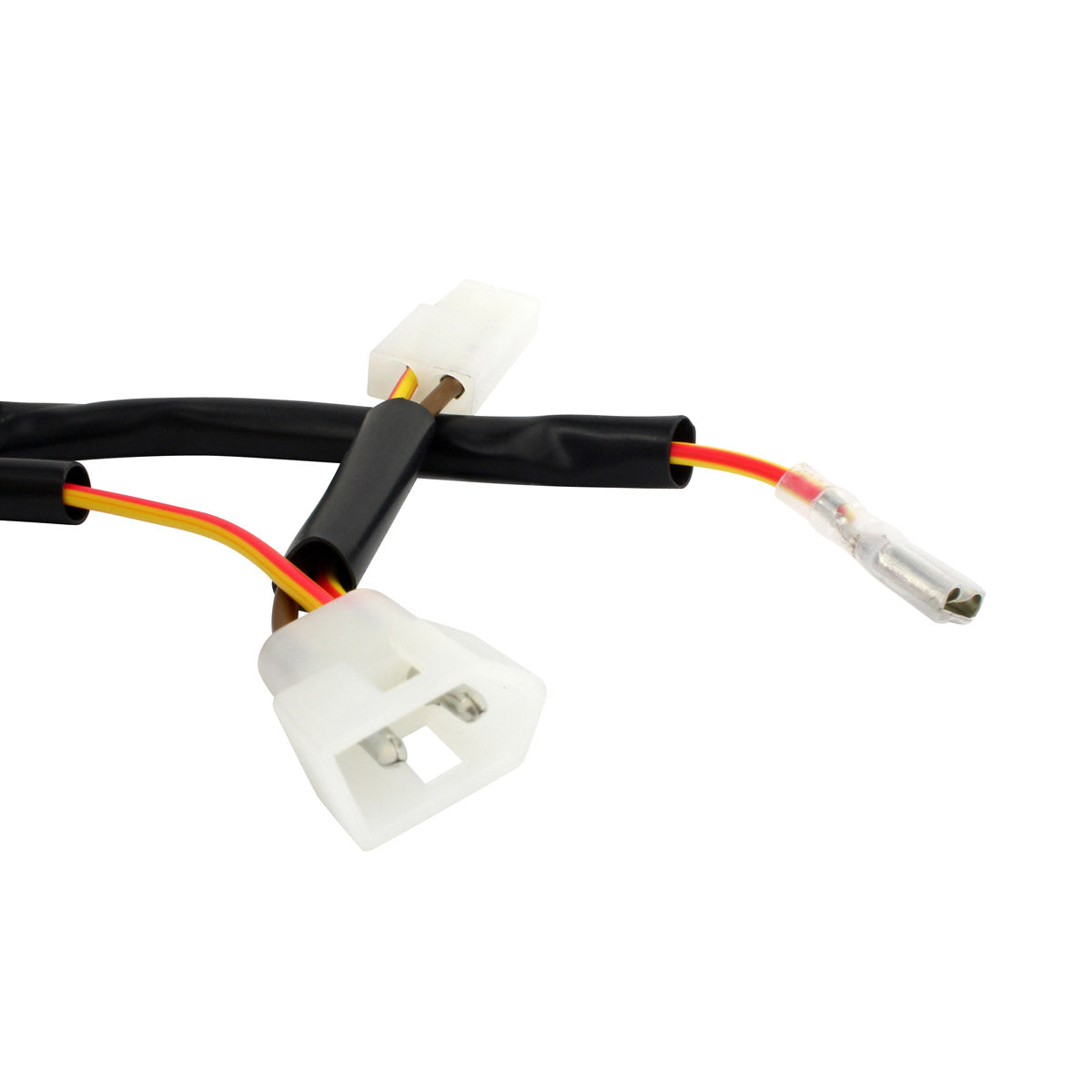

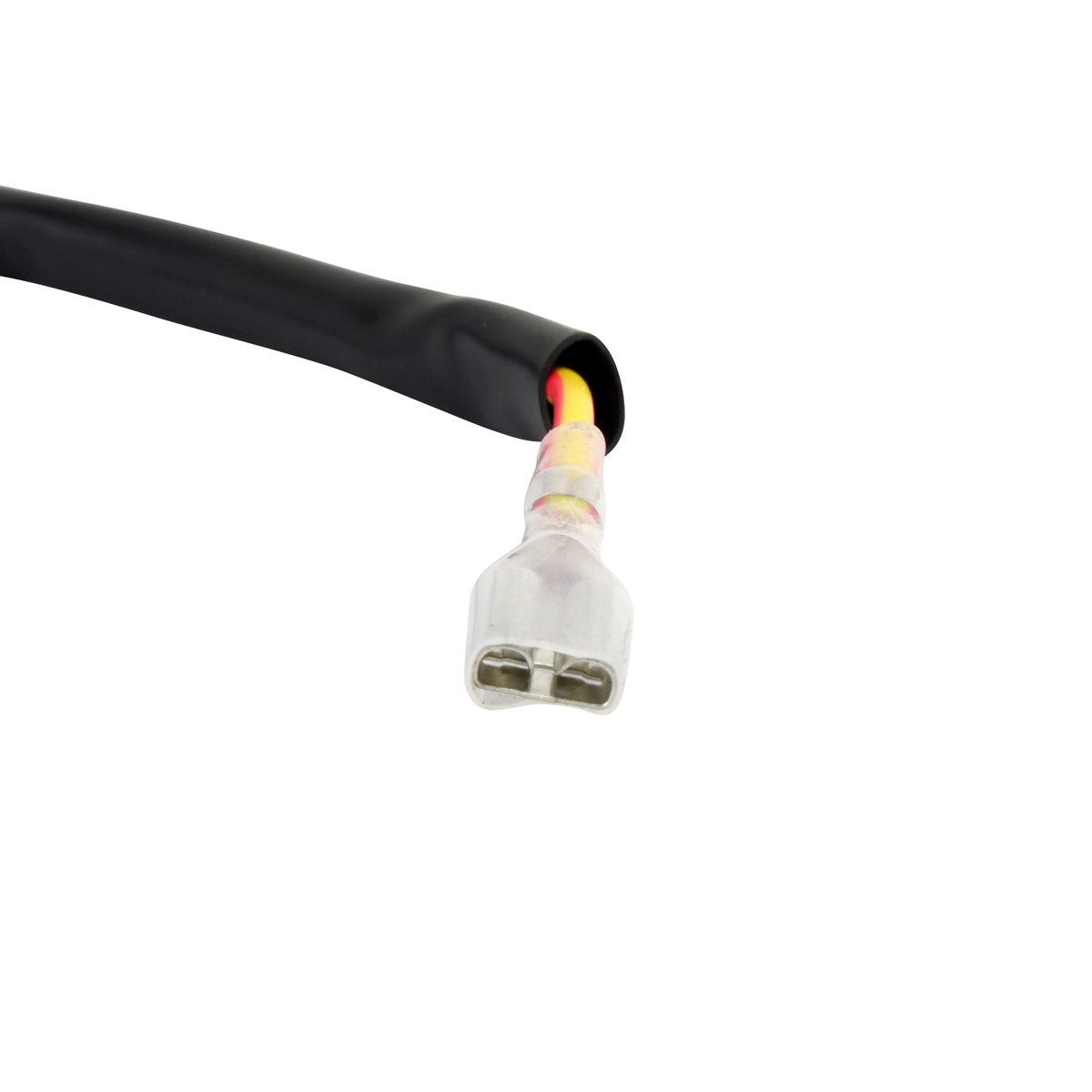

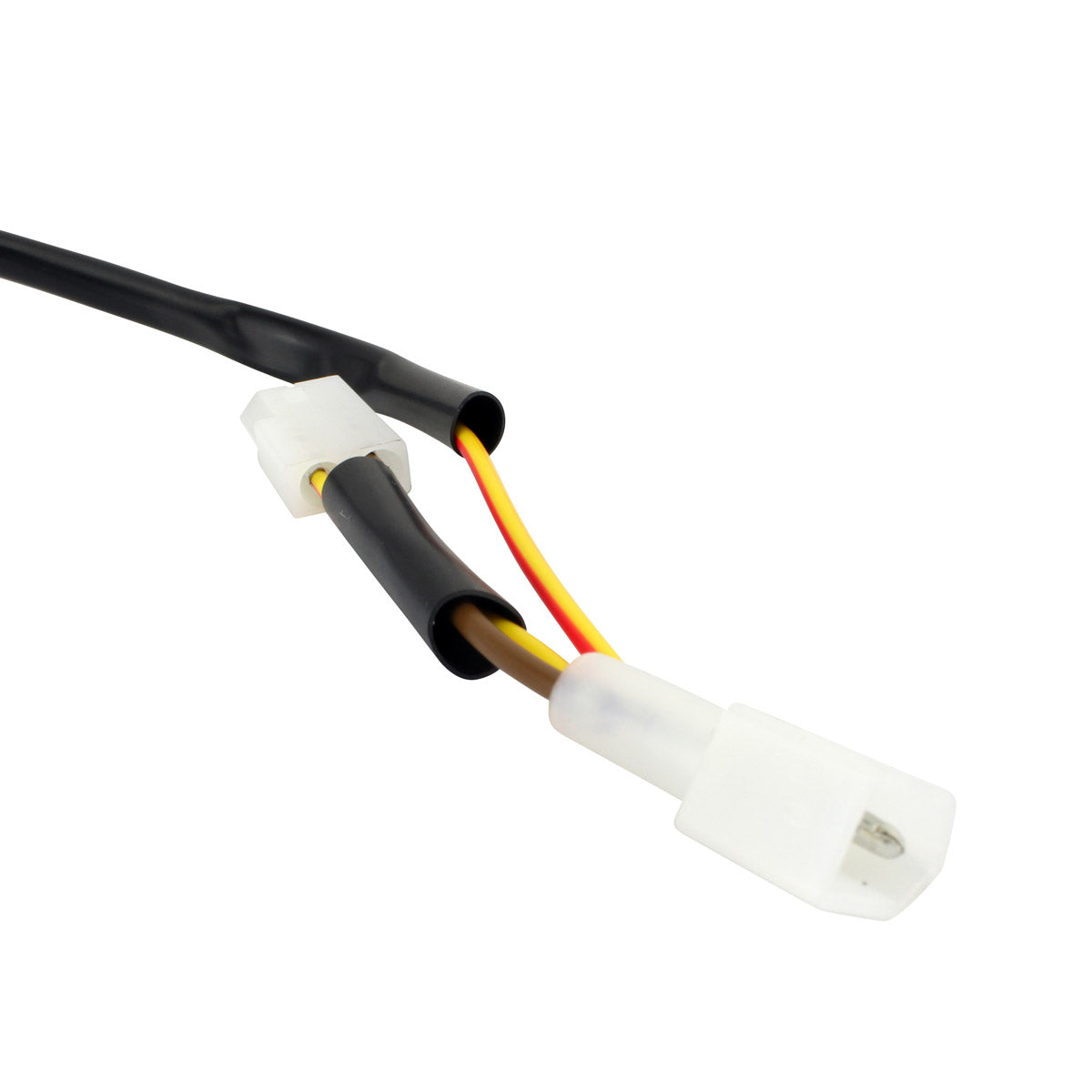

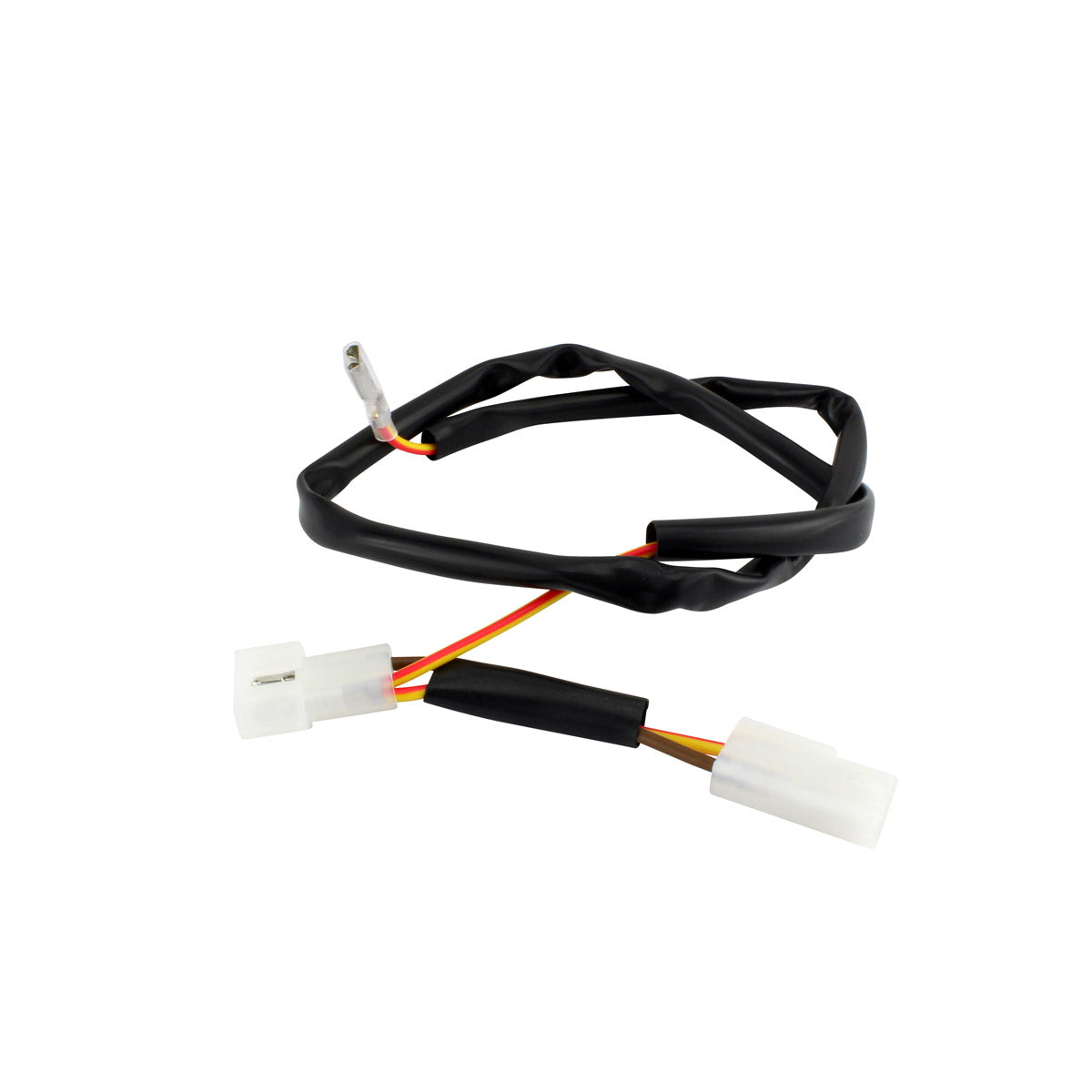

Harness Specifications:
Dimensions:
Wires length: 530 mm and 60 mm
Number of wires: 3
Number of plugs: 3
Number of pins: 5
Interchange Part Nº
Interchange Part Nº
-
Stator :
80039004000 - 59039104200
- 59039104000
Installation
Installation
Before installing your new Stator:
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010"".
Before installing your new Voltage Regulator Rectifier:
- When installing on a system with a lithium-ion battery, be sure to adjust the voltage regulation point on the regulator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
