100W AC to DC Lithium Compatible Stator + Regulator for KTM 200 250 300 XC / XC-W | Husqvarna / Husaberg TE 250 310 2008-2016
RMSTATOR
SKU: RMS900-107504
Out of stock
RMSTATOR
100W AC to DC Lithium Compatible Stator + Regulator for KTM 200 250 300 XC / XC-W | Husqvarna / Husaberg TE 250 310 2008-2016
Sold out
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
$129.89
Battery condition is extremely important. No stator, nor regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
100W AC to DC Lithium Compatible Stator + Regulator for KTM 200 250 300 XC / XC-W | Husqvarna / Husaberg TE 250 310 2008-2016
Sold out
Details
Details

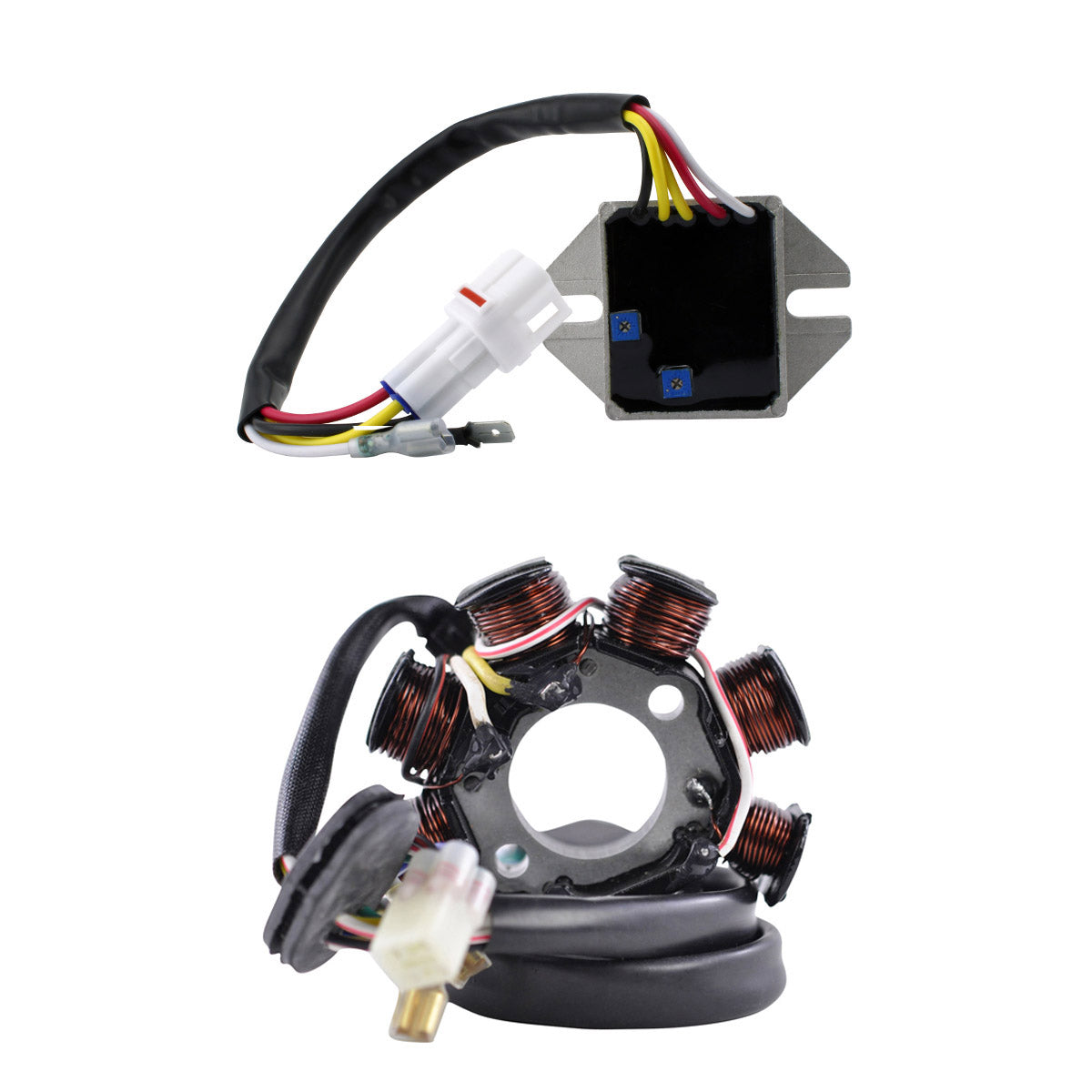

100W Lithium-Ion Compatible Converted AC to DC Kit Stator + Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

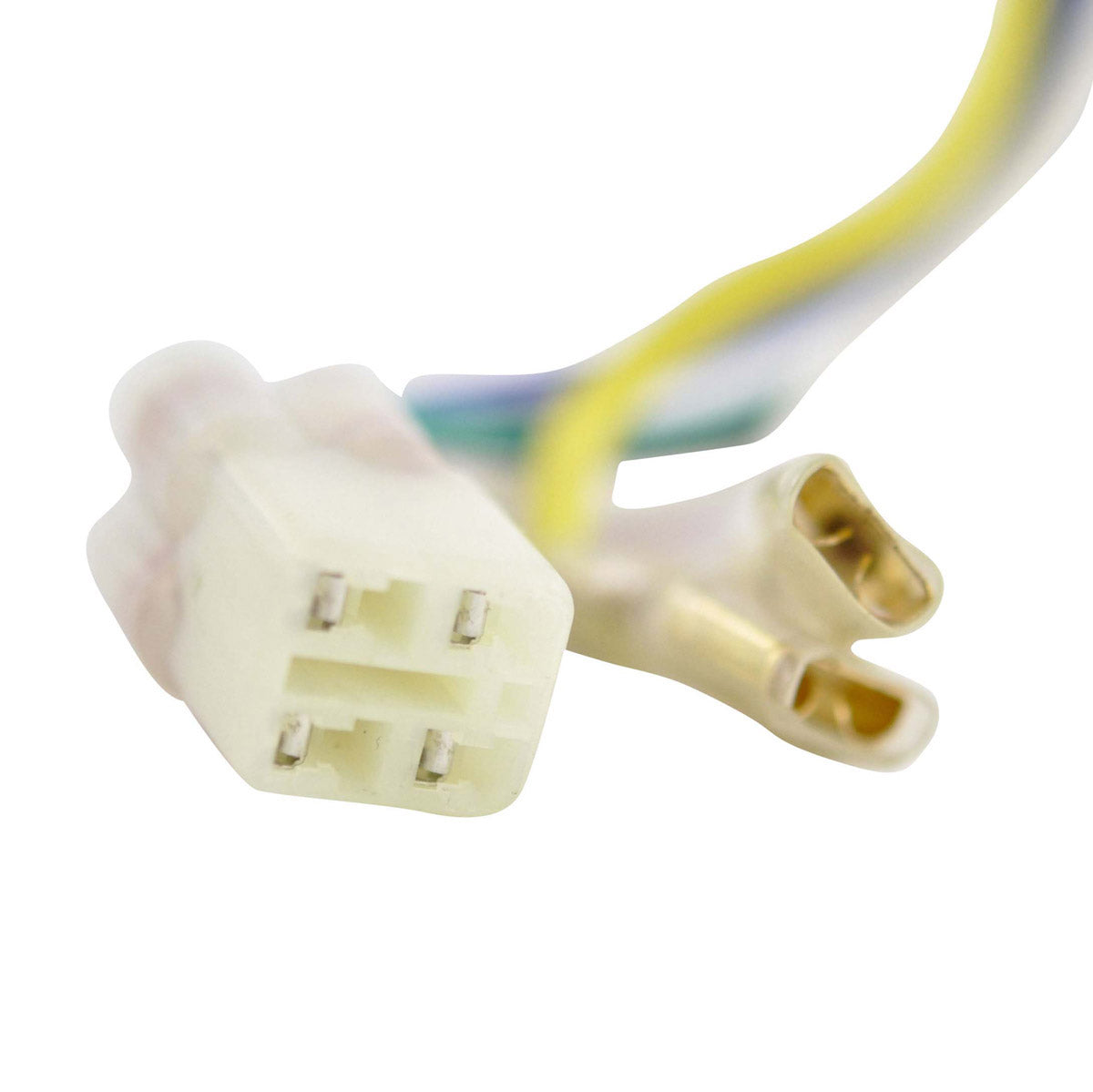

- Connectors included
- All products shipped are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

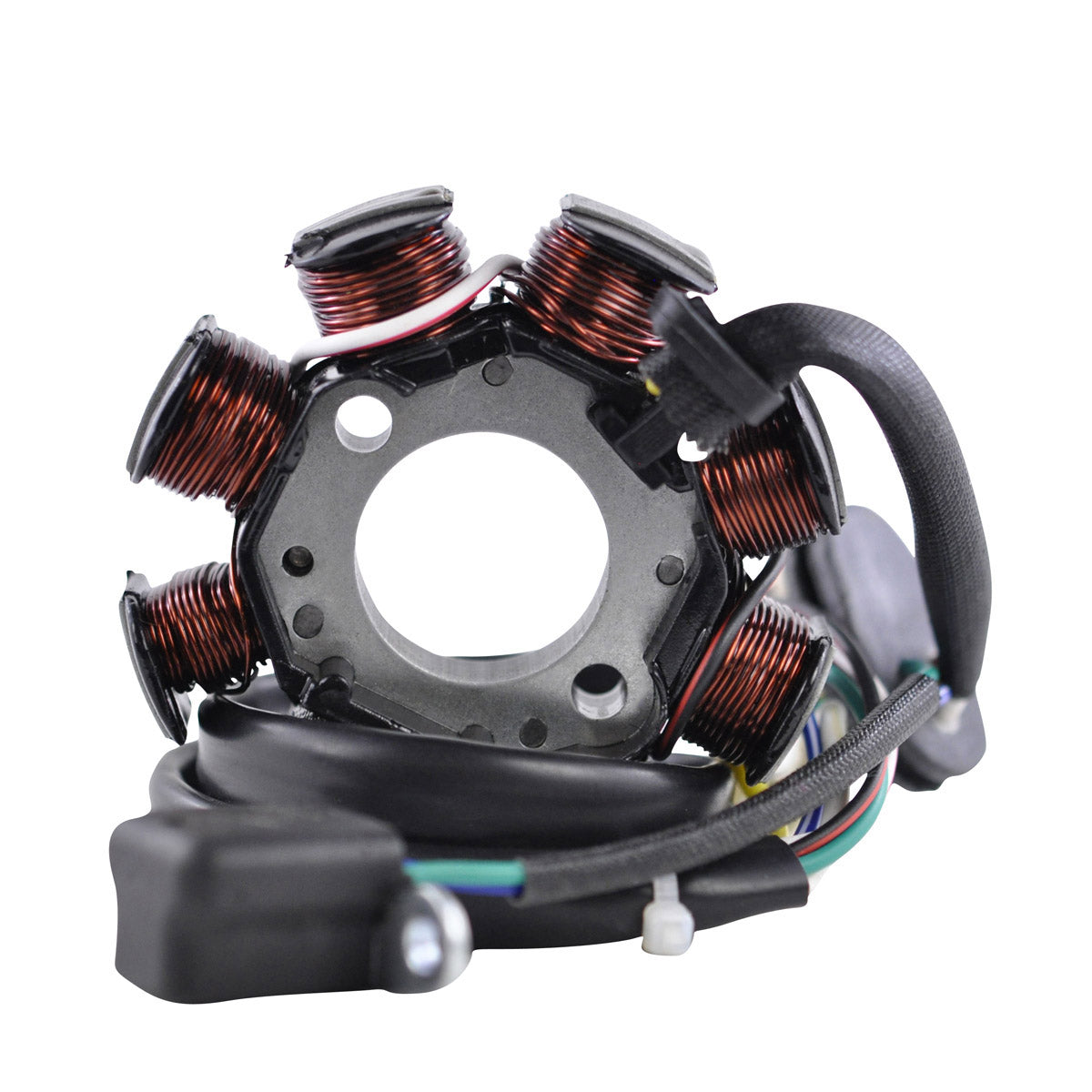

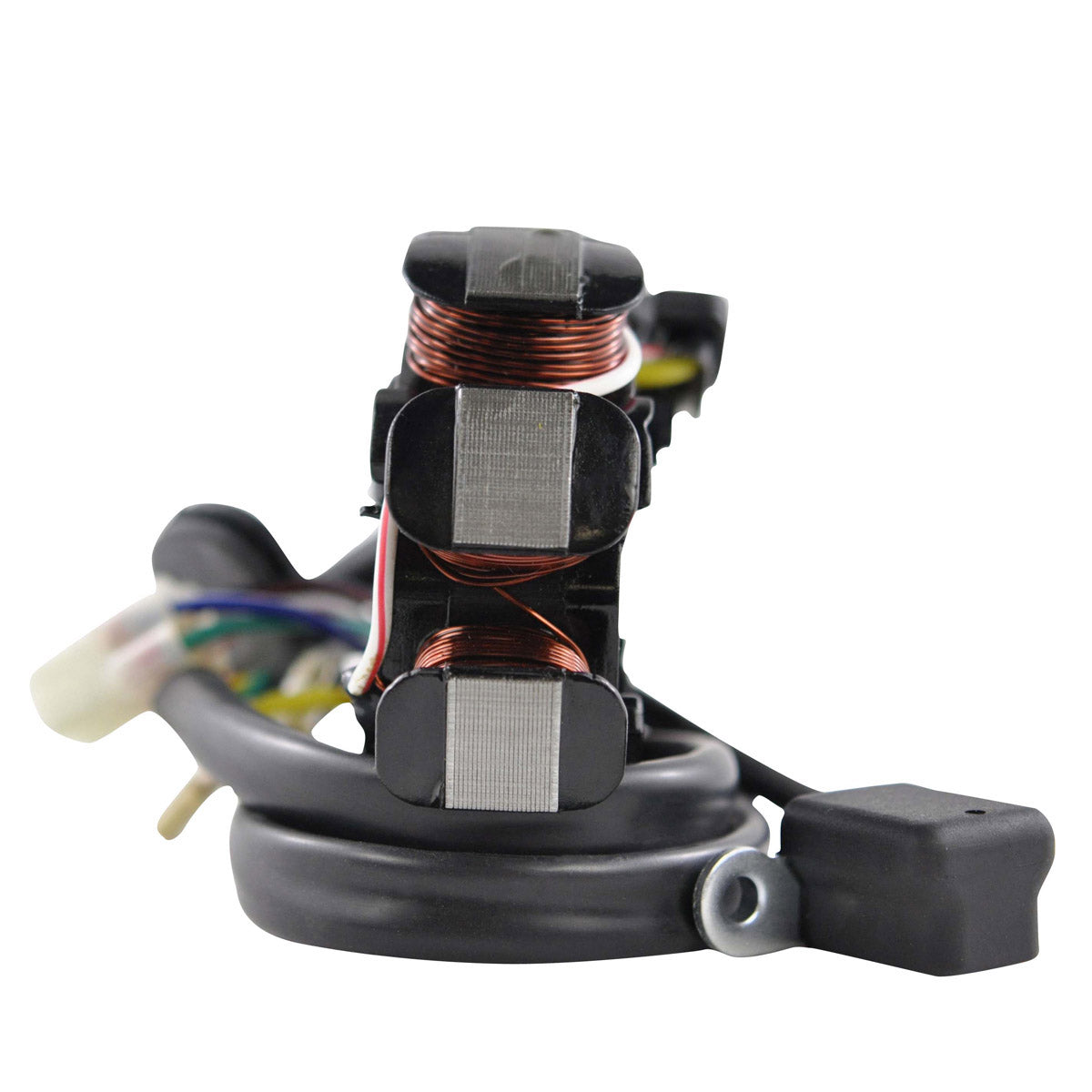

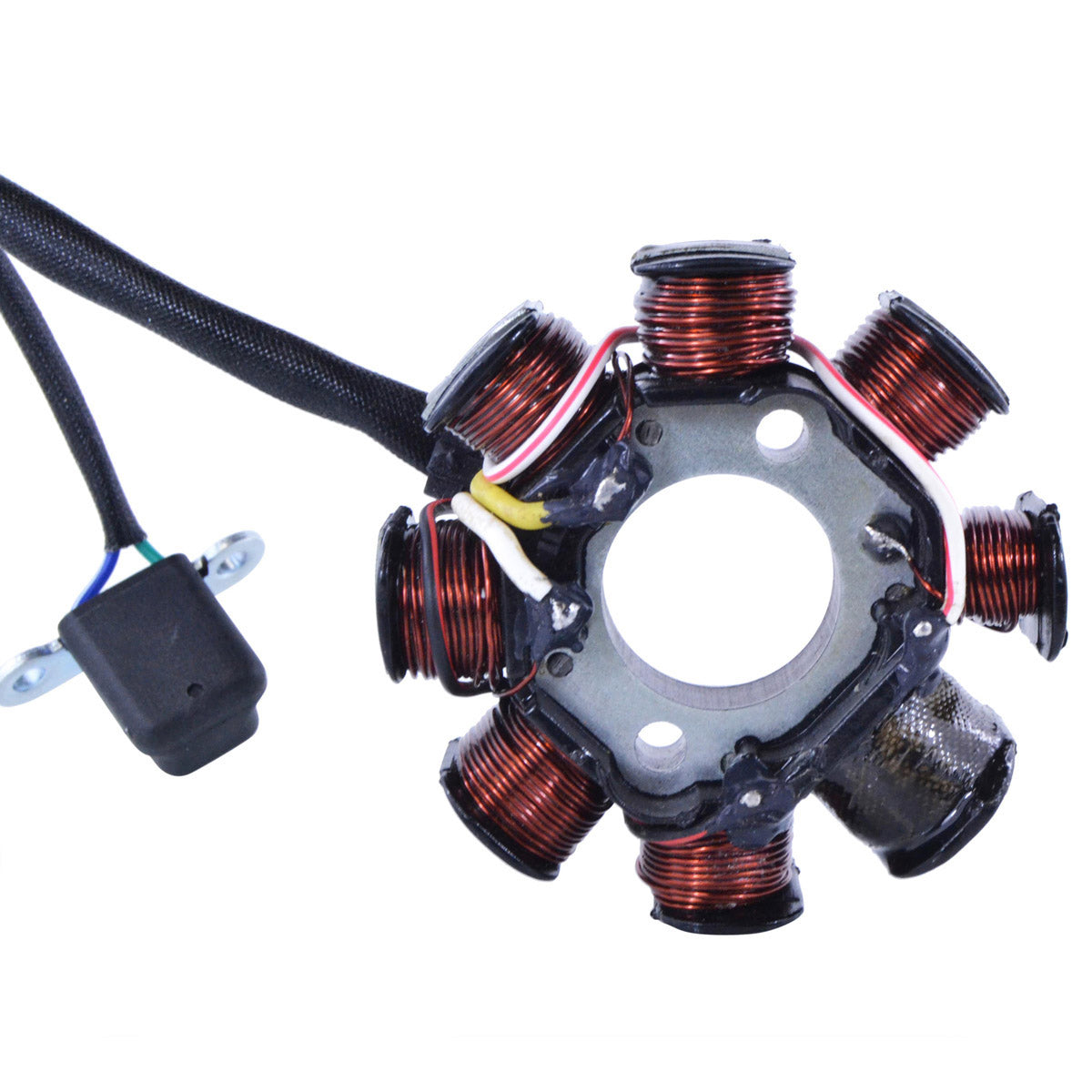

Brand new aftermarket stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

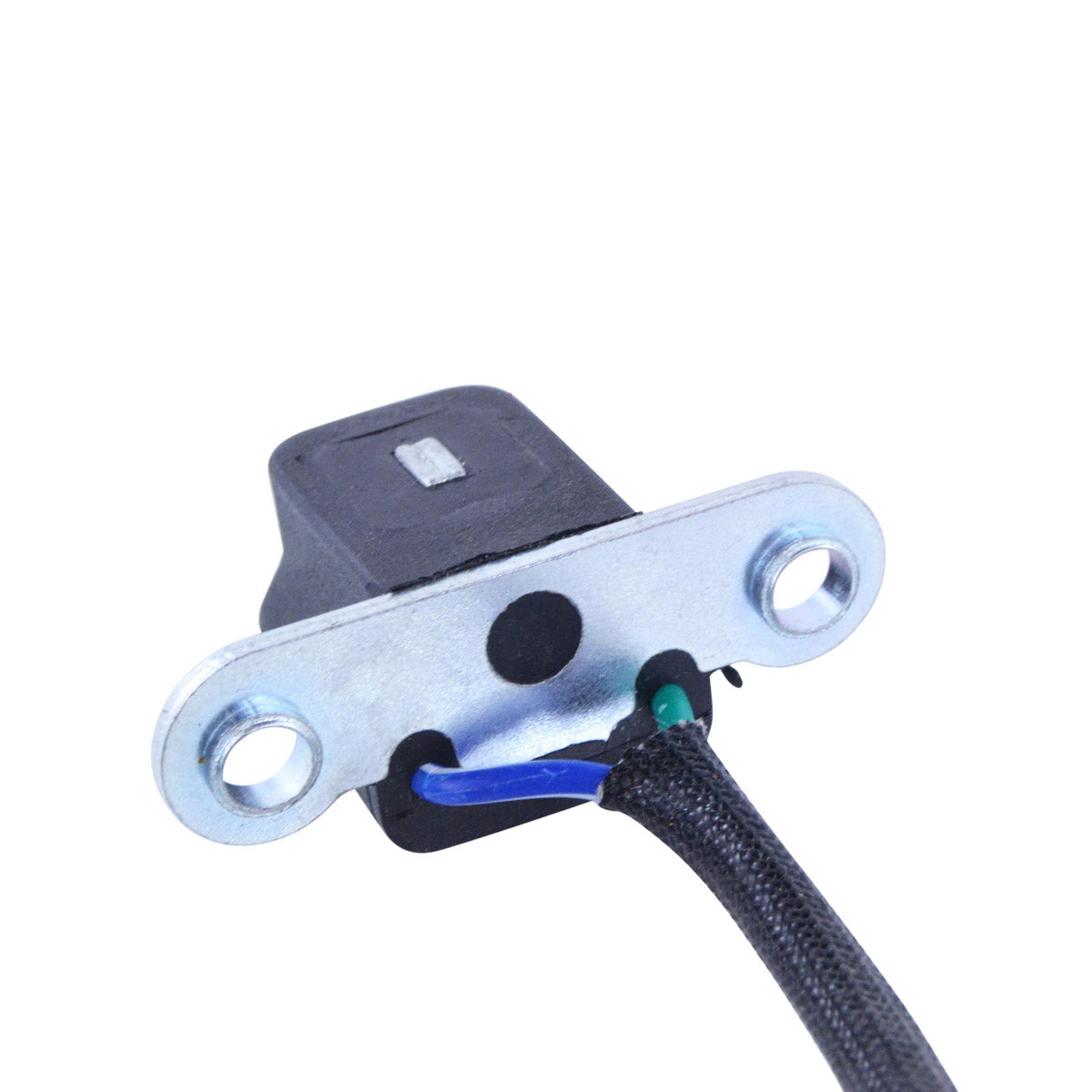

- Pick up pulsar coil included

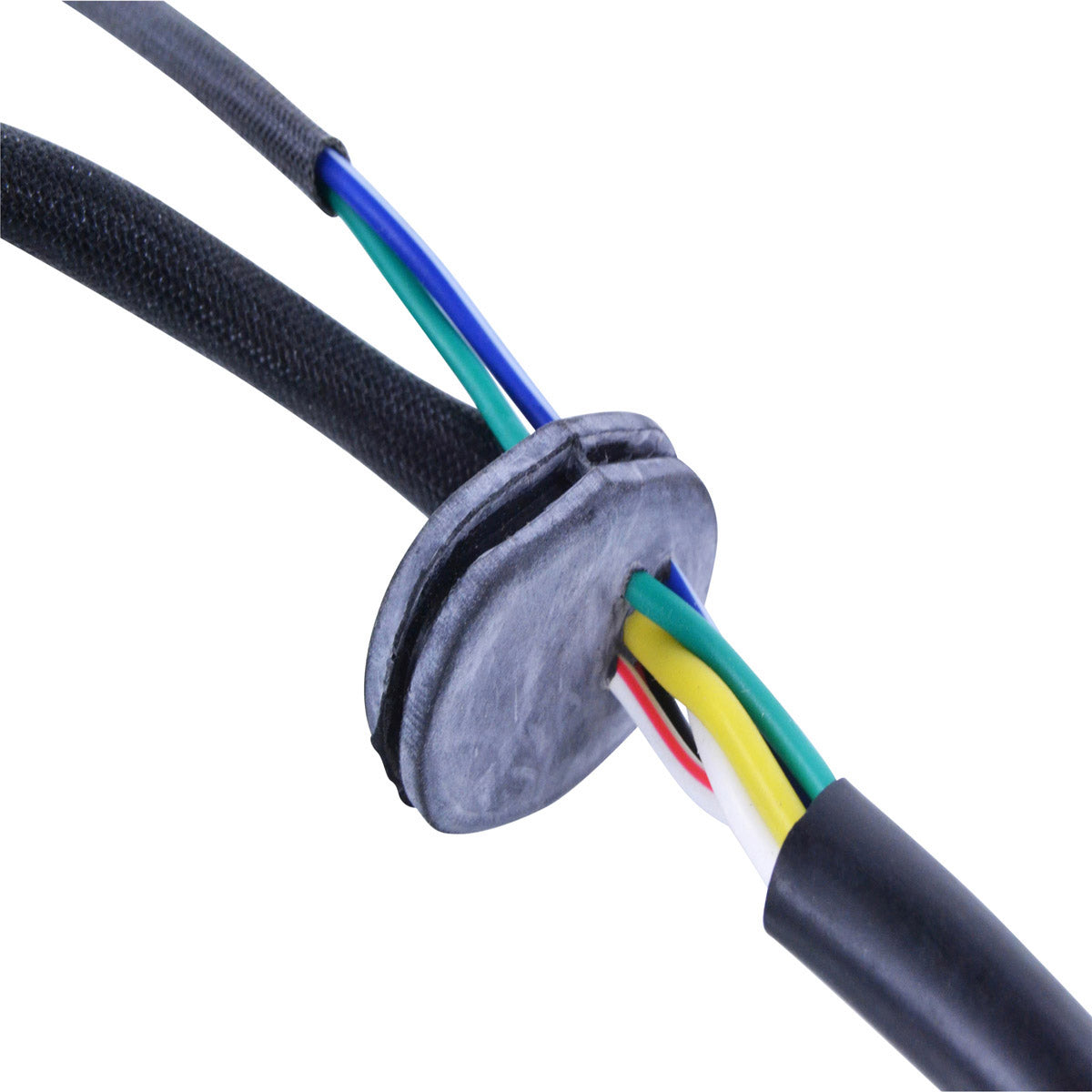

- Rubber grommet included

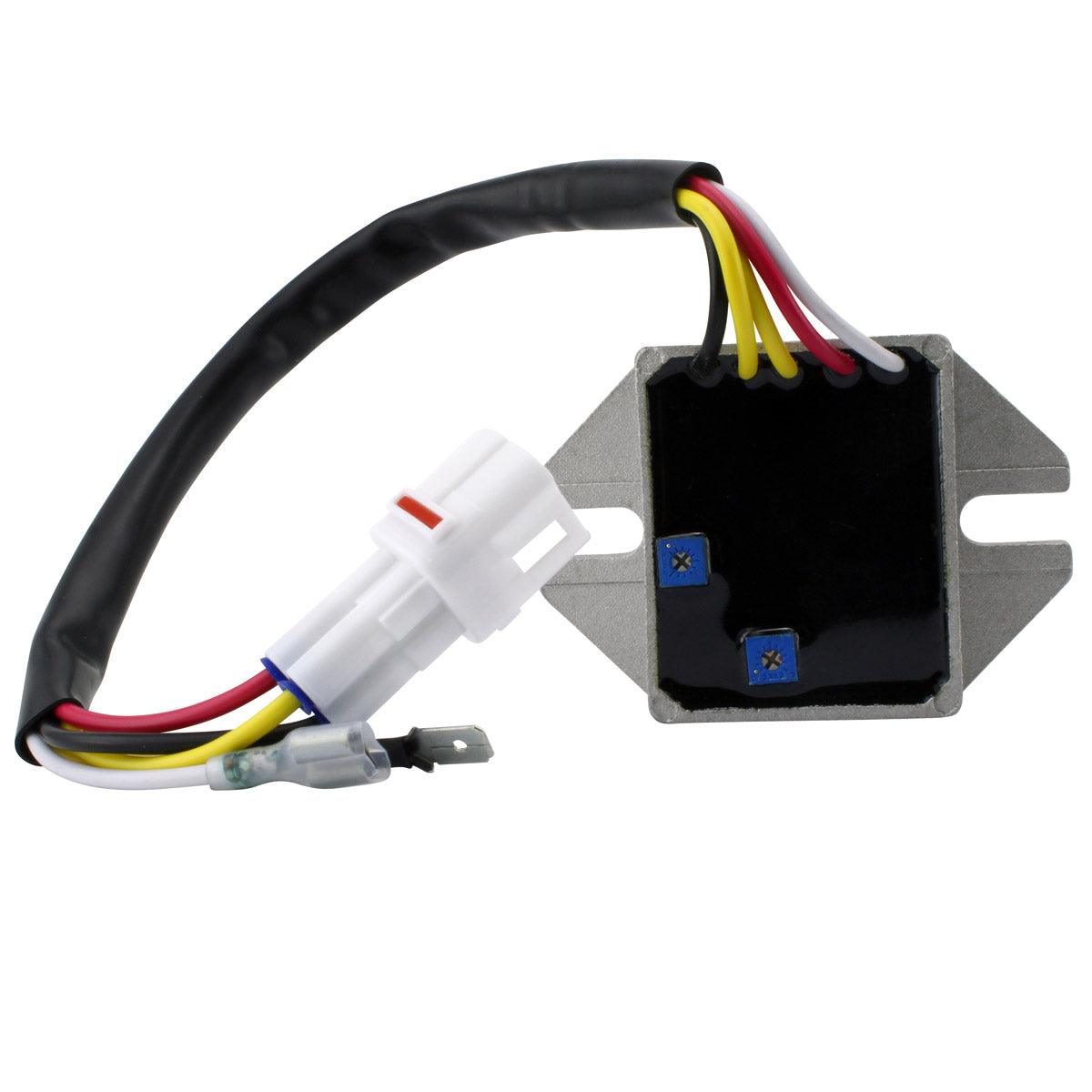

Brand new aftermarket adjustable voltage regulator rectifier
- No assembly required
- Adjustable voltage regulation point from 14-15V
- Higher grade of electric components
- The quality exceeds the OEM equipment
Specifications
Specifications

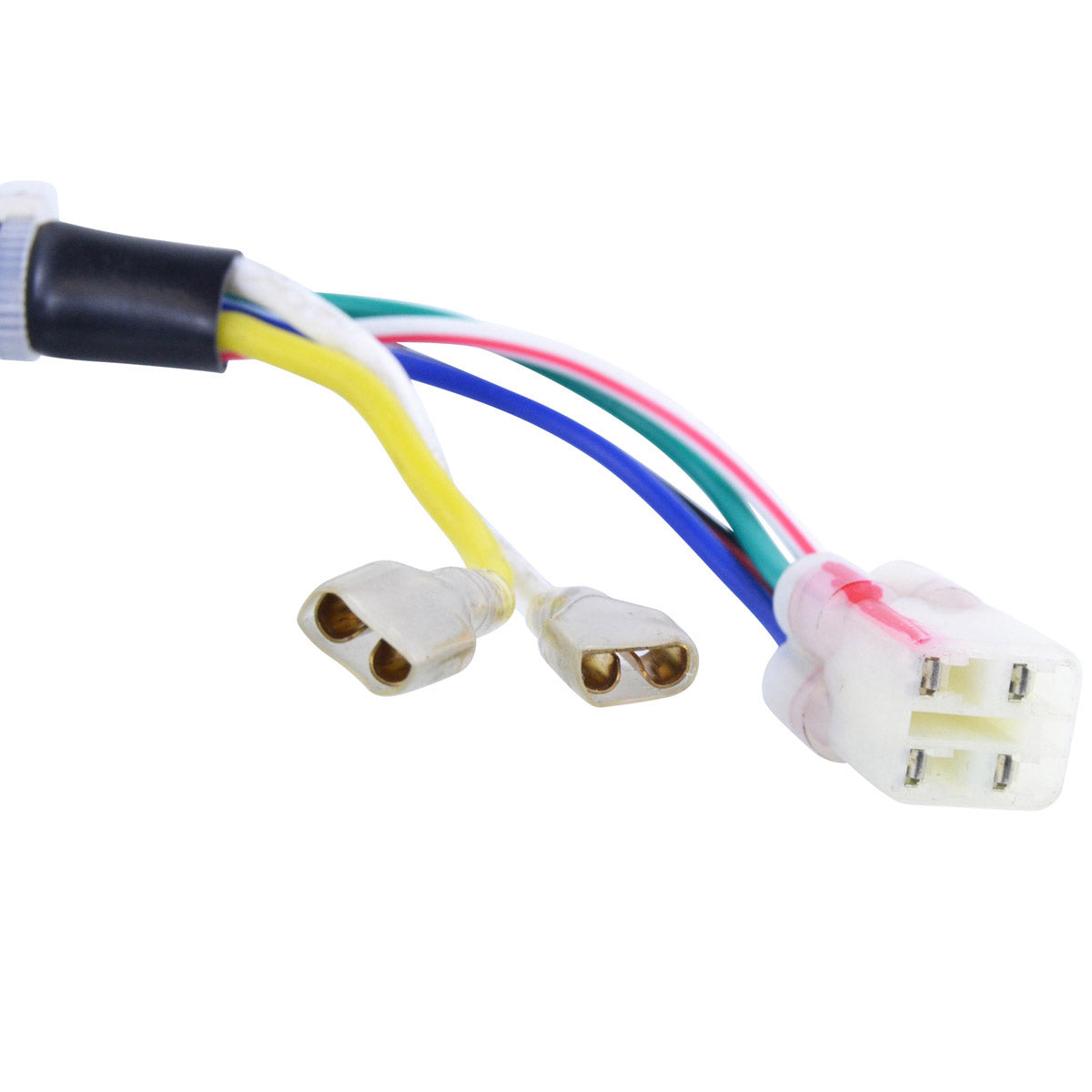

Stator Specifications:
Dimensions:
Interior diameter: 29 mm
Exterior diameter: 84 mm
Thickness: 12 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 450 mm

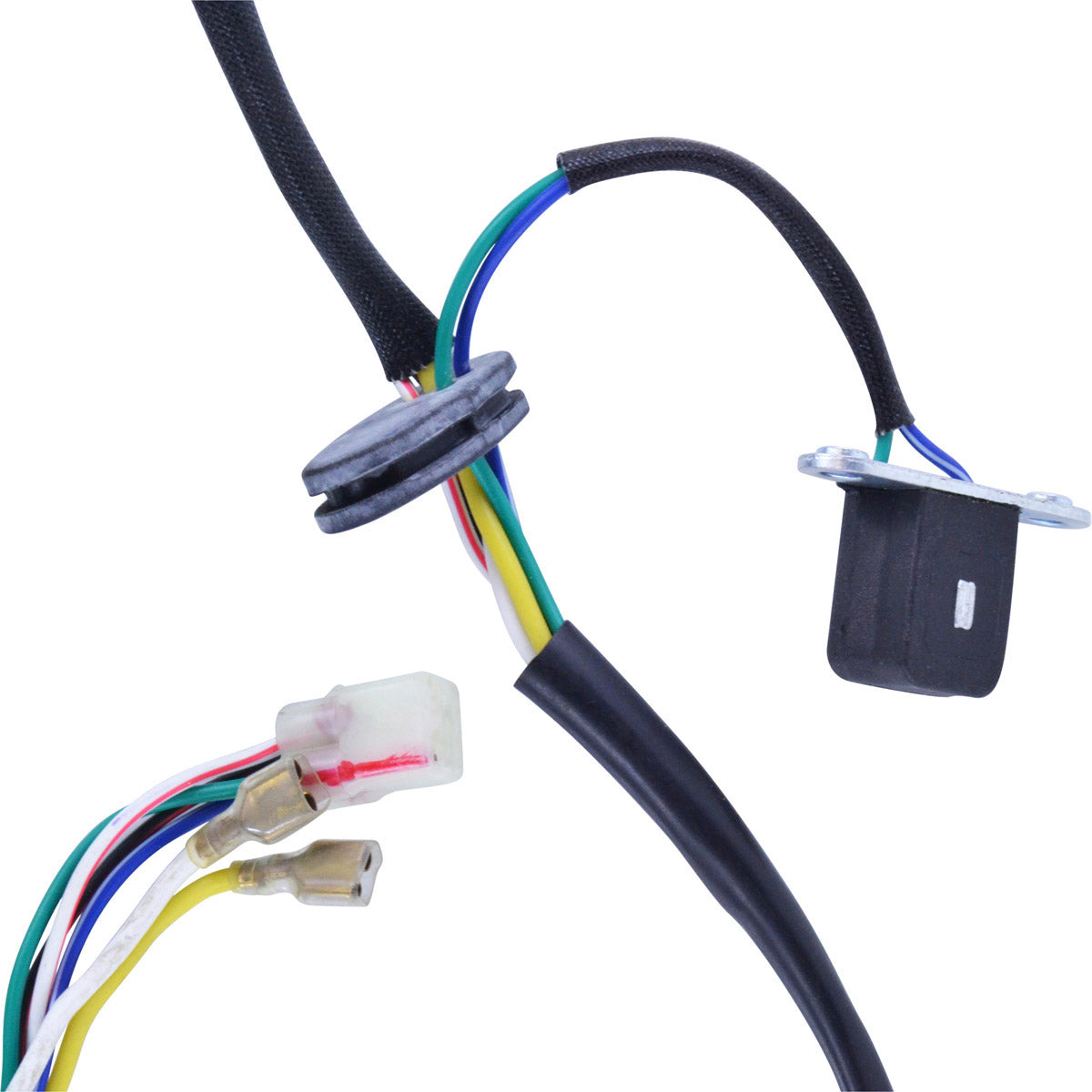

Length of pickup coil's wire to grommet: 100 mm
Other specifications:
Number of wires: 6
Number of plugs: 3
Number of pins: 6
Number of poles: 8
Wire to wire resistance:
Alternator : Yellow to Yellow = 0.8 ohms +/-20%
Pickup: Green to Red = 130 ohms +/-20%
Source: White to White = 20 ohms +/-20%

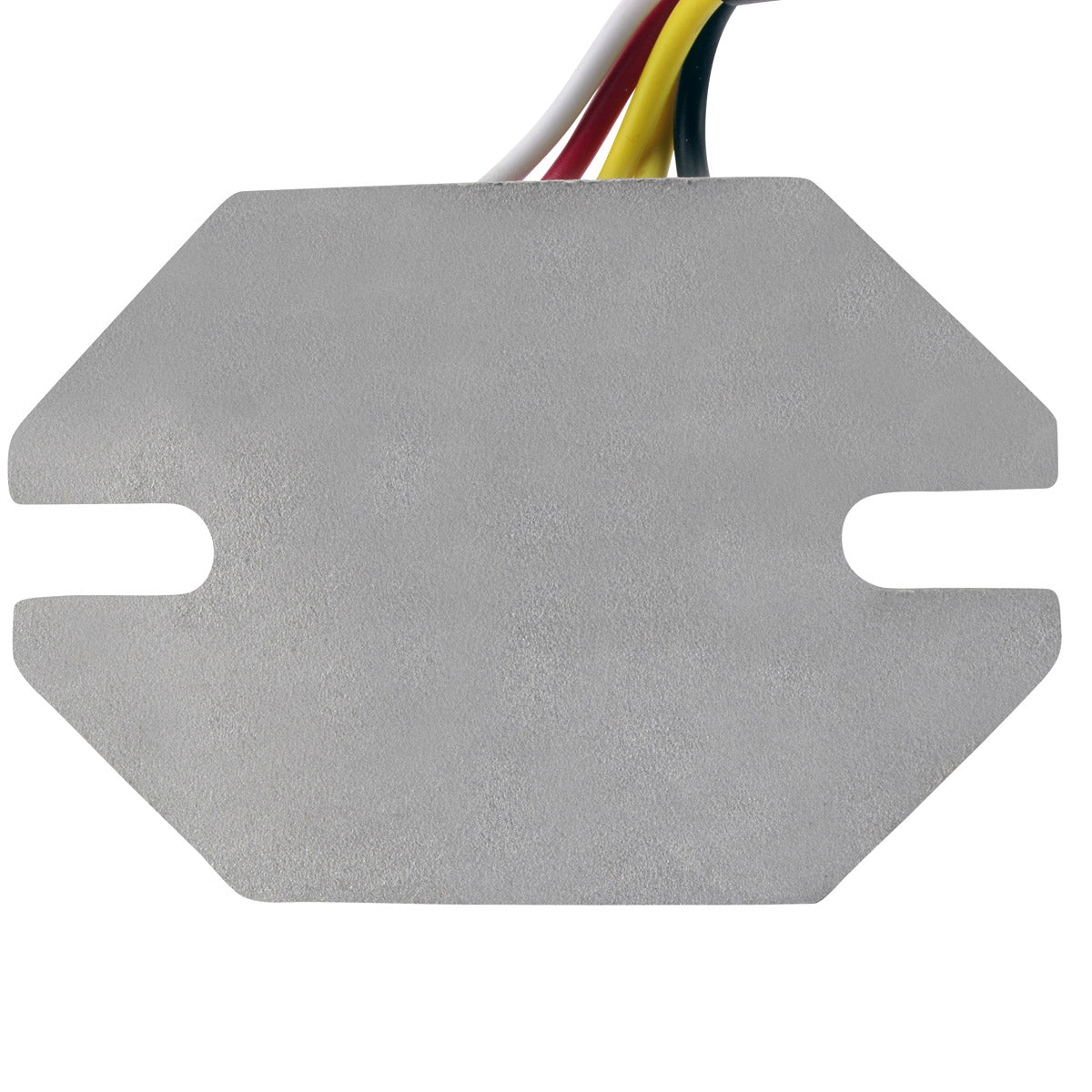

Regulator Rectifier Specifications:
Dimensions:
Width: 54 mm
Length: 80 mm
Height: 22 mm
Wires length: 235 mm
Distance between fixation holes center to center: 65 mm
Other specifications:

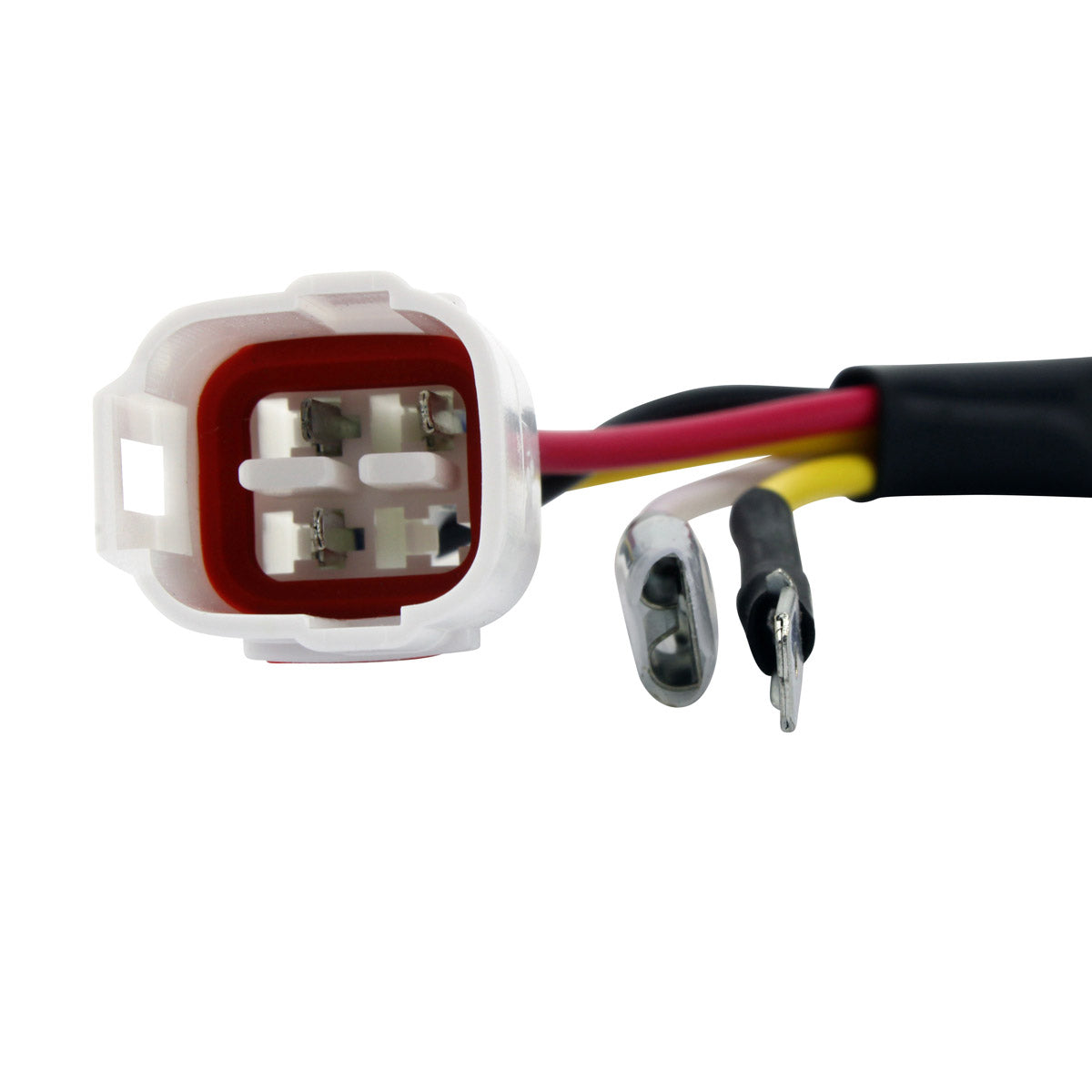

Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: Adjustable 14-15 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
Interchange Part Nº
Interchange Part Nº
- 107504-R00
Installation
Installation
Before installing your new Stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010"".
Before installing your new Voltage Regulator Rectifier:
- When installing on a system with a lithium-ion battery, be sure to adjust the voltage regulation point on the regulator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
