Kit Stator + Mitsubishi Flywheel for Aprilia RSV4 1000 R Factory 2009-12 (up to 3413)| Tuono V4 2011 2012 | OEM # 857201

Kit Stator + Mitsubishi Flywheel for Aprilia RSV4 1000 R Factory 2009-12 (up to 3413)| Tuono V4 2011 2012 | OEM # 857201

Name: Kit Stator + Mitsubishi Flywheel for Aprilia RSV4 1000 R Factory 2009-12 (up to 3413)| Tuono V4 2011 2012 | OEM # 857201
Brand: RMSTATOR
SKU: RMS900-104929
Price: 401.78 USD
Availability: OutOfStock

RMSTATOR

SKU: RMS900-104929

Out of stock

RMSTATOR

Kit Stator + Mitsubishi Flywheel for Aprilia RSV4 1000 R Factory 2009-12 (up to 3413)| Tuono V4 2011 2012 | OEM # 857201

$401.78

Sold out

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

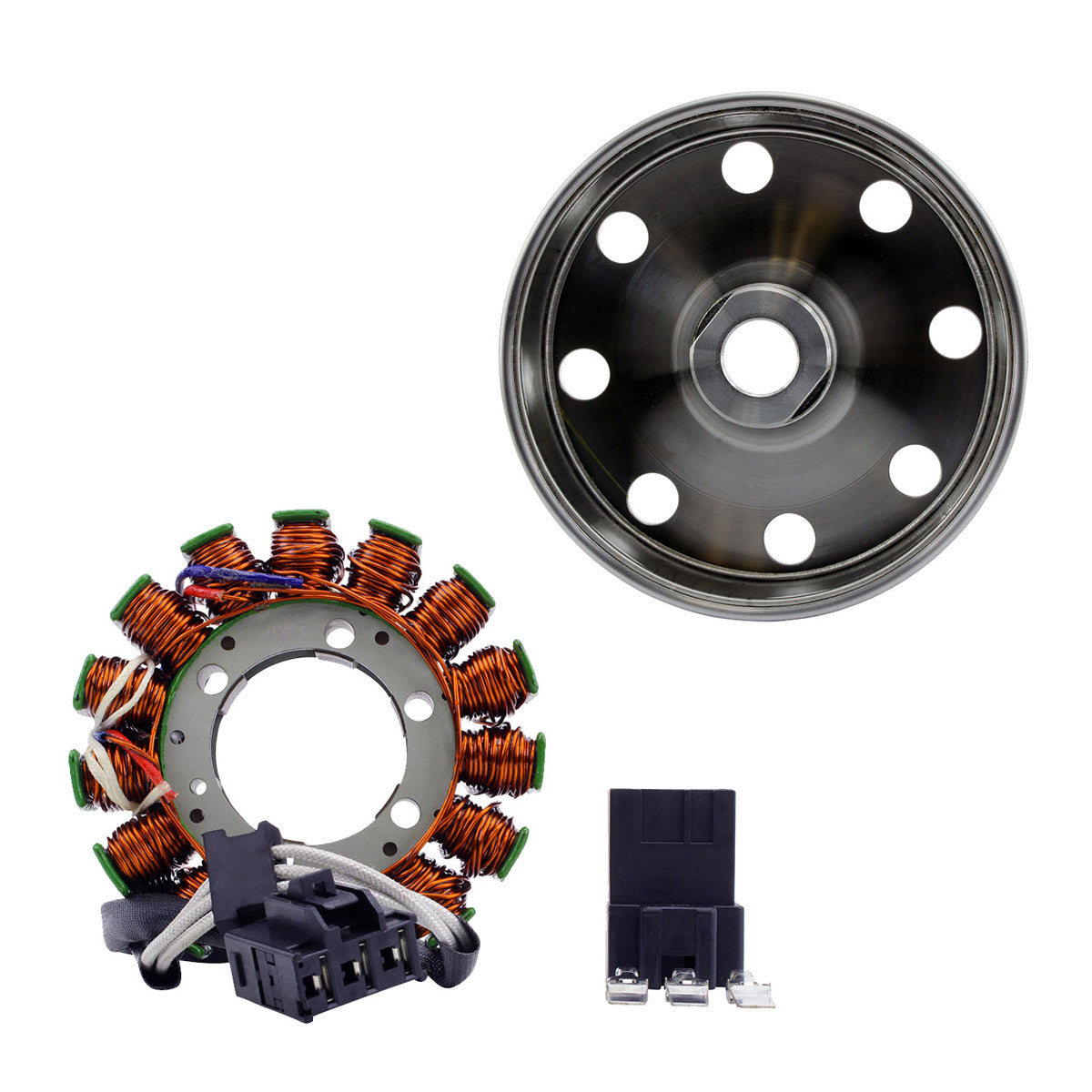

Brand New kit Flywheel + Generator Stator

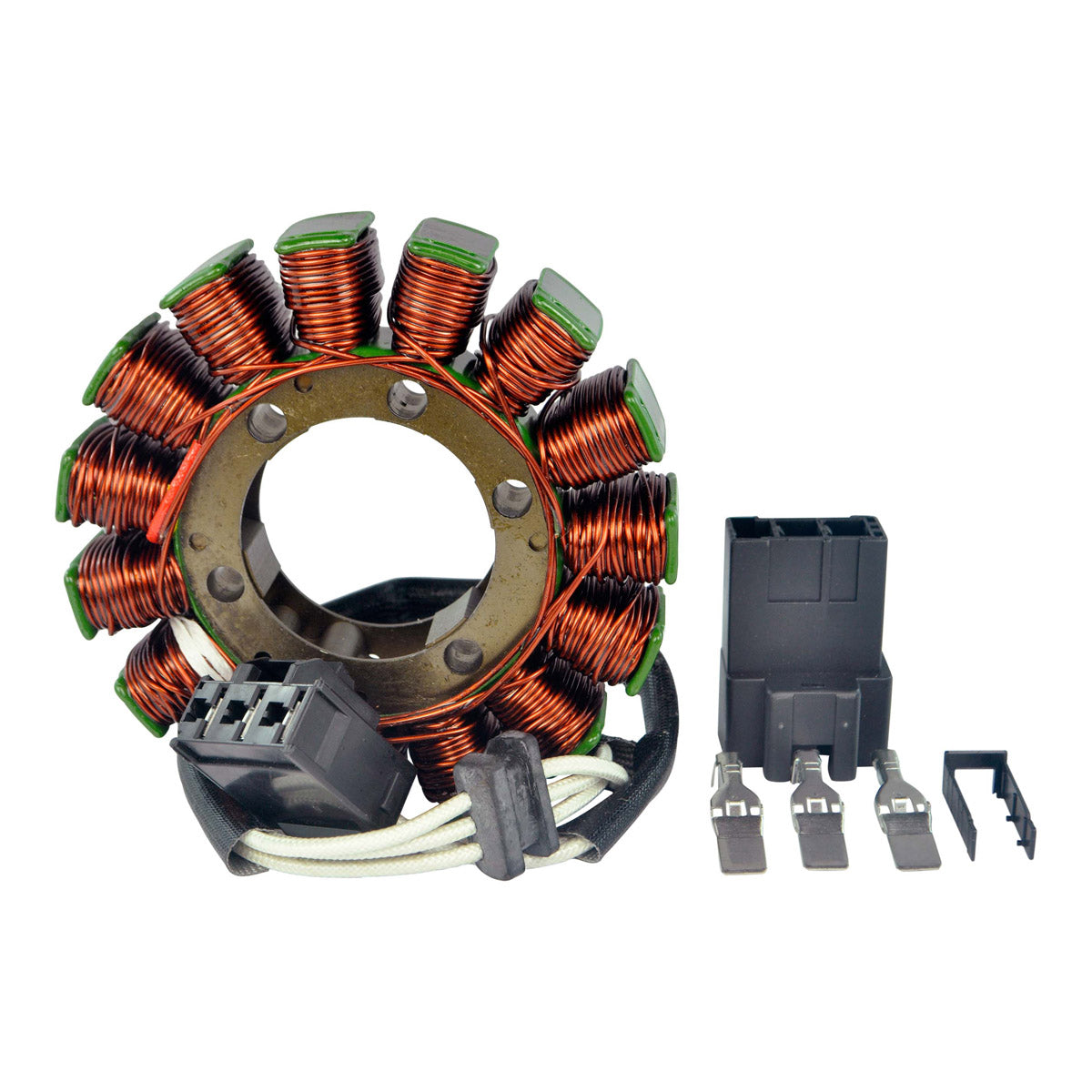

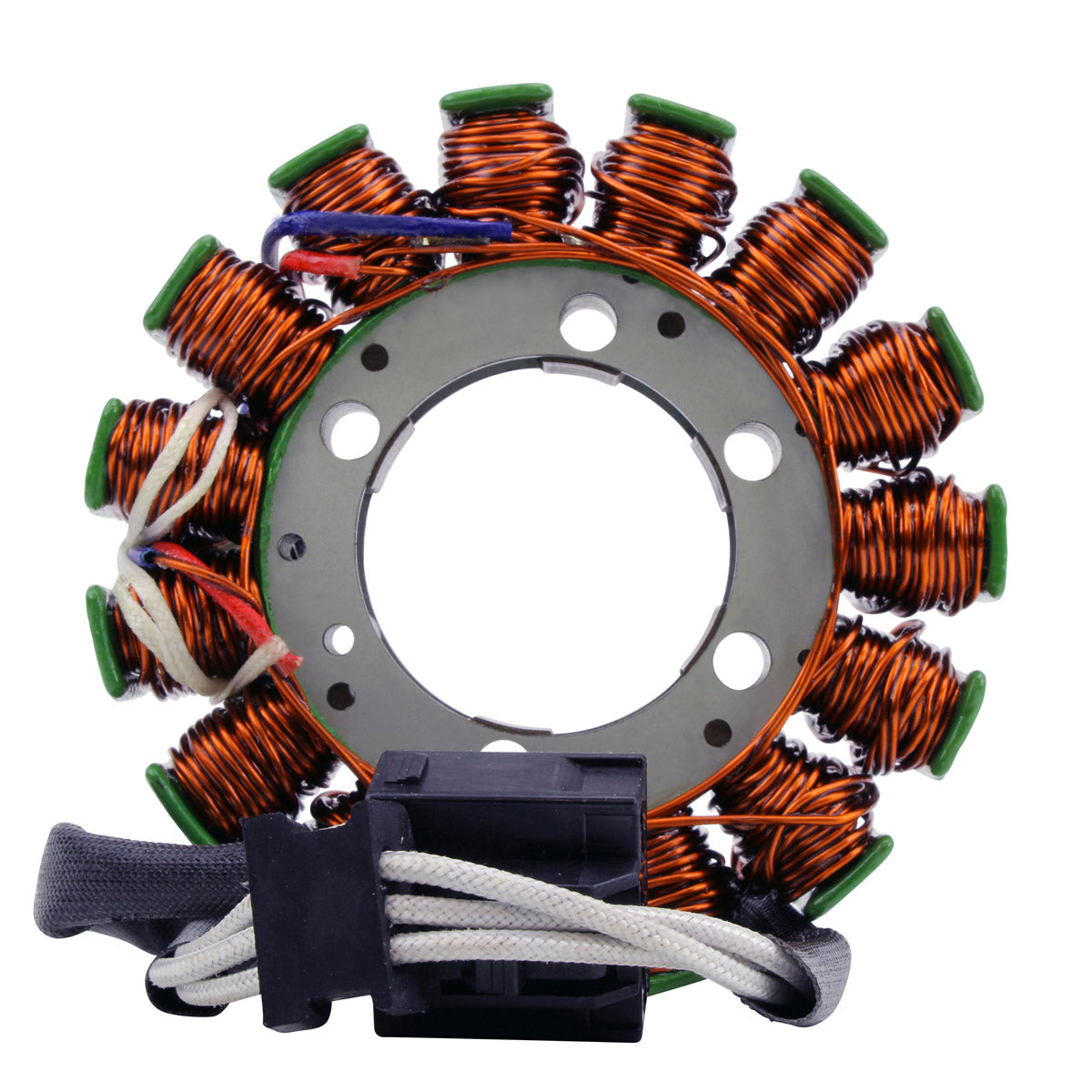

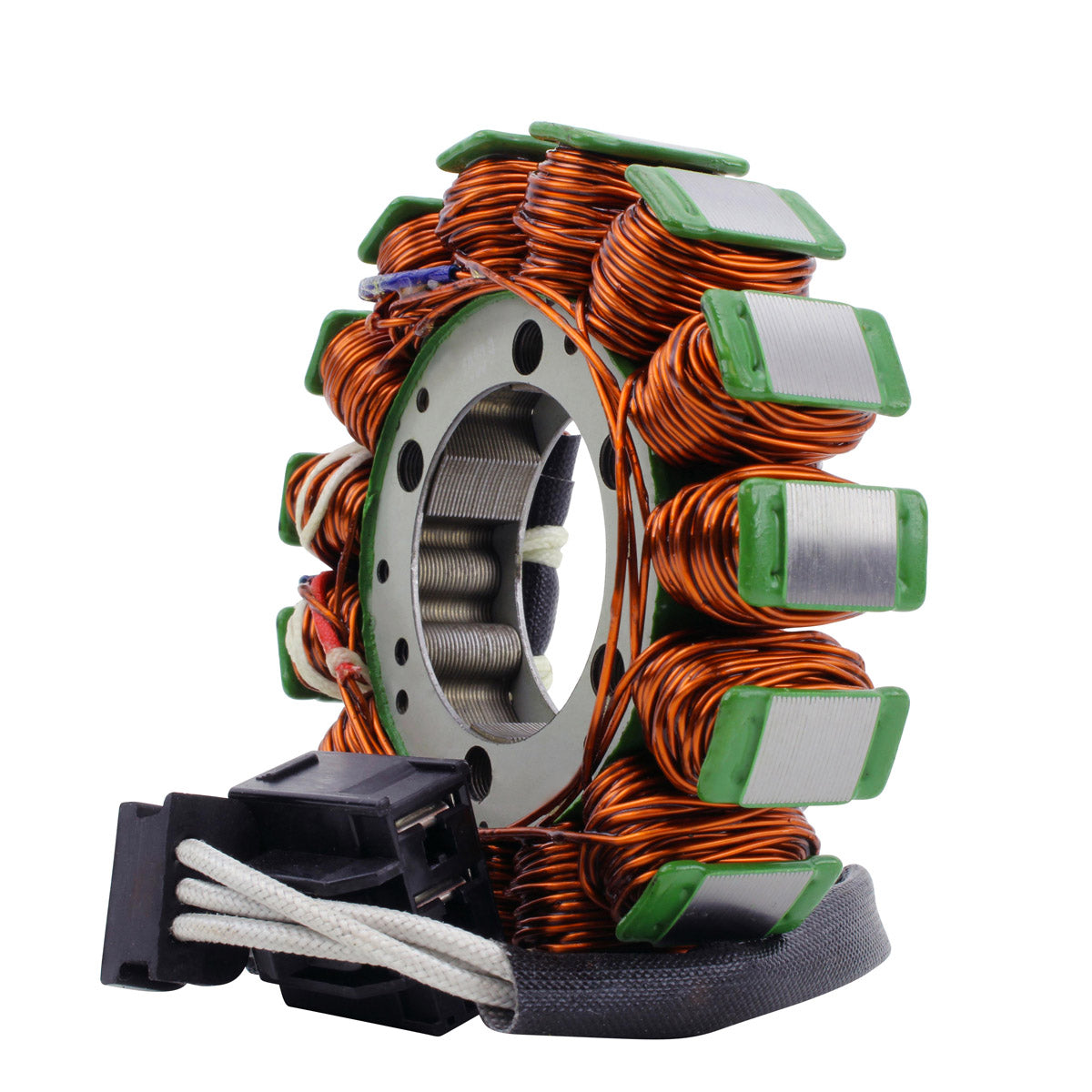

Brand new aftermarket stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

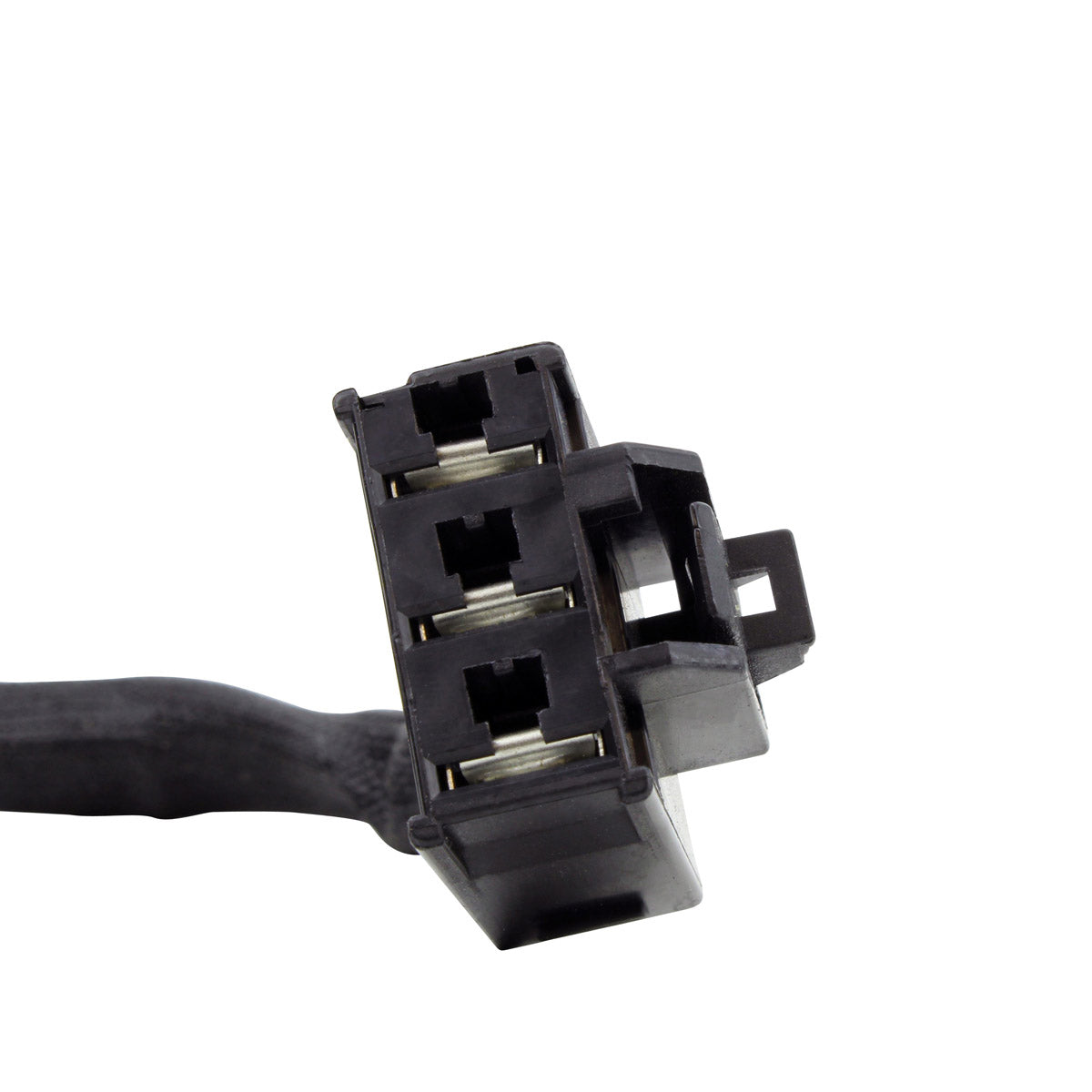

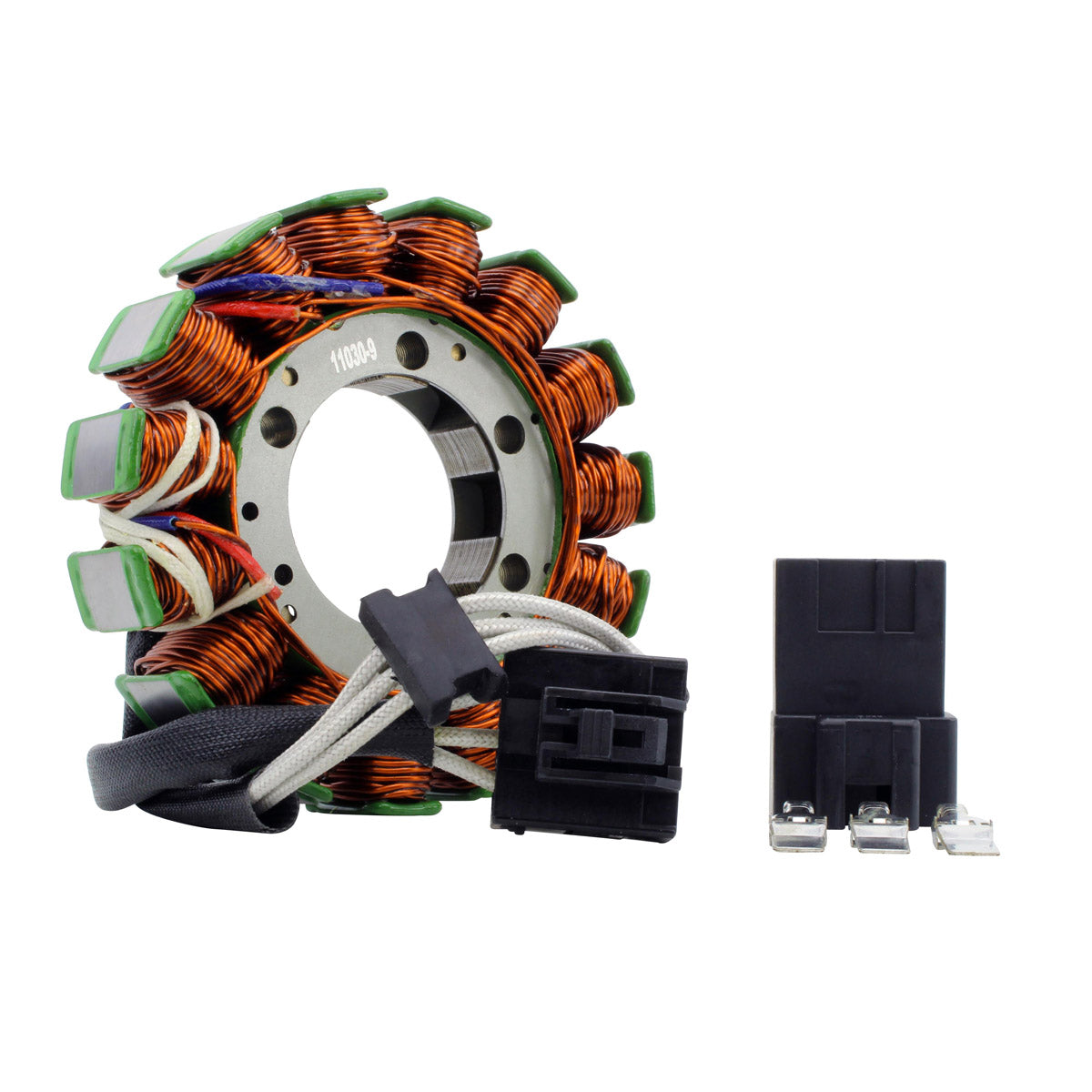

Connector included
Rubber grommet included
All shipped products are tested

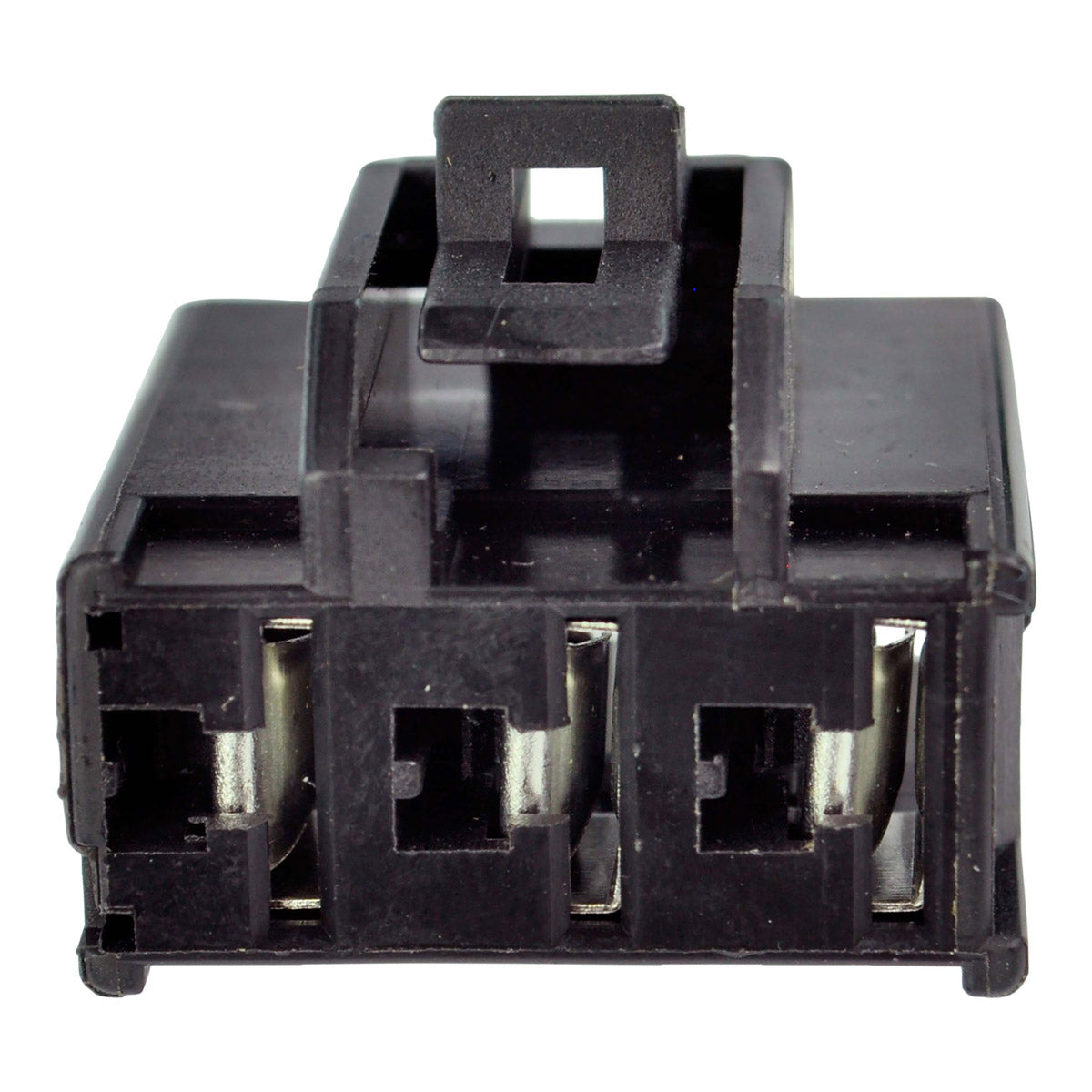

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

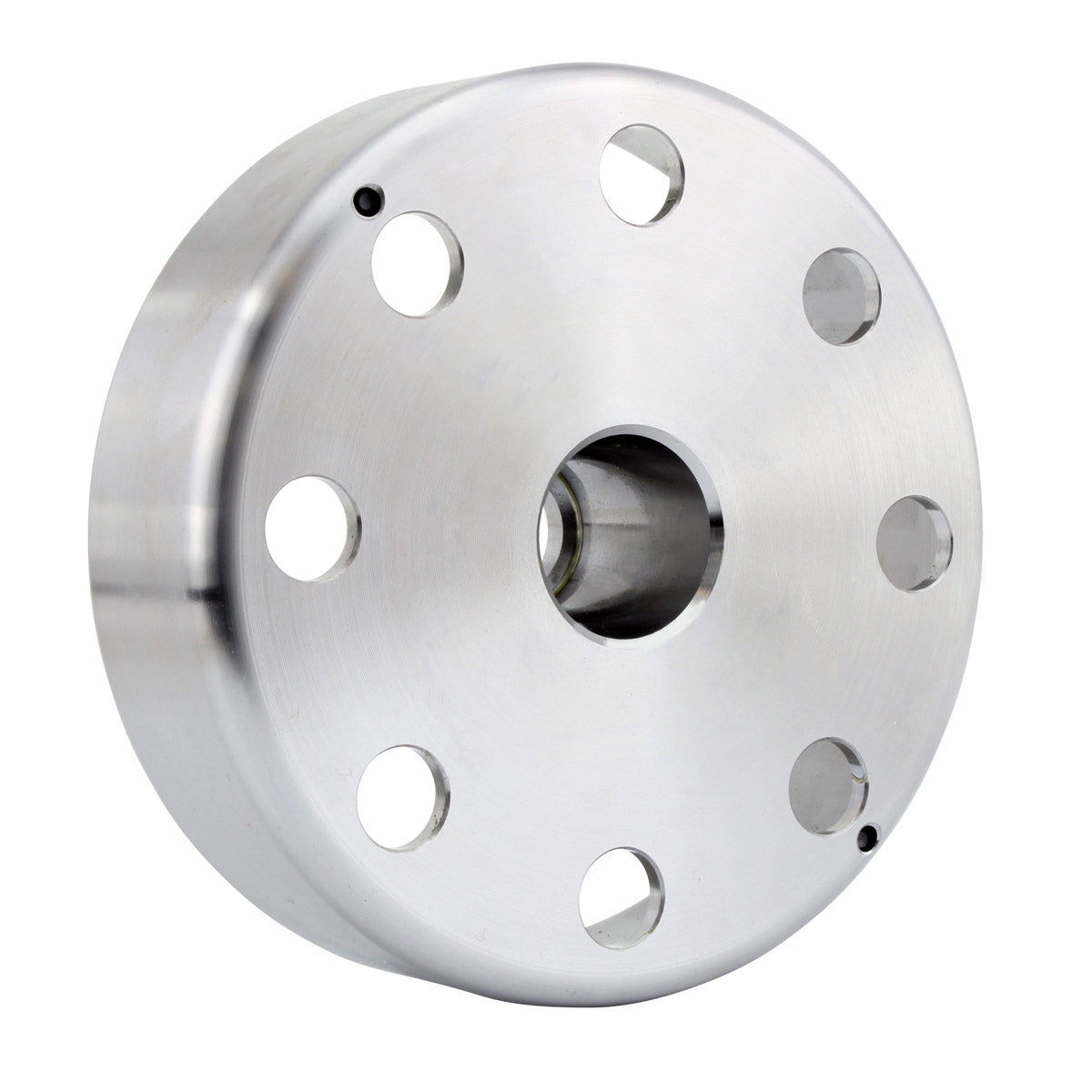

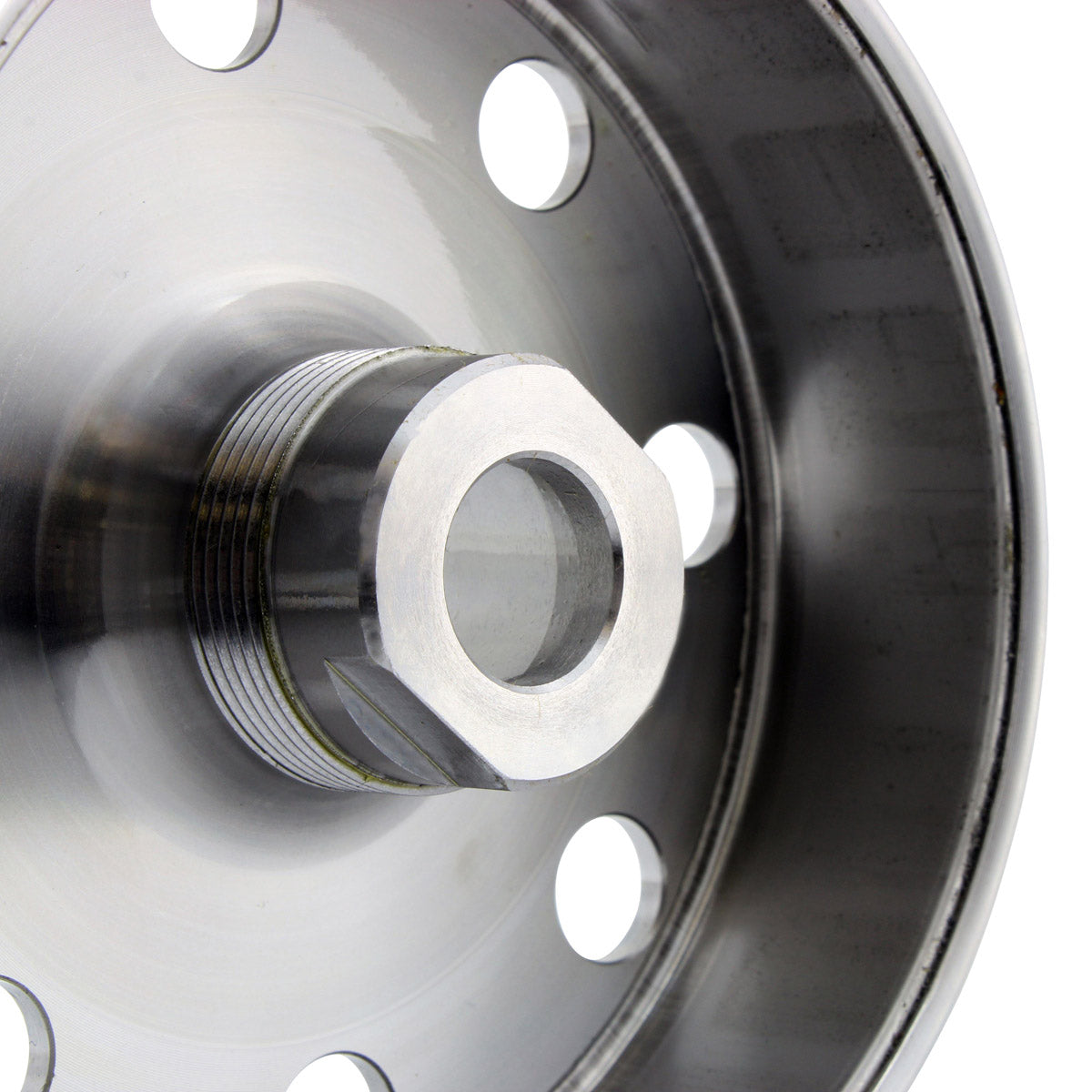

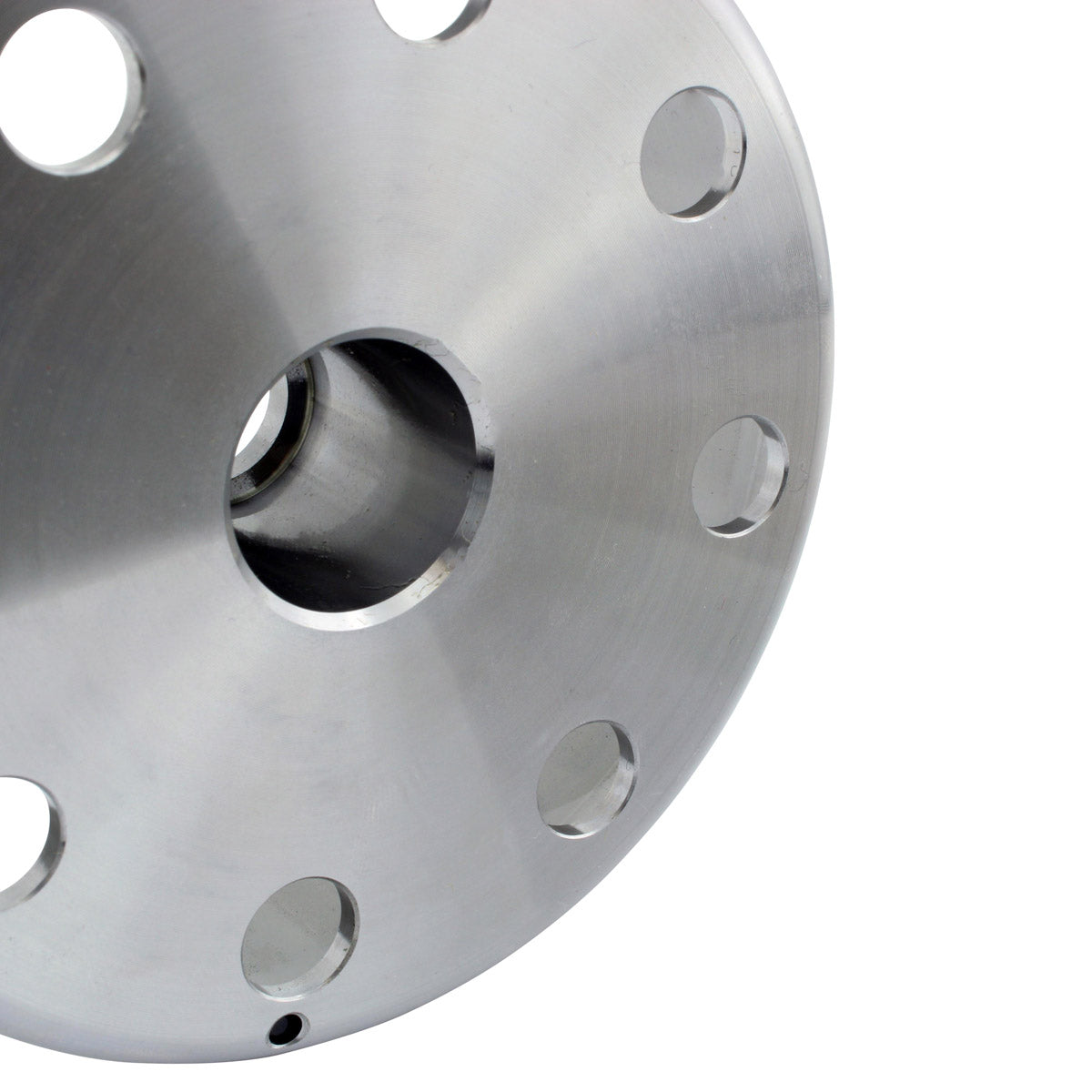

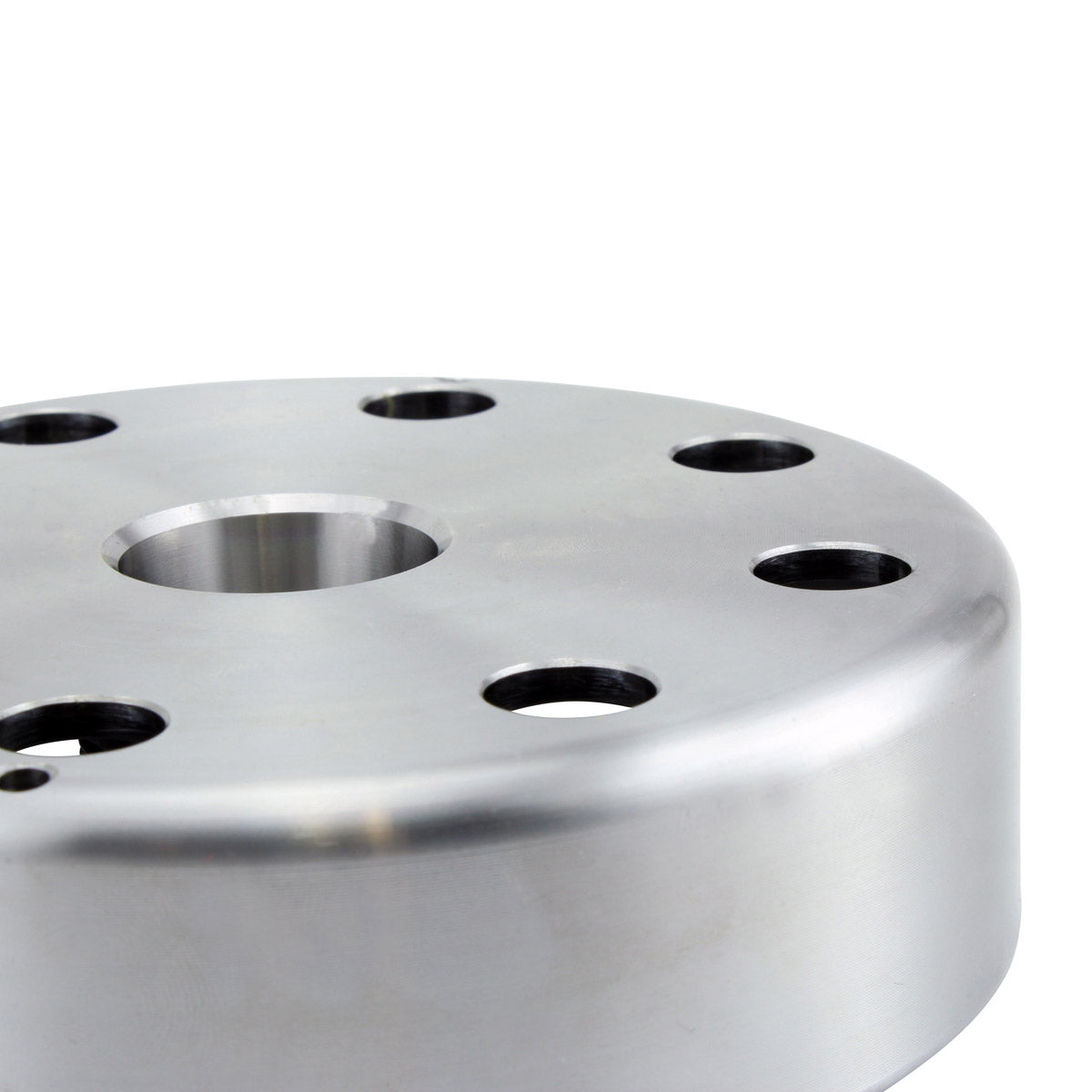

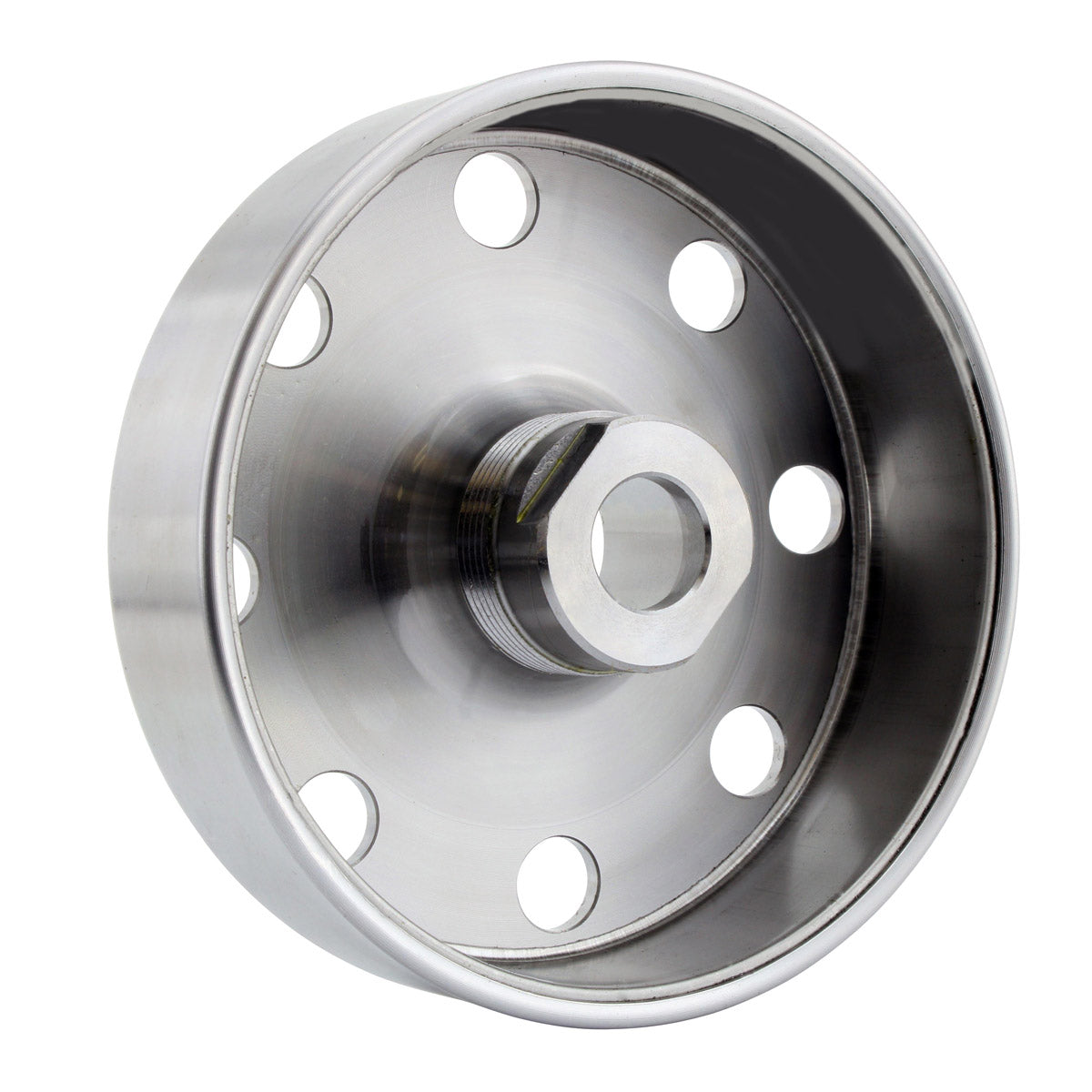

Brand new Magneto Flywheel Rotor

All products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

Specifications

Generator Stator Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 17 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 300 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%

Flywheel Dimensions:
Exterior Diameter: 115 mm
Interior Diameter: 108 mm
Interior Diameter Center Housing: 16 mm
Exterior Diameter Center Housing: 24 mm
Thickness (exterior): 30 mm
Thickness (interior): 33 mm

Interchange Part Nº

857201

Installation

Stator

Before installing your new stator

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Flywheel

Before attempting to start your Aprilia, adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
