Kit Generator Stator + Mosfet Voltage Regulator Rectifier for Victory Cross Country Cross Roads Vision 2008-2017

RMSTATOR
SKU: RMS900-104237
In Stock
RMSTATOR

Kit Generator Stator + Mosfet Voltage Regulator Rectifier for Victory Cross Country Cross Roads Vision 2008-2017

$353.78
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
Kit Generator Stator + Mosfet Voltage Regulator Rectifier for Victory Cross Country Cross Roads Vision 2008-2017
Kit Generator Stator + Mosfet Voltage Regulator Rectifier for Victory Cross Country Cross Roads Vision 2008-2017
$353.78

Details

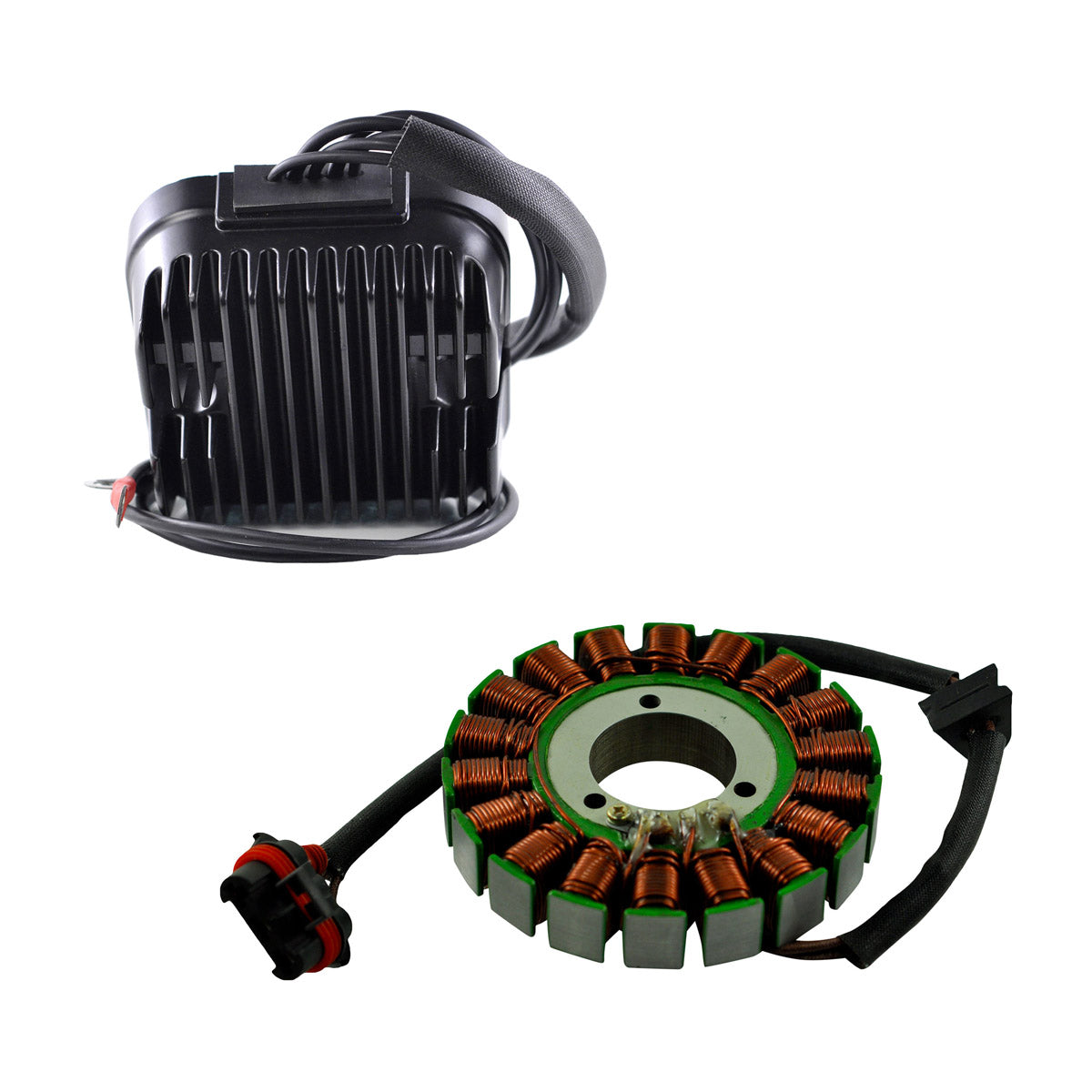

Brand New aftermarket Generator Stator + Mosfet Voltage Regulator Rectifier Kit

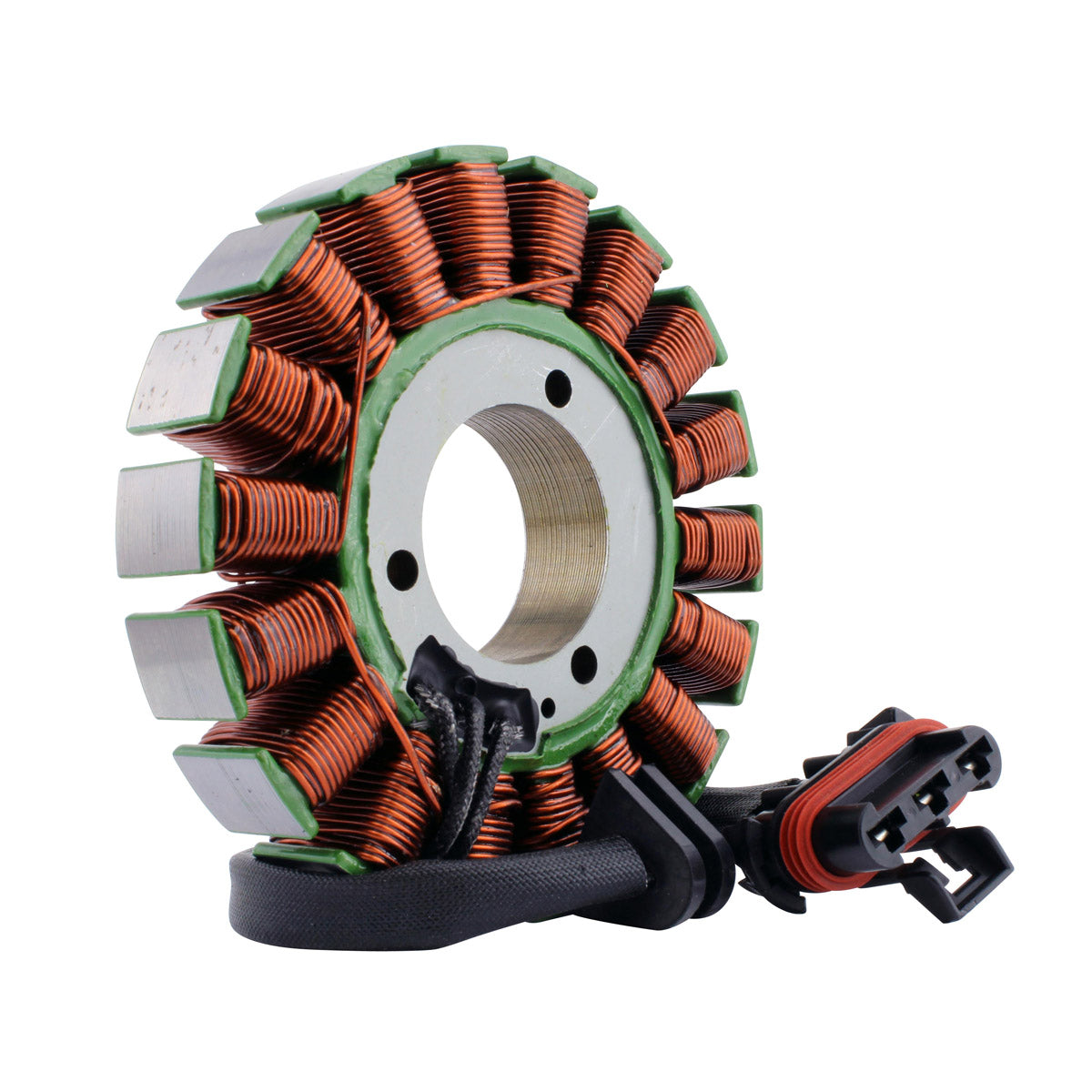

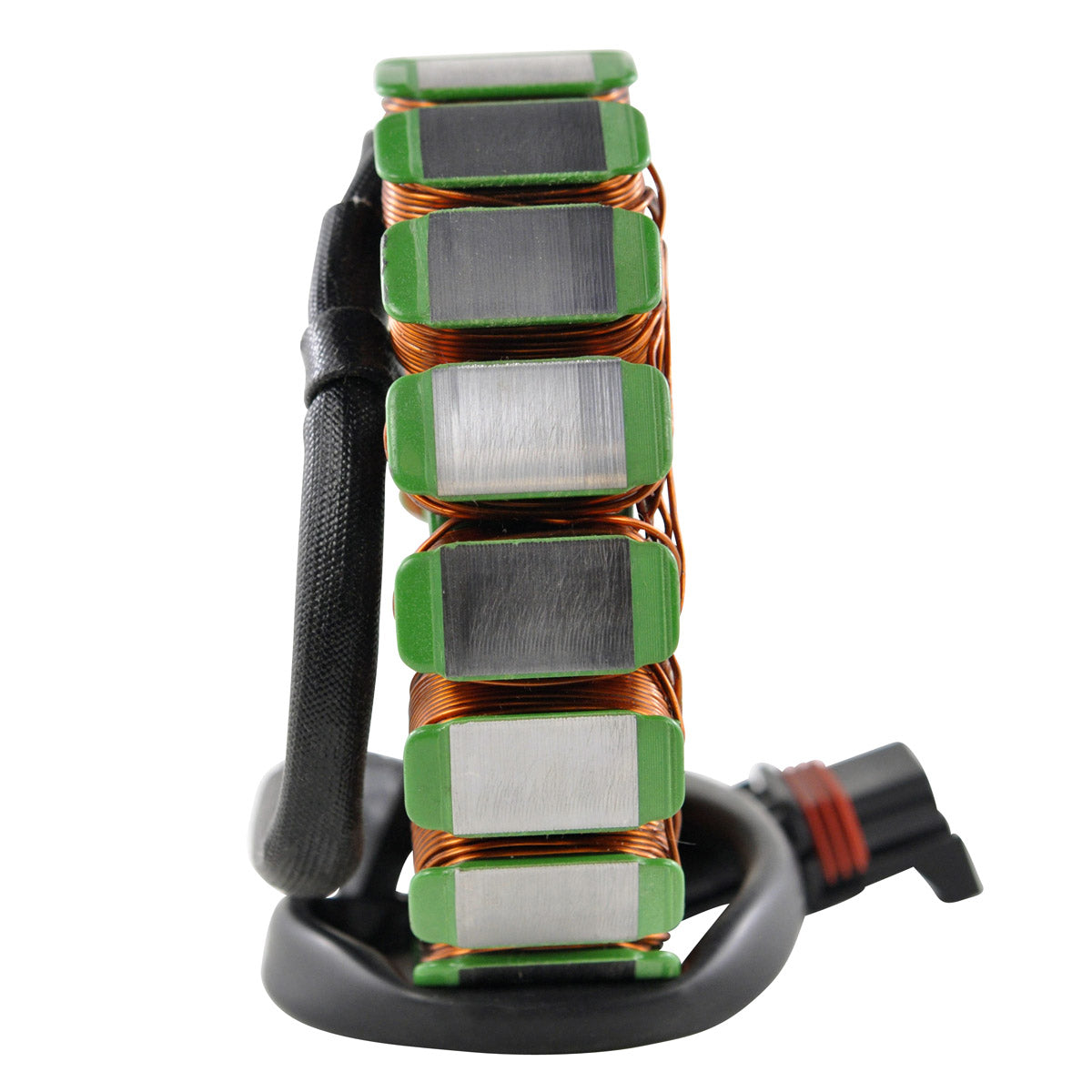

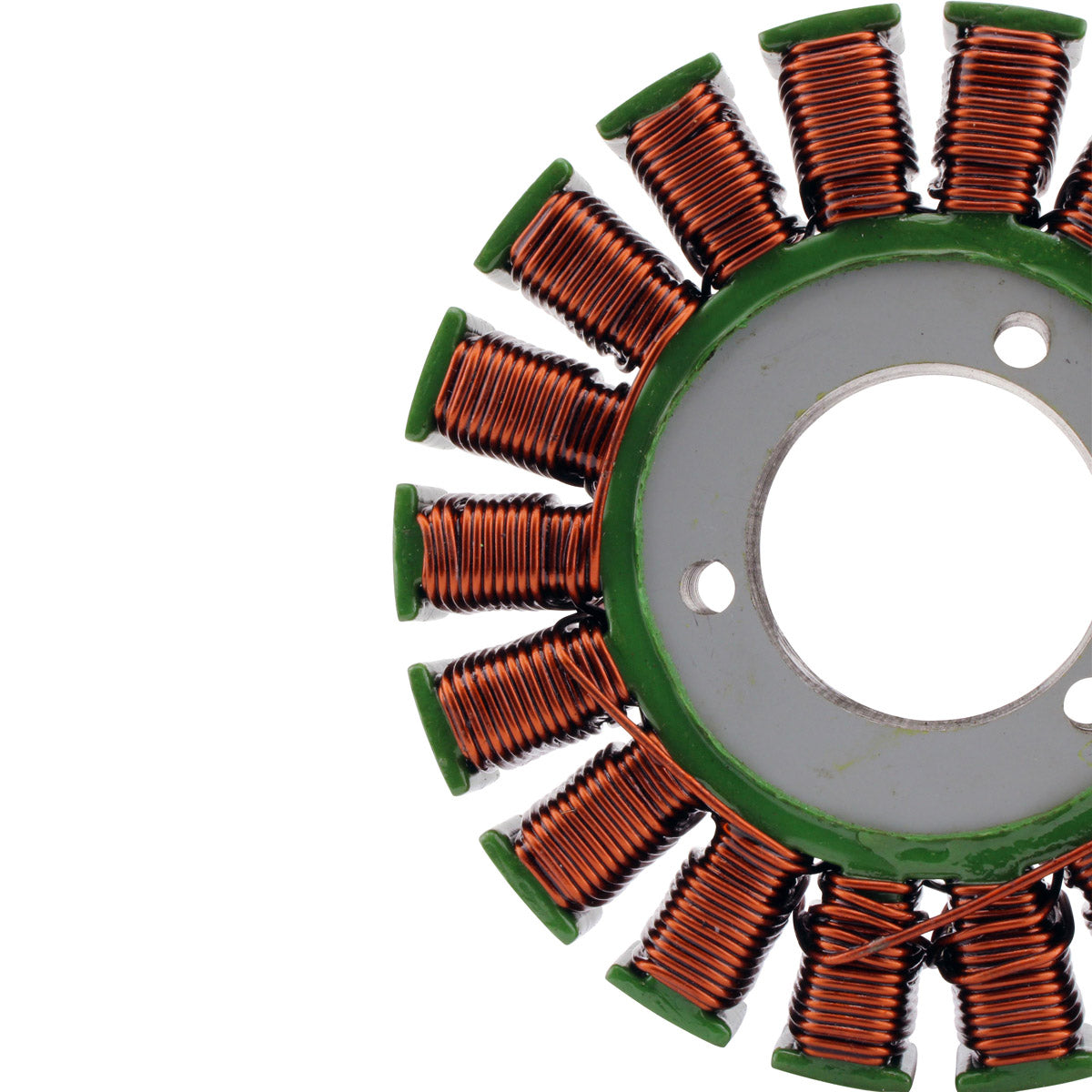

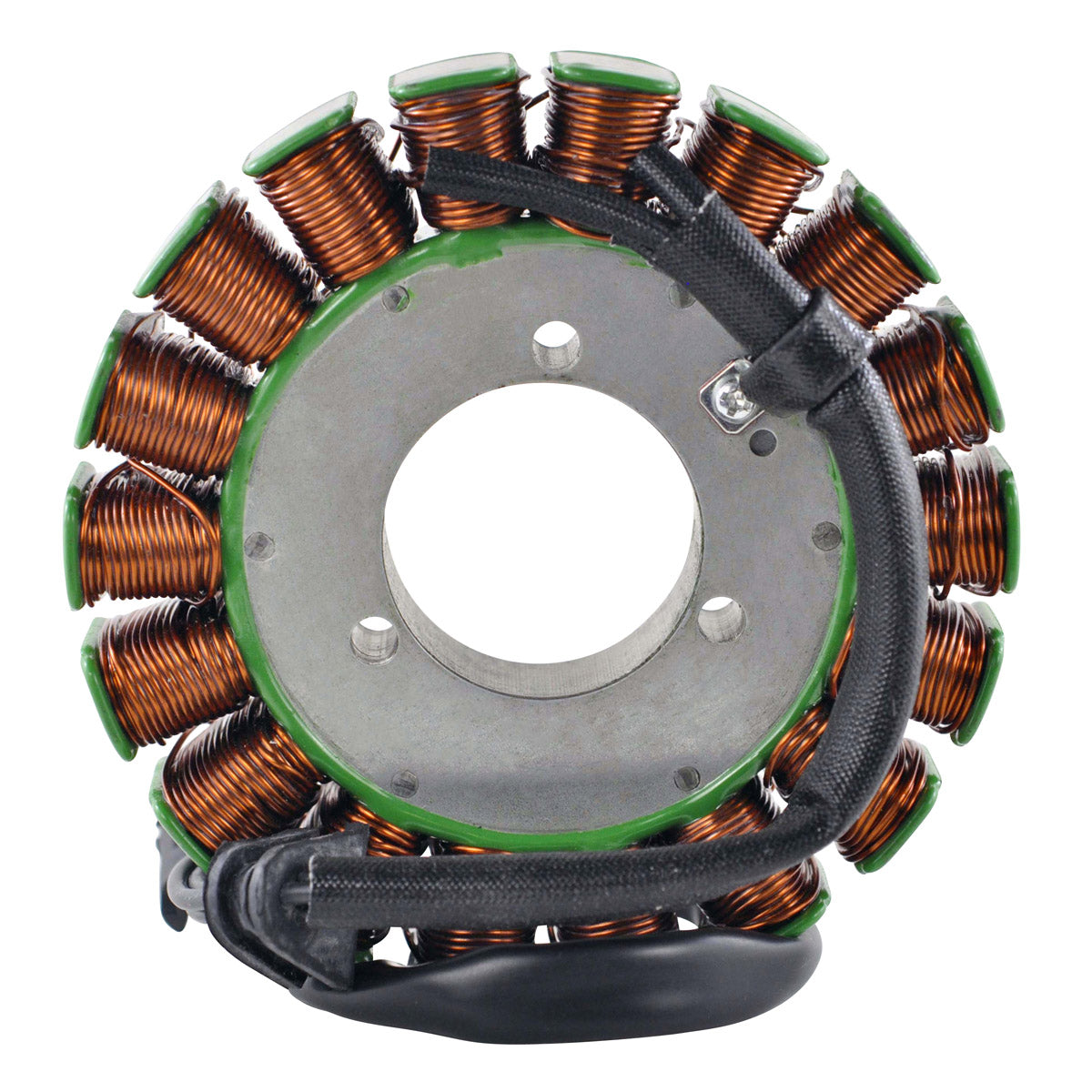

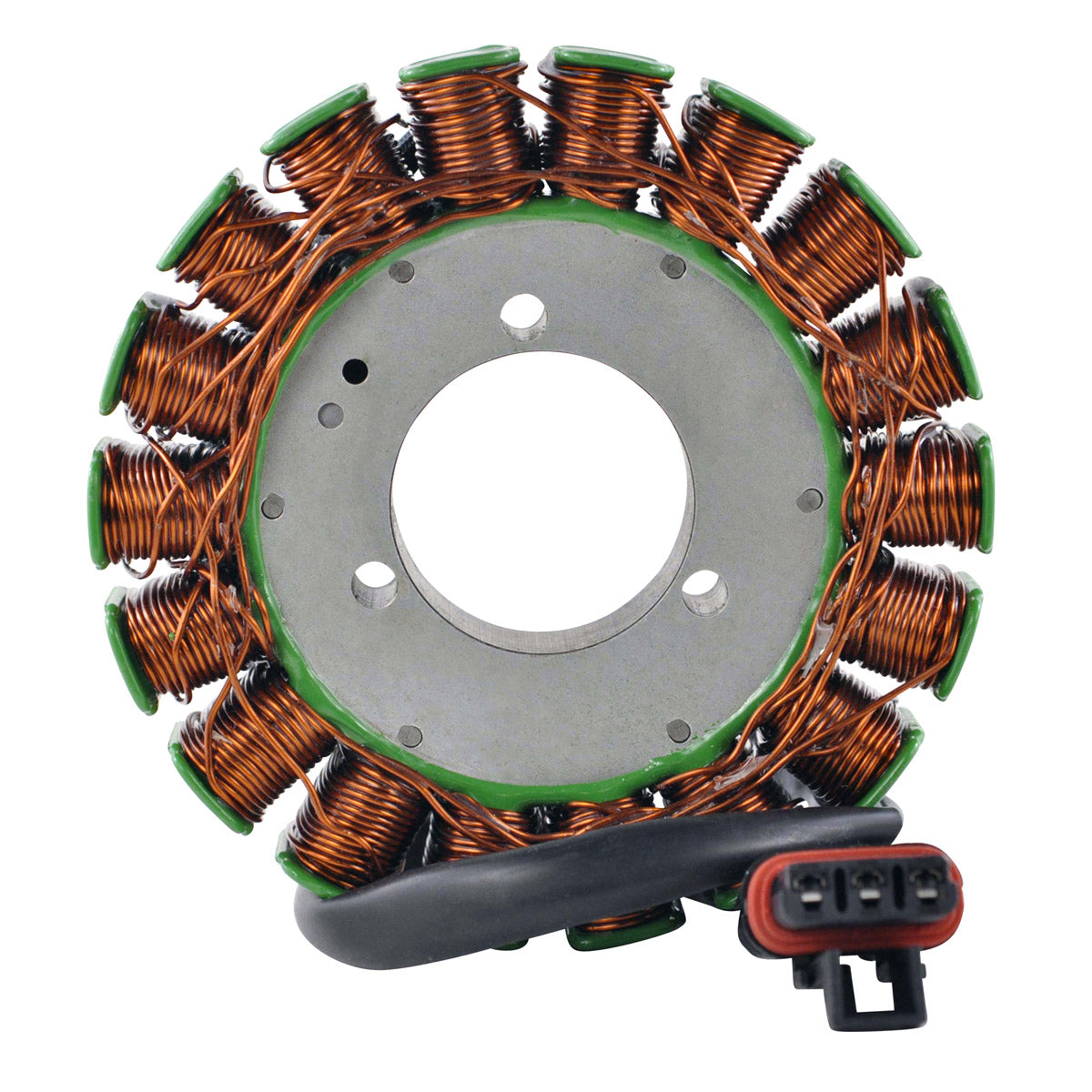

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

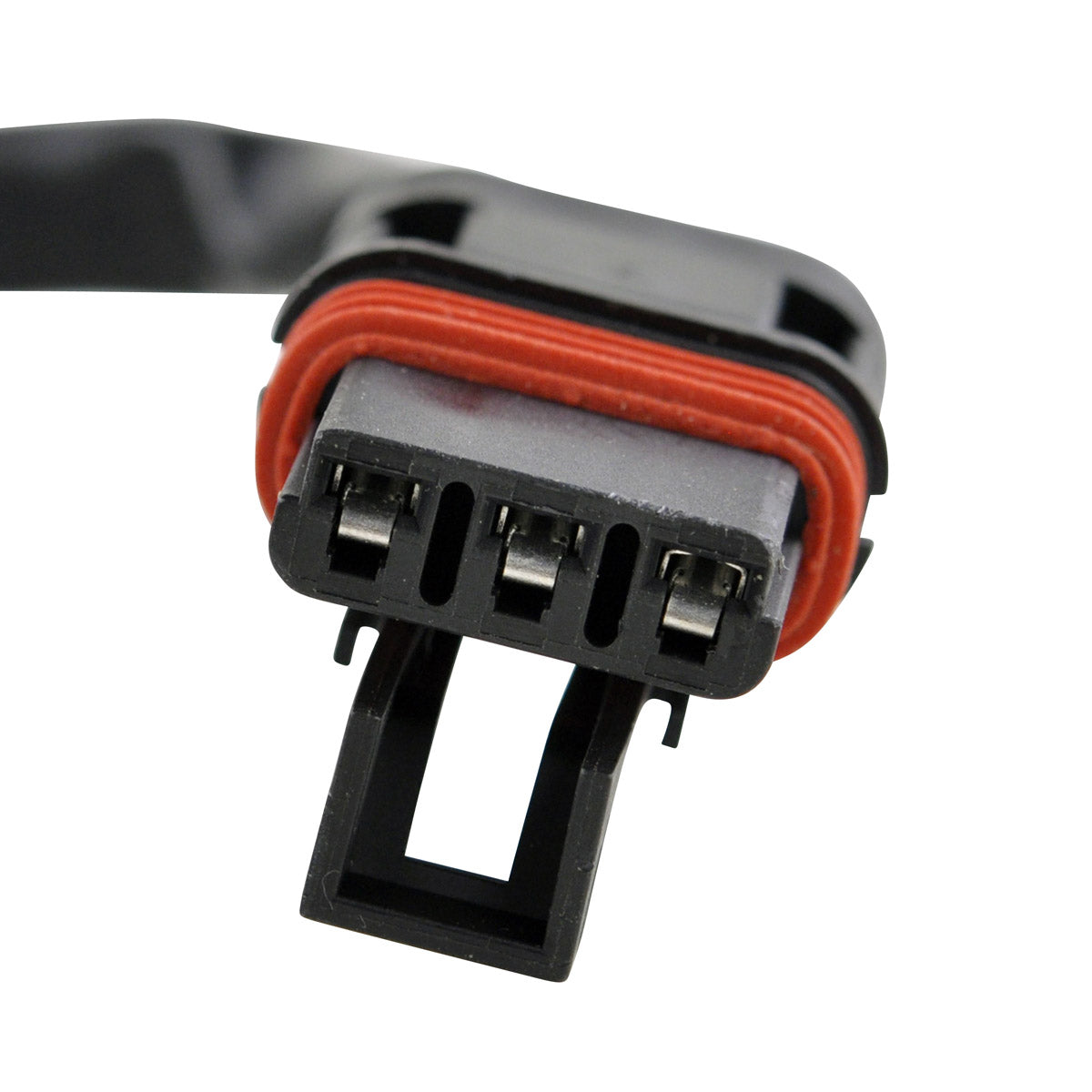

  • Connector included

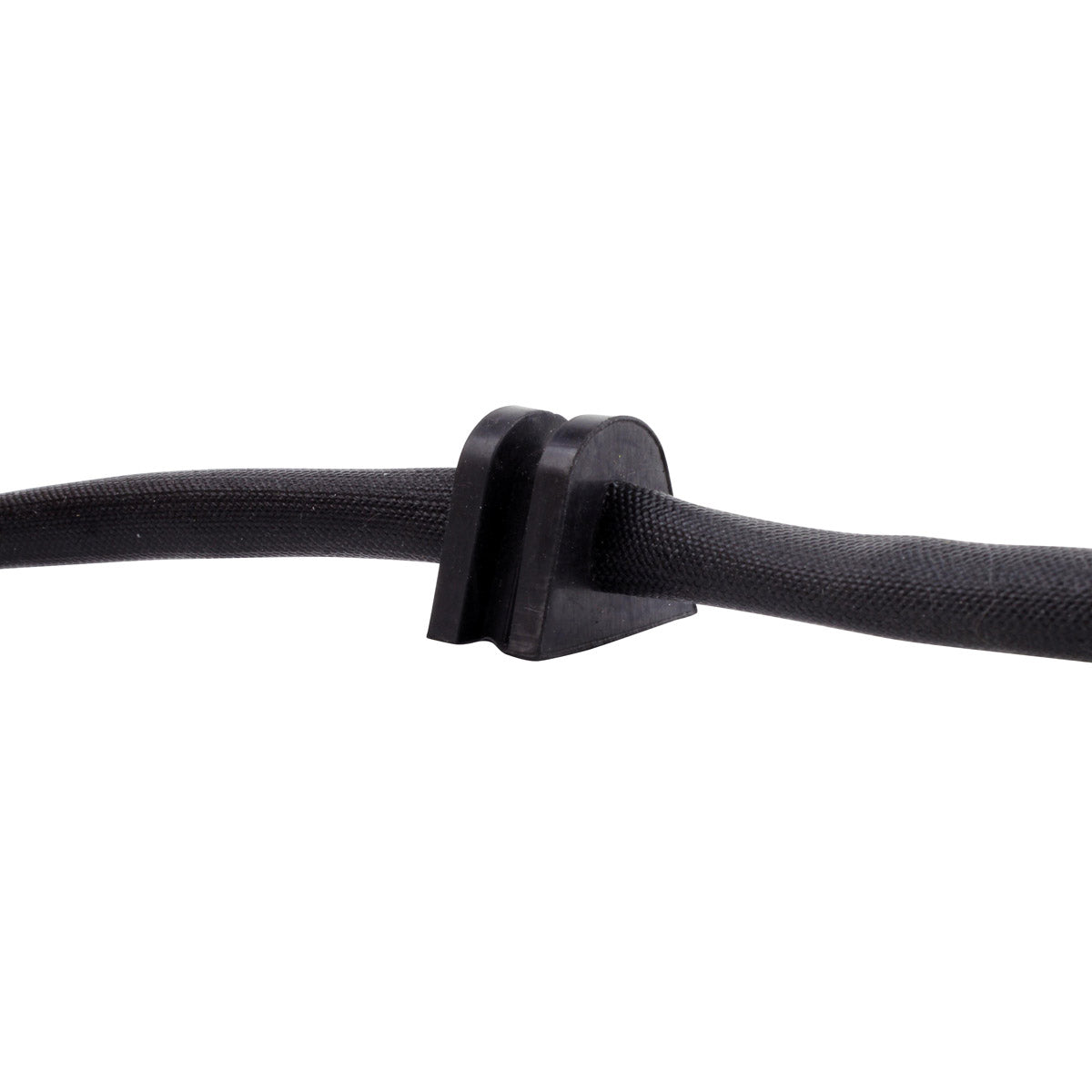

  • Rubber grommet included
  • All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

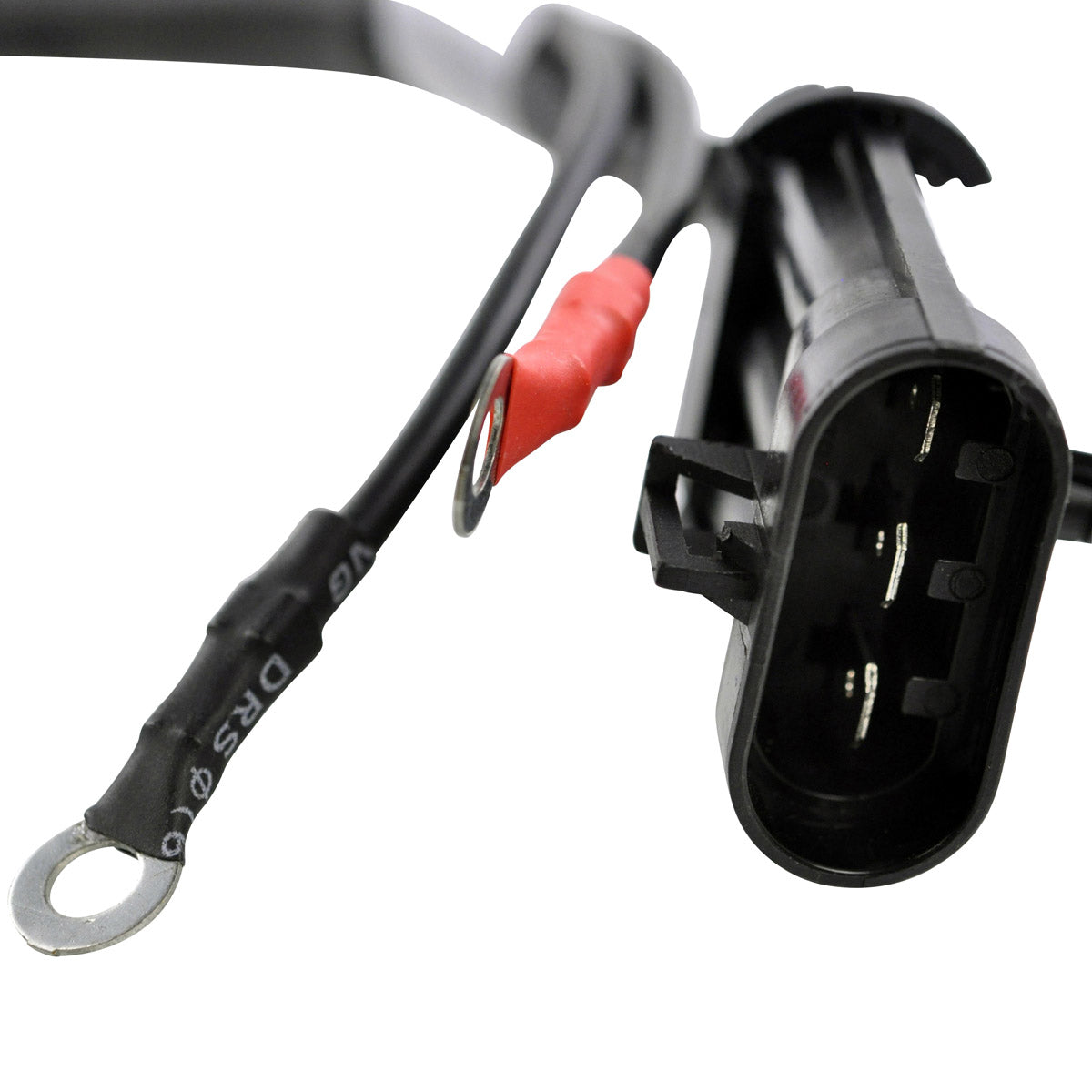

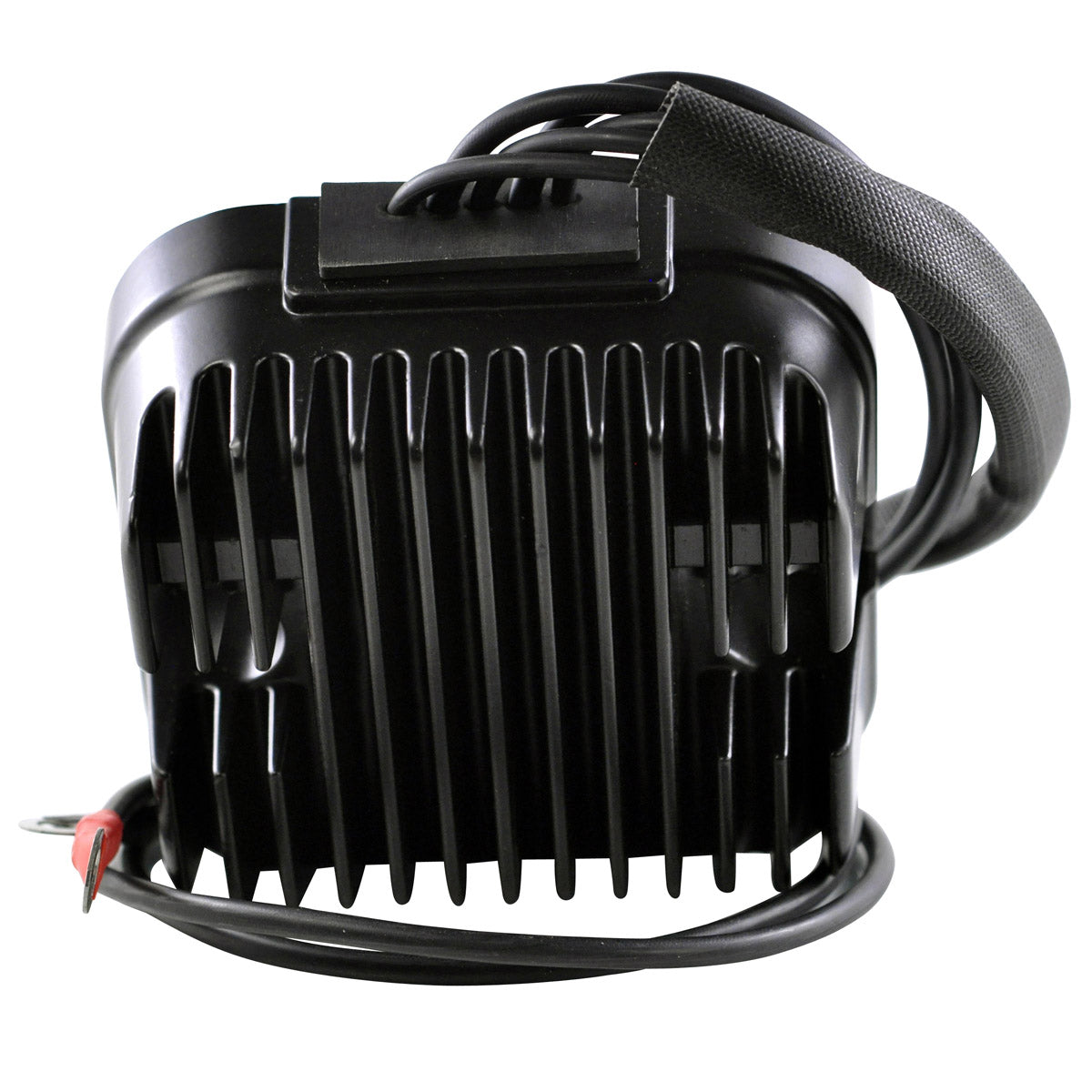

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
  • Direct replacement to your original unit
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

Why use Mosfet Enhanced technology?



Runs cooler

Runs much cooler than the traditional Shunt voltage regulator rectifier.


Saves gas

Less load on the stator, less work, less fuel is used and you save.


Regulated energy

The power charging your battery is steadier and smooth.


Extended battery life

Extends the battery’s life and cold cranking capacity.


More engine power

Removes stator load resulting in more engine power.


Optimized power

Optimize power delivery by switching the stator coils on or off.

RMSTATOR Enhanced technology=


With
enhanced technologydesign

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Specifications

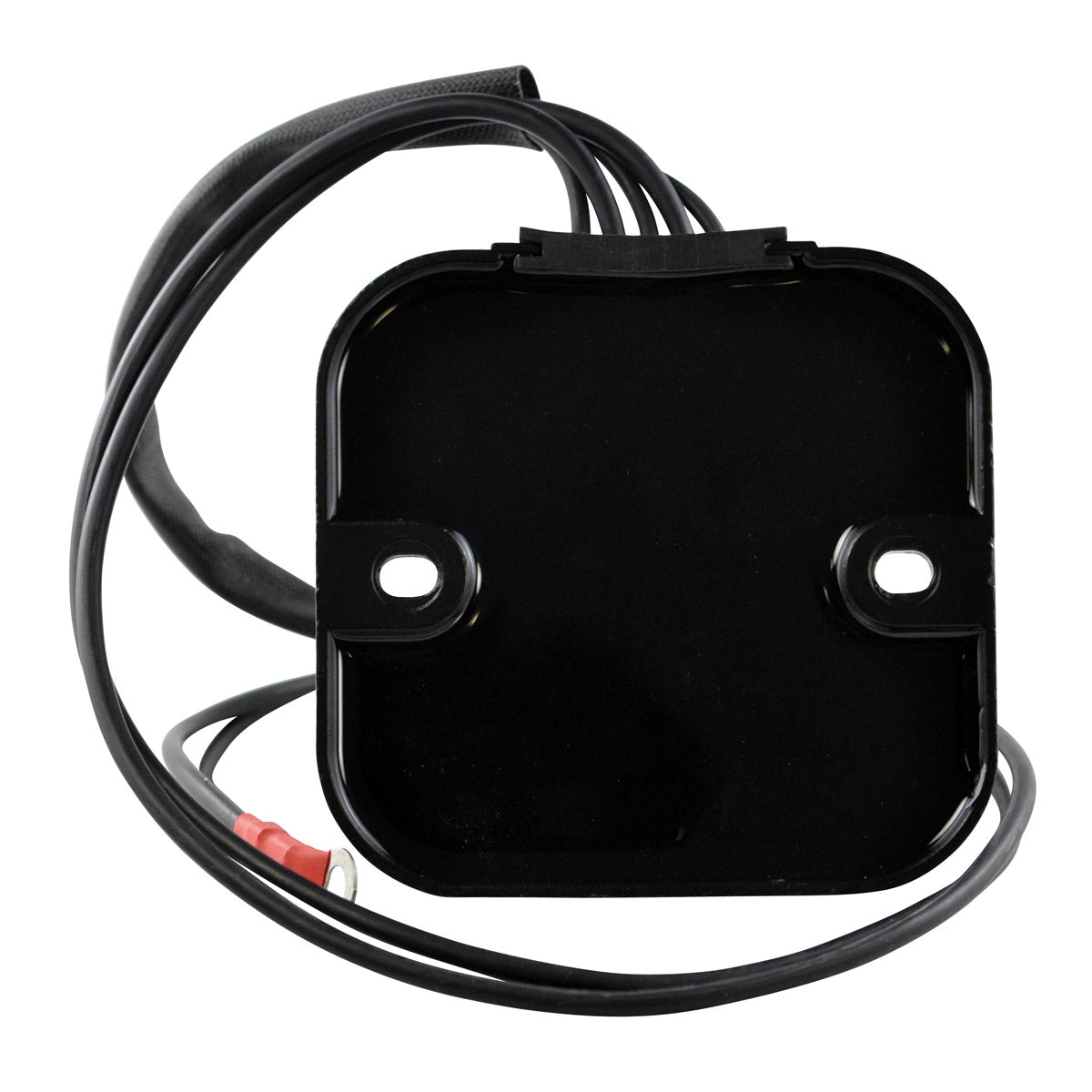

Mosfet Voltage Regulator Rectifier Dimensions:
Width : 107 mm
Length : 112 mm
Height: 50 mm
Fixation holes center to center : 80 mm
Wires Length: 650 mm

Other specifications :
Number of plugs : 3
Number of pins : 5

Generator Stator Dimensions:
Interior diameter : 42 mm
Exterior diameter : 126 mm
Thickness : 24 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 275 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between each Black = 0.5 ohms +-20%

Interchange Part Nº

  • Stator :

    2204532
  • 4012364
  • 4012715
  • 4015588
  • 4011887
  • 4012082
  • Mosfet Voltage Regulator :

    4012717
  • 4012238

Installation

Before installing your new Mosfet Voltage Regulator Rectifier :

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Before installing your new Stator :

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
