Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Kit Generator Stator + Voltage Regulator for Kawasaki KVF 750 | KRF / KRT 800 2012-2024 | # 21003-0167 21066-0771

$351.78

Details

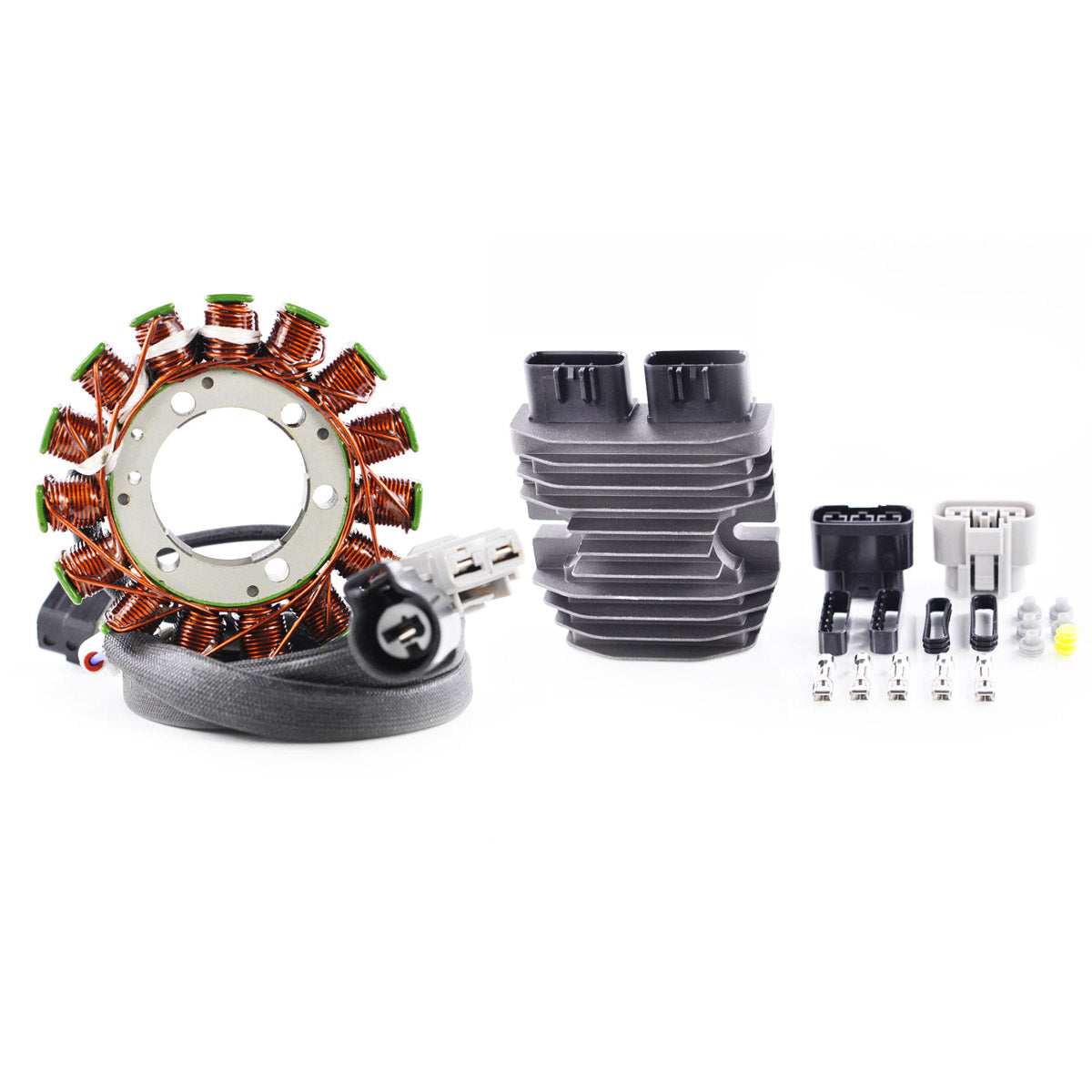

Brand new Kit Generator Stator + Voltage Regulator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

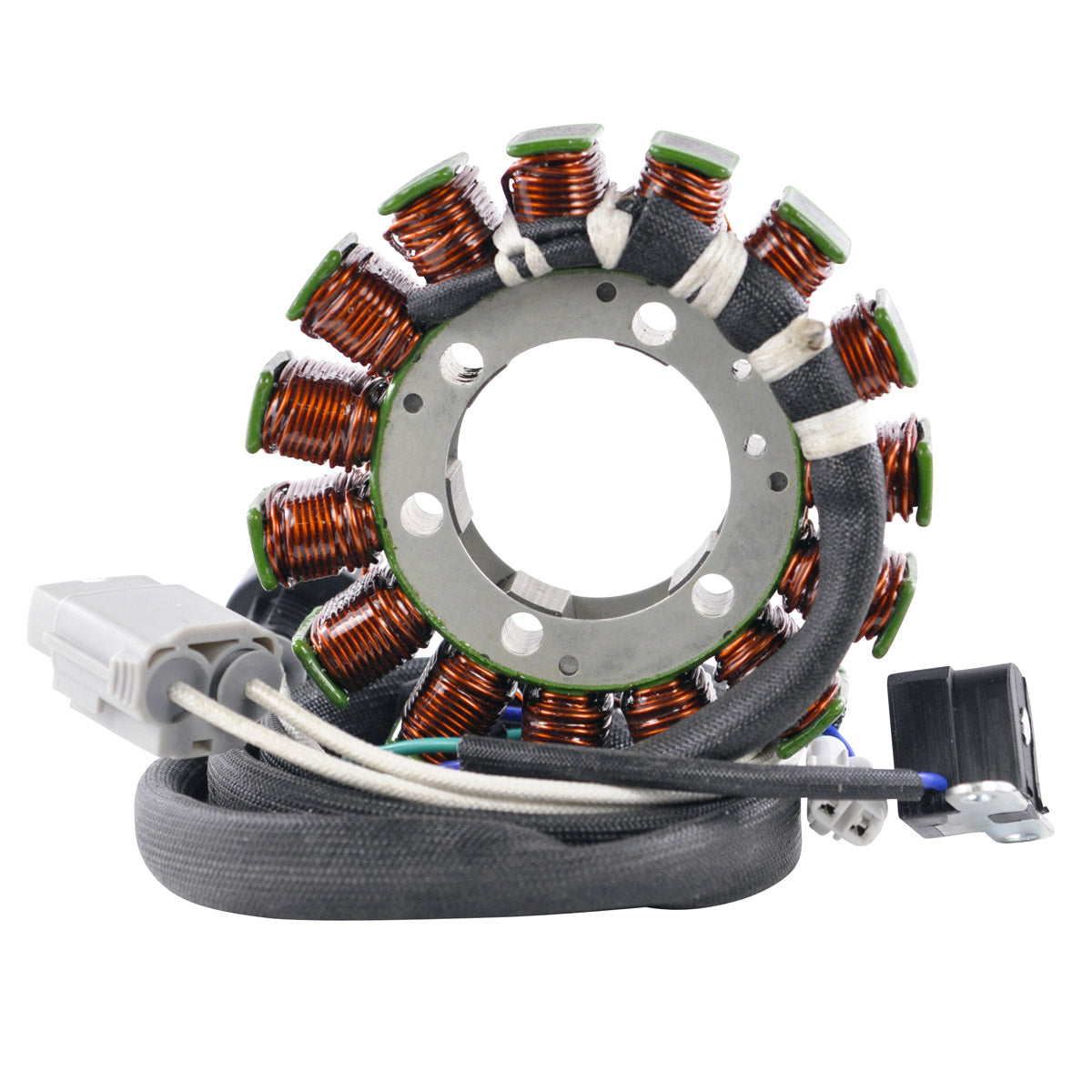

Brand new aftermarket Generator Stator

Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

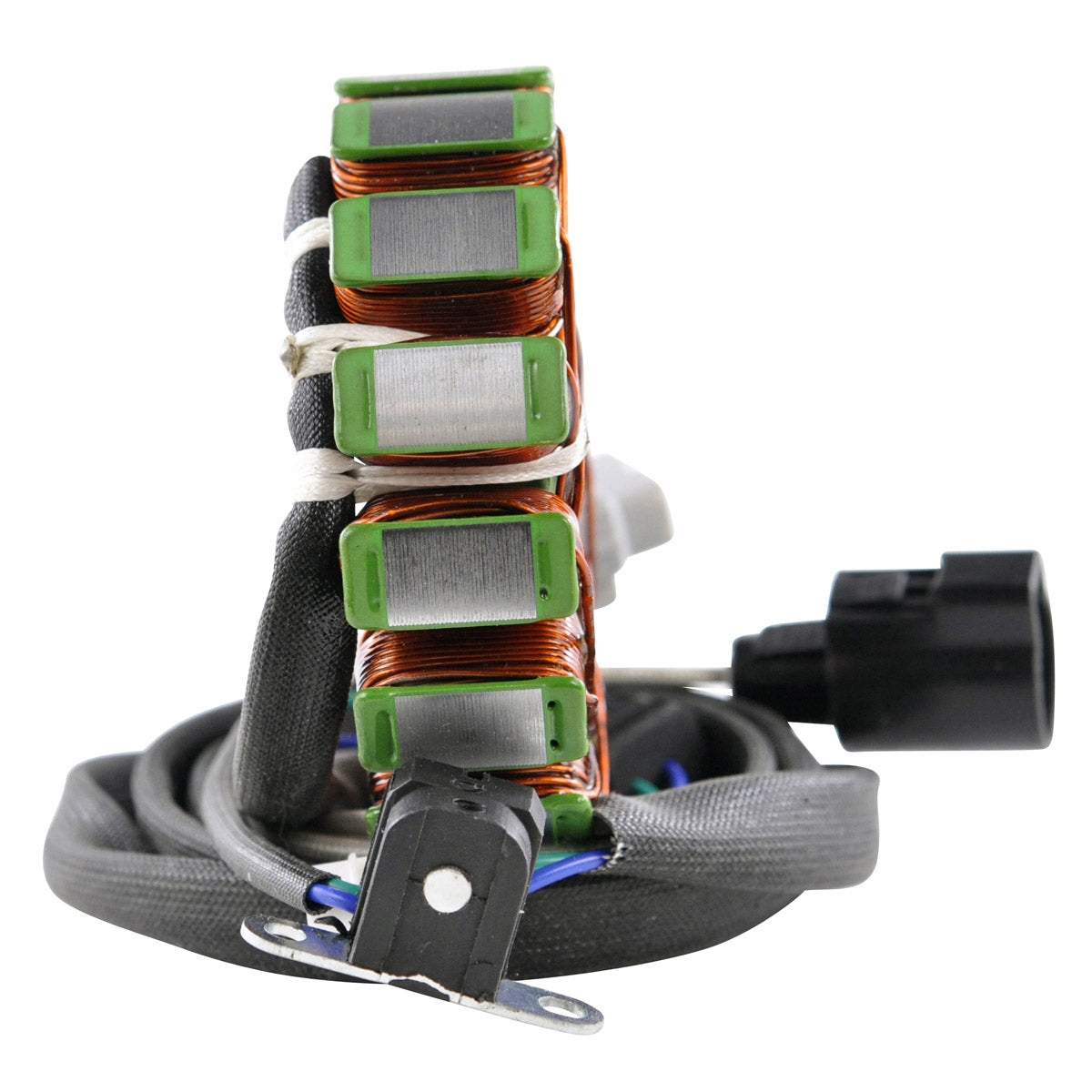

Pick up pulsar coil included

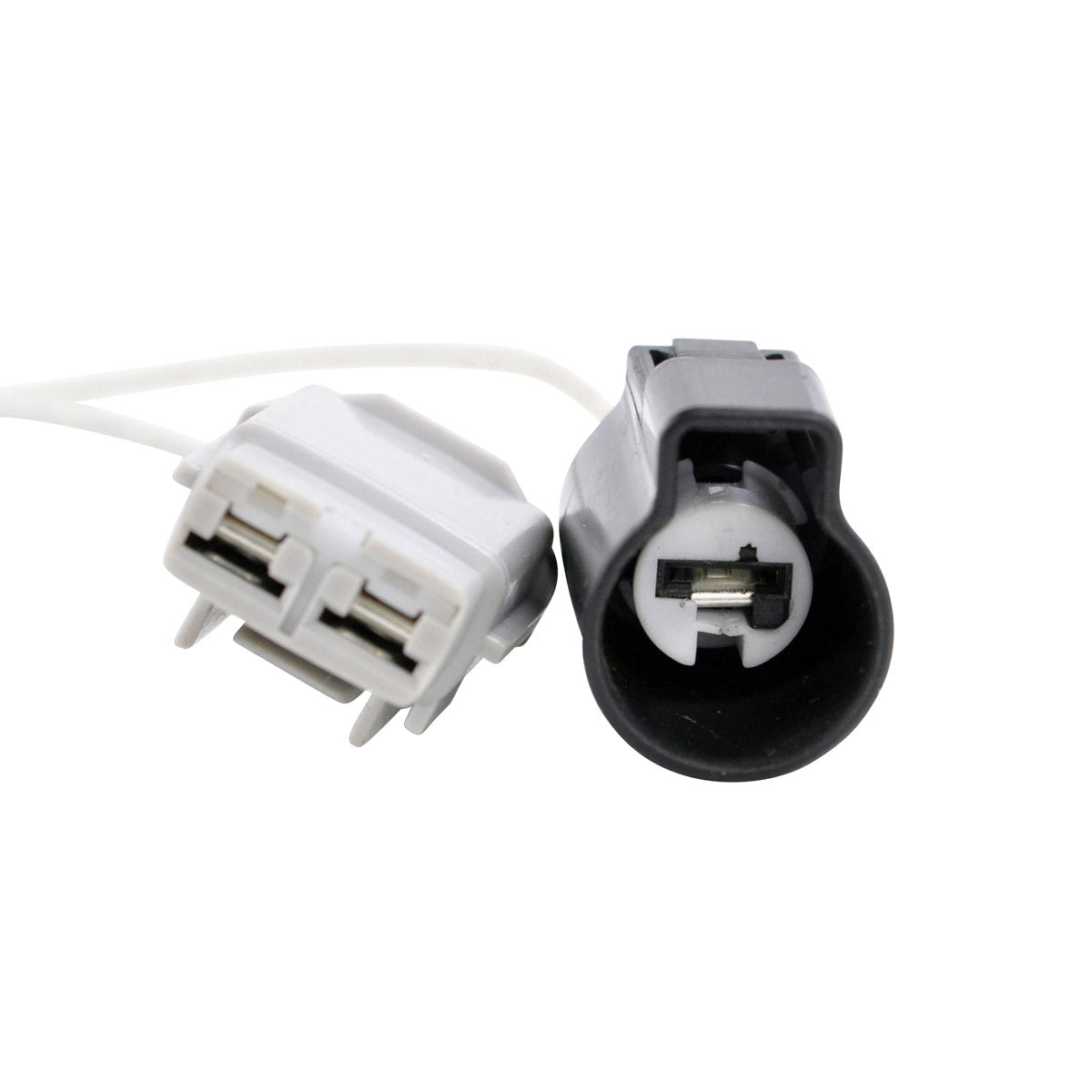

Connector included
Rubber grommet included

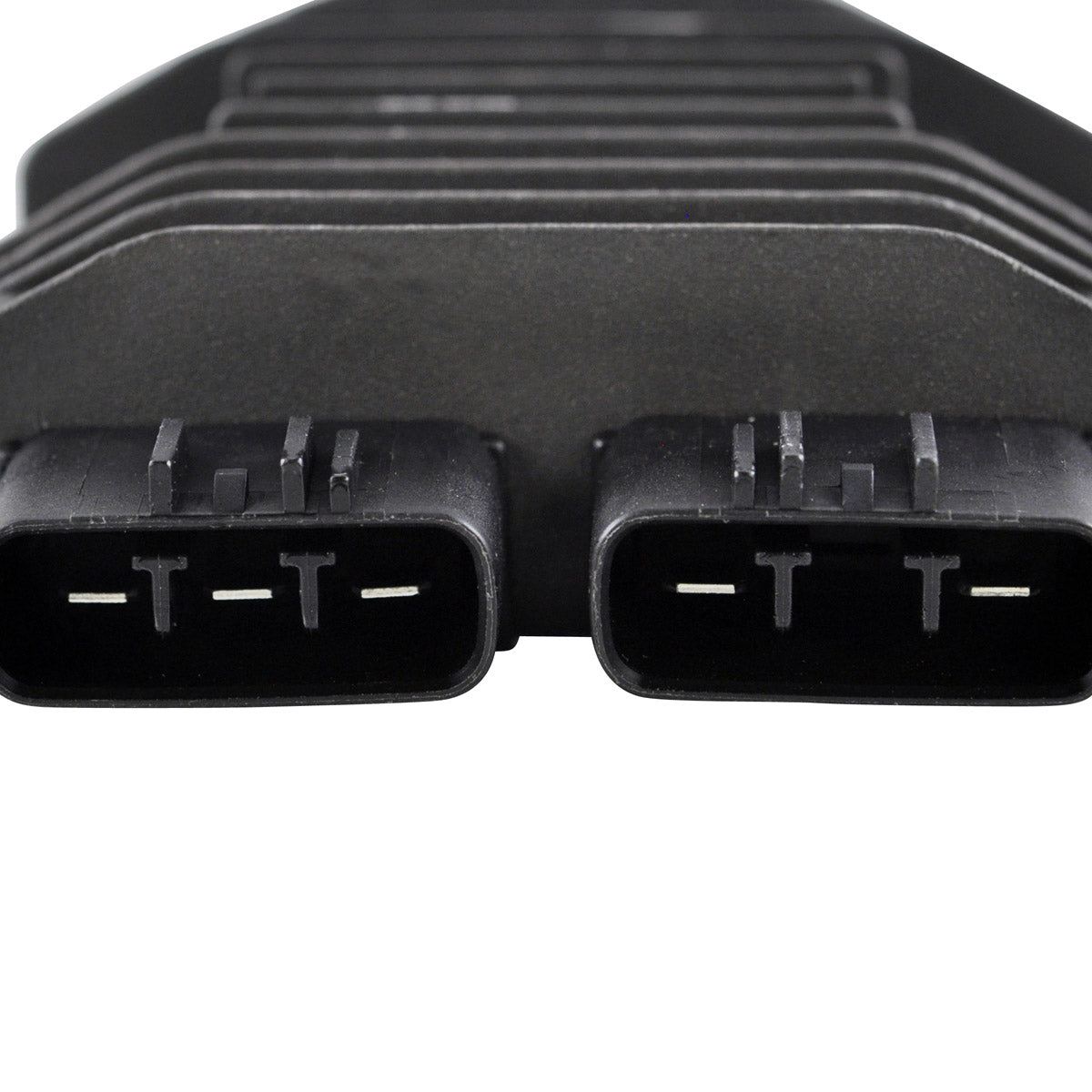

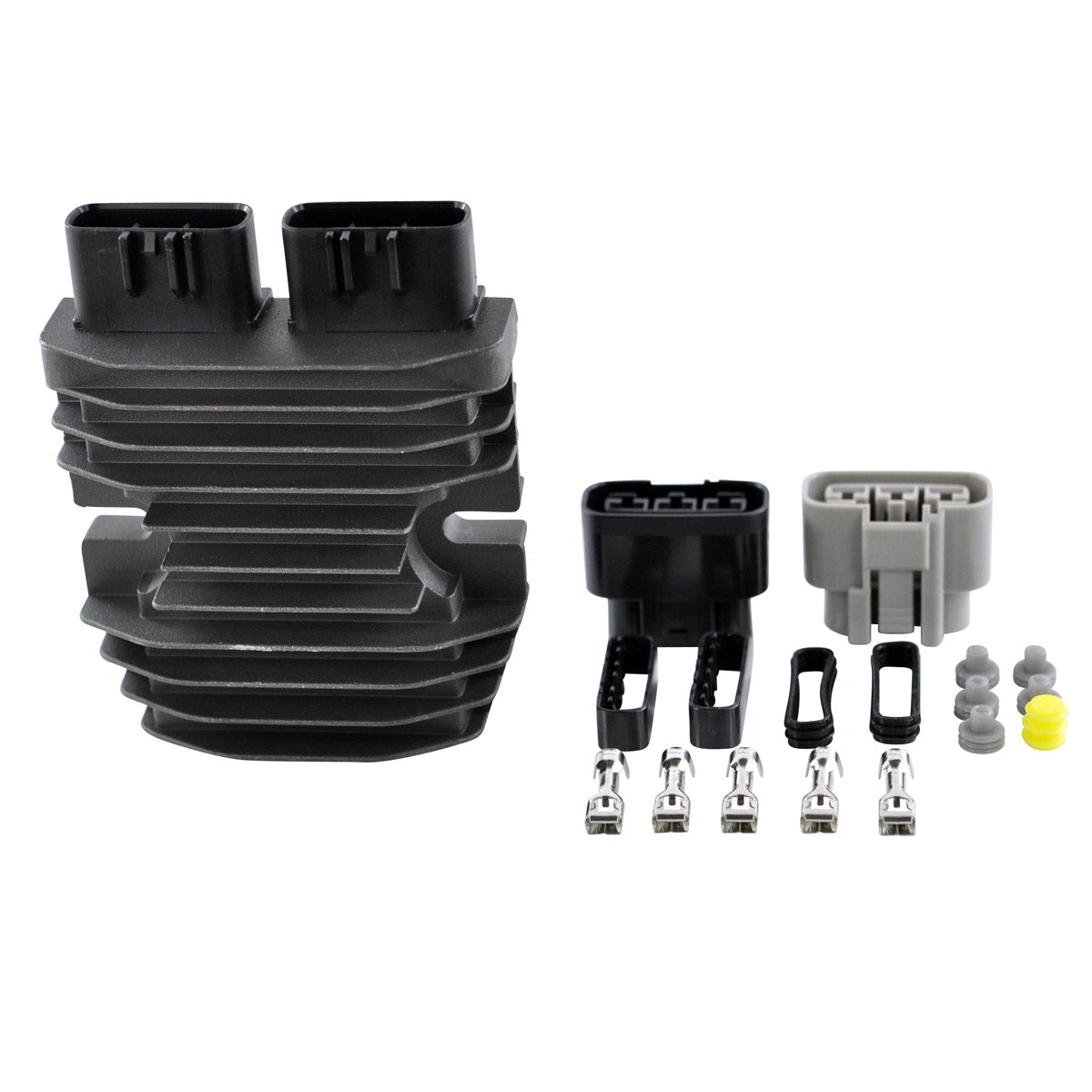

Brand new aftermarket Voltage Regulator Rectifier

No assembly required
Higher grade of electric components
The quality exceeds the OEM equipment

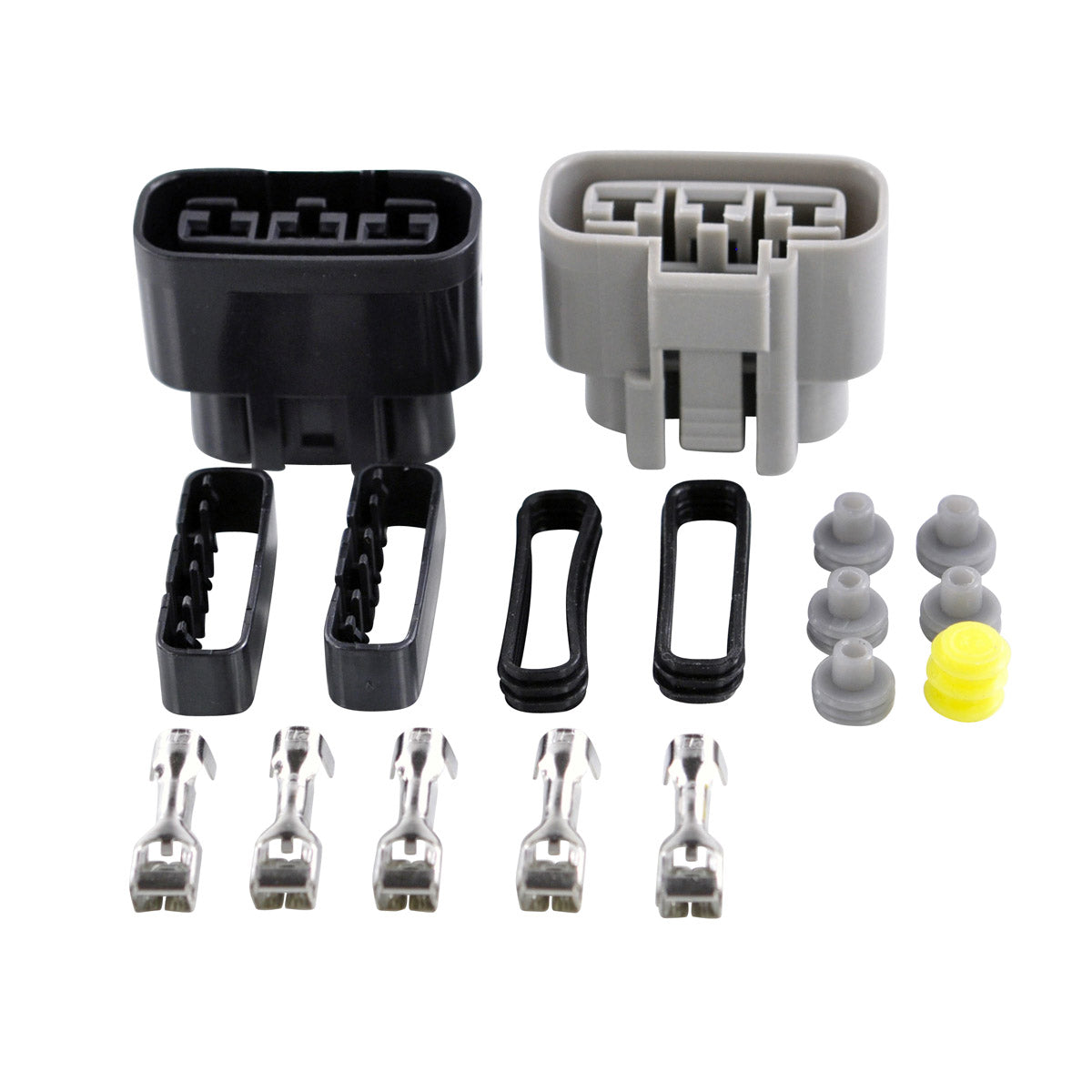

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Specifications

Generator Stator Dimensions
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 950 mm
Length of pickup coil's wire to grommet : 70 mm

Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :
Alternator : White to White = 0.4 ohms +/-20%
Pickup : Green to Blue = 500 ohms +/-20%

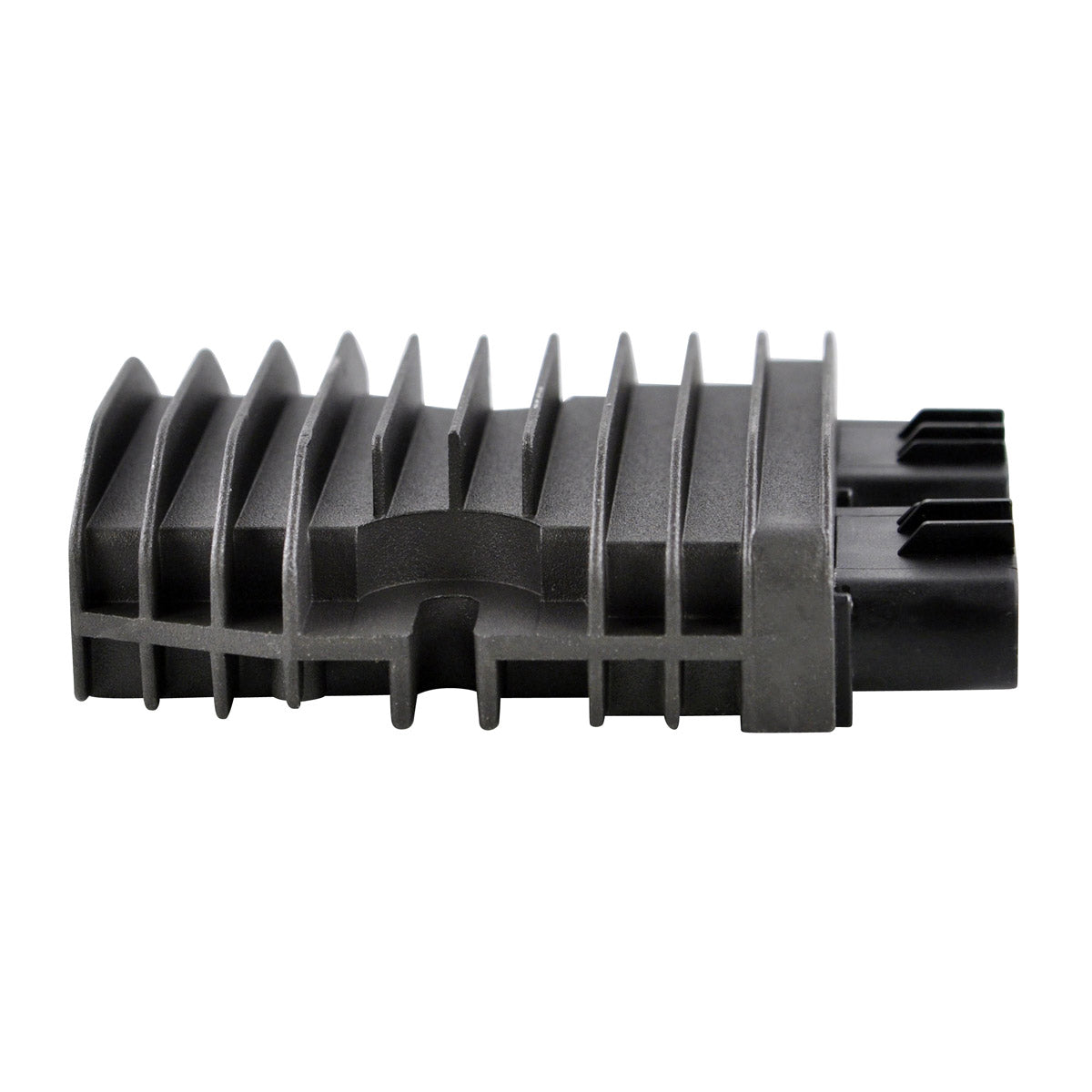

Regulator Dimensions
Width : 95 mm
Length : 110 mm
Height: 30 mm
Fixation holes center to center :78 mm

Other specifications :
Number of plugs : 2
Number of pins : 5

Interchange Part Nº

Stator :
21003-0108
21003-0167
21003-0132
21003-0134
21003-0166
Voltage Regulator :
21066-0008
21066-0022
21066-0714
21066-0744
21066-0771

Installation

Before installing your new Stator

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Before installing your new Voltage Regulator Rectifier:
