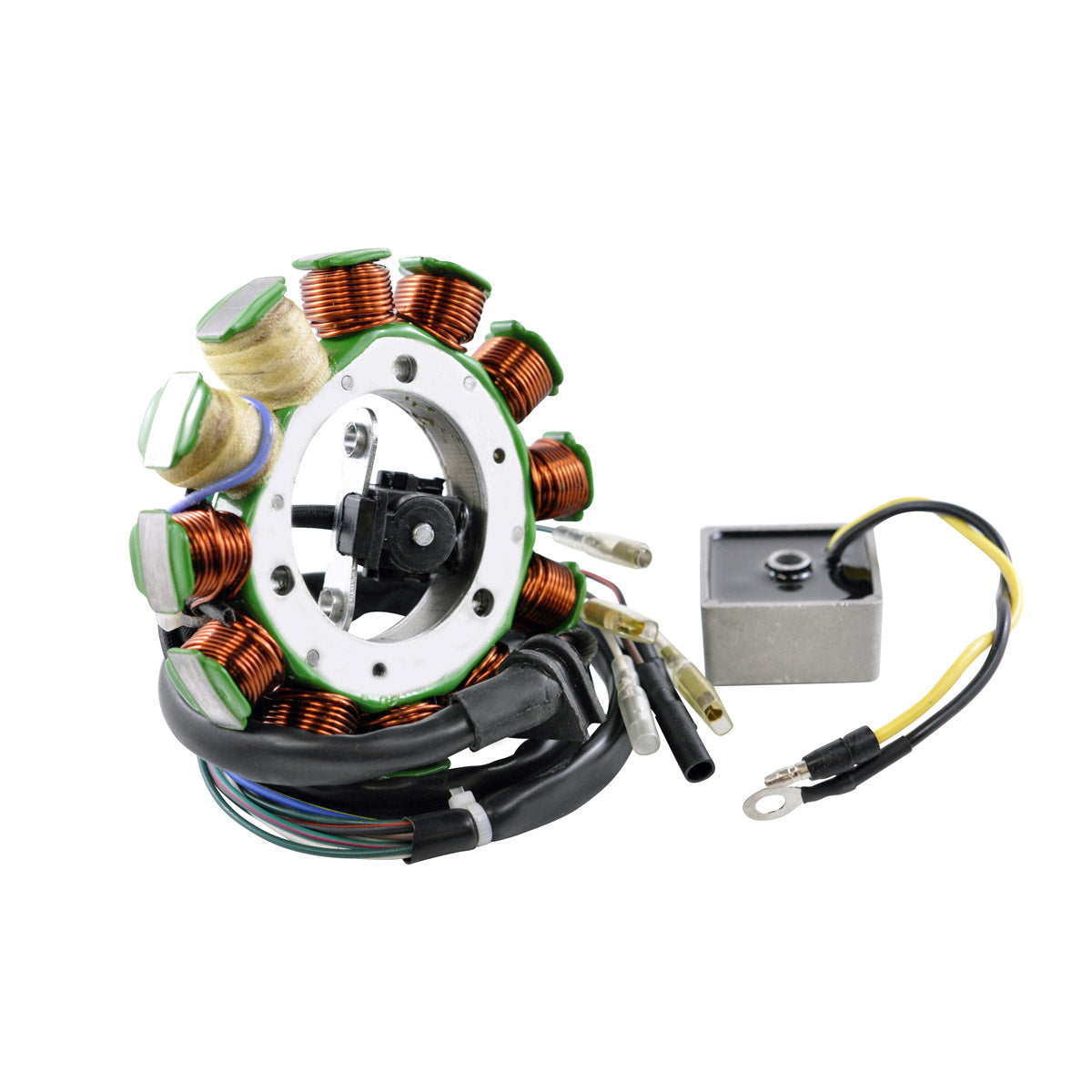

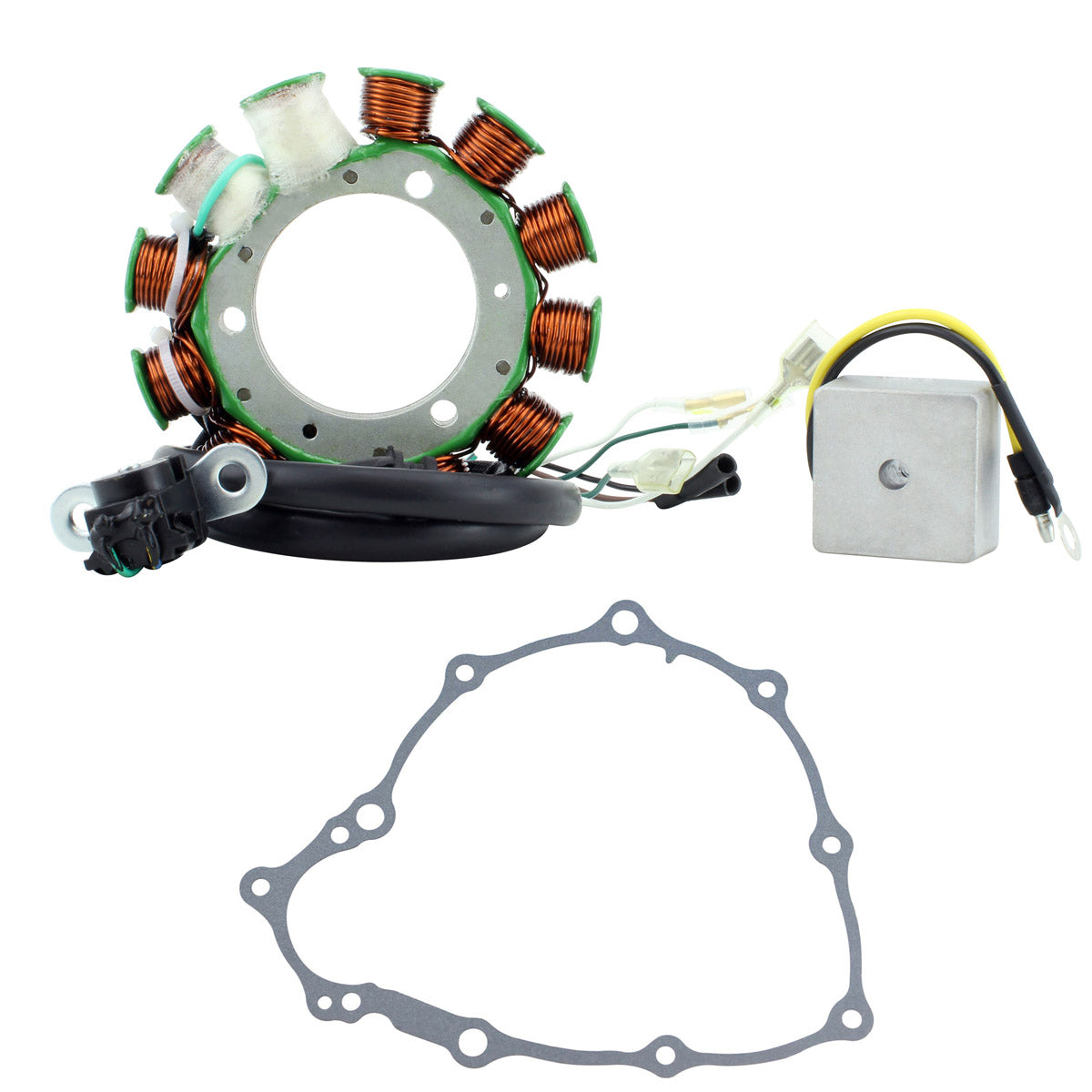

Kit High Output Stator + AC Regulator + Gasket for Honda XR400R XR 400 R 1996-2004
RMSTATOR
SKU: RMS900-103542
In Stock
RMSTATOR
Kit High Output Stator + AC Regulator + Gasket for Honda XR400R XR 400 R 1996-2004
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Kit High Output Stator + AC Regulator + Gasket for Honda XR400R XR 400 R 1996-2004
Details
Details

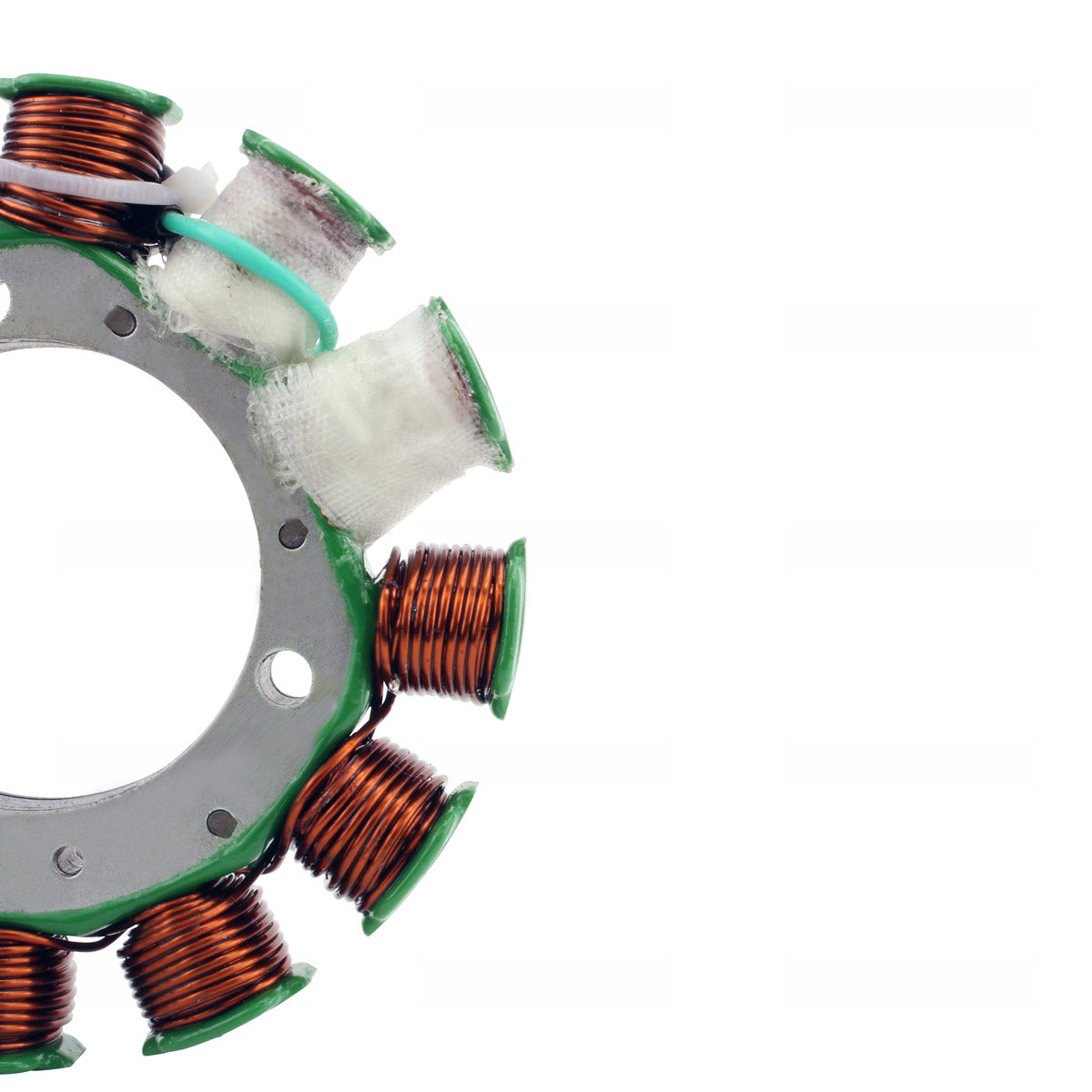

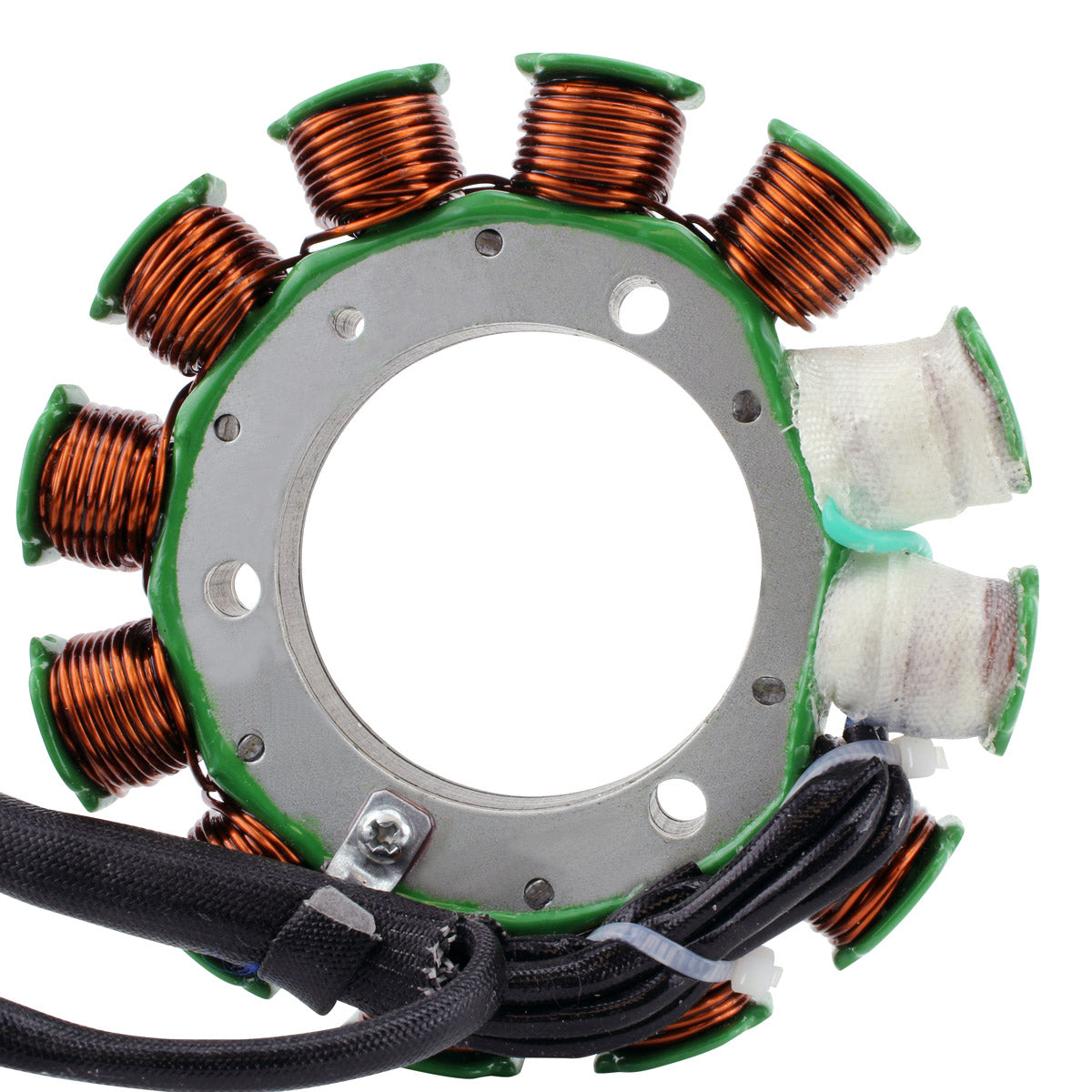

High Output Stator 200 W
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 85 mm
Other specifications:
Number of wires : 8
Number of plugs : 7
Number of pins: 8
Wire to wire resistance:
Alternator : Green to White = 0.2 ohms+/-20%
Pick up : Blue/yellow to Green/red = 250 ohms+/-20%
Source : Black/Red to Brown = 100 ohms+/-20%

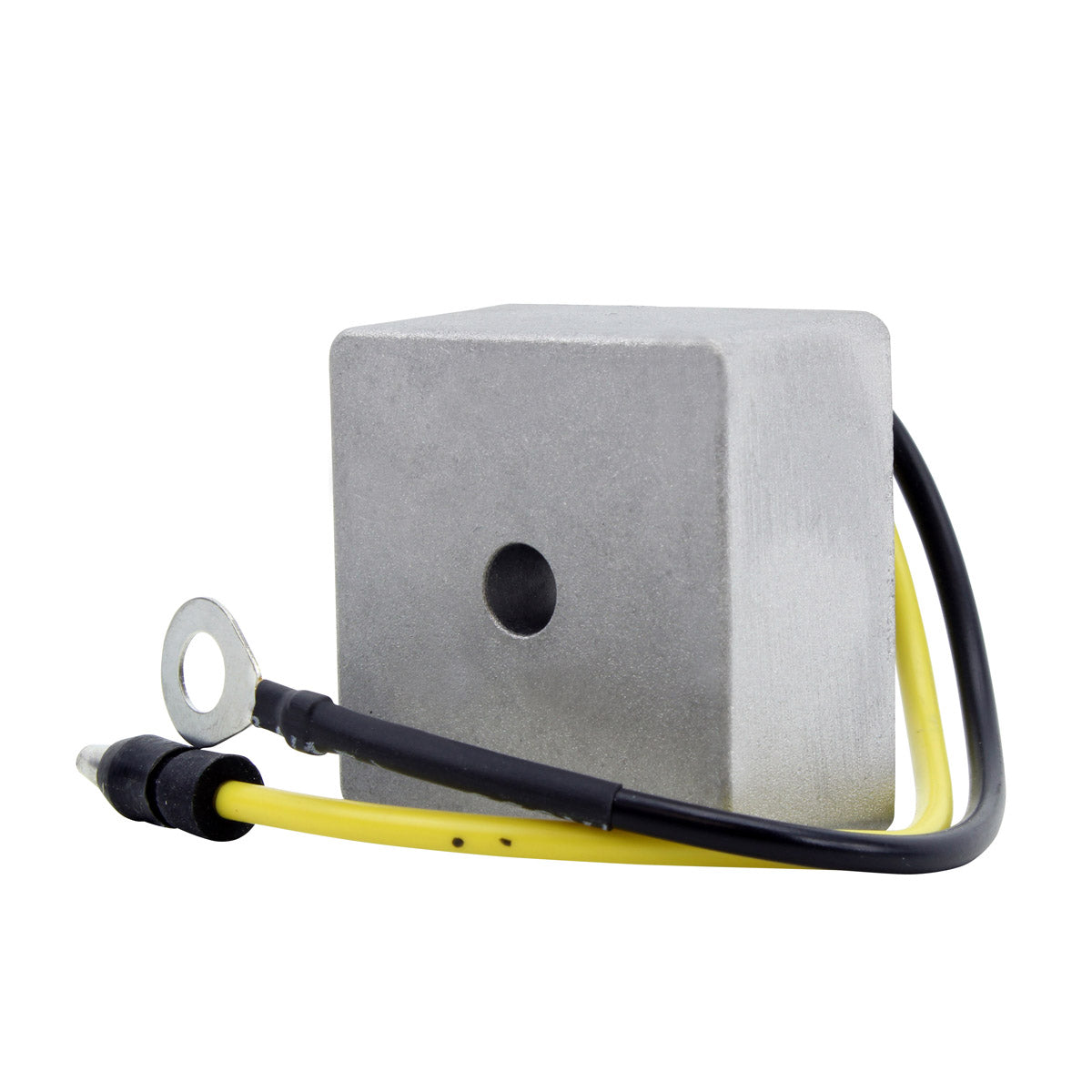

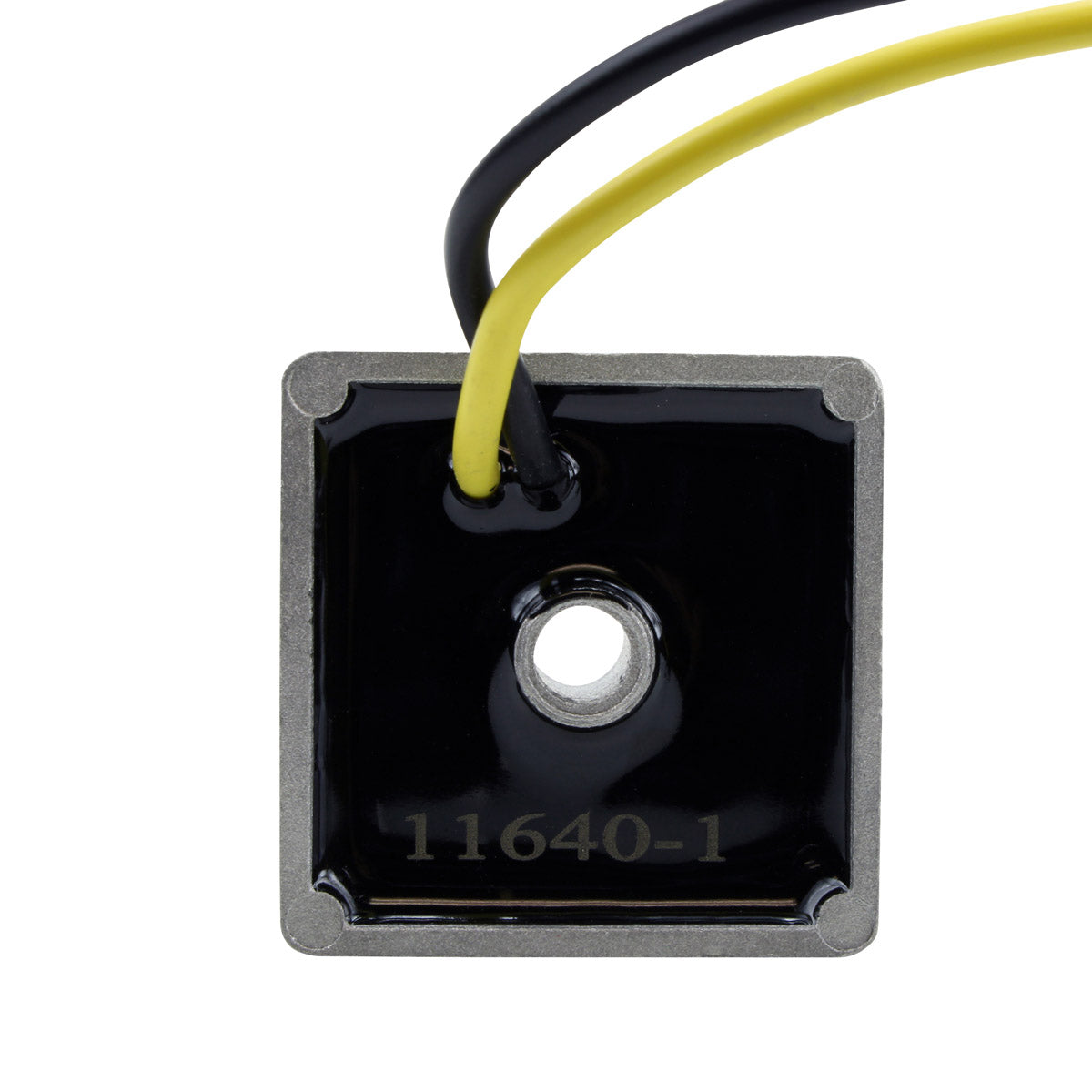

Heavy Duty AC Voltage Regulator Rectifier
Dimensions :
Width : 45 mm
Length : 45 mm
Height: 20 mm
Other specifications :
Number of pins : 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?

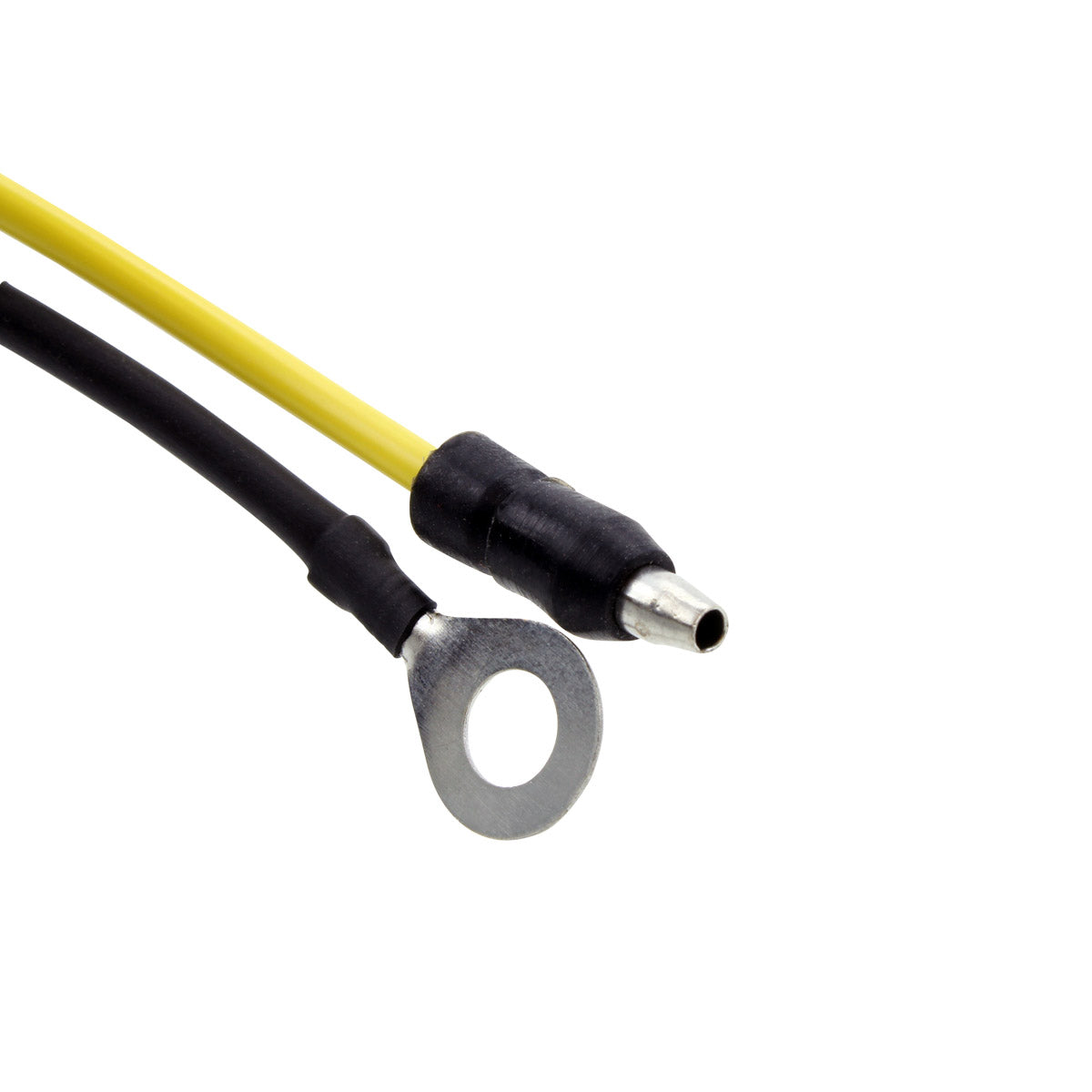

Please note : this regulator has two wires, yellow to power and black to ground.
Specifications
Specifications
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 85 mm
Other specifications:
Number of wires : 8
Number of plugs : 7
Number of pins: 8
Wire to wire resistance:
Alternator : Green to White = 0.2 ohms+/-20%
Pick up : Blue/yellow to Green/red = 250 ohms+/-20%
Source : Black/Red to Brown = 100 ohms+/-20%
Dimensions :
Width : 45 mm
Length : 45 mm
Height: 20 mm
Other specifications :
Number of pins : 2
Minimum Charging Voltage: 13 V +/- 0.5 V
Maximum Charging Current: 6 A - 10 A / 50 W - 200 W
Open Circuit Voltage: <15 V
Operation Temperature: -20? to 85?
Please note : this regulator has two wires, yellow to power and black to ground.
Interchange Part Nº
Interchange Part Nº
-
Stator :
31120-KCY-671 -

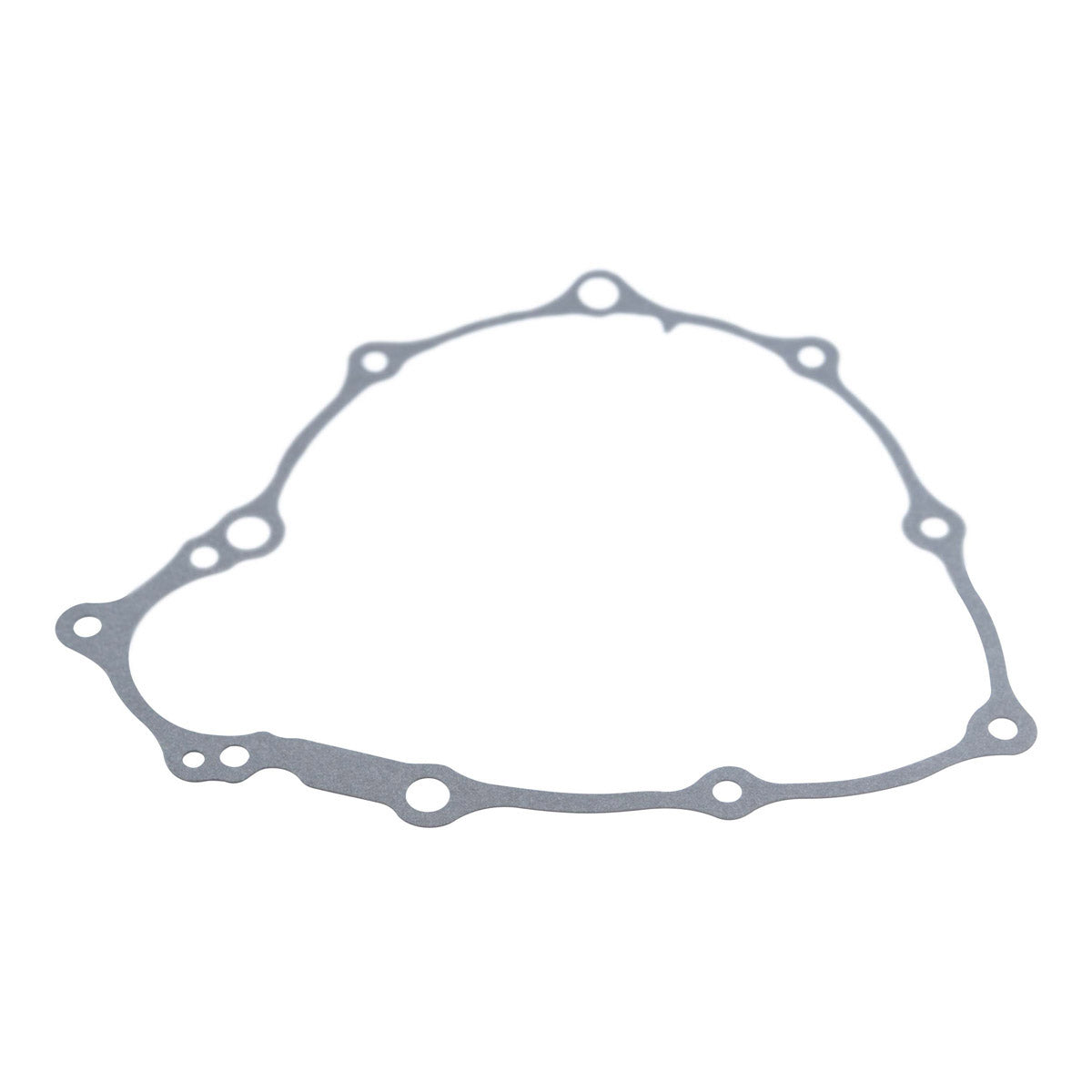

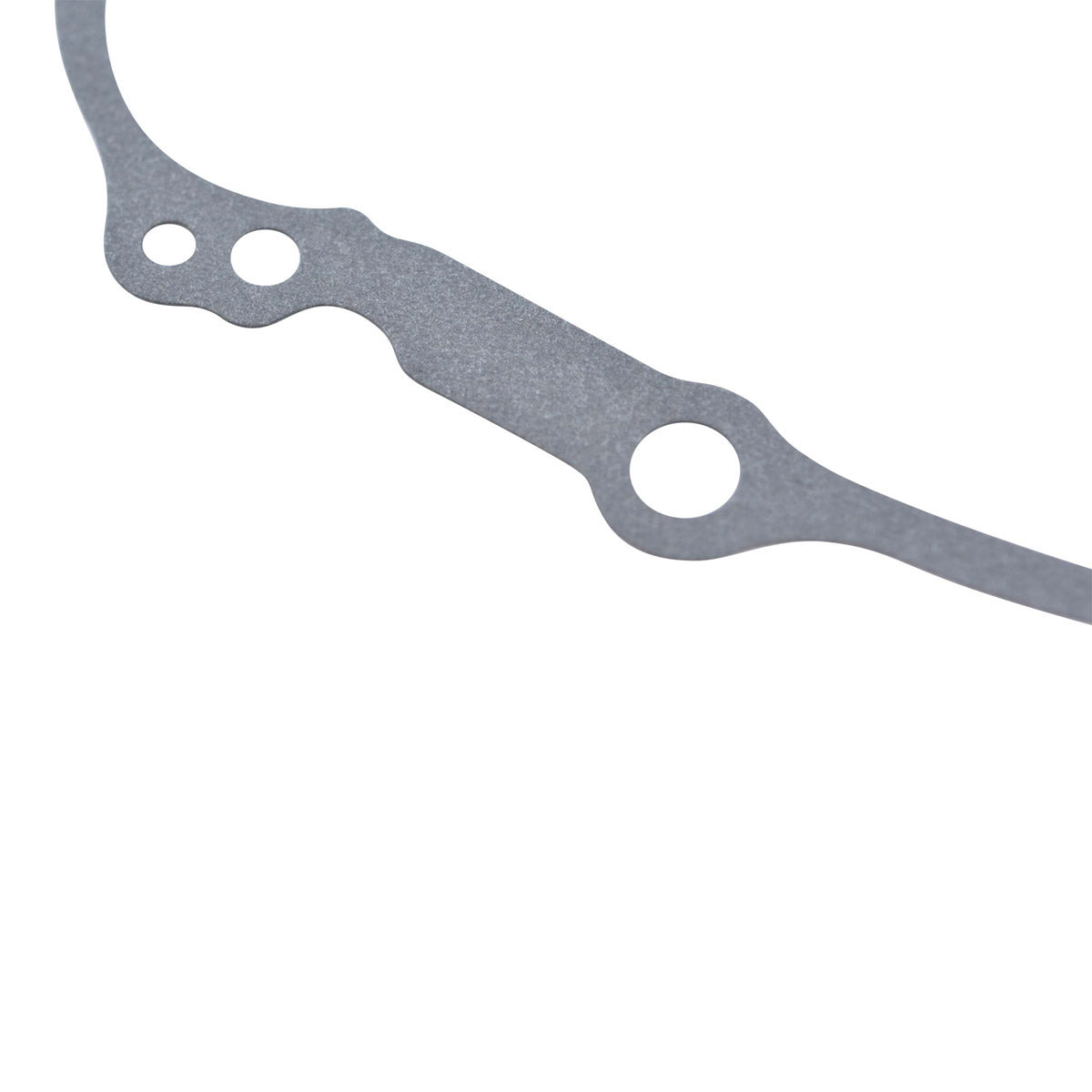

Gasket :
11395-KCY-671 - 11395-KCY-672
Installation
Installation
Download our PDF installation instructions >
Before installing your new Regulator/Rectifier:- Bolt regulator to frame
- Ground Black wire to Frame or Harness Ground
- Connect Yellow Wire to AC Output lead of the stator
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Vehicle Fitments
Vehicle Fitments
Vehicle Fitments
