Dimensions :
Interior diameter : 53 mm
Exterior diameter : 125 mm
Thickness : 26 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 290 mm and 550 mm

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Number of poles : 18

Wire to wire resistance :
Alternator Yellow / Black to Yellow / Black : = 0.5 ohms +-20%

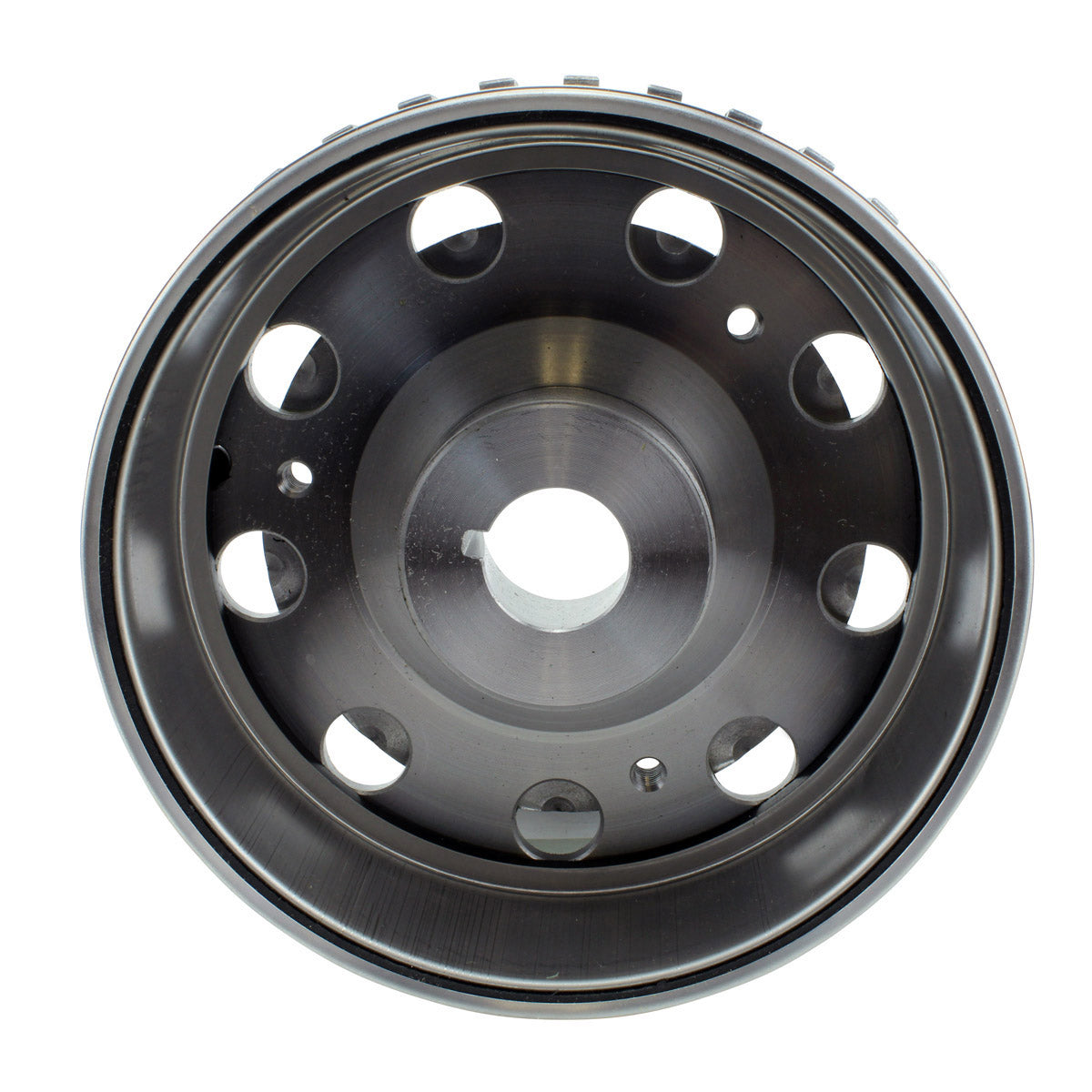

Dimensions:
Exterior Diameter: 140.6 mm
Interior Diameter: 127.8 mm
Interior Diameter Center Housing: 22.4 mm
Exterior Diameter Center Housing: 50 mm

Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

Dimensions:
Height: 87 mm
Length: 71 mm
Width: 26 mm
Wires length: 220 mm

Other specifications:
Number of plugs: 4
Number of pins: 7

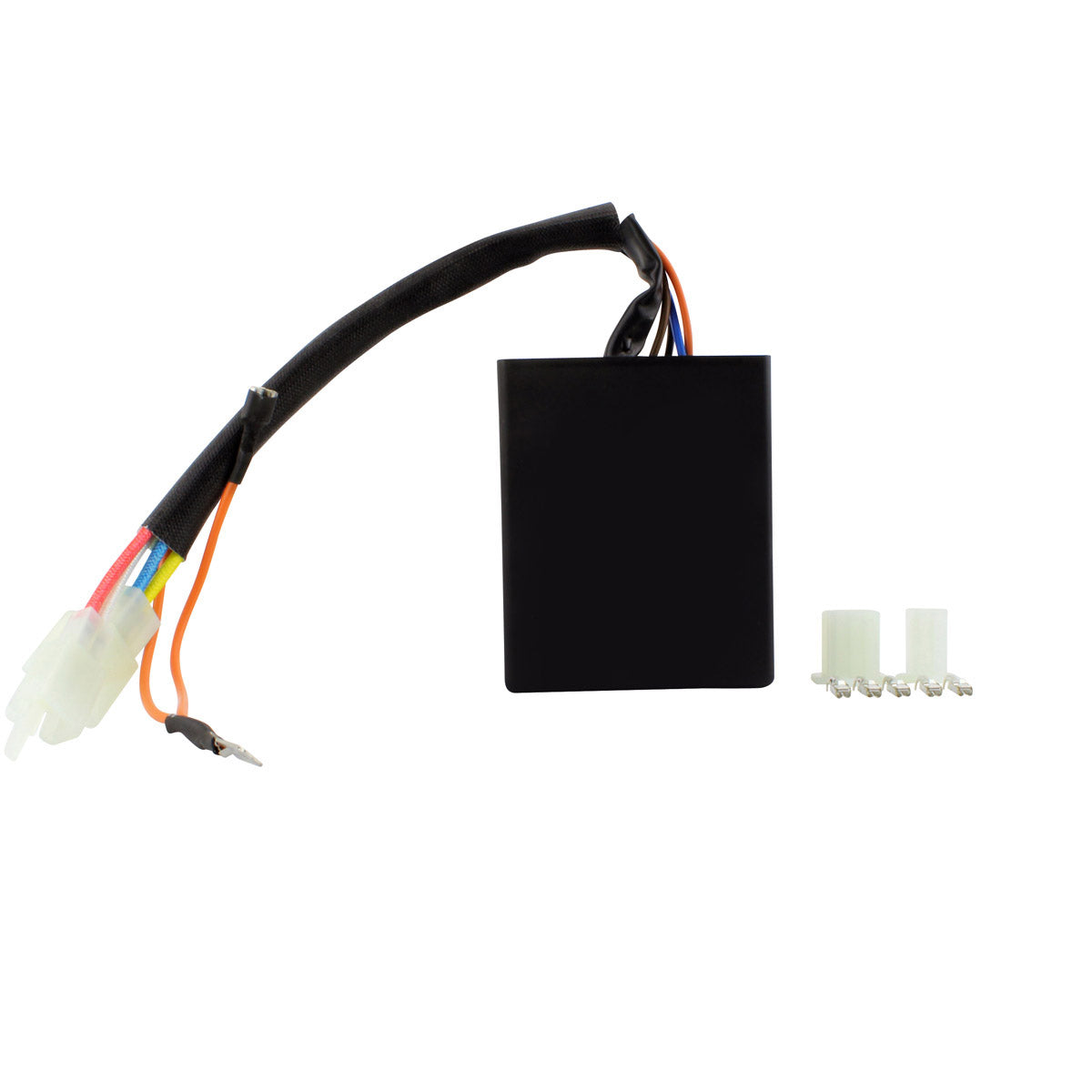

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

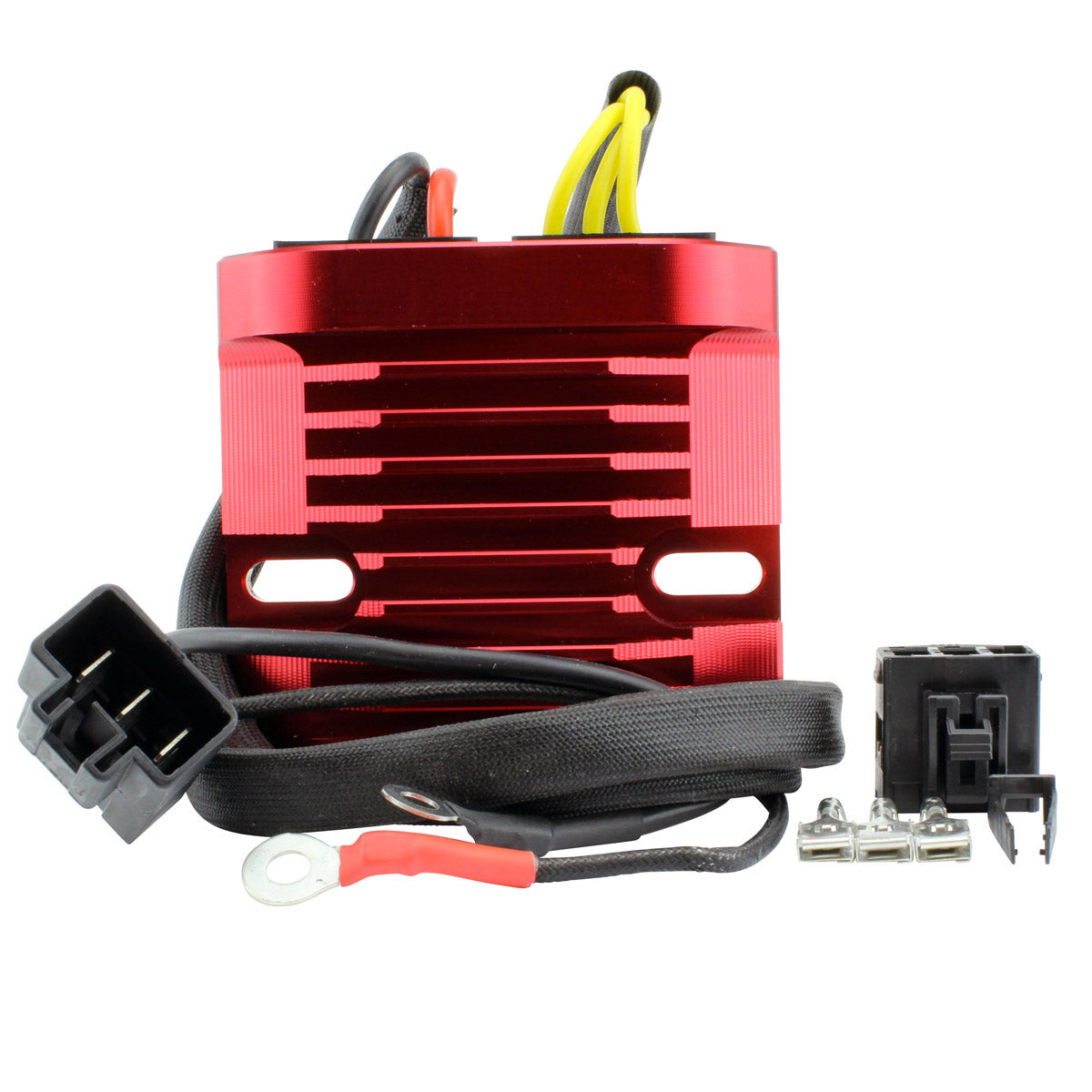

Dimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 811 mm & 350 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

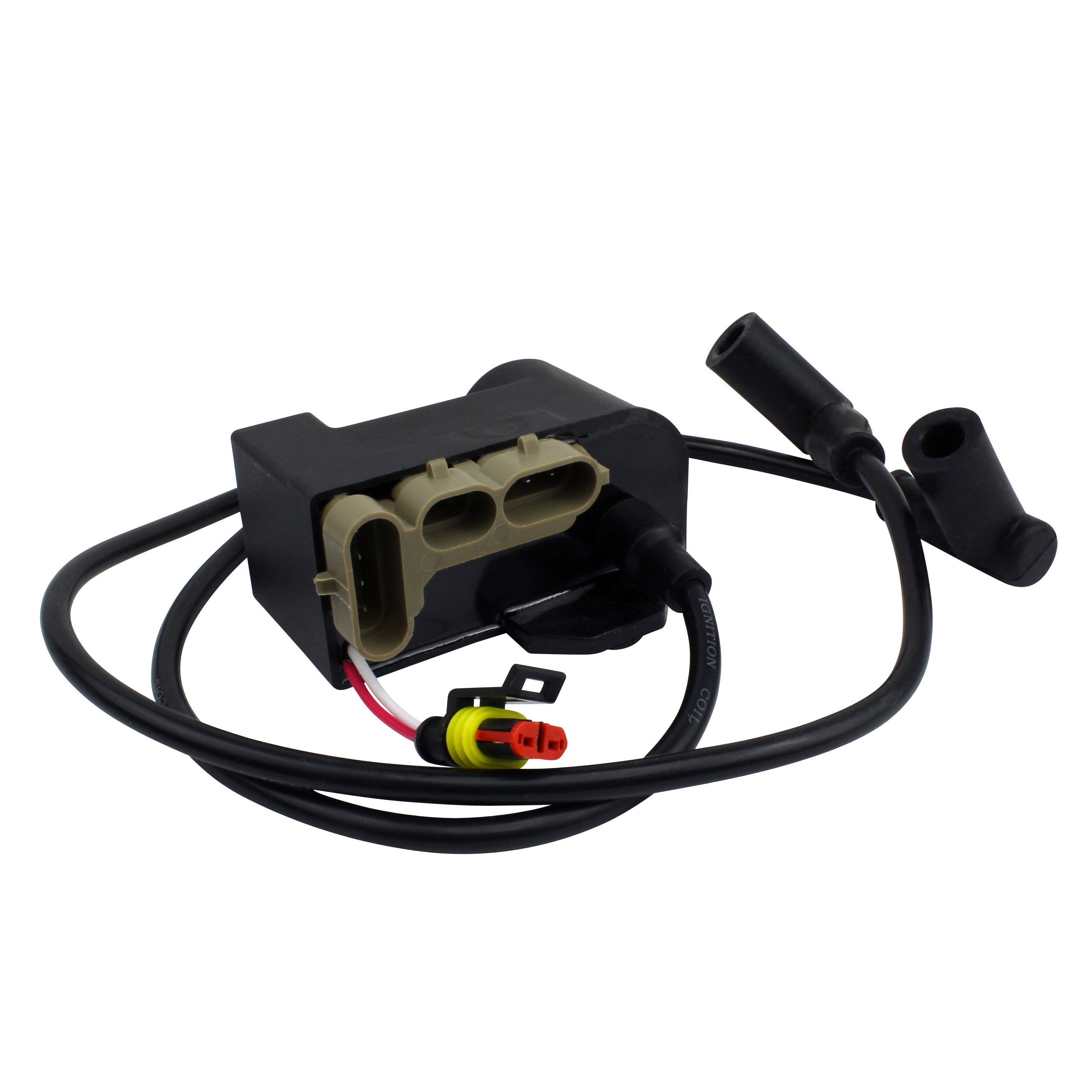

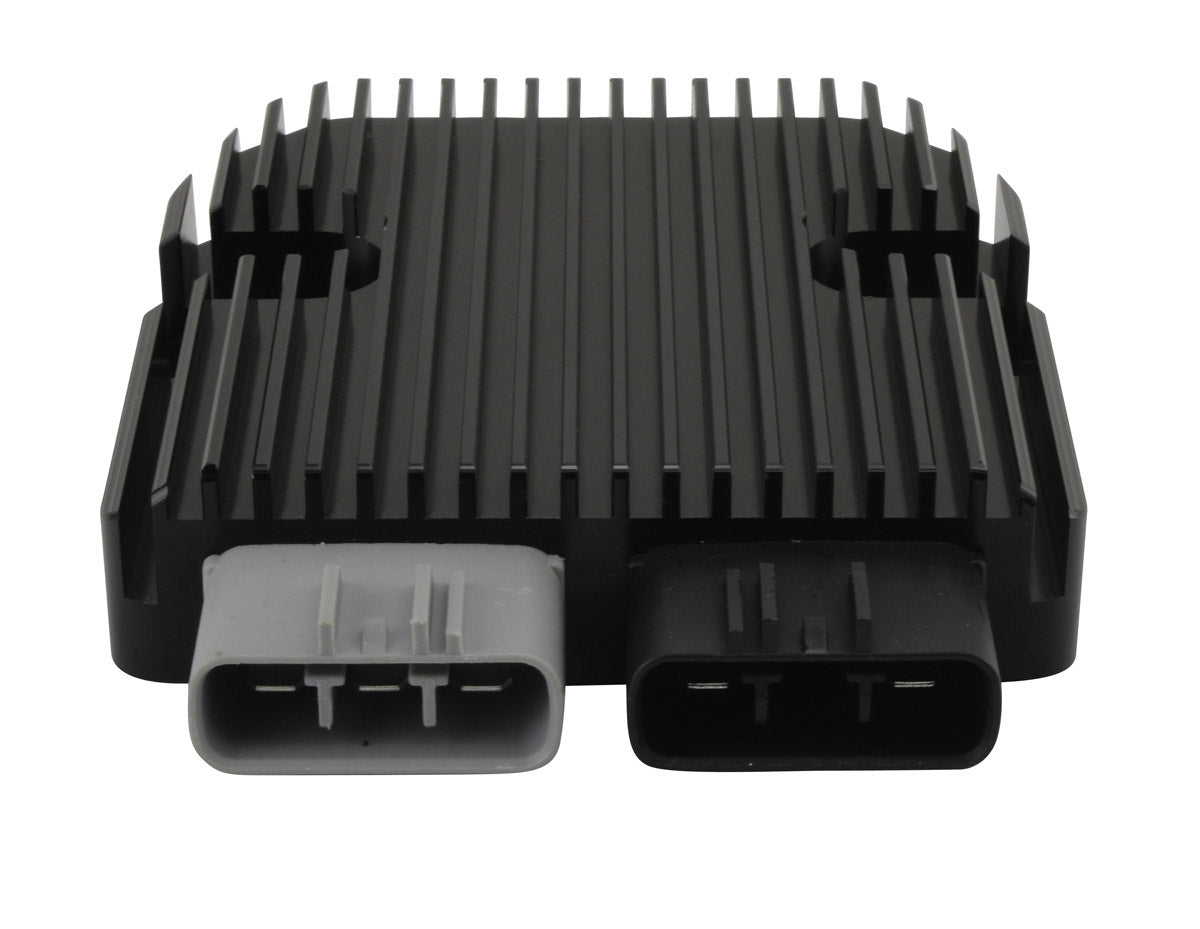

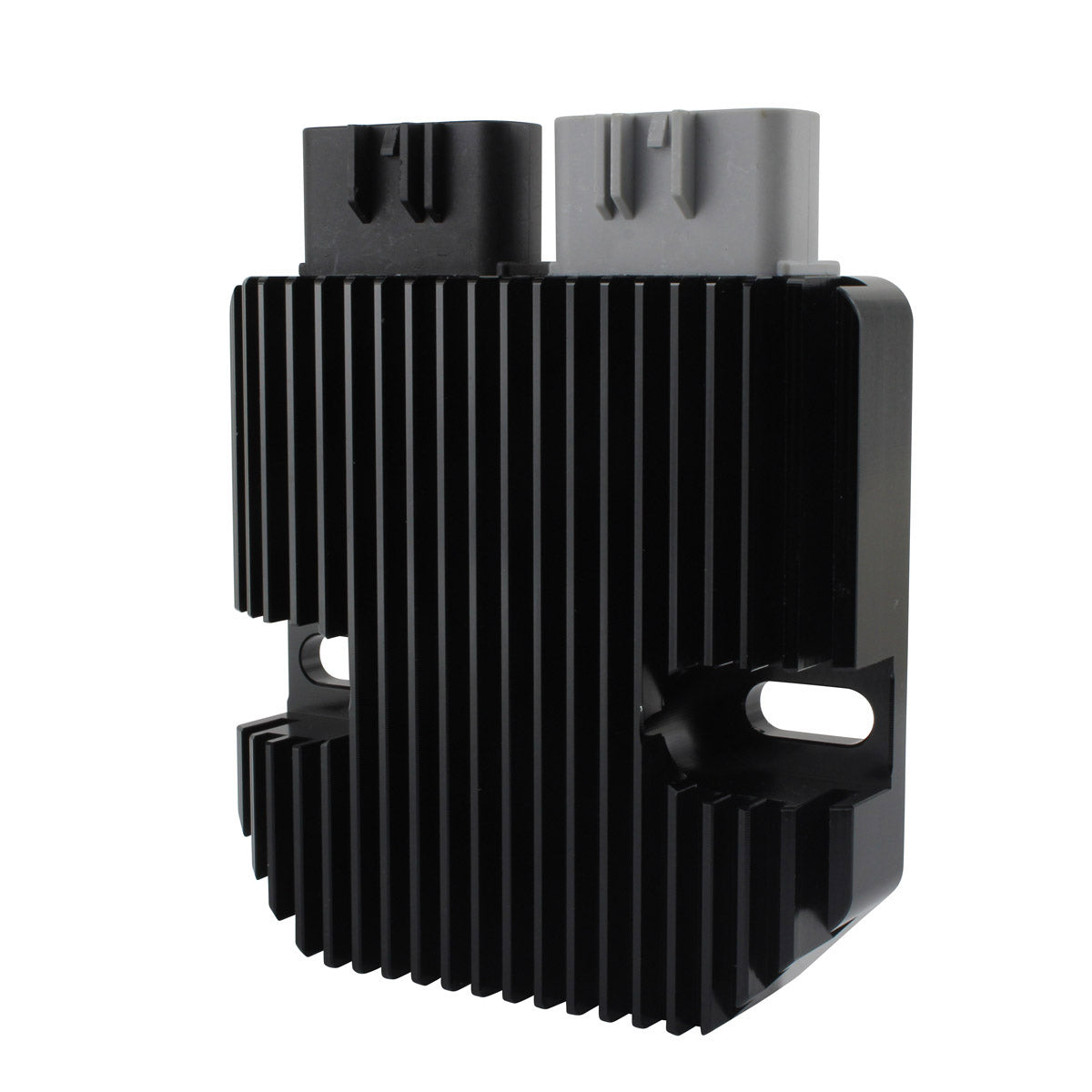

Dimensions:
Width: 93 mm
Length: 134 mm
Height: 50 mm
Wires length: 55 mm

Other specifications:
Number of plugs: 4
Number of pins: 16
Number of wires: 12

Dimensions of CDI Box Ignition Coil Calibrated Module:
Height: 49 mm
Length: 95 mm
Width: 88 mm
Fixation holes center to center: 72 mm

Other specifications:
Number of plugs: 4
Number of pins: 7

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

Dimensions of Spark Plug Caps:
Length: 52 mm
Height: 47 mm
External diameter (plug): 20 mm
Internal diameter (plug): 11 mm
External diameter (wire): 15 mm
Internal diameter (wire): 7 mm
Cap resistance: 6.0K ohms

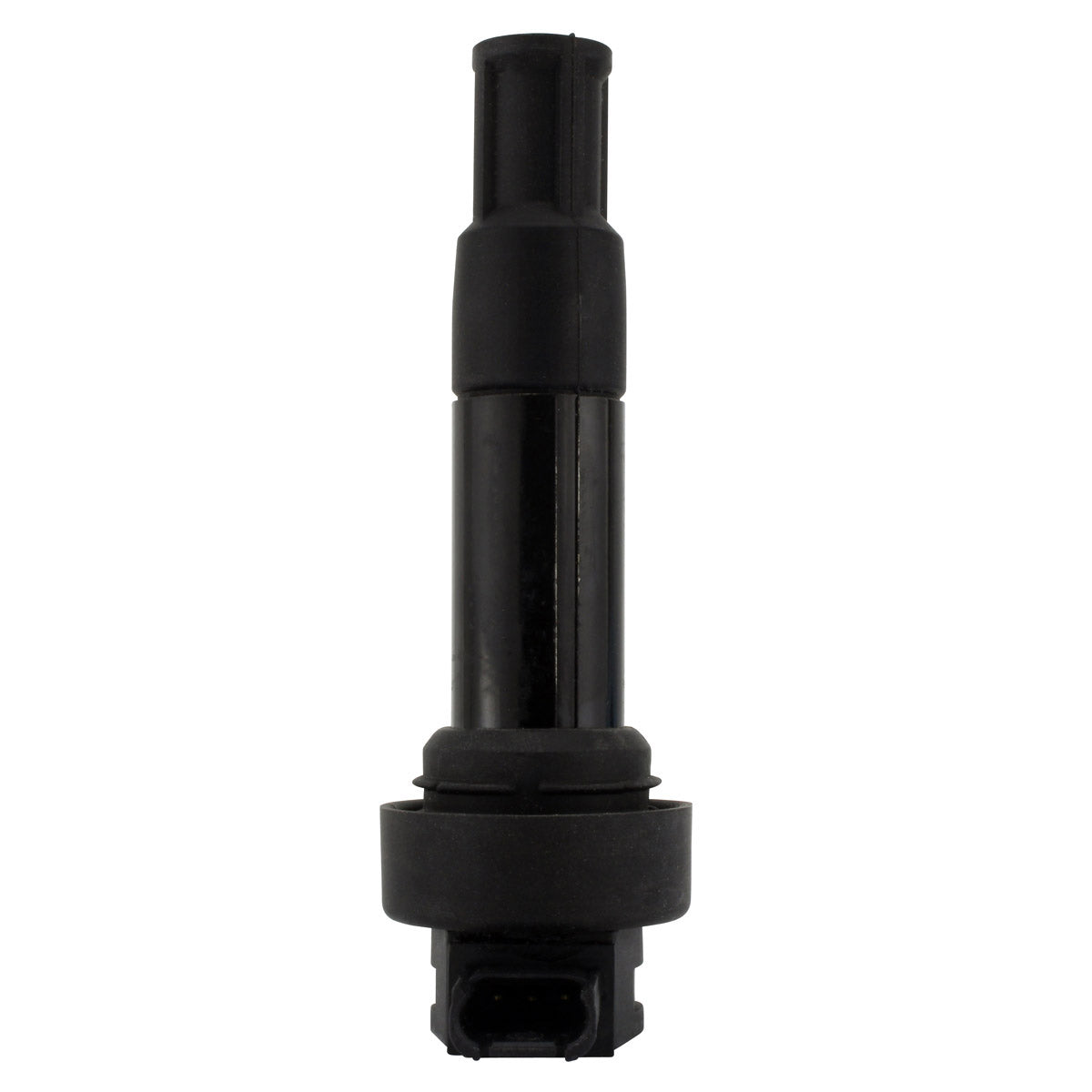

Dimensions:
Internal tube diameter: 8 mm
Length: 120 mm
Seal: 41 x 39 mm

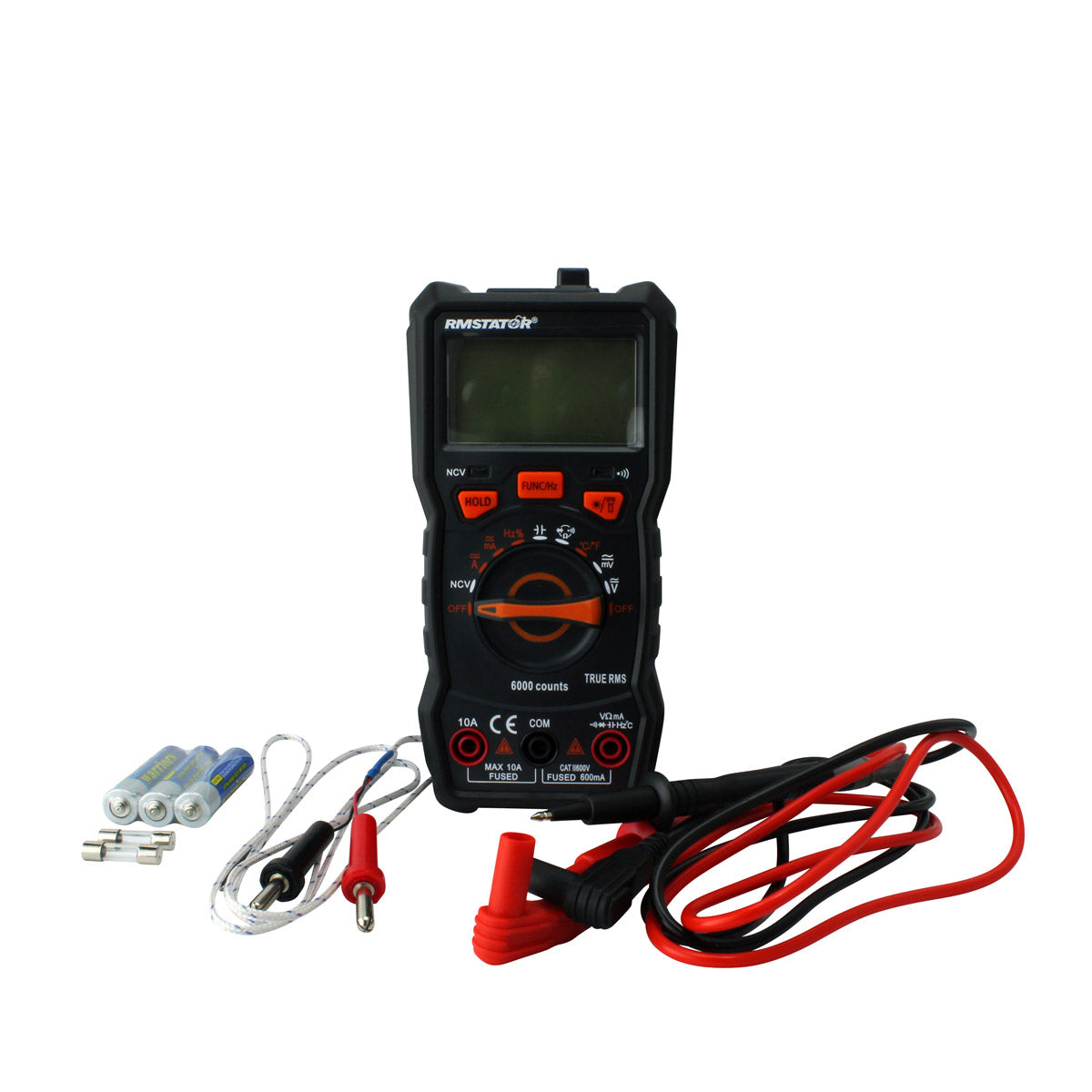

Other specifications:
Number of plugs: 1
Number of terminals: 3

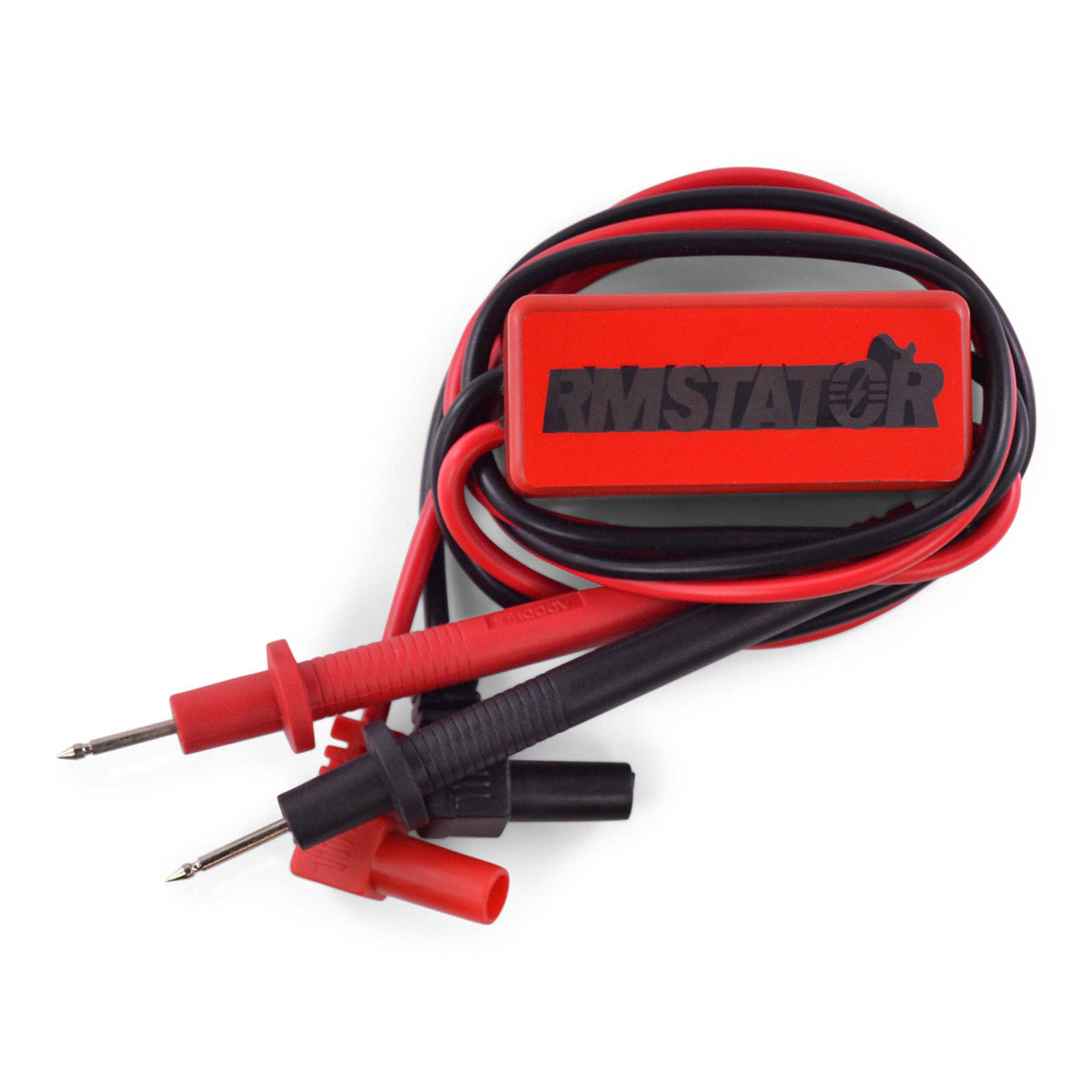

Maximum Voltage (terminals to ground): 600 V
Fuse Protection: 200 A / 250 V
Wires length: 700 mm

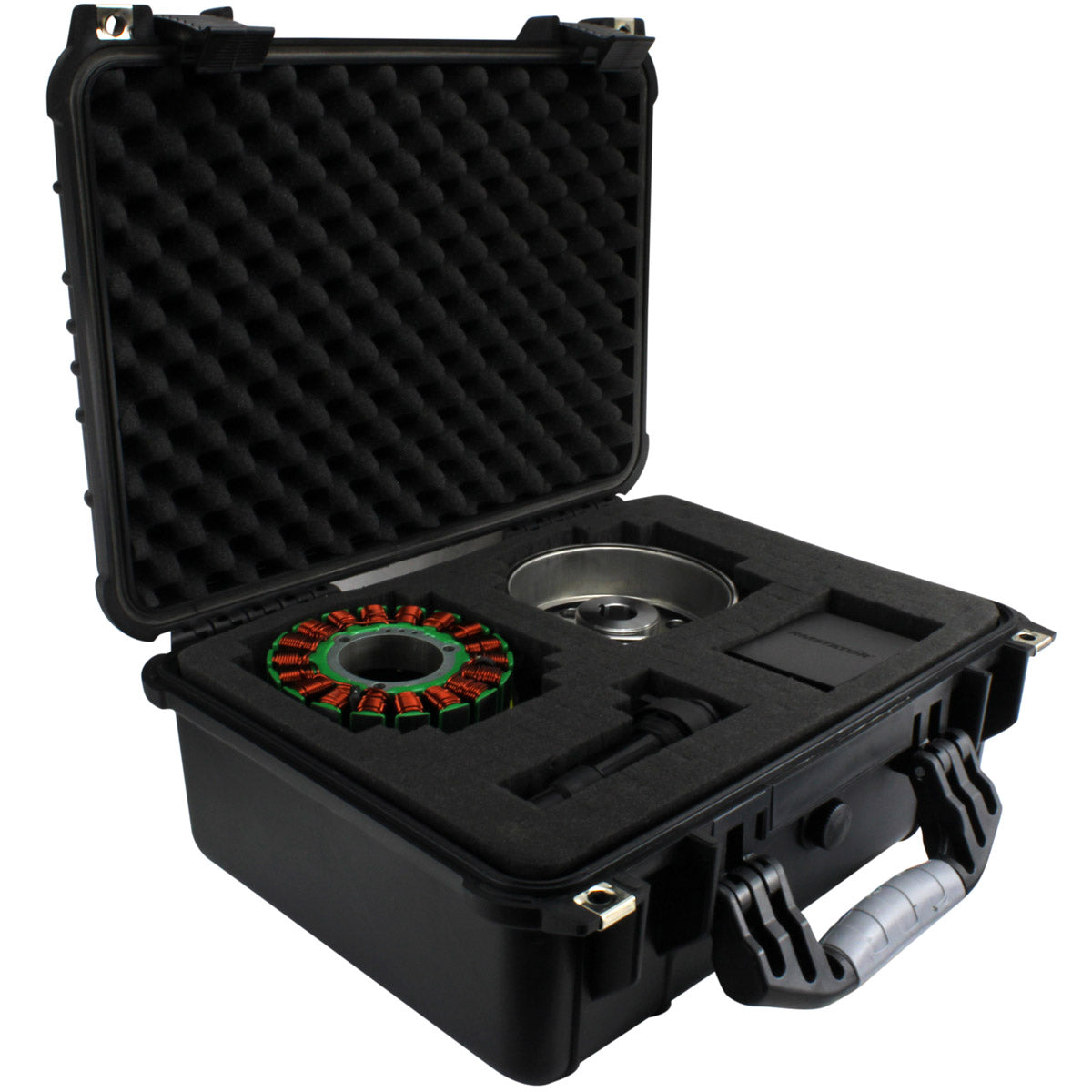

Height: 130 mm
Length: 160 mm
Width: 60 mm
