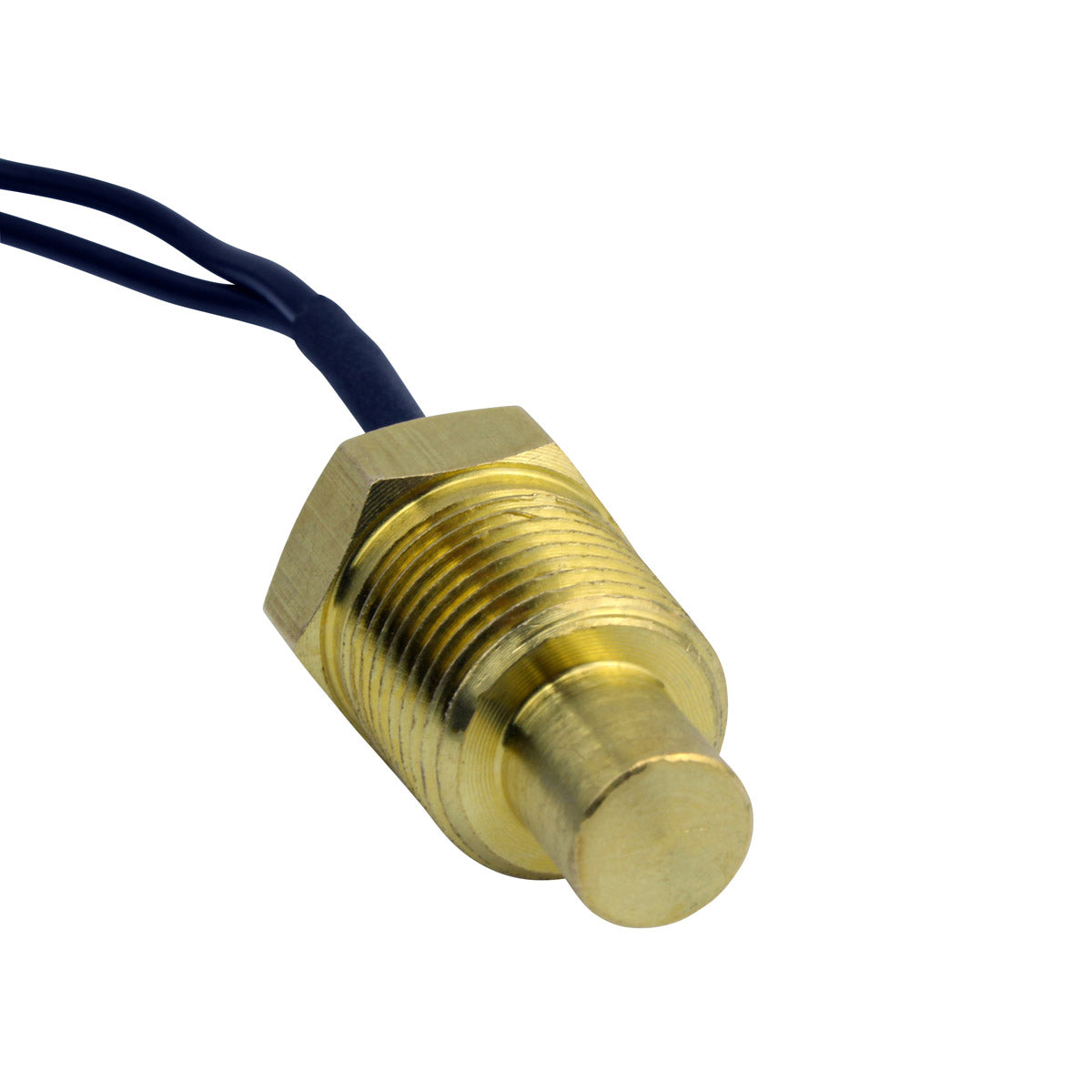

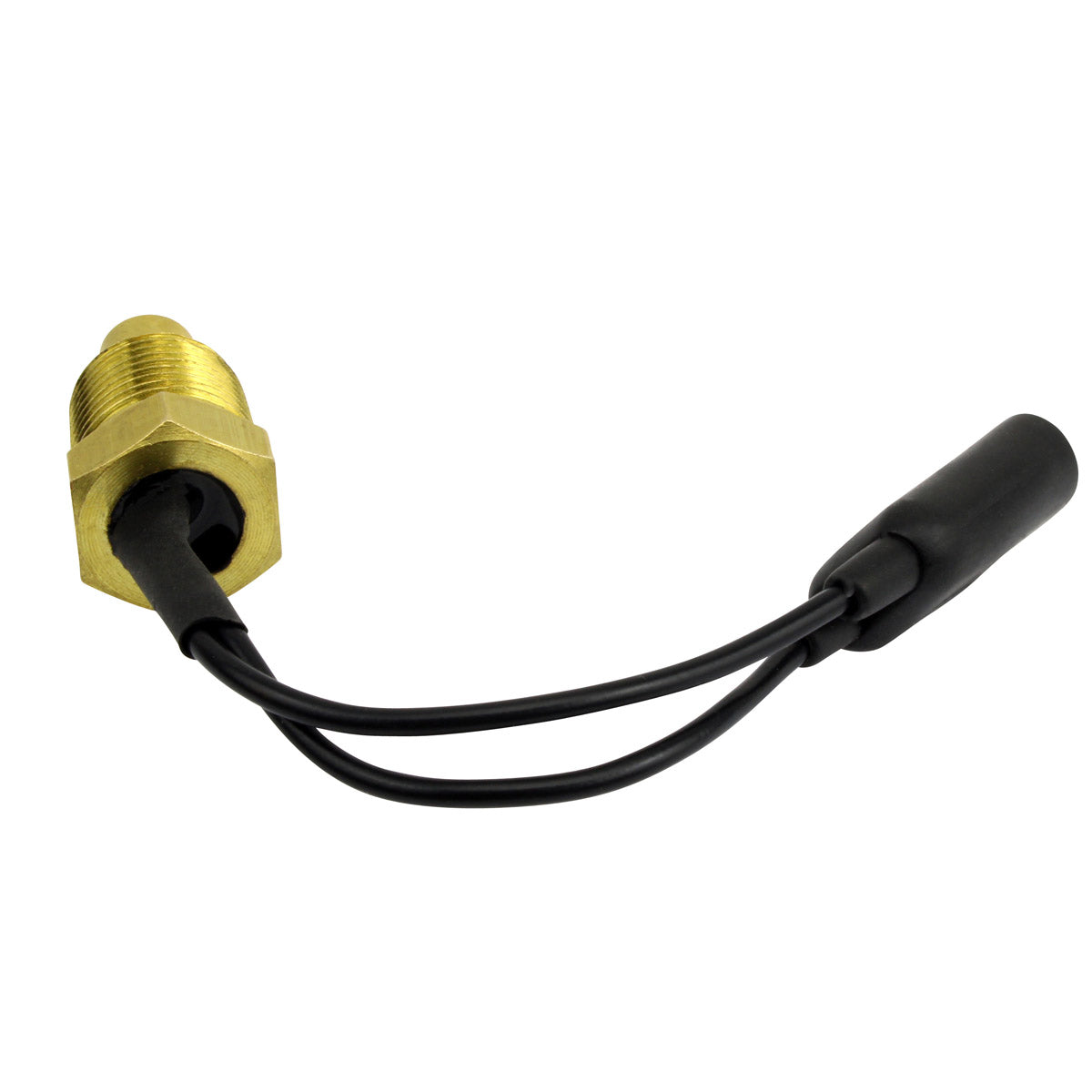

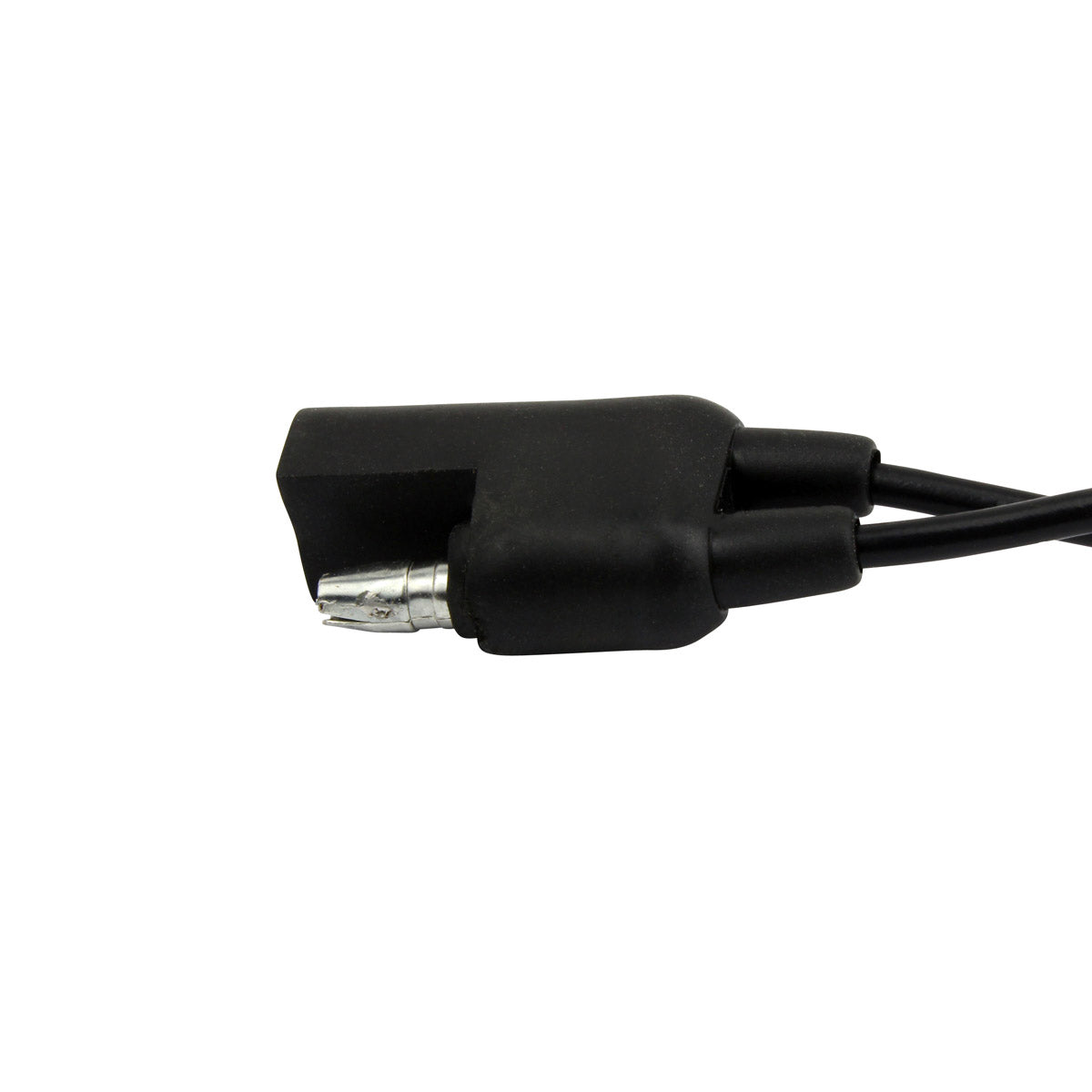

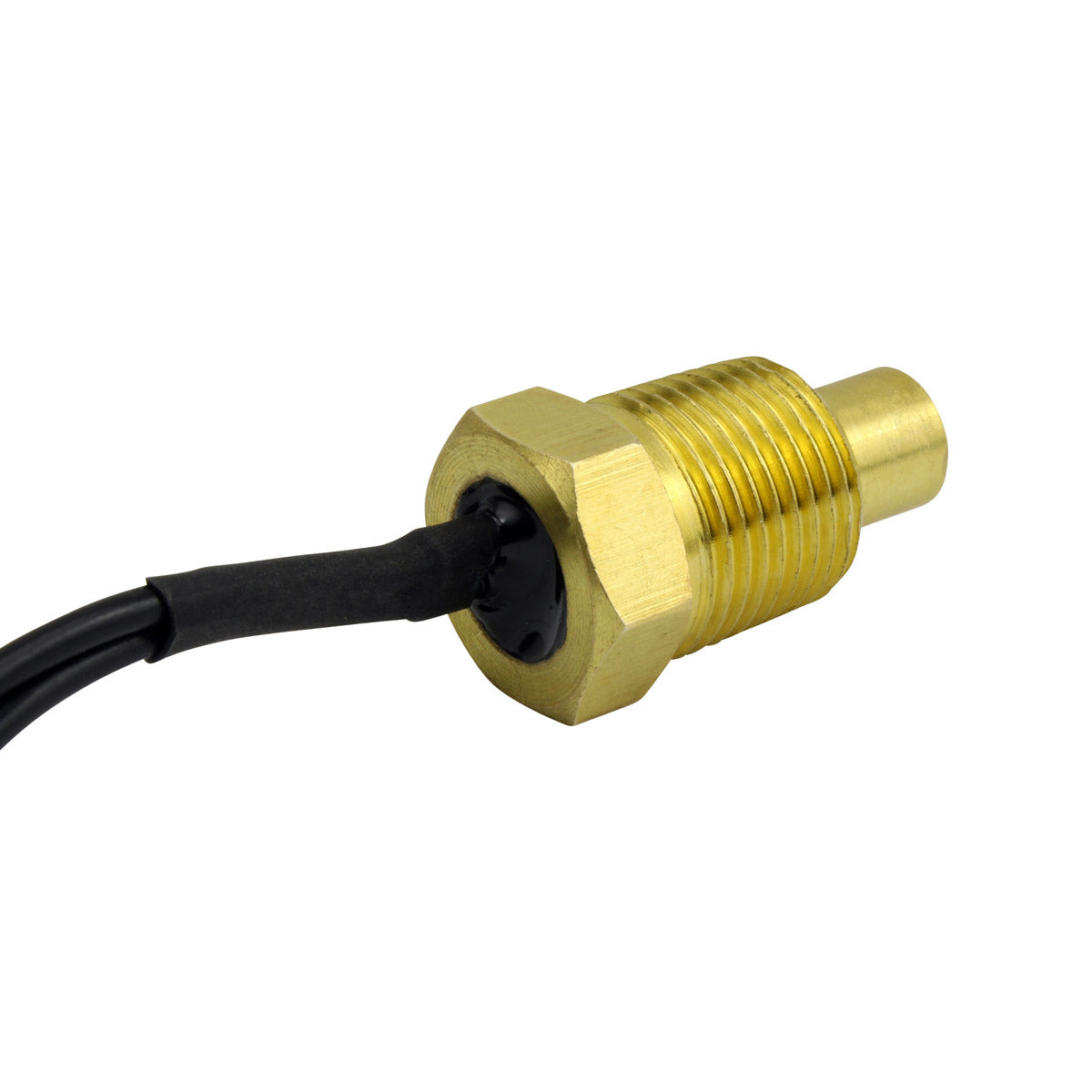

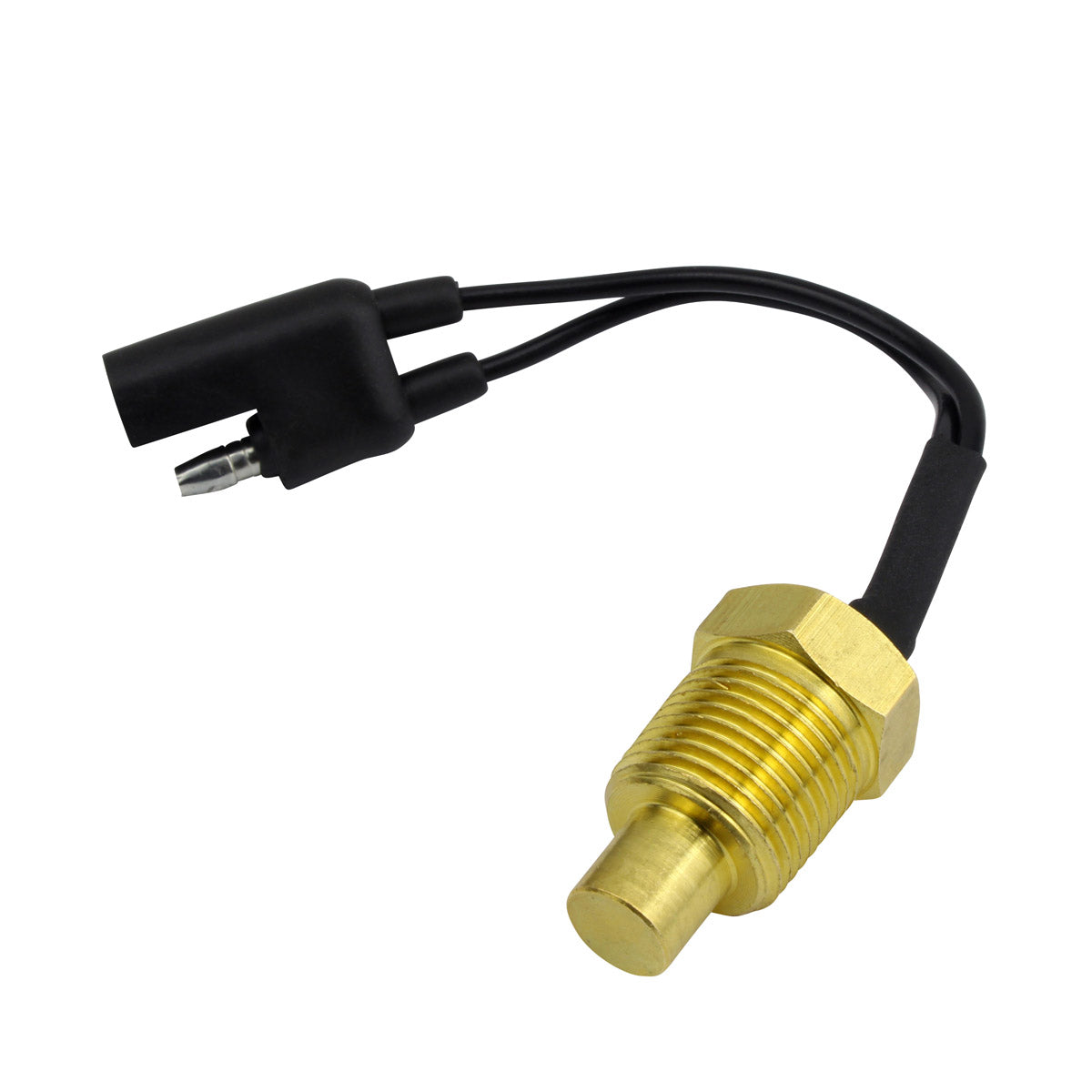

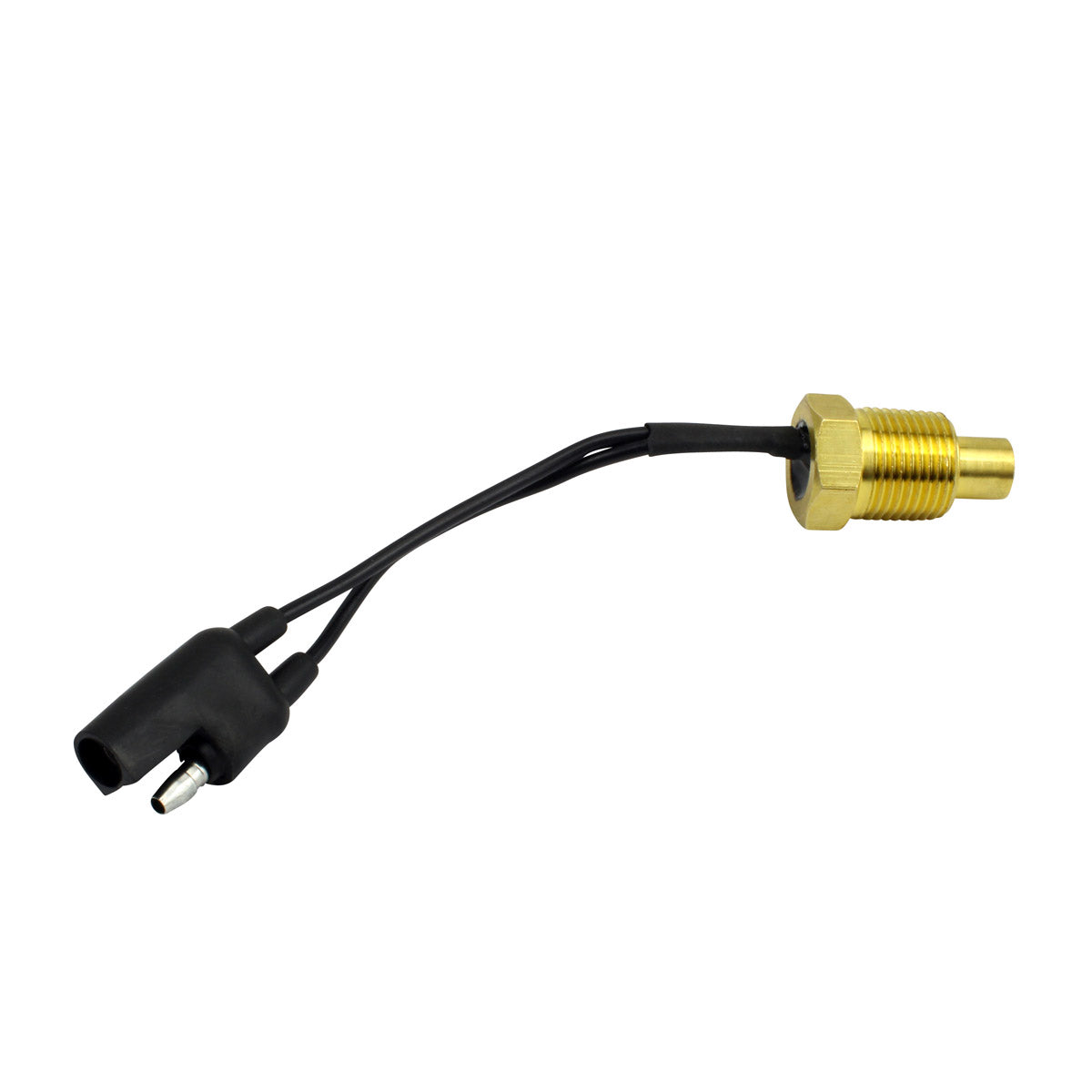

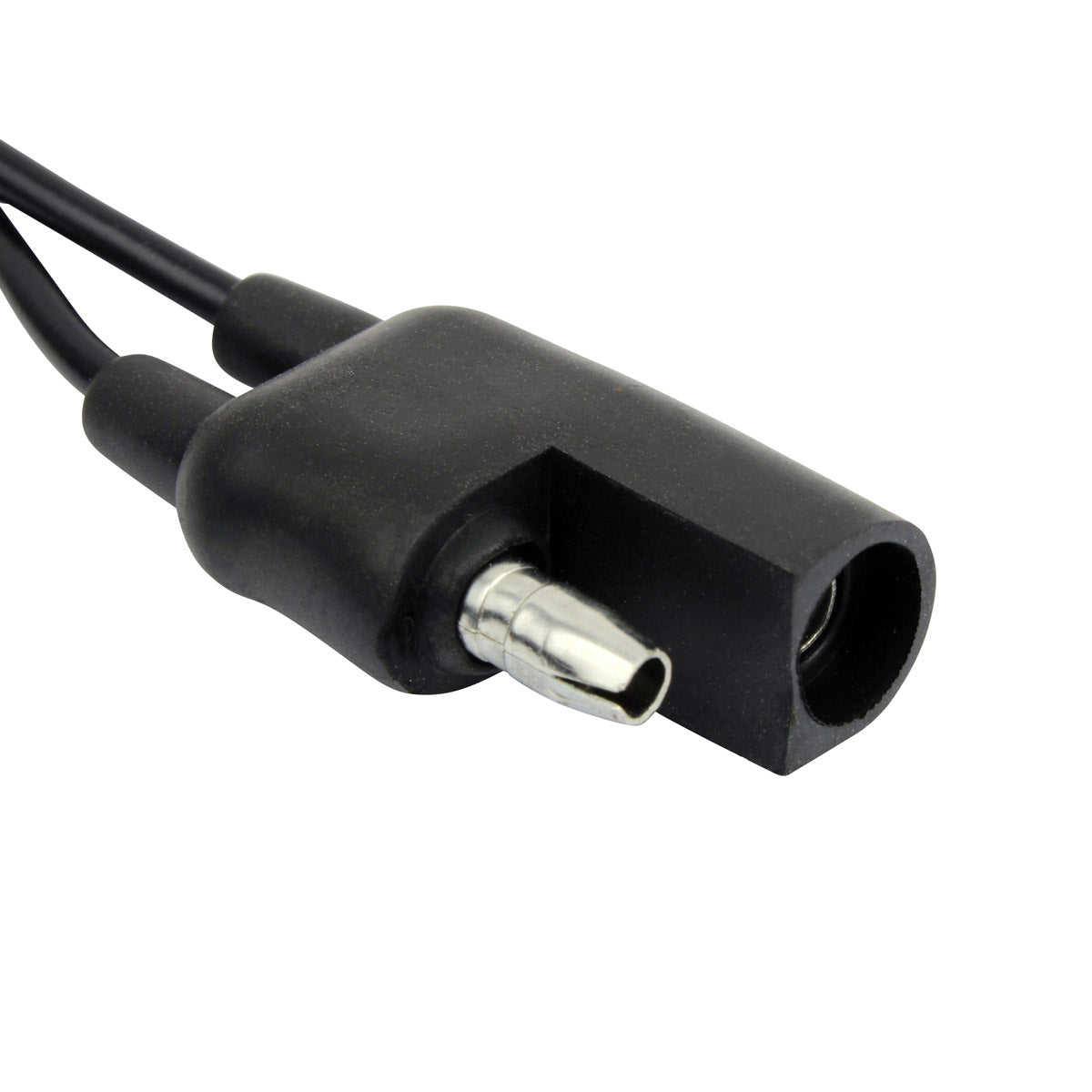

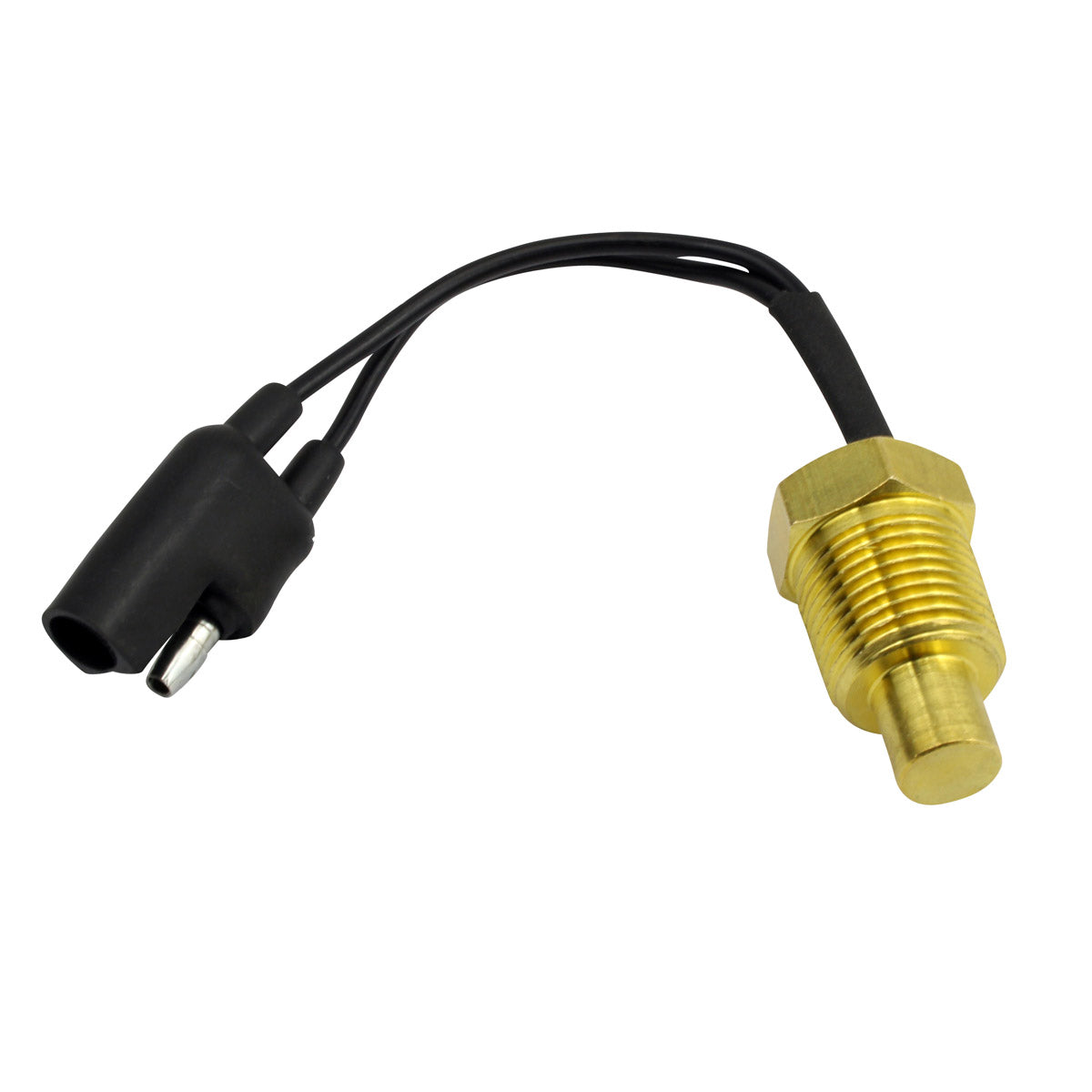

Water Temperature Sensor for Polaris 500 800 XC SP Edge Carb | 600 700 RMK / Classic 2001-2007 | 120 Pro R 2012 4010398
Water Temperature Sensor for Polaris 500 800 XC SP Edge Carb | 600 700 RMK / Classic 2001-2007 | 120 Pro R 2012 4010398
Water temperature sensors work with the vehicle's computer system to measure/monitor engine temperature including oil/coolant.
If these sensors fail, a warning light will usually show up on the machine, this could lead to overheating or improper running conditions if not replaced.

Details
Details
Brand new aftermarket water temperature sensor
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 17 mm
Length: 32.5 mm
Height: 9.5 mm
Thread Diameter: 17 mm
Thread Length: 15 mm
Nut Diameter: 17.5 mm
Other specifications:
Number of plugs: 1
Number of terminals: 2
Wires length: 100 mm
Low Temp Resistance: 2k ohms
Interchange Part Nº
Interchange Part Nº
- 4010614
- 4010251
- 4010398
Installation
Installation
Direct replacement to your original unit
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Vehicle Fitments
Vehicle Fitments
