Pillar Type Electronic Ignition Conversion 1 ohm Dual Lead 6 Volts Ignition Coil for Honda Kawasaki Suzuki Yamaha

Pillar Type Electronic Ignition Conversion 1 ohm Dual Lead 6 Volts Ignition Coil for Honda Kawasaki Suzuki Yamaha

Name: Pillar Type Electronic Ignition Conversion 1 ohm Dual Lead 6 Volts Ignition Coil for Honda Kawasaki Suzuki Yamaha
Brand: RMSTATOR
SKU: RMS060-104477
Price: 35.79 USD
Availability: InStock

RMSTATOR

SKU: RMS060-104477

In Stock

RMSTATOR

Pillar Type Electronic Ignition Conversion 1 ohm Dual Lead 6 Volts Ignition Coil for Honda Kawasaki Suzuki Yamaha

$35.79

This product is a universal fit

Shop By Vehicle

In some circumstances you may need to modify the way the coil is mounted to the motorcyle.

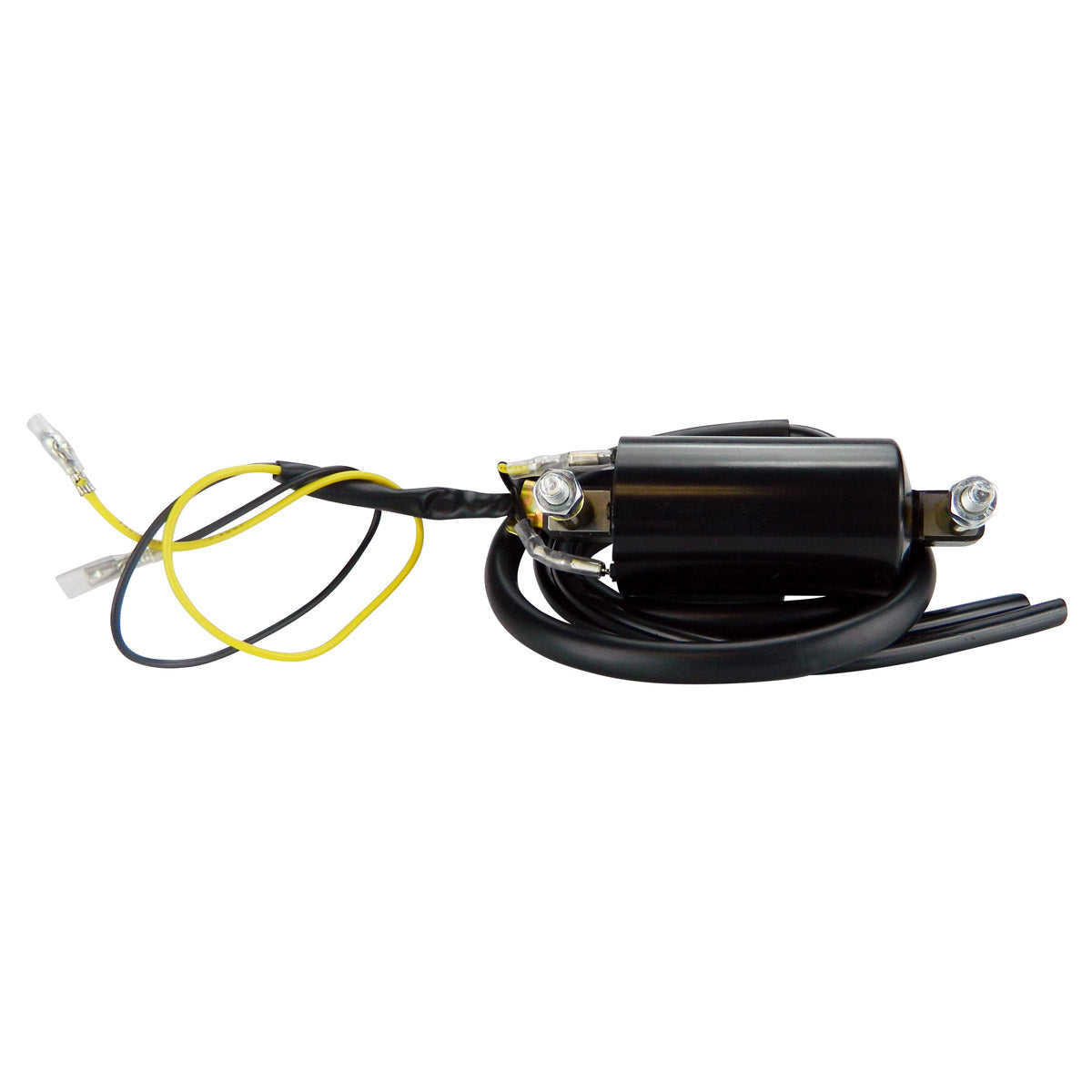

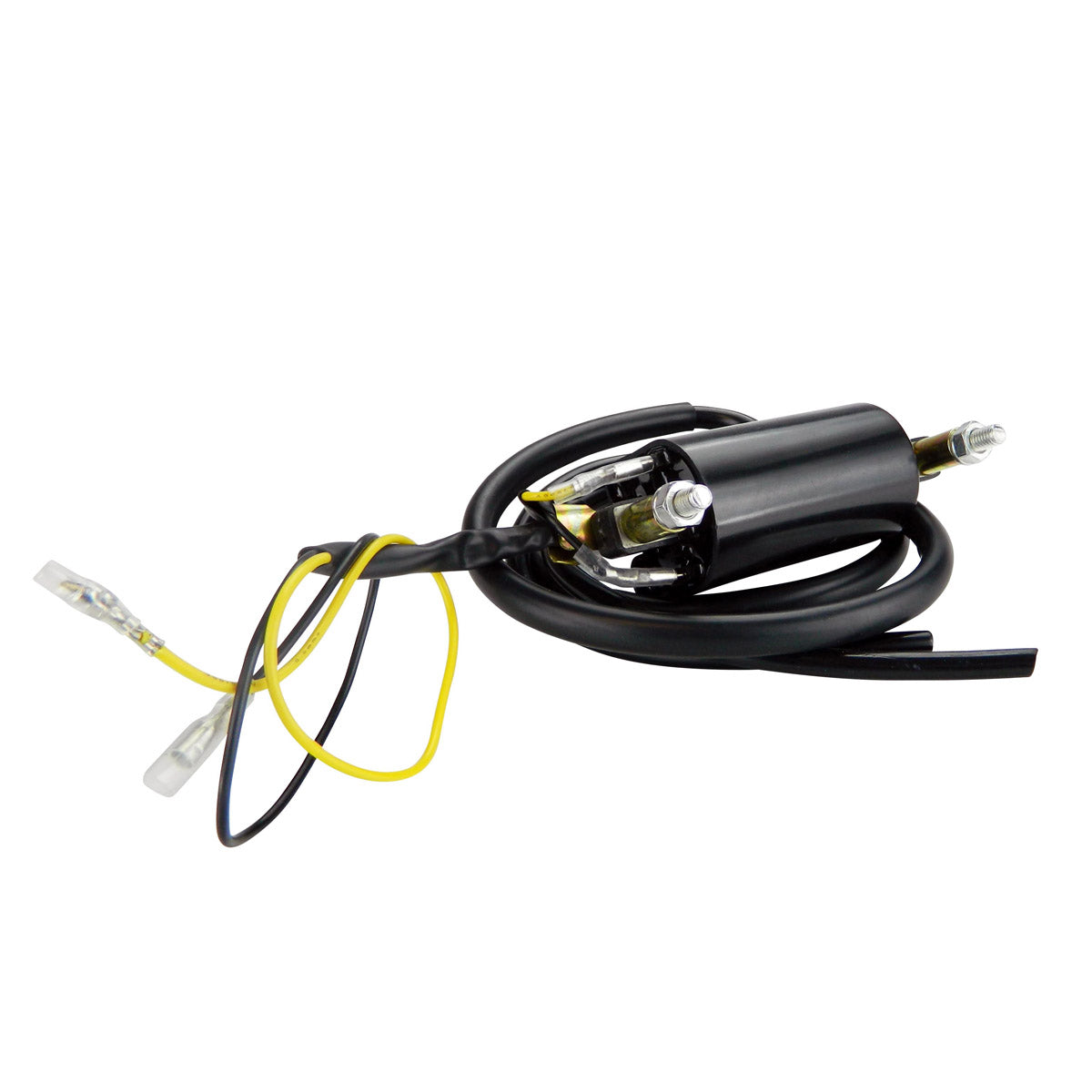

Brand New Aftermarket 6 Volts External Ignition Coil

Pillar Type Electronic Ignition Conversion
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Width: 50 mm
Length: 100 mm
Height: 45 mm
Wires length: 450 mm

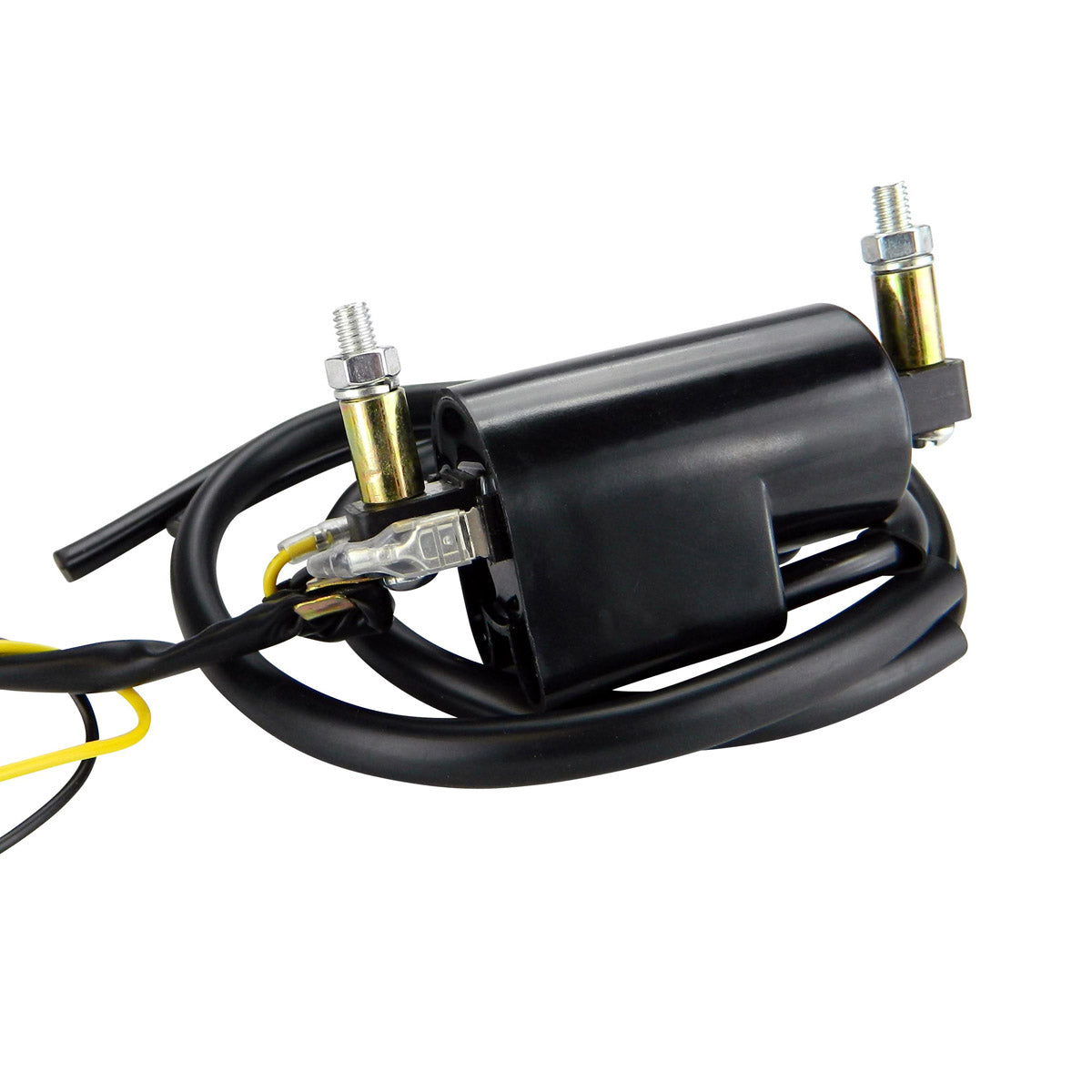

Fixation mount center to center: 90 mm
Resistance: 1.5 ohms

Interchange Part Nº

Installation

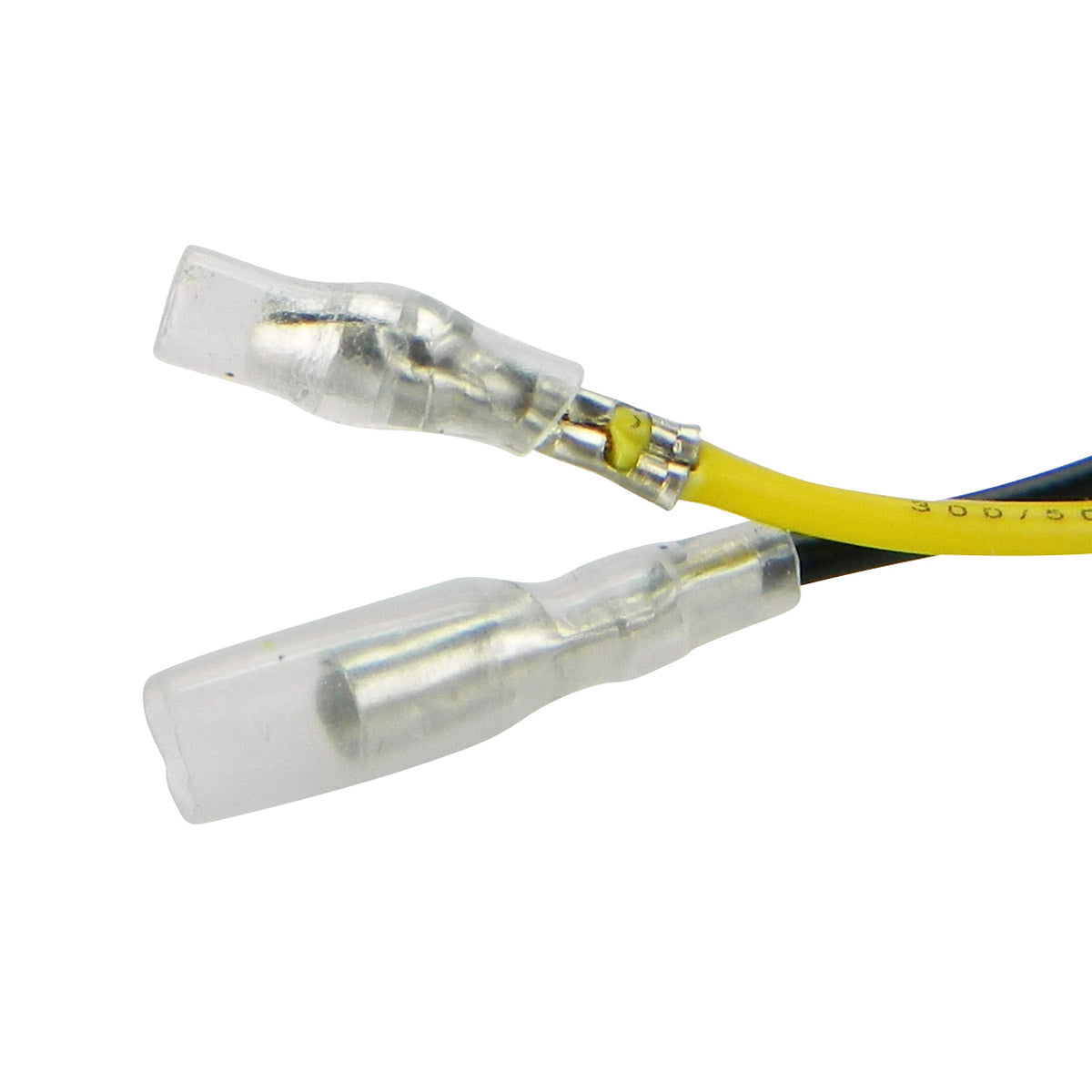

Remove the yellow wire from the external ignition coil, if it is not applicable to your model.

The Yellow (+) on the coil connects to Black/White (Ignition / kill switch) on the bike, and the black (-) on the coil connects to the Blue (condenser / points wire) on the motorcycle.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
