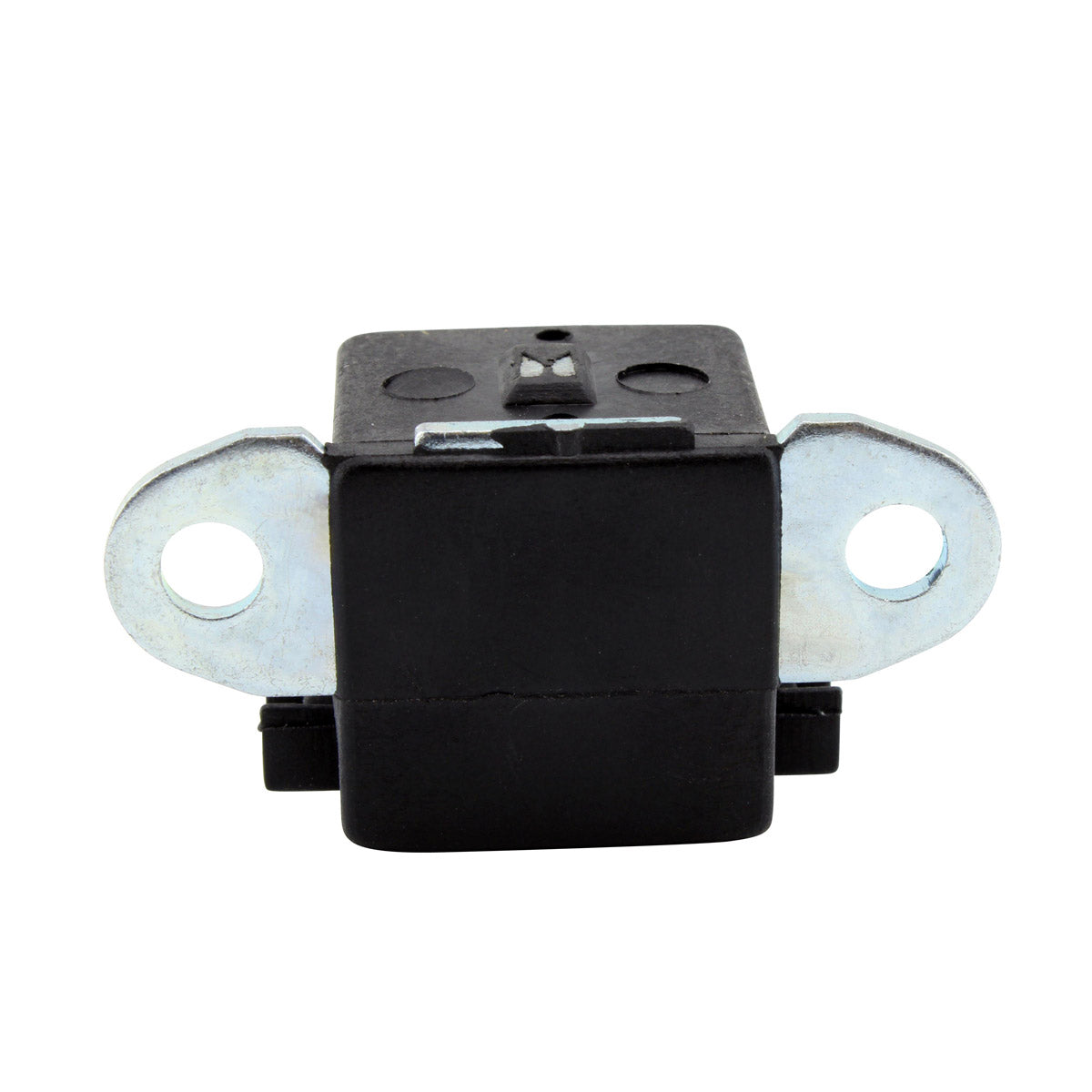

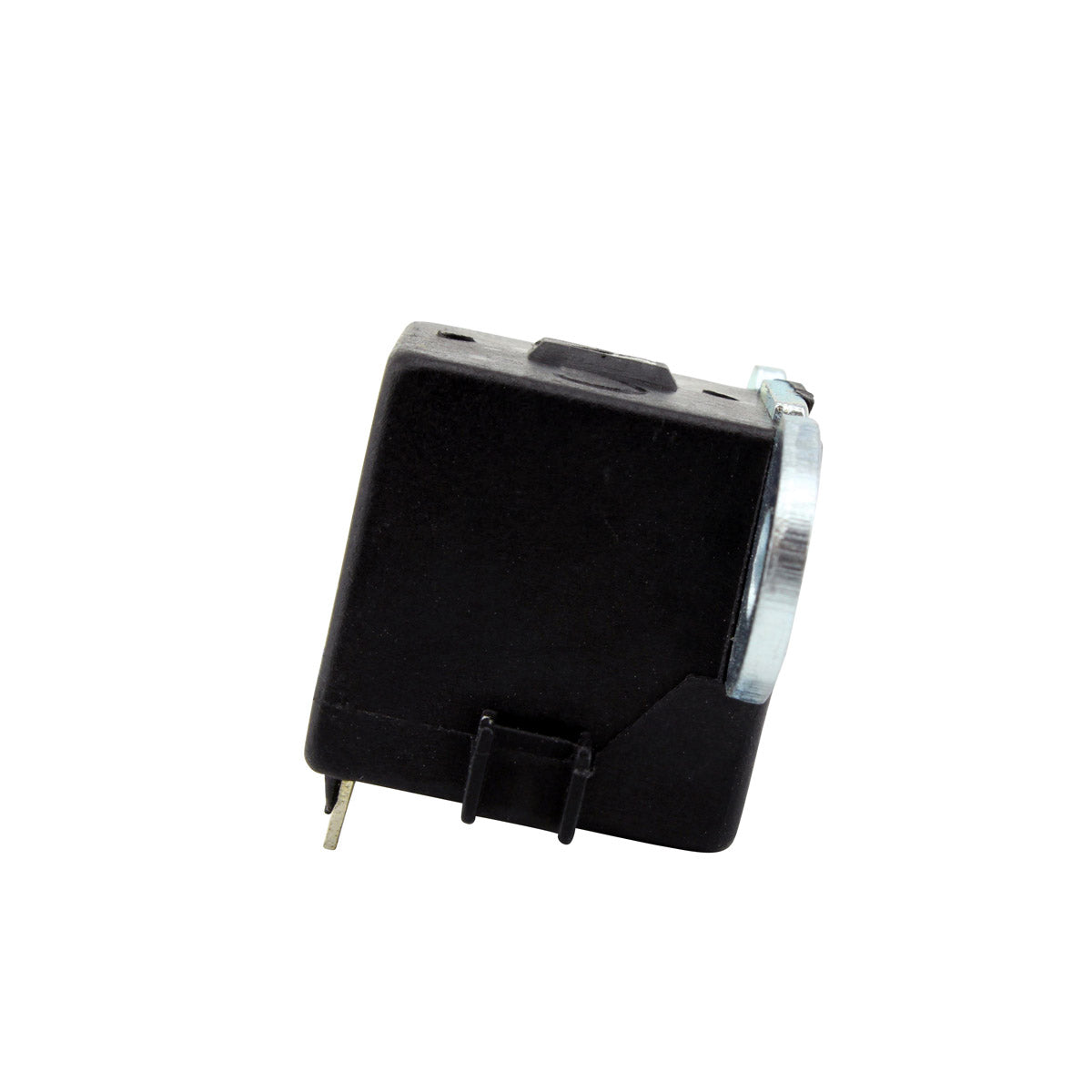

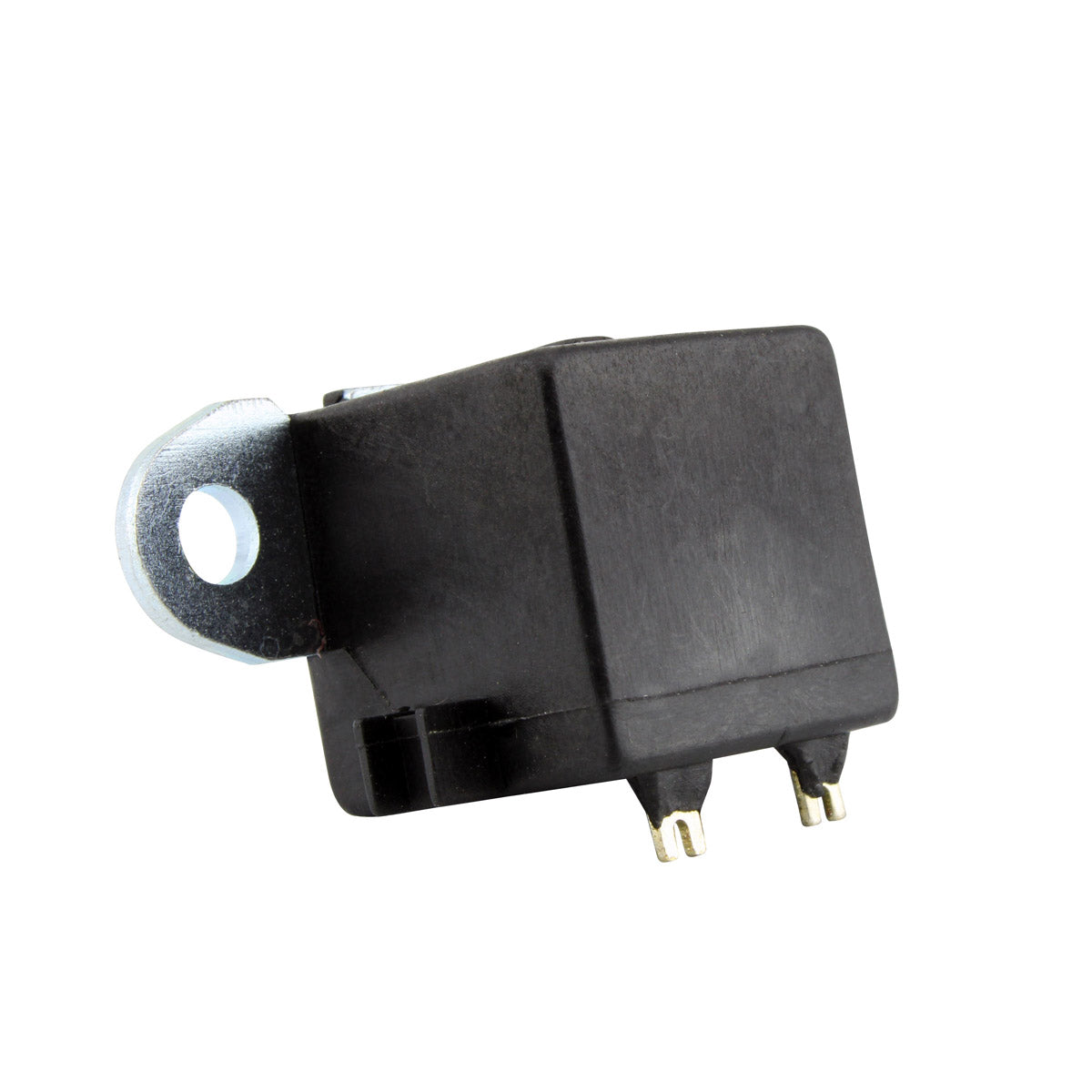

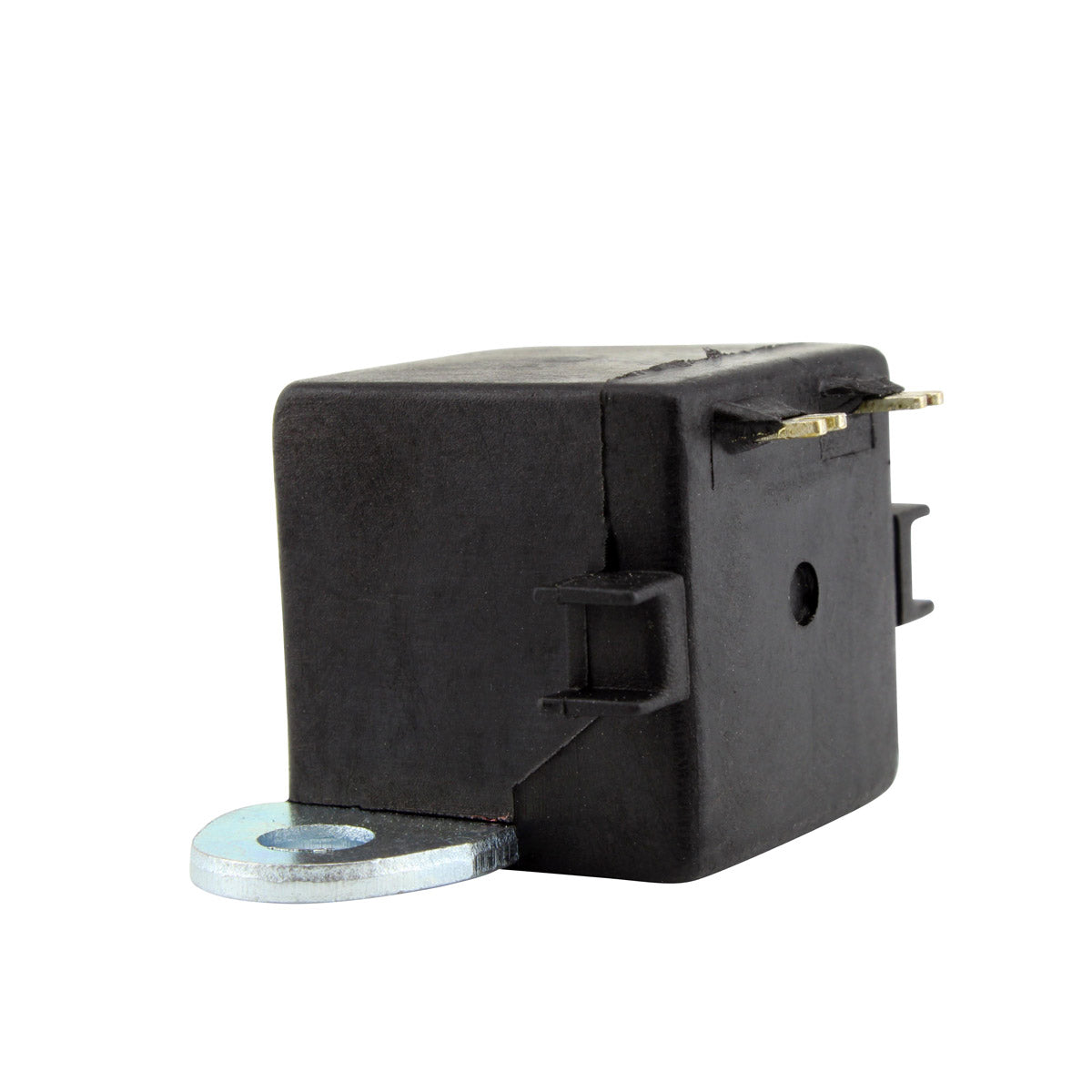

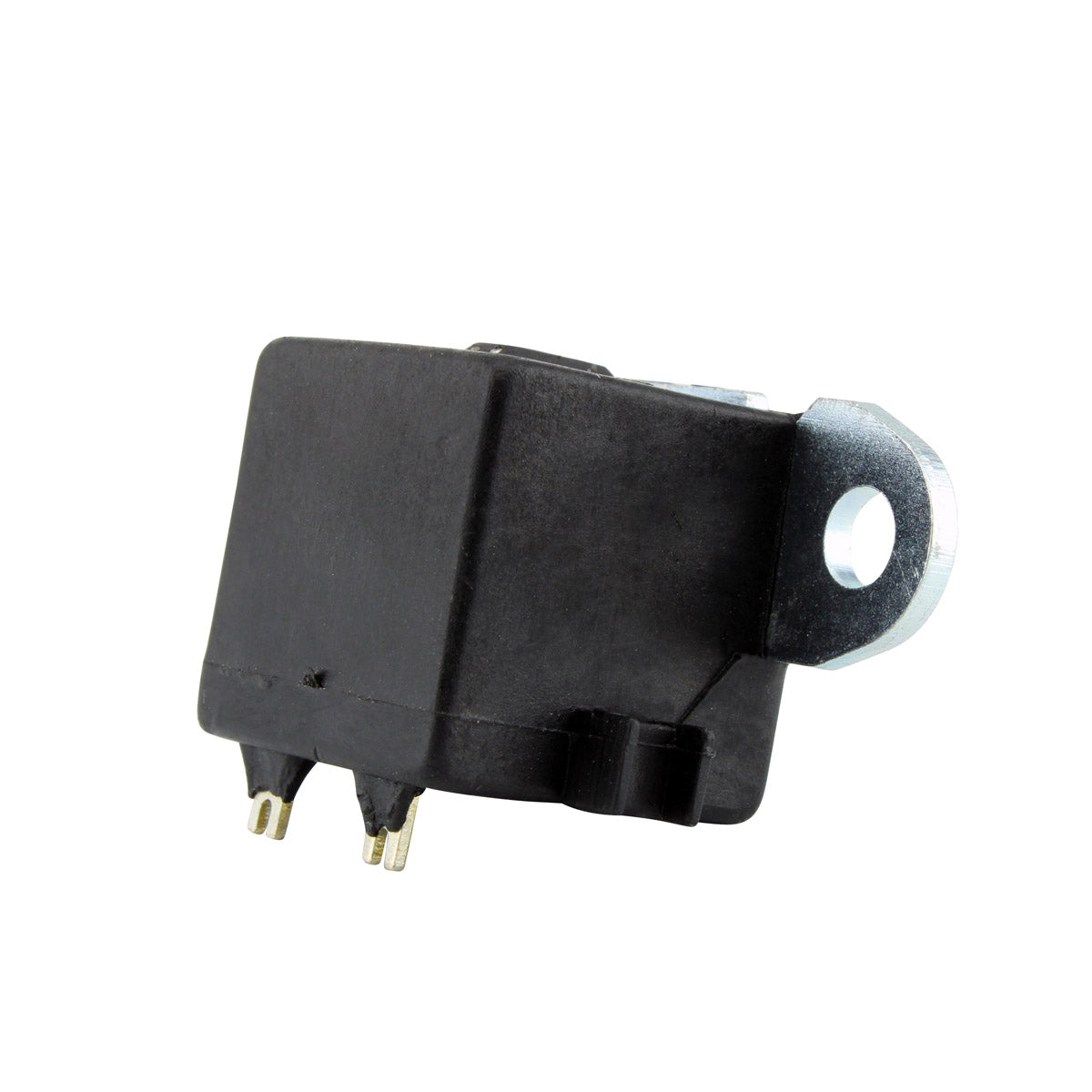

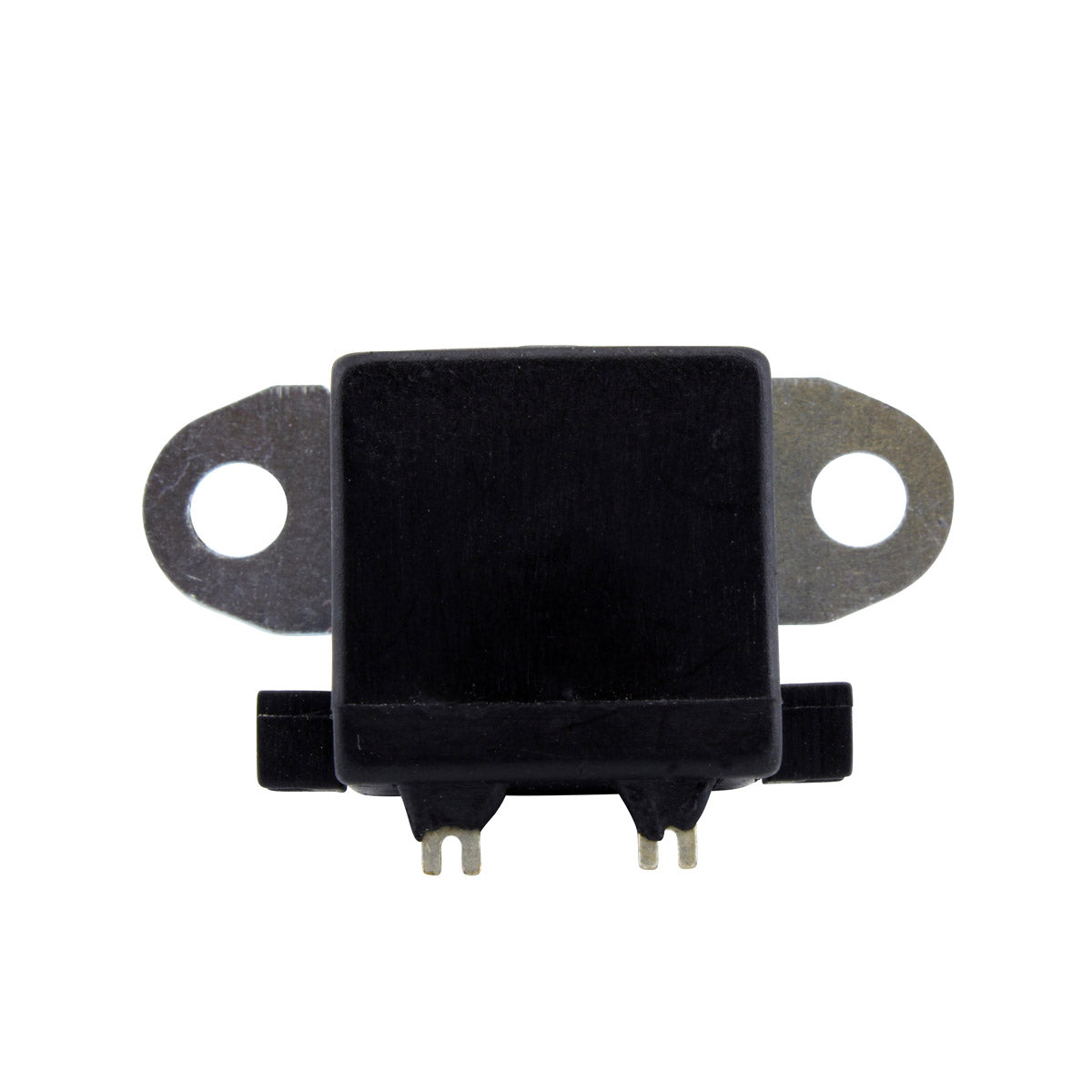

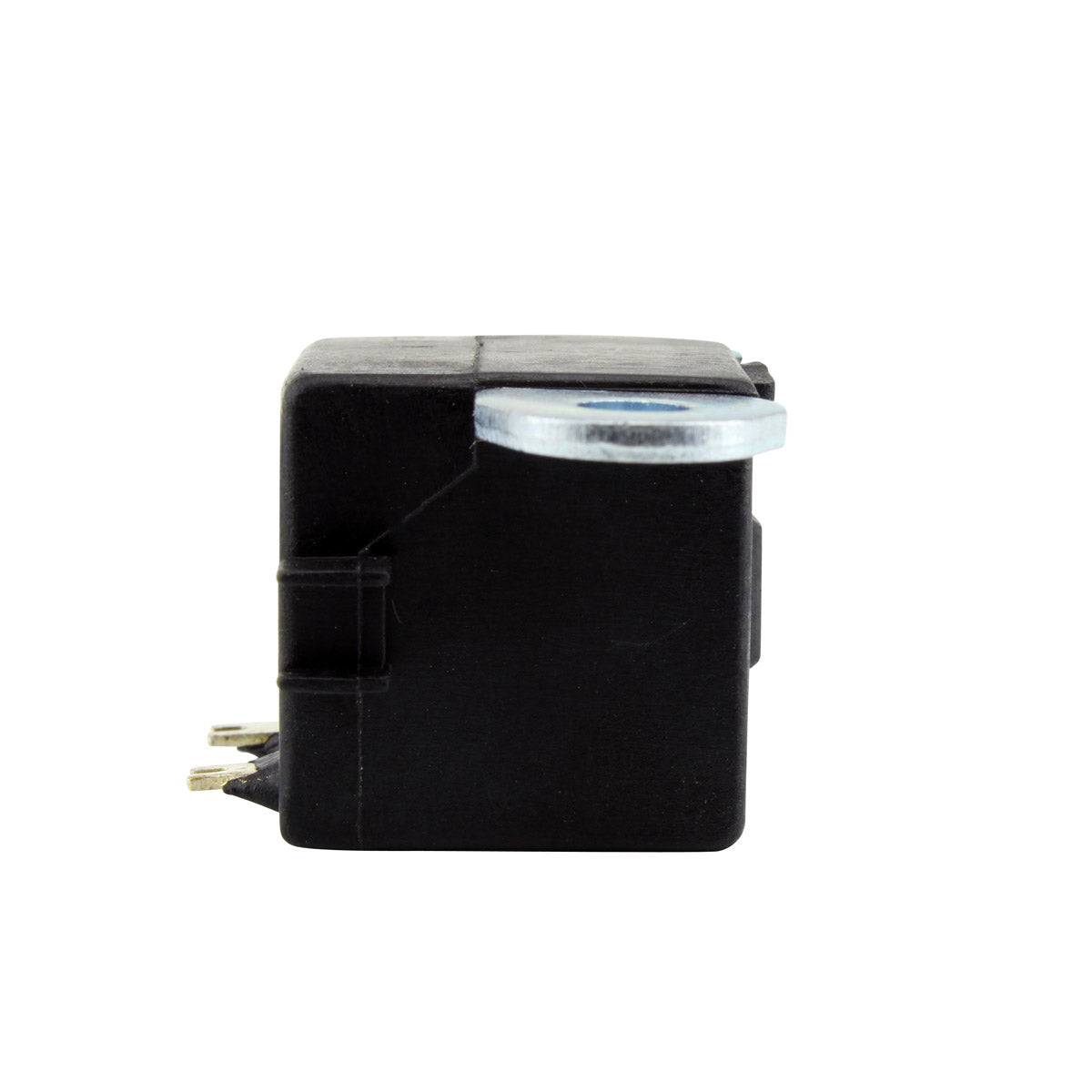

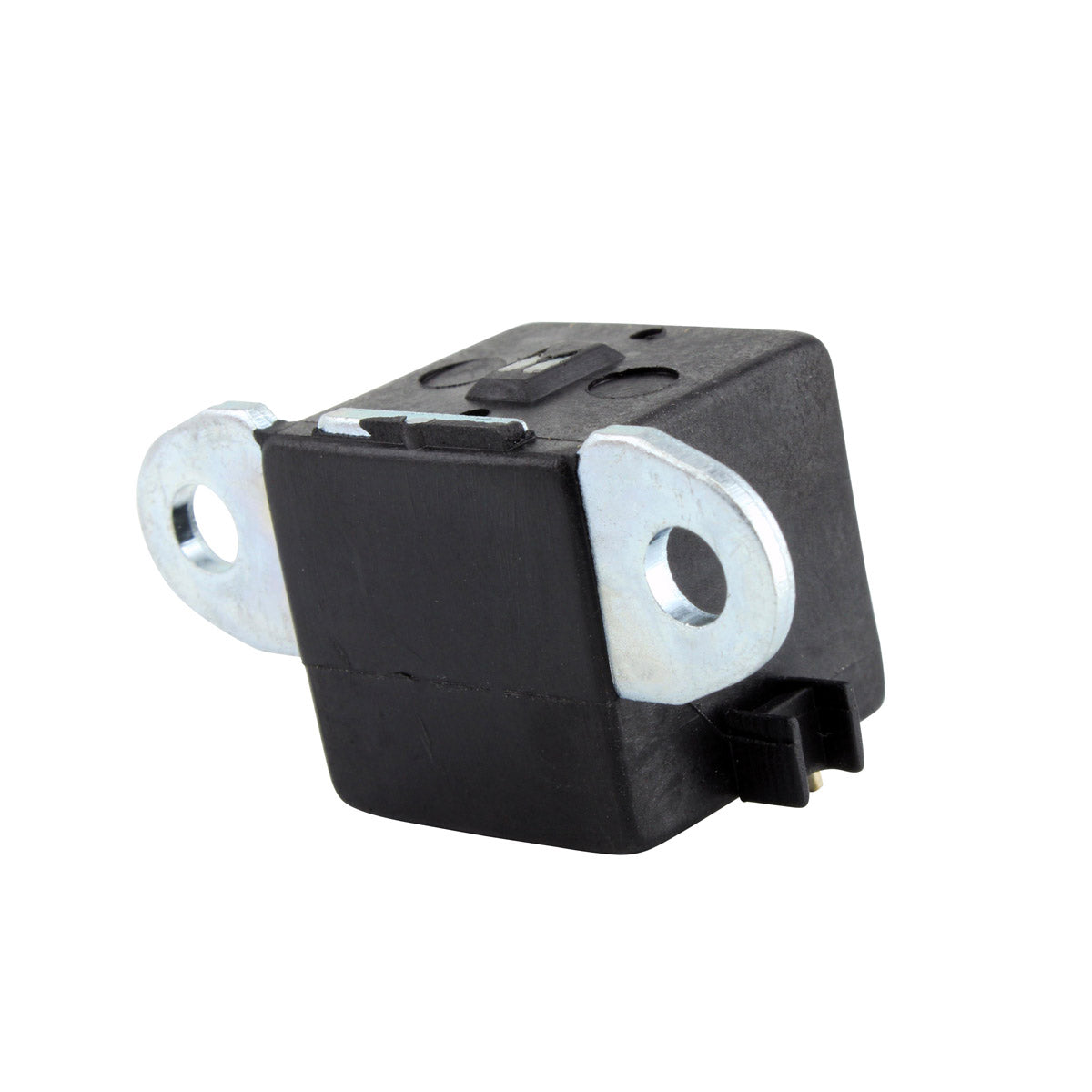

Pickup Coil for Polaris Sportsman 600 2003-2005 / 700 2002-2006 / MV7 2005 | OEM # 2202603 / 4010709 / 4011103 / 4060150
Pickup Coil for Polaris Sportsman 600 2003-2005 / 700 2002-2006 / MV7 2005 | OEM # 2202603 / 4010709 / 4011103 / 4060150





Details
Details

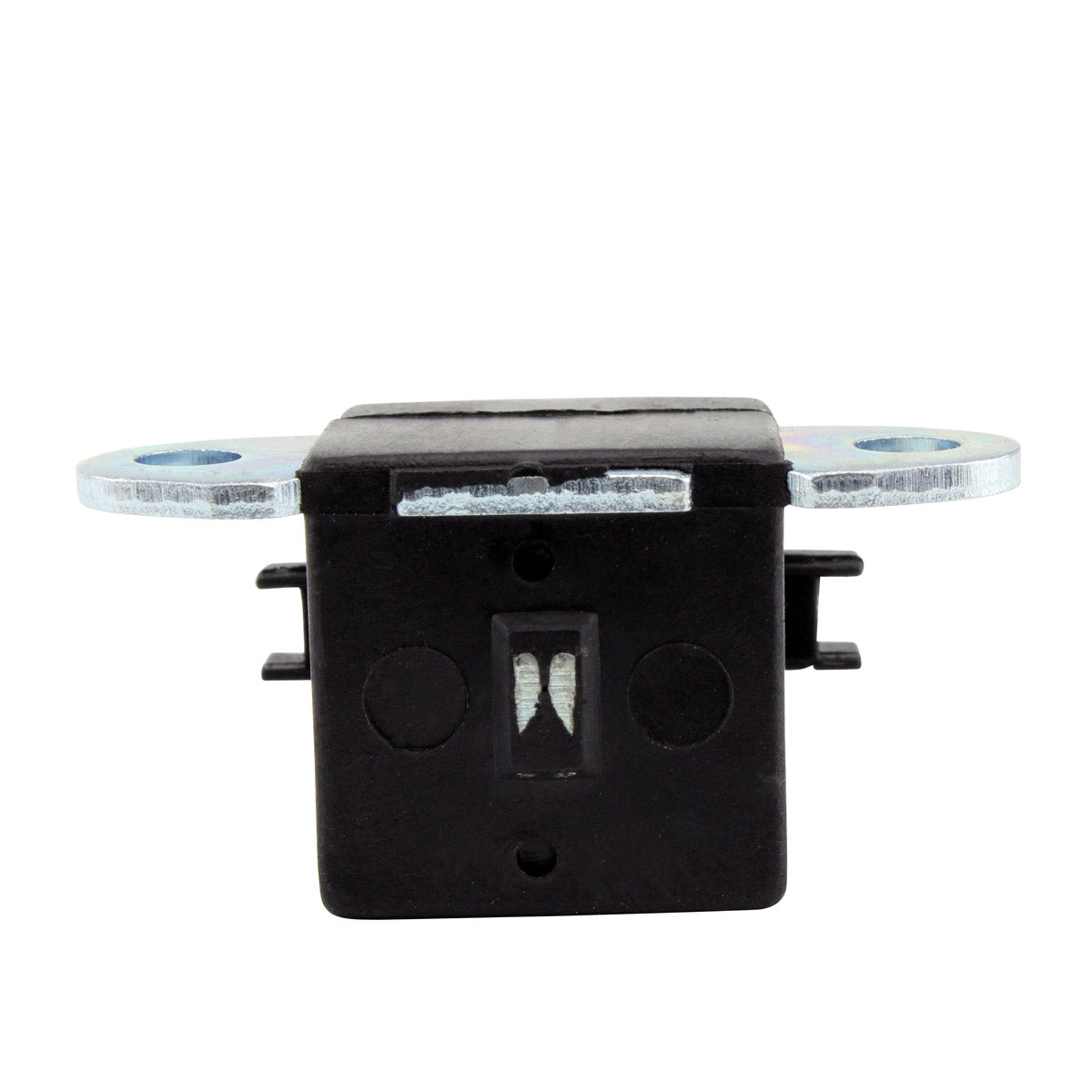

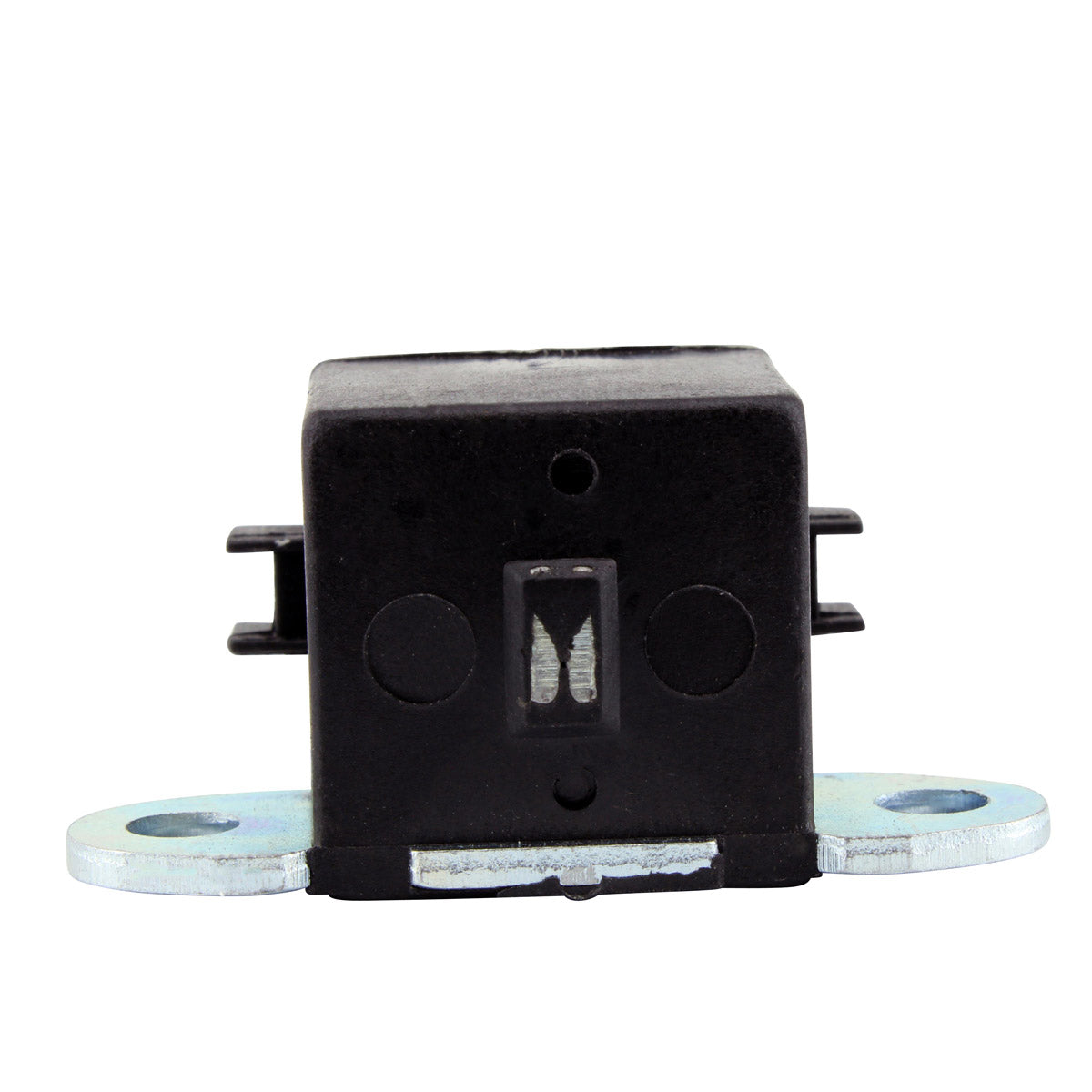

Brand new Pick up Coil for Stator 500 ohms
- We offer a brand new pickup/pulsar coil for you to repair your stator
- Often unavailable from the OEM manufacturer
- Requires minimal mechanical experience
- All products shipped are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Height: 22 mm
Length: 22 mm
Width: 22 mm
Width: 22 mm
Bracket center to center: 35 mm
Terminal to Terminal = 352 ohms+/-20%
Interchange Part Nº
Interchange Part Nº
- 4011103
- 2202603
- 4010901
- 4010709
- 2202602
- 4060150
Installation
Installation
Not following these instructions may result in damaging the part or other components on your vehicle.
- By using a small soldering iron weld the wires to the ones on your OEM wiring harness
- Insulate your solders with heat shrink
- Before attempting to start your vehicle, adjusting the air gap is necessary for certain models
- Rotate the flywheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010"
- If no spark or erratic spark, switch the wires at the plug
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
