CDI Switch Box for Mercury Marine Outboard 4-225 PeakRPM Models

Sold out

Details

Brand new aftermarket CDI box

Our PeakRPM CDI Box provides the optimal output for your ride
Enjoy fast & easy installation with our plug & play OEM design and included dielectric connector grease
OEM-grade electronic components and printed circuit boards for long-term reliability and performance
90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications

Dimensions :
Width : 79 mm
Length : 136 mm
Height: 26 mm
Fixation holes center to center : 143 mm

Interchange Part Nº

332-7778A1
332-7778A12
332-7778A3
332-7778A6
332-5524
332-5524A1
332-7778
332-7778A9
332-7778A7

Installation

Follow these instructions :

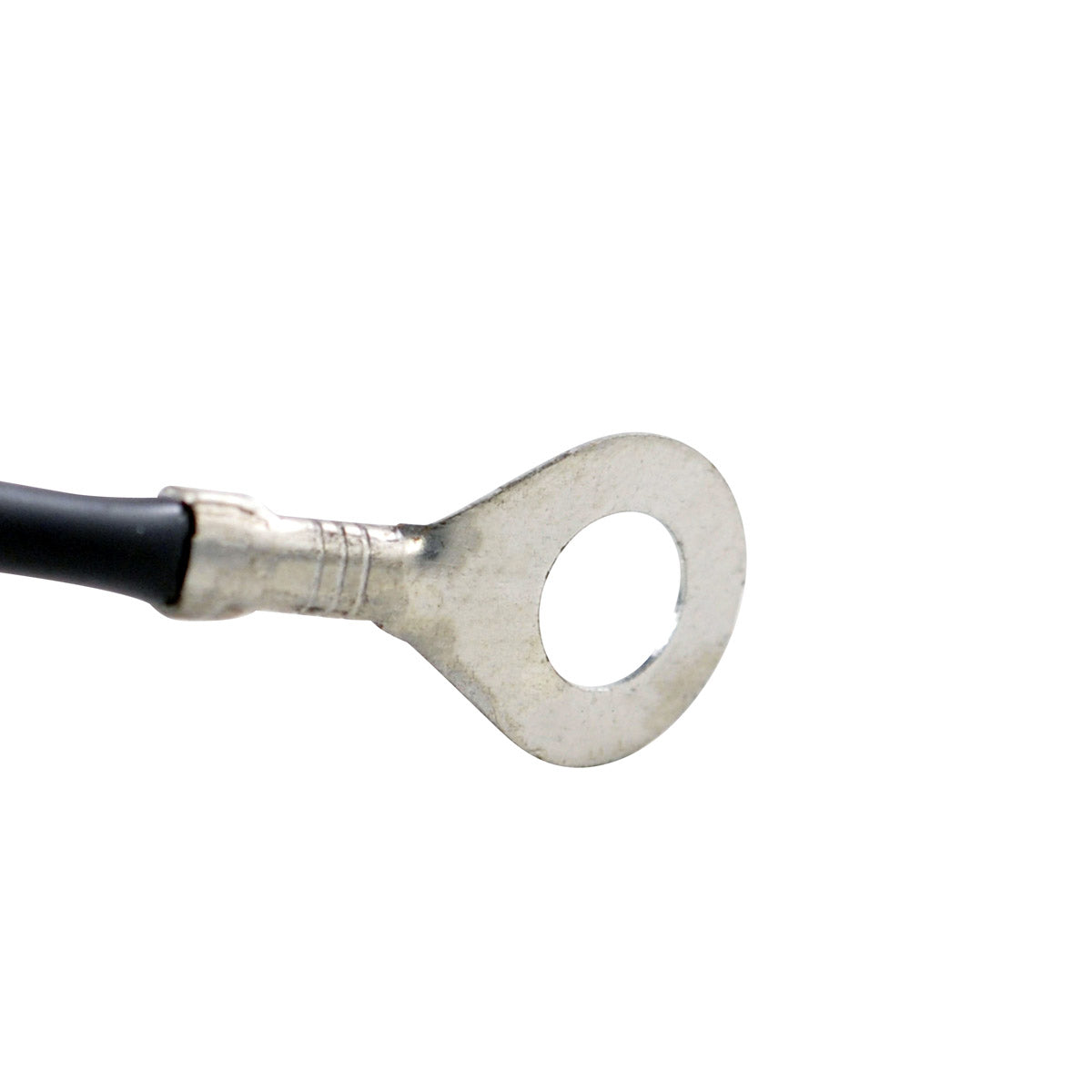

If the Black Ground Wire is Not Already Connected to the CDI Box, fasten to One of the 4 Mounting Holes on the Outside of the Box.
Fasten the Other End of This Black Wire to a Good Ground Spot on the Engine.

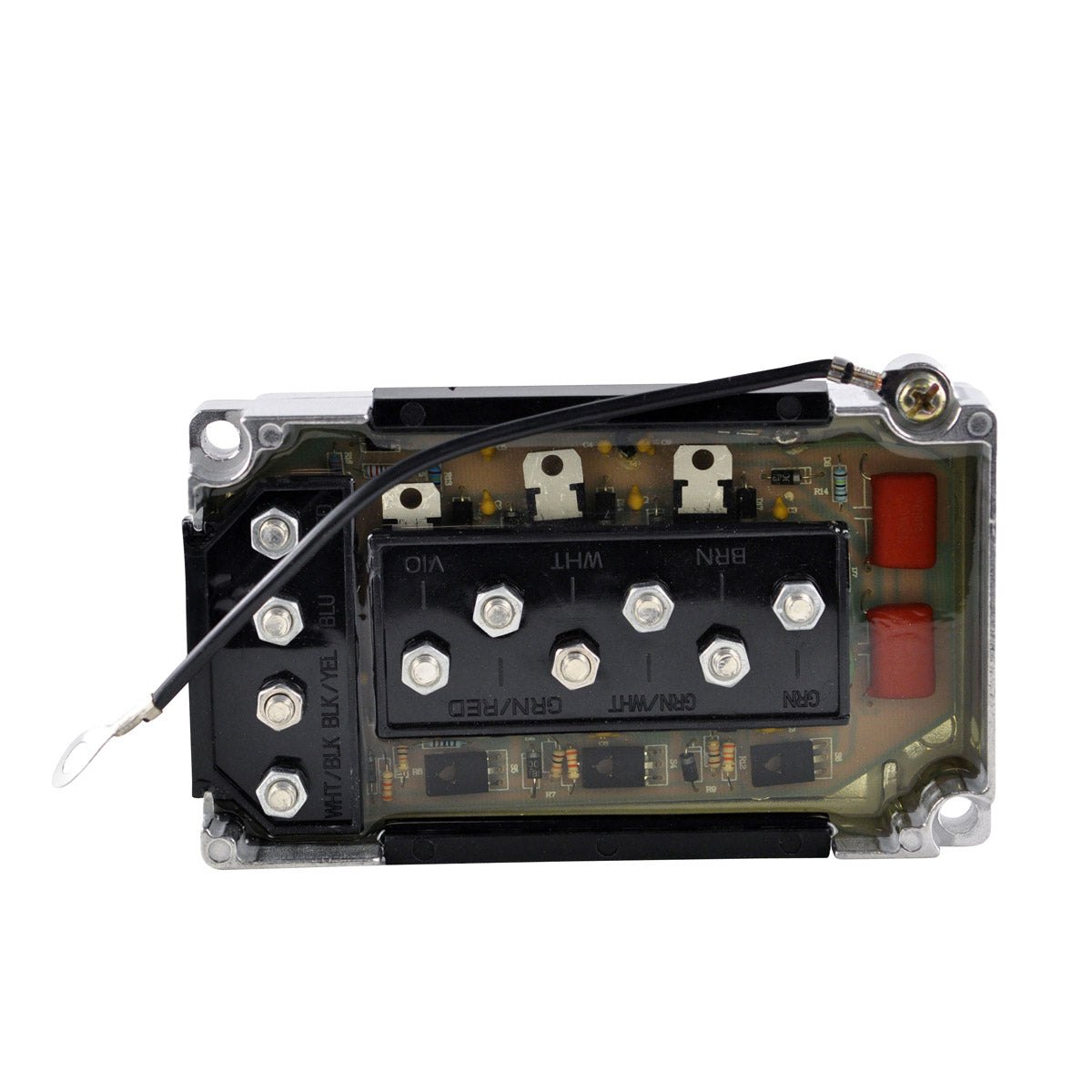

If the Engine Uses an Orange Colored Lead That is Connected to the Box, Connect This to the "Black/Yellow" Stud on the New Box.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
