REVOLT Regulator + Harness for Arctic Cat 400 1996-1999 | Triumph Bonneville / Speedmaster 900 2000-2022 | # 3430-037
RMSTATOR
SKU: RMS022-108517
In Stock
RMSTATOR
REVOLT Regulator + Harness for Arctic Cat 400 1996-1999 | Triumph Bonneville / Speedmaster 900 2000-2022 | # 3430-037
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
$295.89
Before installing your new regulator/rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator/rectifier
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Read more
REVOLT Regulator + Harness for Arctic Cat 400 1996-1999 | Triumph Bonneville / Speedmaster 900 2000-2022 | # 3430-037
Details
Details

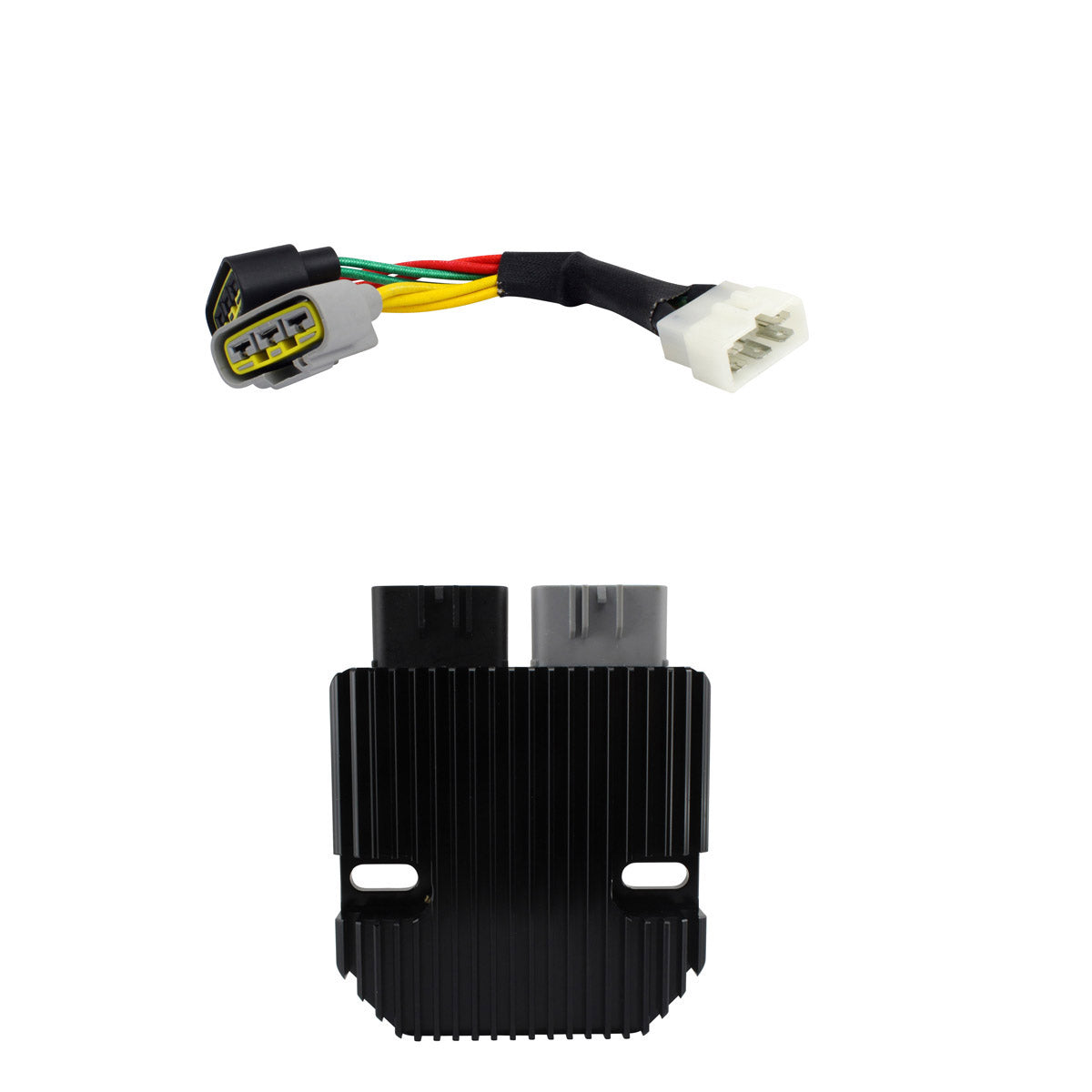

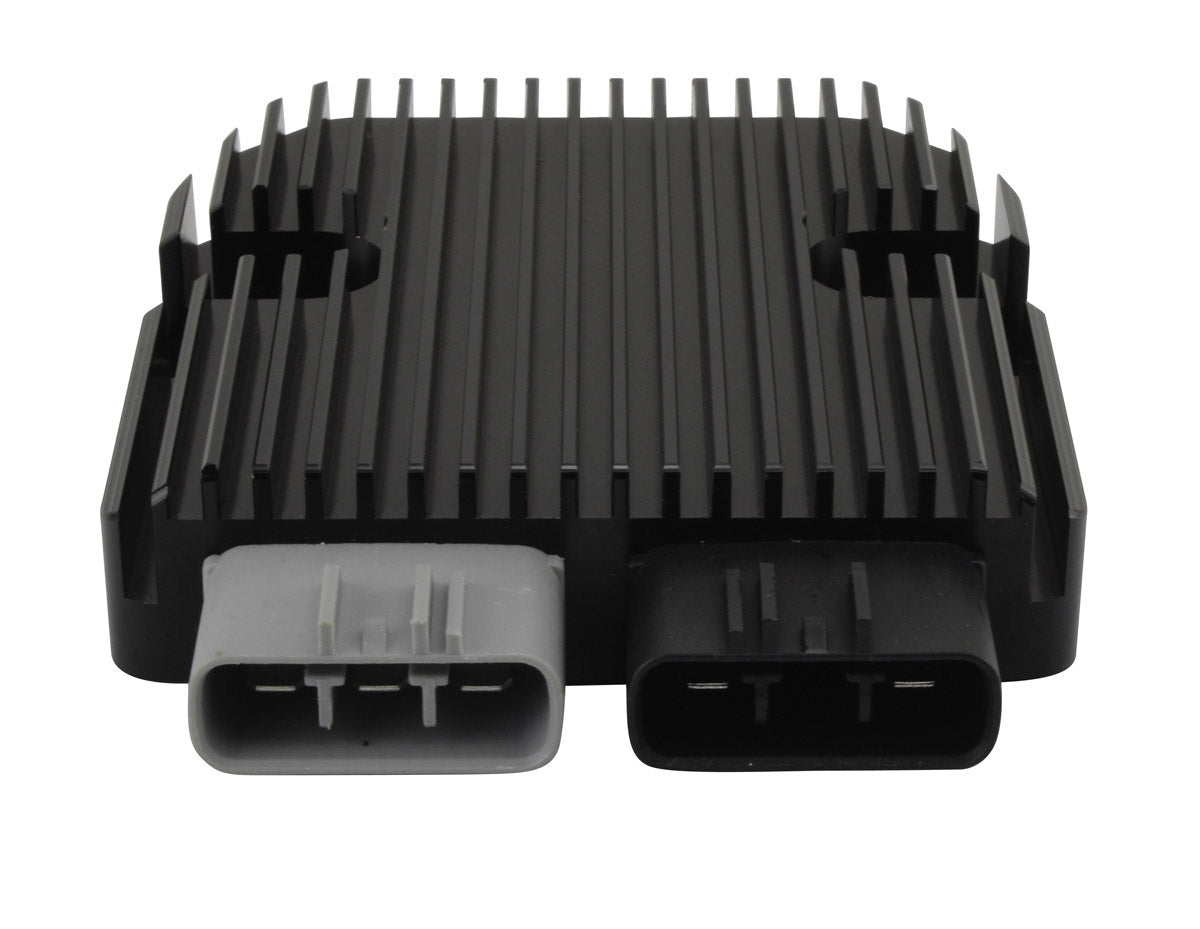

Brand new REVOLT Voltage Regulator + Harness
Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

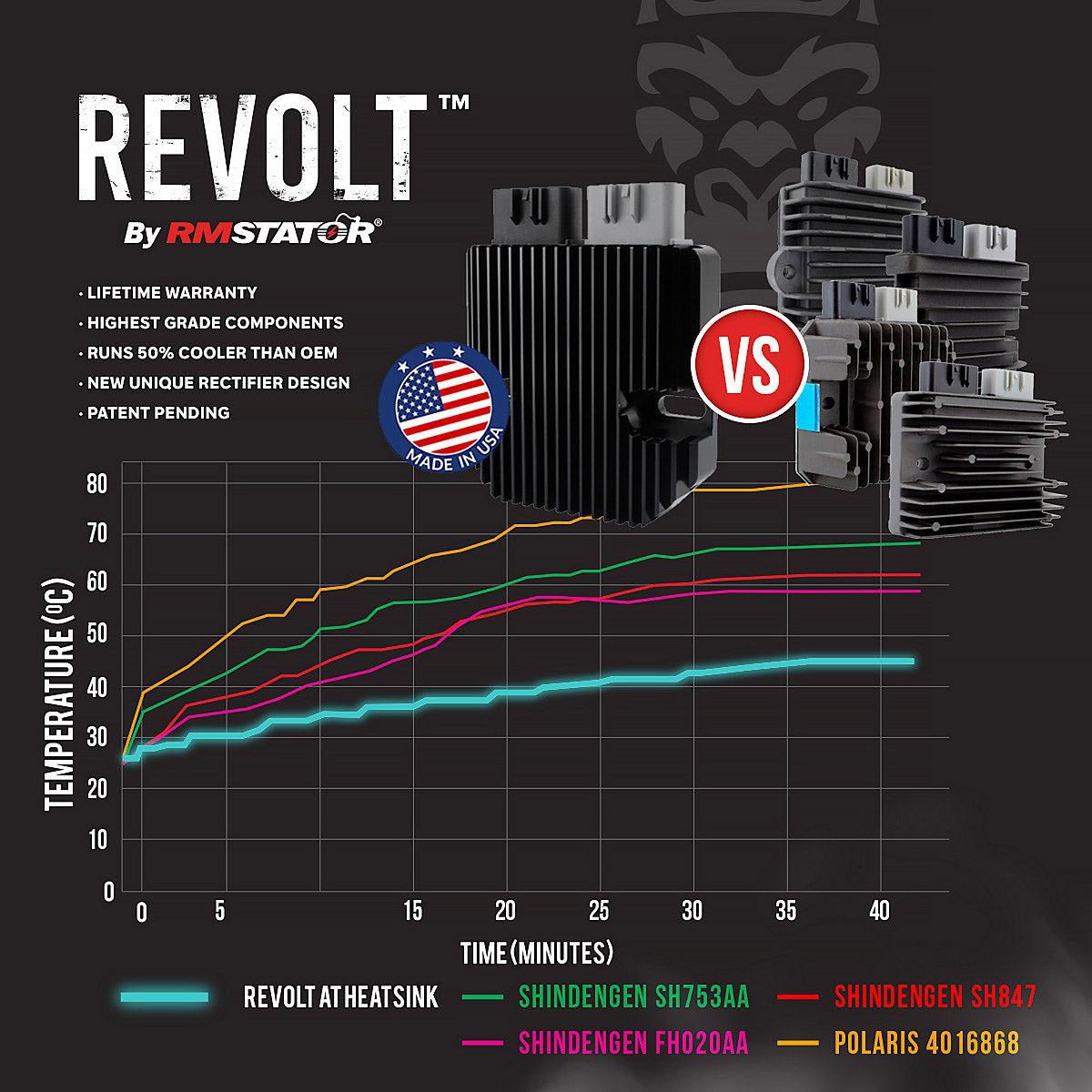

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market
SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market uses Active Rectification to considerably improve the rectifier reliability.
DISSIPATE HEAT 45% FASTER THAN OEM

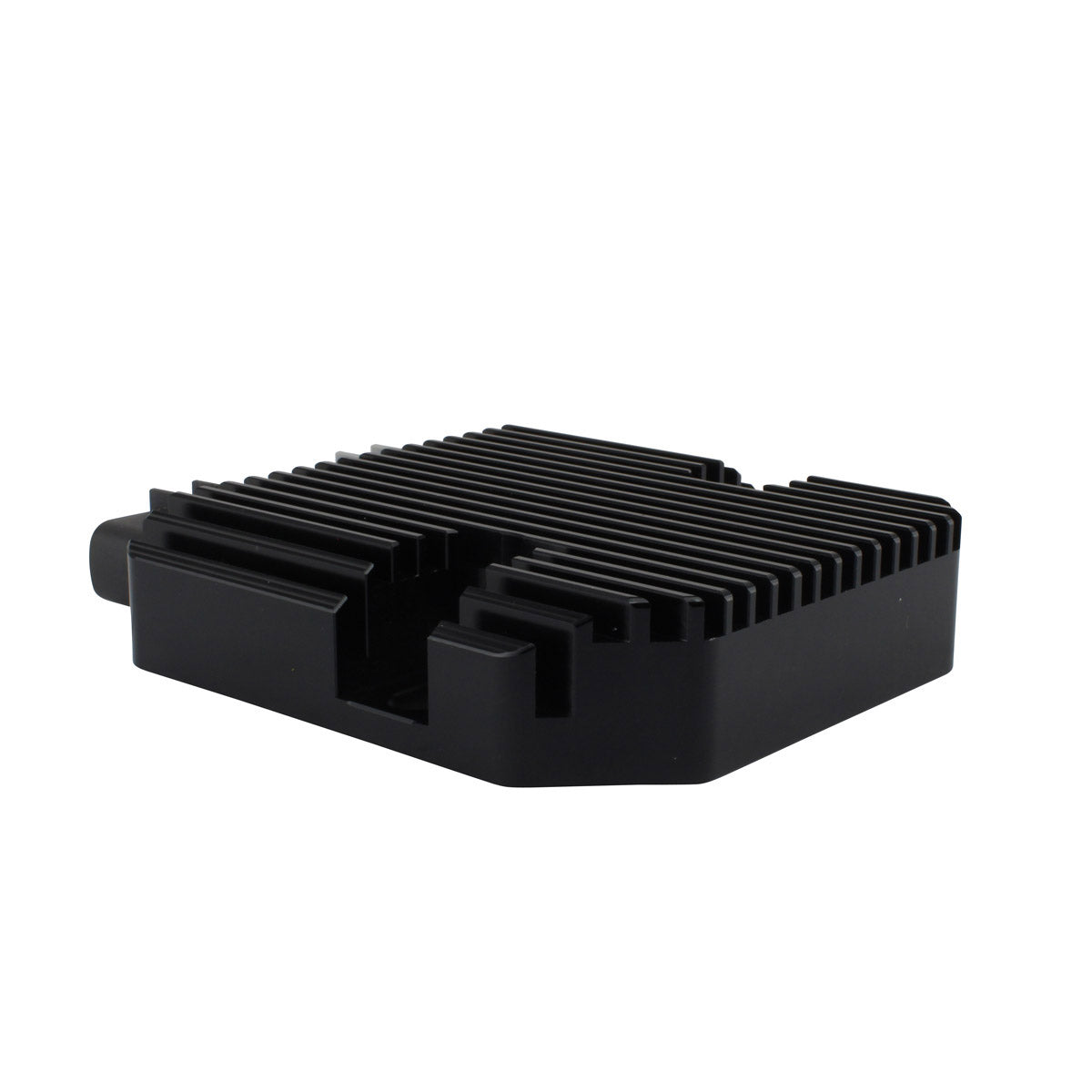

Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.
PROUDLY MADE IN NORTH AMERICA
REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.
LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.
Join REVOLT, the new era of voltage regulation!
Specifications
Specifications

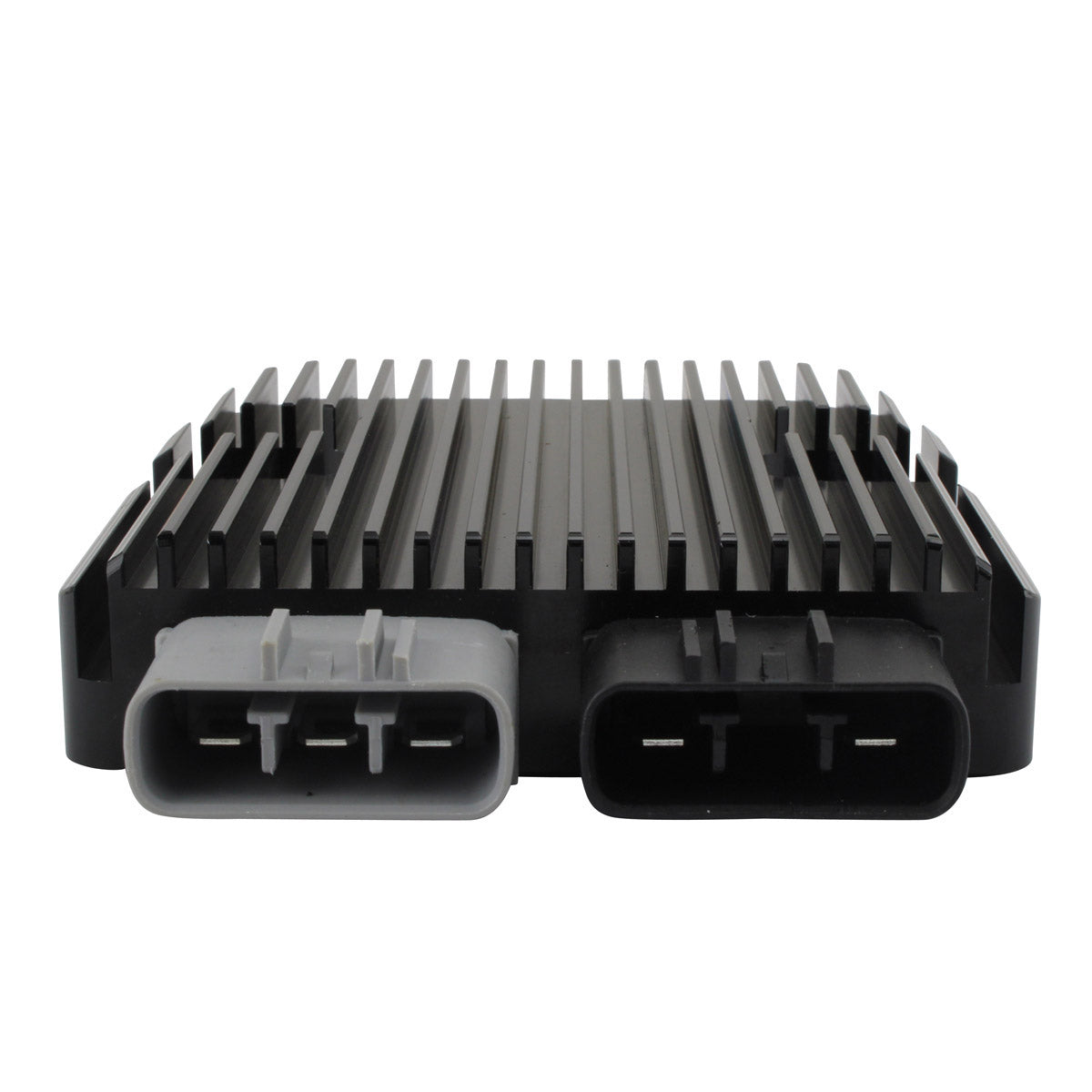

REVOLT Voltage Regulator Rectifier:
Width: 102 mm
Length: 103 mm
Height: 26 mm
Fixation holes center to center: 78 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
Wires Length: 150 mm
Number of yellow wires: 3
Number of red wires: 2
Number of green wires: 2
Number of plugs: 4
Interchange Part Nº
Interchange Part Nº
-
Serie Mosfet Voltage Regulator :
T1300675 -

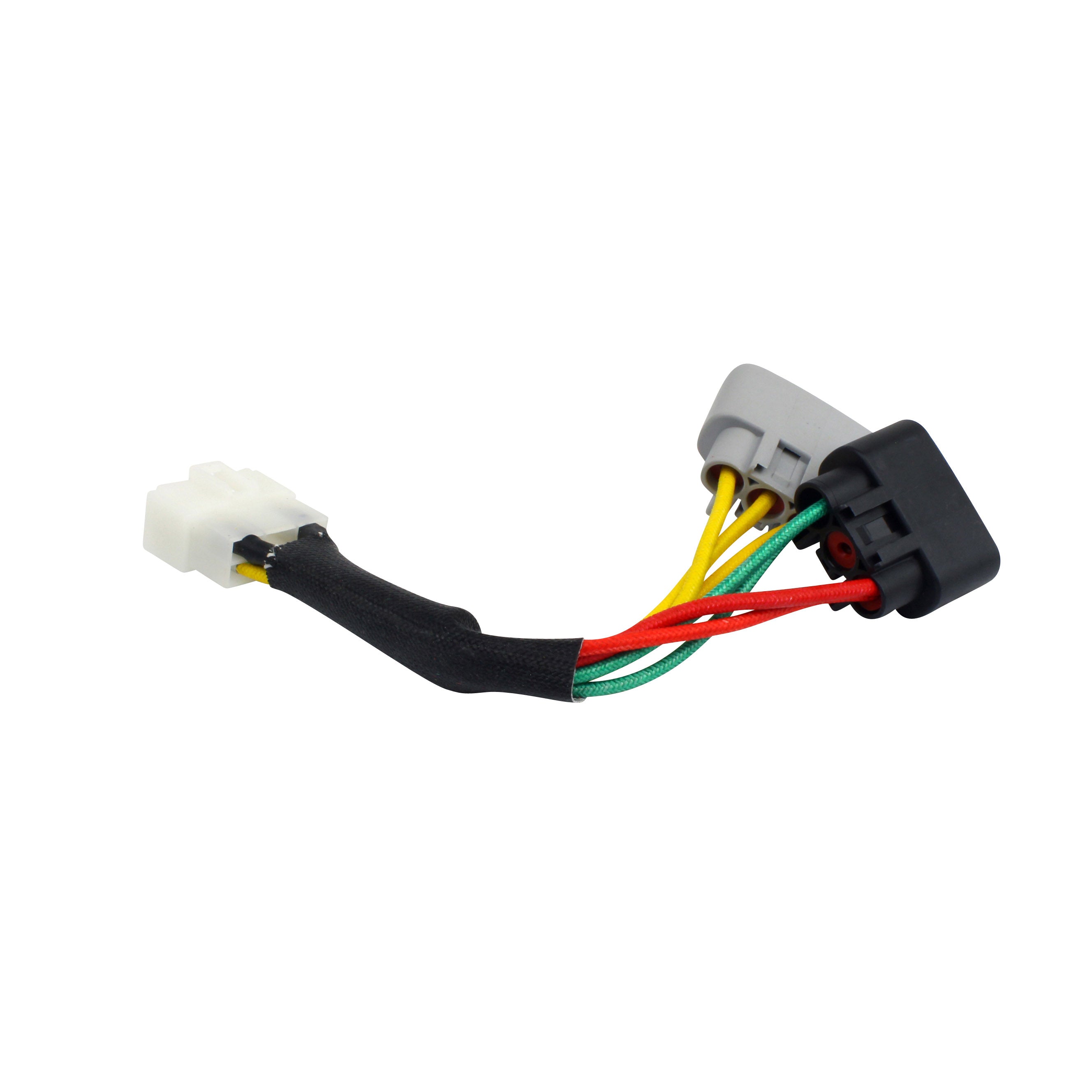

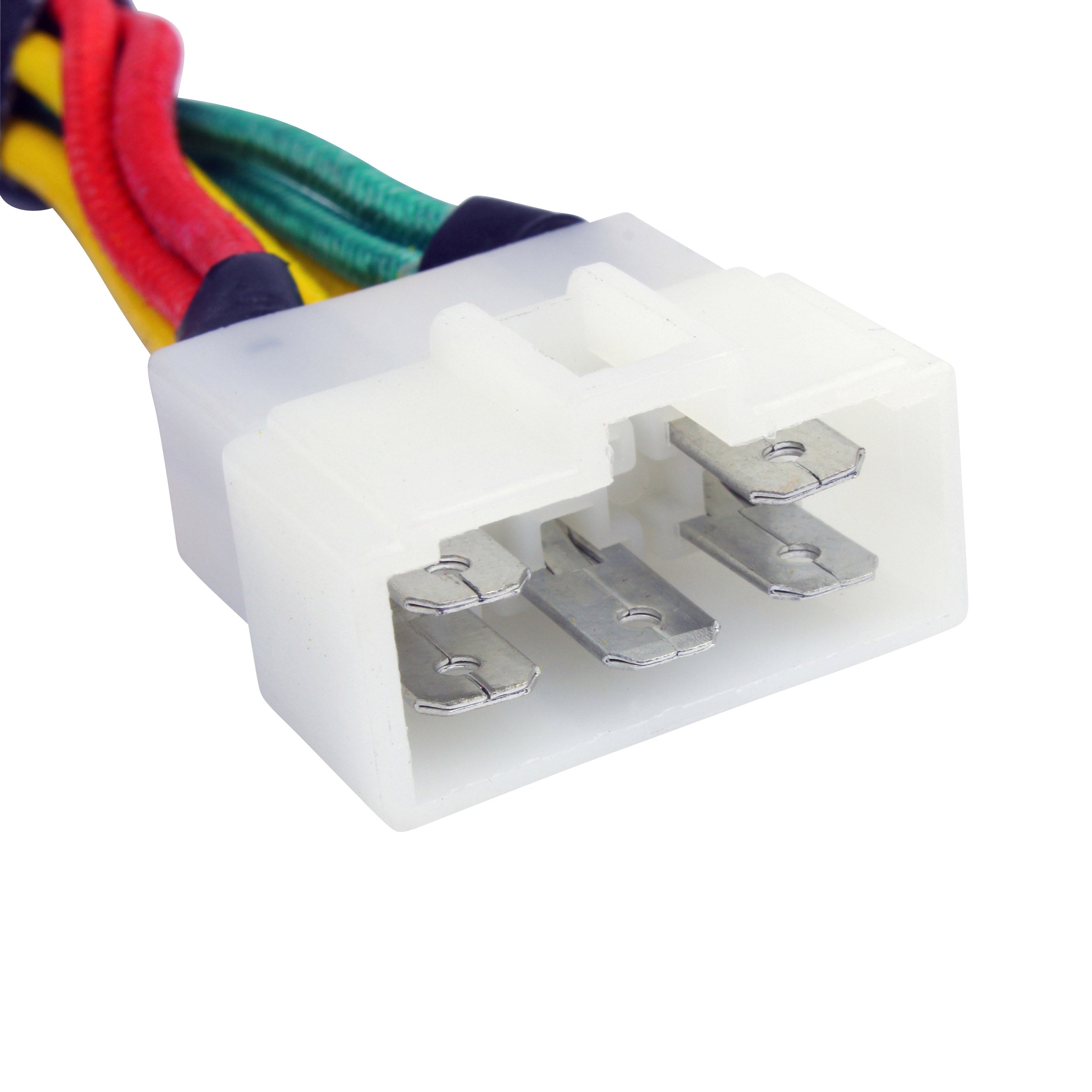

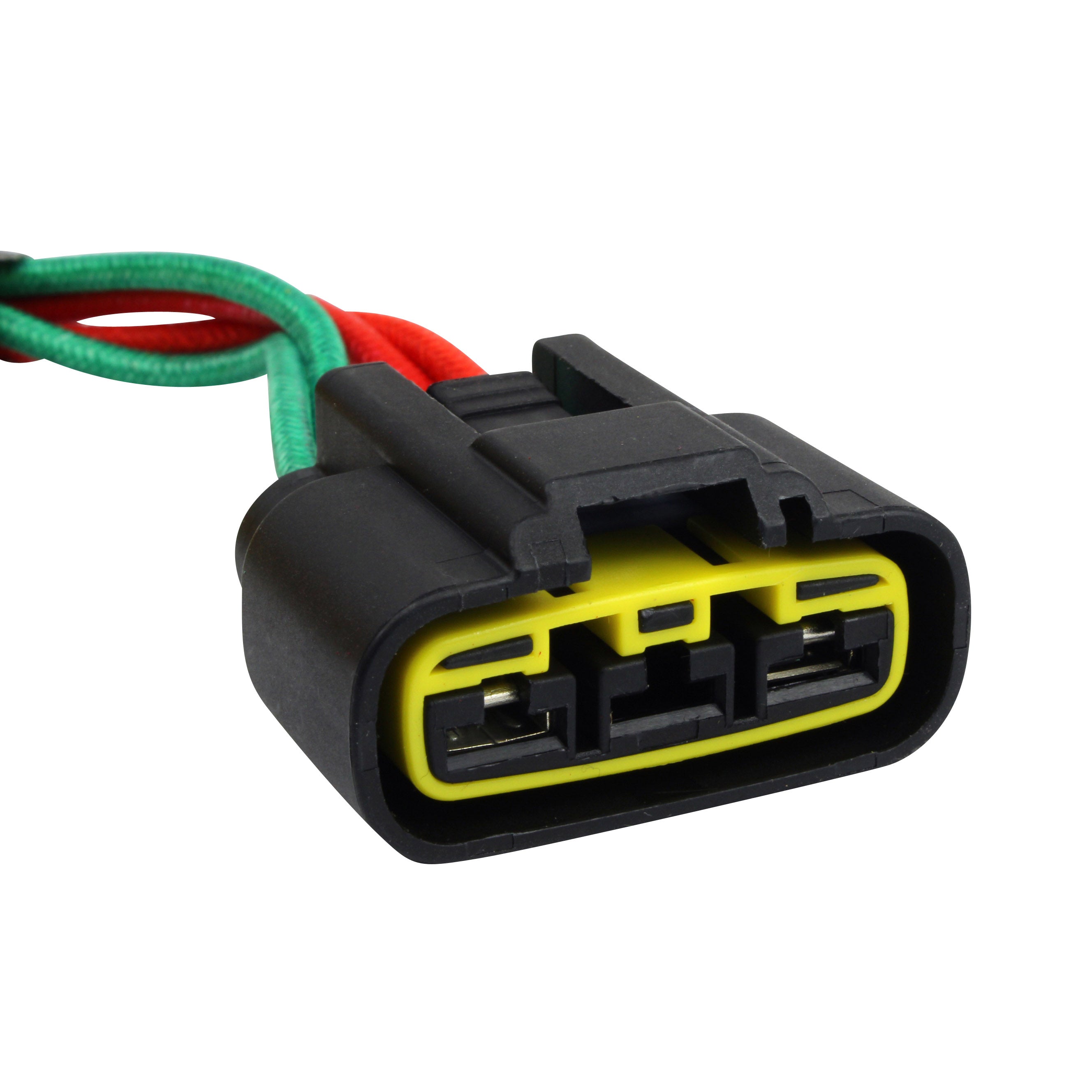

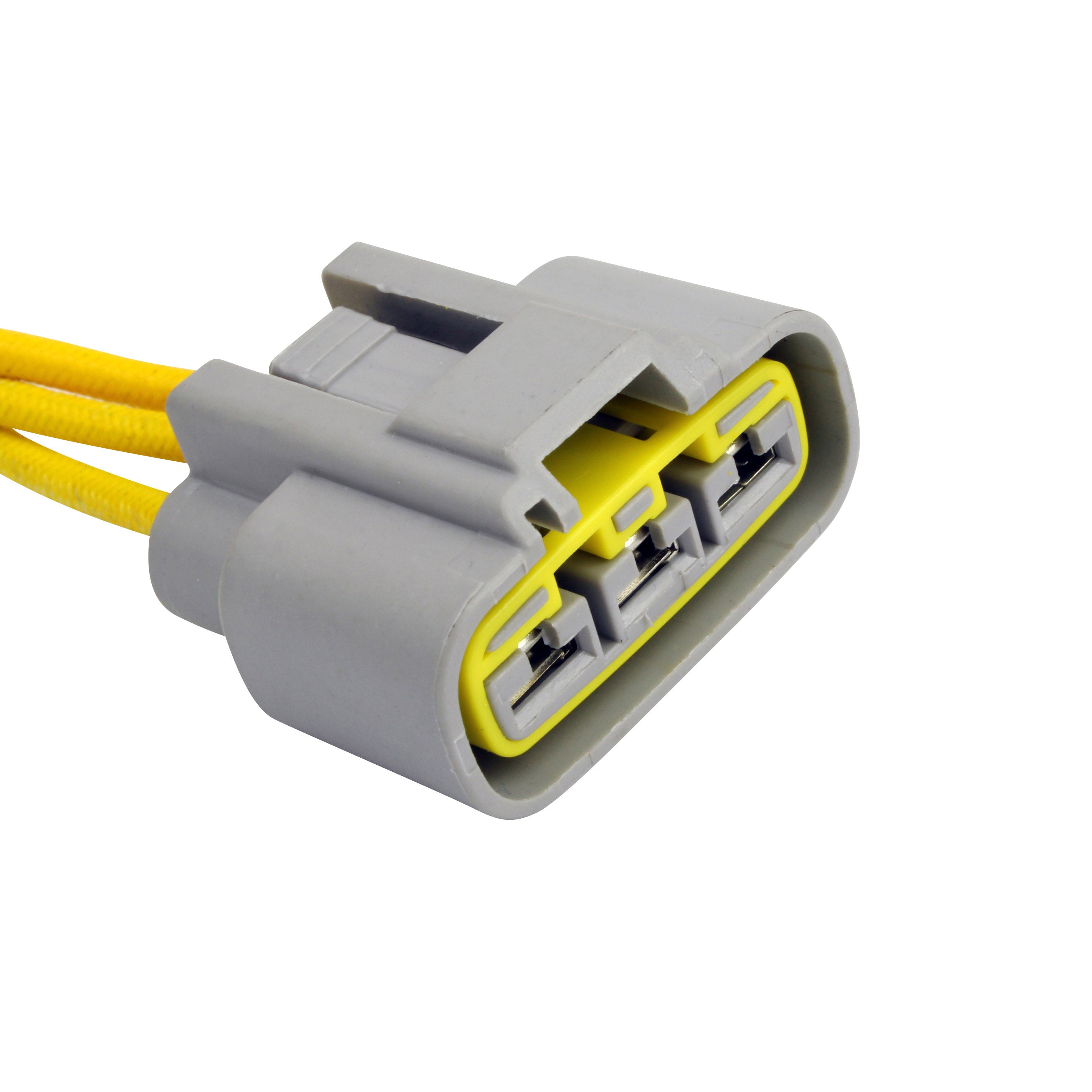

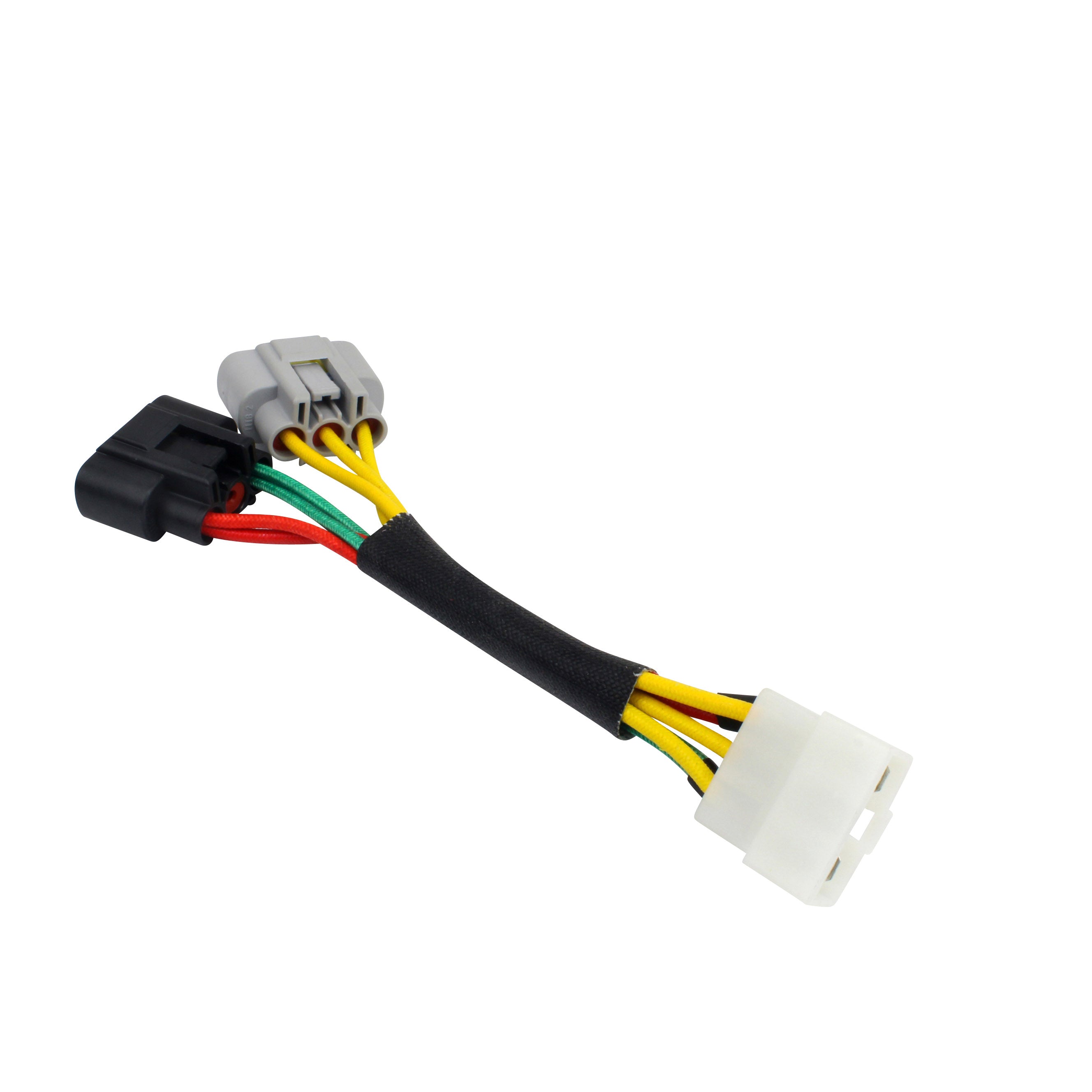

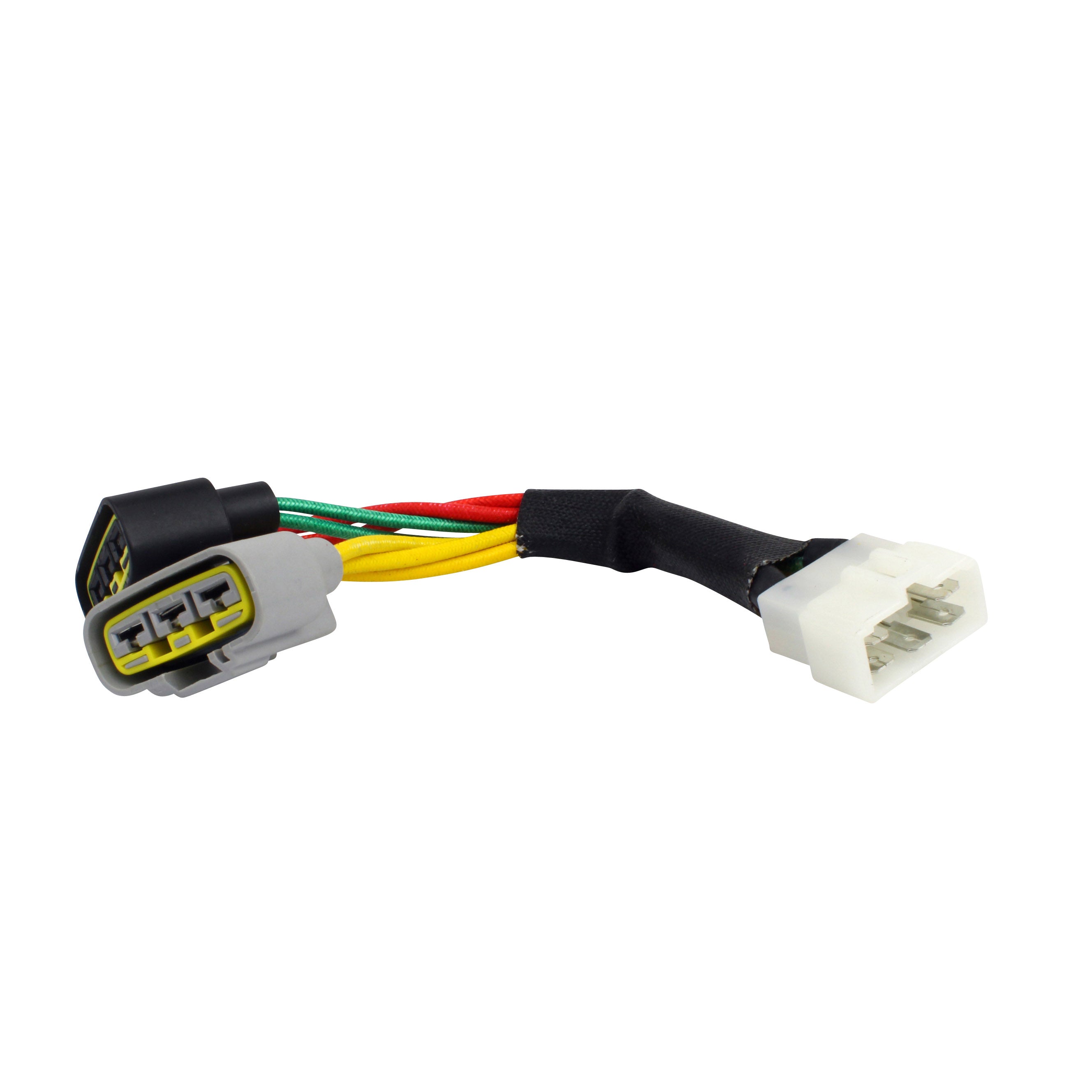

Harness :
T1300890 - 3430-016
- 3430-037
- 3430-072
- T1300819
- T1300888
- T1300889
Installation
Installation
Before installing your new REVOLT Voltage Regulator Rectifier:
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
