Voltage Regulator Rectifier ACS LR-34 Module for Polaris 500 Indy EFI L/C | 500 Indy SKS EFI L/C 1993 | OEM# 4060098

Voltage Regulator Rectifier ACS LR-34 Module for Polaris 500 Indy EFI L/C | 500 Indy SKS EFI L/C 1993 | OEM# 4060098

Name: Voltage Regulator Rectifier ACS LR-34 Module for Polaris 500 Indy EFI L/C | 500 Indy SKS EFI L/C 1993 | OEM# 4060098
Brand: RMSTATOR
SKU: RMS020-108481
Price: 131.89 USD
Availability: InStock

RMSTATOR

SKU: RMS020-108481

Low Stock

RMSTATOR

Voltage Regulator Rectifier ACS LR-34 Module for Polaris 500 Indy EFI L/C | 500 Indy SKS EFI L/C 1993 | OEM# 4060098

$131.89

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

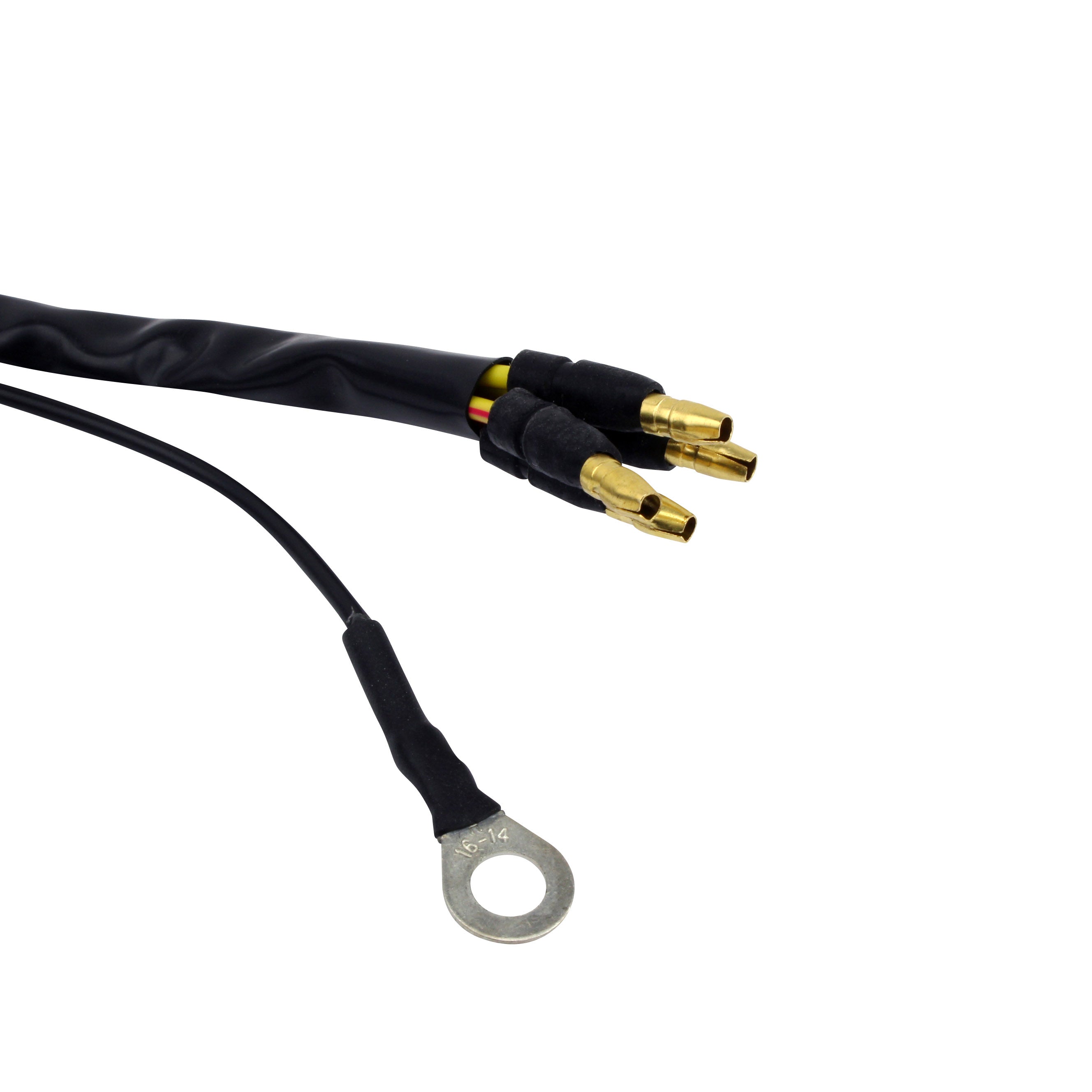

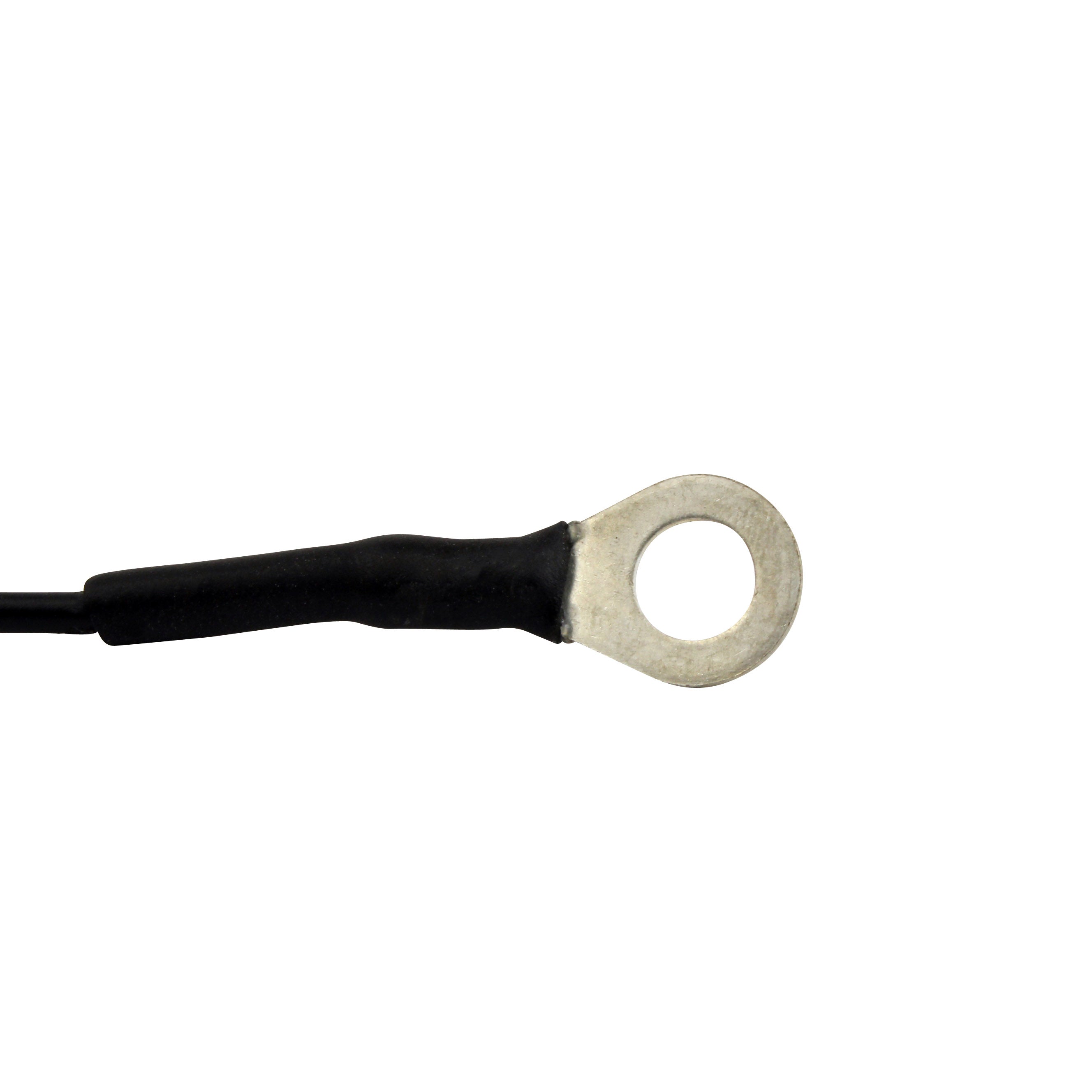

This part replaces the 4 wire and 5 wire version of the Polaris ACS (Alternator Controlled Switch) on Polaris 500 EFI sleds. If you have a 5 wire version with a Black/White or Brown/White wire, this is unused and can be taped up. The black wire is attached to the mounting bolt/frame.

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

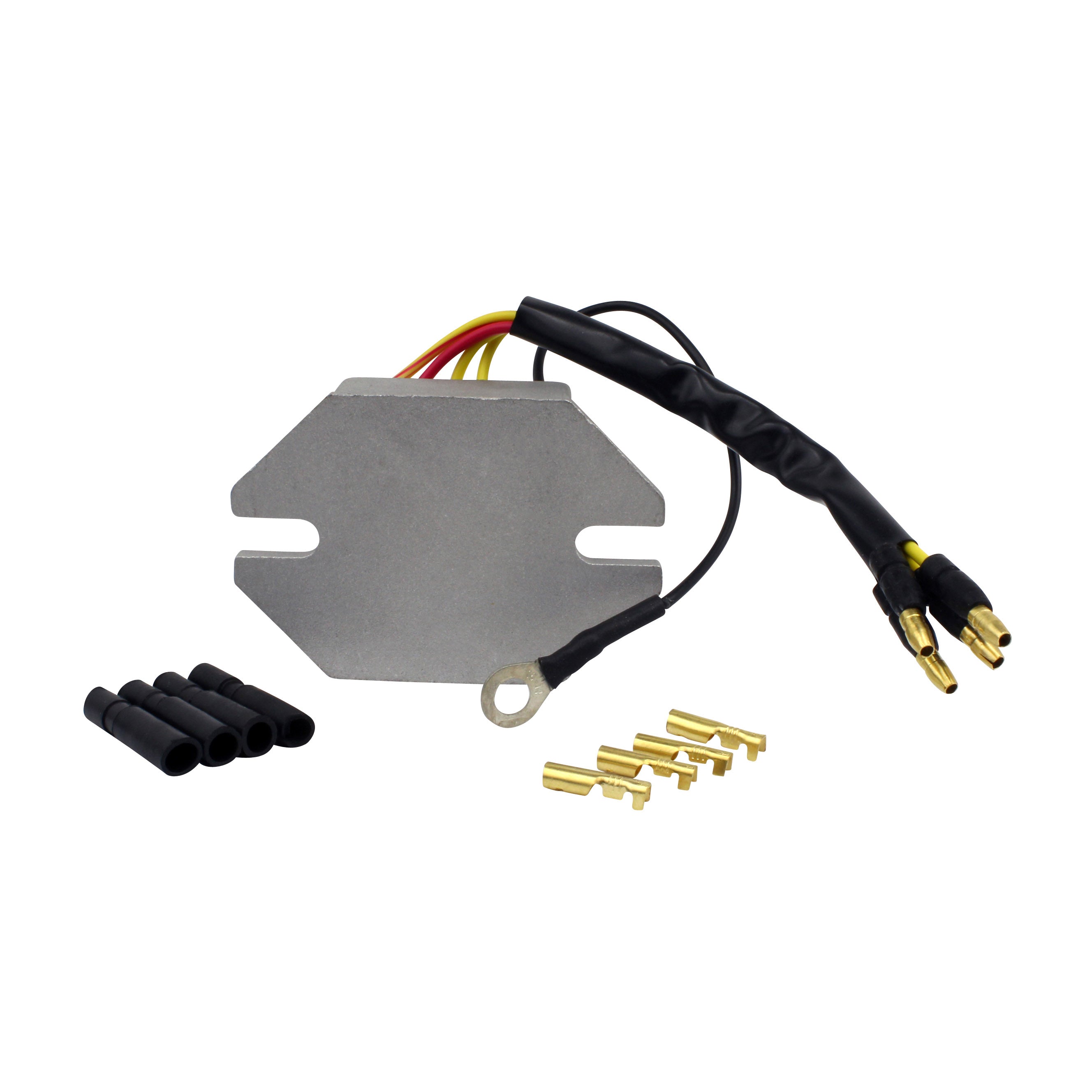

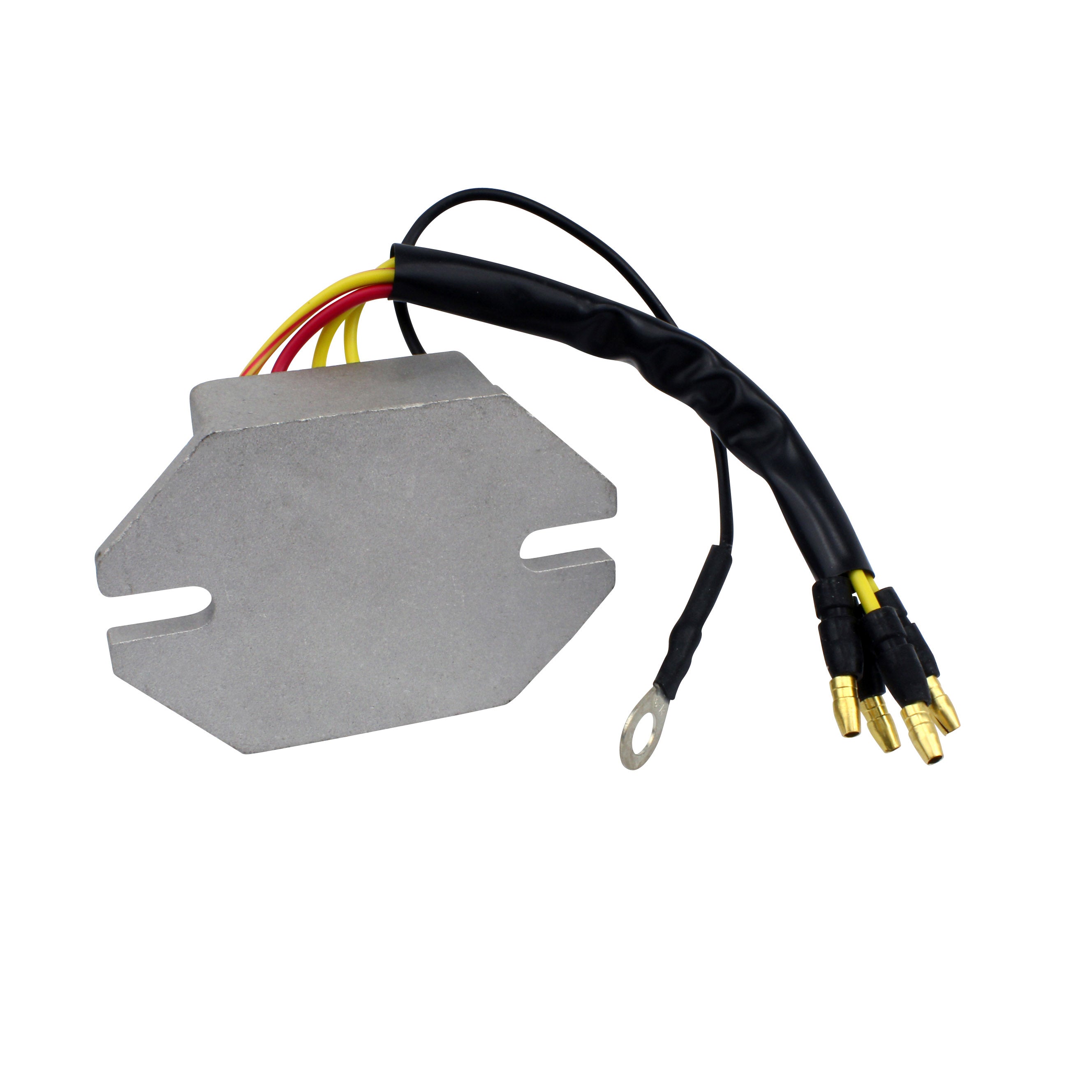

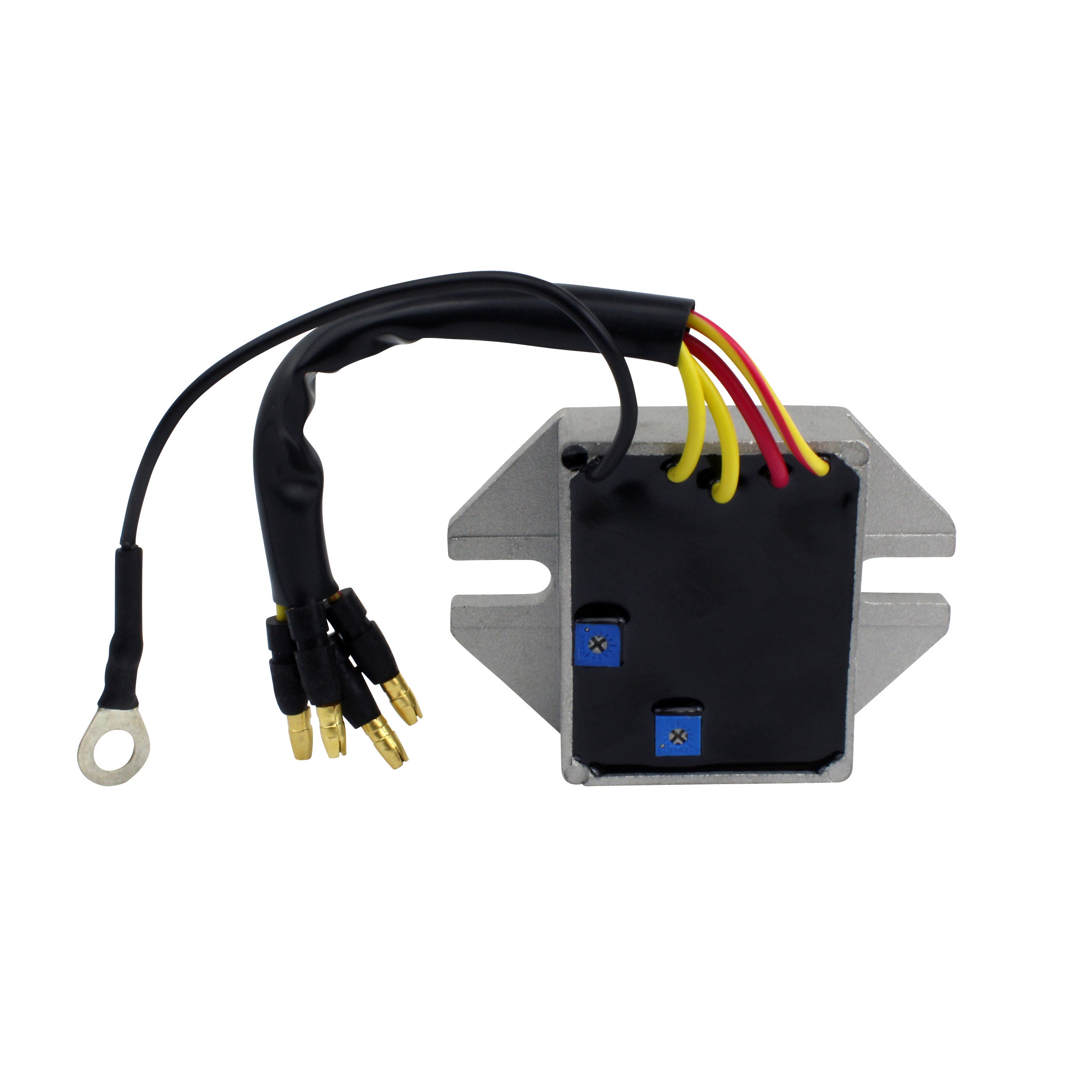

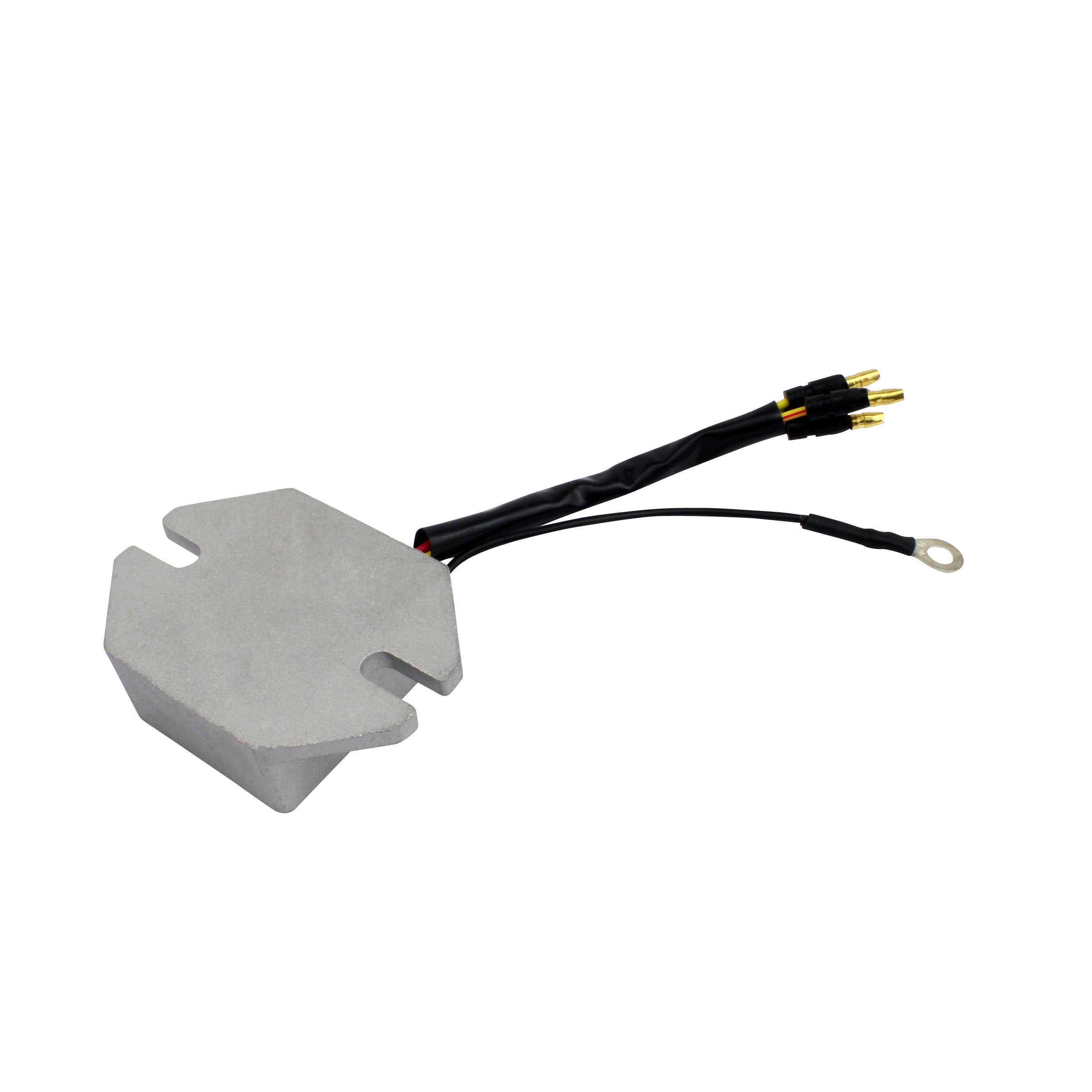

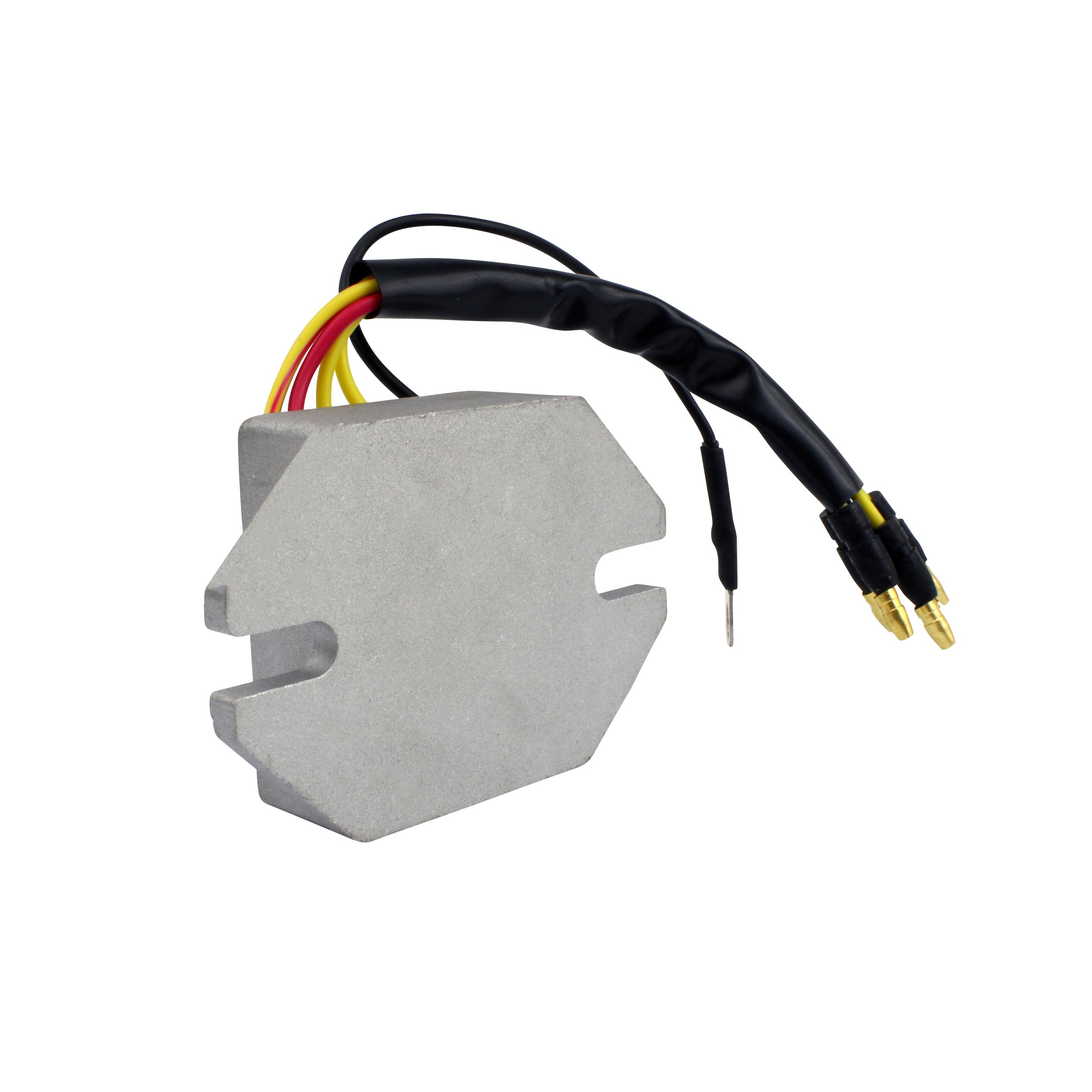

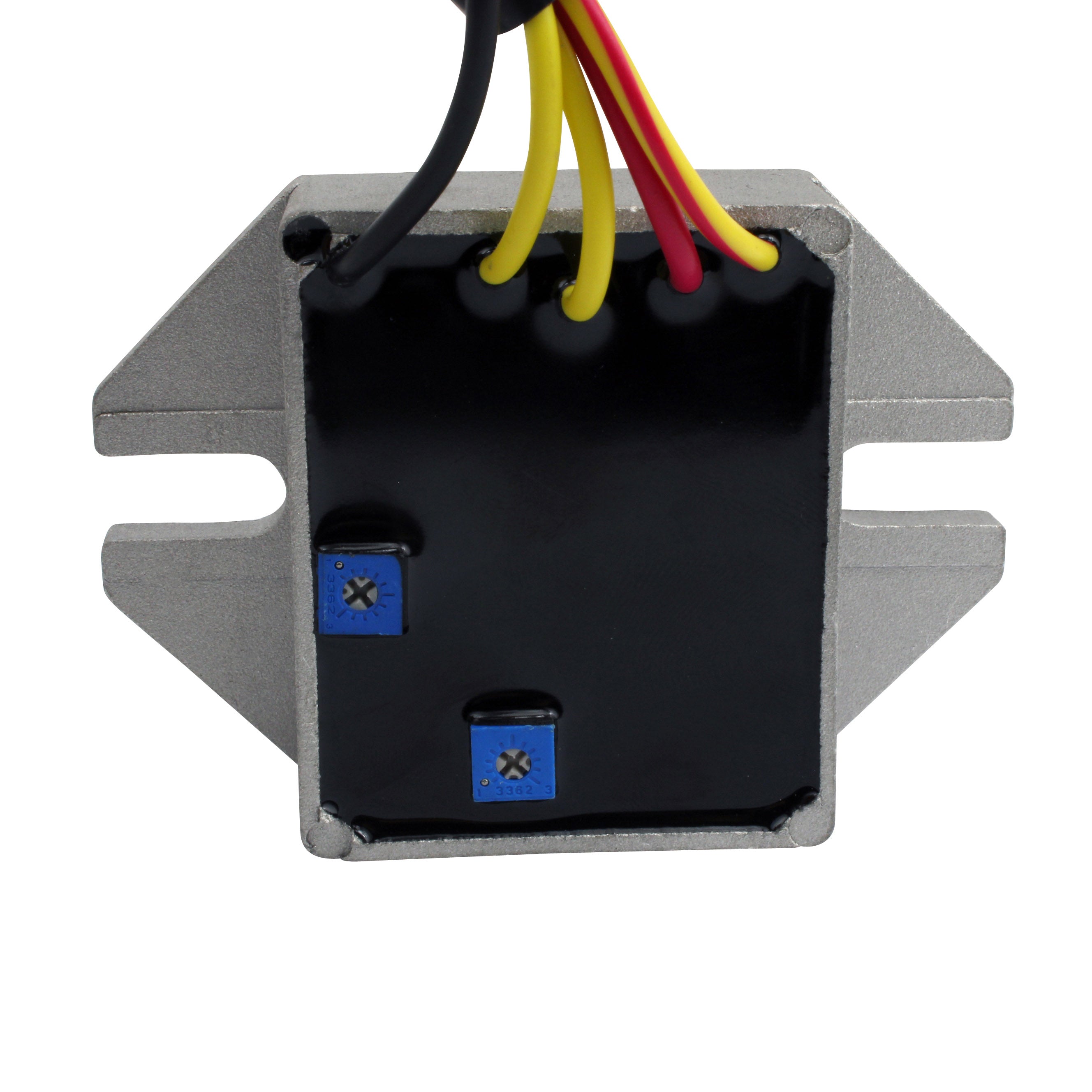

Brand new aftermarket Voltage Regulator Rectifier ACS

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
No assembly required
Higher grade of electric components
Improved heat sink and charging capabilities
The quality exceeds the OEM equipment
All products shipped are tested

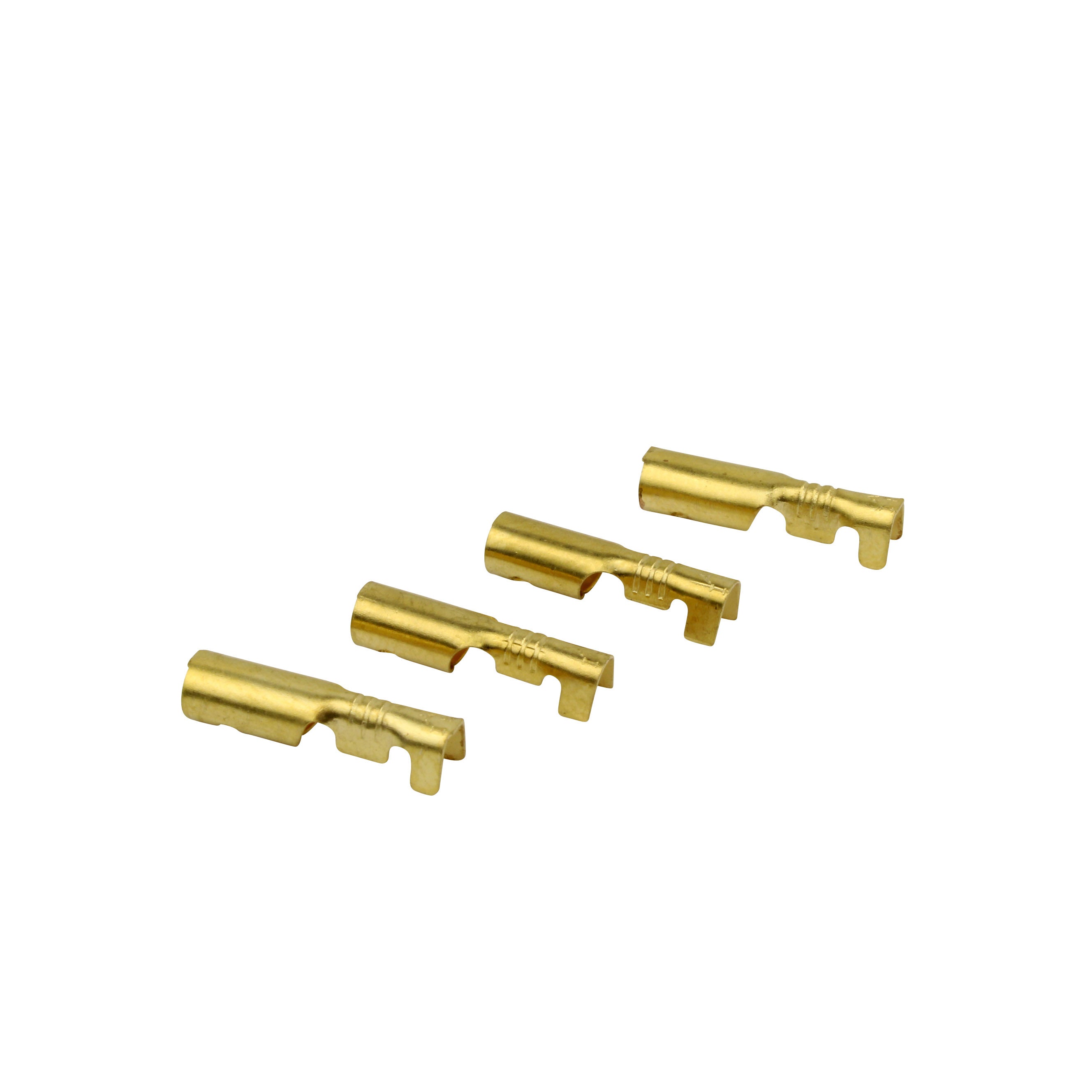

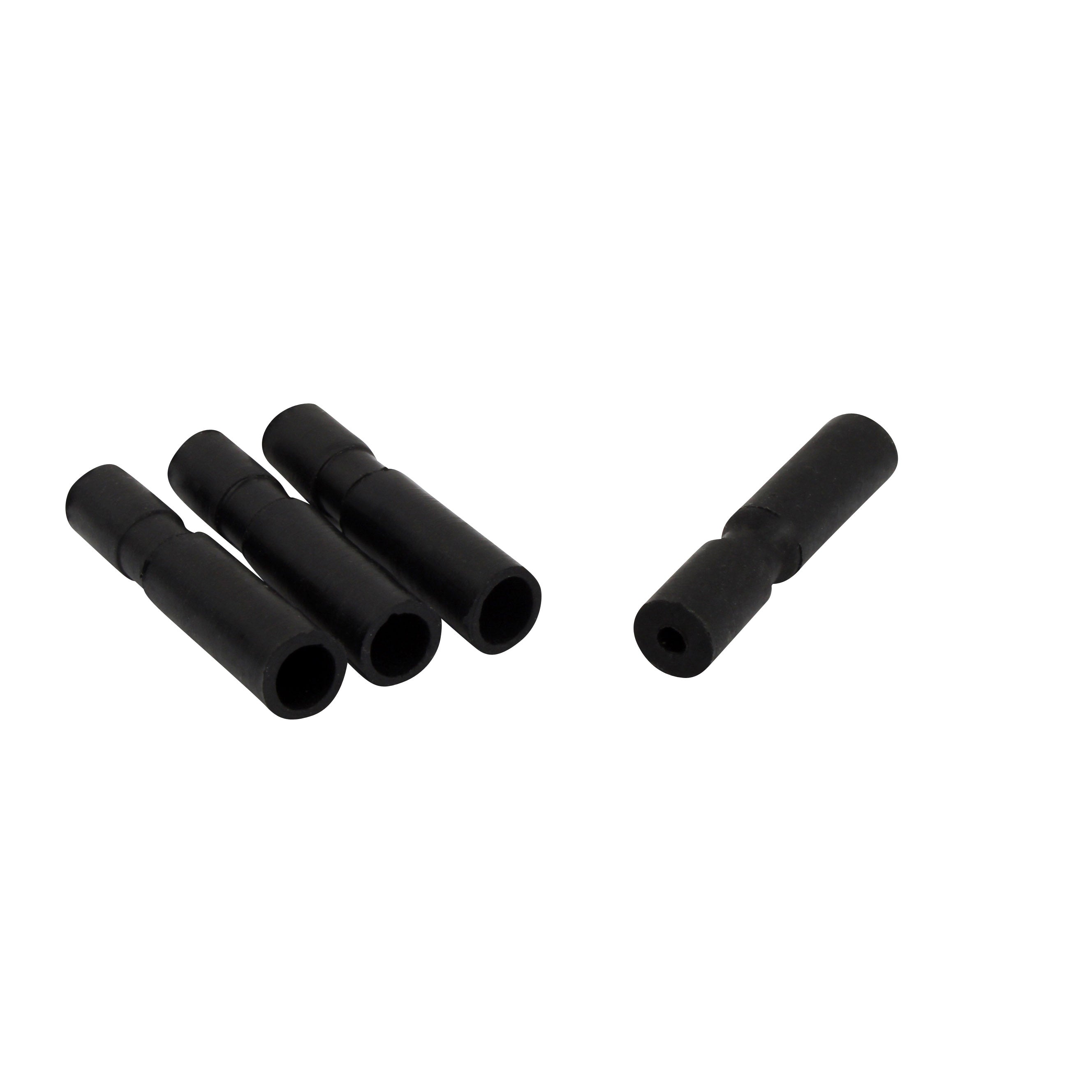

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications

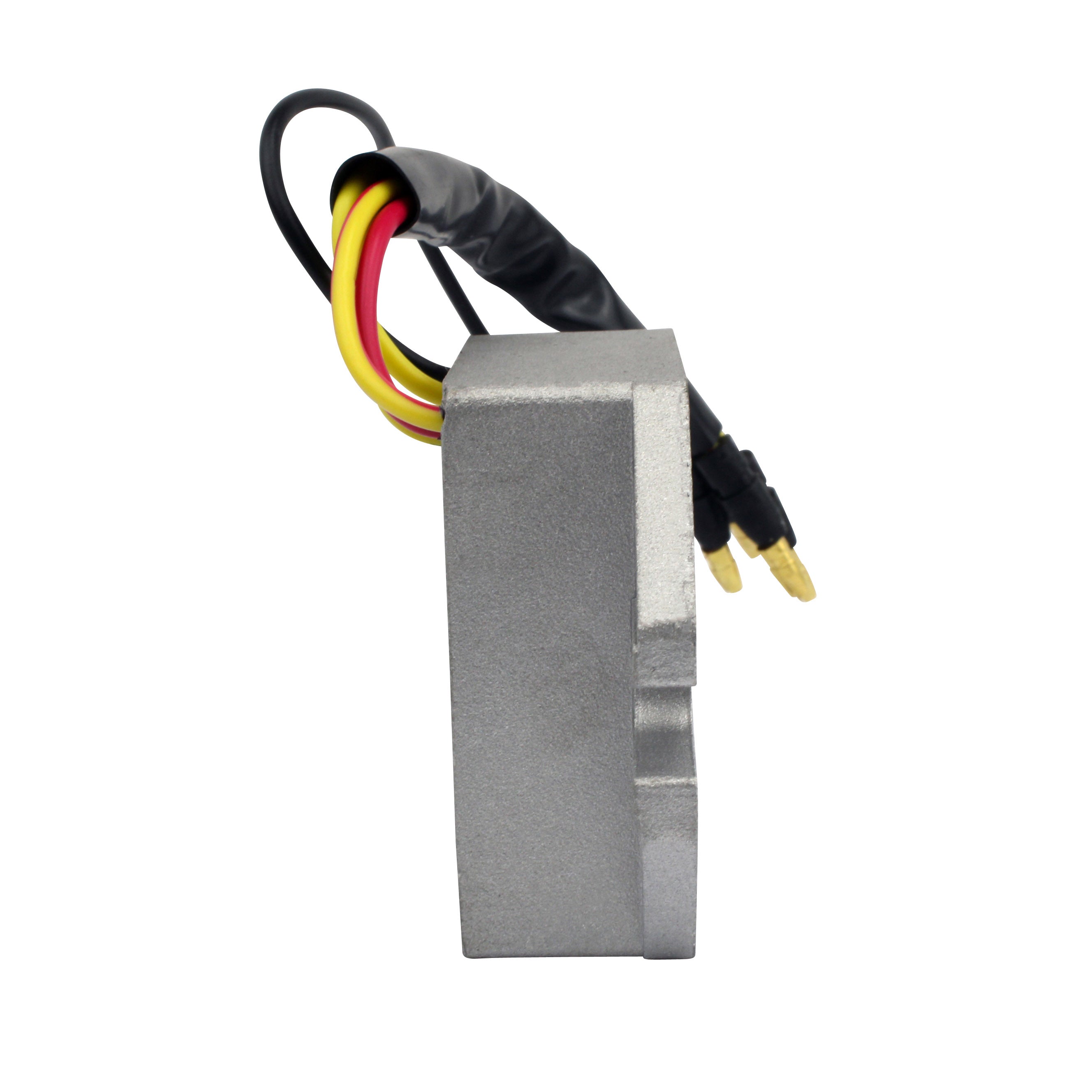

Dimensions:
Width: 51 mm (body) 79 mm (mounting brackets)
Length: 54 mm
Height: 22 mm
Wires length: 250 mm
Distance between fixation holes center to center: 62 mm

Other specifications:

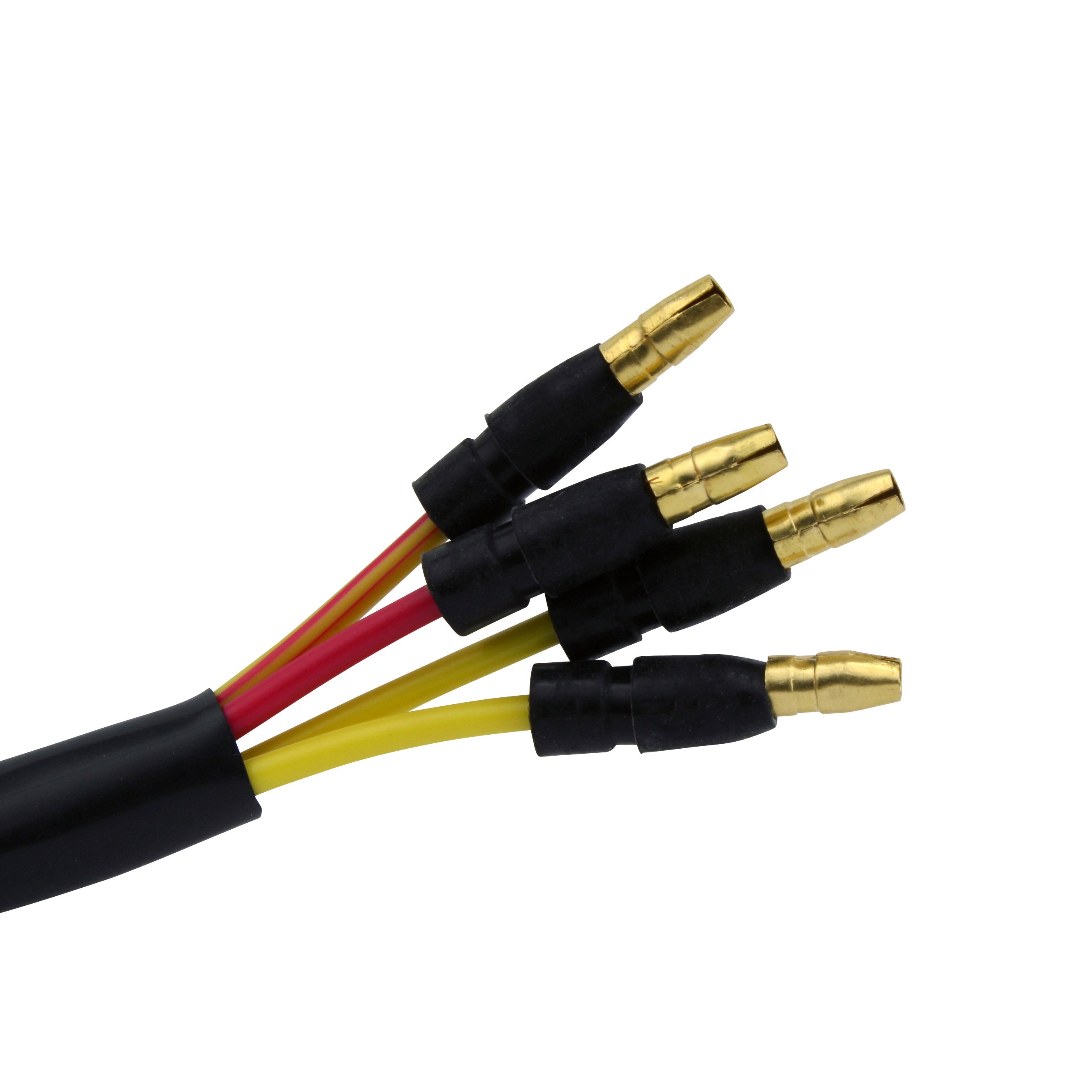

Number of plugs: 5
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Interchange Part Nº

4060098

Installation

This part replaces the 4 wire and 5 wire version of the Polaris ACS (Alternator Controlled Switch) on Polaris 500 EFI sleds. If you have a 5 wire version with a Black/White or Brown/White wire, this is unused and can be taped up. The black wire is attached to the mounting bolt/frame.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
