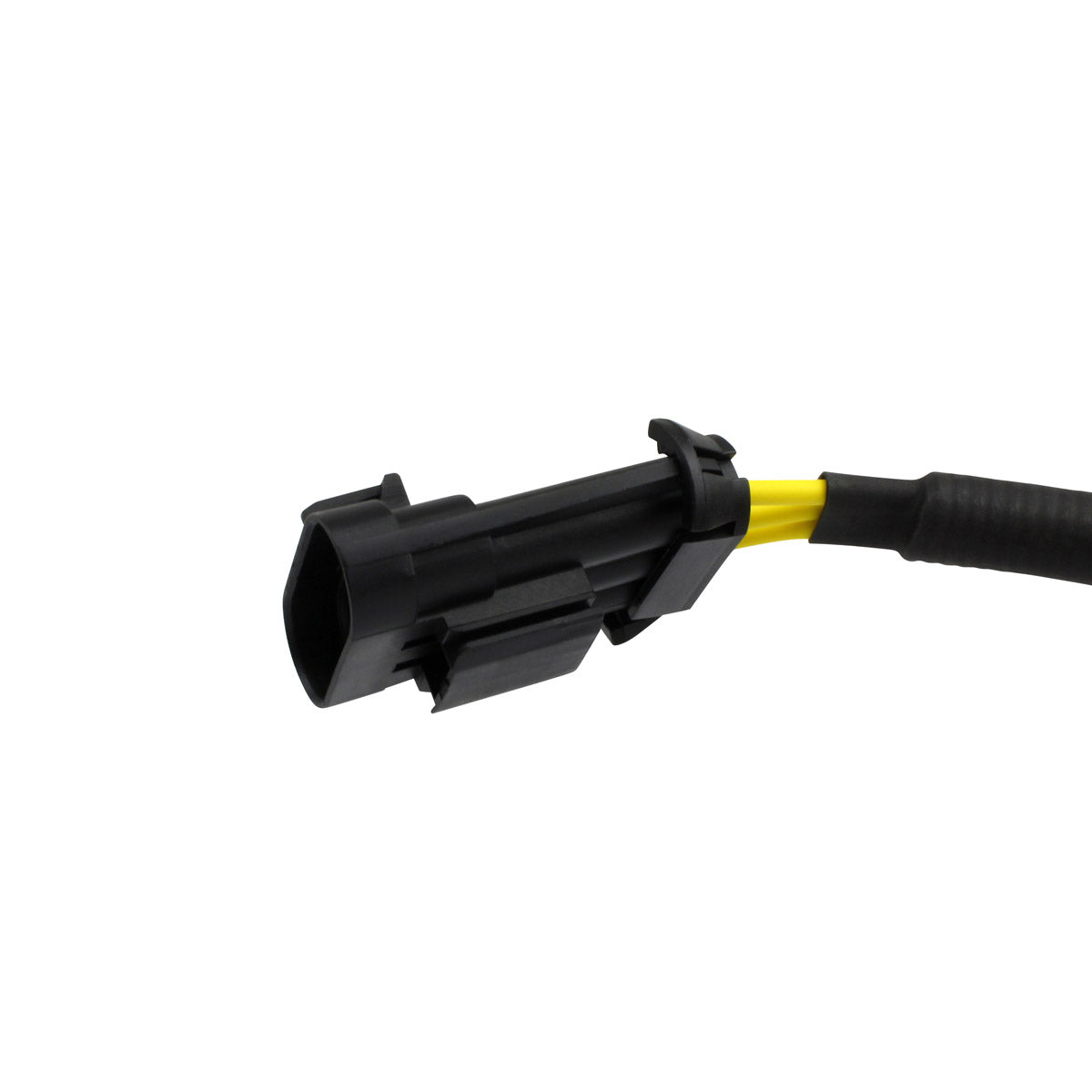

850W Voltage Regulator for Can-Am Defender / Defender Max 1000 | Maverick / Maverick Max 1000 2020-2024 | # 710006824

850W Voltage Regulator for Can-Am Defender / Defender Max 1000 | Maverick / Maverick Max X3 1000RR 2020-2025 710006824

Name: 850W Voltage Regulator for Can-Am Defender / Defender Max 1000 | Maverick / Maverick Max X3 1000RR 2020-2025 710006824
Brand: RMSTATOR
SKU: RMS020-108368
Price: 175.89 USD
Availability: InStock

RMSTATOR

SKU: RMS020-108368

In Stock

RMSTATOR

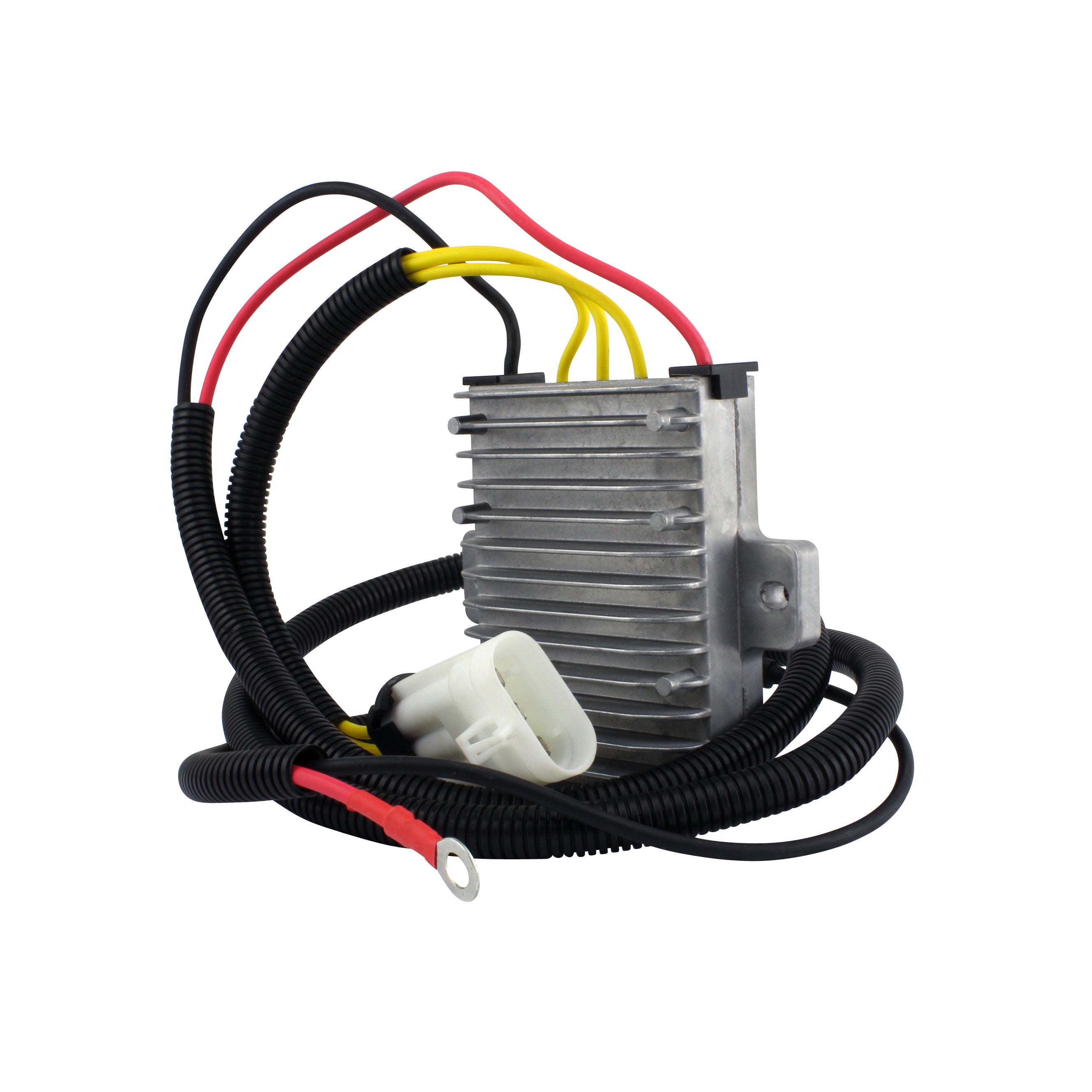

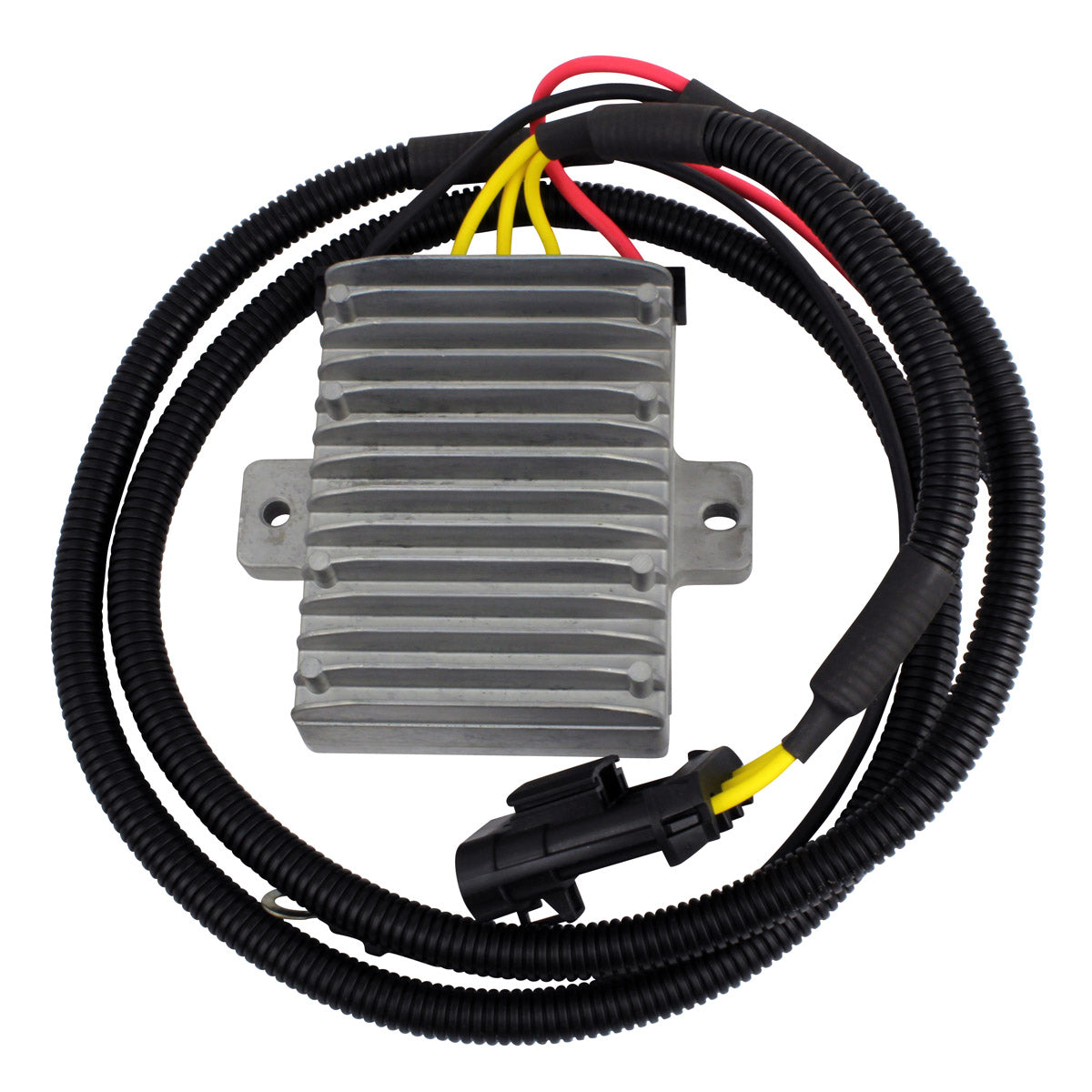

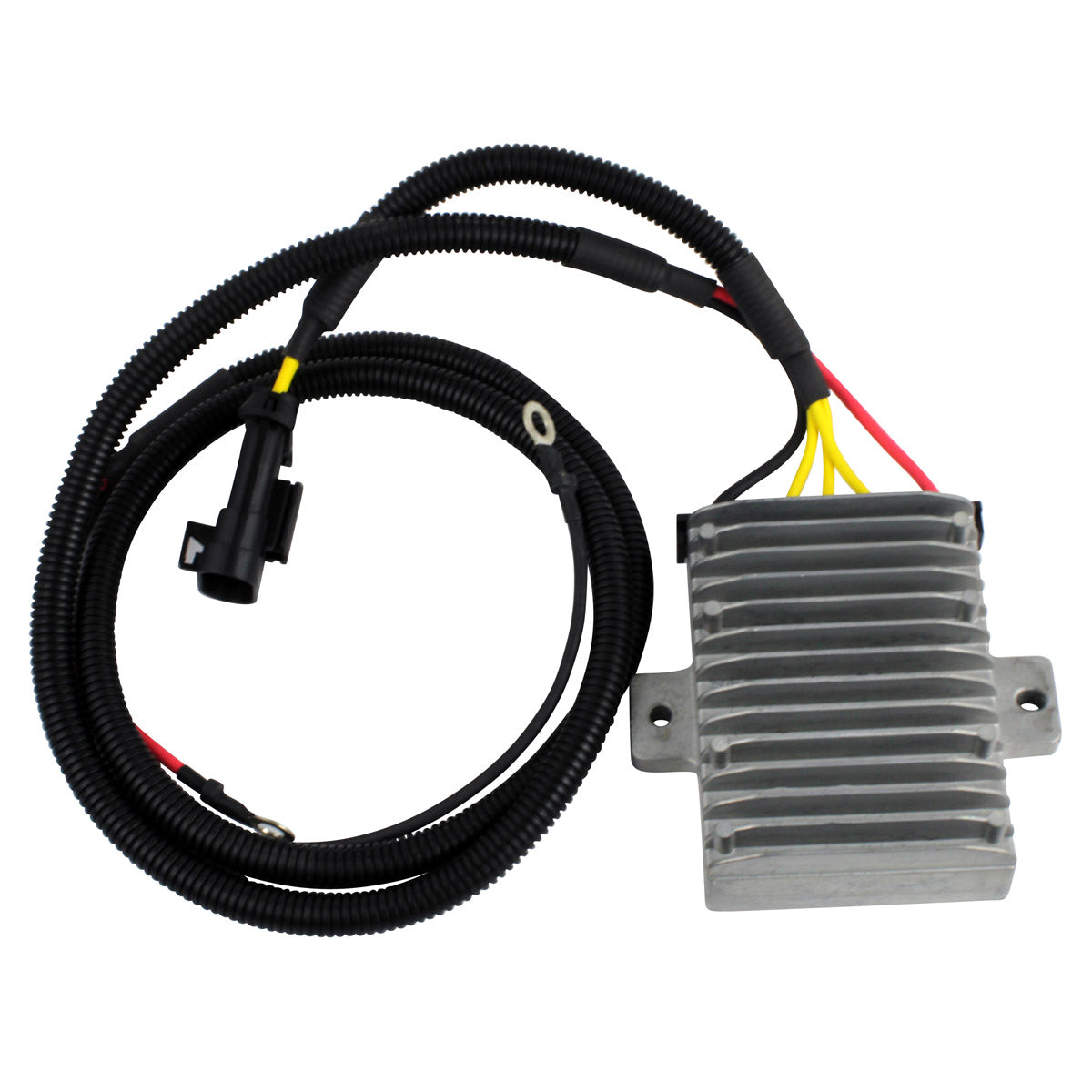

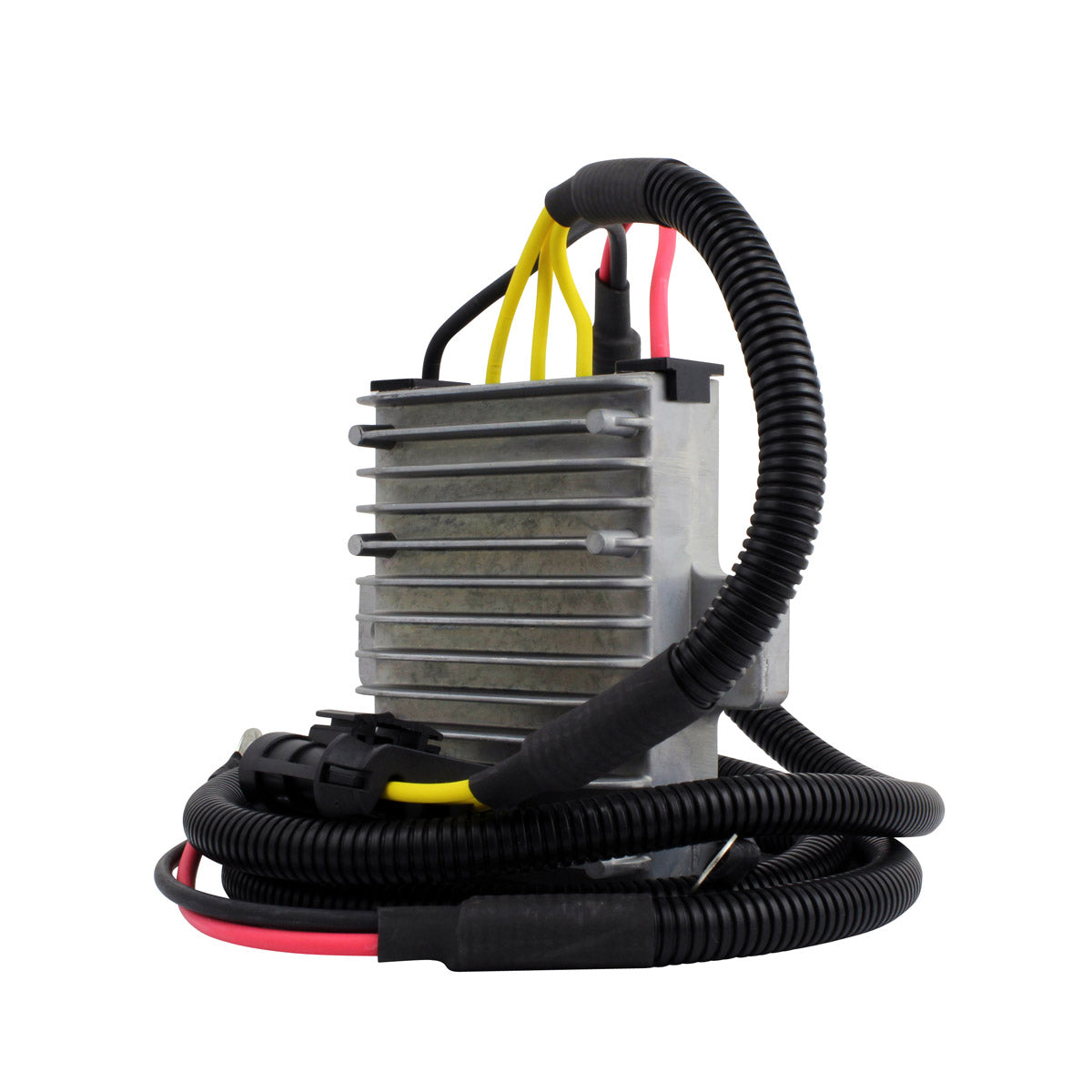

850W Voltage Regulator for Can-Am Defender / Defender Max 1000 | Maverick / Maverick Max X3 1000RR 2020-2025 710006824

$175.89

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

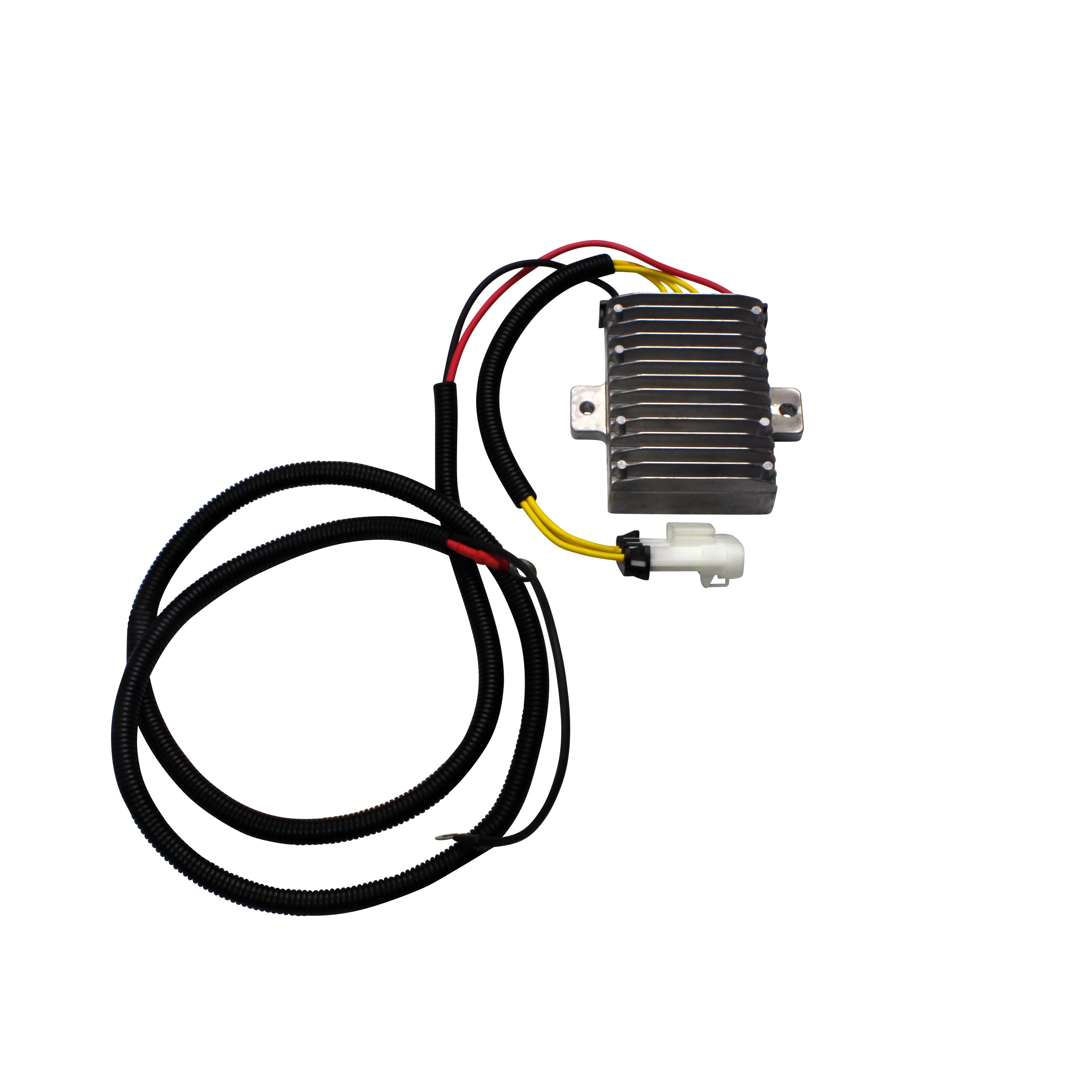

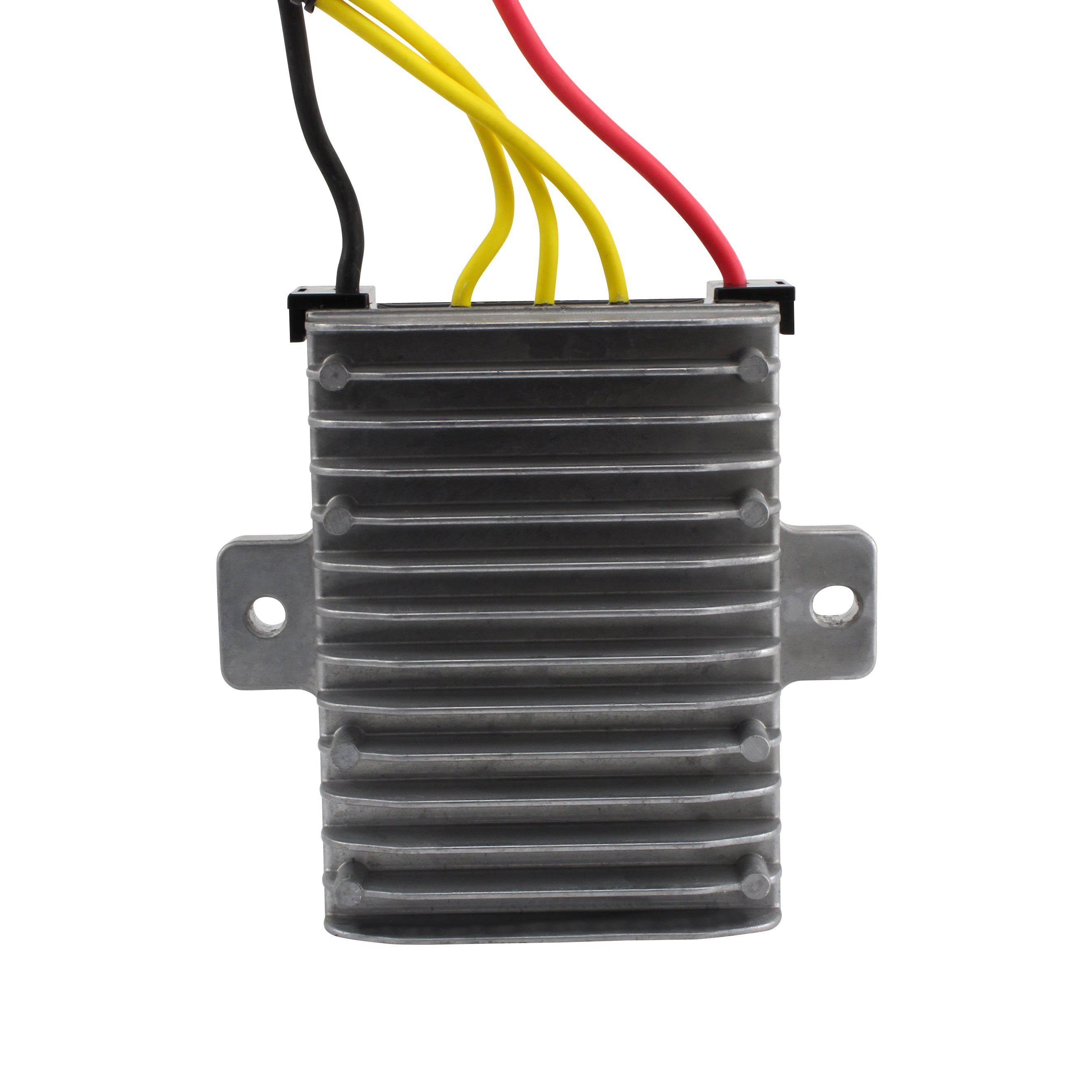

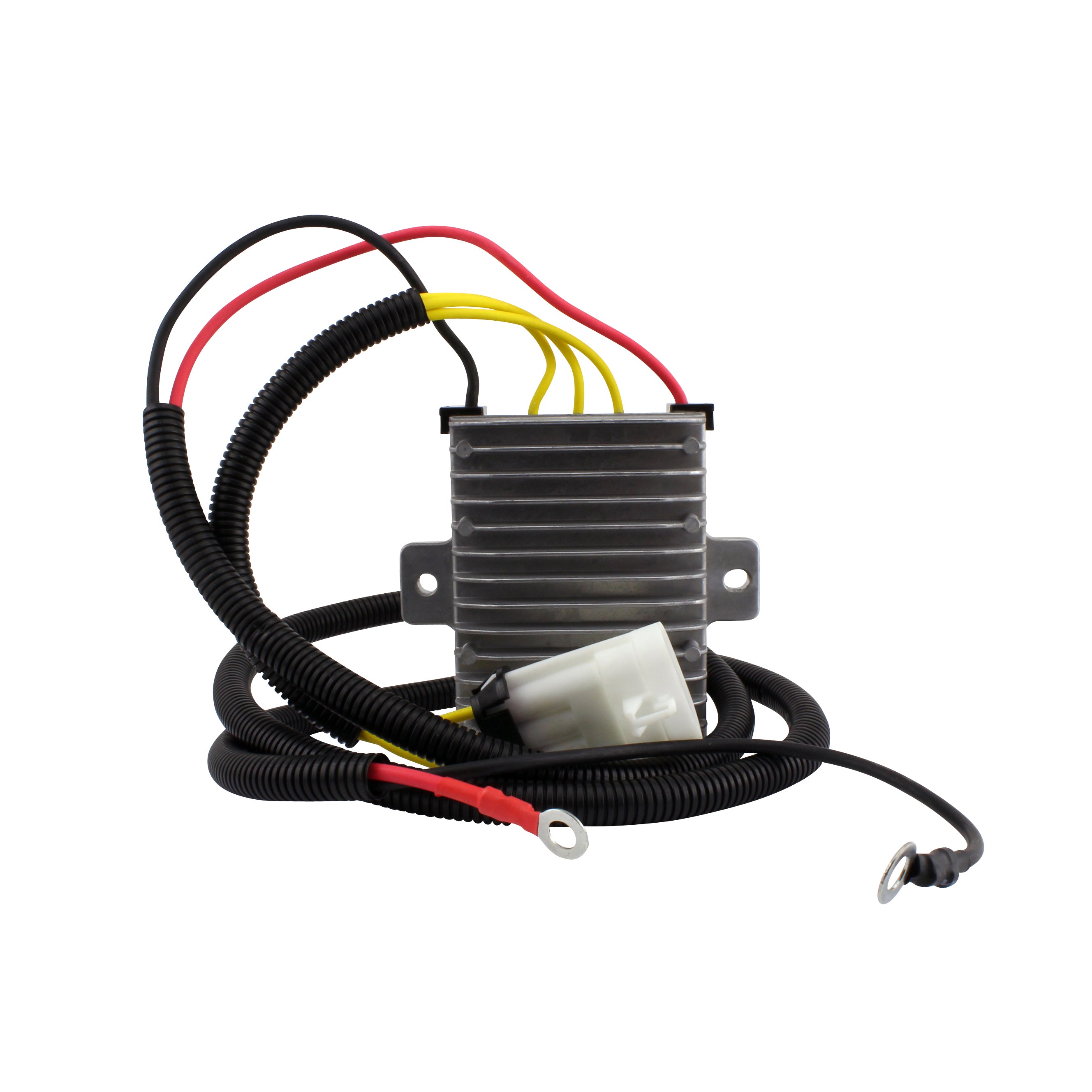

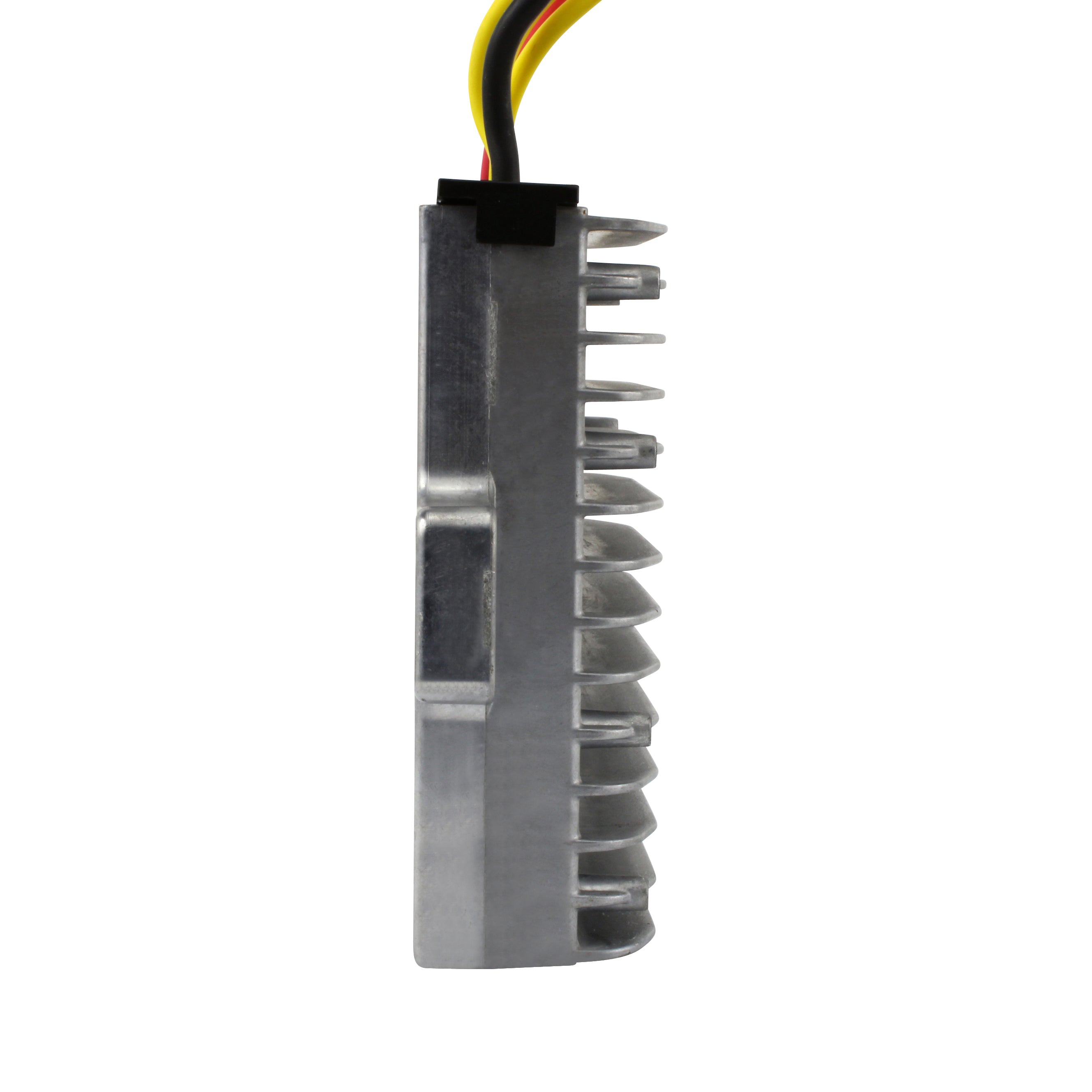

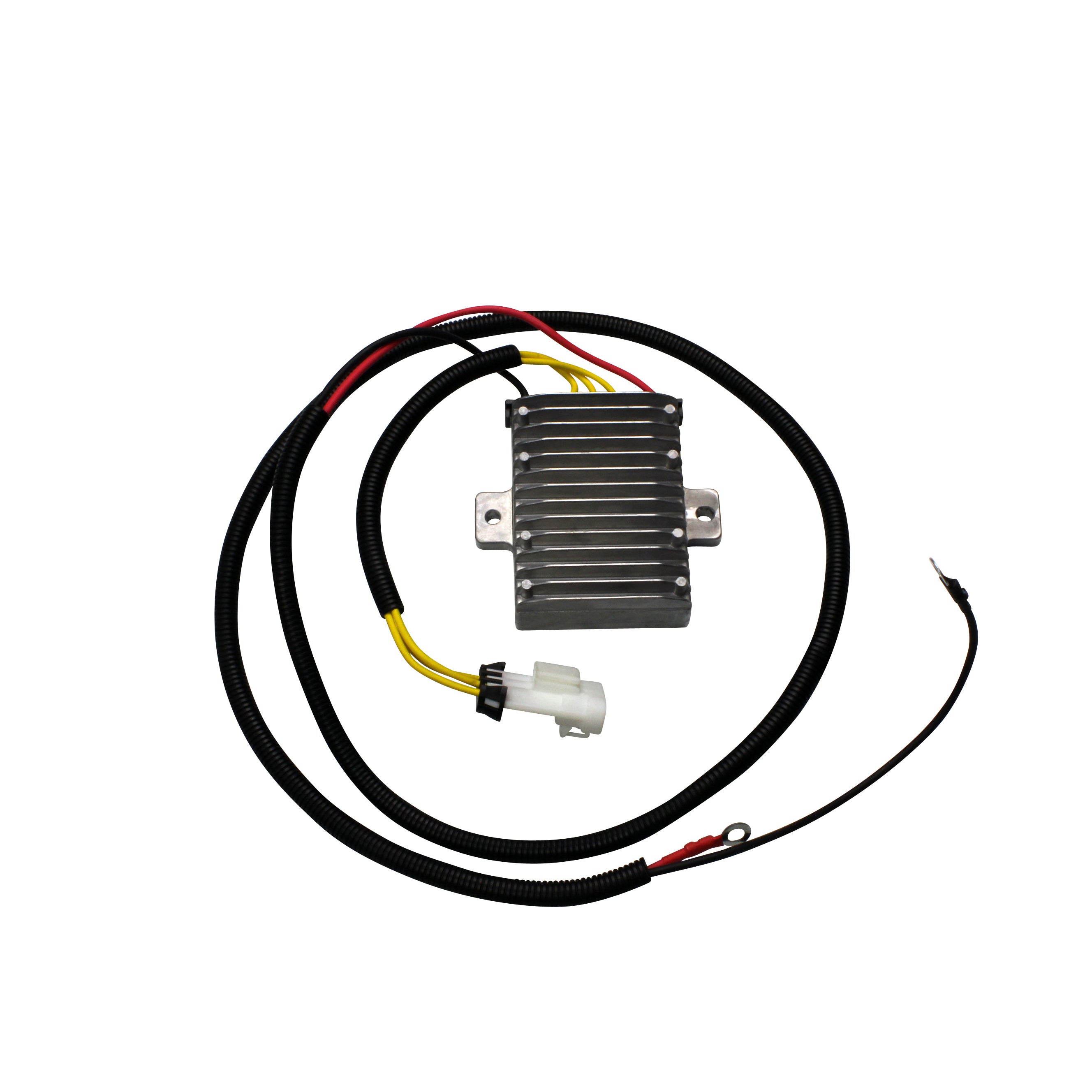

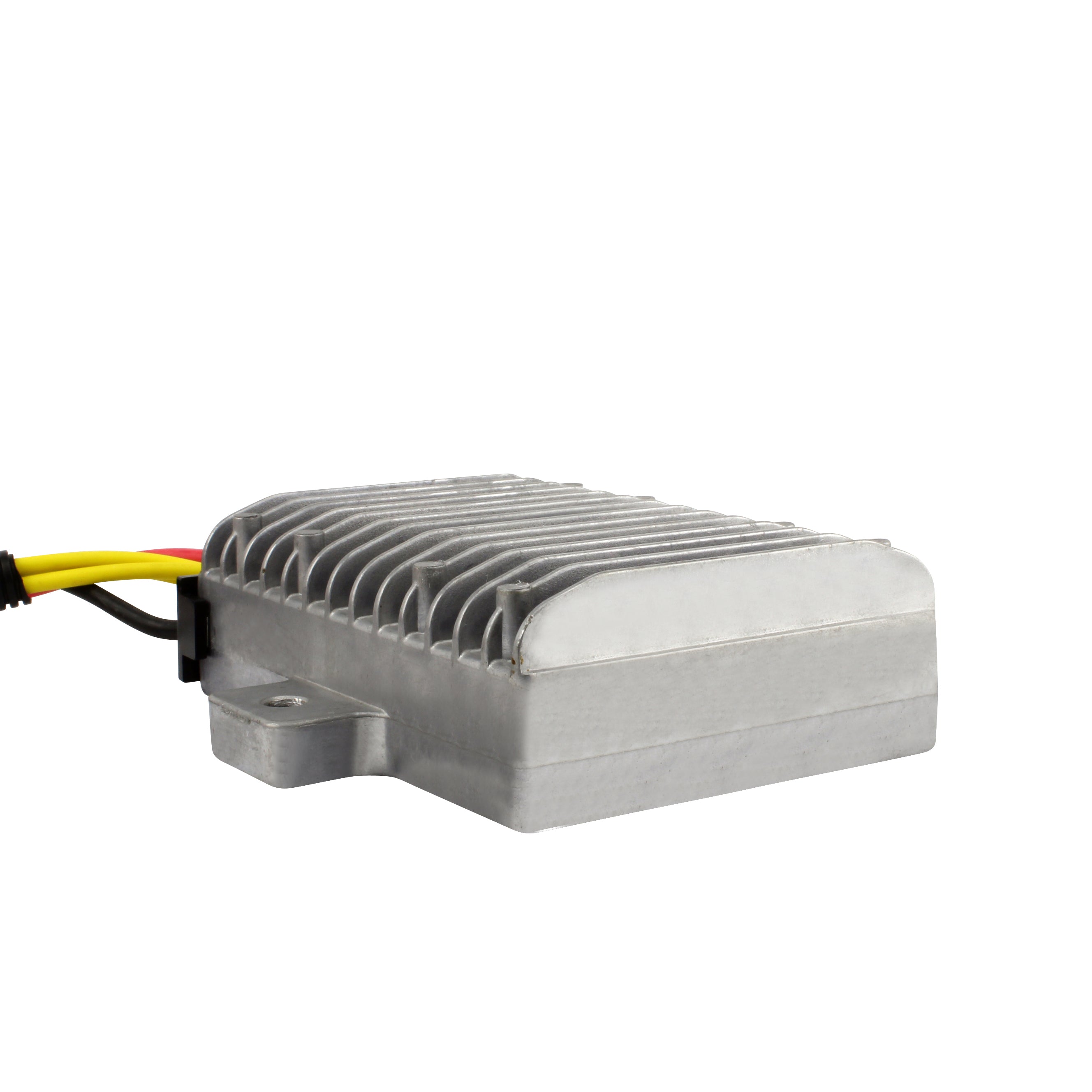

Brand new aftermarket Voltage Regulator Rectifier

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
No assembly required
Higher grade of electric components
Improved heat sink and charging capabilities
The quality exceeds the OEM equipment
All products shipped are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications

Dimensions:
Width: 89 mm
Length: 120 mm
Height: 40 mm
Stator Wires length: 280 mm
Distance between fixation holes center to center: 112 mm

Other specifications:
Number of plugs: 3
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 65 A / 850 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C

Interchange Part Nº

710006824

Installation

Before installing your new Voltage Regulator Rectifier:

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
