Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Read more

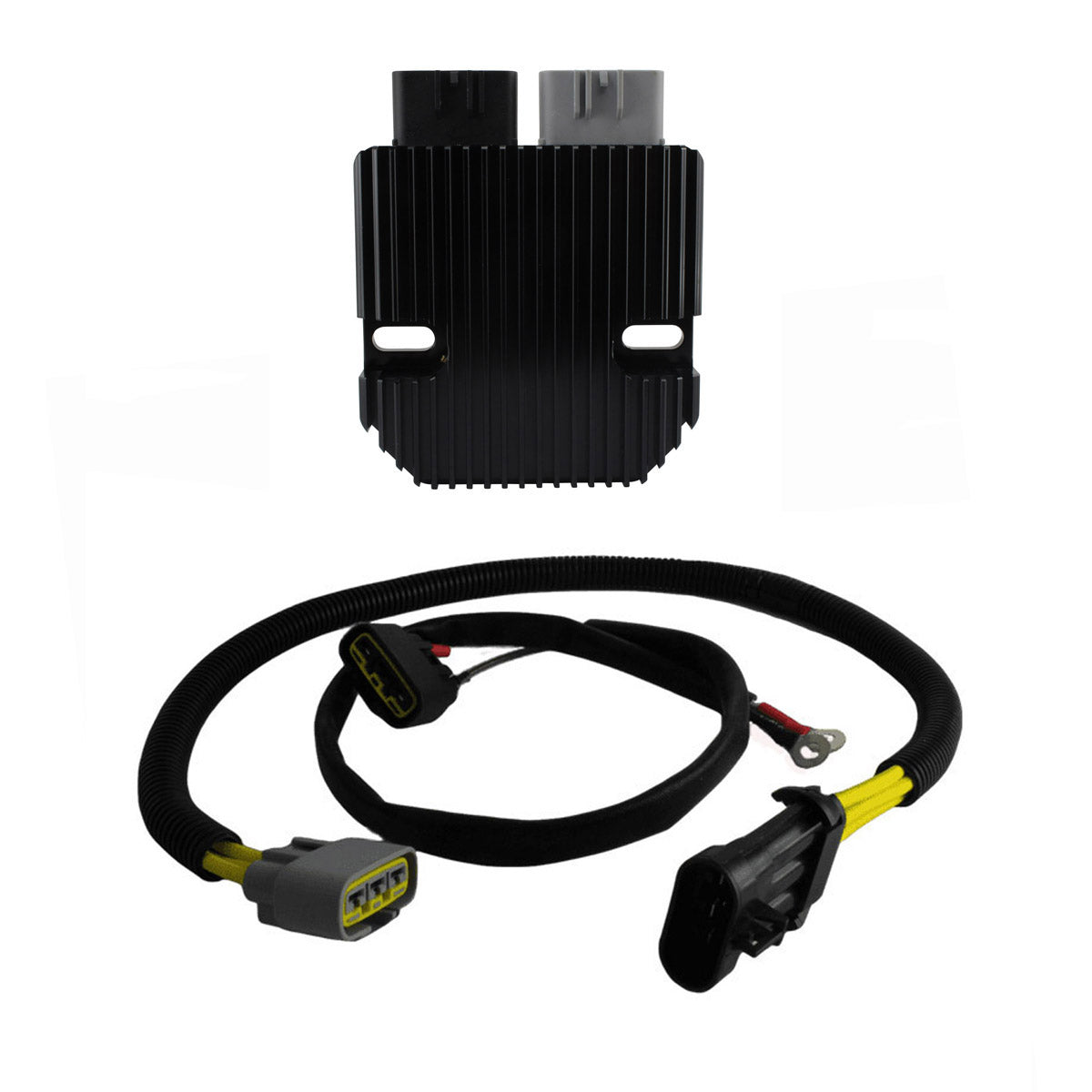

could not find image for url : https://rmstator.com/media/catalog/product/r/m/rms020-107980__1_170.jpg
REVOLT Voltage Regulator for Polaris RZR 900 / 1000 | Sportsman 325 570 / ACE 900 2012-2024 | OEM Repl.# 4016868 4014029
$295.89

Details

Brand new REVOLT Voltage Regulator

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

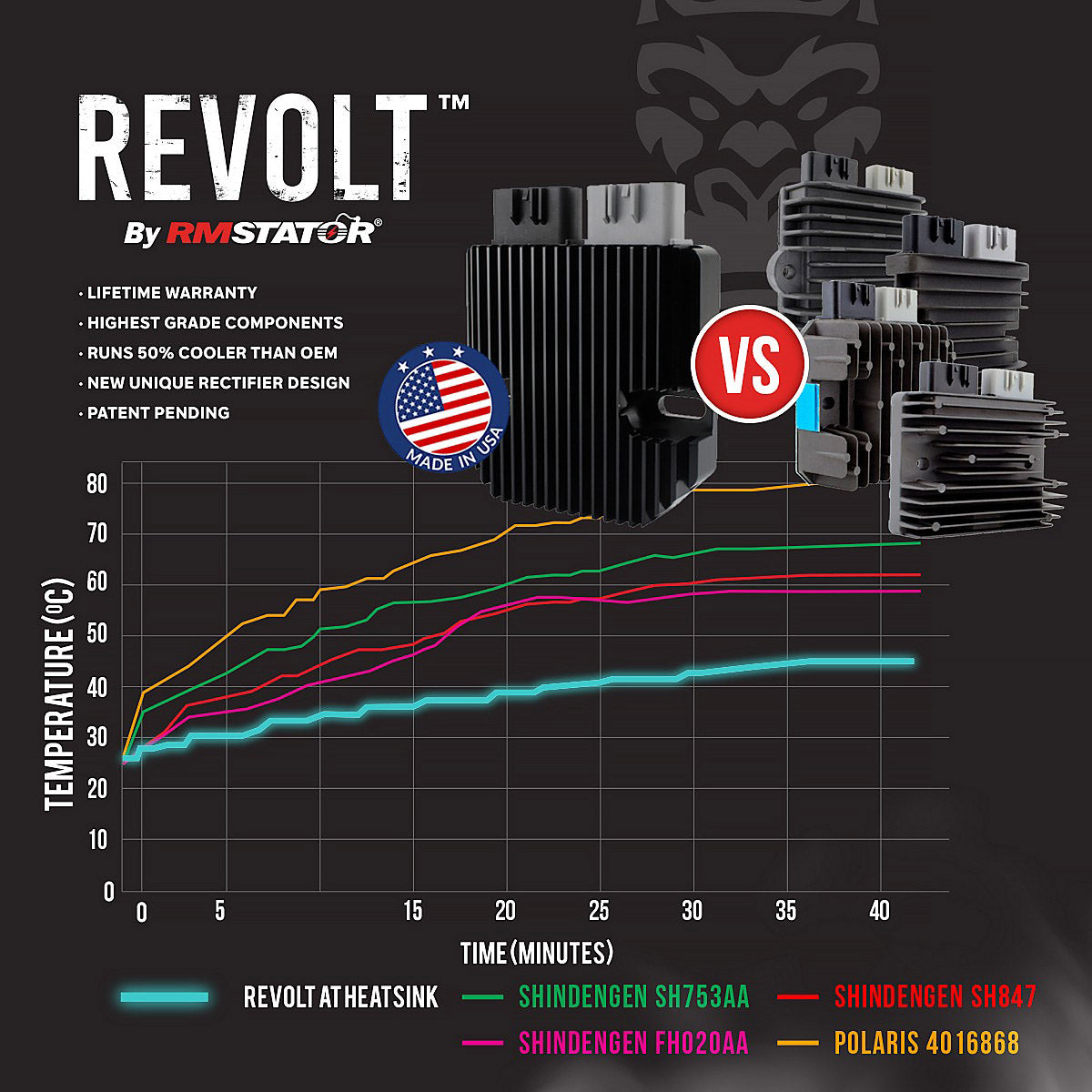

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products on the market

SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market to considerably improve the rectifier reliability.

DISSIPATE HEAT 45% FASTER THAN OEM

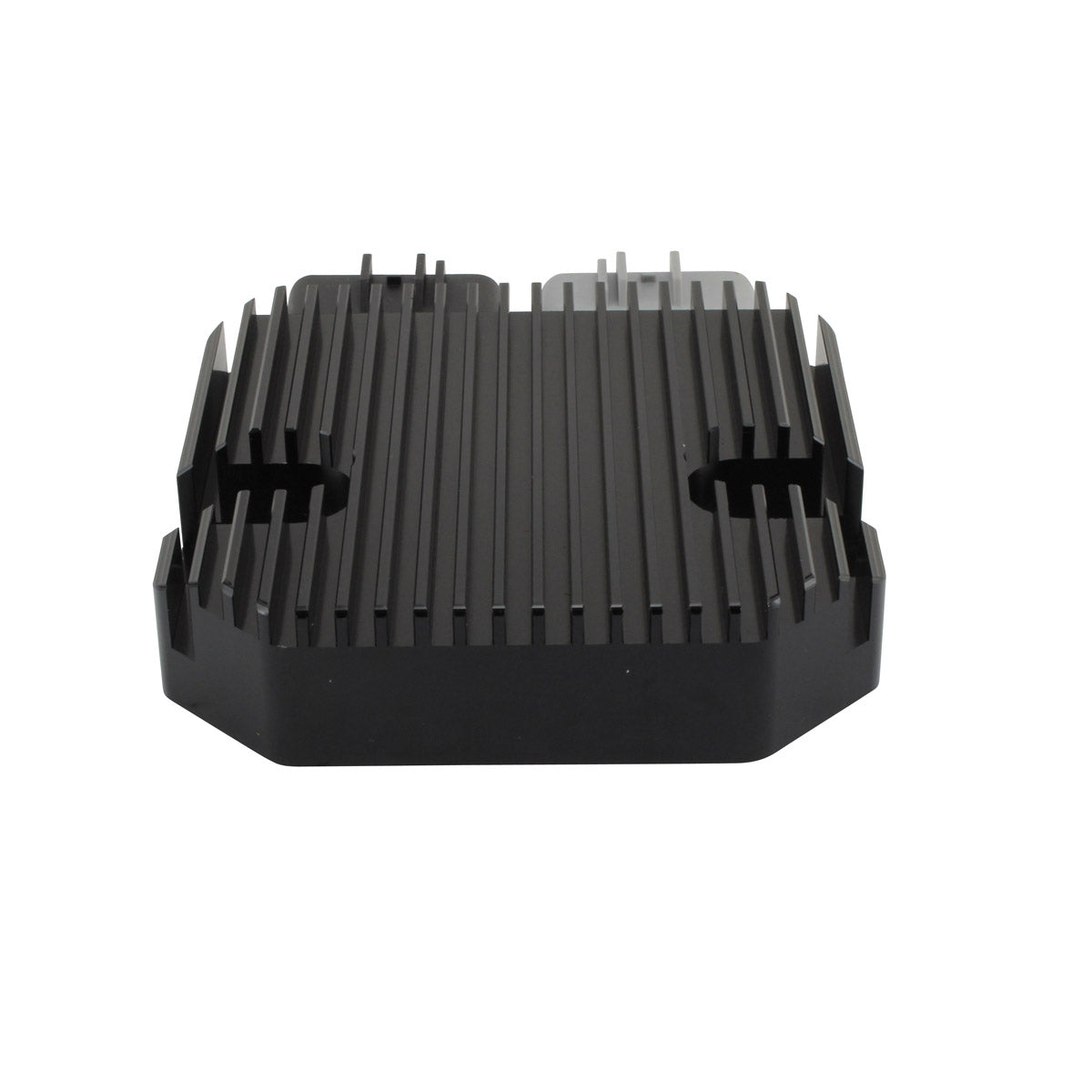

Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

PROUDLY MADE IN NORTH AMERICA
REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.

LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.

Join REVOLT, the new era of voltage regulation!

Specifications

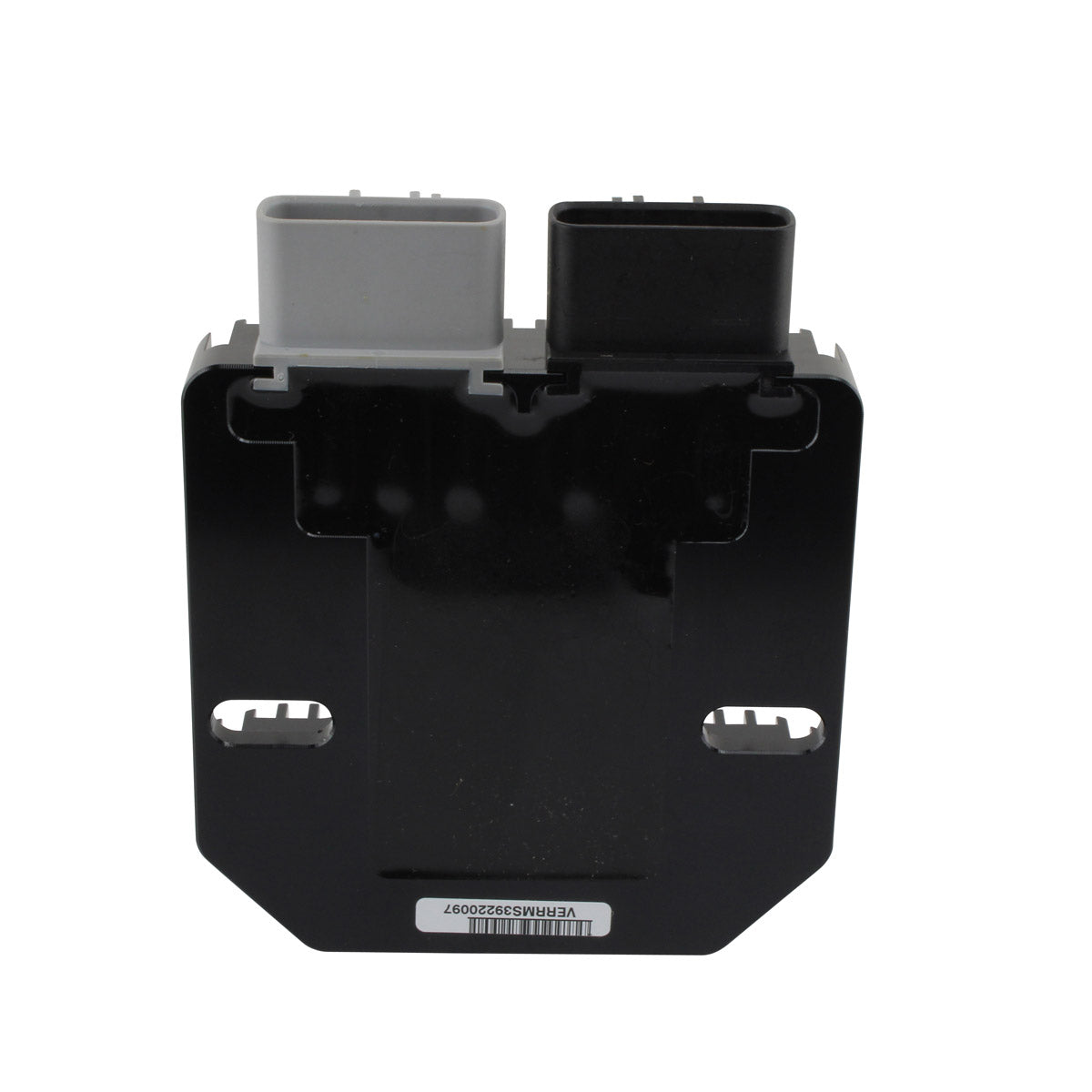

REVOLT Voltage Regulator Rectifier :

Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:

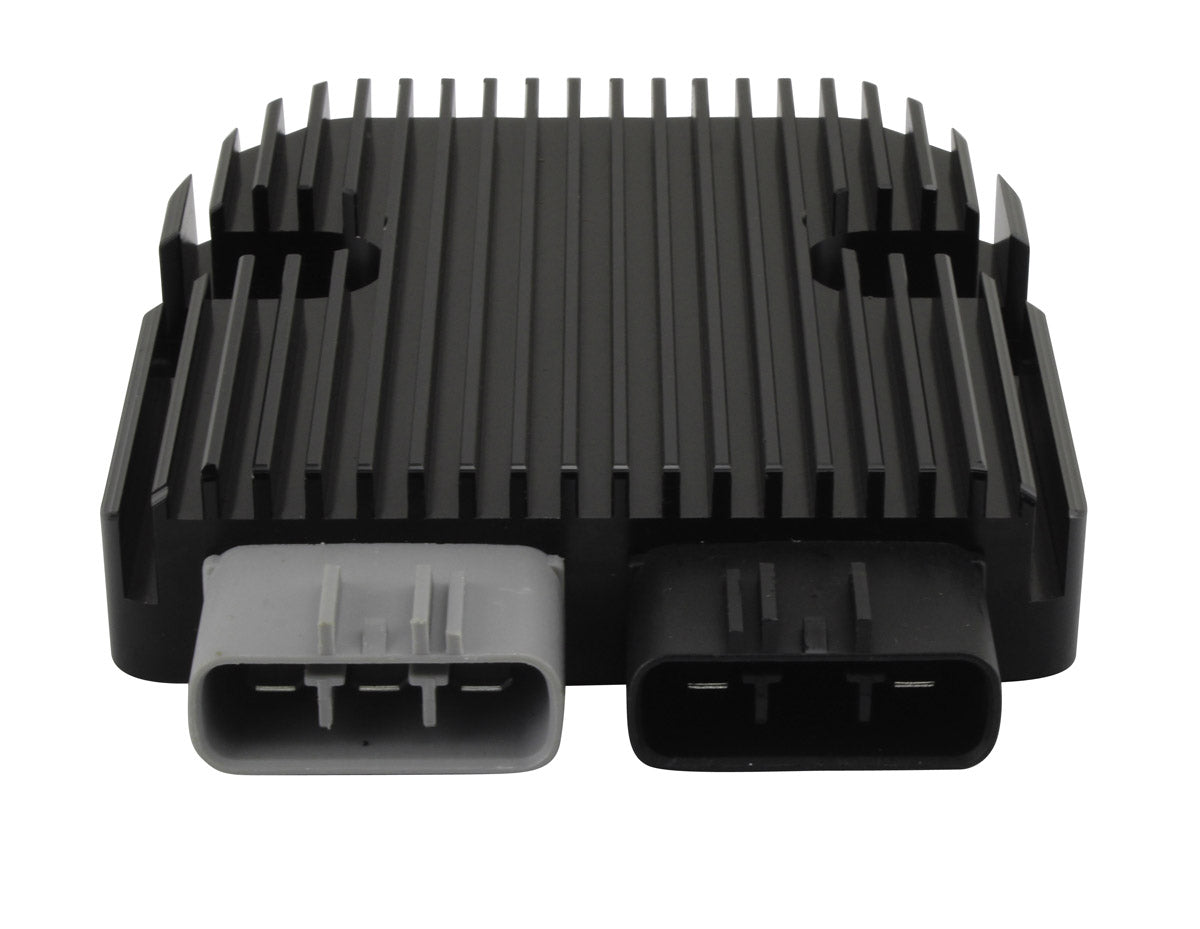

Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C

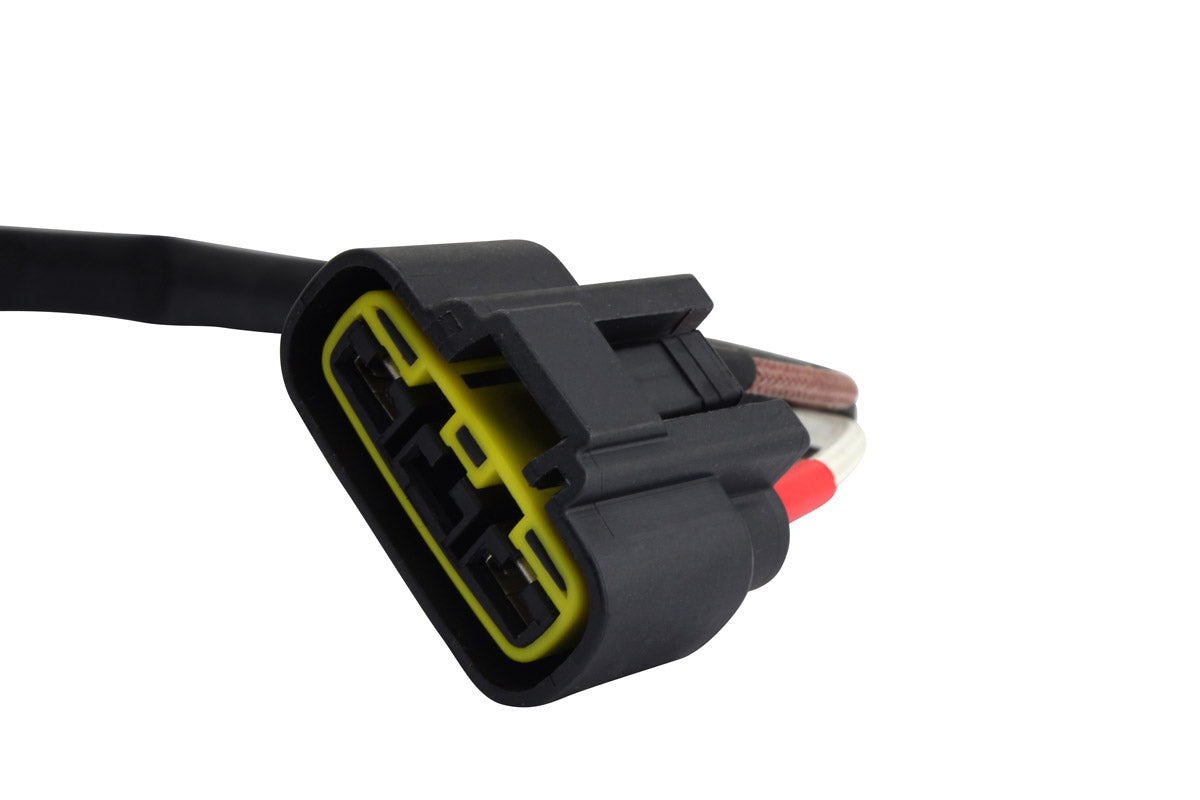

Harness :

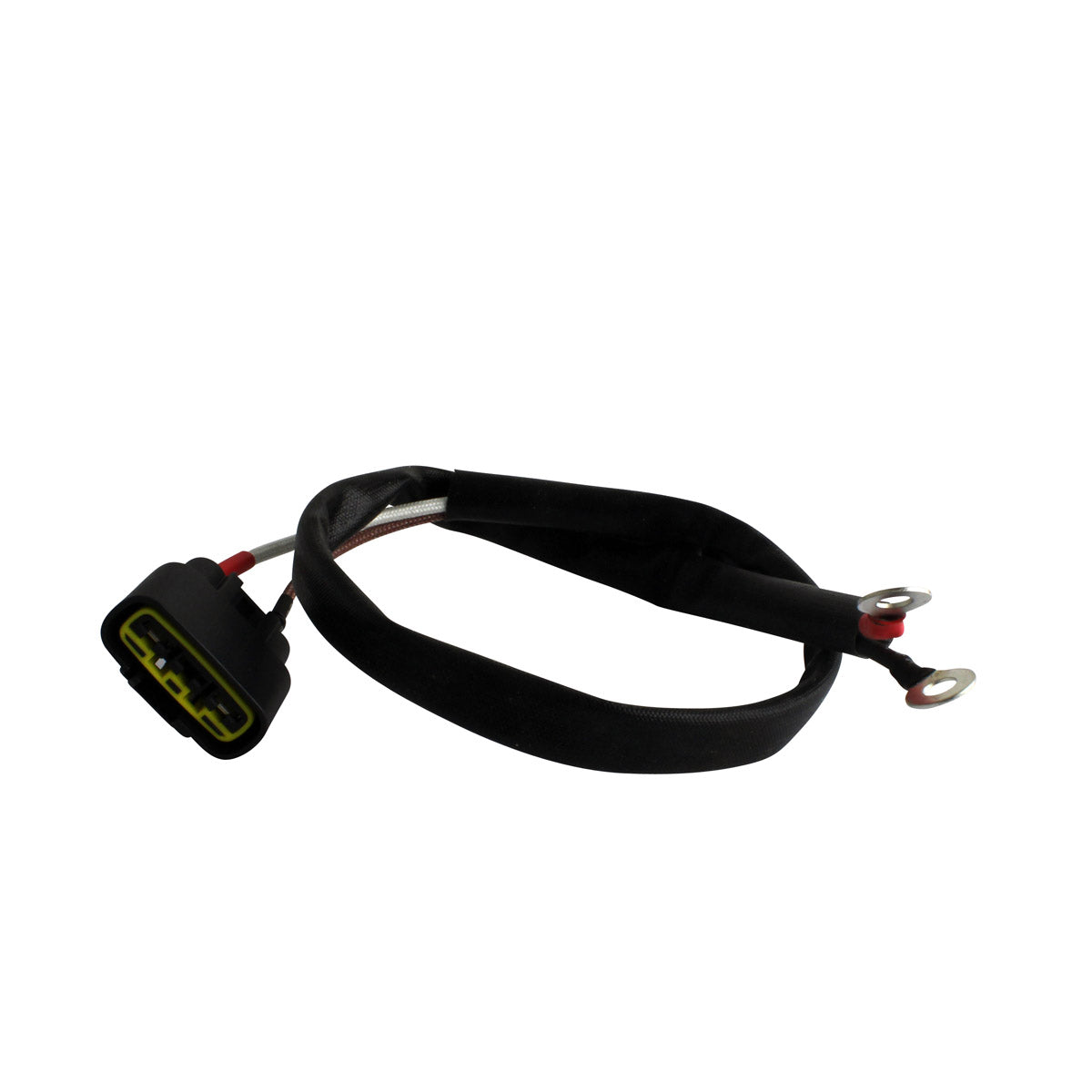

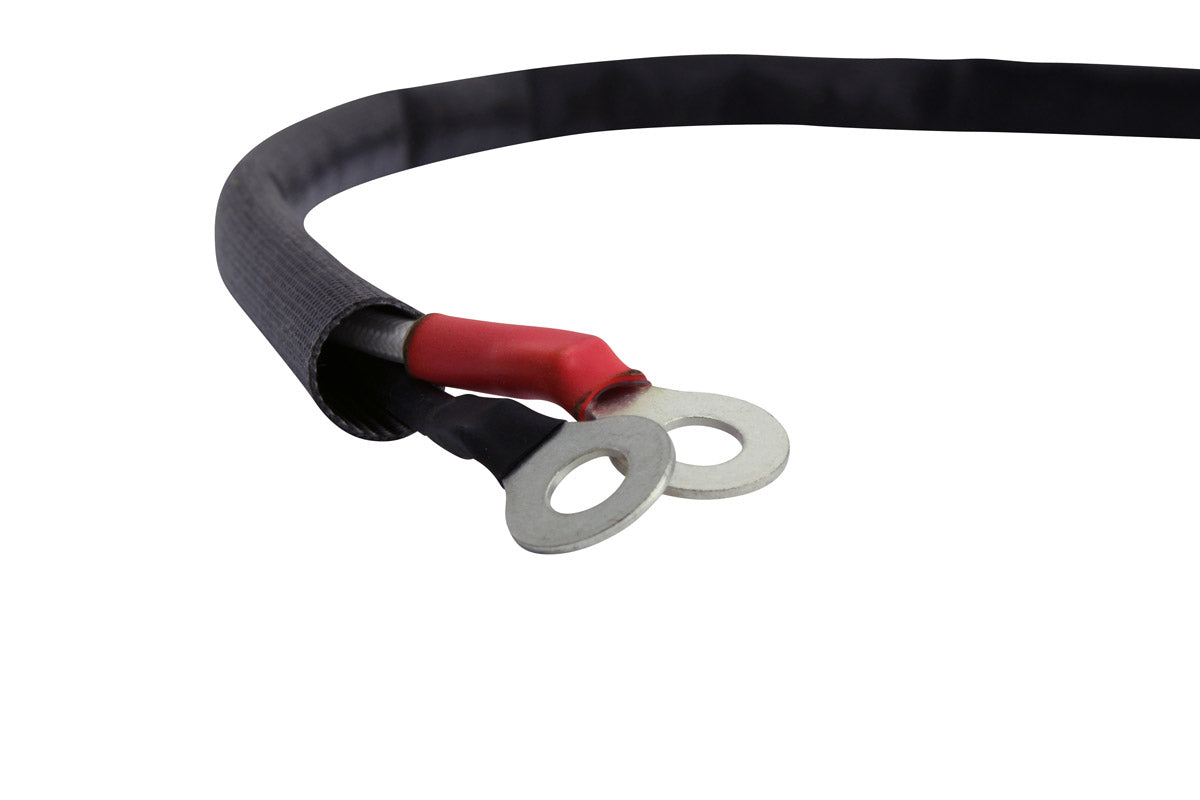

Battery wires length : 590 mm

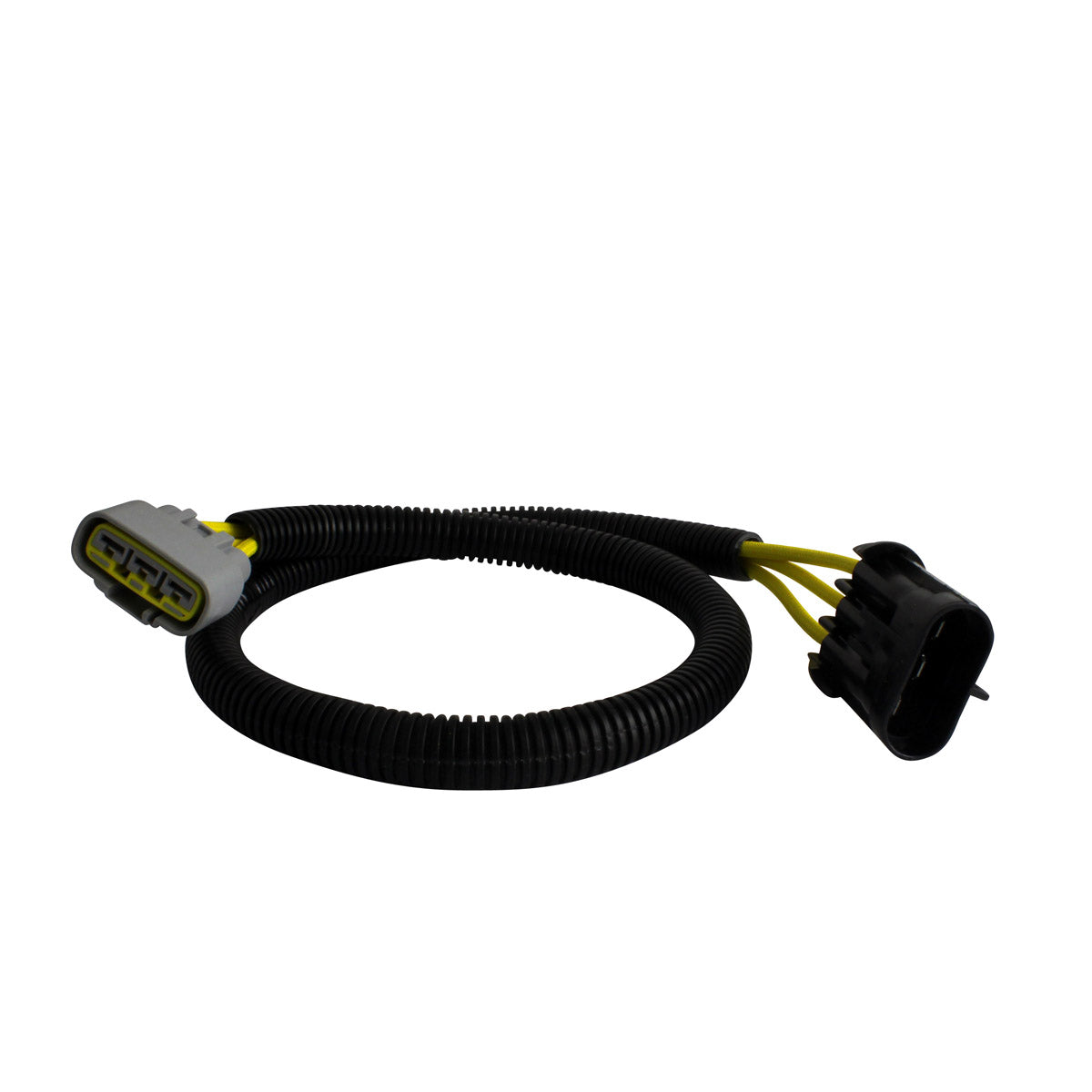

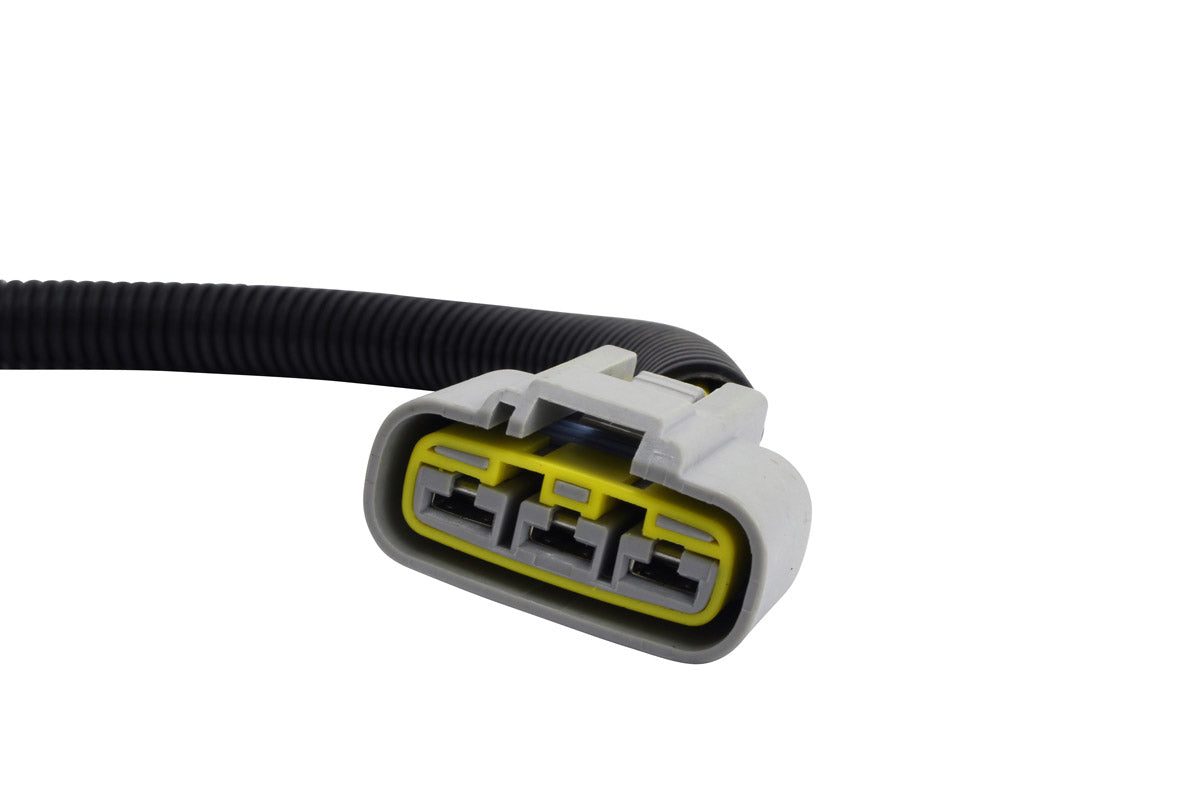

Stator wires length : 630 mm

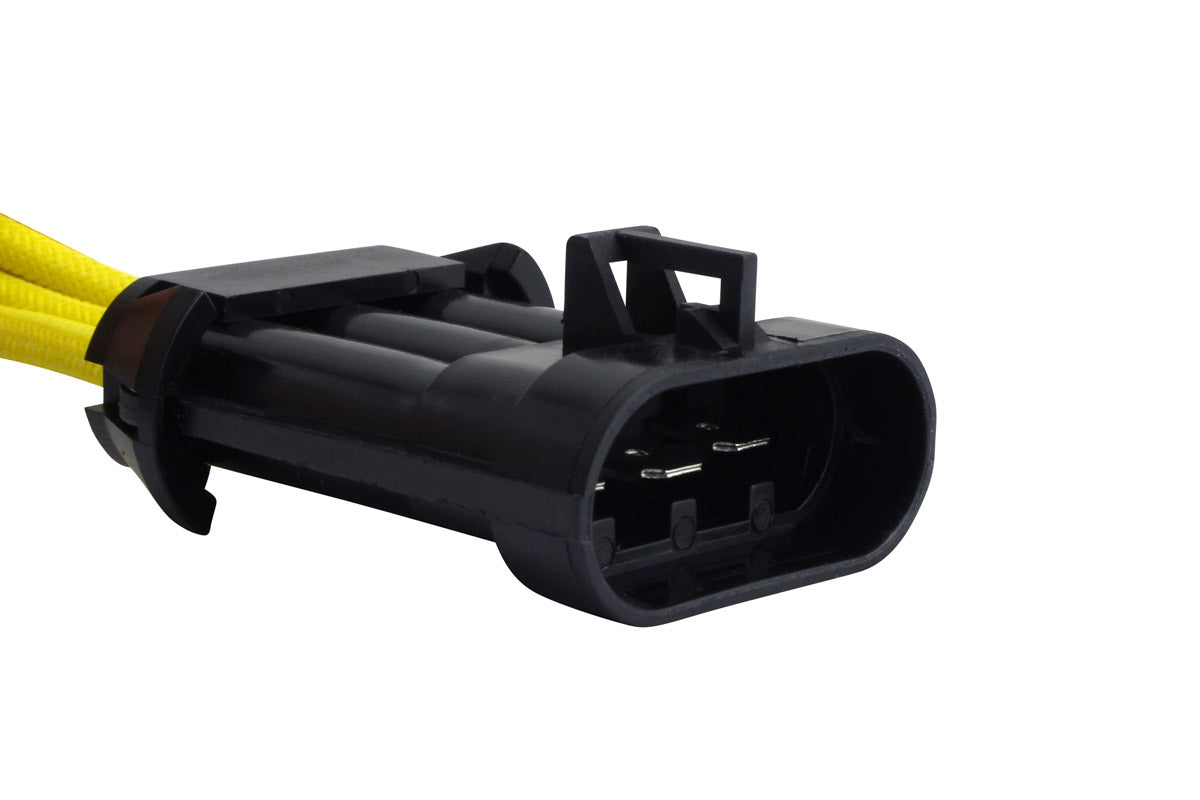

Number of yellow wires : 3
Number of red wires : 1
Number of black wires : 1
Number of plugs : 3

Interchange Part Nº

  • 4013247
  • 4014029
  • 4013904
  • 4014856
  • 2206367
  • 4016868
  • 4015229

Installation

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
