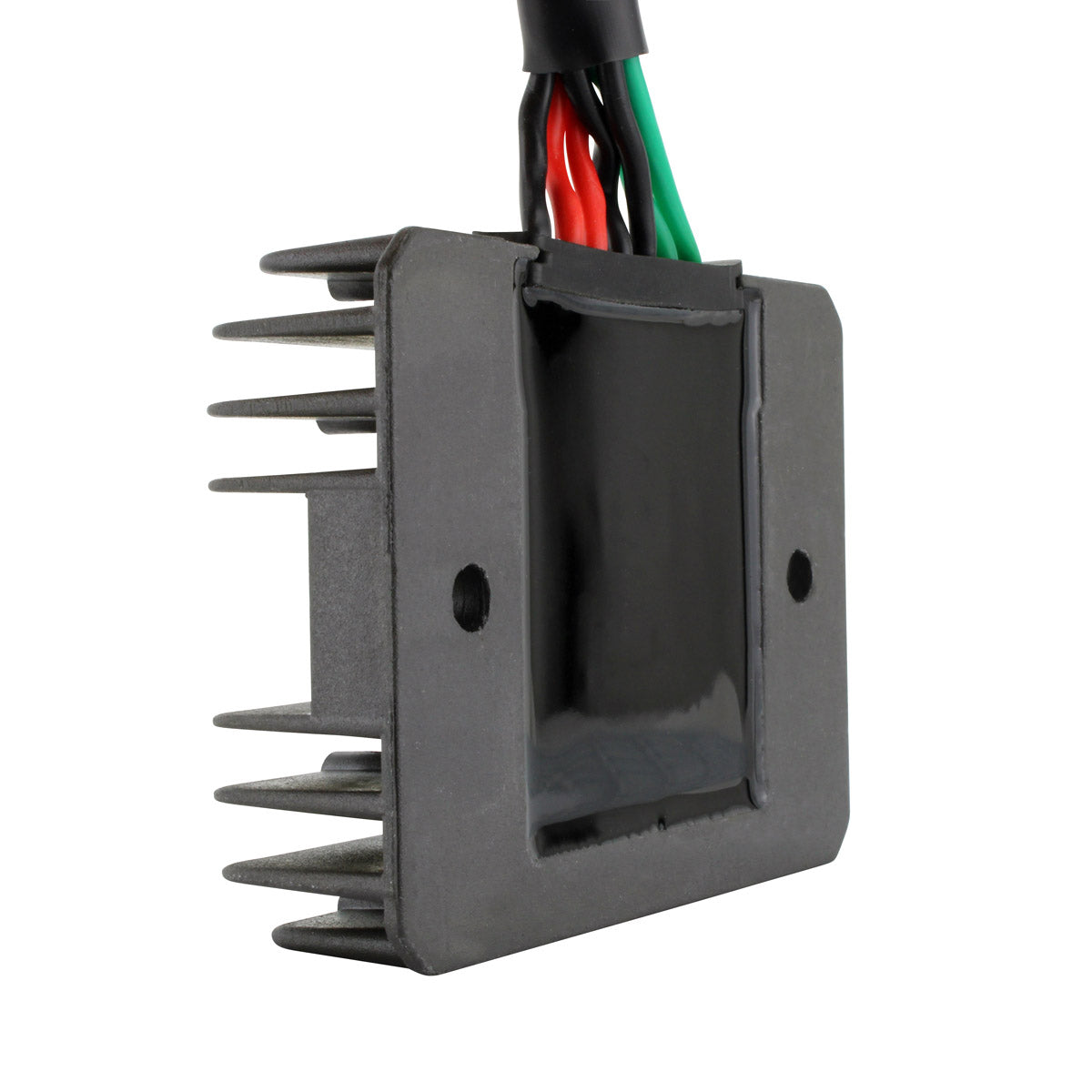

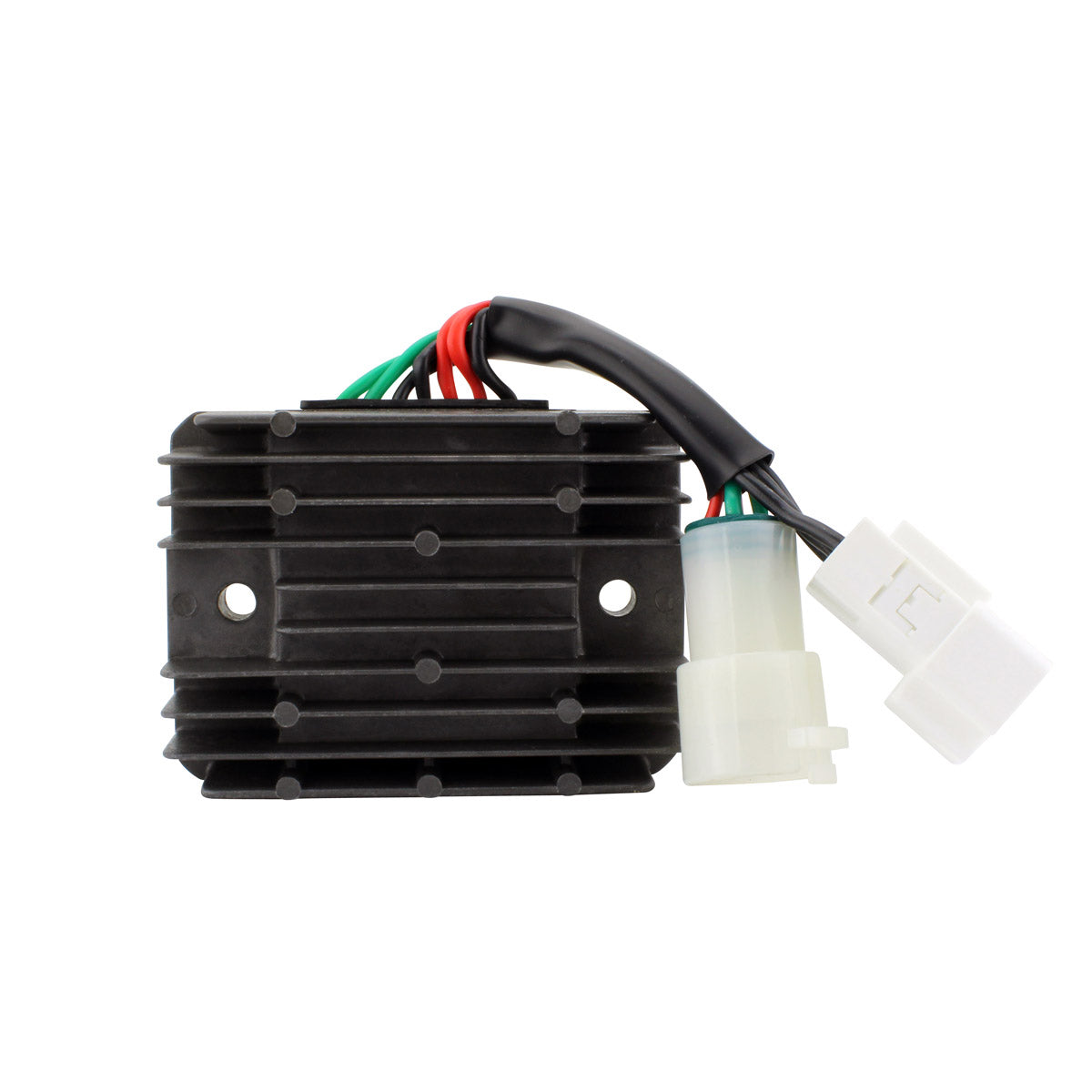

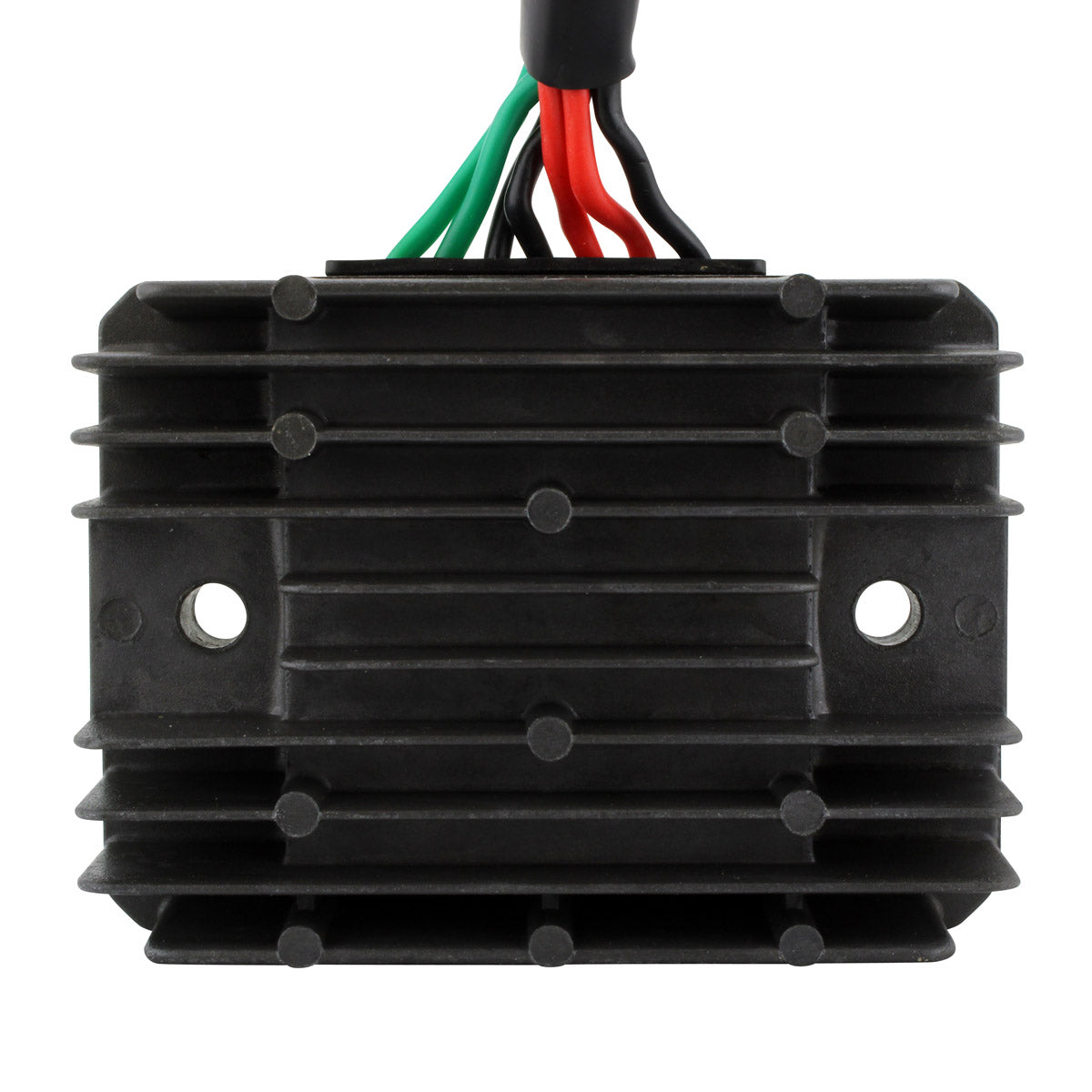

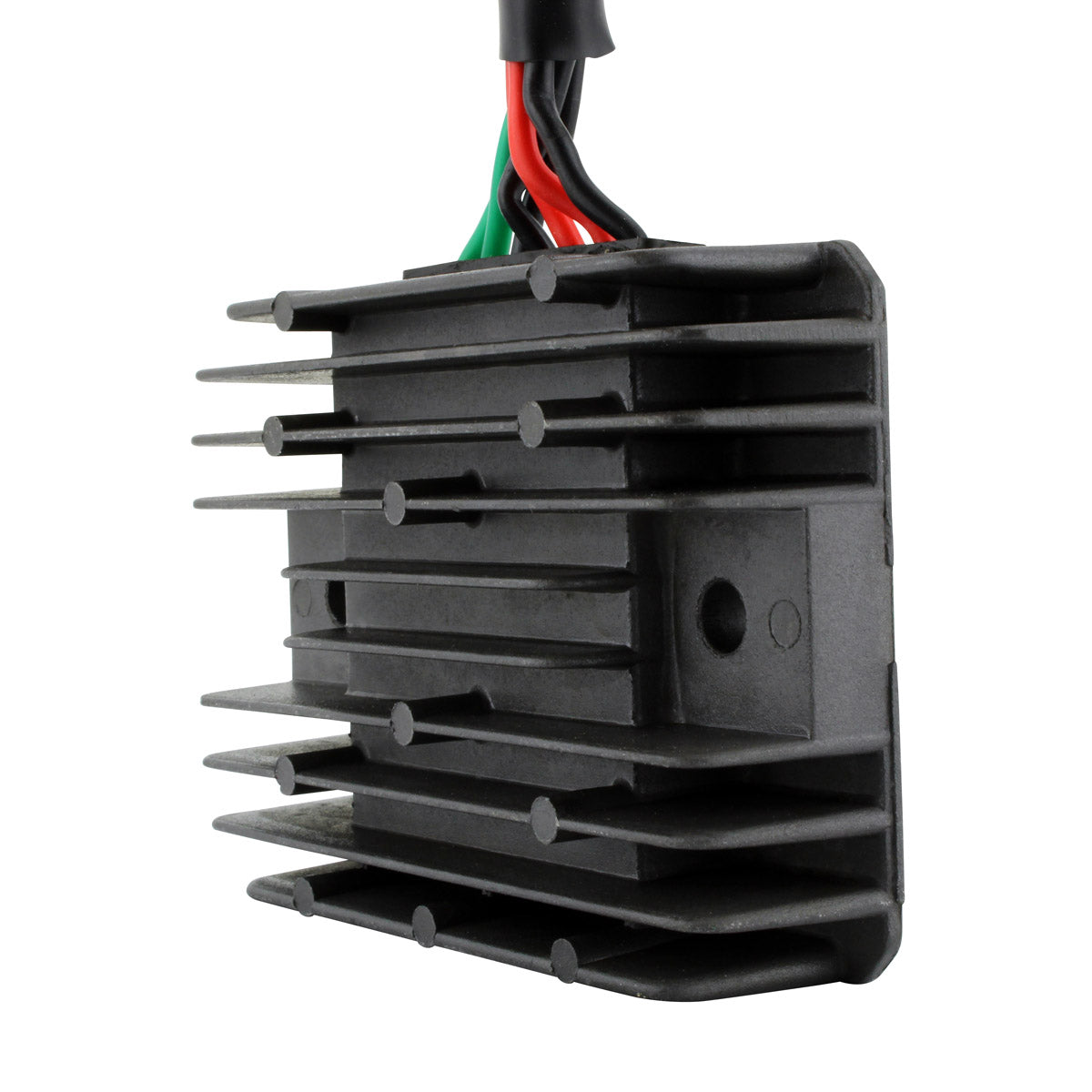

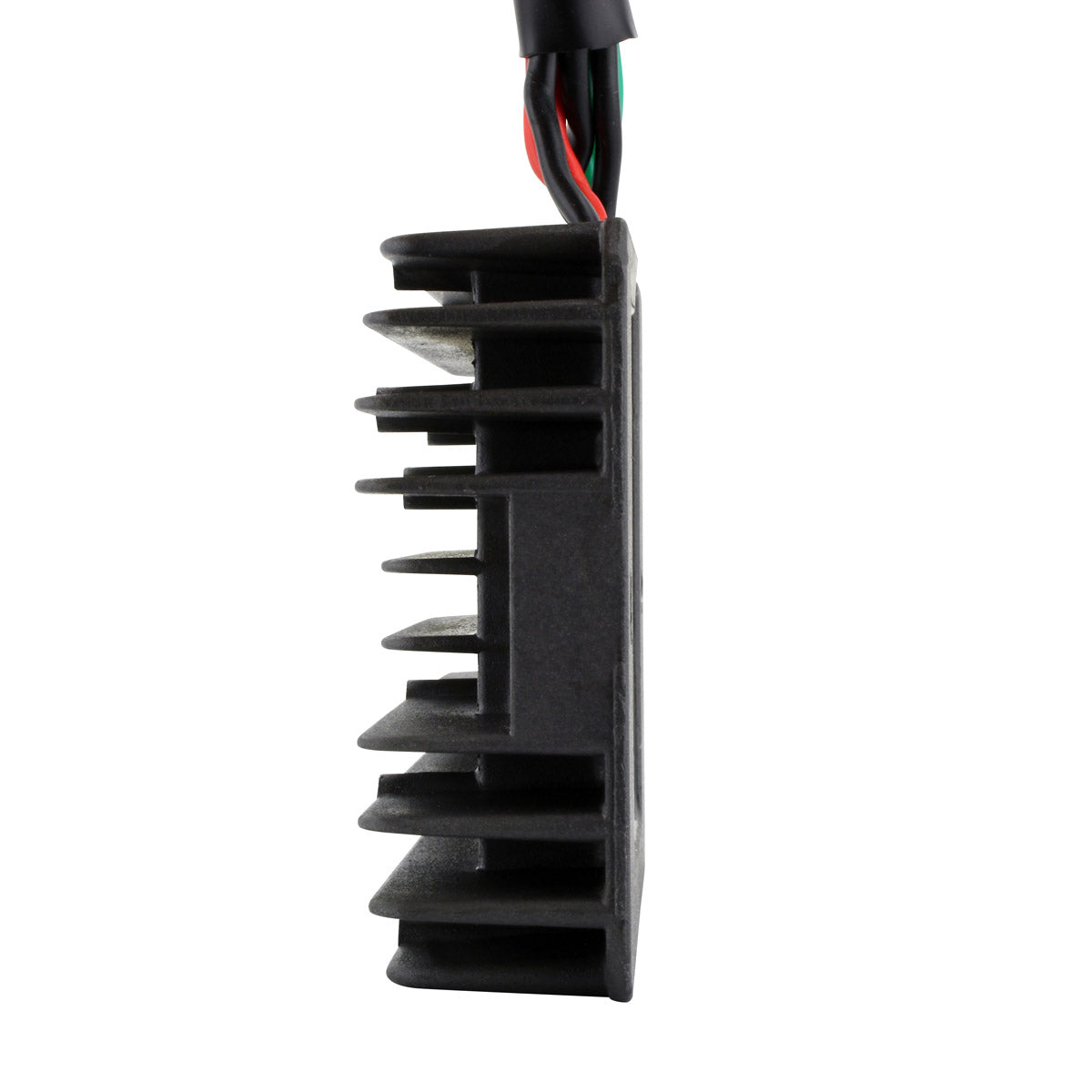

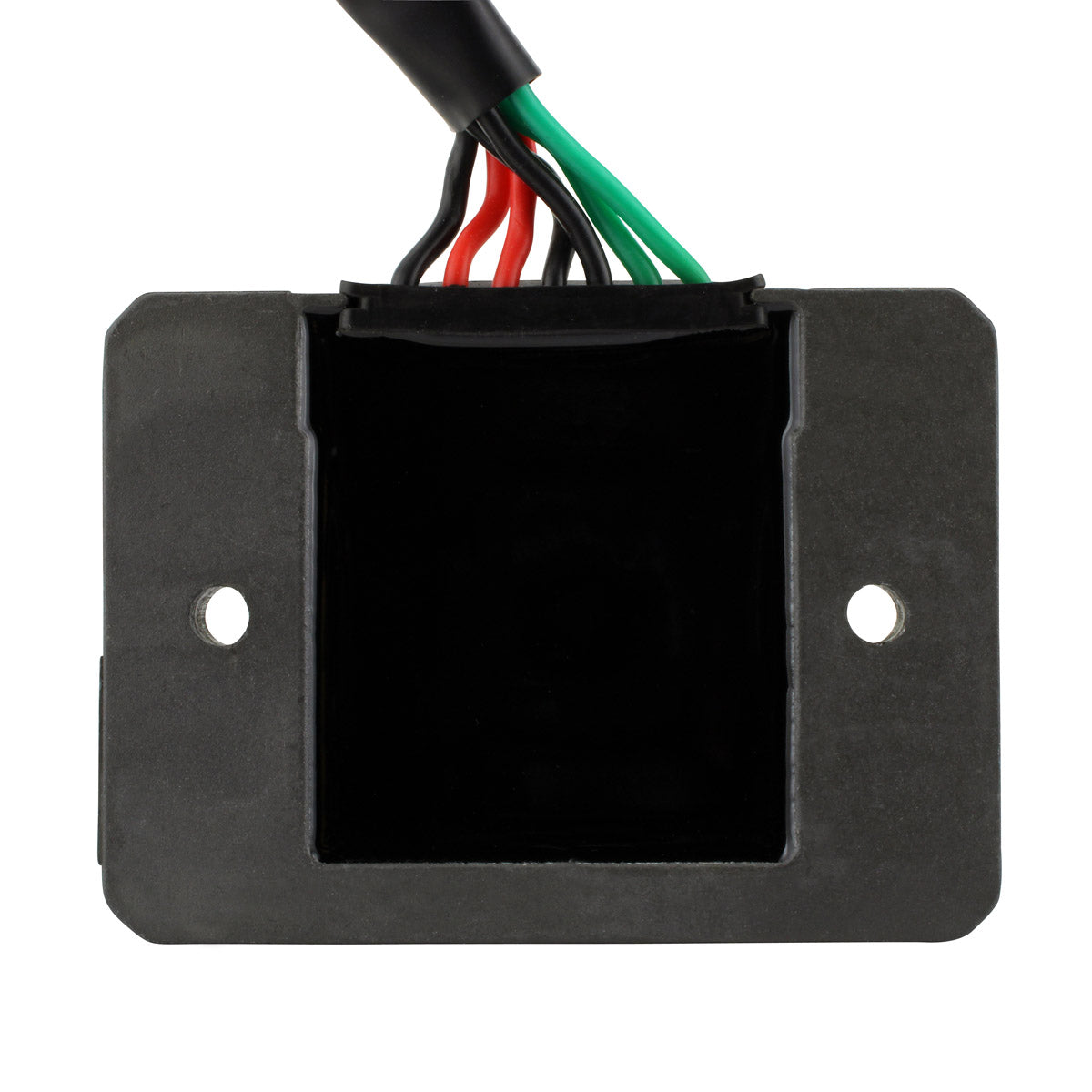

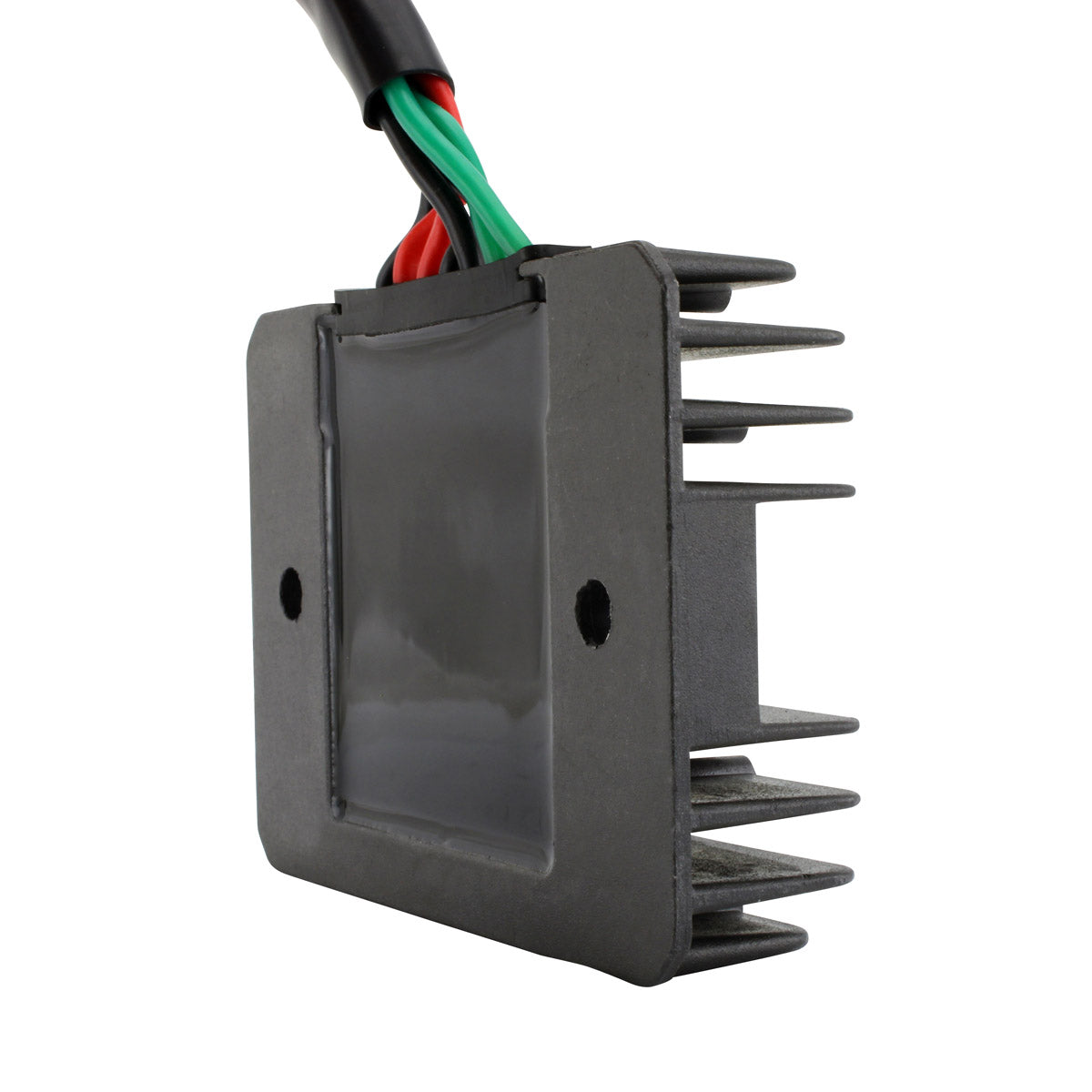

Voltage Regulator Rectifier for Suzuki Burgman AN 400 2007 2008 2009 | # 32800-05H10 / 32800-05H11 / 32800-47H40
Voltage Regulator Rectifier for Suzuki Burgman AN 400 2007 2008 2009 | # 32800-05H10 / 32800-05H11 / 32800-47H40
Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Details
Details
Brand new aftermarket Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components
- The quality exceeds the OEM equipment
- All products shipped are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 80 mm
Length: 110 mm
Height: 29 mm
Wires length: 125 mm
Distance between fixation holes center to center: 80 mm
Other specifications:

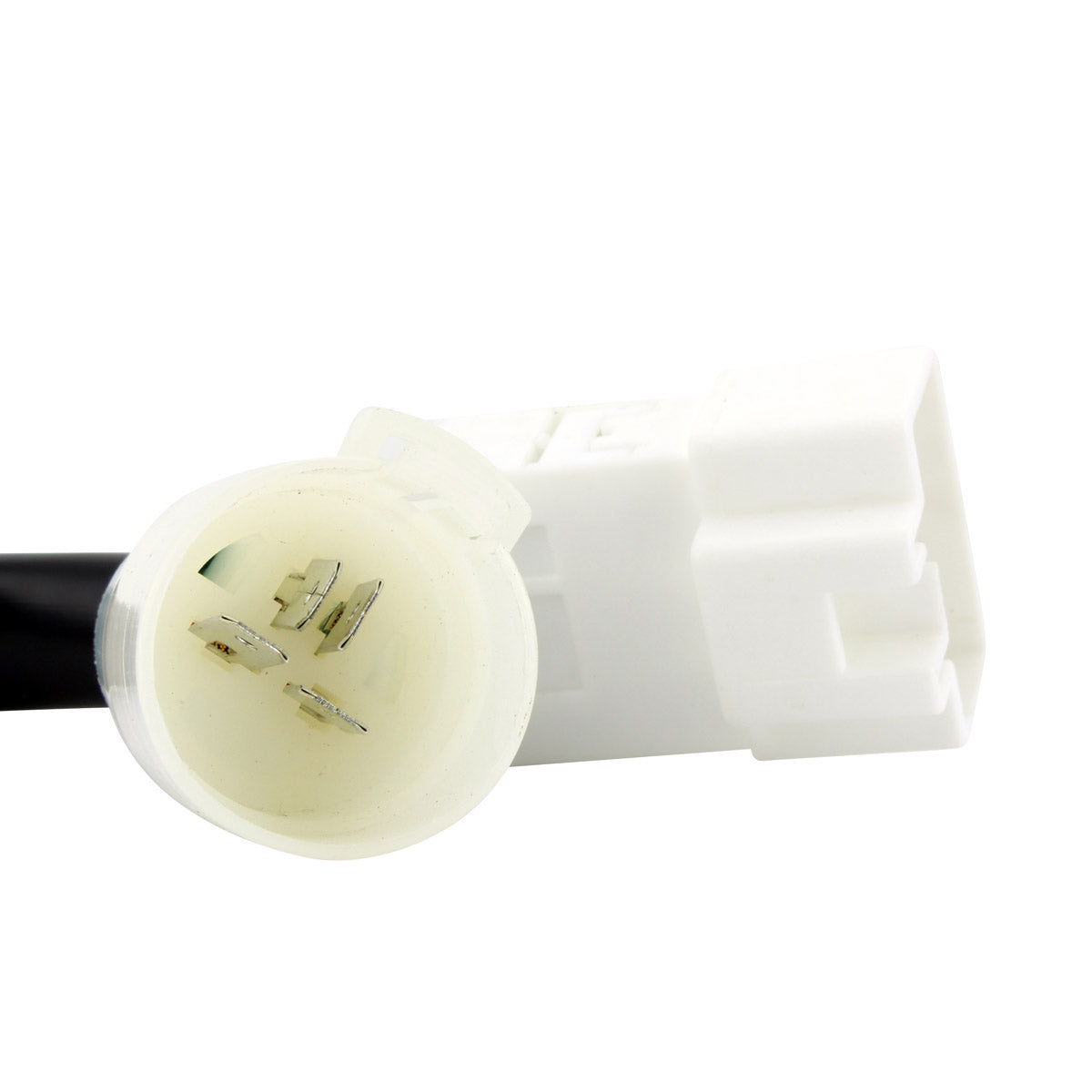

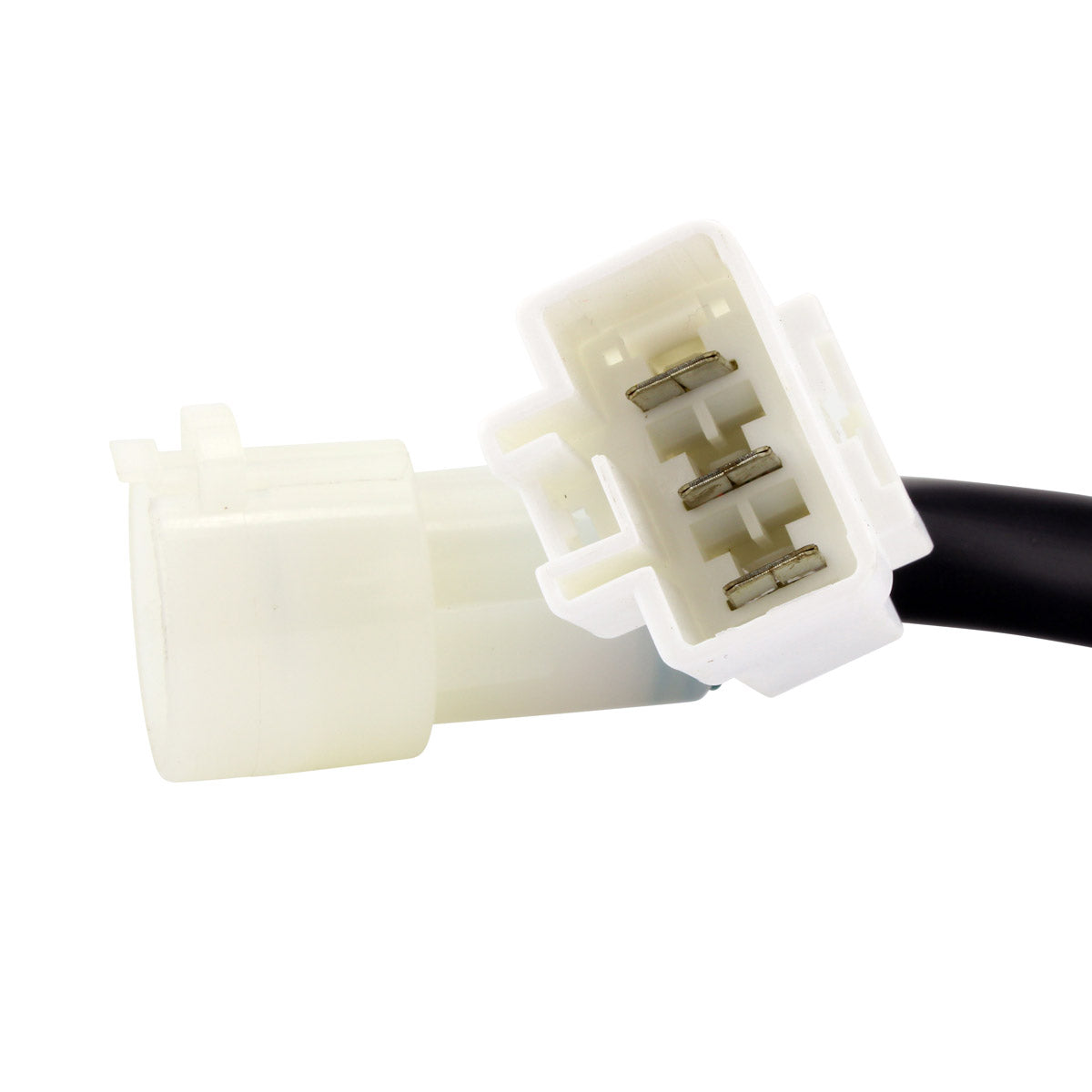

Number of plugs: 2
Number of pins: 7

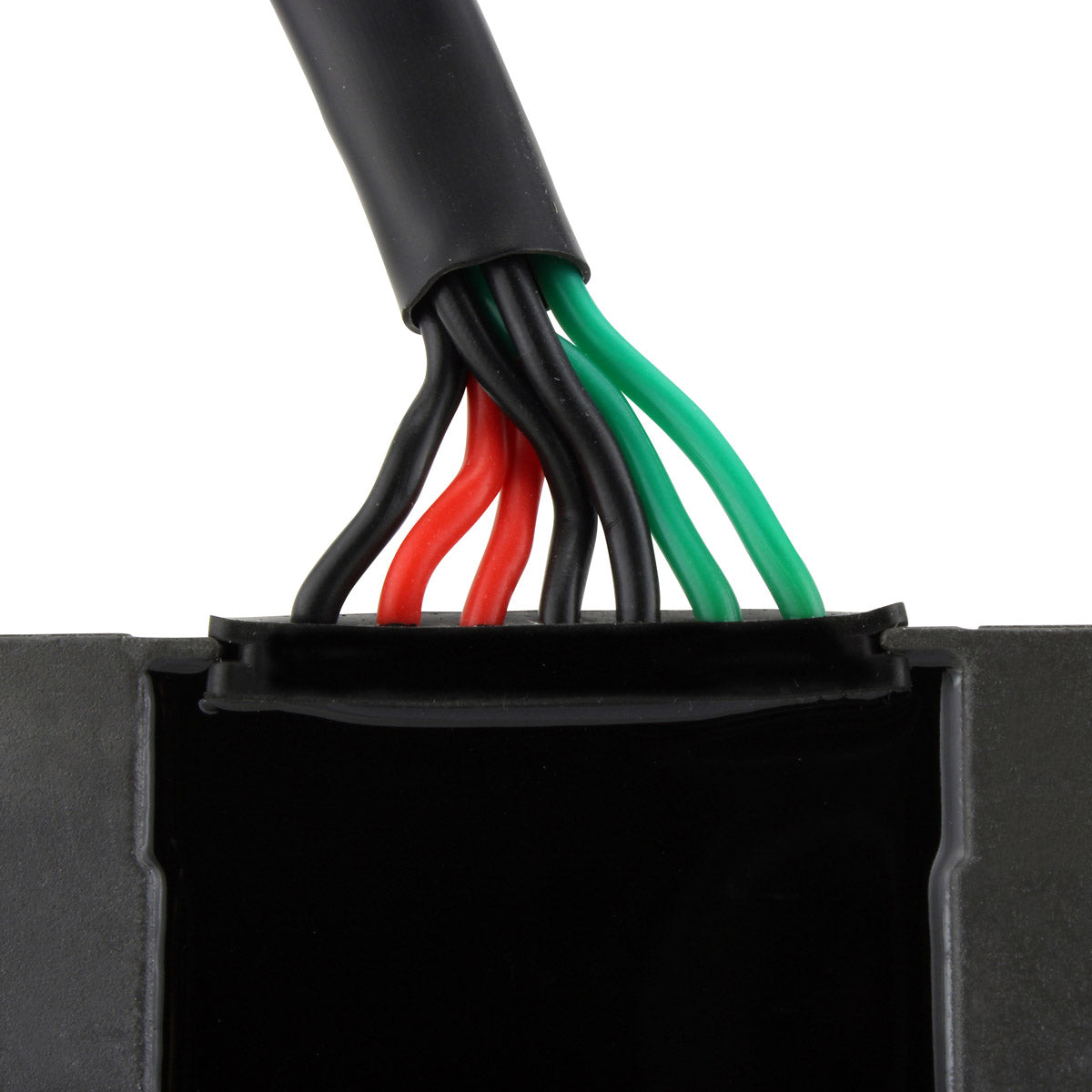

Number of wires: 7
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
Interchange Part Nº
Interchange Part Nº
- 32800-47H40
- 32800-05H10
- 32800-05H11
Installation
Installation
Before installing your new Voltage Regulator Rectifier:
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
