Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Read more
Voltage Regulator Rectifier for Yamaha F 75 / F 80 / F 90 / F 100 TLR TXR TJR 1999-2004 | Mercury 75HP 90HP 4 CYL Carb
Voltage Regulator Rectifier for Yamaha F 75 / F 80 / F 90 / F 100 TLR TXR TJR 1999-2004 | Mercury 75HP 90HP 4 CYL Carb
$130.89

Details

Brand new aftermarket Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • No assembly required
  • Higher grade of electric components
  • The quality exceeds the OEM equipment
  • All products shipped are tested

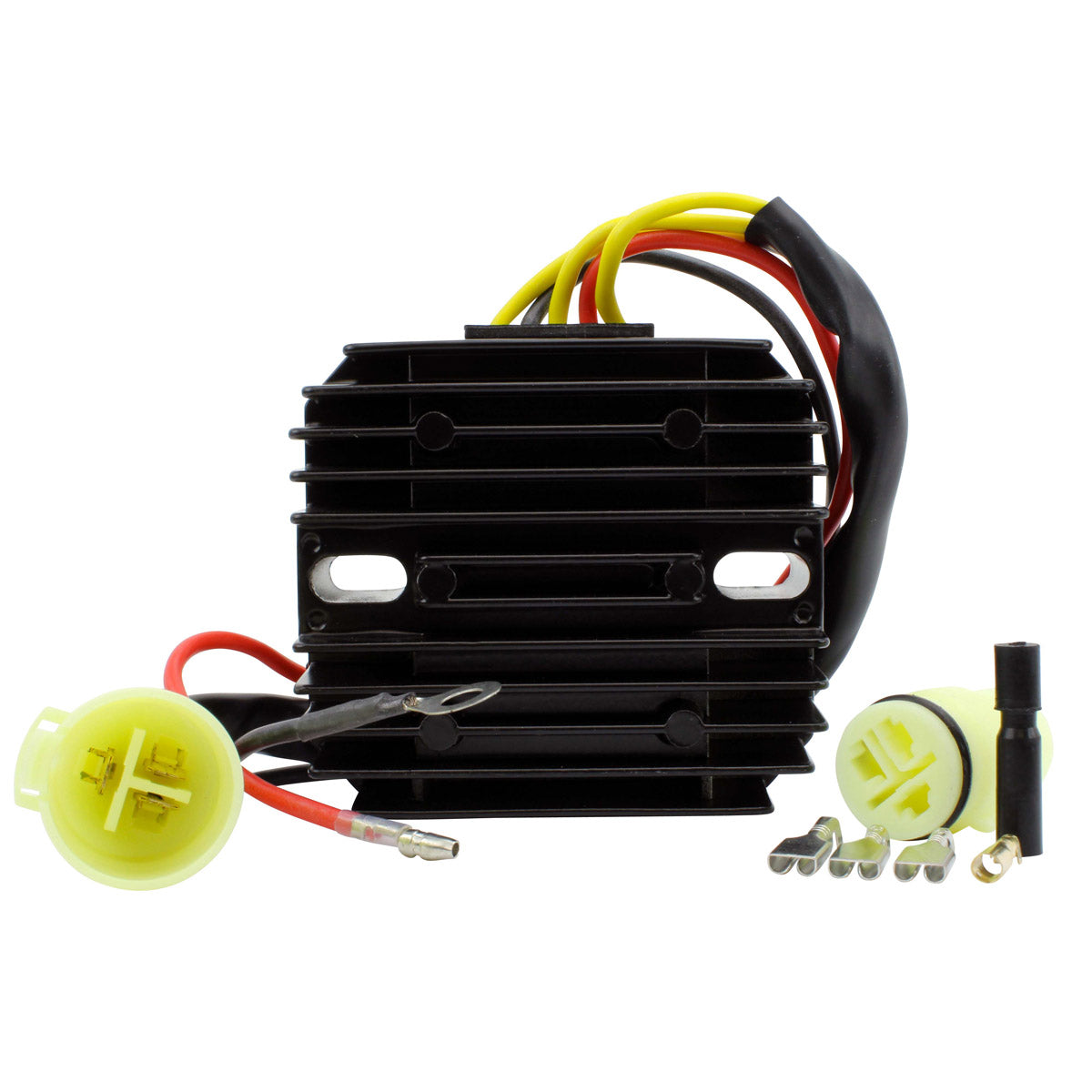

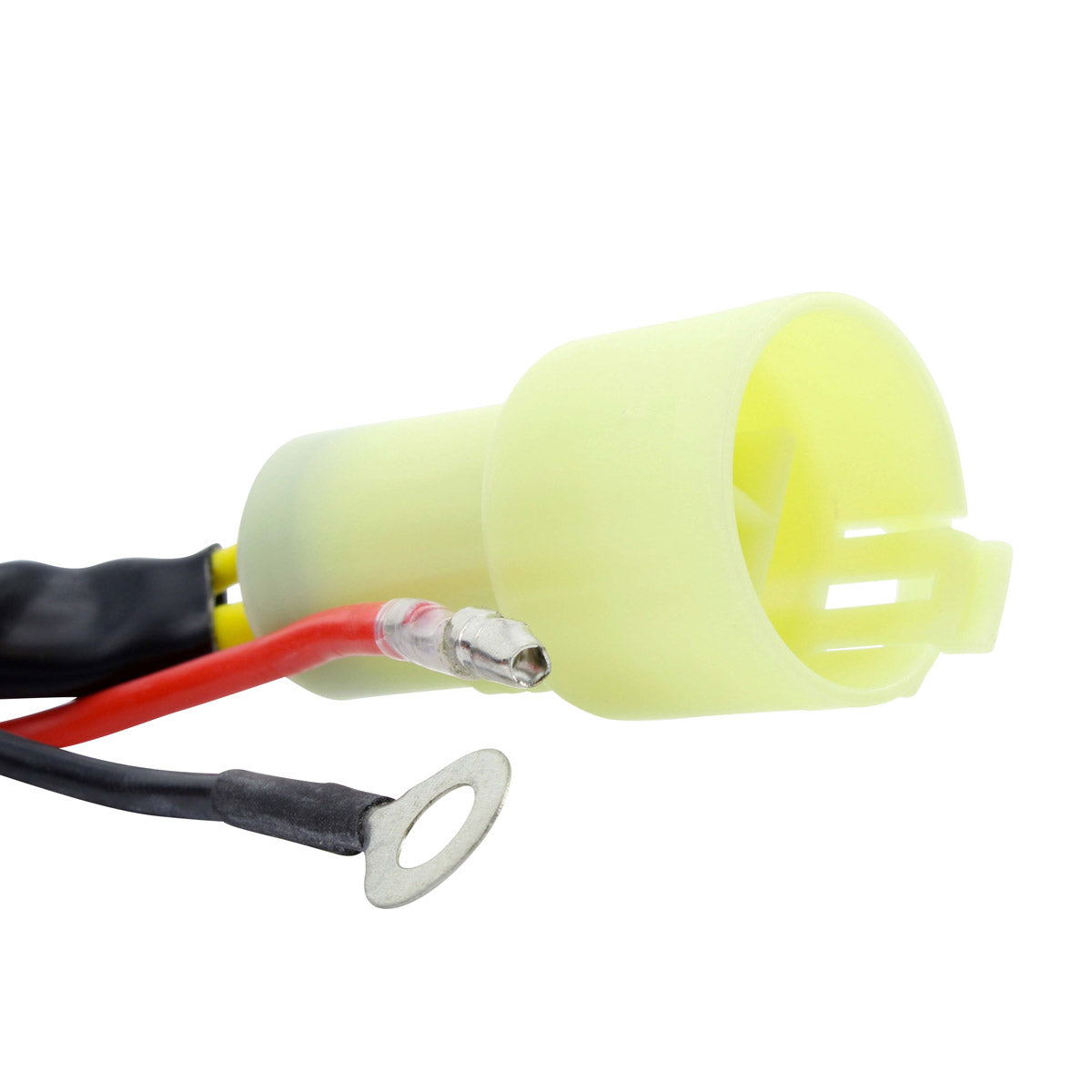

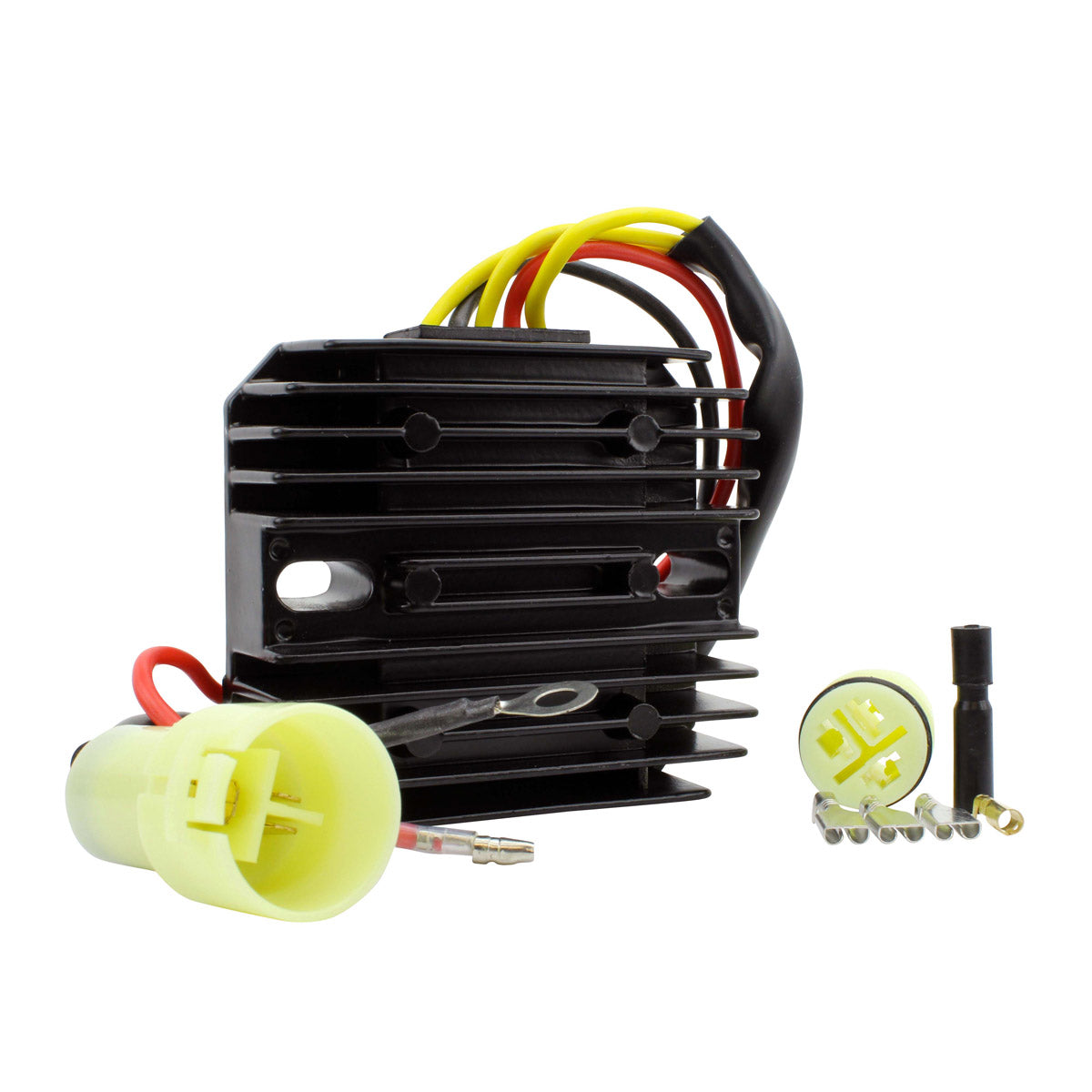

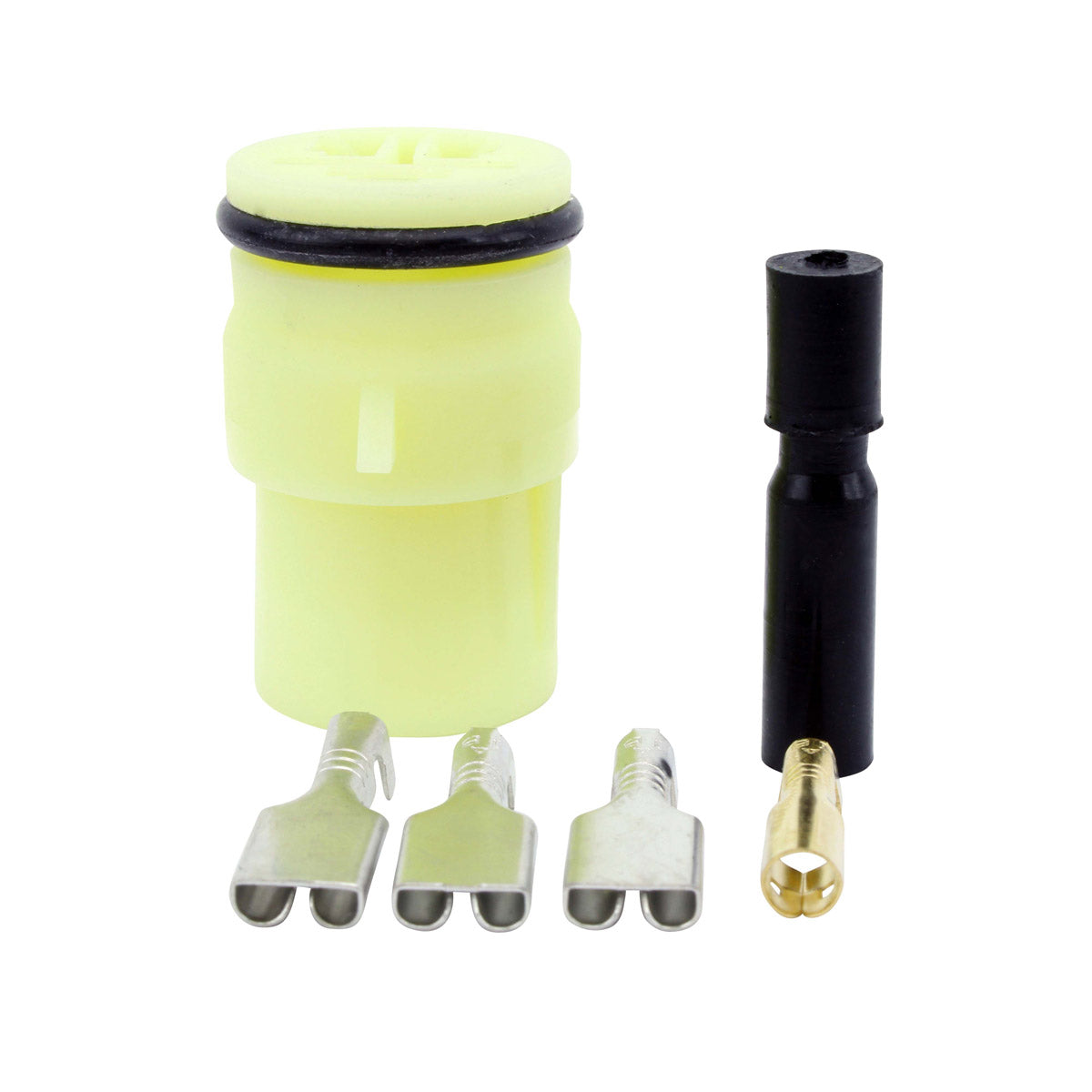

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications

Dimensions:
Width: 80 mm
Length: 90 mm
Height: 26 mm
Wires length: 280 mm
Fixation holes center to center: 65 mm

Other specifications:
Number of plugs: 1
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20⁰C to 85⁰C

Interchange Part Nº

  • 67F-81960-12-00
  • 67F-81960-10-00
  • 67F-81960-11-00
  • 804278T11
  • 804278A12
  • 67F-81960-00-00

Installation

Before installing your new Voltage Regulator Rectifier:

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
