Voltage Regulator Rectifier for Suzuki DRZ 400 / E / S / SM | Kawasaki KLX 400 2000-2024 | 32800-29F00 / 21066-S005

Voltage Regulator Rectifier for Suzuki DRZ 400 / E / S / SM | Kawasaki KLX 400 2000-2024 | 32800-29F00 / 21066-S005

Name: Voltage Regulator Rectifier for Suzuki DRZ 400 / E / S / SM | Kawasaki KLX 400 2000-2024 | 32800-29F00 / 21066-S005
Brand: RMSTATOR
SKU: RMS020-104517
Price: 121.89 USD
Availability: InStock

RMSTATOR

SKU: RMS020-104517

In Stock

RMSTATOR

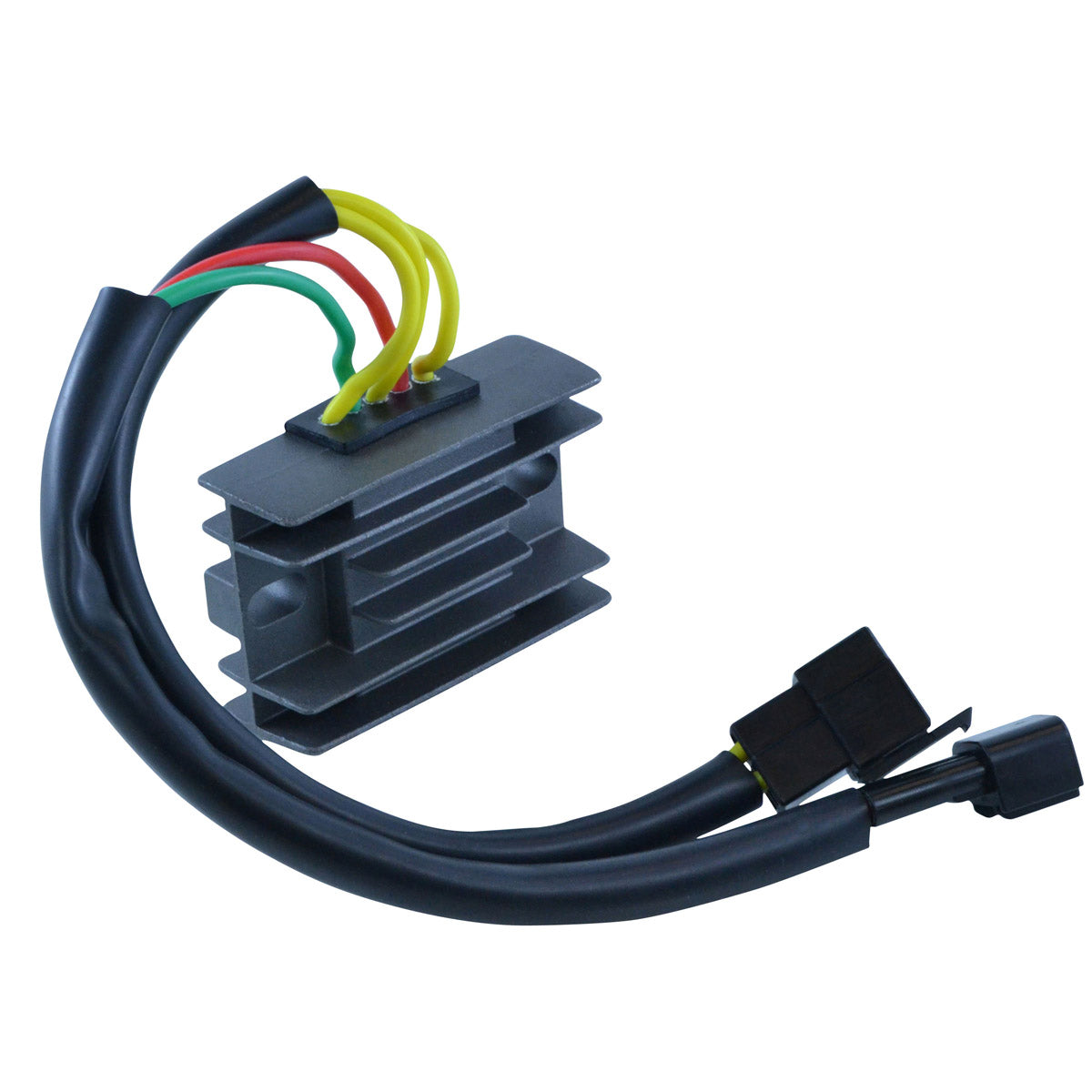

Voltage Regulator Rectifier for Suzuki DRZ 400 / E / S / SM | Kawasaki KLX 400 2000-2024 | 32800-29F00 / 21066-S005

$121.89

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

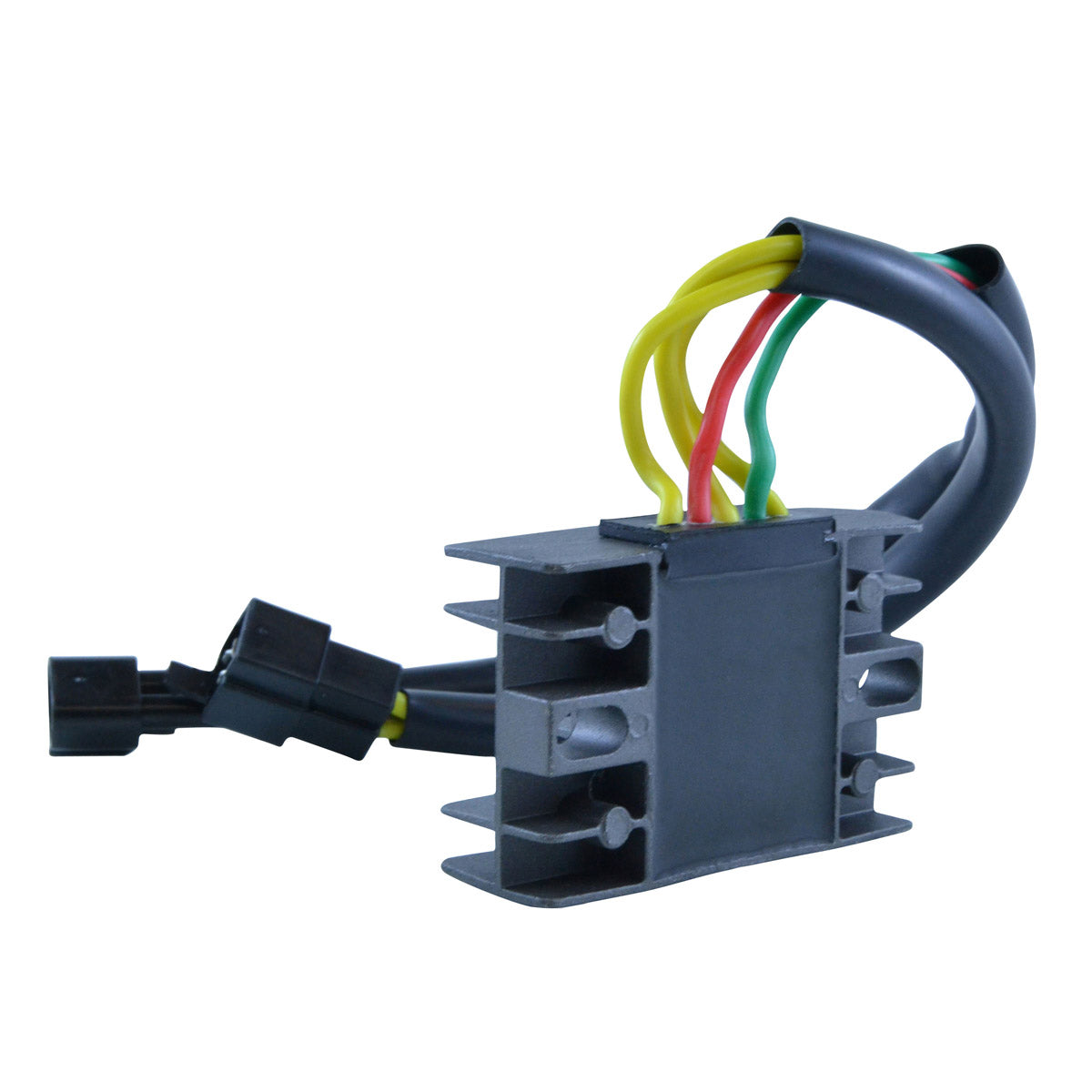

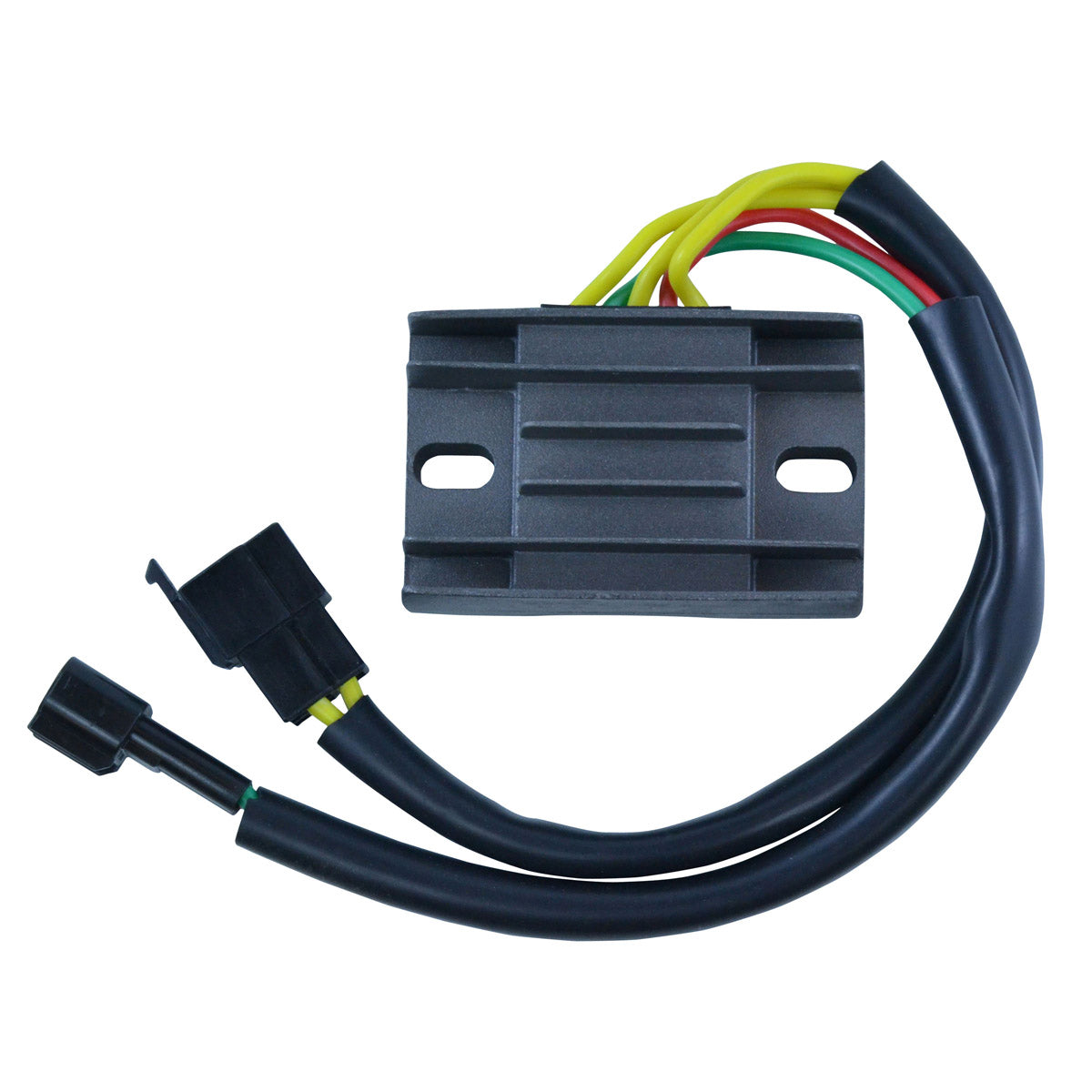

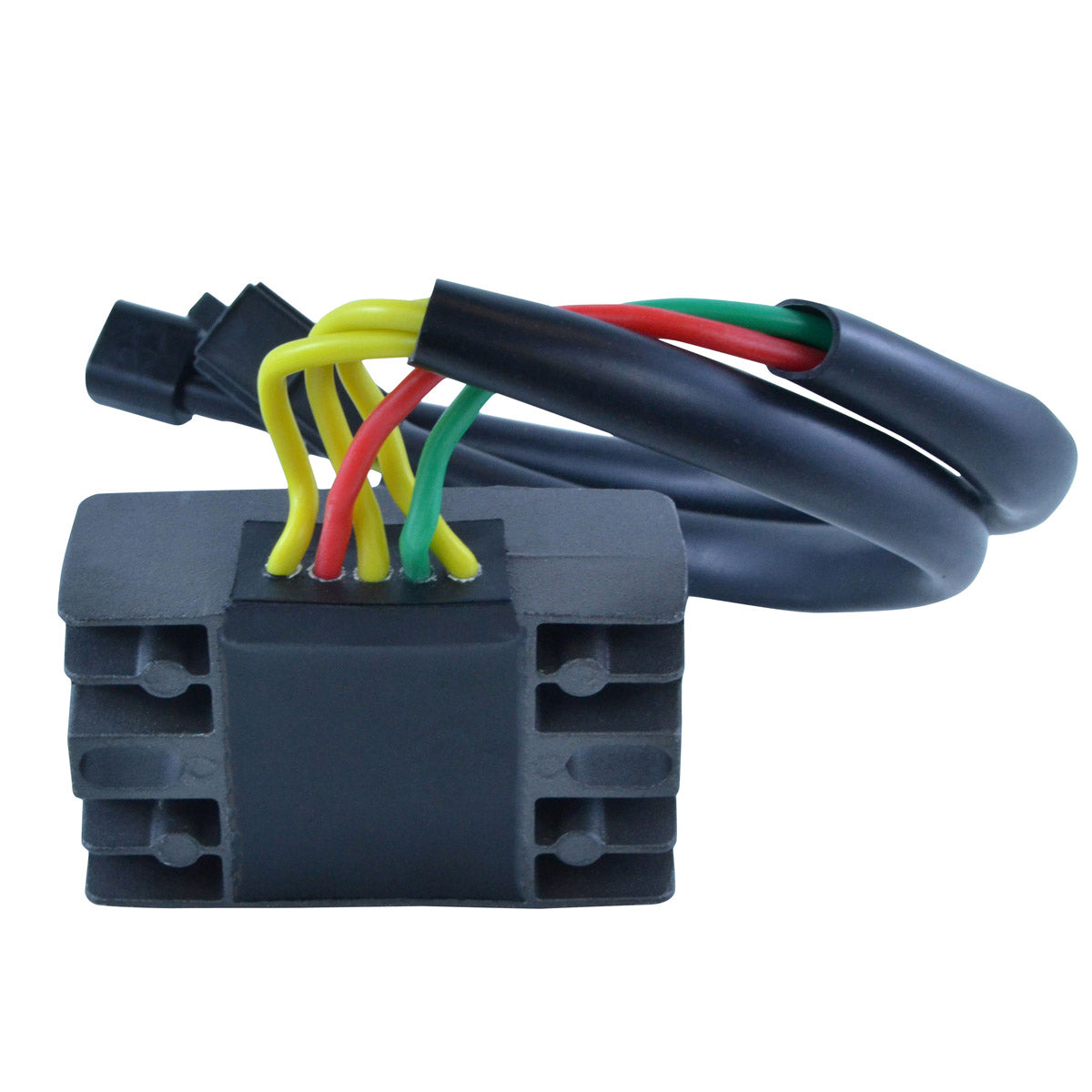

Brand new aftermarket voltage regulator rectifier

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
No assembly required
Higher grade of electric components
The quality exceeds the OEM equipment
All products shipped are tested

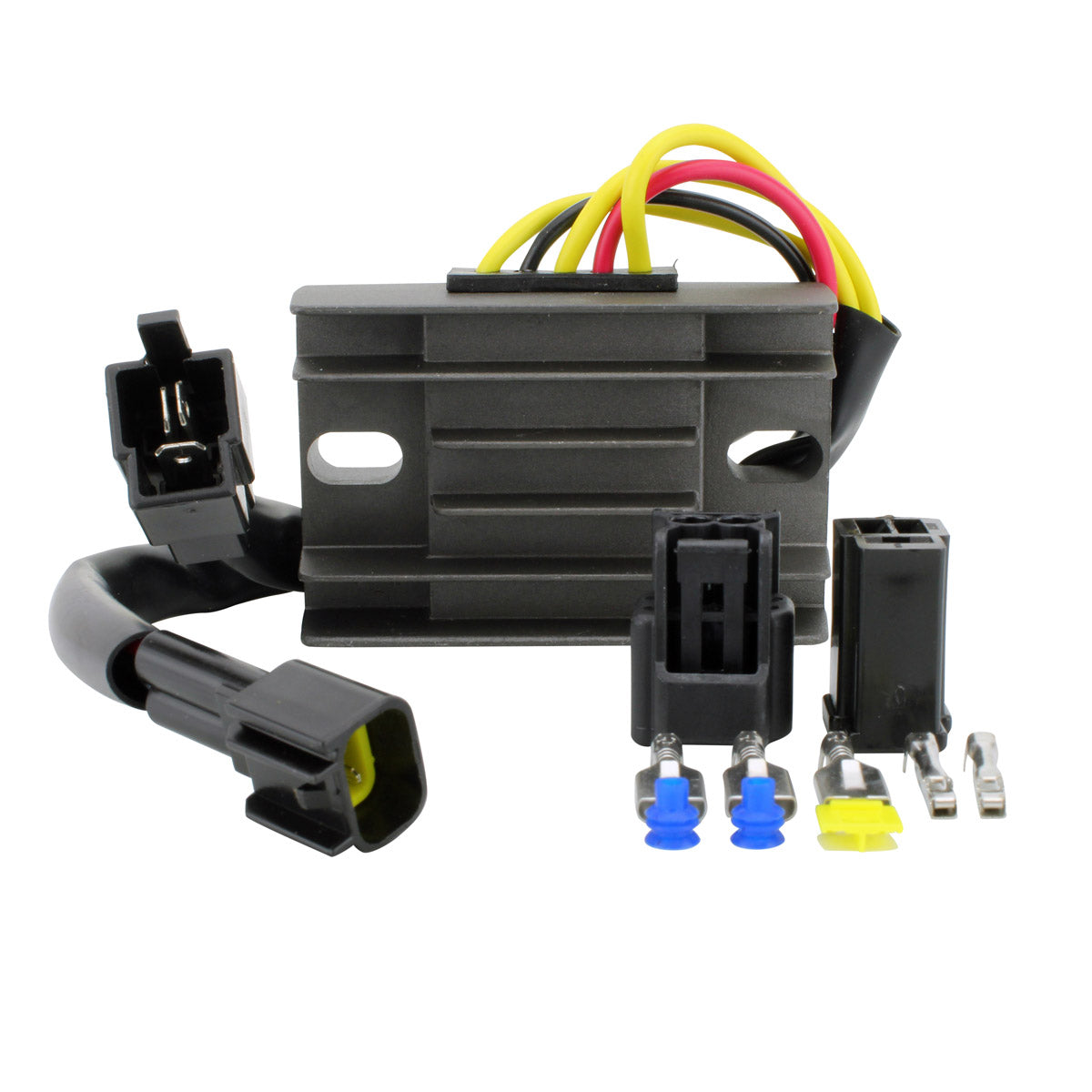

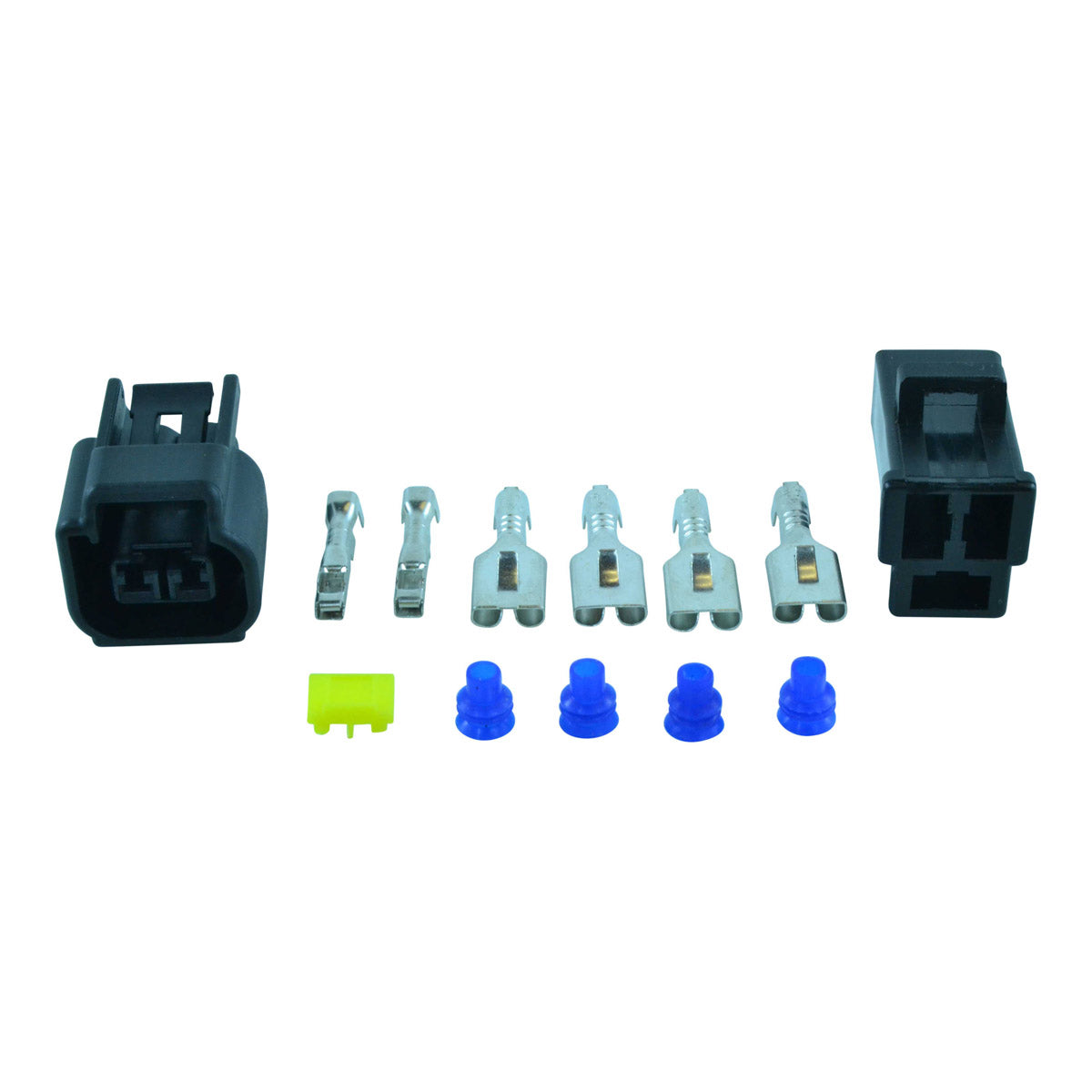

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications

Dimensions:
Width: 75 mm
Length: 50 mm
Height: 28 mm
Wires length: 215 mm & 285 mm
Fixation holes center to center: 63 mm

Other specifications:

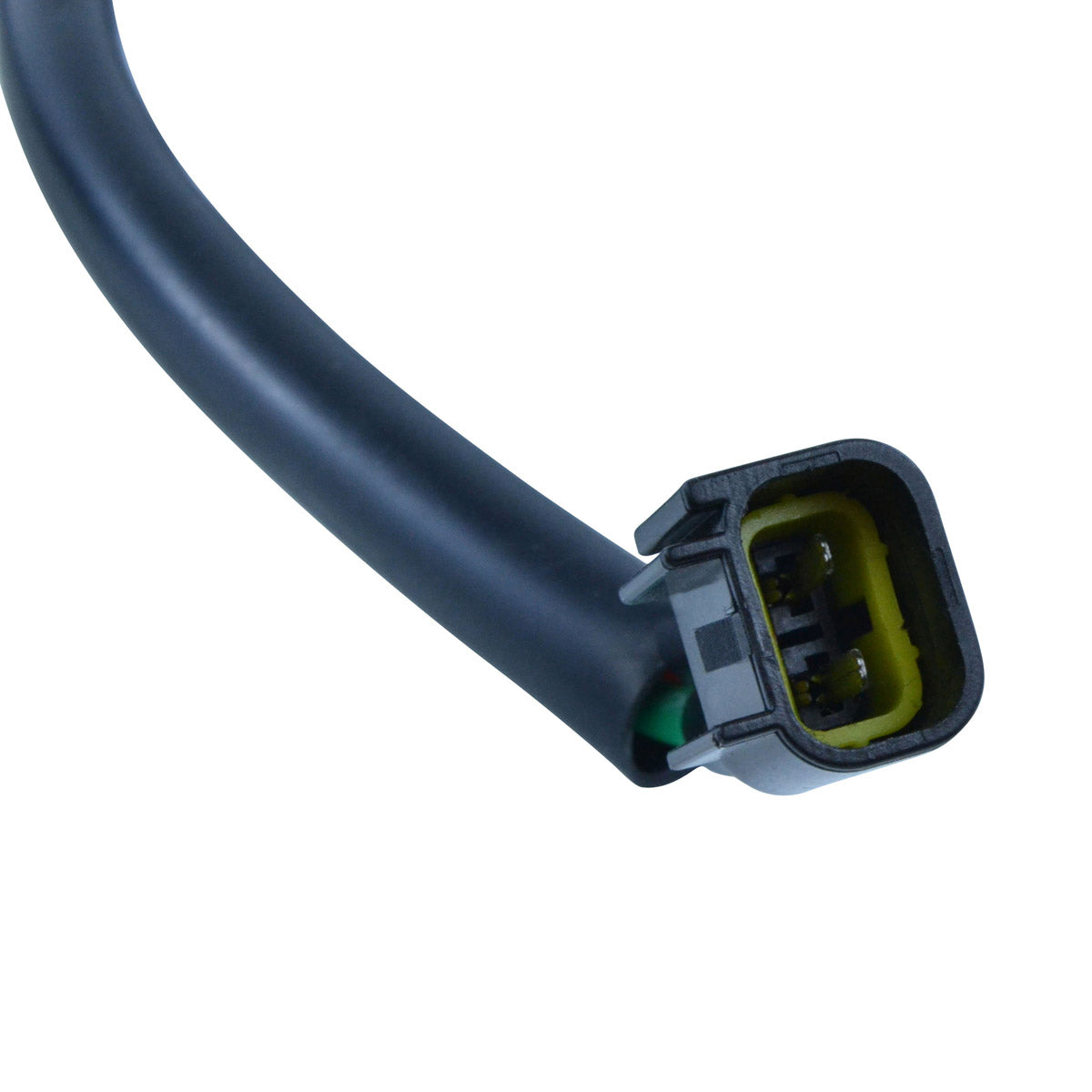

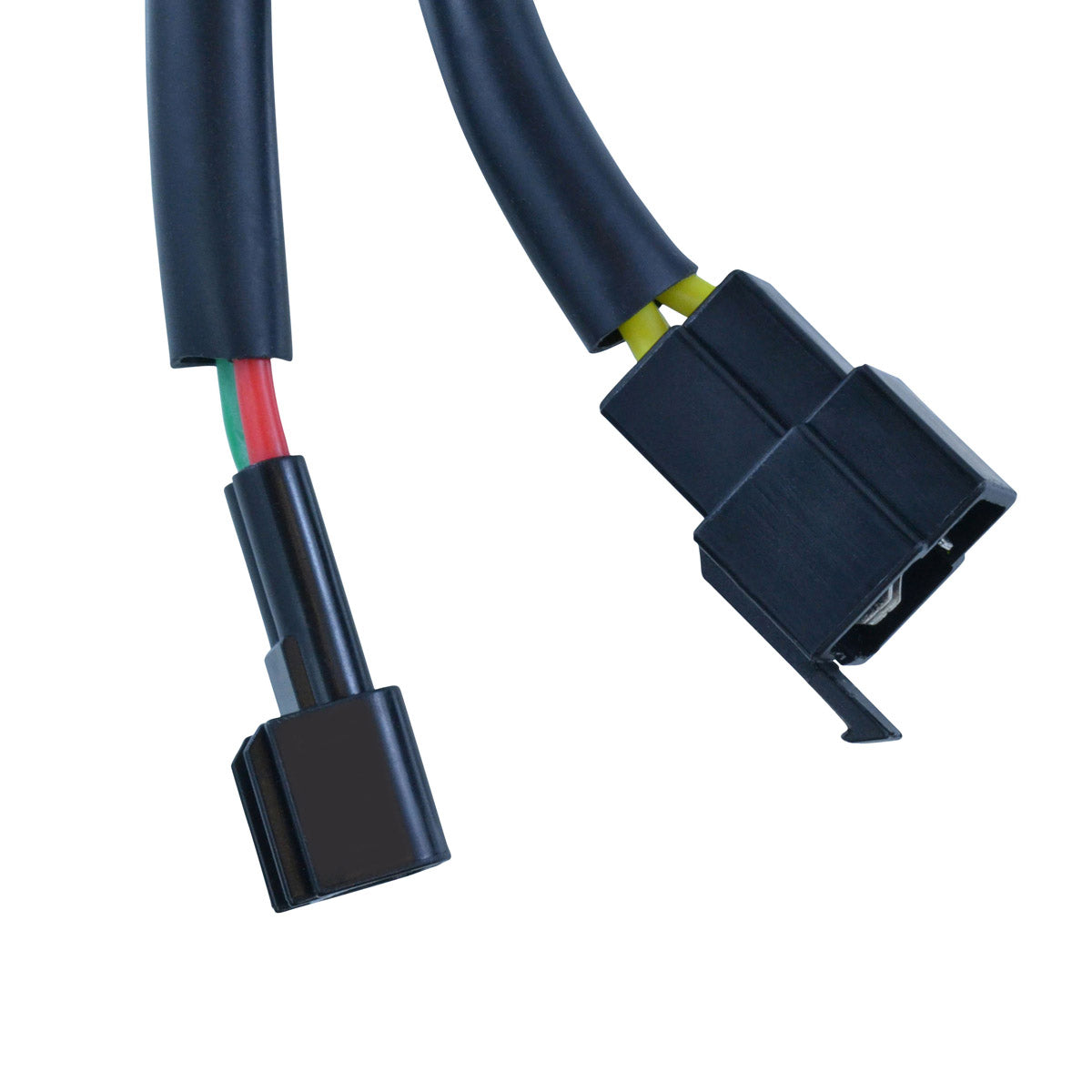

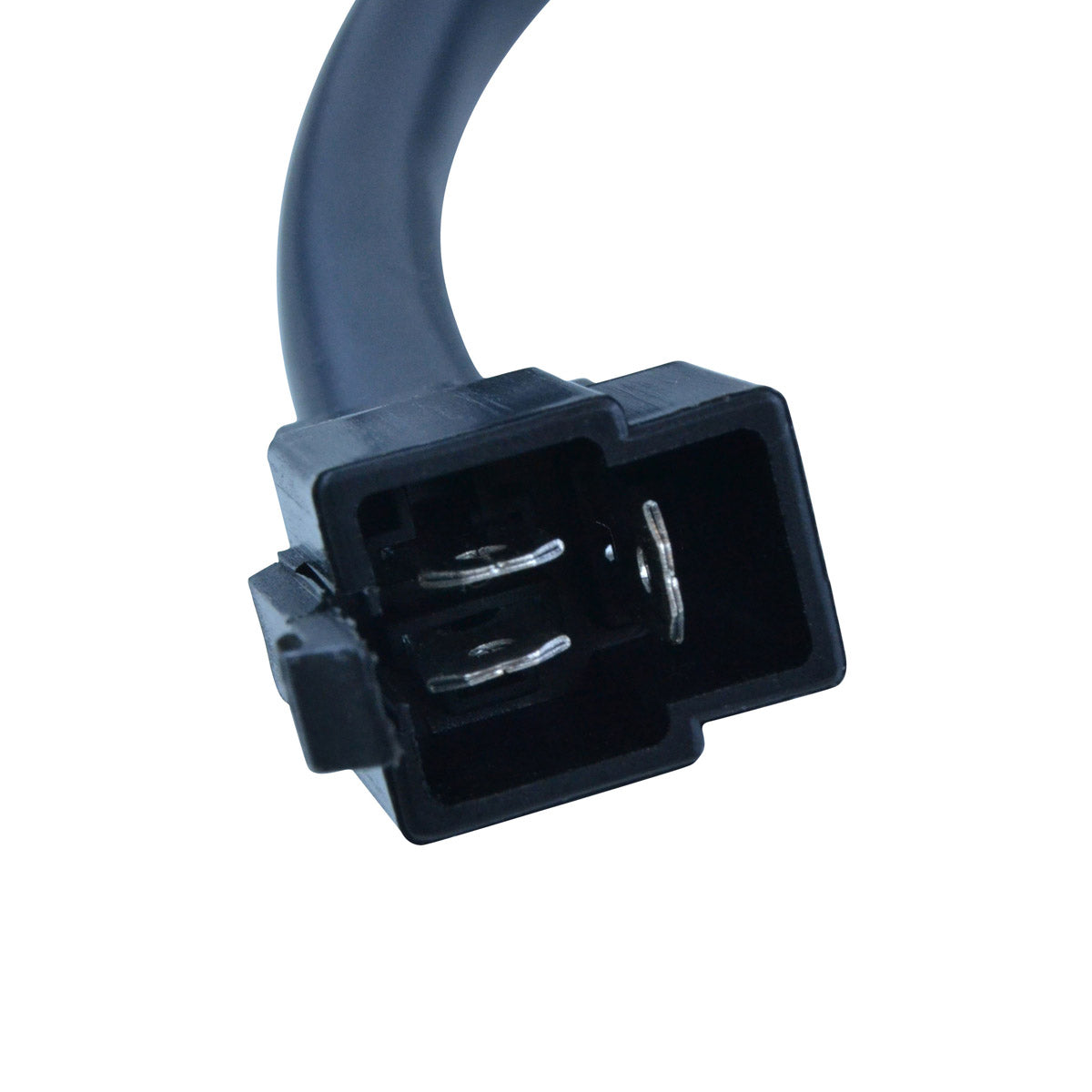

Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20⁰ to 85⁰

Interchange Part Nº

21066-S005
32800-29F00

Installation

Before installing your new voltage regulator rectifier:

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
