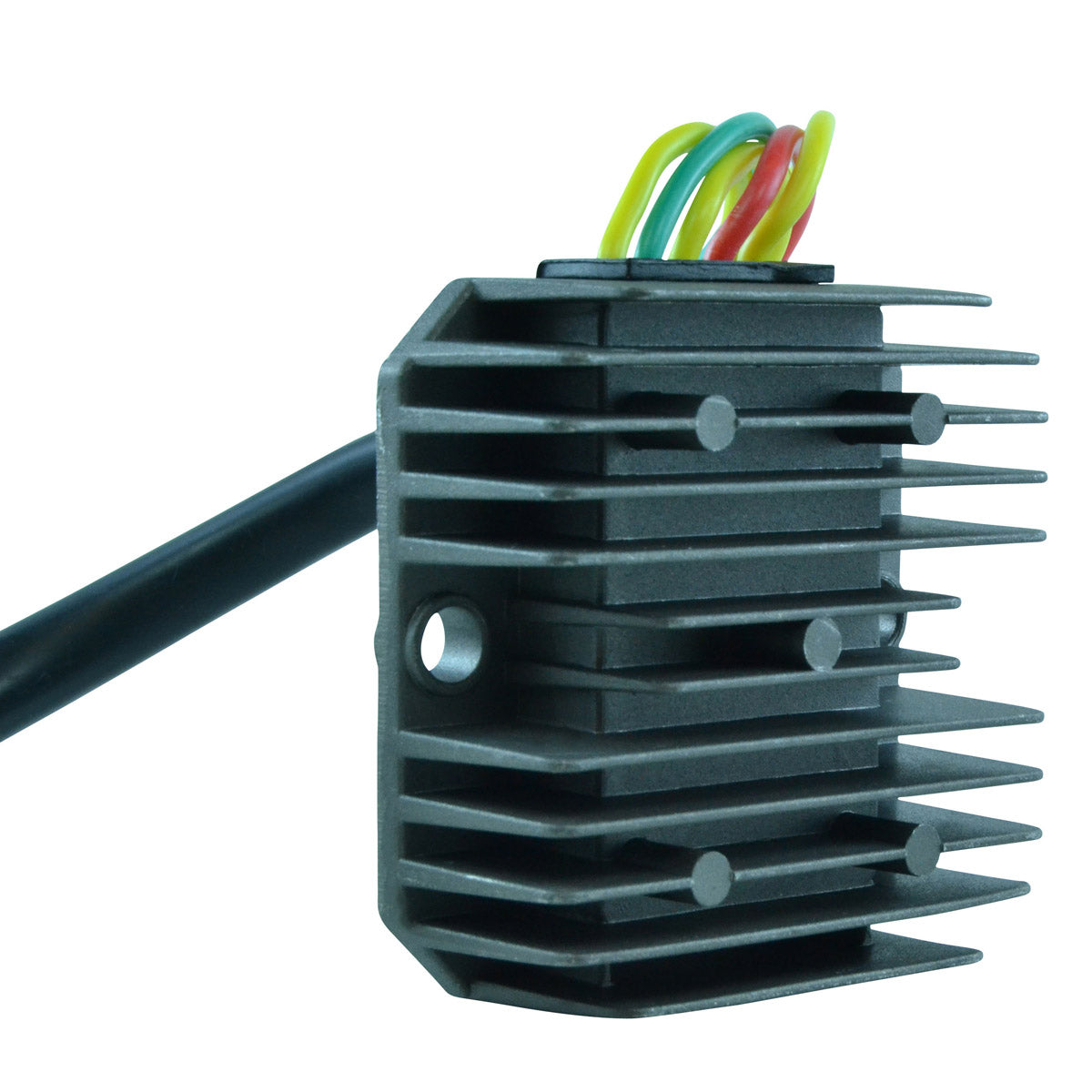

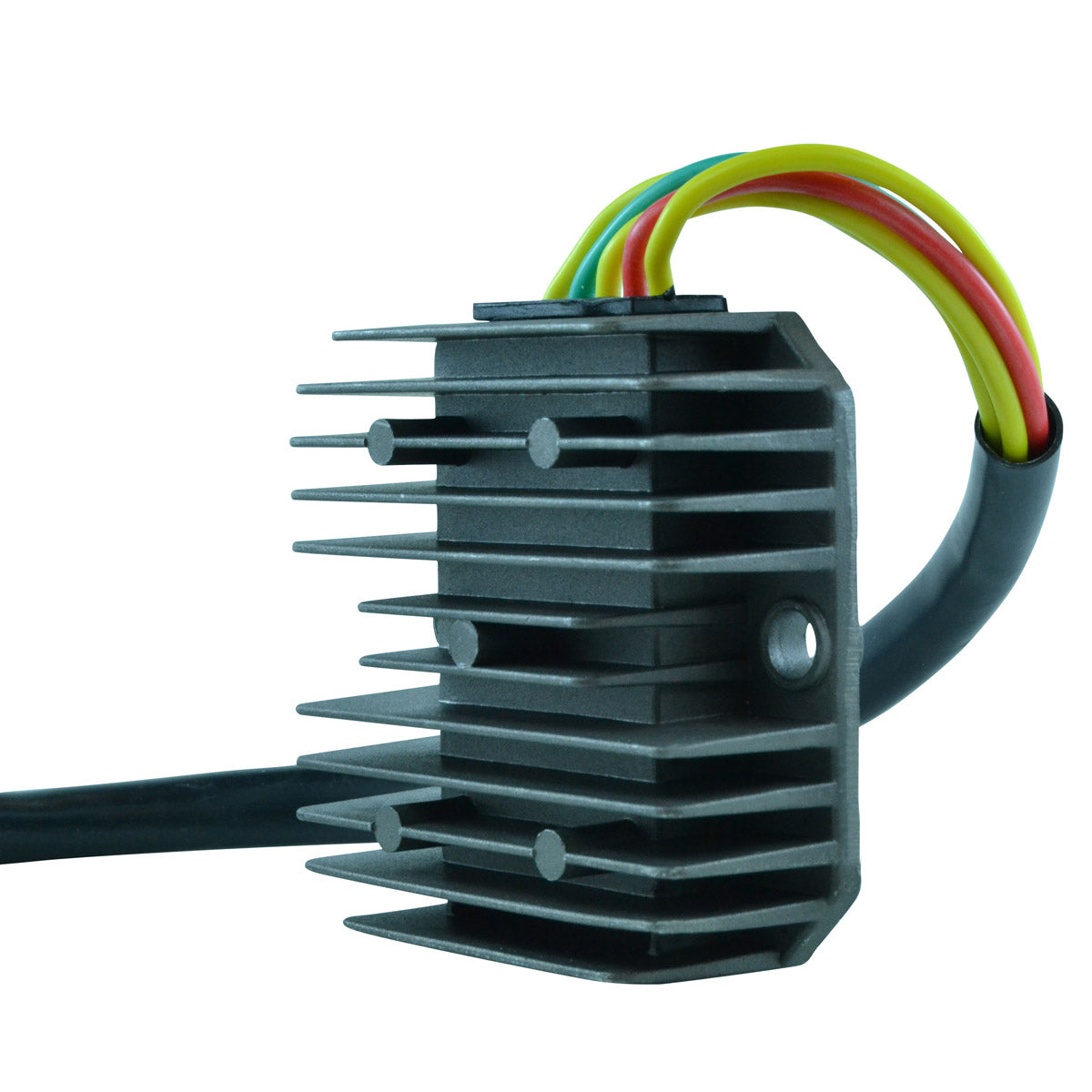

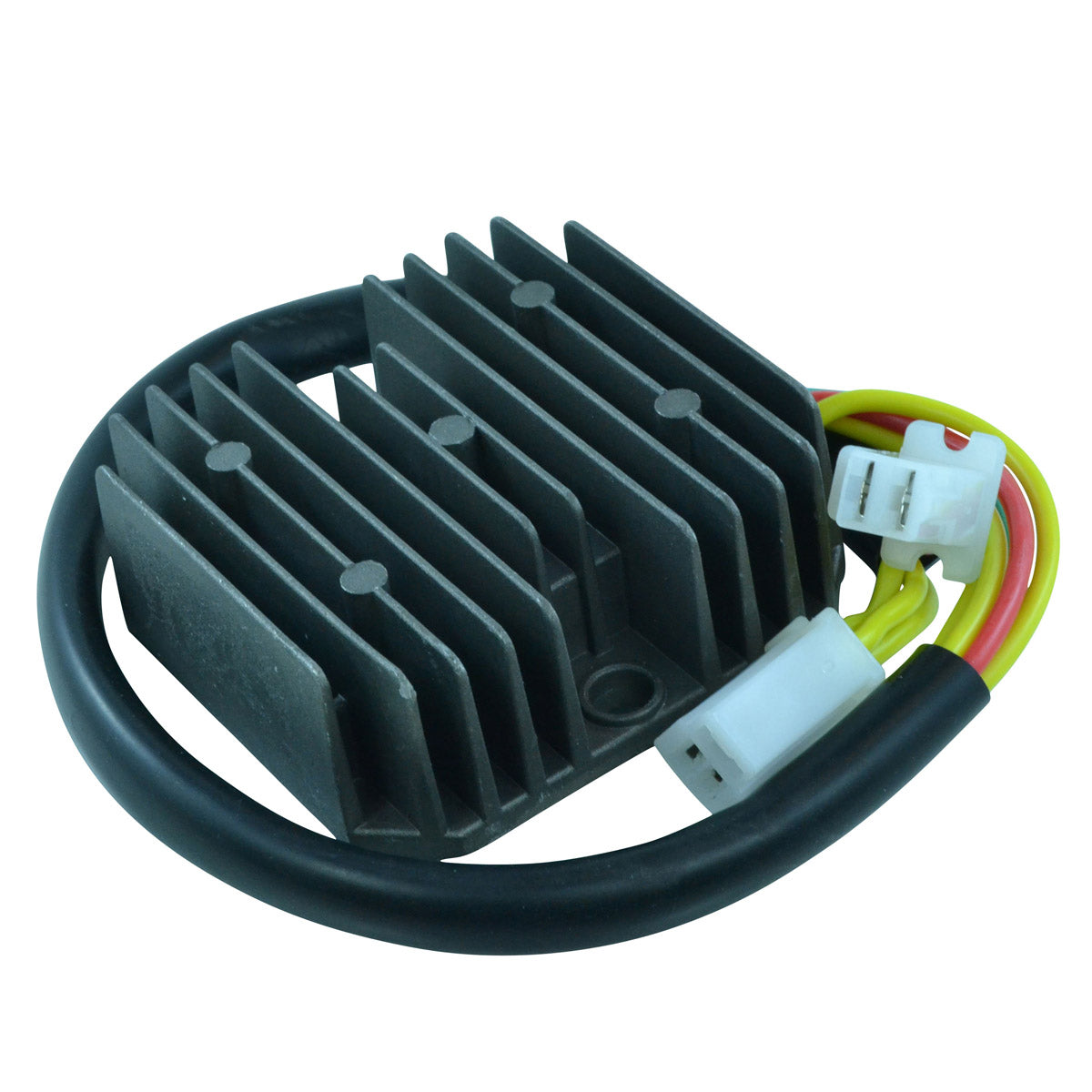

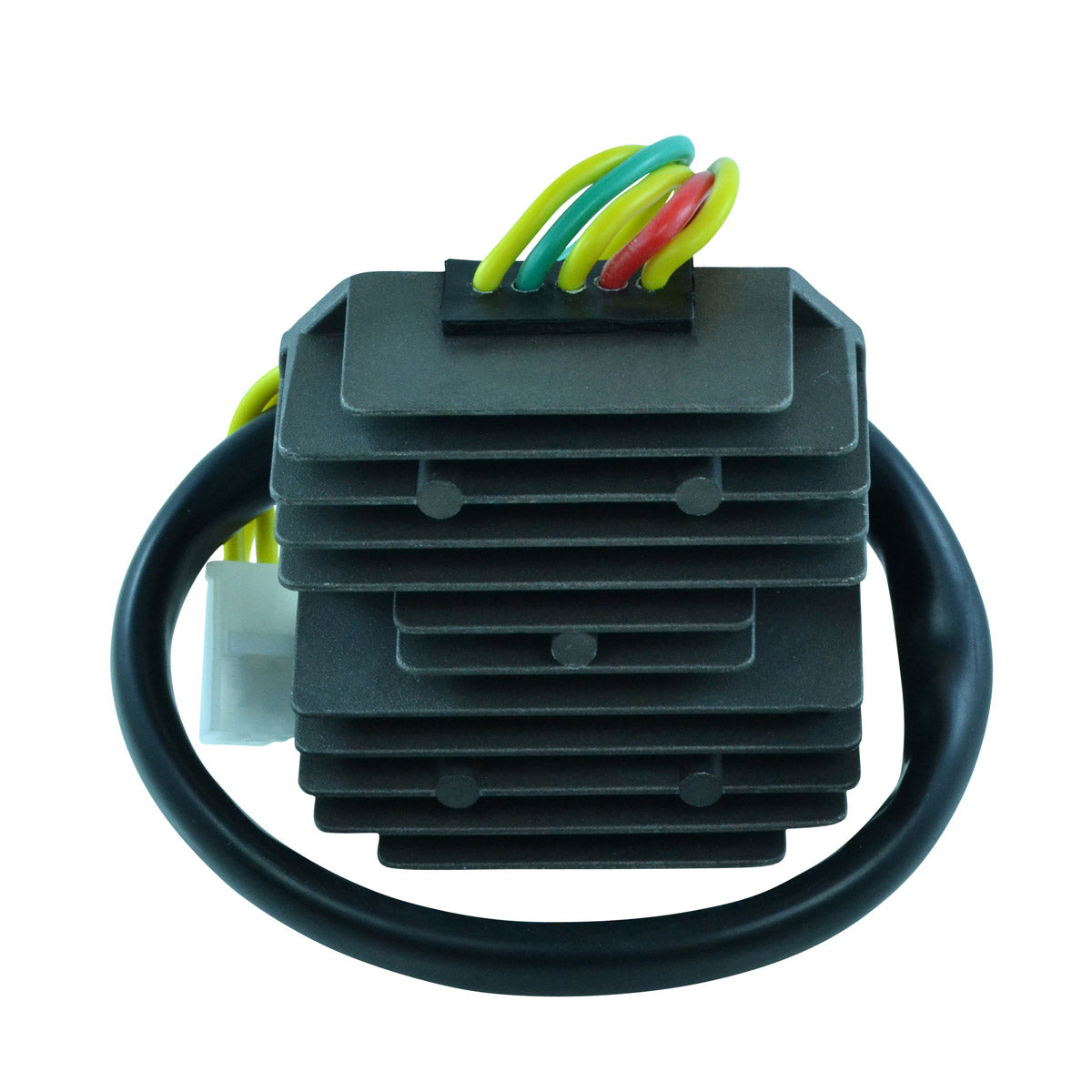

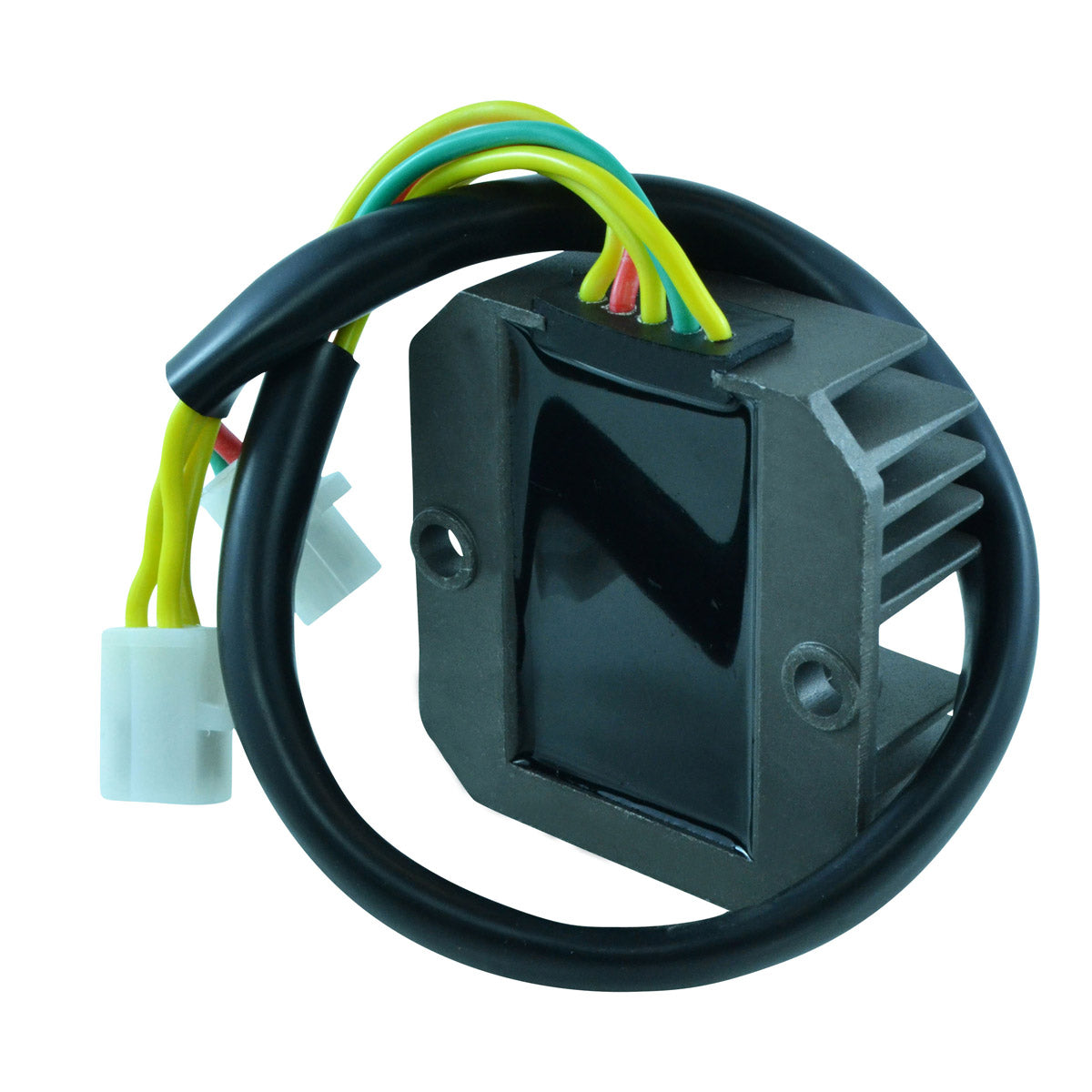

Voltage Regulator Rectifier for Honda VT 750 Shadow VT750 2001-2007
RMSTATOR
SKU: RMS020-104505
In Stock
RMSTATOR
Voltage Regulator Rectifier for Honda VT 750 Shadow VT750 2001-2007
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
Read more

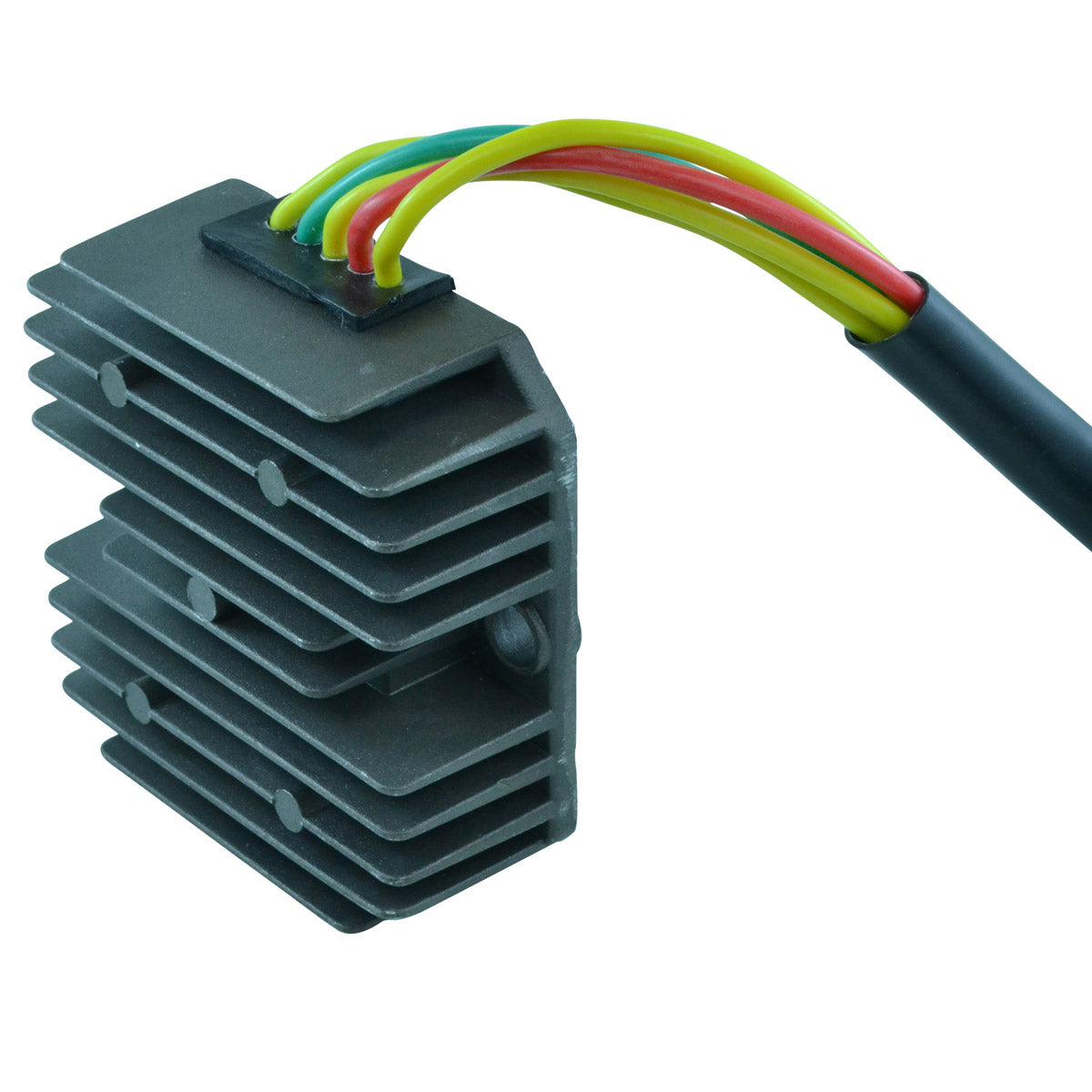

Voltage Regulator Rectifier for Honda VT 750 Shadow VT750 2001-2007
Details
Details
Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
- All products shipped are tested

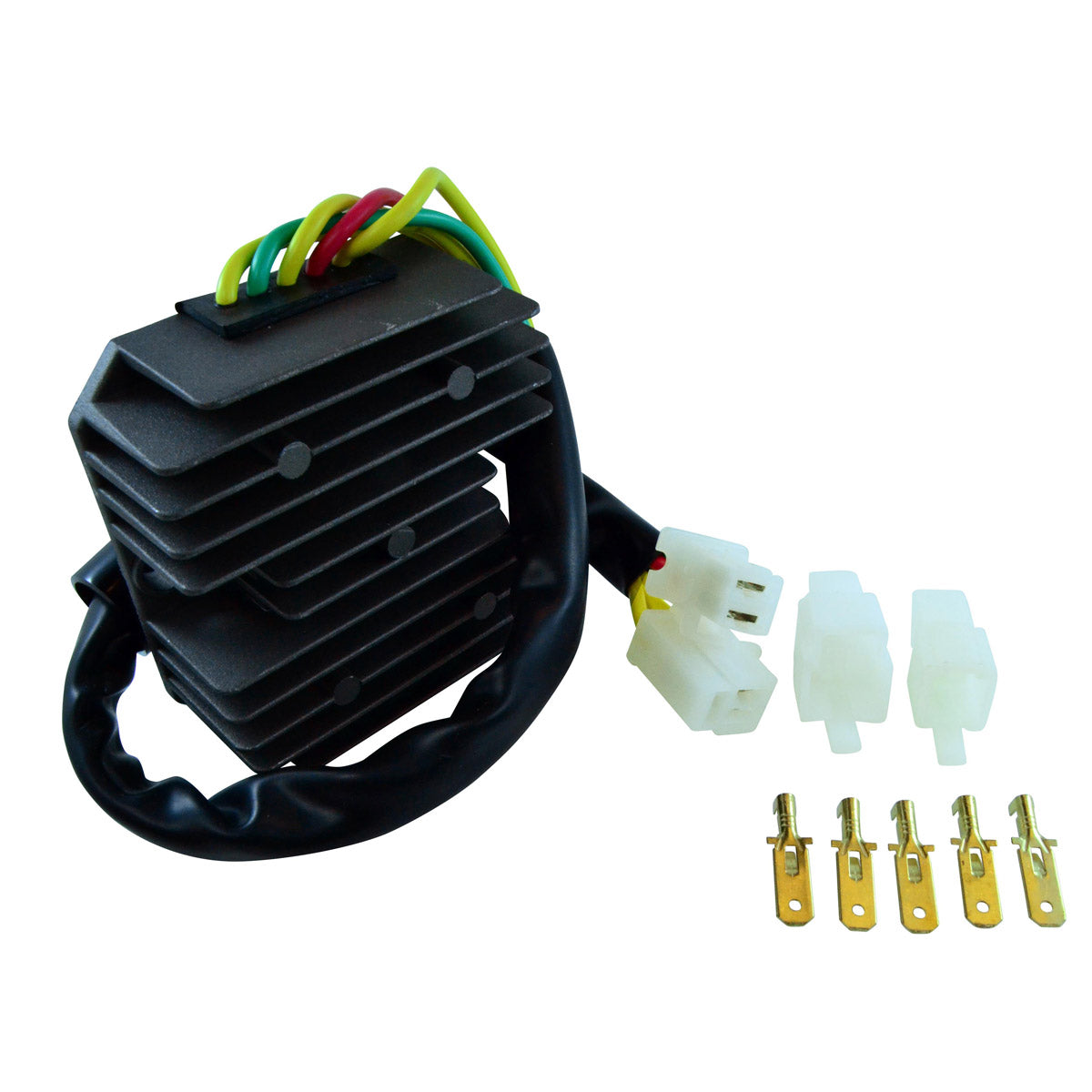

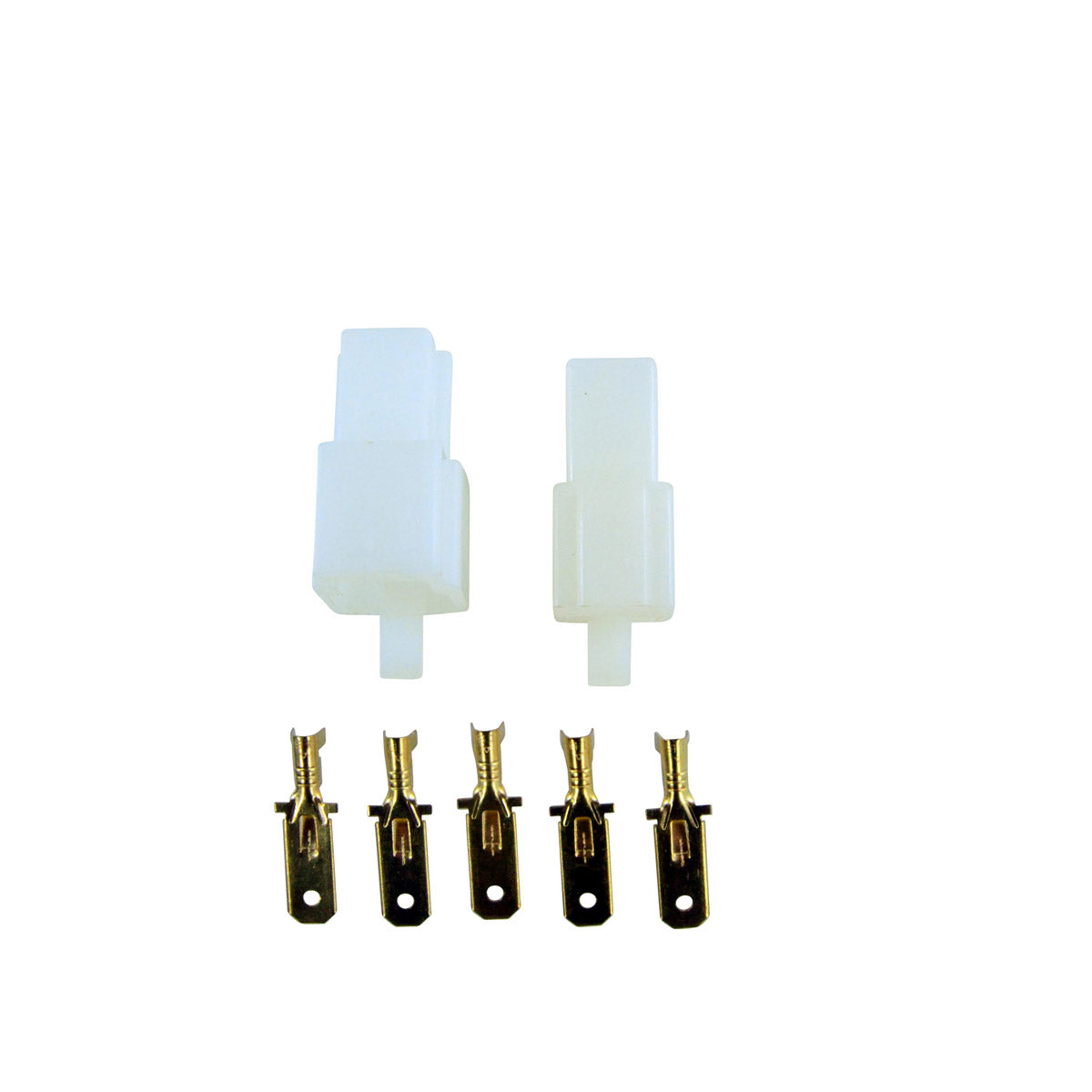

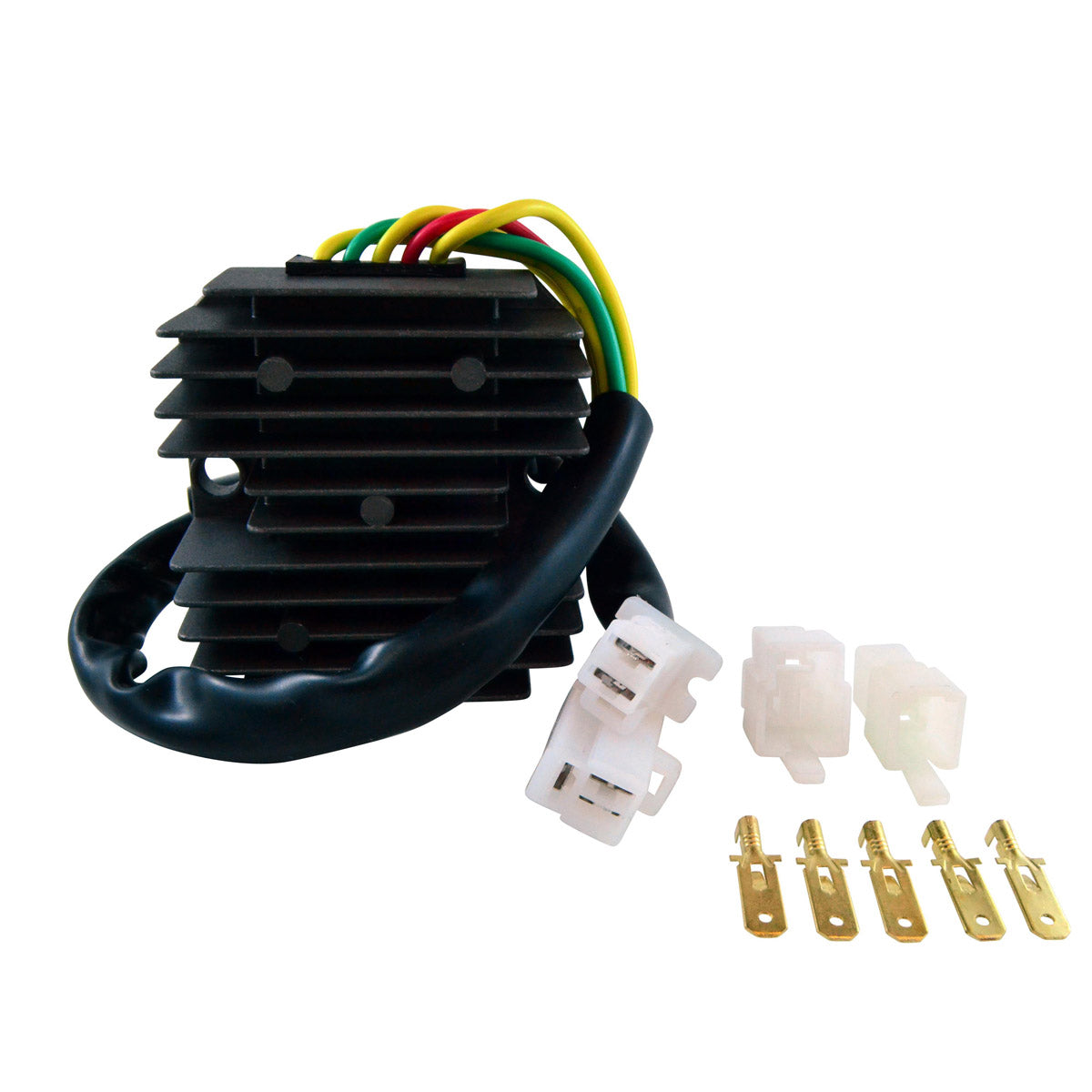

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 80 mm
Length: 85 mm
Height: 30 mm
Wires length: 450 mm
Fixation holes center to center: 68 mm
Other specifications:

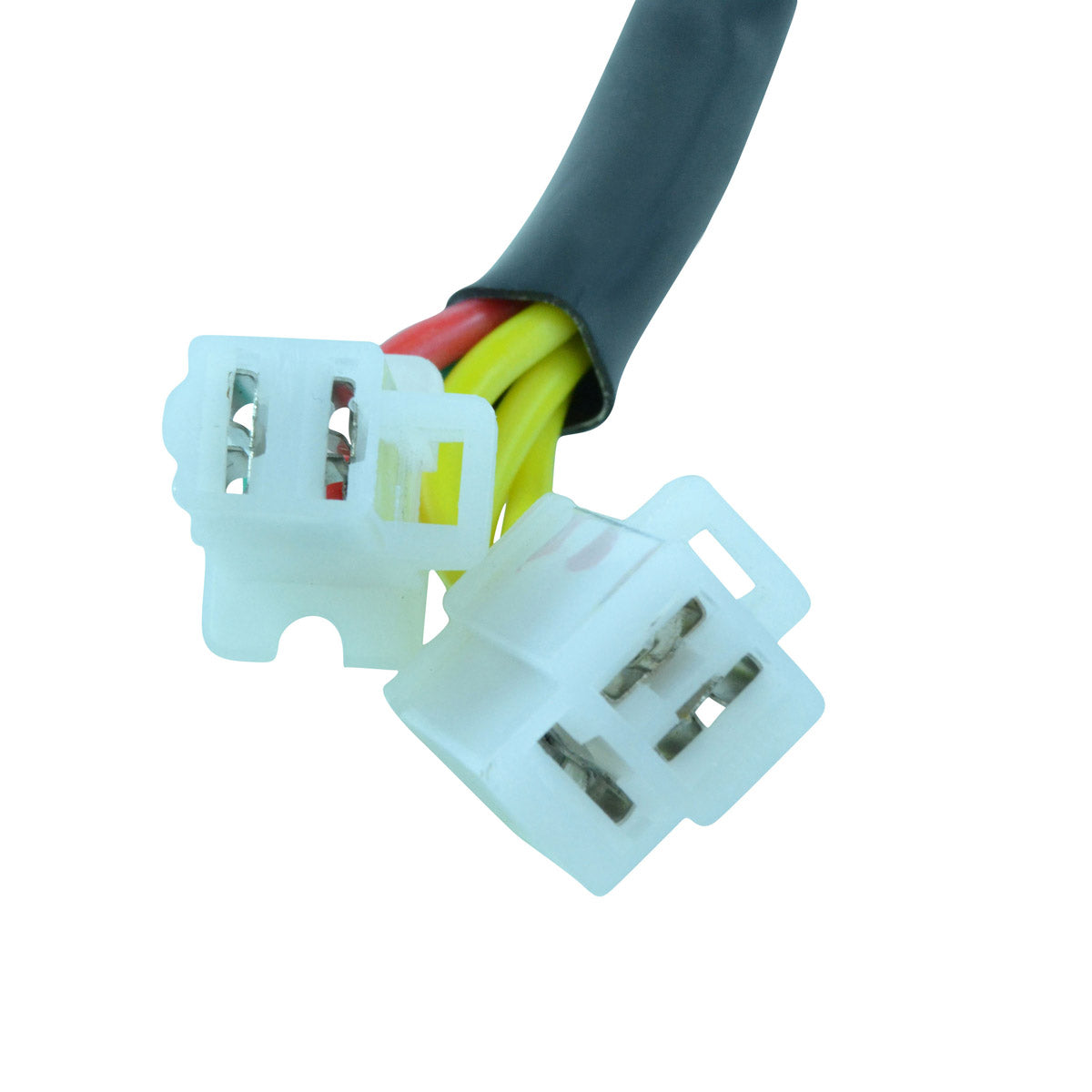

Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20⁰C to 85⁰C
Interchange Part Nº
Interchange Part Nº
- 31600-MCR-A00
- 31600-MCR-A01
Installation
Installation
Before installing your new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
