Mosfet Voltage Regulator Rectifier for Suzuki C90 VL1500 C90T M90 VZ1500 M109R VZR1800 2011-2024 | 32800-10G30
RMSTATOR
SKU: RMS020-104436
Out of stock
RMSTATOR
Mosfet Voltage Regulator Rectifier for Suzuki C90 VL1500 C90T M90 VZ1500 M109R VZR1800 2011-2024 | 32800-10G30
Sold out
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
Read more
Mosfet Voltage Regulator Rectifier for Suzuki C90 VL1500 C90T M90 VZ1500 M109R VZR1800 2011-2024 | 32800-10G30
Sold out
Details
Details

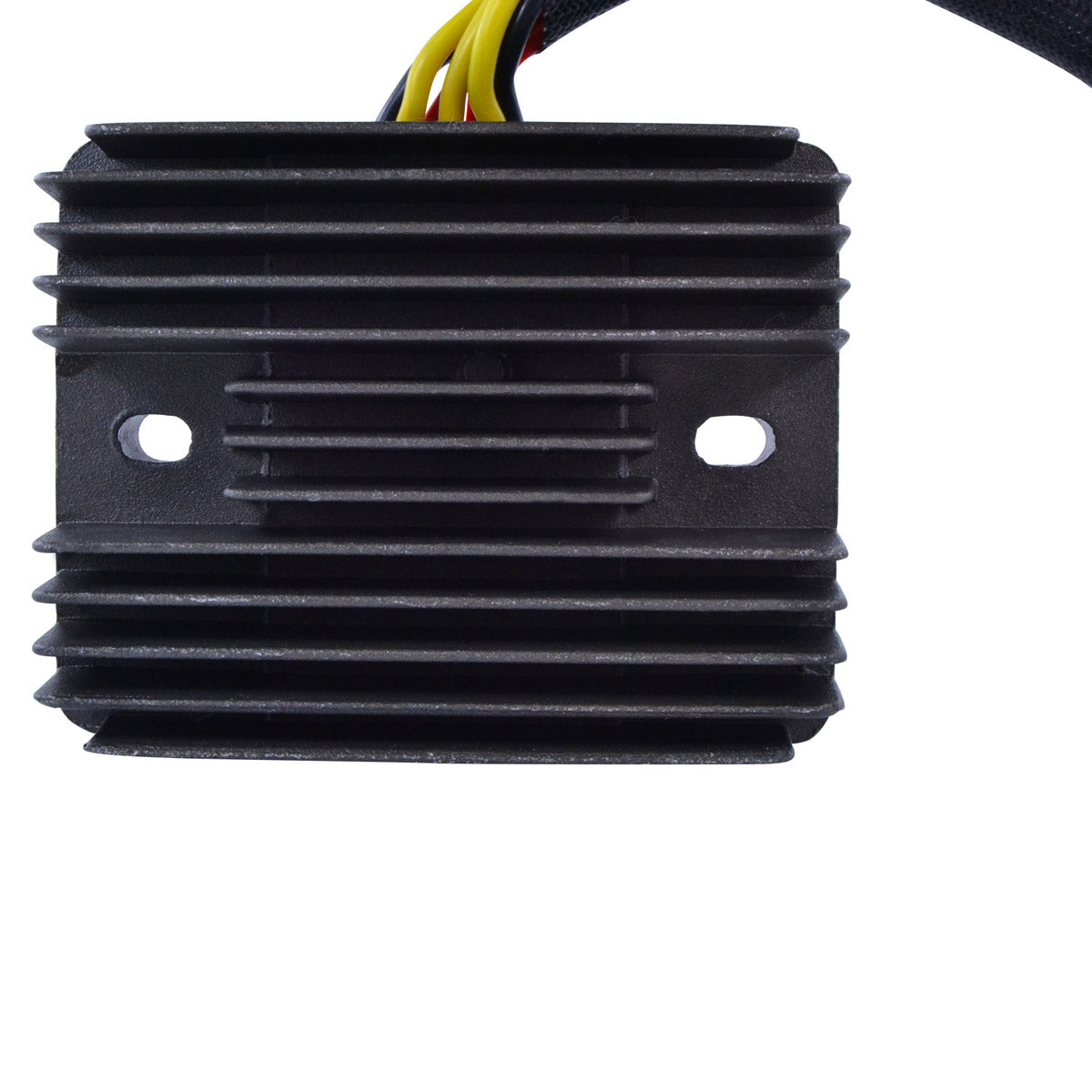

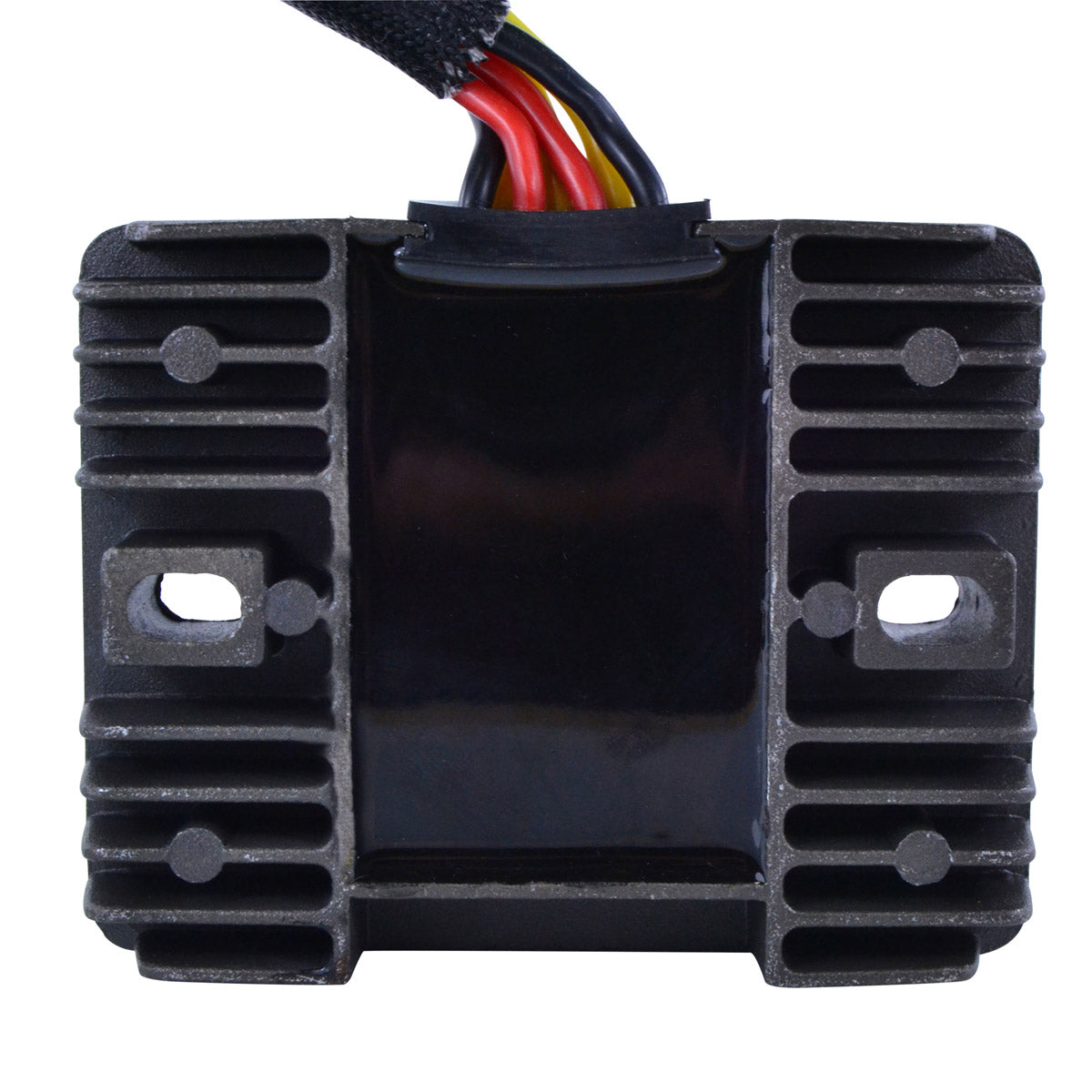

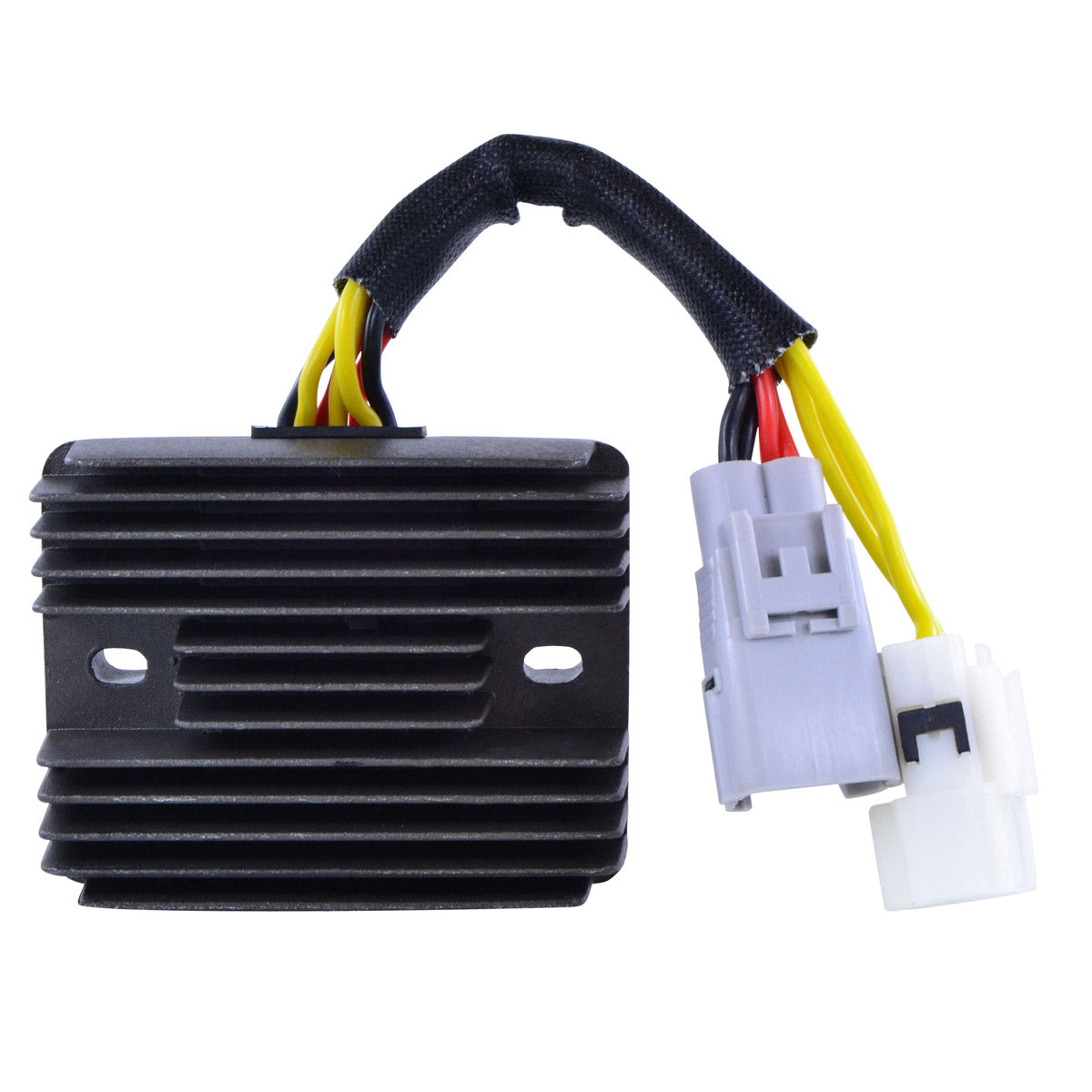

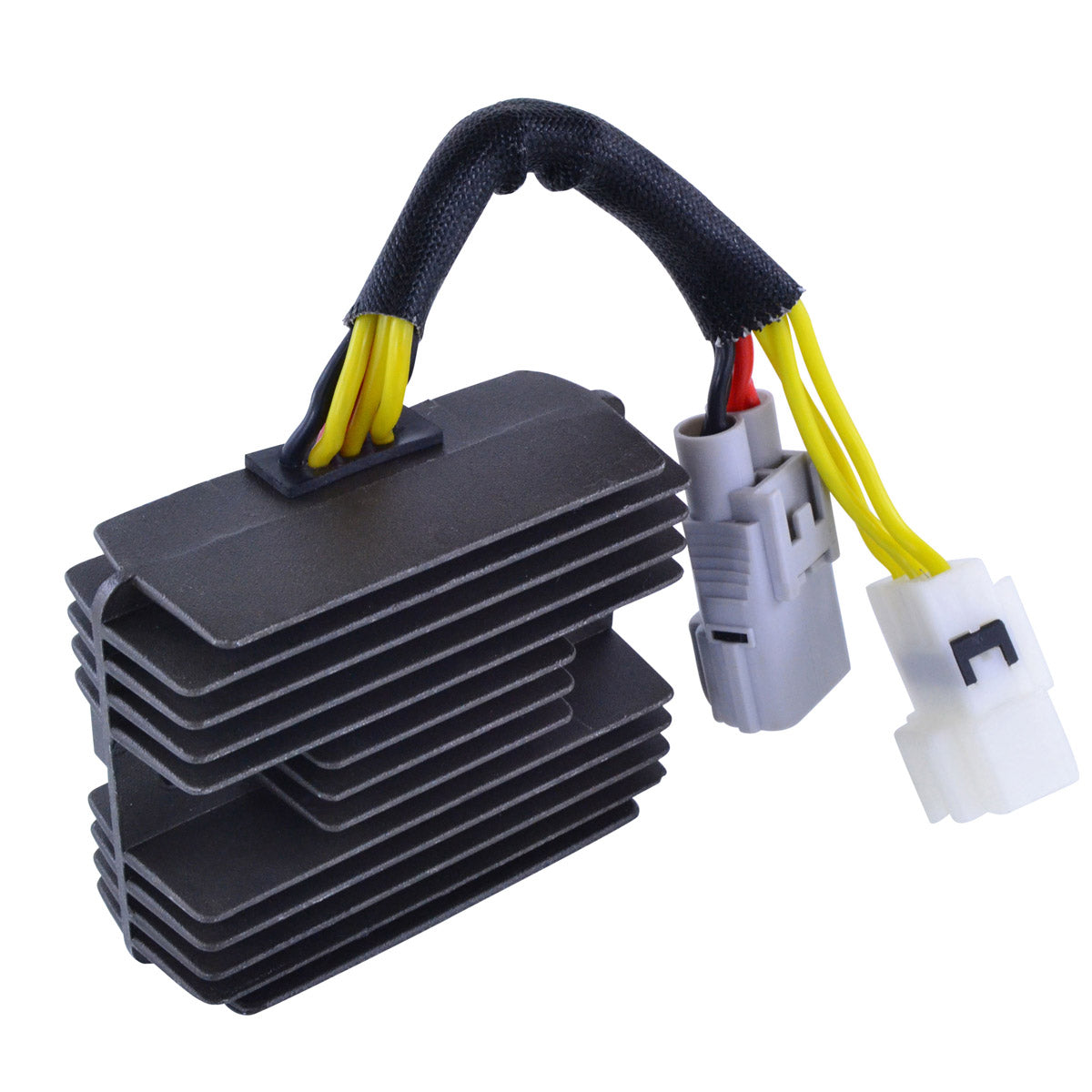

Brand new Mosfet voltage rectifier regulator
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
Extended battery life
Extends the battery’s life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
How does a Mosfet regulator rectifier work?
With
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Specifications
Specifications
Dimensions:
Width: 110 mm
Length: 80 mm
Height: 40 mm
Wires length: 170 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20⁰ to 85⁰
Interchange Part Nº
Interchange Part Nº
- 32800-10G30
Installation
Installation
Before installing your new Mosfet voltage regulator rectifier :
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
