Voltage Regulator Rectifier for Yamaha Venture Royale 1200 XVZ12 & Venture Royale 1300 1983-1993
RMSTATOR
SKU: RMS020-104070
In Stock
RMSTATOR
Voltage Regulator Rectifier for Yamaha Venture Royale 1200 XVZ12 & Venture Royale 1300 1983-1993
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
Read more
Voltage Regulator Rectifier for Yamaha Venture Royale 1200 XVZ12 & Venture Royale 1300 1983-1993
Details
Details
Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- All products shipped are tested

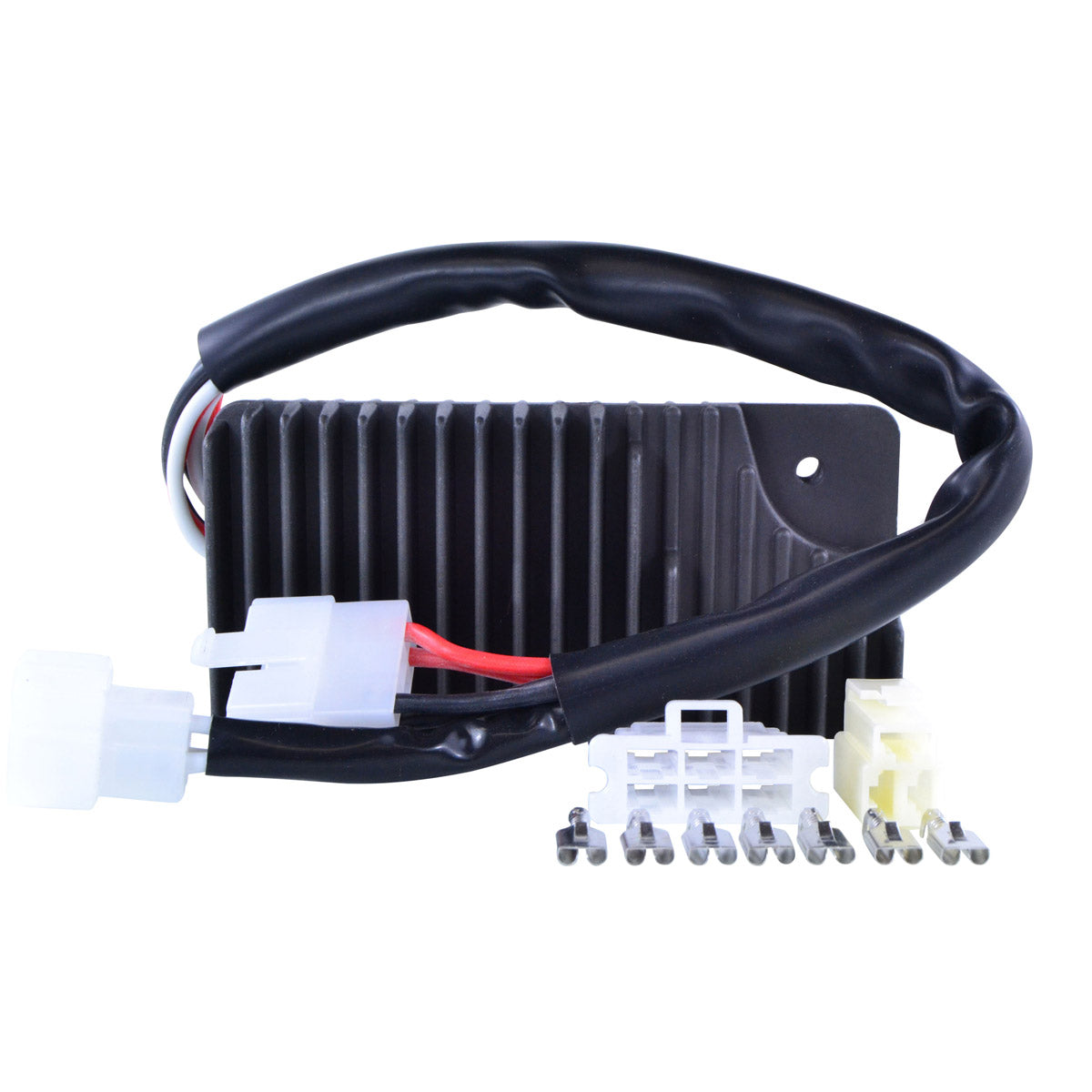

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 65 mm
Length: 130 mm
Height: 30 mm
Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20° to 85°
Interchange Part Nº
Interchange Part Nº
- 2WR-81960-A0-00
- 26H-81960-A0-00
Installation
Installation
Before installing your new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
