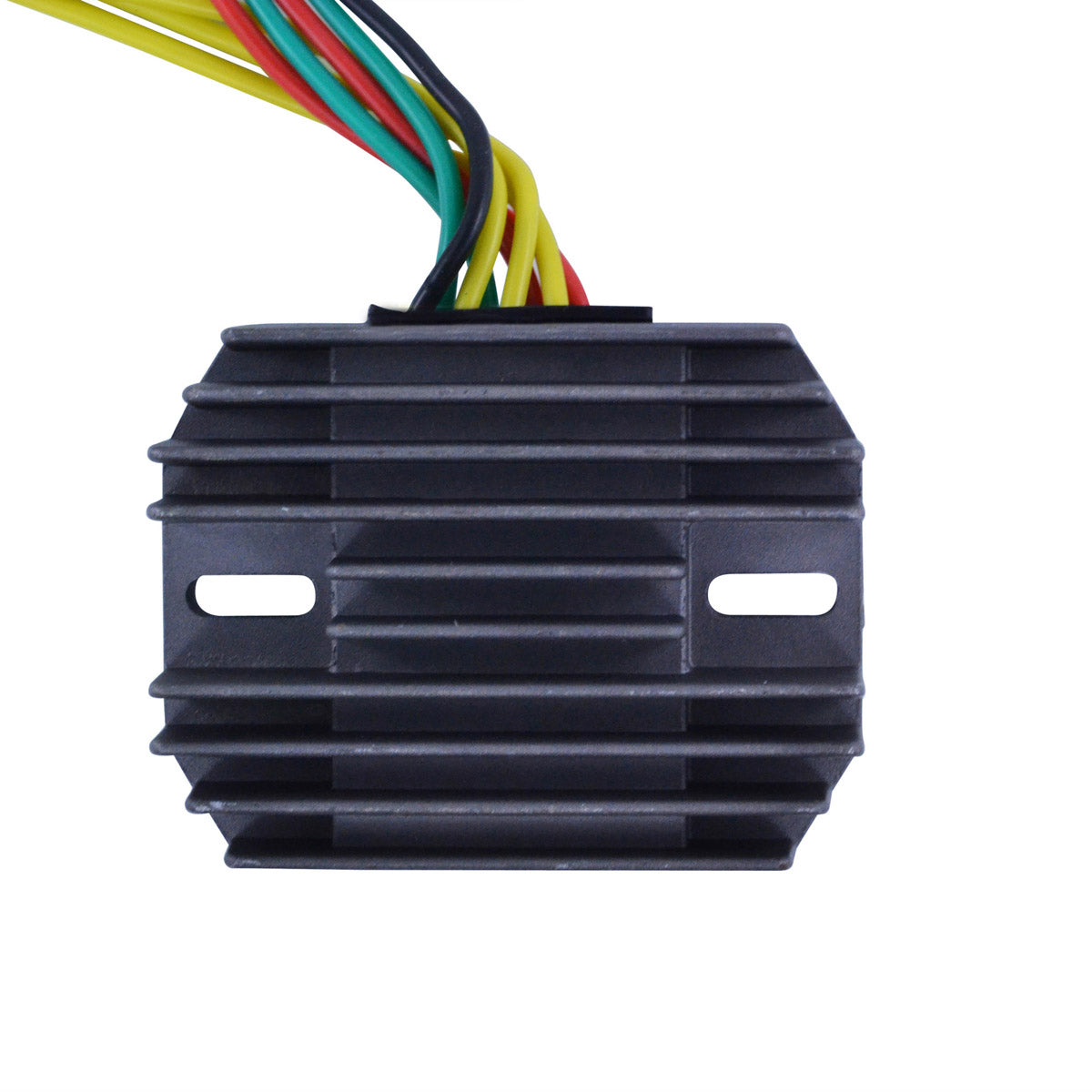

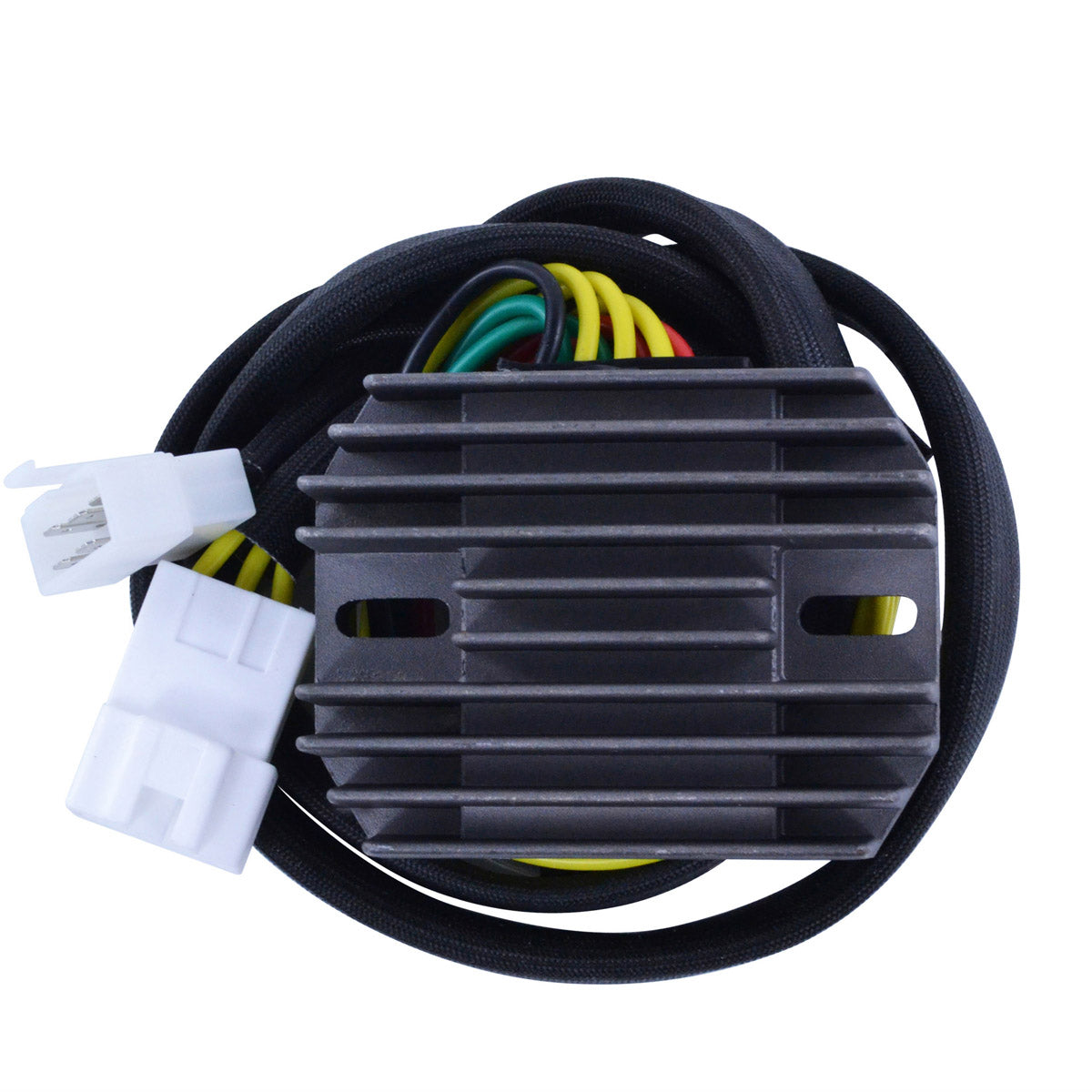

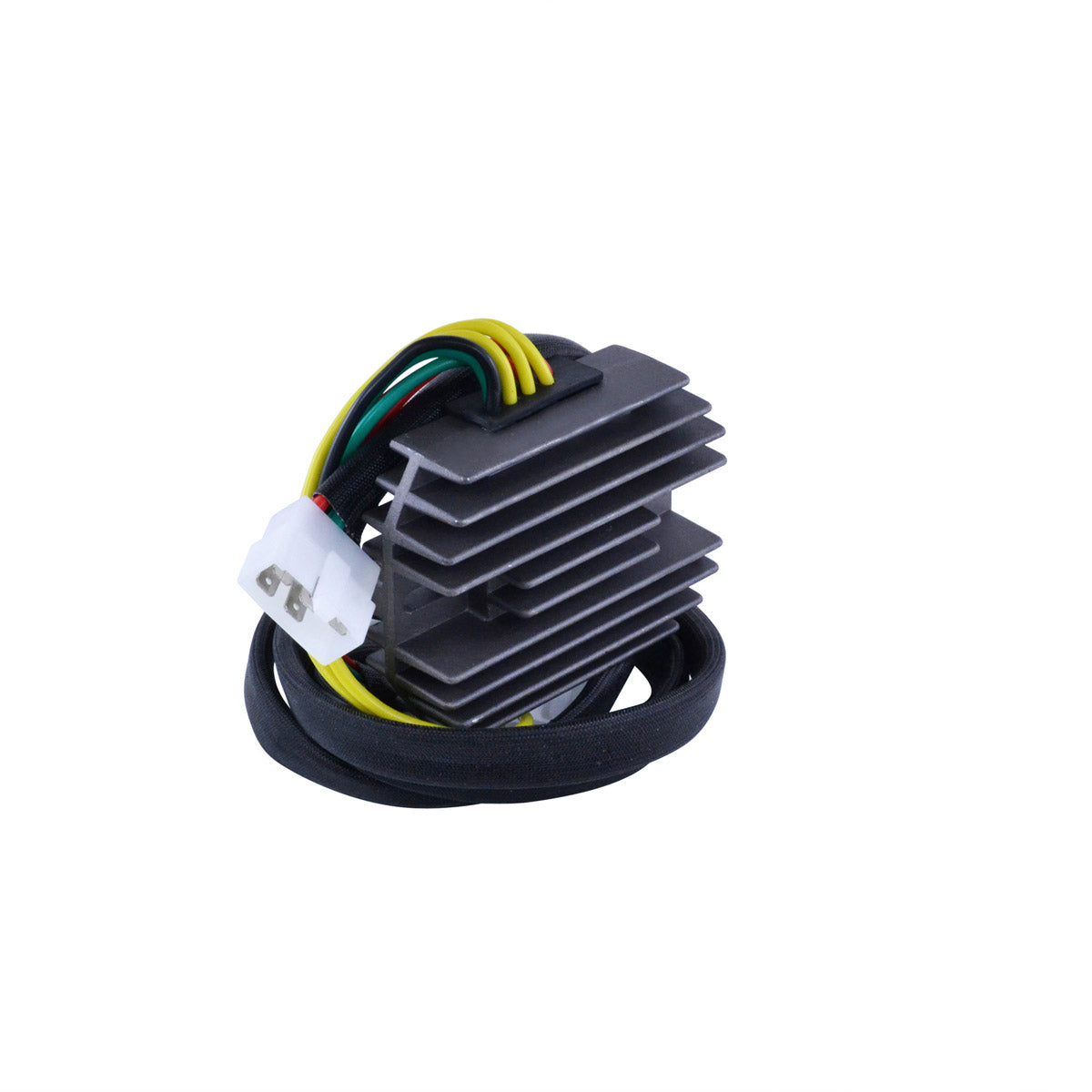

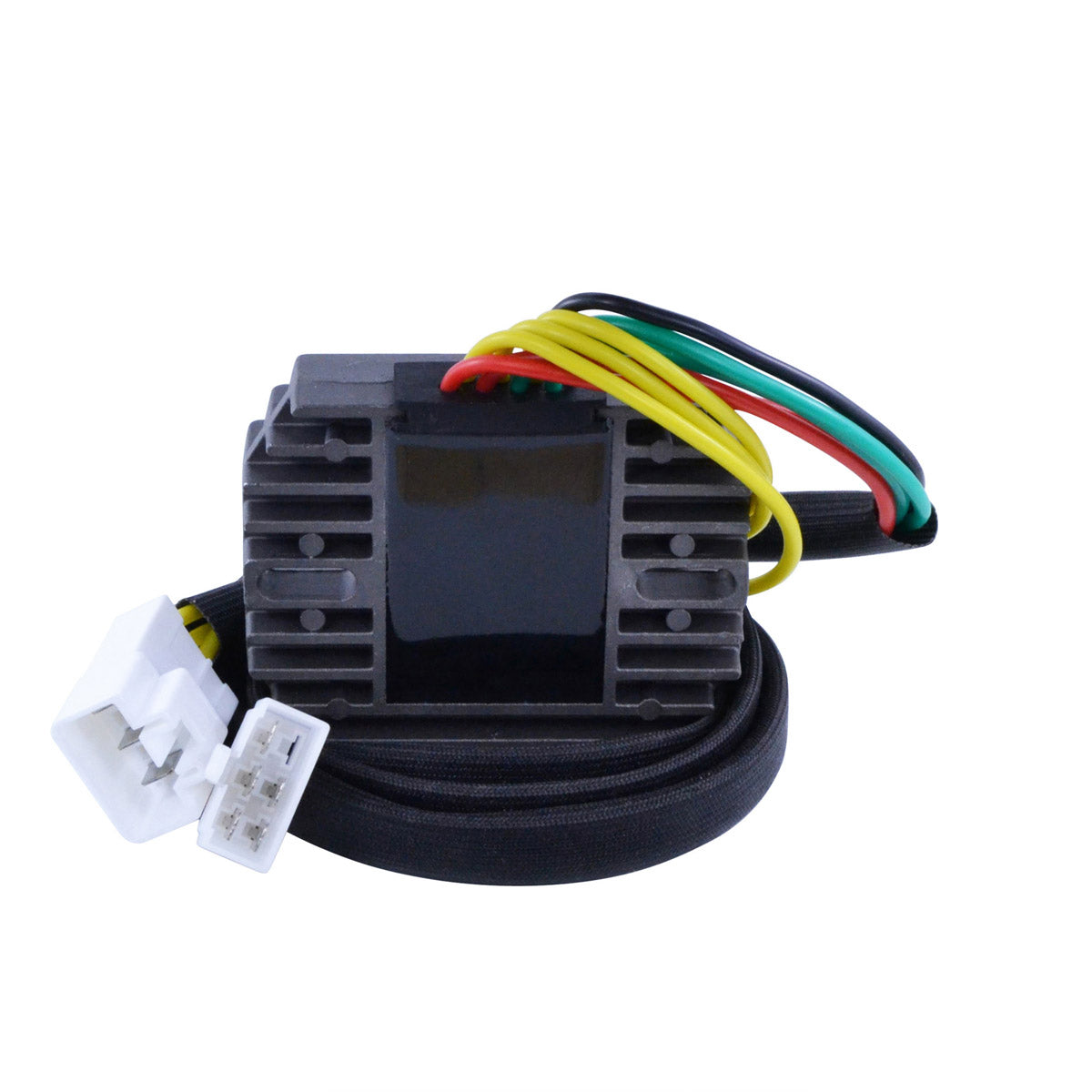

Voltage Regulator Rectifier for Honda CB 1100 SF 2000-2003

Voltage Regulator Rectifier for Honda CB 1100 SF 2000-2003

Name: Voltage Regulator Rectifier for Honda CB 1100 SF 2000-2003
Brand: RMSTATOR
SKU: RMS020-103698
Price: 130.89 USD
Availability: OutOfStock

RMSTATOR

SKU: RMS020-103698

Out of stock

RMSTATOR

Voltage Regulator Rectifier for Honda CB 1100 SF 2000-2003

$130.89

Sold out

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Brand new aftermarket voltage regulator rectifier

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required
Higher grade of electric components.
The quality exceeds the OEM equipment
All products shipped are tested

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications

Dimensions:
Width: 112 mm
Length: 80 mm
Height: 30 mm
Stator wires length: 1200 mm
Battery wires length: 420 mm
Fixation holes center to center: 70 mm

Other specifications:

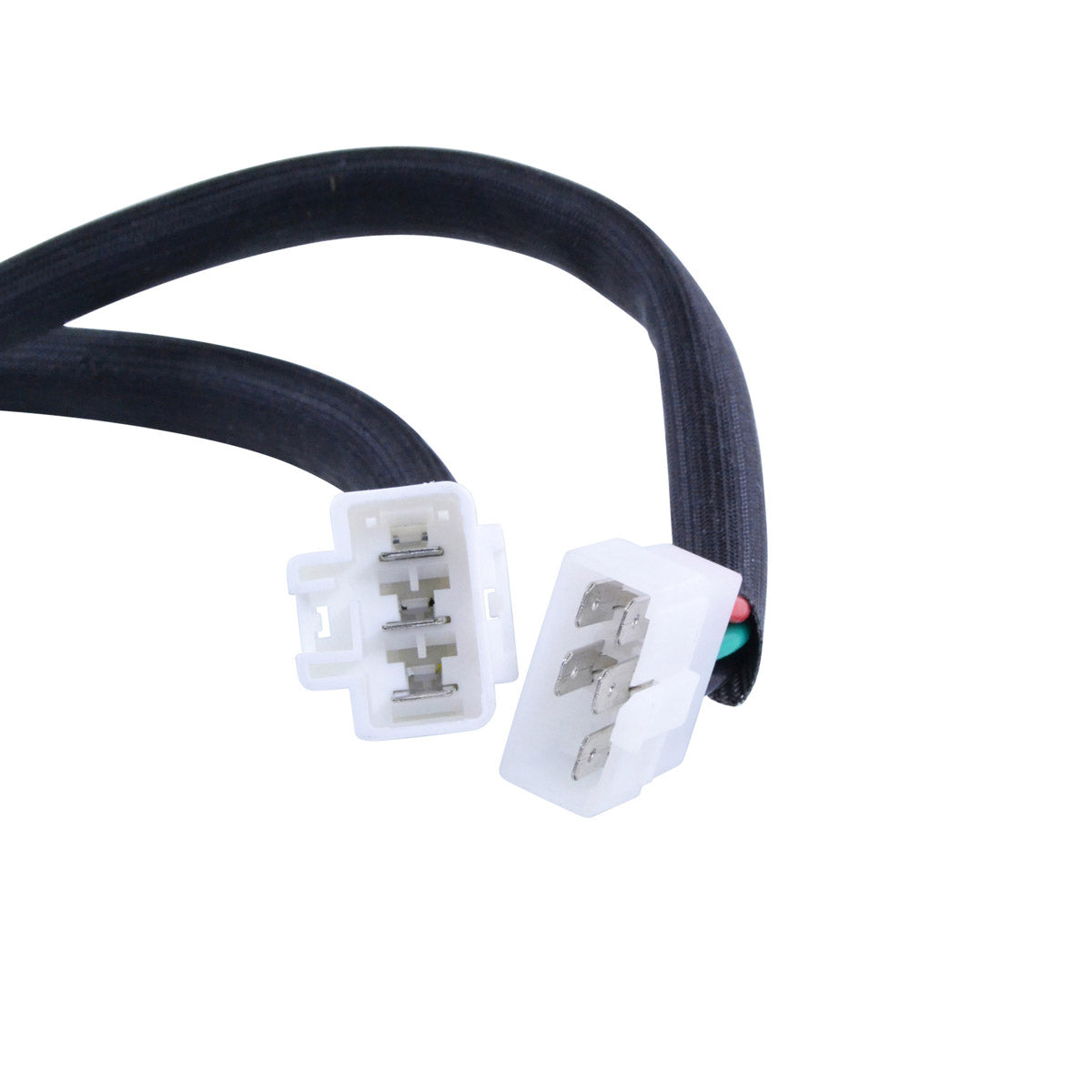

Number of plugs: 2
Number of pins: 8
Number of wires: 8
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20⁰ to 85⁰

Interchange Part Nº

31600-MCC-601

Installation

Before installing your new voltage regulator rectifier:

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
