Regulator Rectifier for Aprilia Mojito 125 / SR 50 R | Derbi Atlantis 50 2T | Piaggio Typhoon 50 1991-2015 | OEM# 58096R
RMSTATOR
SKU: RMS020-103077
Out of stock
RMSTATOR
Regulator Rectifier for Aprilia Mojito 125 / SR 50 R | Derbi Atlantis 50 2T | Piaggio Typhoon 50 1991-2015 | OEM# 58096R
Sold out
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Regulator Rectifier for Aprilia Mojito 125 / SR 50 R | Derbi Atlantis 50 2T | Piaggio Typhoon 50 1991-2015 | OEM# 58096R
Sold out
Details
Details

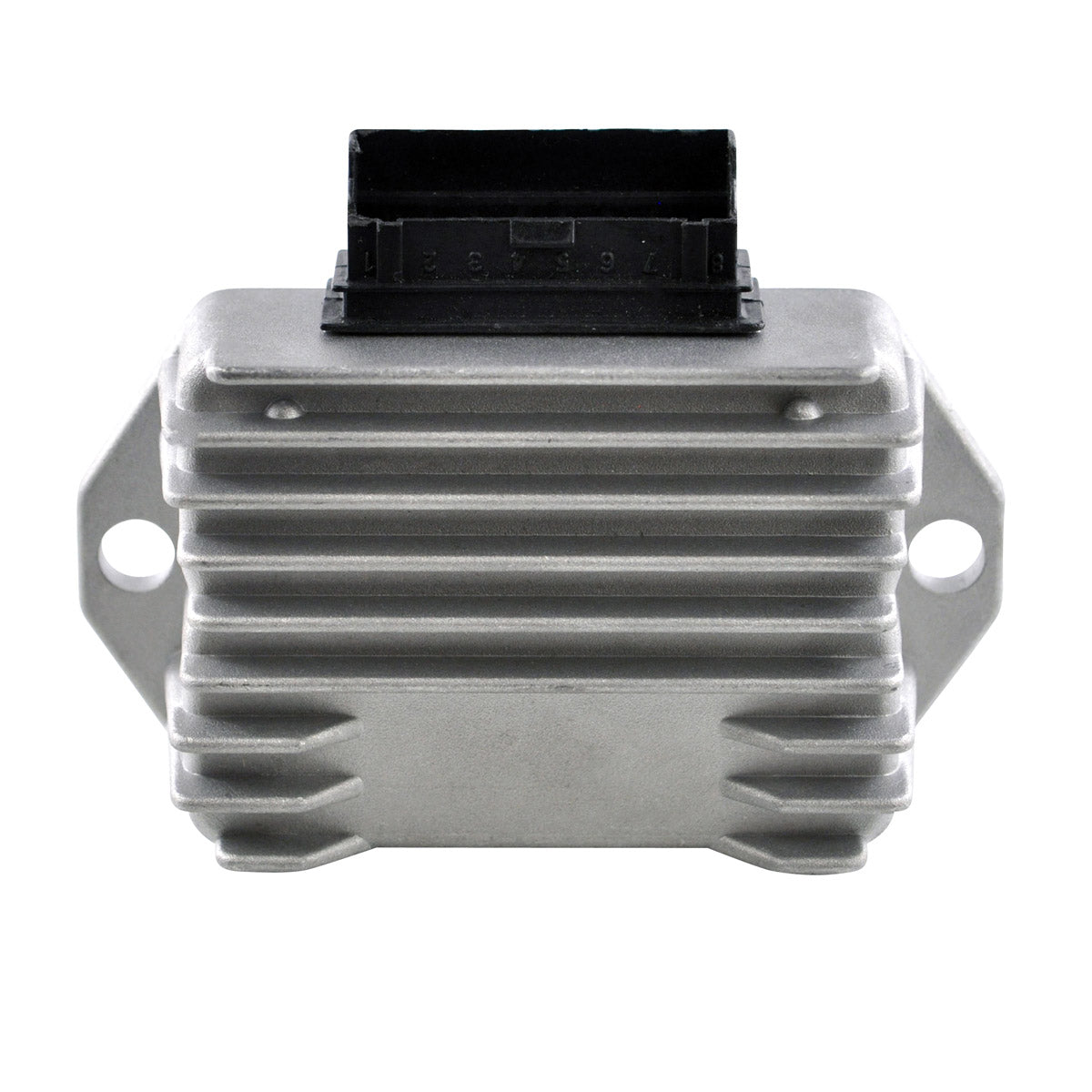

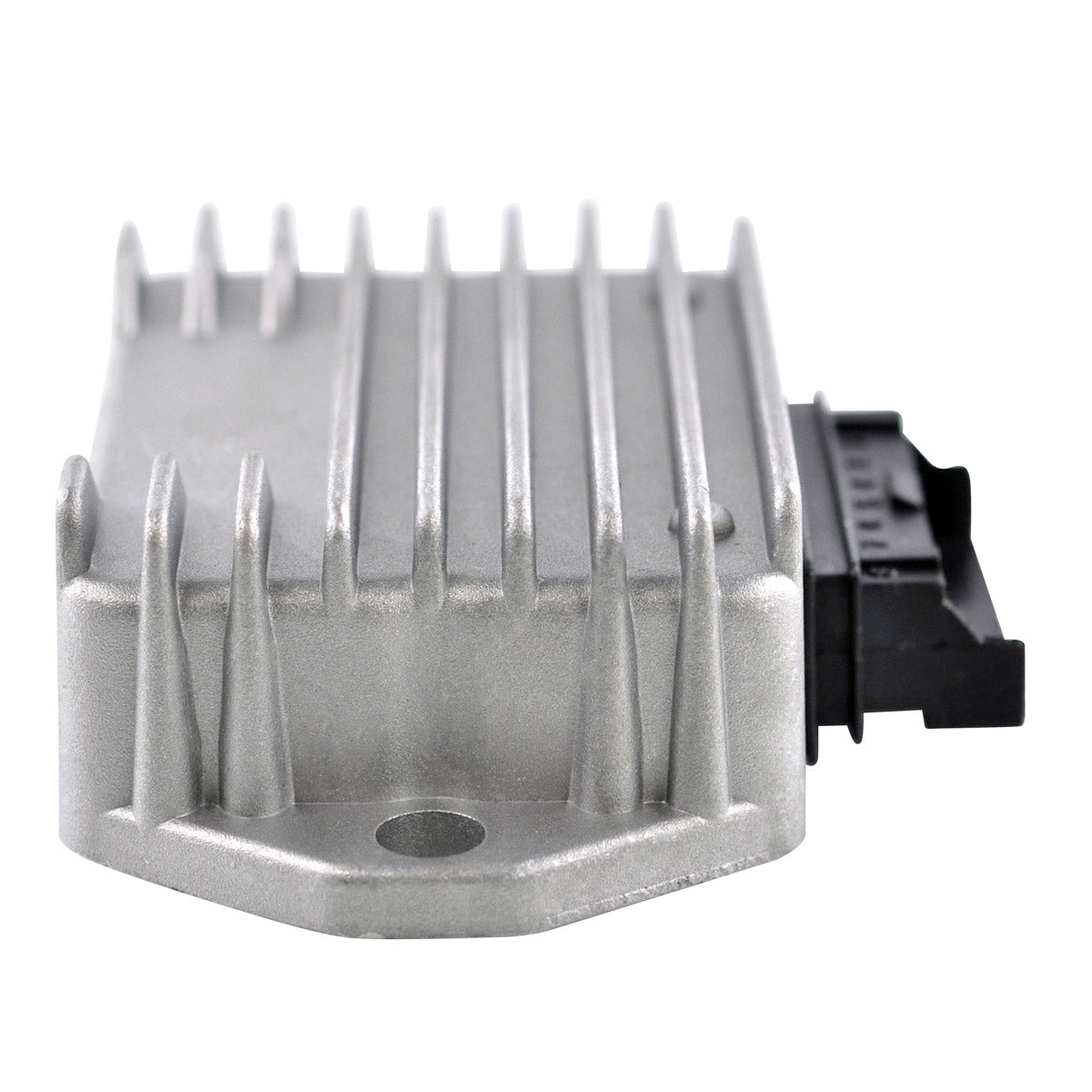

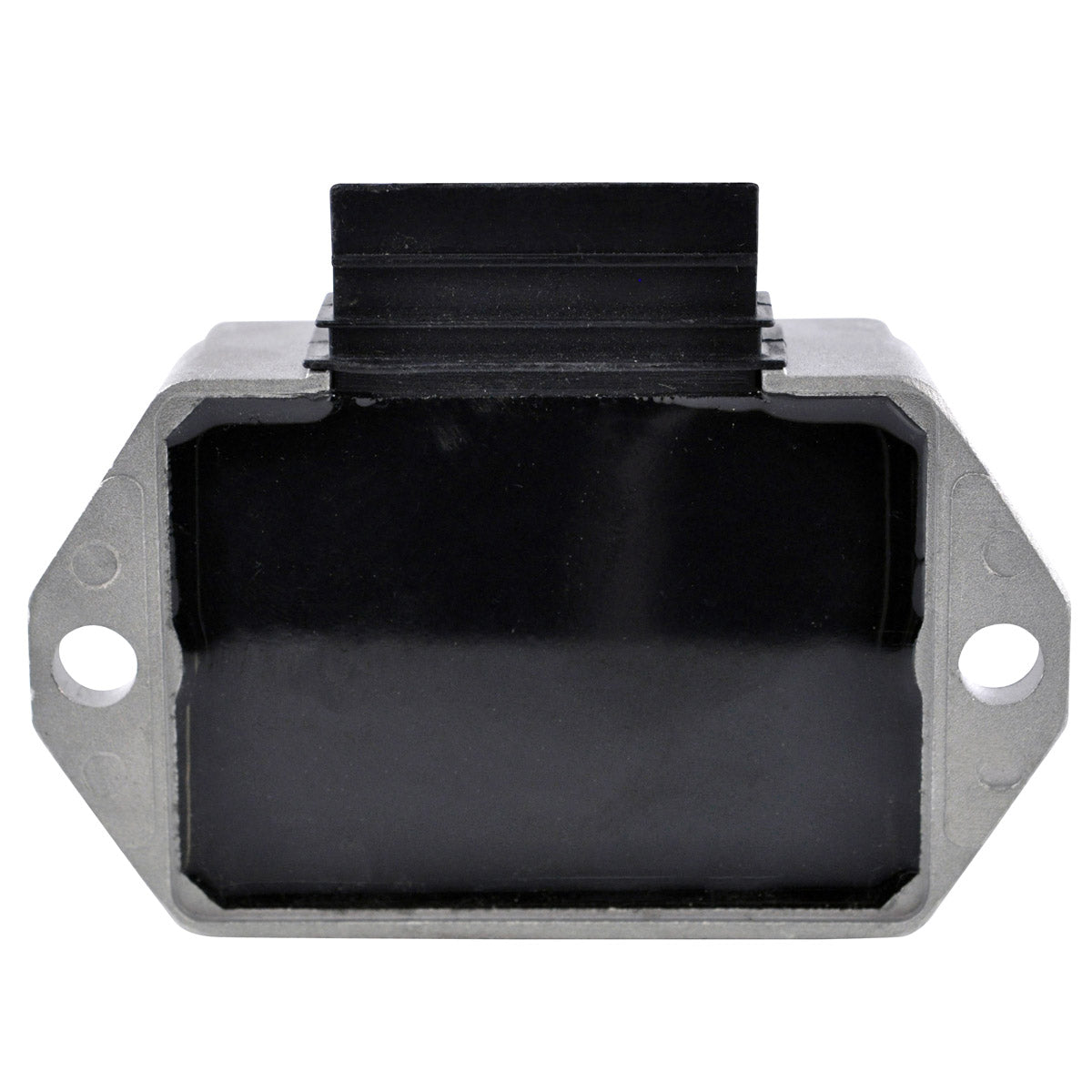

Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
- All products shipped are tested
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 31 mm
Length: 106 mm
Height: 79 mm
Fixation holes center to center: 92 mm
Other specifications:

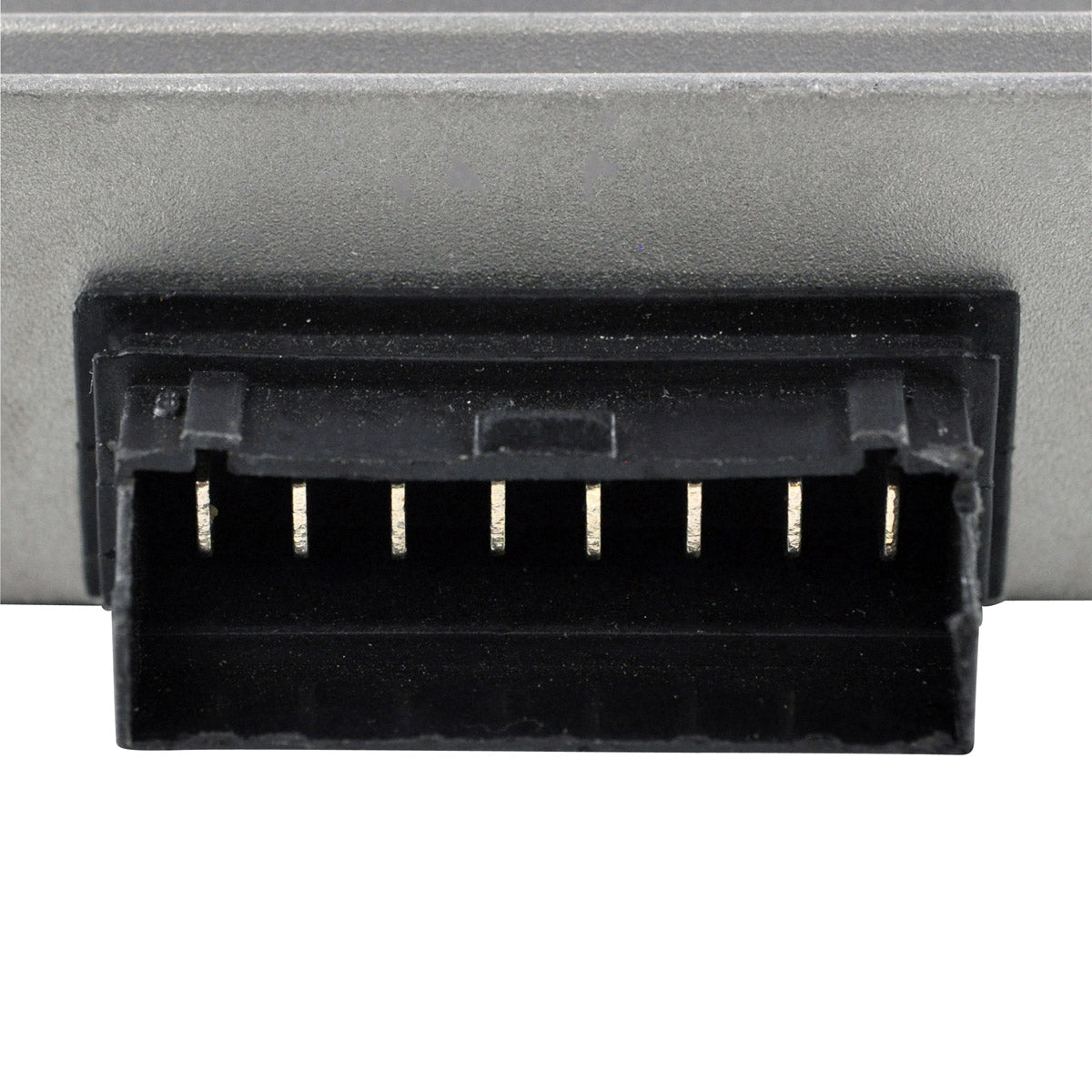

Number of plugs: 1
Number of pins: 8
Interchange Part Nº
Interchange Part Nº
- 82587R
- AP8124648
- AP8127154
- 58096R
- 00G01002841
Installation
Installation
Before installing your new voltage regulator rectifier:
- Check the AC output of the stator.
- Replace any burned or corroded connectors on stator and regulator rectifier.
- Check and repair any melted wiring.
- Use hi-temp dielectric grease on all connectors.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
Vehicle Fitments
Vehicle Fitments
Vehicle Fitments
