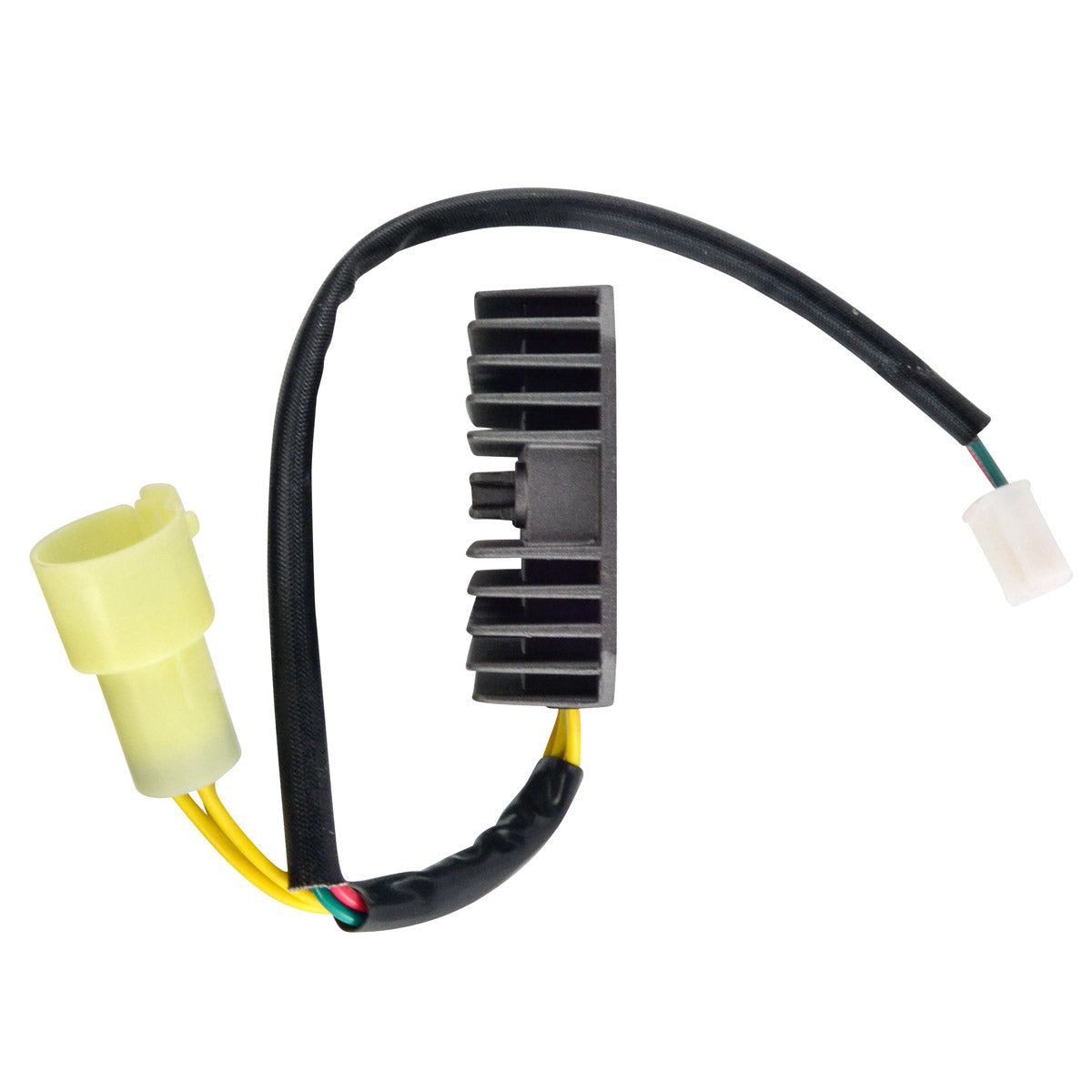

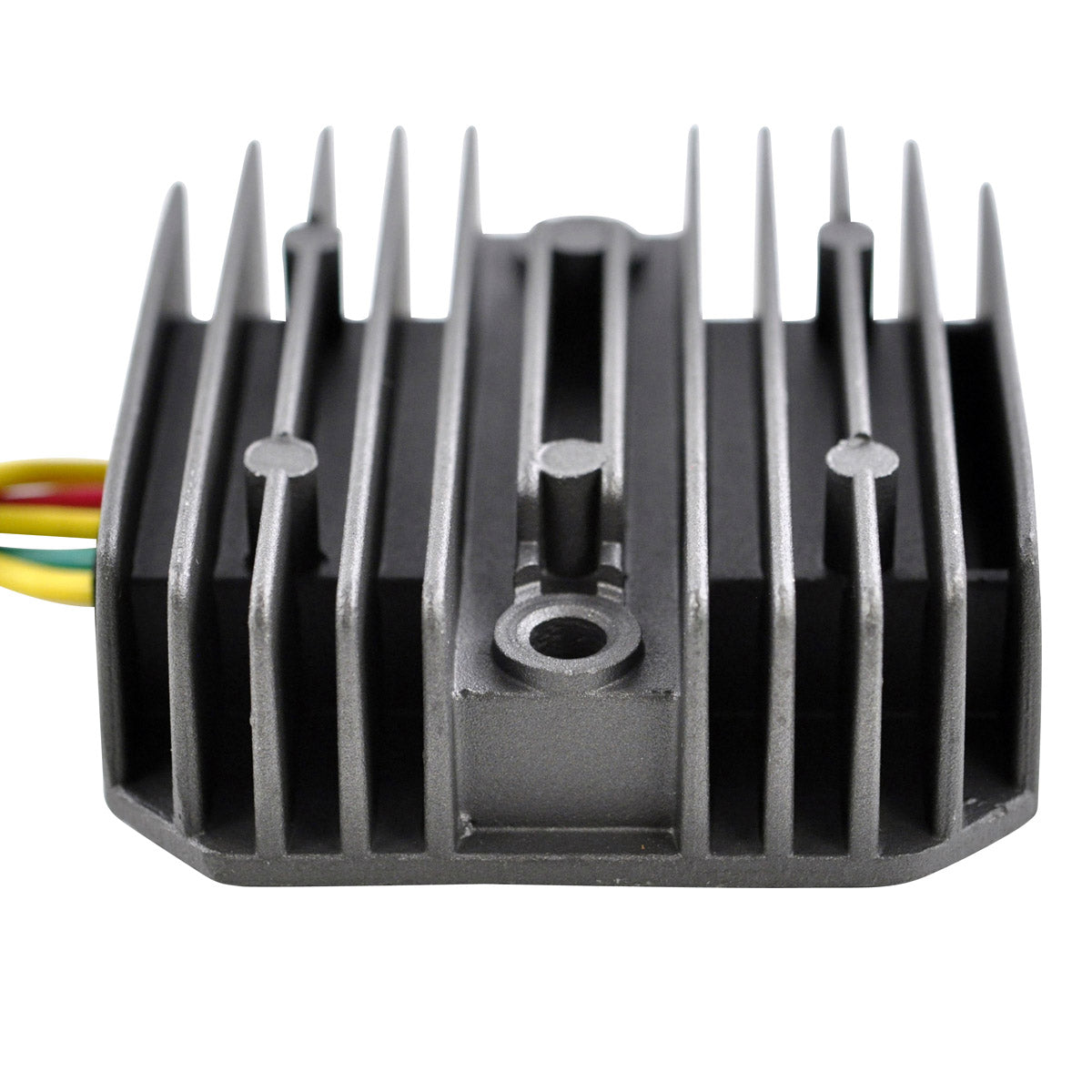

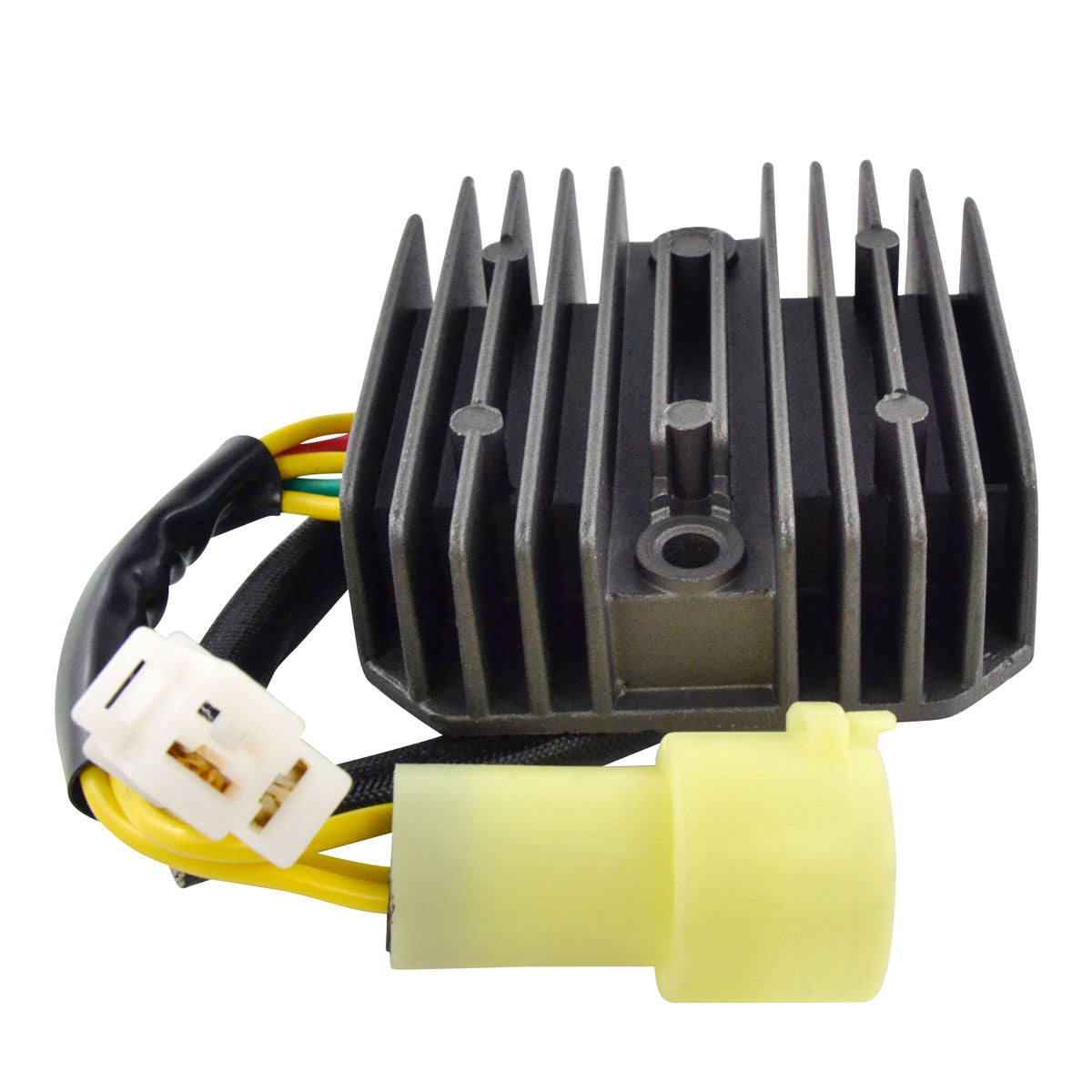

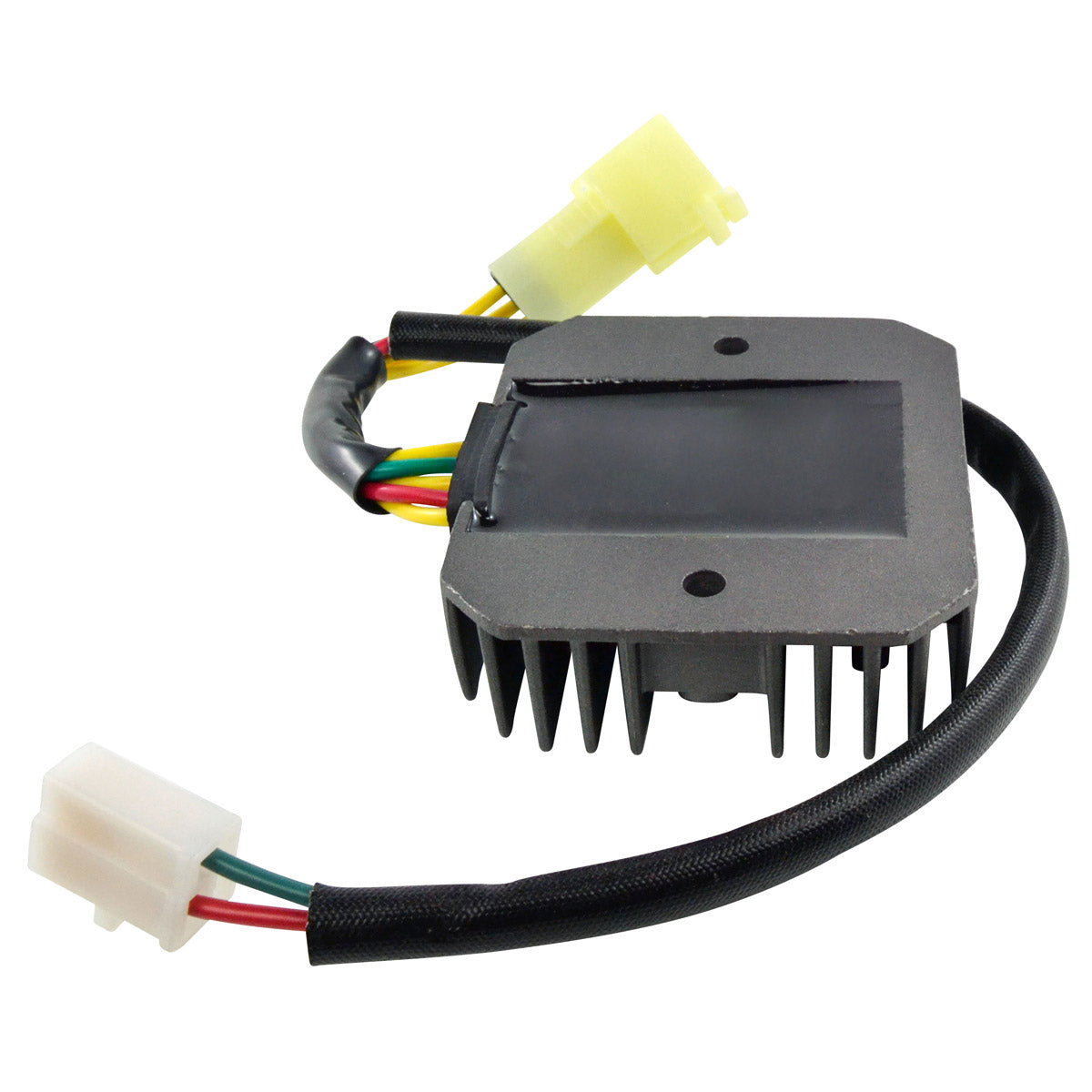

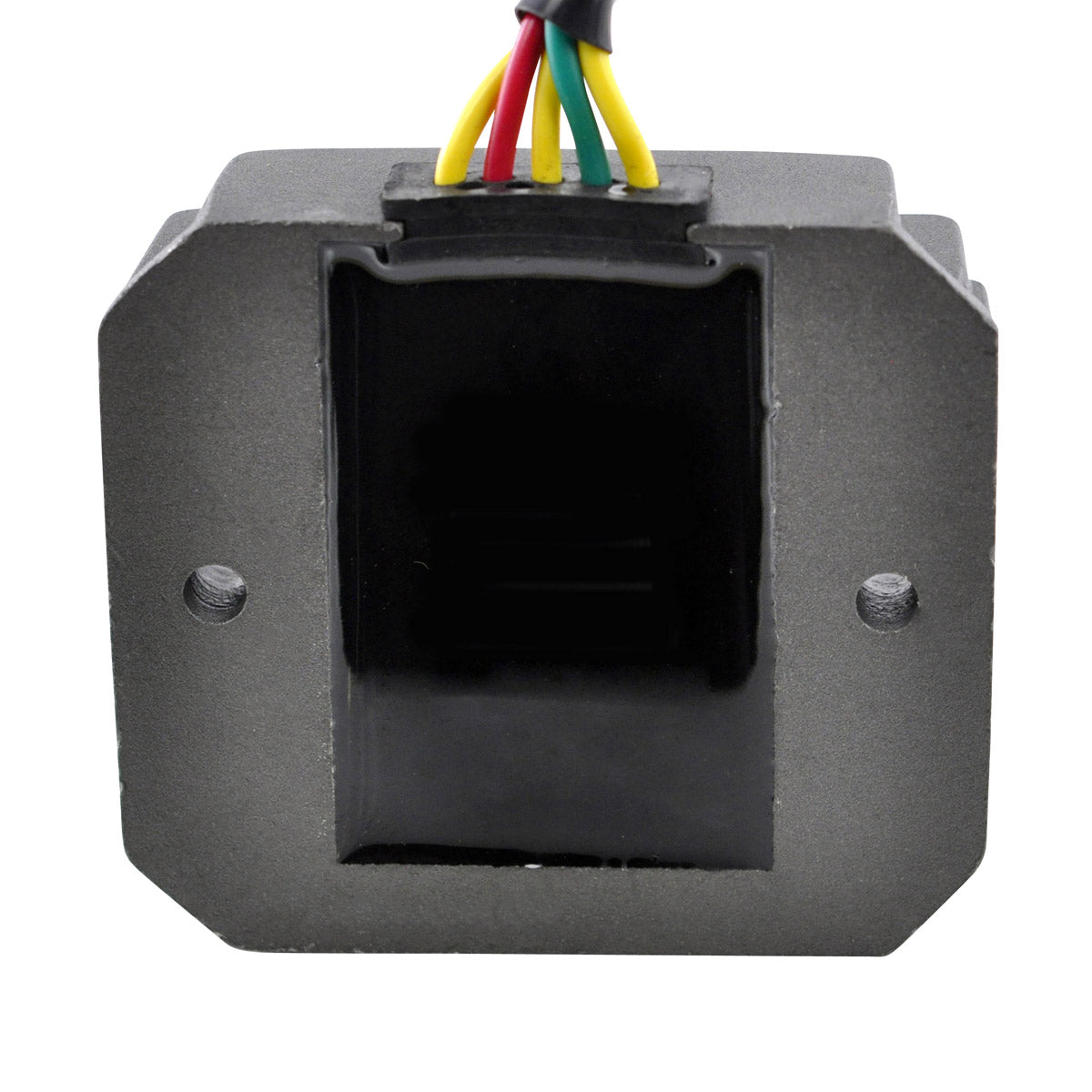

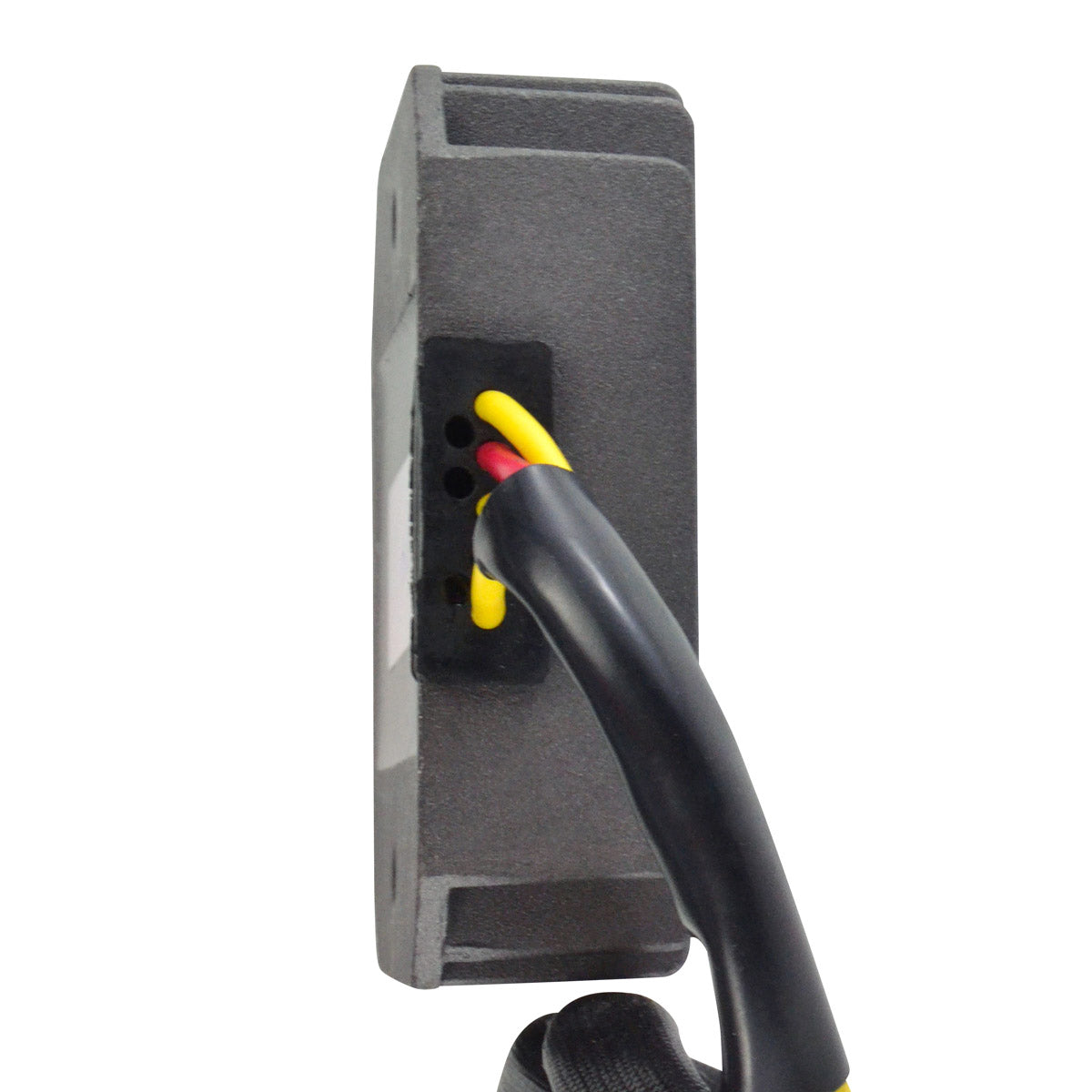

Voltage Regulator Rectifier for Honda TRX 300 / TRX 300 FW Fourtrax 1988-1992 TRX300 TRX300FW

RMSTATOR
SKU: RMS020-102837
In Stock
RMSTATOR

Voltage Regulator Rectifier for Honda TRX 300 / TRX 300 FW Fourtrax 1988-1992 TRX300 TRX300FW

$116.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Our regulator has been designed without the black wire.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
Voltage Regulator Rectifier for Honda TRX 300 / TRX 300 FW Fourtrax 1988-1992 TRX300 TRX300FW
Voltage Regulator Rectifier for Honda TRX 300 / TRX 300 FW Fourtrax 1988-1992 TRX300 TRX300FW
$116.89

Details

Brand new aftermarket voltage regulator rectifier

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • Higher grade of electric components.
  • The quality exceeds the OEM equipment
  • All products shipped are tested

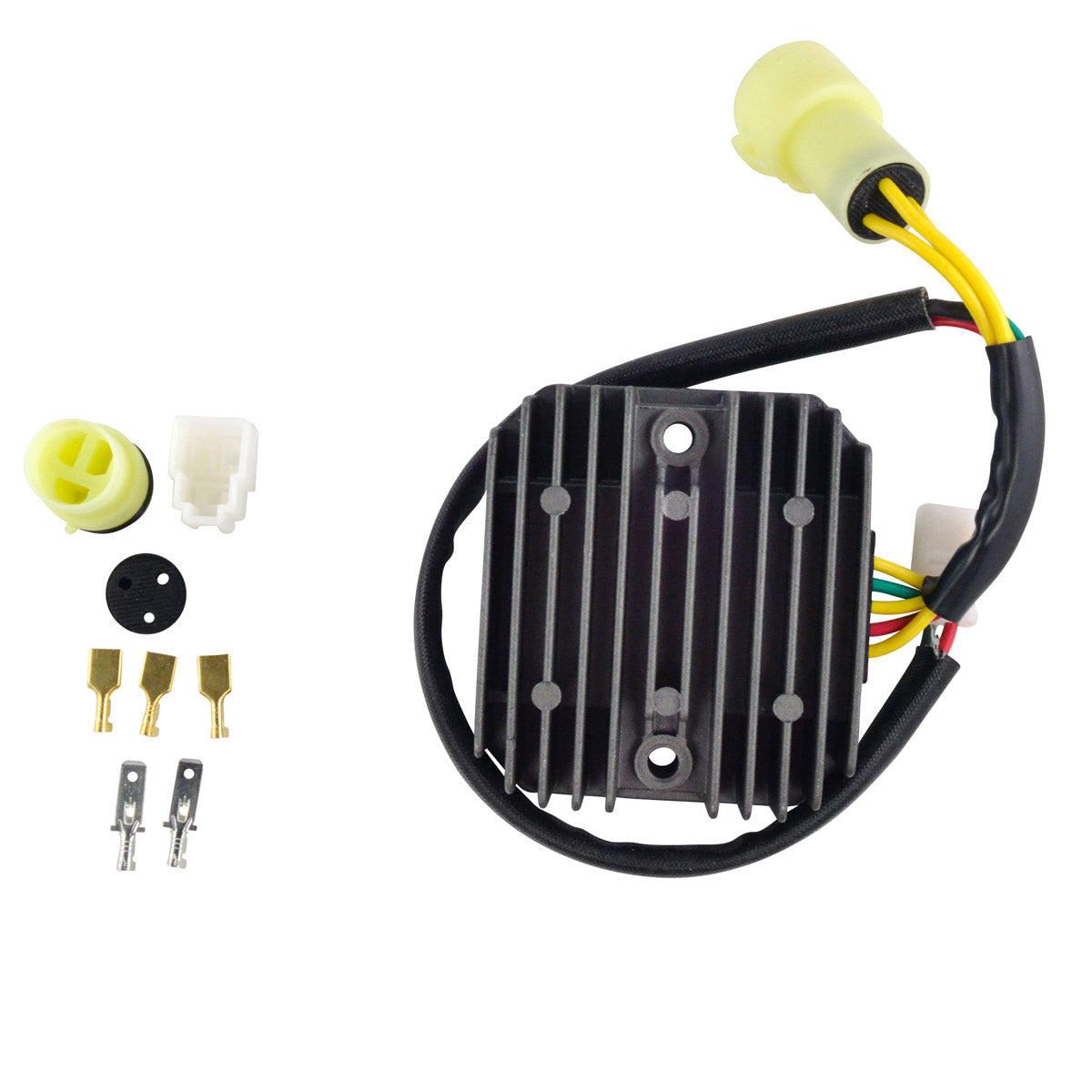

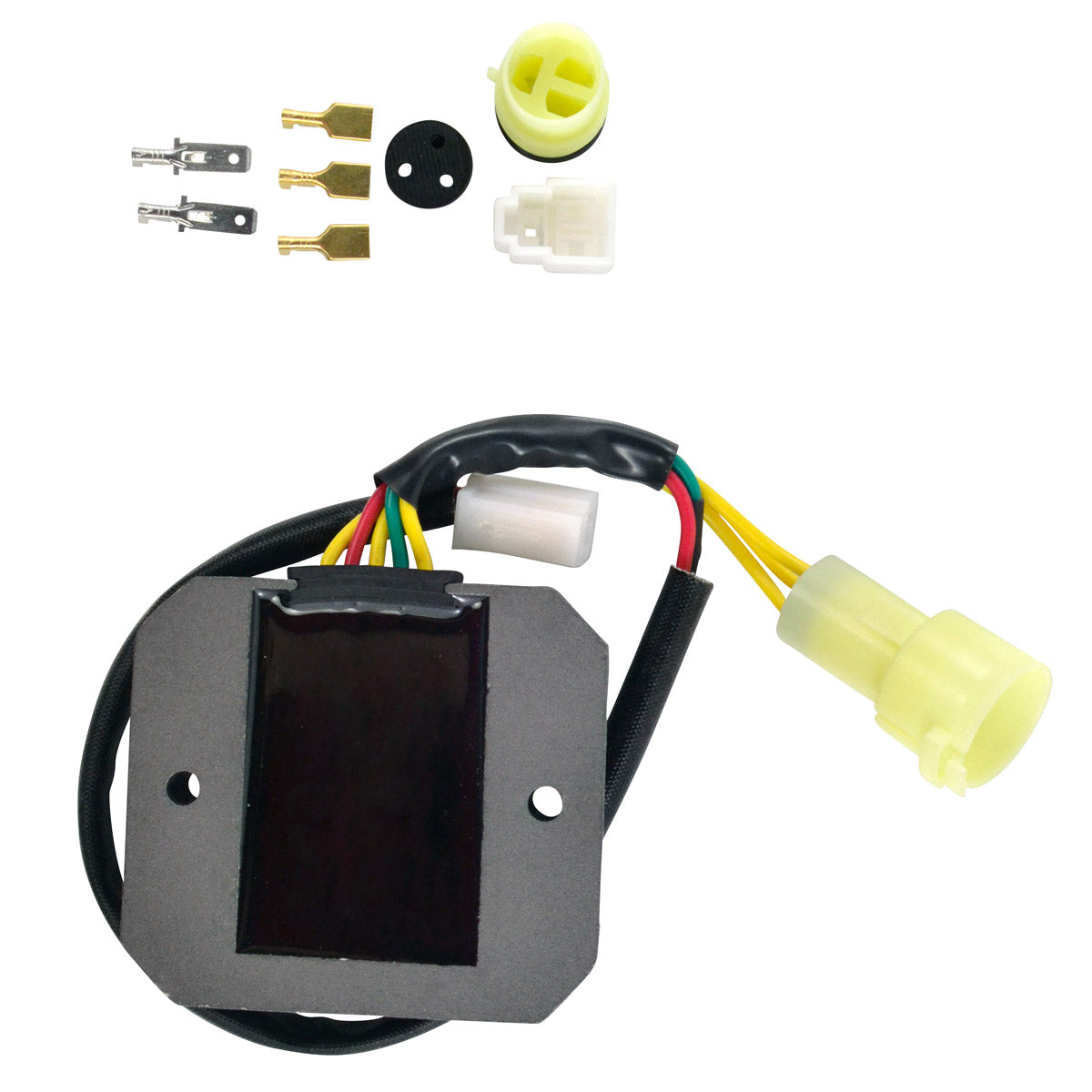

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications

Dimensions:
Width: 80 mm
Length: 90 mm
Height: 27 mm
Wires length: 178 mm, 400 mm
Fixation holes center to center: 68 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20⁰C to 85⁰C

Interchange Part Nº

  • 31600-HC4-010
  • 31600-HC4-000

Installation

Before installing your new voltage regulator rectifier:

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator rectifier.
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
