Regulator Rectifier for BMW R50 R65 R75 R90 | Moto Guzzi V7 750 850 LeMans G5 1000 SP V50 V75 1970-2001 | 12 32 1 244 409

RMSTATOR
SKU: RMS020-102772
In Stock
RMSTATOR

Regulator Rectifier for BMW R50 R65 R75 R90 | Moto Guzzi V7 750 850 LeMans G5 1000 SP V50 V75 1970-2001 | 12 32 1 244 409

$129.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
Regulator Rectifier for BMW R50 R60 R65 R75 R80 R90 R100 / Moto Guzzi V7 750 850 LeMans G5 1000 SP V50 V65 V75 1970-2001
Regulator Rectifier for BMW R50 R65 R75 R90 | Moto Guzzi V7 750 850 LeMans G5 1000 SP V50 V75 1970-2001 | 12 32 1 244 409
$129.89

Details

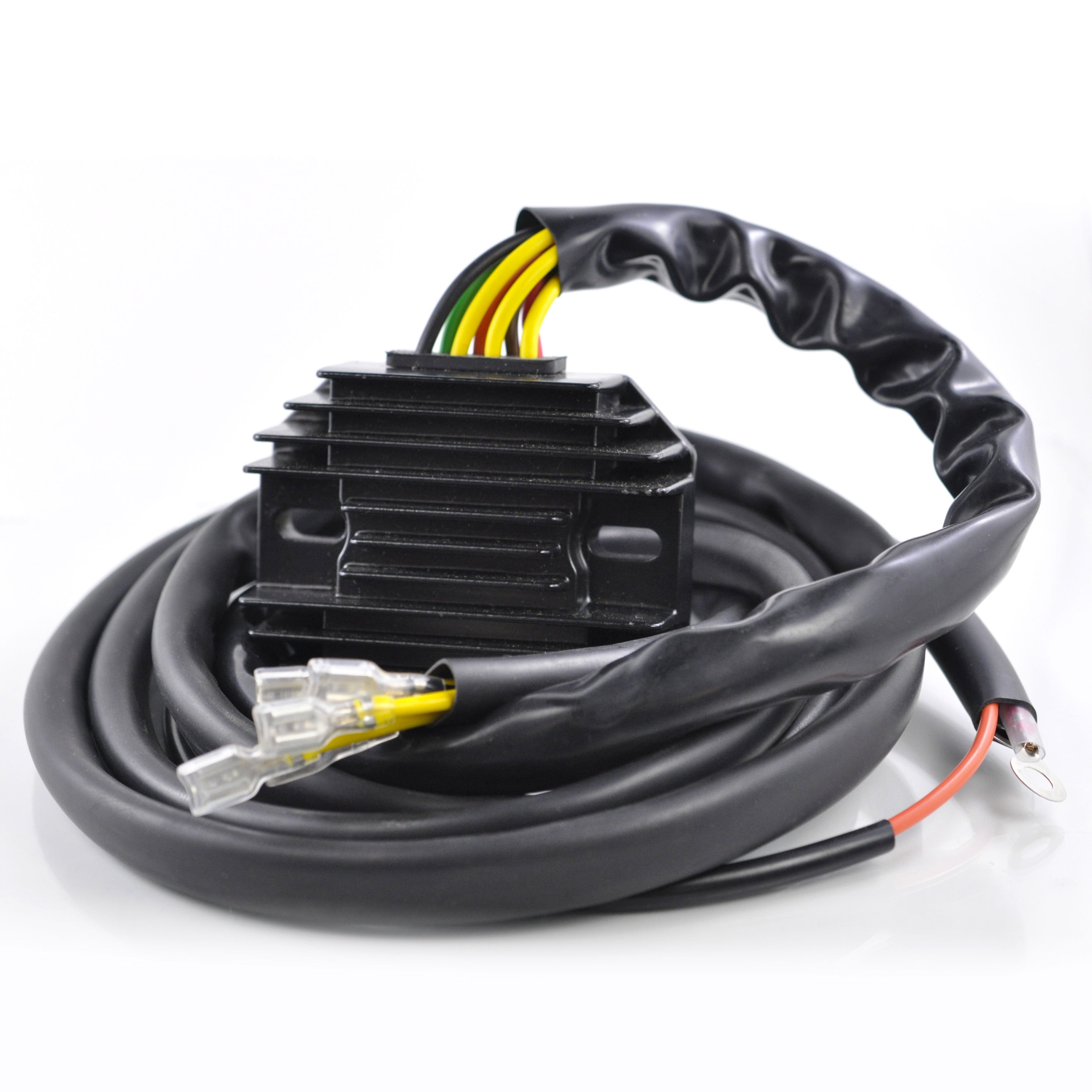

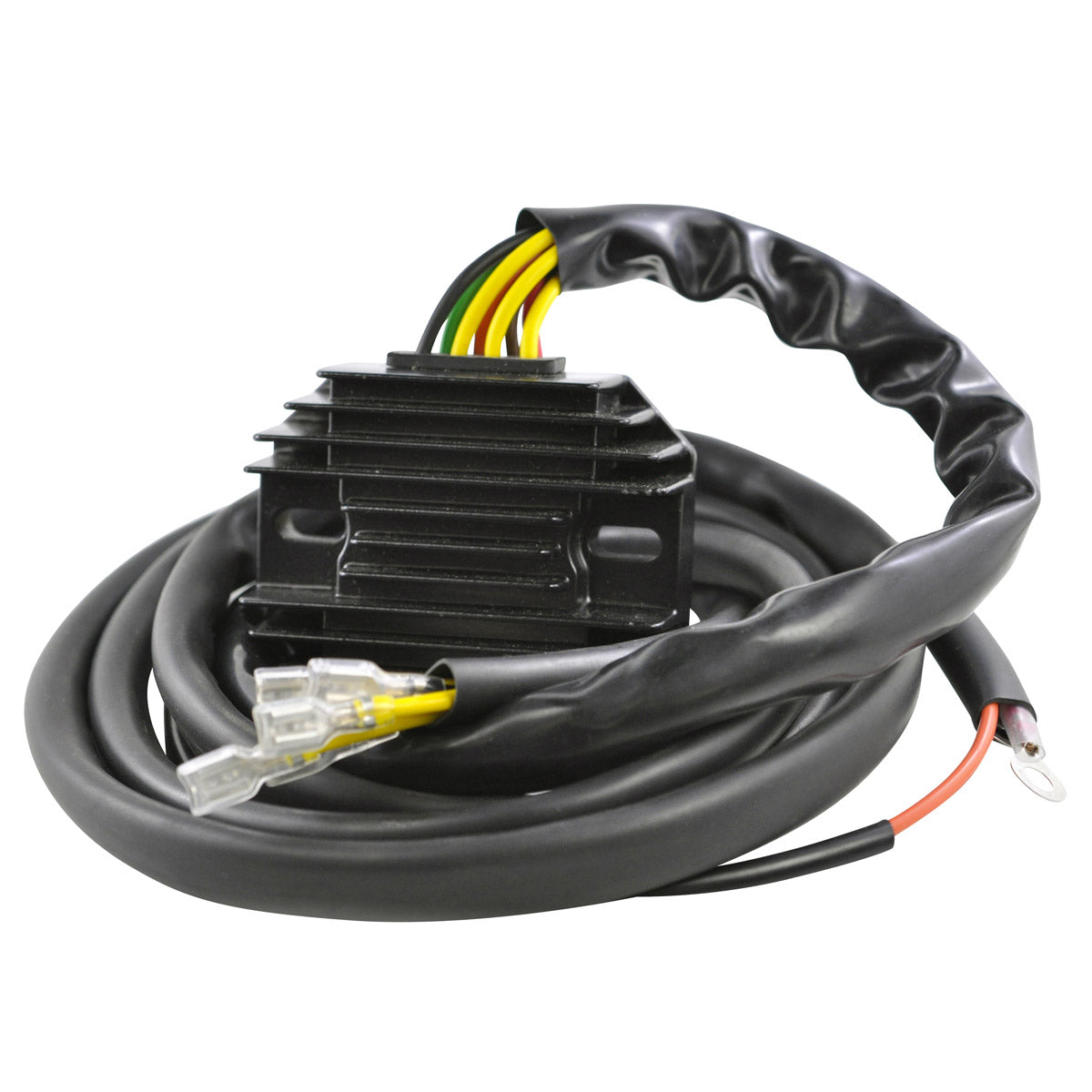

Brand new aftermarket voltage regulator rectifier

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • Higher grade of electric components.
  • The quality exceeds the OEM equipment
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications

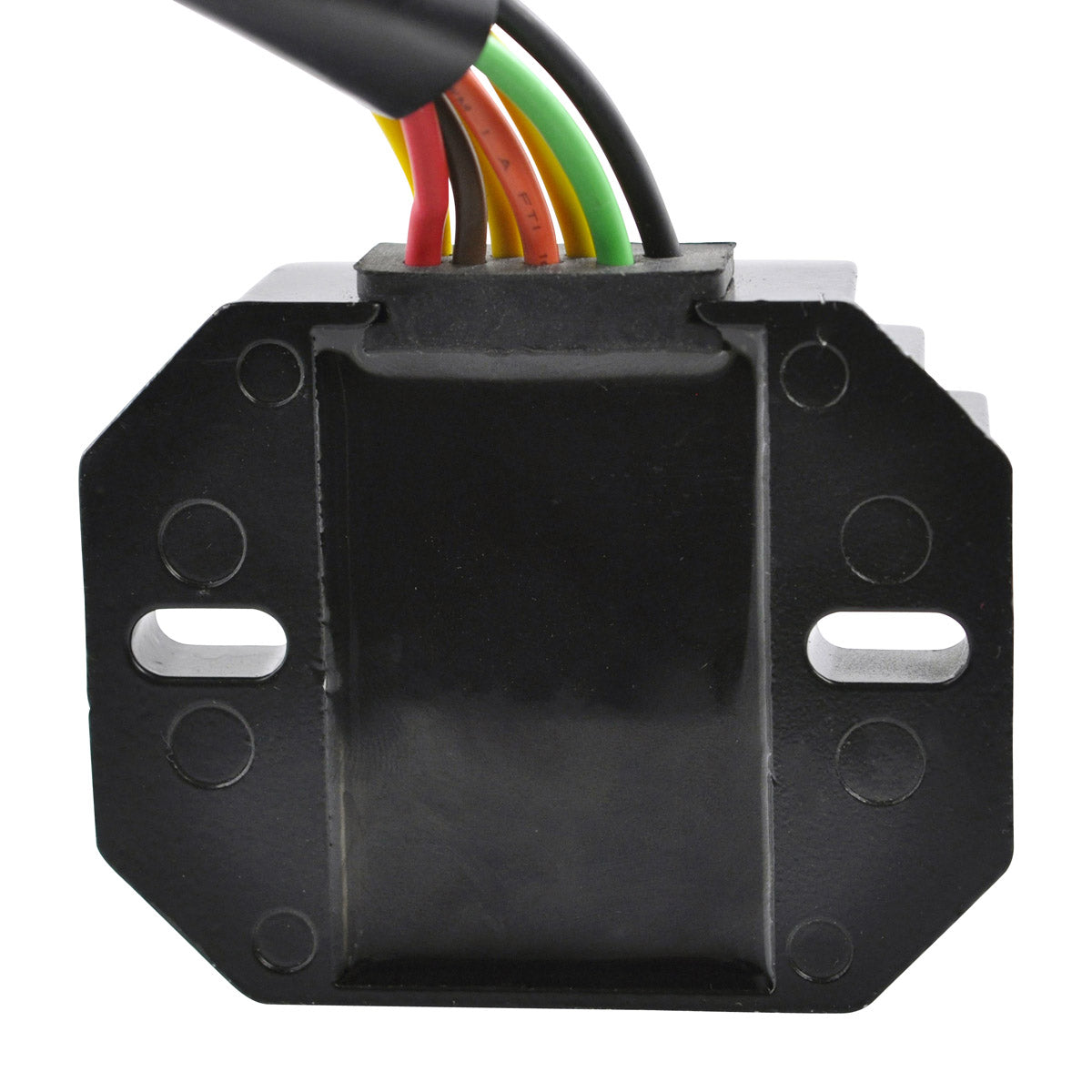

Dimensions:
Width: 71 mm
Length: 81 mm
Height: 29 mm
Fixation holes center to center: 60 mm
Wires length: 1030 mm, 1450 mm, 1530 mm

Other specifications:
Number of plugs: 6
Number of pins: 8
Number of wires: 8
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20⁰C to 85⁰C

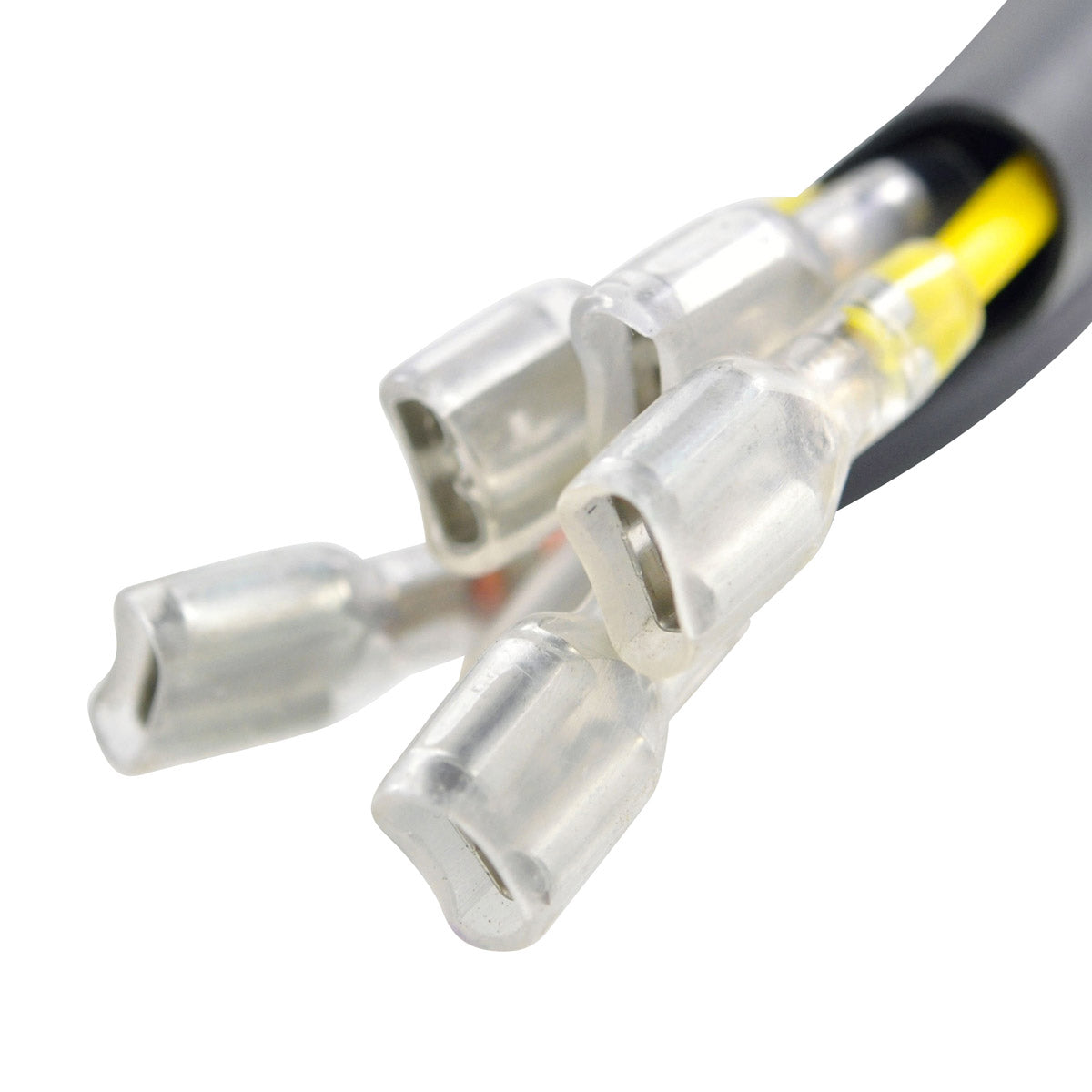

Wire Color & Function
3 Yellow : Stator connection
Black: D- terminal (field coil negative)
Brown: DF terminal (field coil positive)
Red: Battery +
Green: Battery –
Orange: Ignition Switch +

Interchange Part Nº

  • 12 32 1 244 409
  • 12 32 1 243 983
  • 12 32 1 355 457
  • 12 32 1 358 109
  • 12 32 1 358 134
  • 12 31 1 244 063
  • 12 31 1 244 062
  • 12 31 1 357 498
  • GU28703800
  • GU28712400
  • GU29703800

Installation

Before installing your new voltage regulator rectifier:

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator rectifier.
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
