Premium Stator for Harley Davidson Electra Glide 1450 Police / Road King 1450 Police 2002-2005 | # 29987-02 / 29987-02A
RMSTATOR
SKU: RMS010-108650
Out of stock
RMSTATOR
Premium Stator for Harley Davidson Electra Glide 1450 Police / Road King 1450 Police 2002-2005 | # 29987-02 / 29987-02A
Sold out
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
Premium Stator for Harley Davidson Electra Glide 1450 Police / Road King 1450 Police 2002-2005 | # 29987-02 / 29987-02A
Sold out
Details
Details

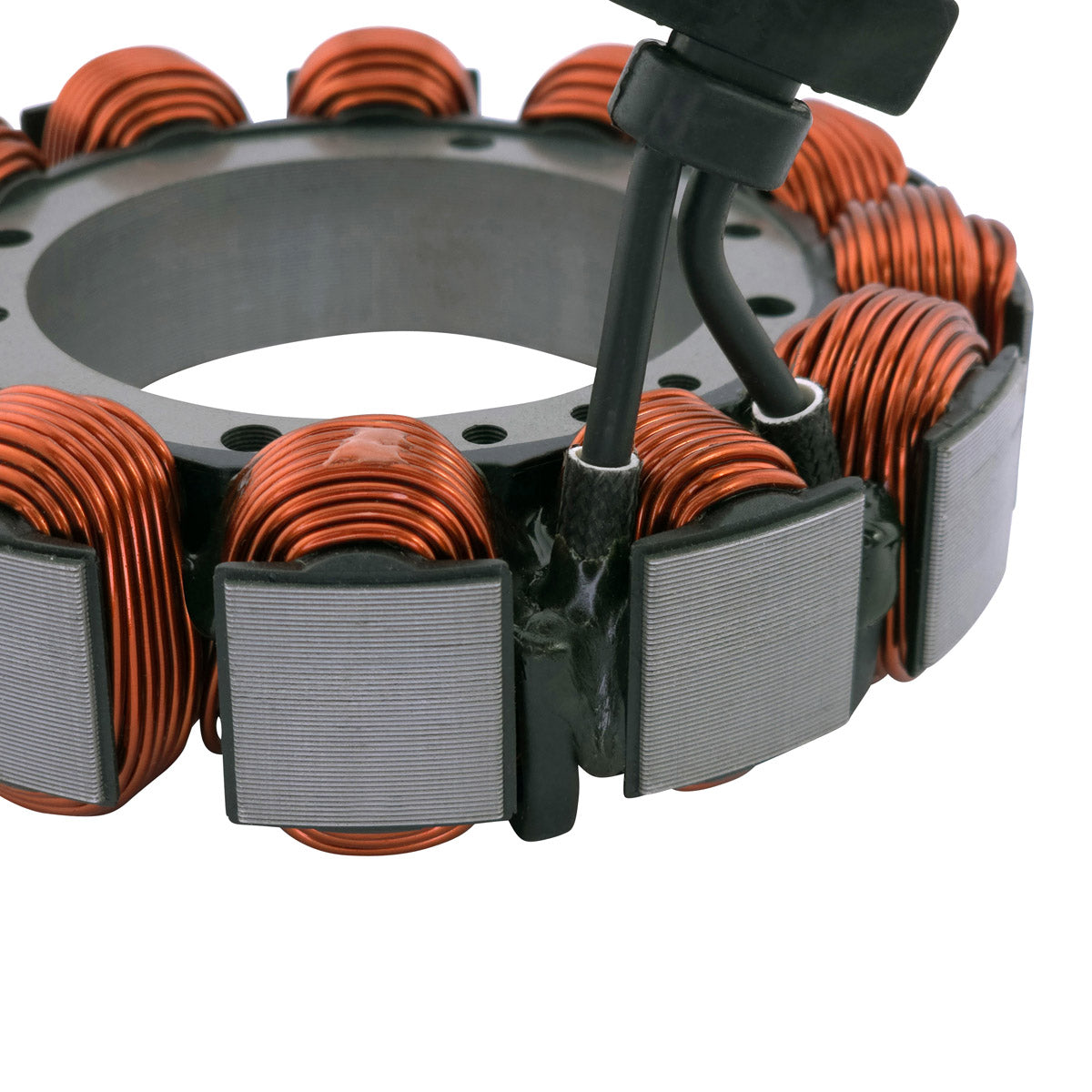

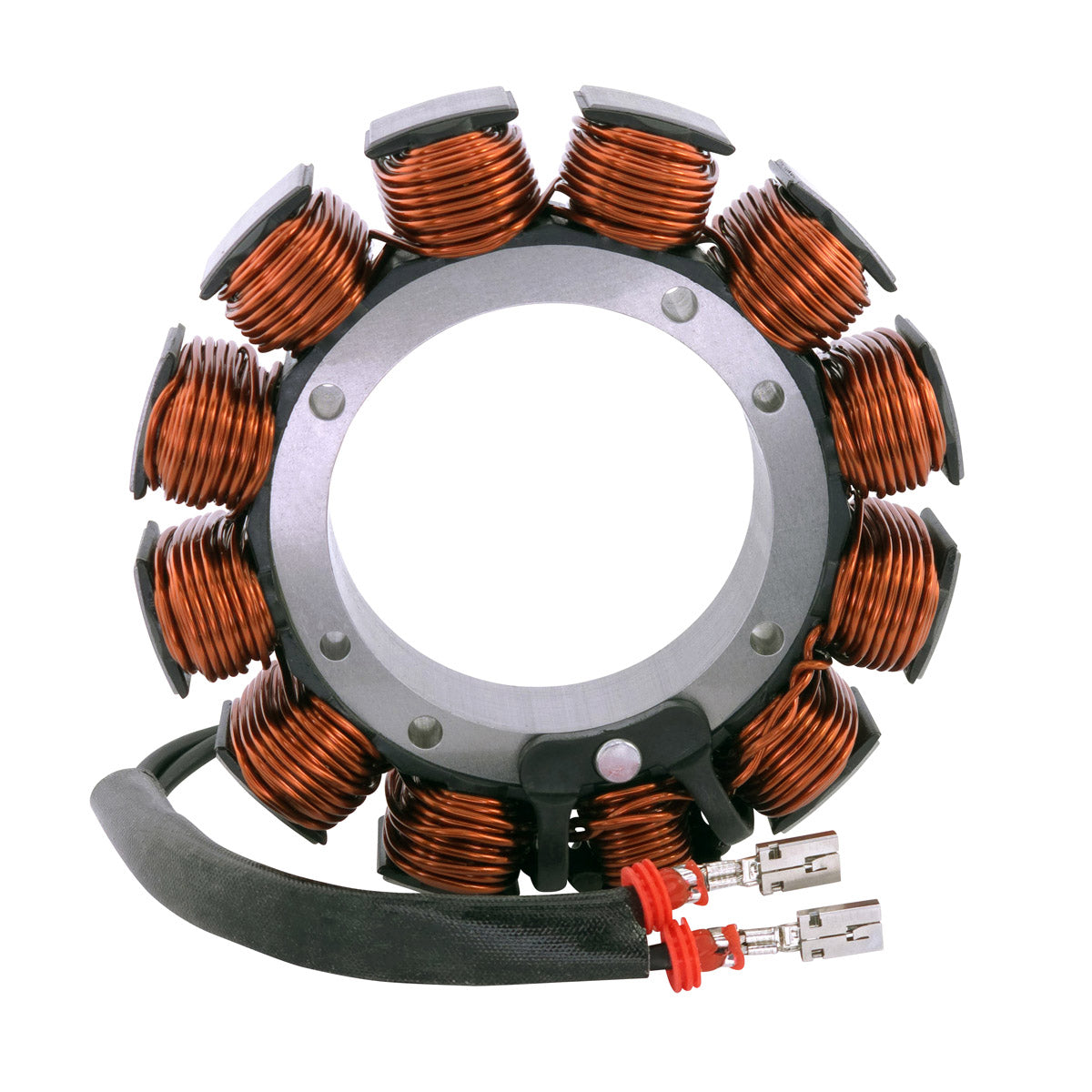

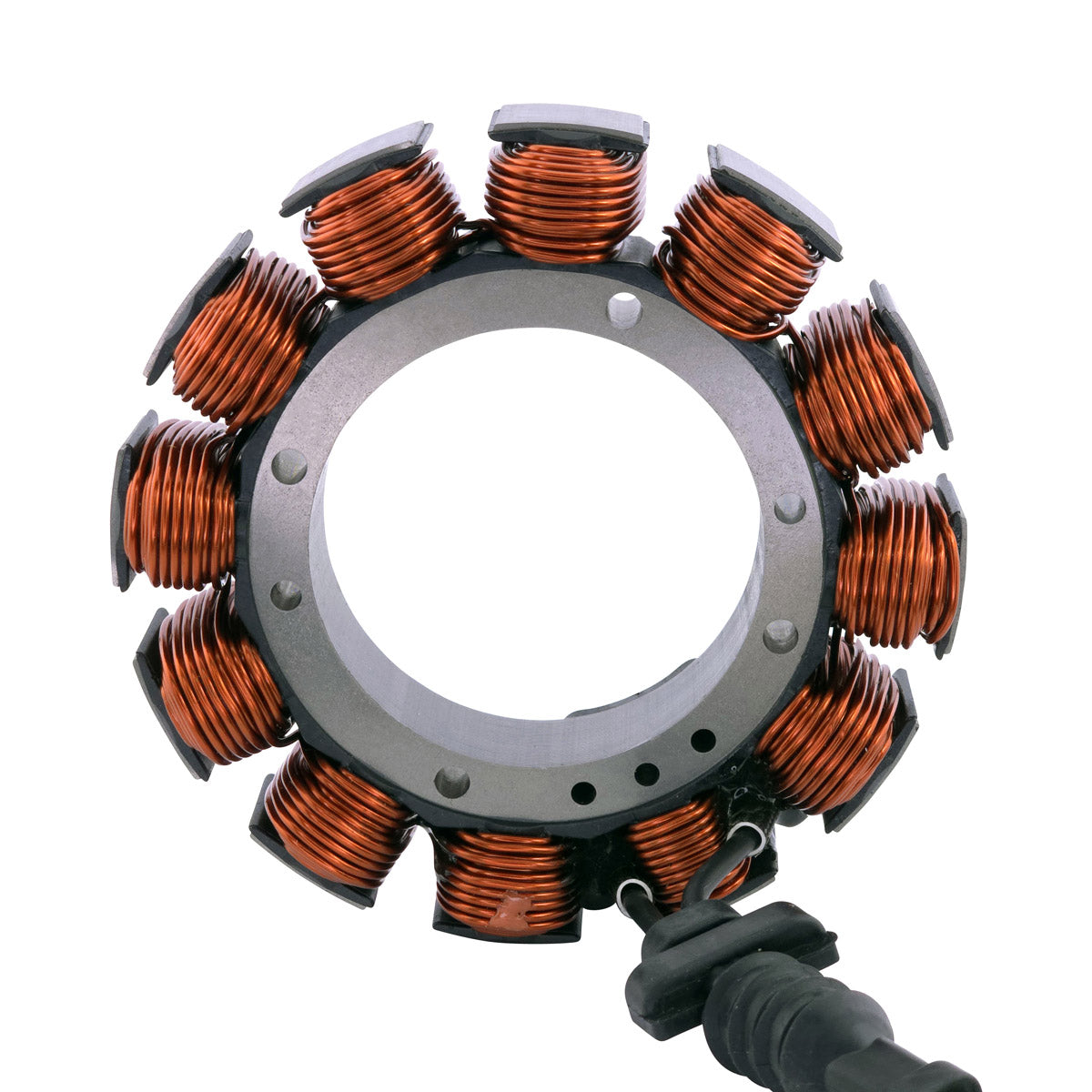

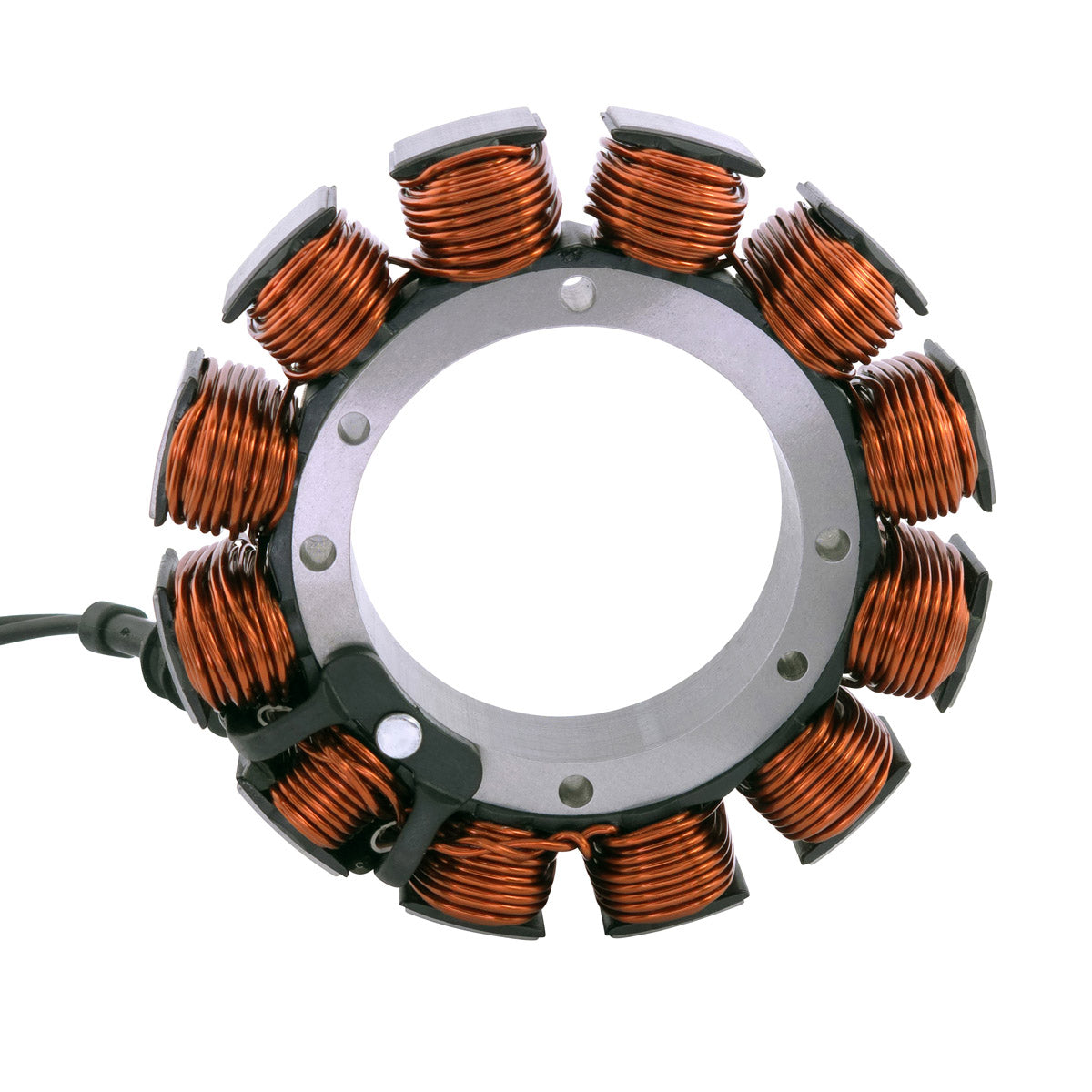

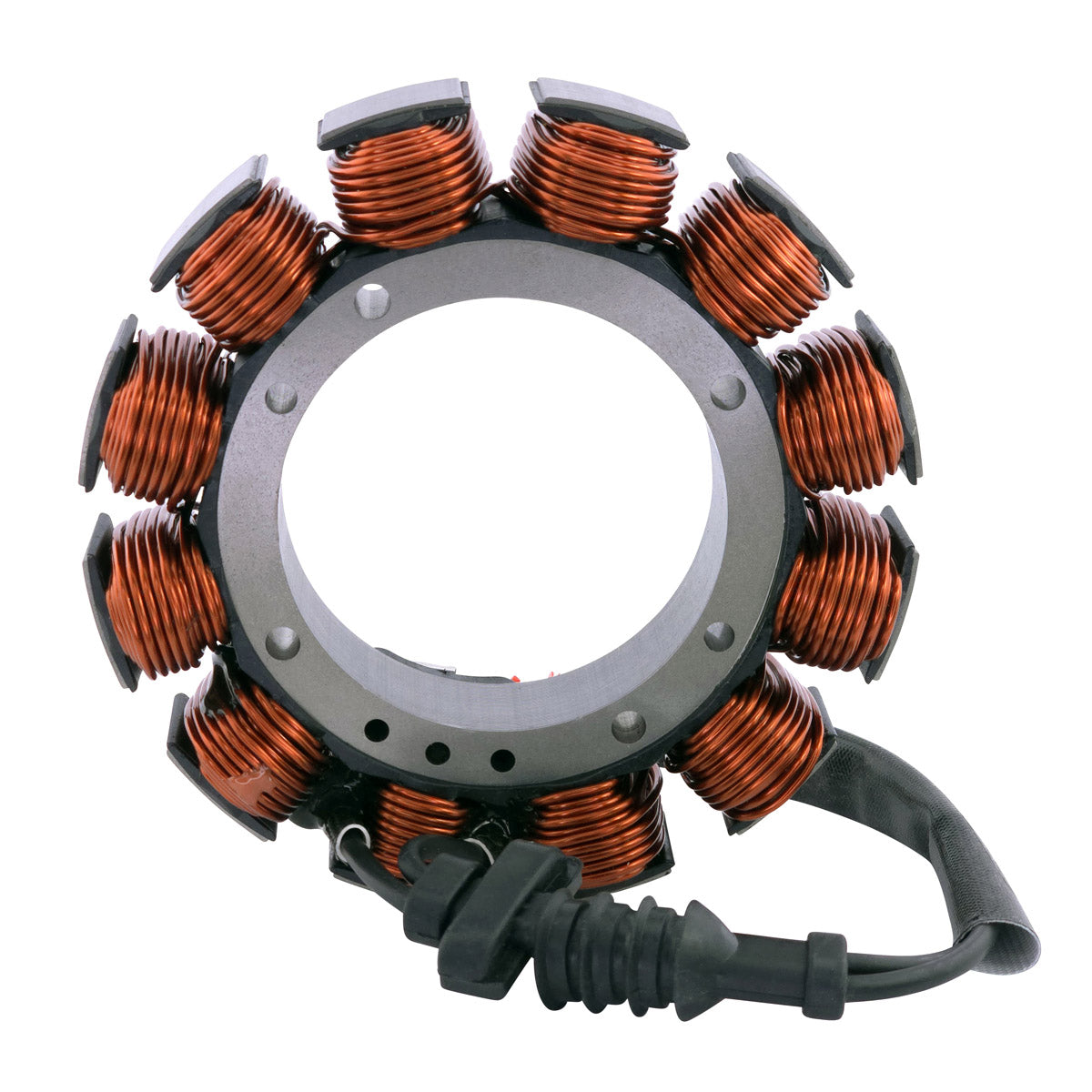

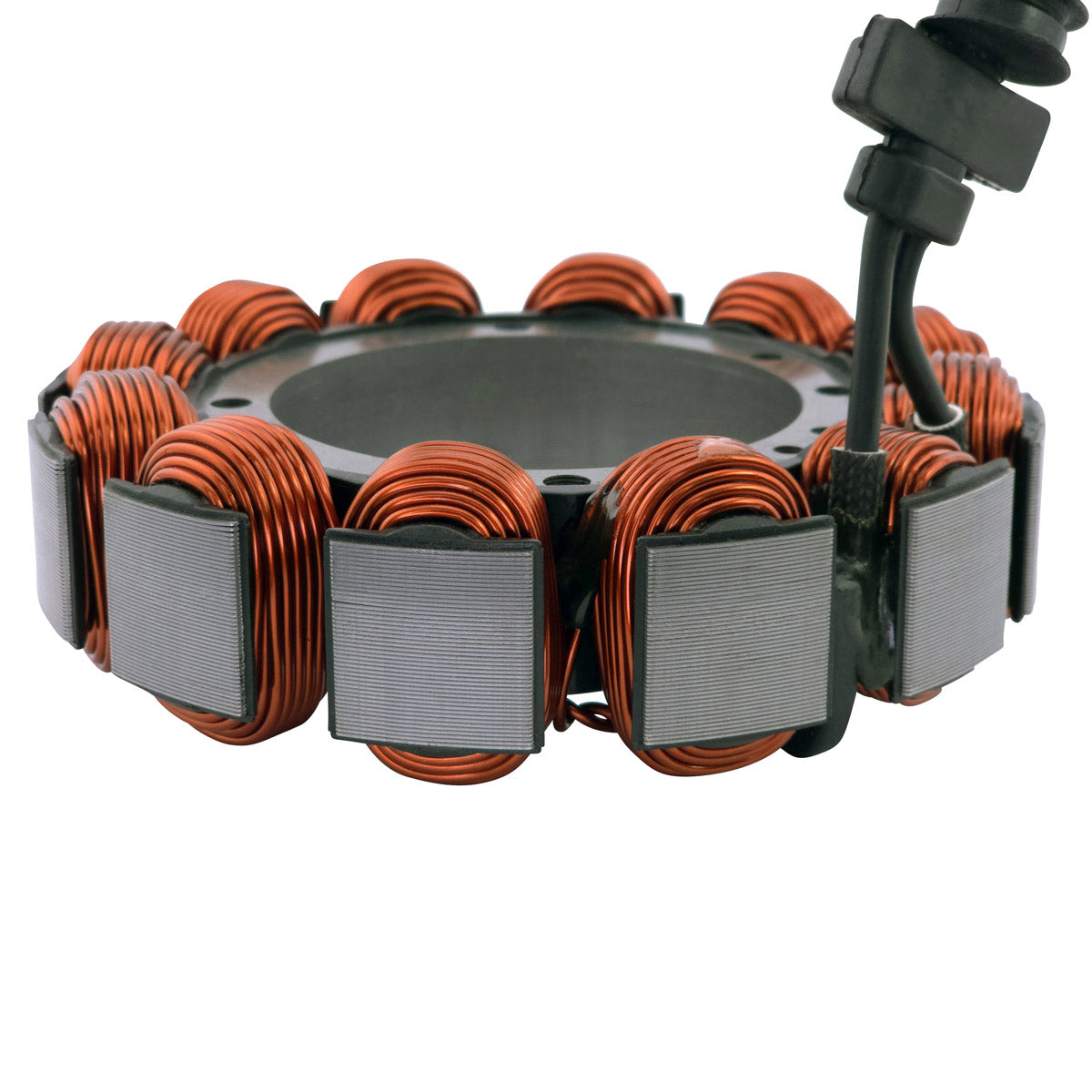

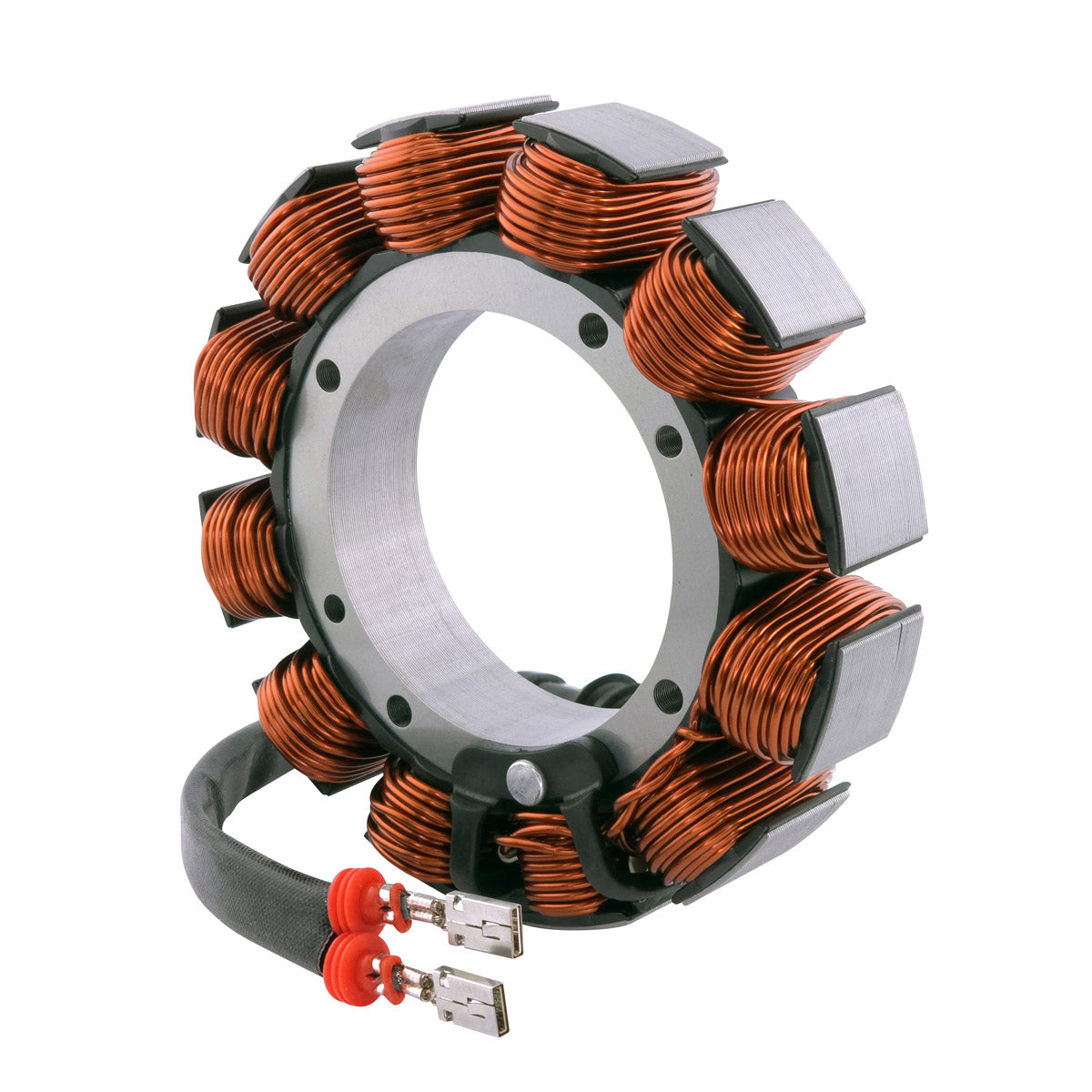

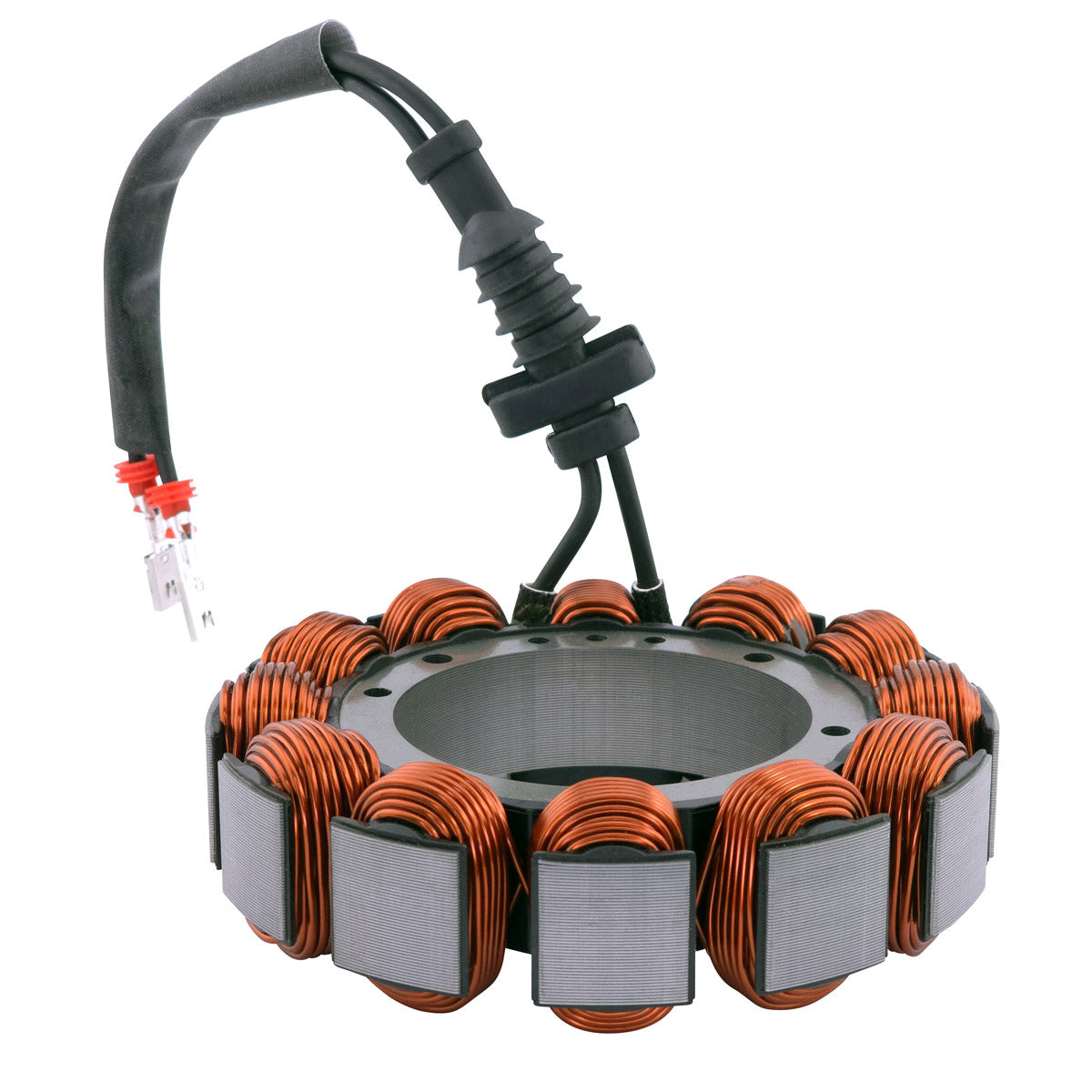

Brand new aftermarket stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

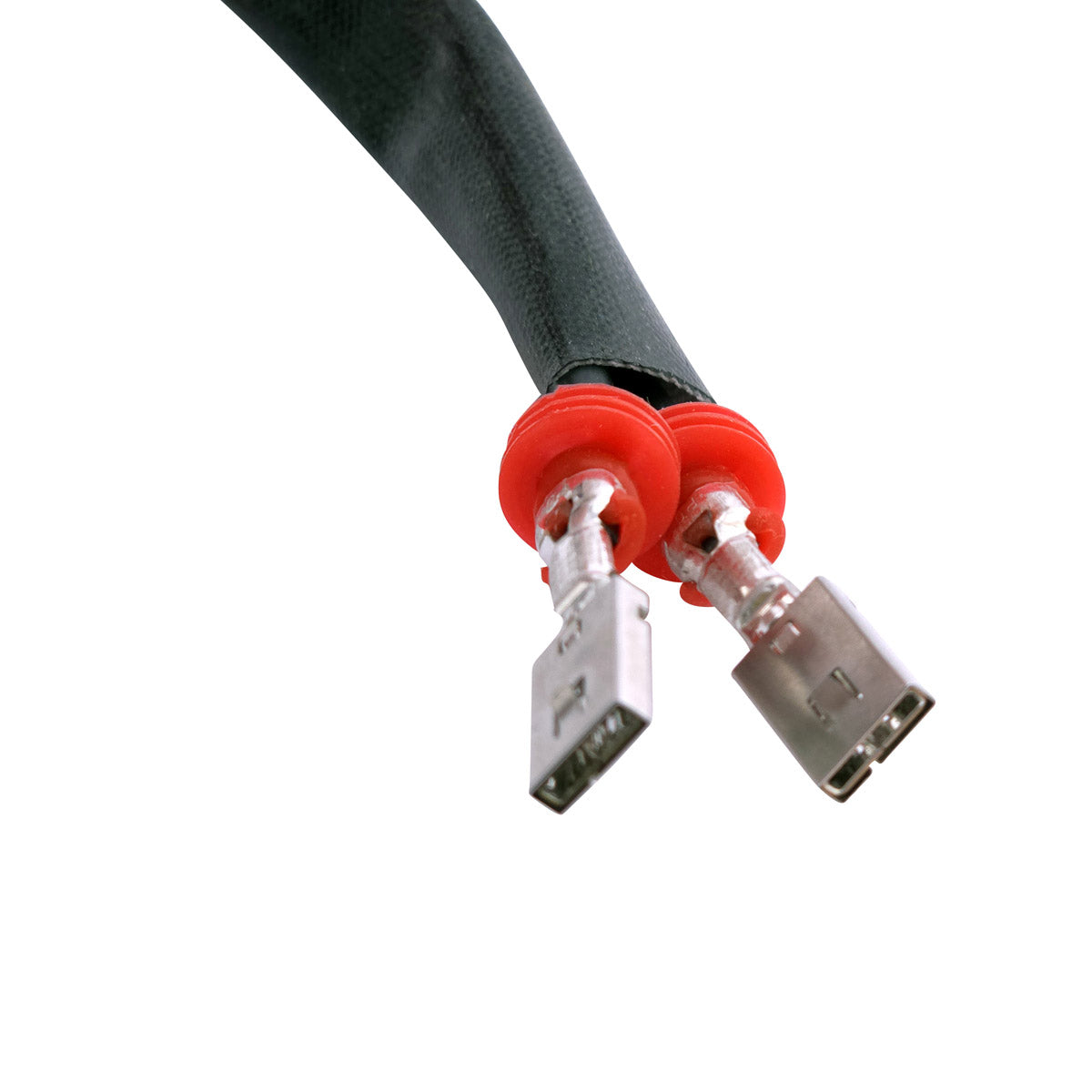

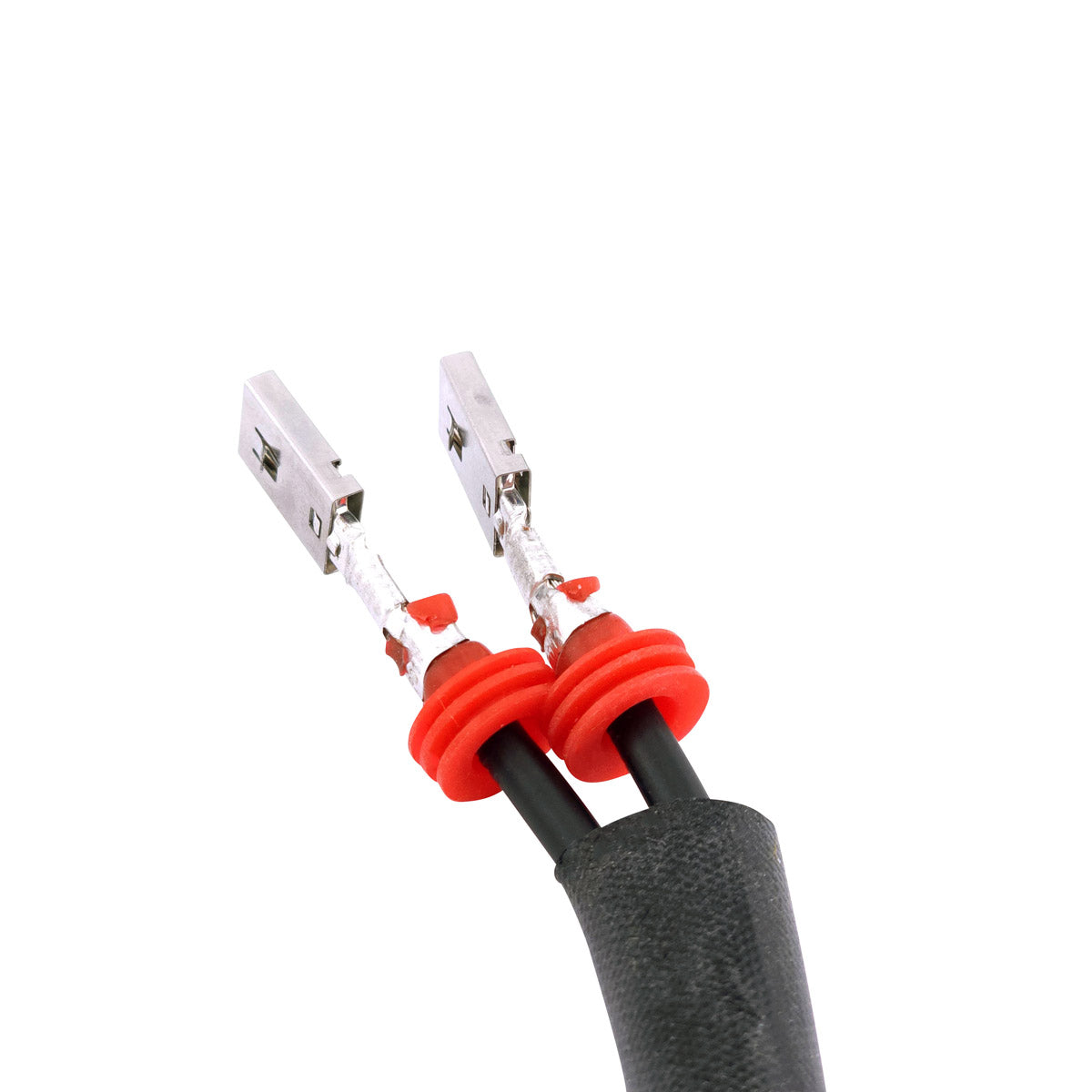

- Connectors included

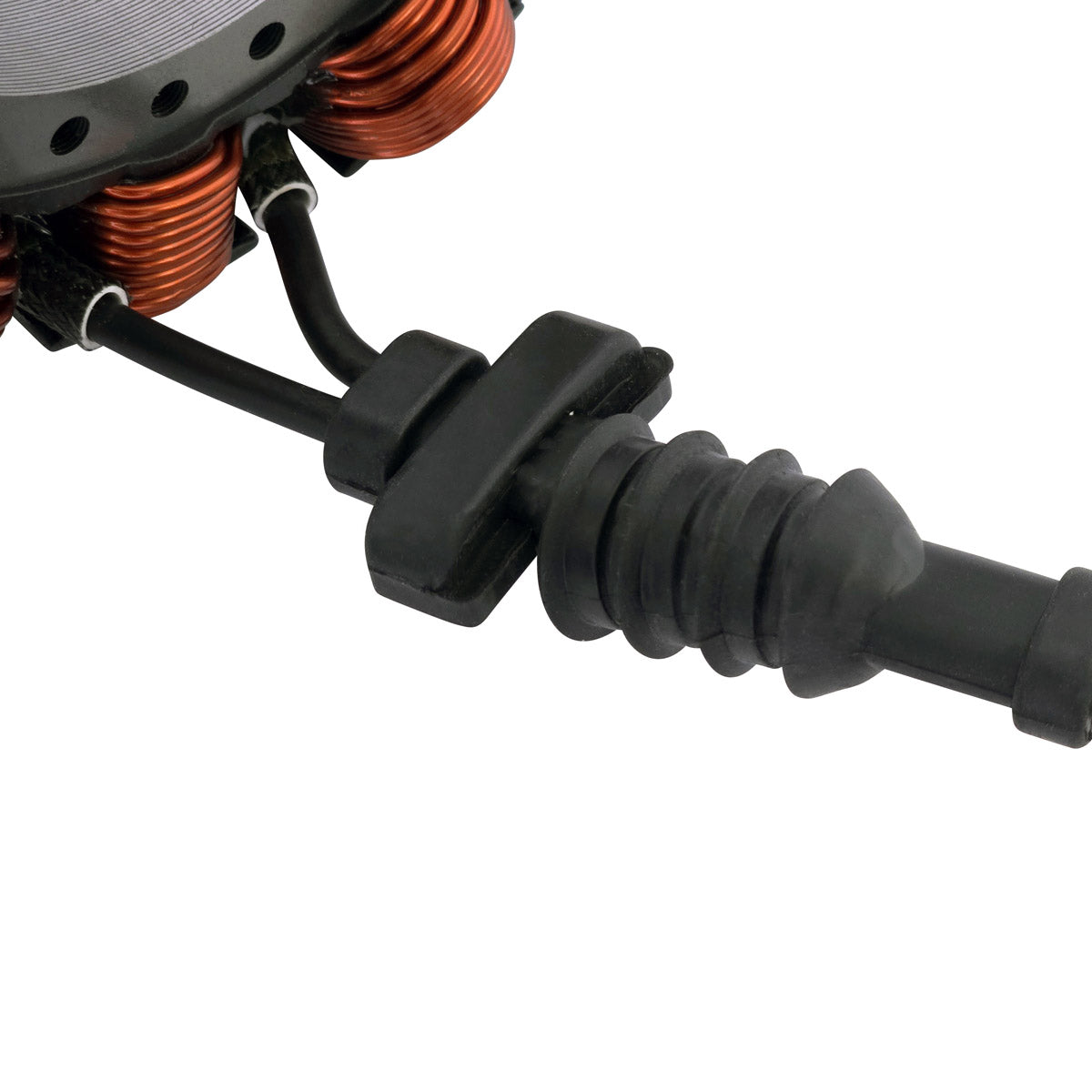

- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Interior diameter: 71 mm
Exterior diameter: 134 mm

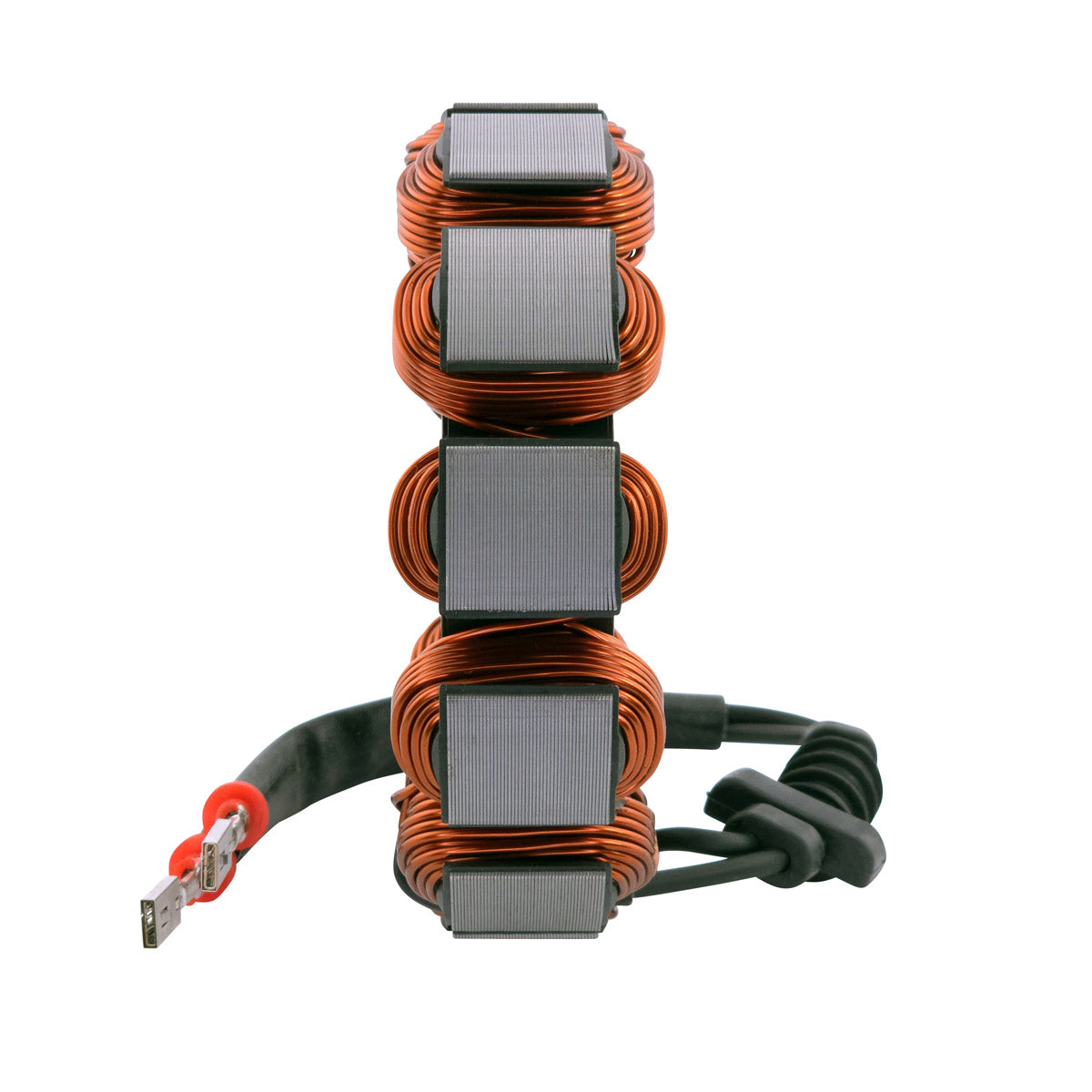

Thickness: 22 mm
Length of wires stator to grommet: 40 mm
Length of wires grommet to plug: 320 mm
Other specifications:
Number of wires: 2
Number of plugs: 1
Number of pins: 2
Number of poles: 12
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +/-20%
Alternator: Black to ground = O.L
Interchange Part Nº
Interchange Part Nº
- 29993-02
- 29987-02B
- 29987-02
- 29987-02A
Installation
Installation
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010"".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
