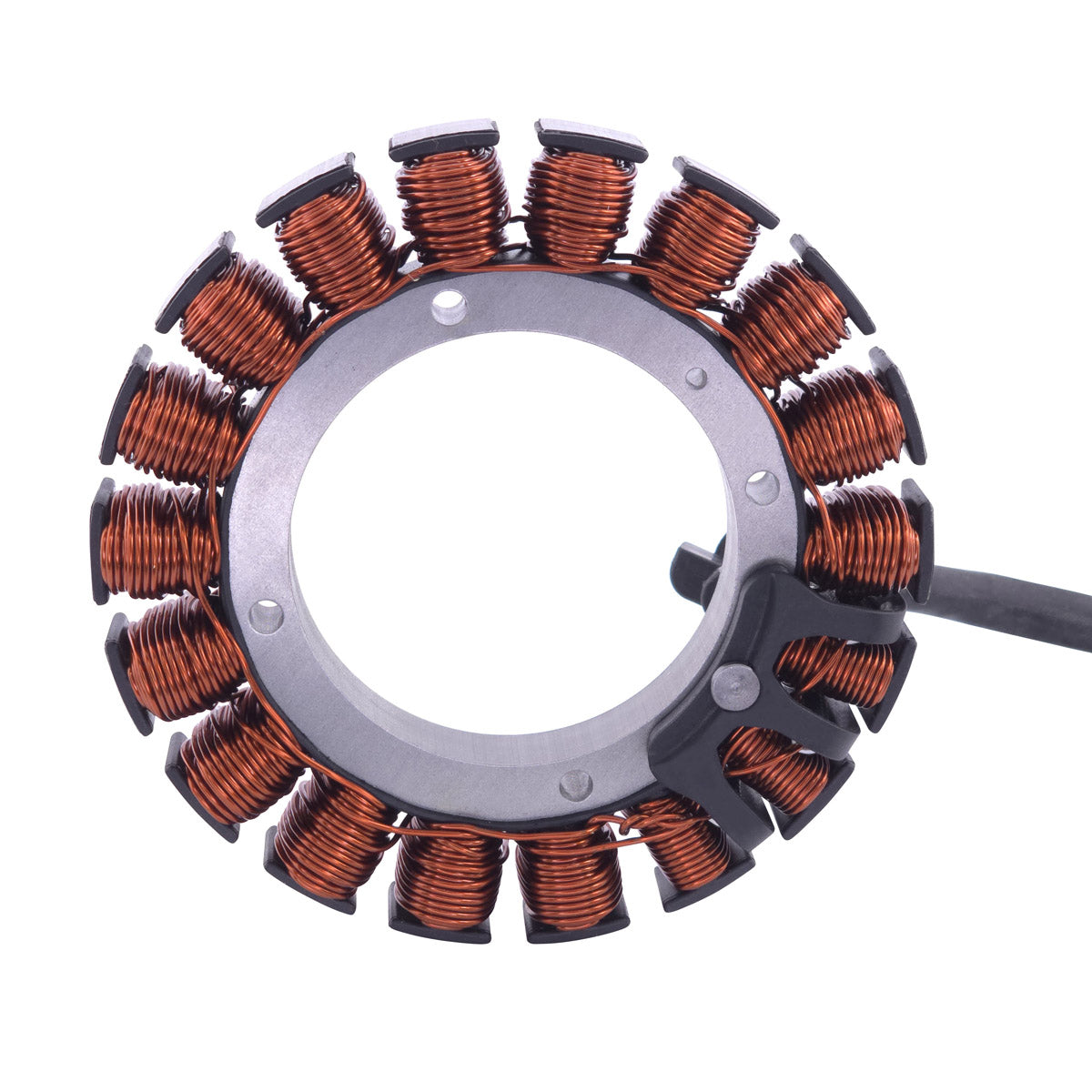

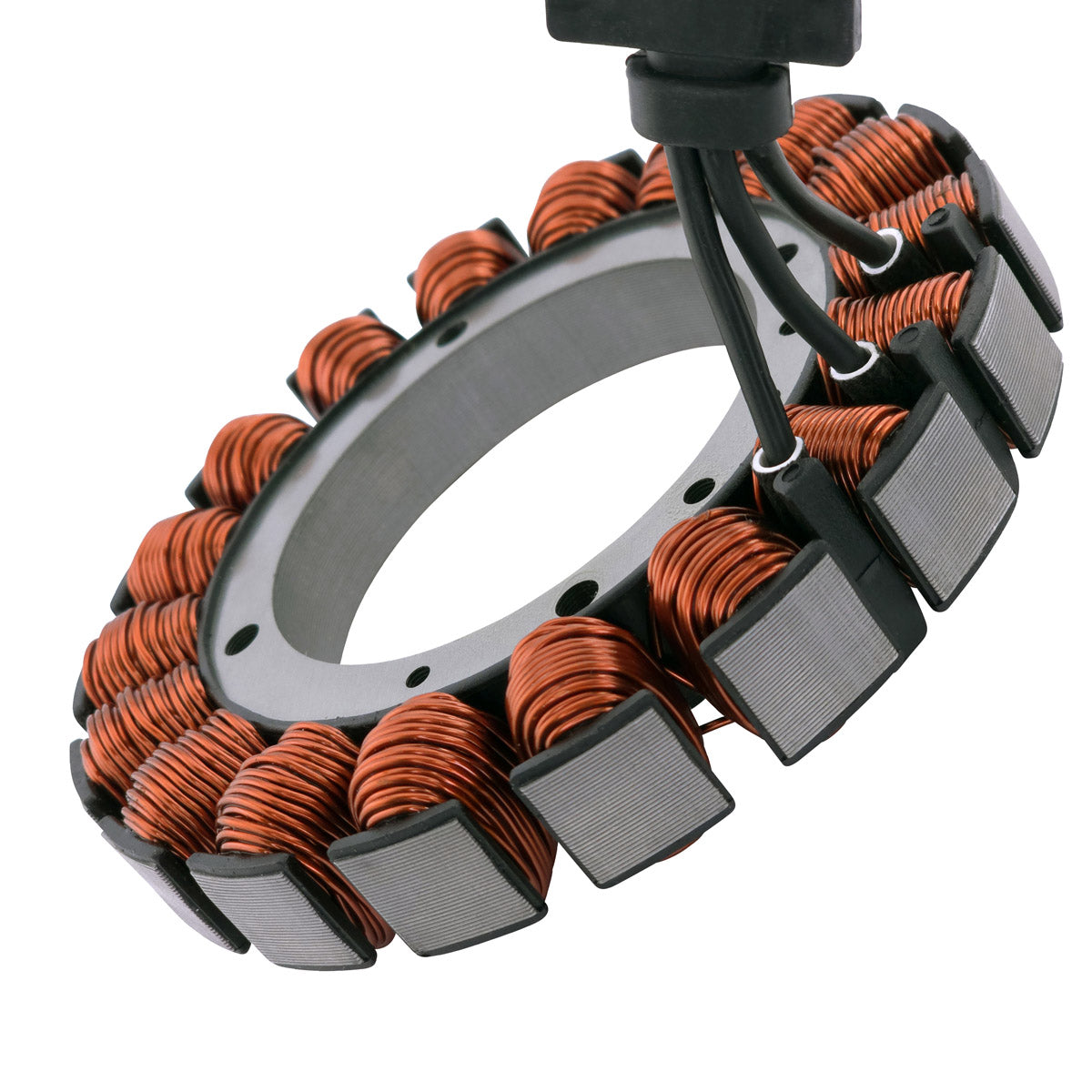

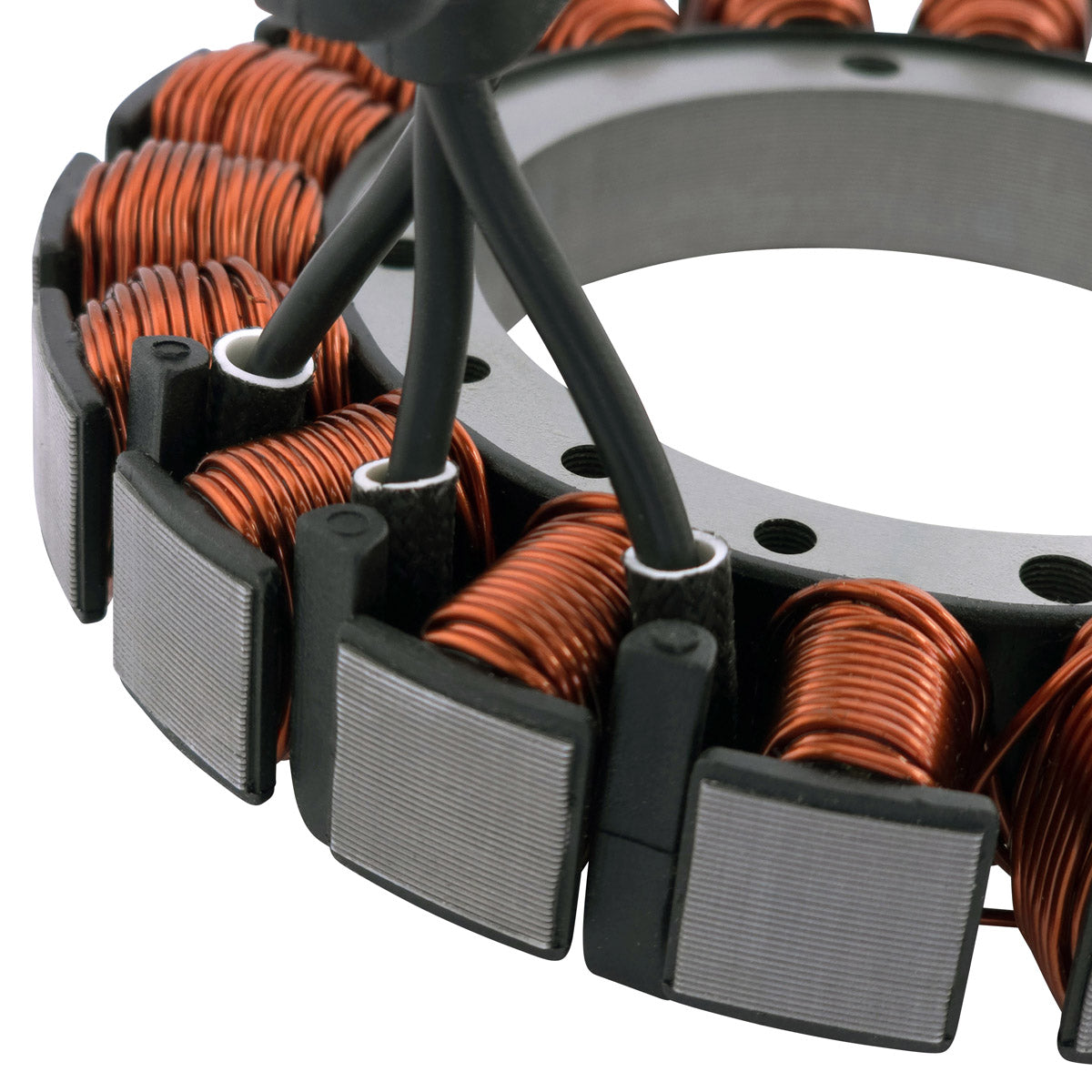

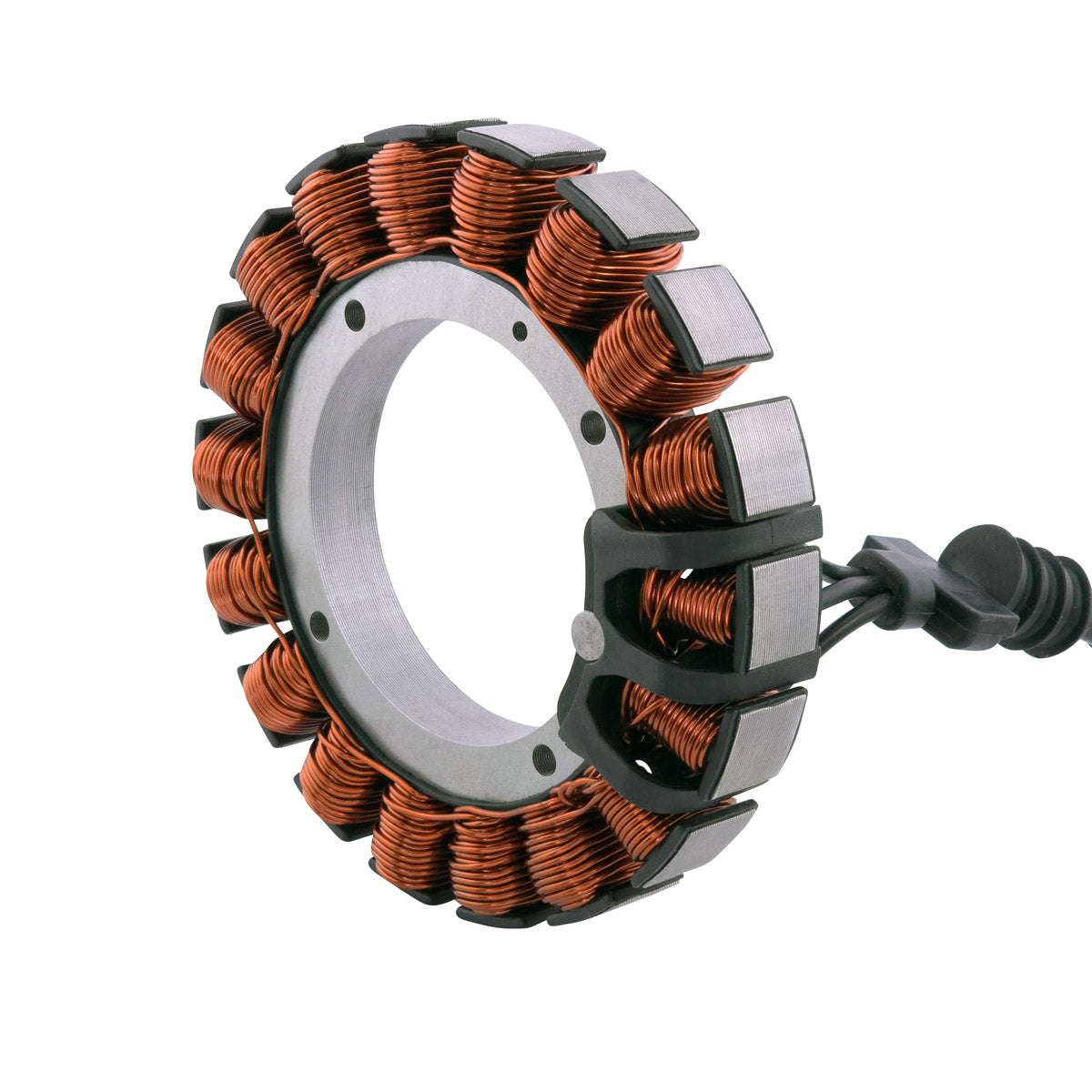

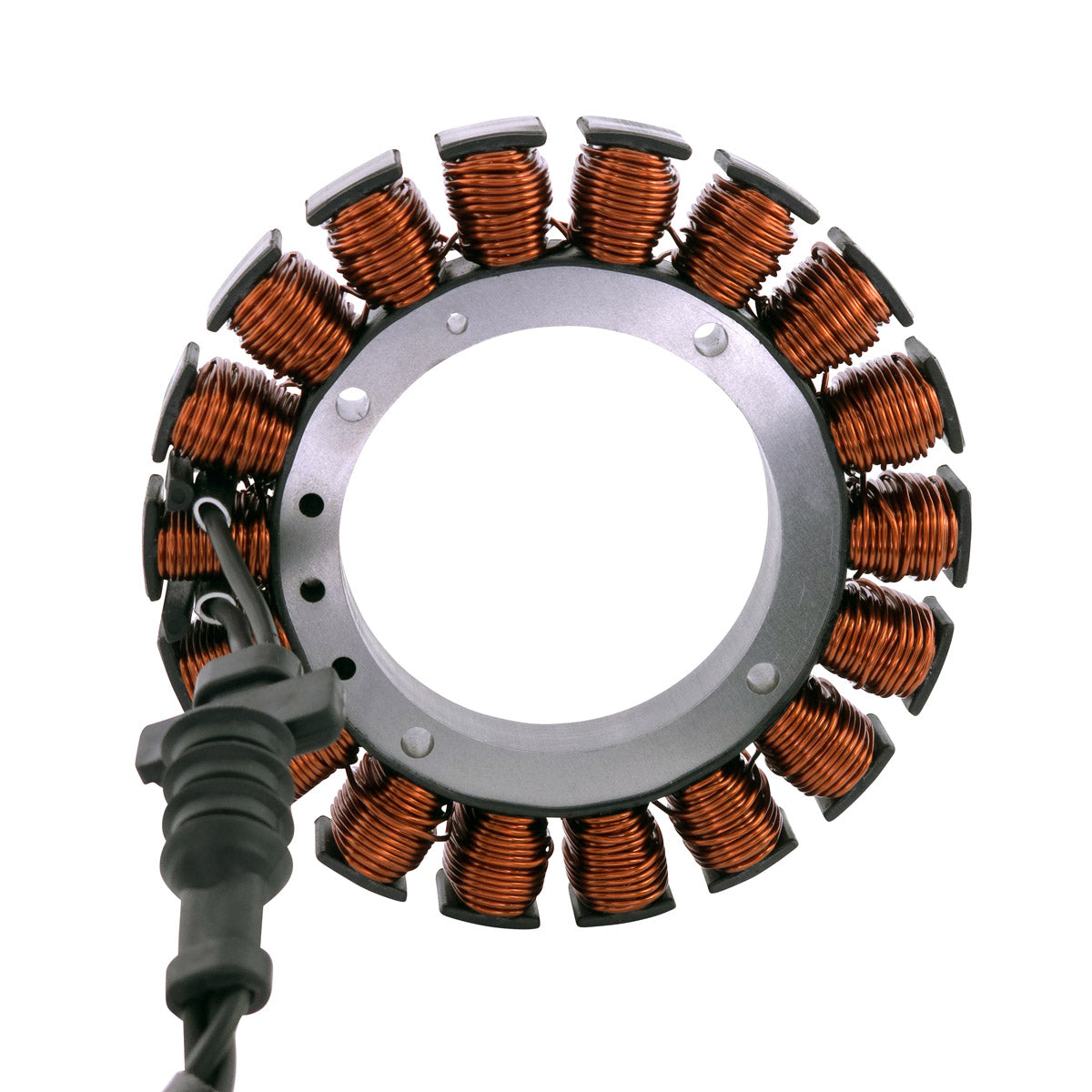

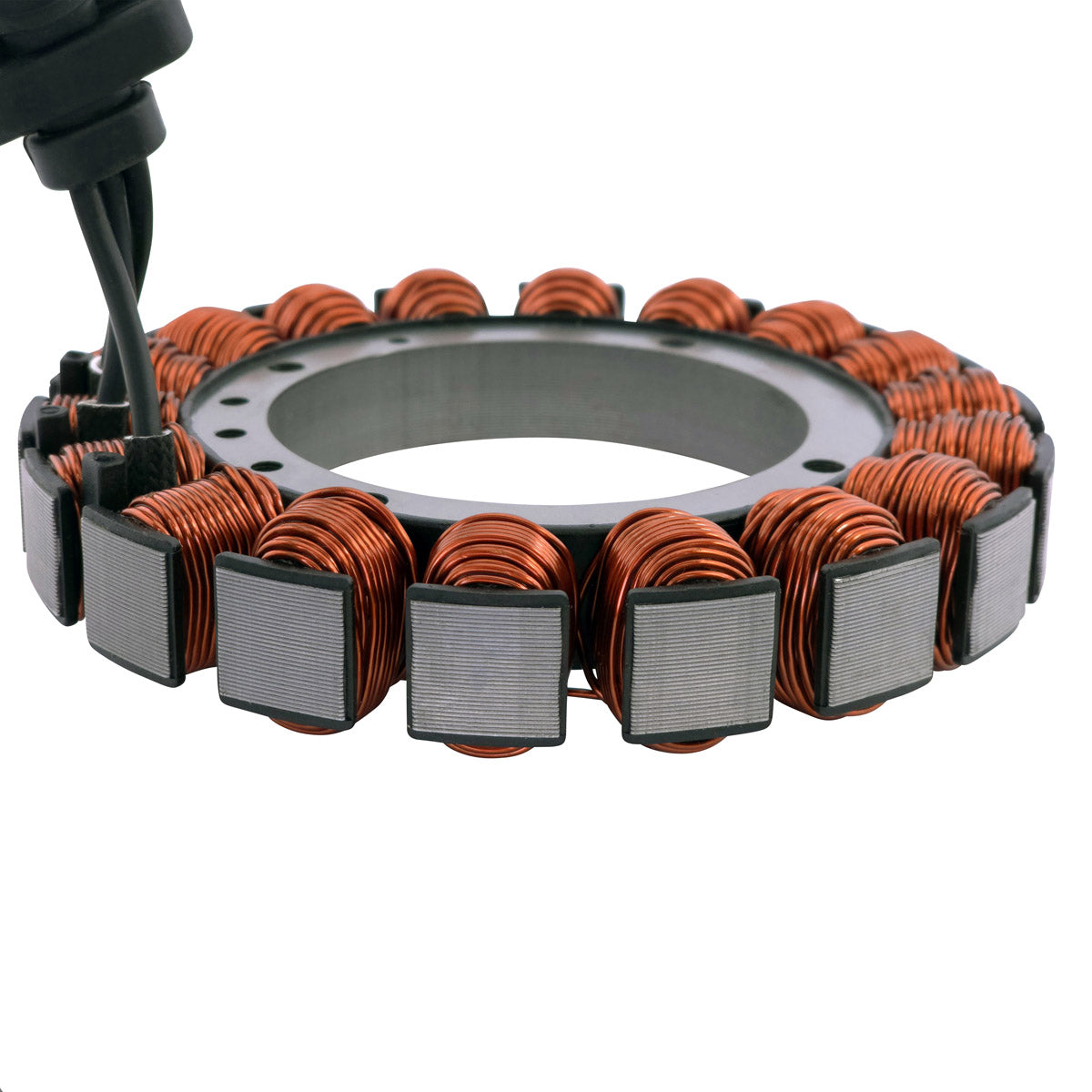

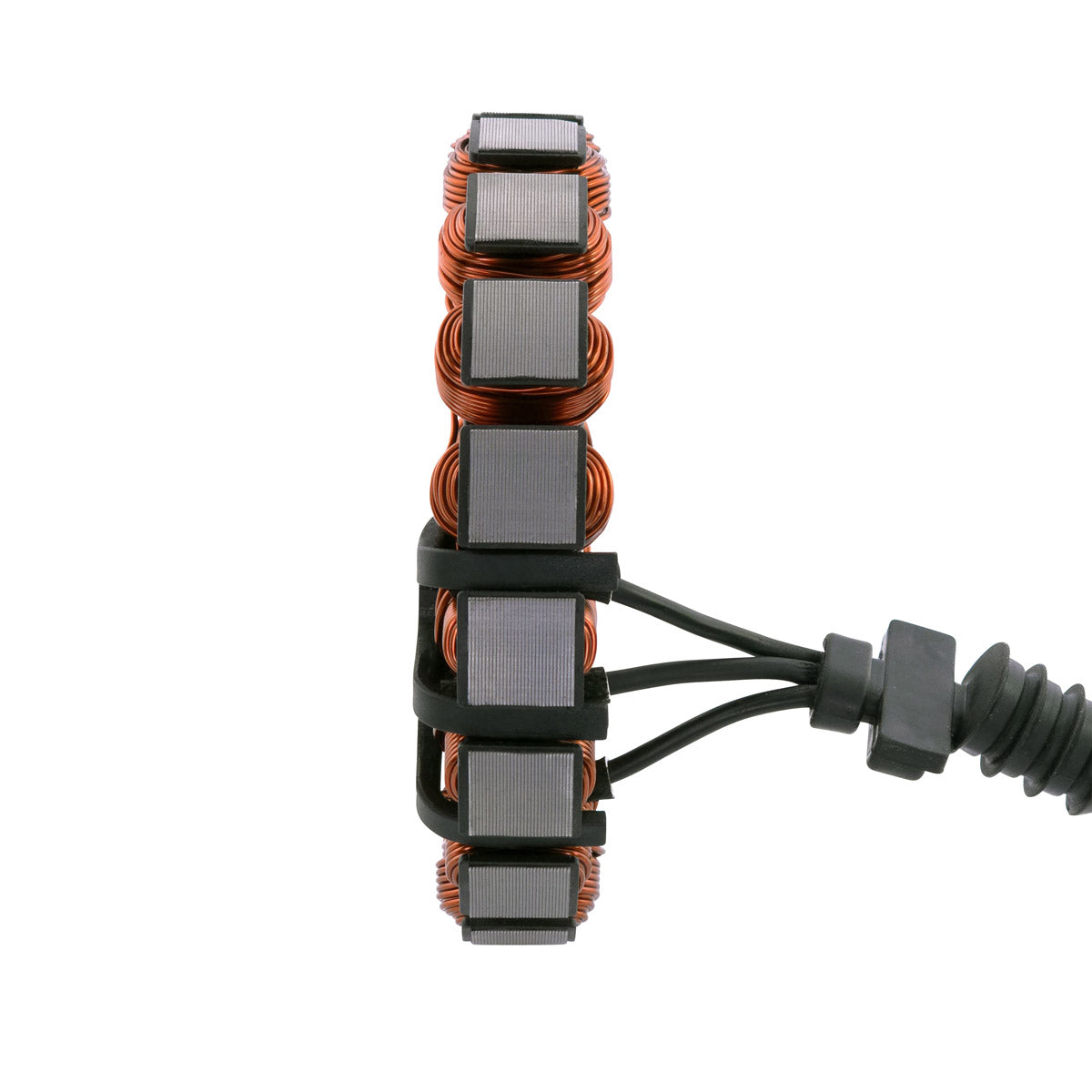

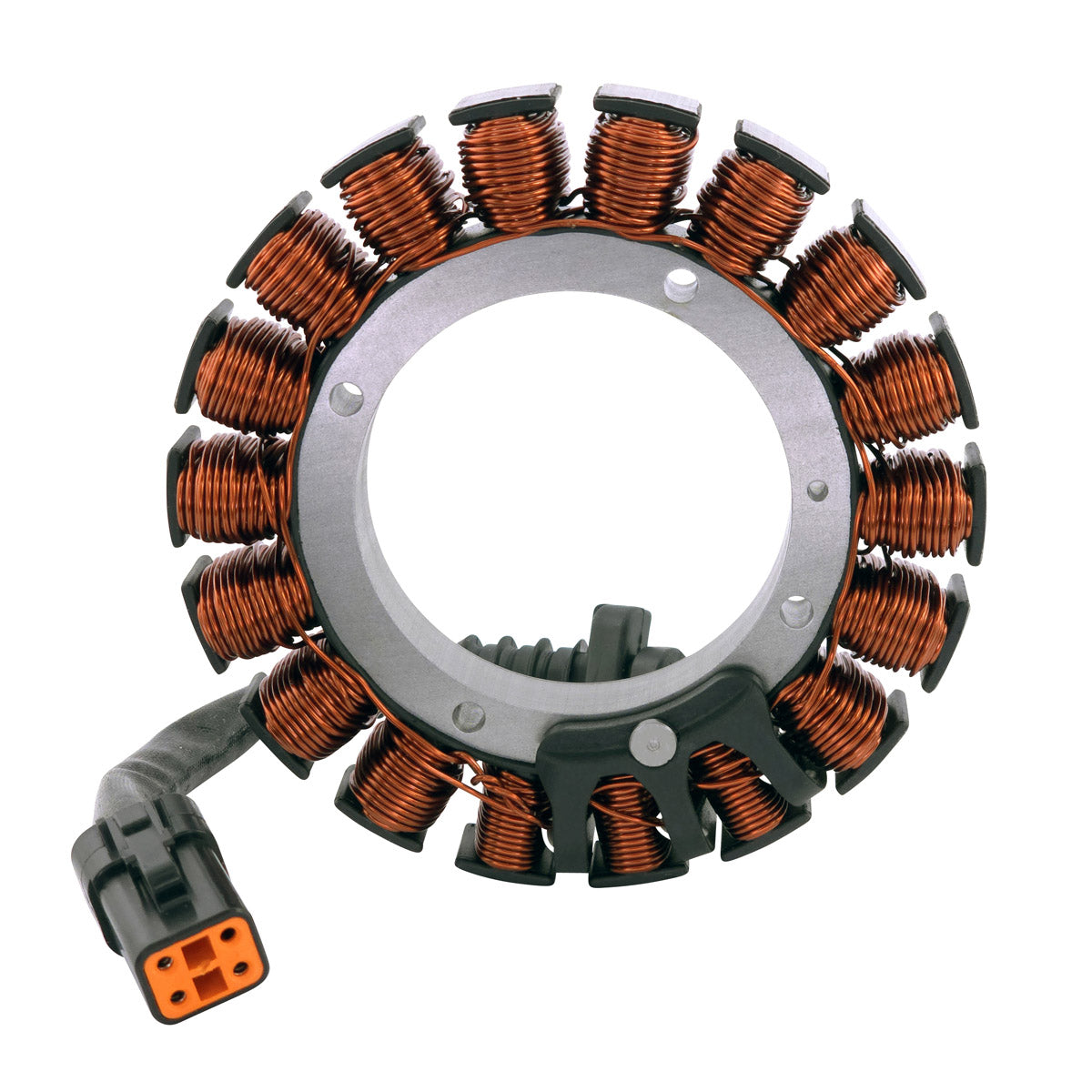

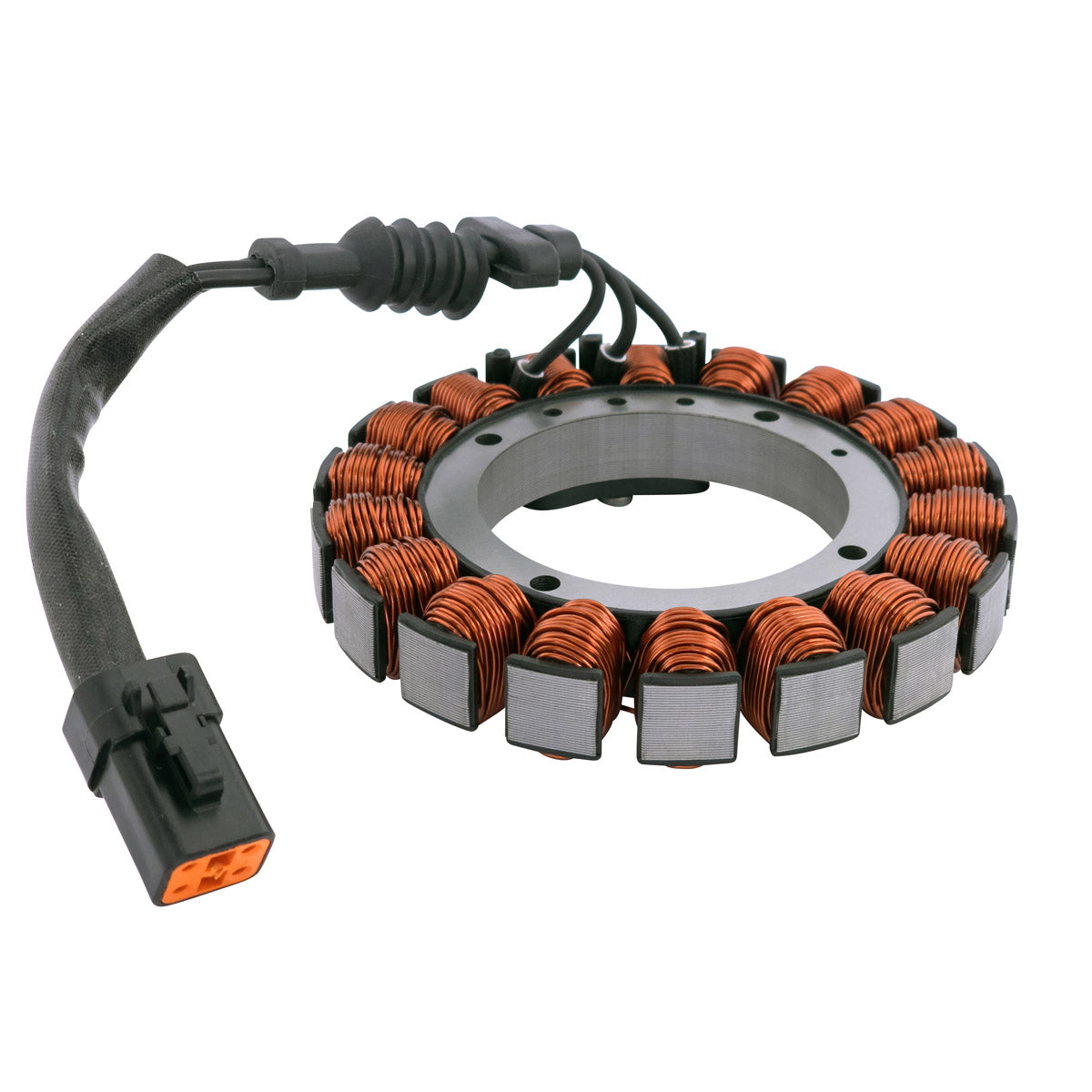

Premium Stator for Harley Davidson Dyna Super Glide / Fat Boy / Heritage Softail 2001-2006 | 30017-01B / 30017-01A-138
Premium Stator for Harley Davidson Dyna Super Glide / Fat Boy / Heritage Softail 2001-2006 | 30017-01B / 30017-01A-138
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Details
Details
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

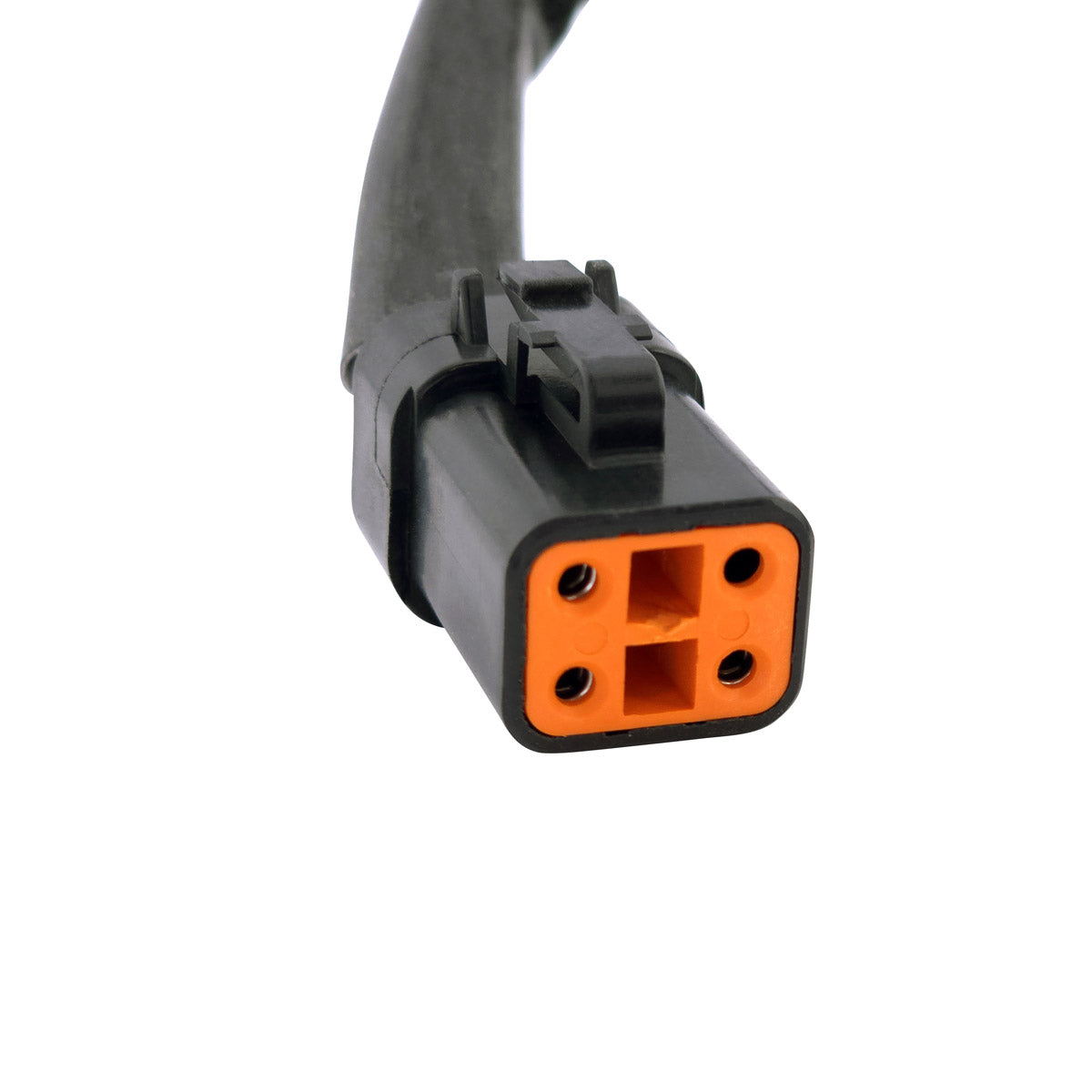

- Connectors included

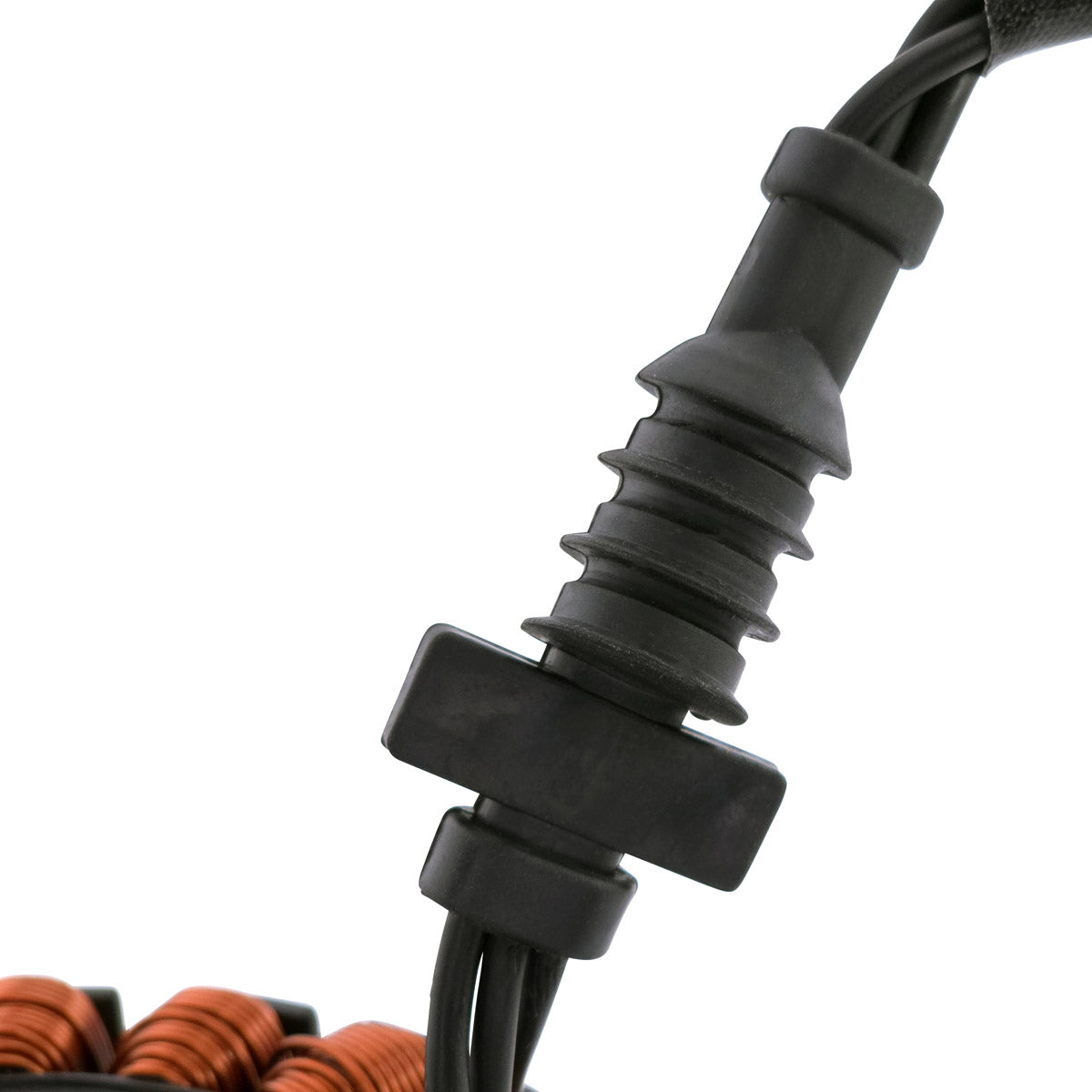

- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Interior diameter: 71 mm
Exterior diameter: 134 mm
Thickness: 16 mm
Length of wires stator to grommet: 40 mm
Length of wires grommet to plug: 140 mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +/-20%
Alternator: Black to ground = O.L
Interchange Part Nº
Interchange Part Nº
- 30017-01A
- 30017-01
- 30017-01B
Installation
Installation
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
