50W Lighting Stator for KTM 85 / 125 / 150 SX | Husqvarna TC 85 / 125 | GasGas MC 85 / 125 2016-2024 | # 50439004000
RMSTATOR
SKU: RMS010-108598
Out of stock
RMSTATOR
50W Lighting Stator for KTM 85 / 125 / 150 SX | Husqvarna TC 85 / 125 | GasGas MC 85 / 125 2016-2024 | # 50439004000
Sold out
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more
50W Lighting Stator for KTM 85 / 125 / 150 SX | Husqvarna TC 85 / 125 | GasGas MC 85 / 125 2016-2024 | # 50439004000
Sold out
Details
Details

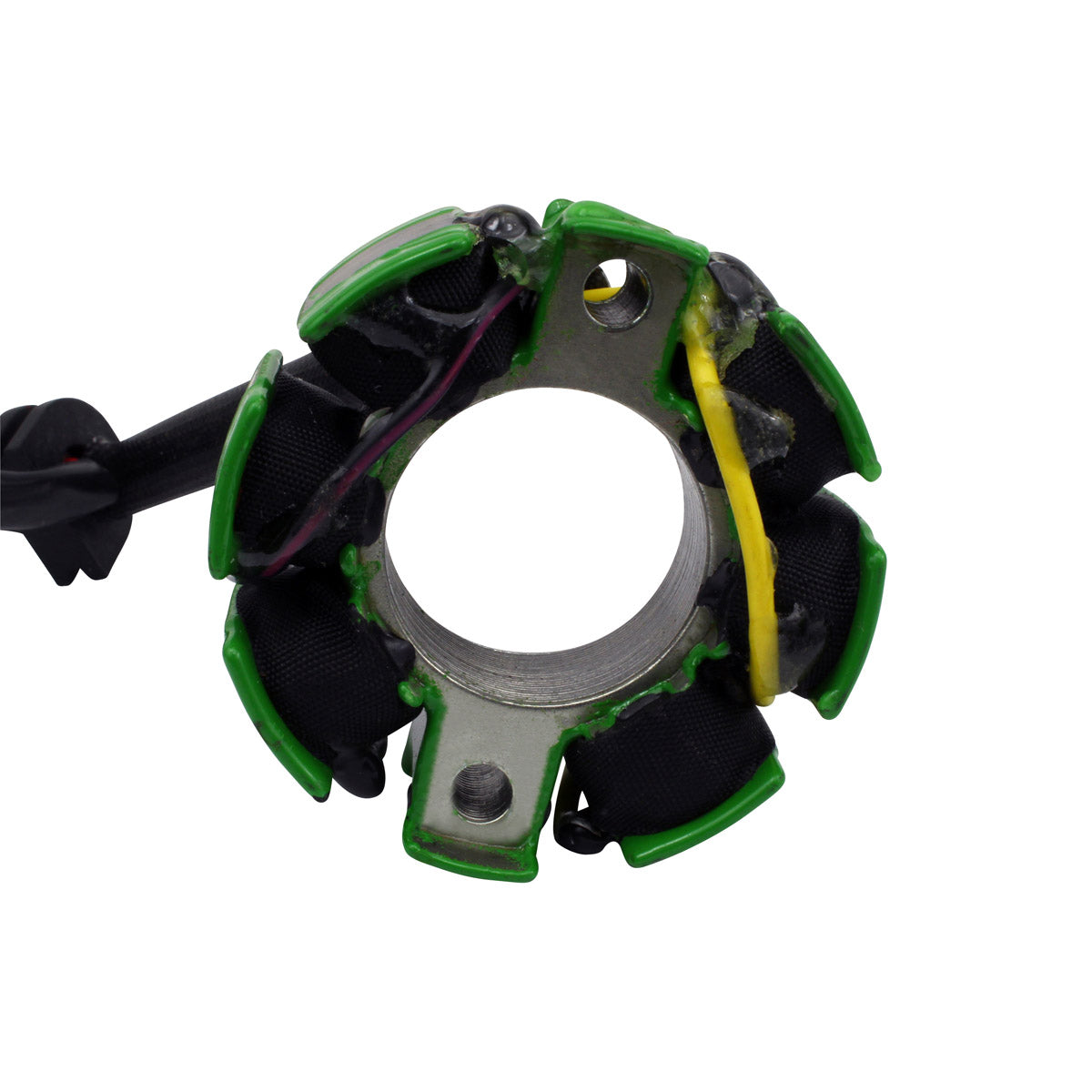

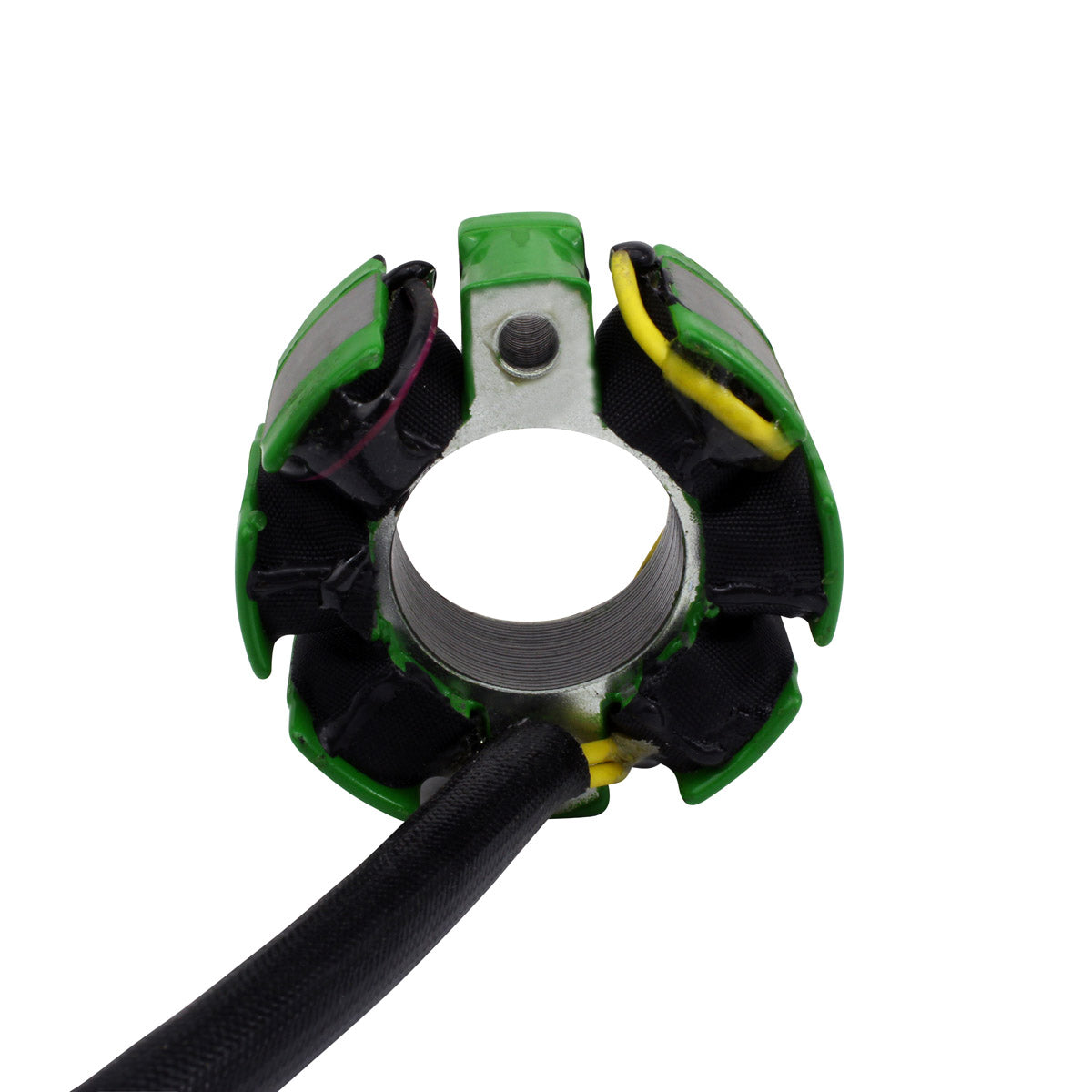

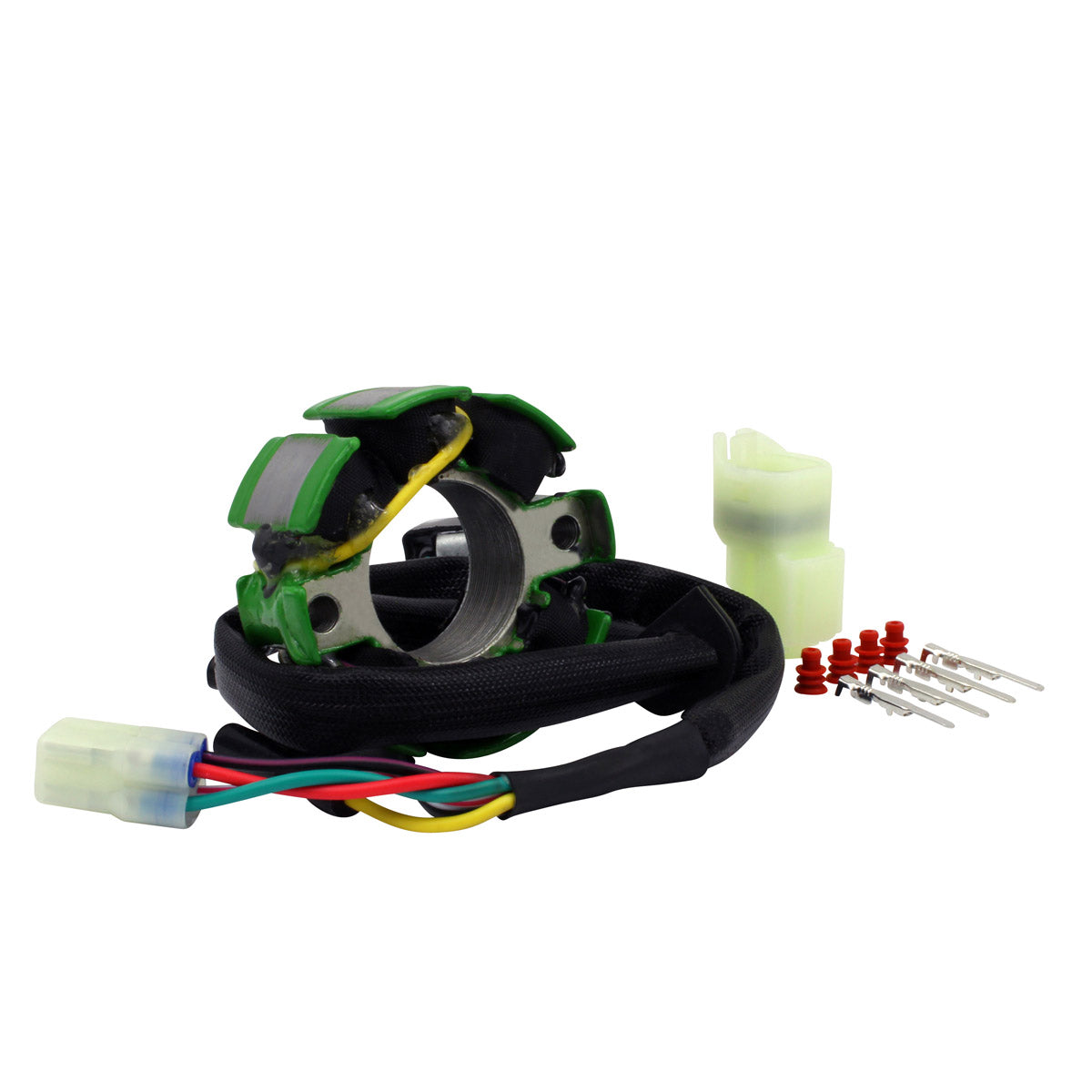

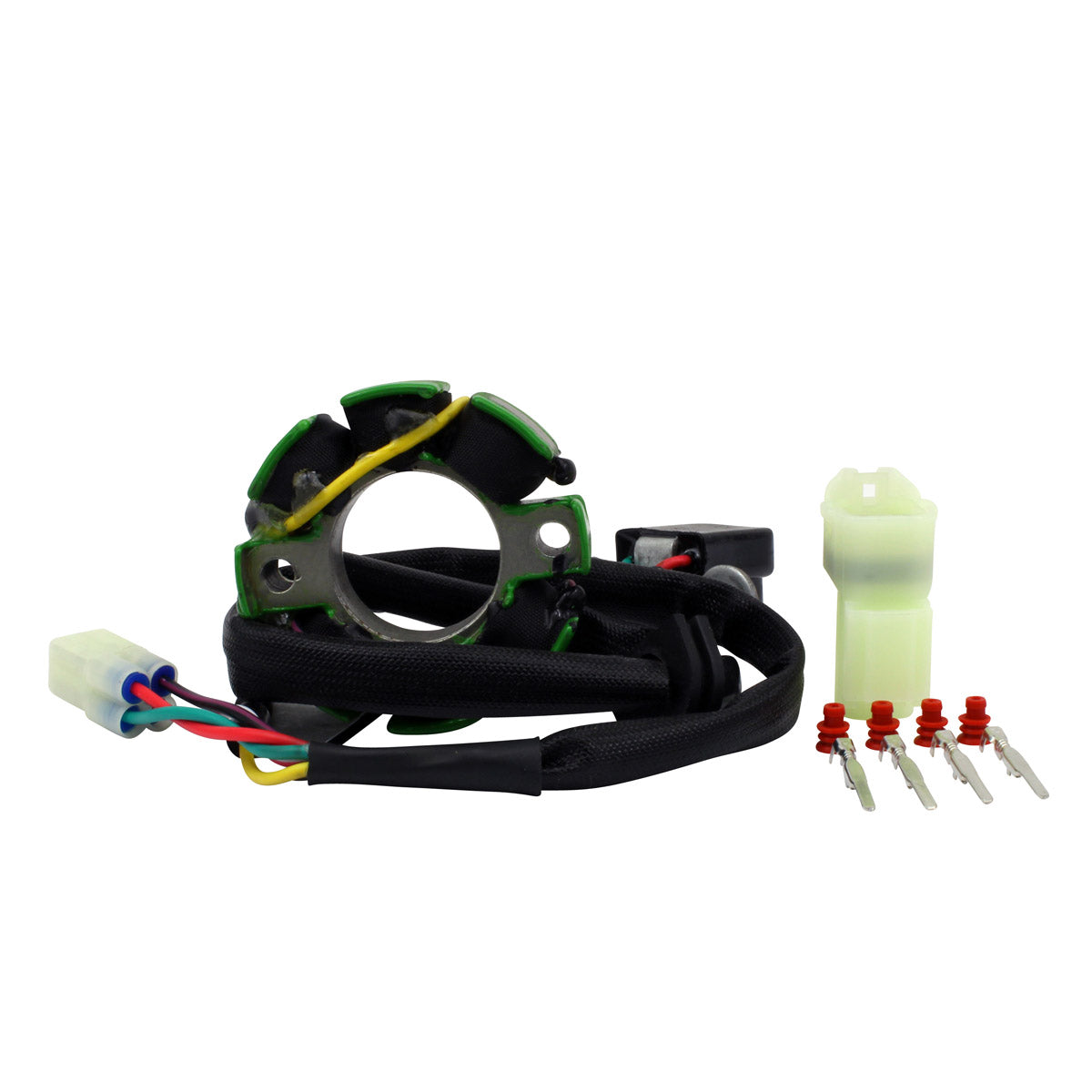

Brand new aftermarket lighting stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

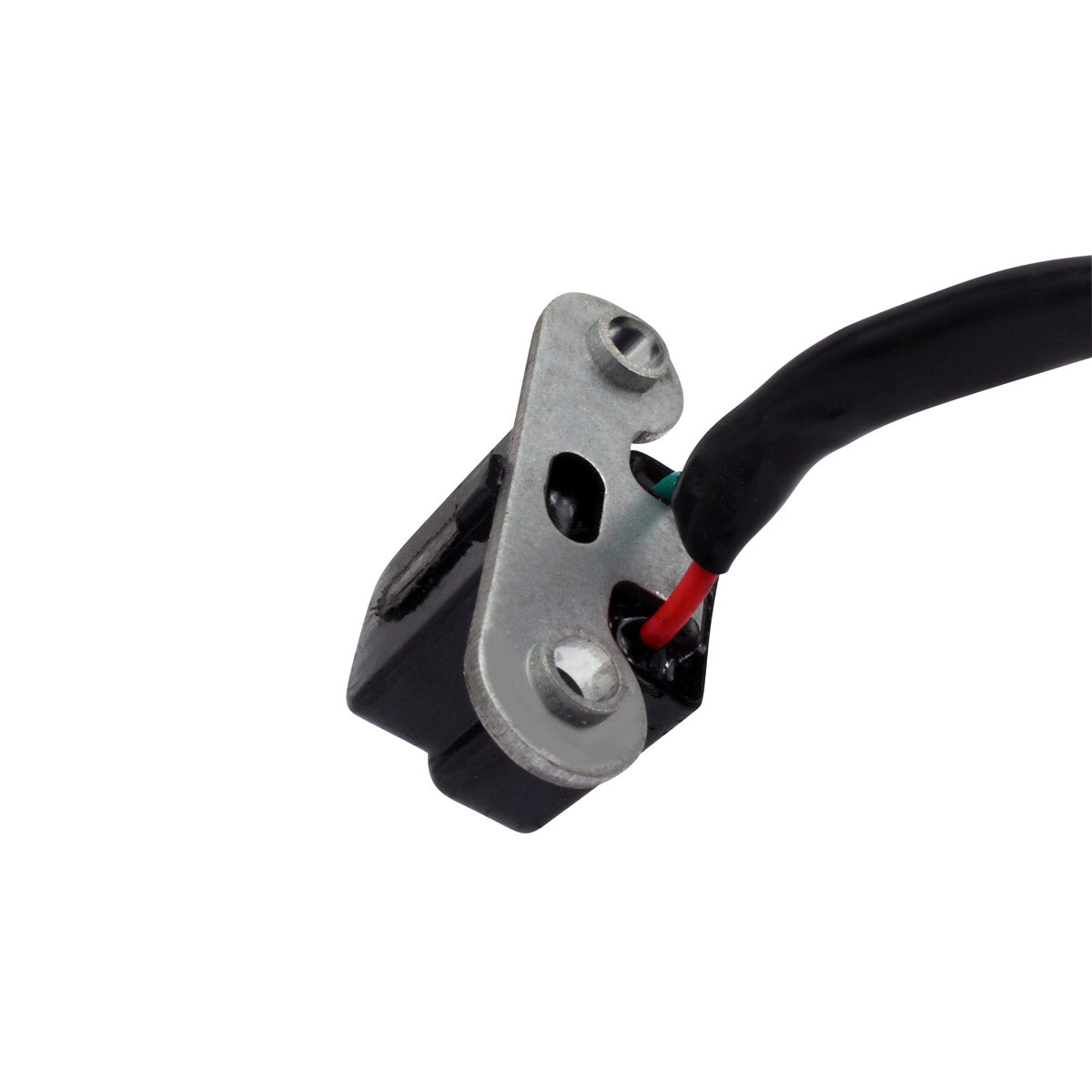

- Pick up pulsar coil included

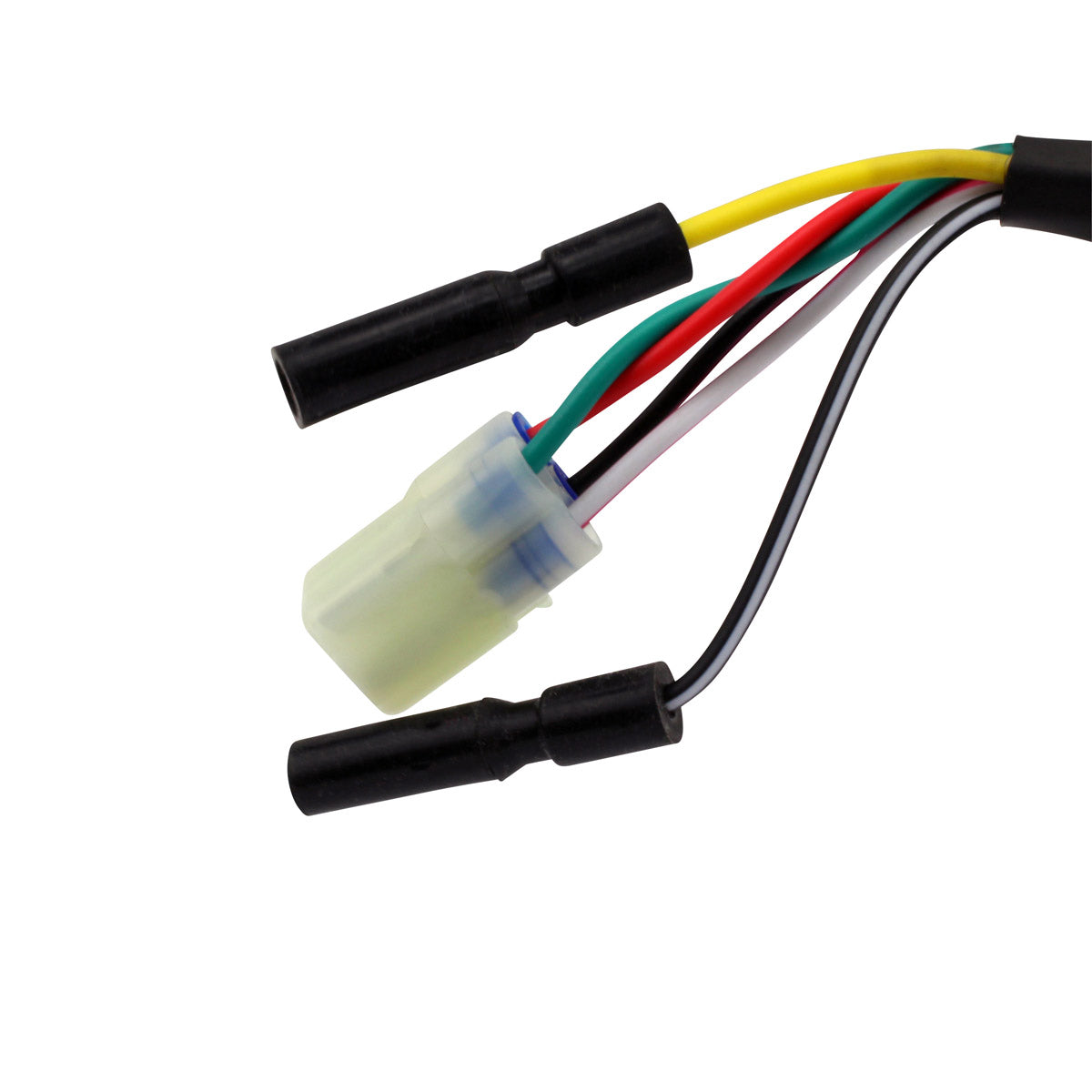

- Connectors included

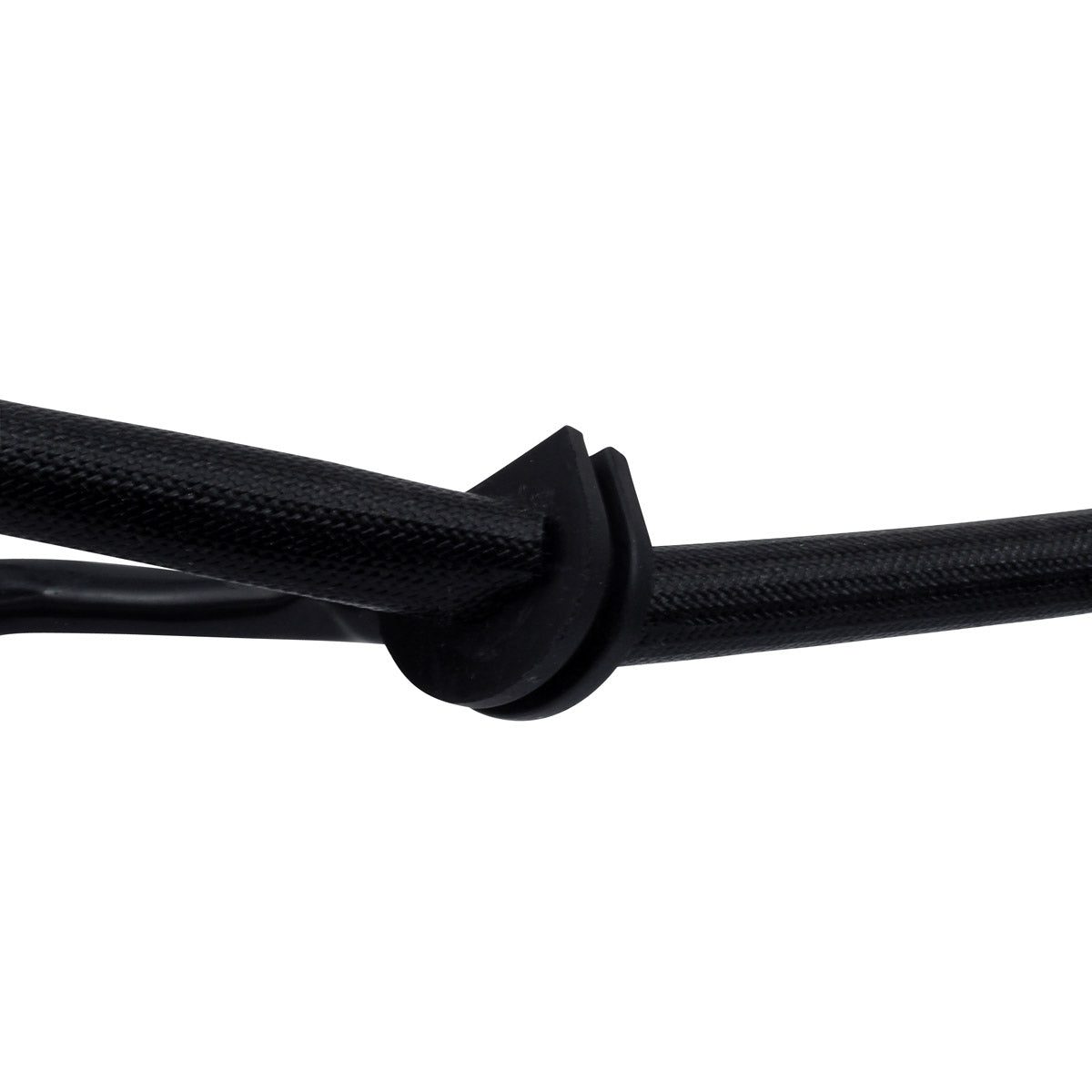

- Rubber grommet included
- All products shipped are tested

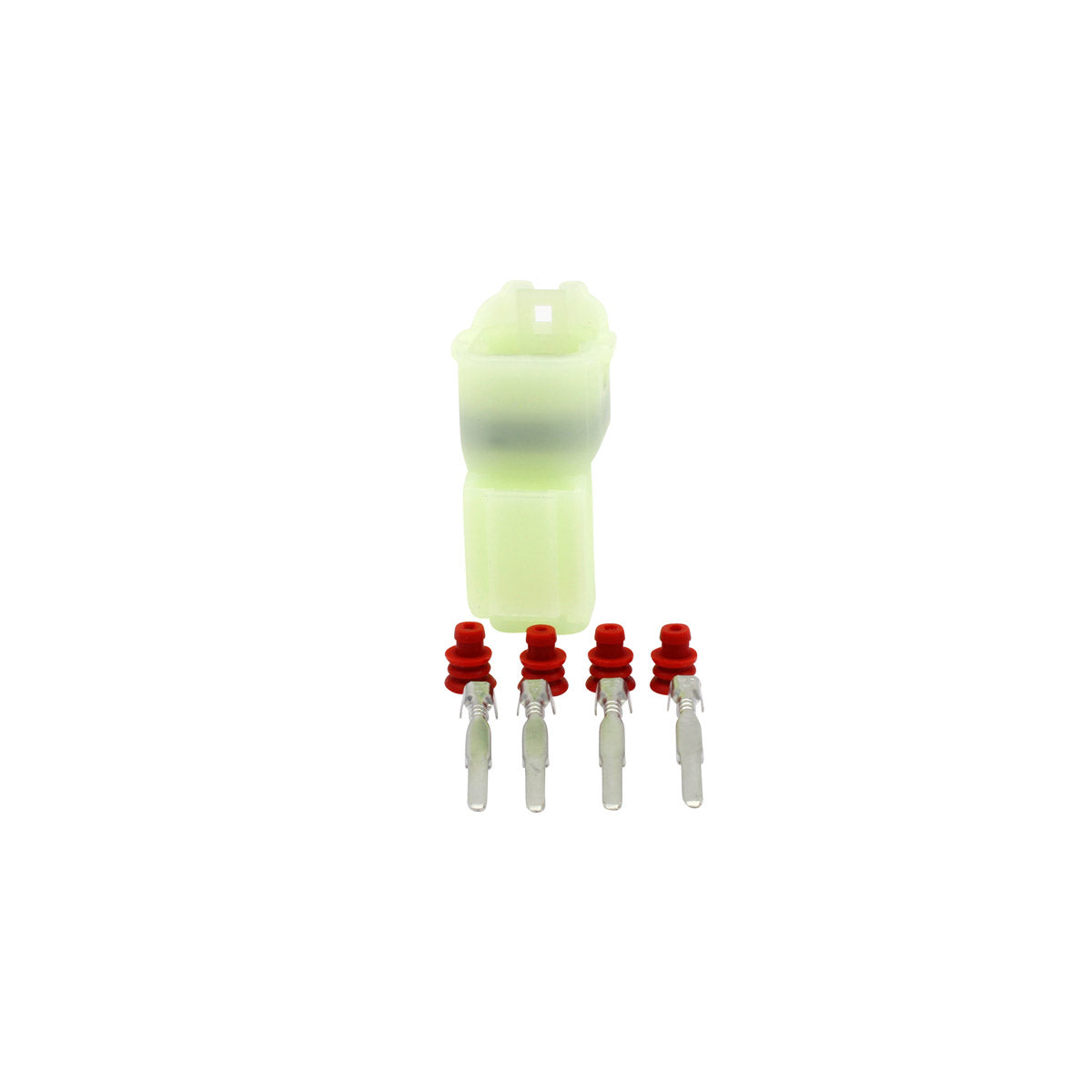

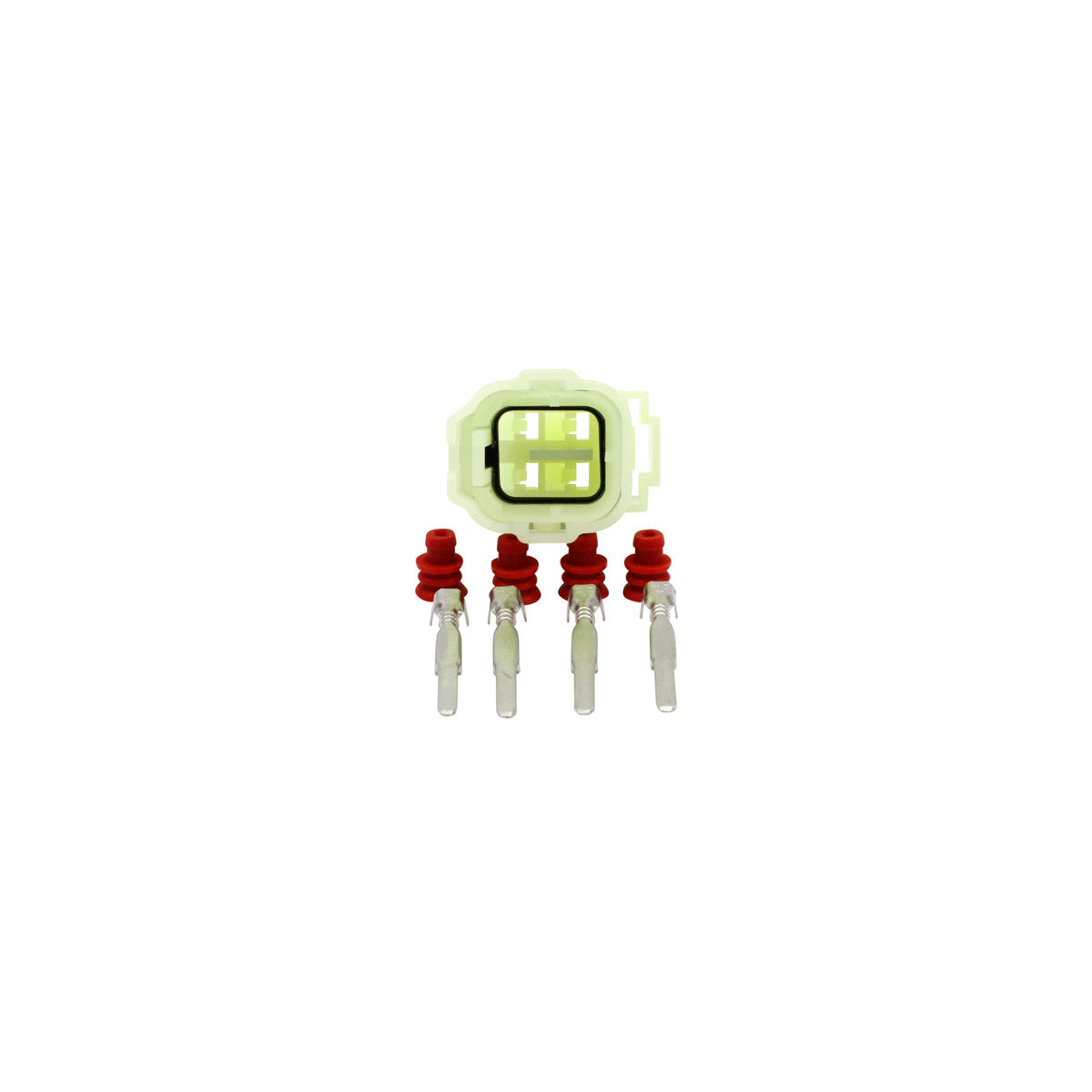

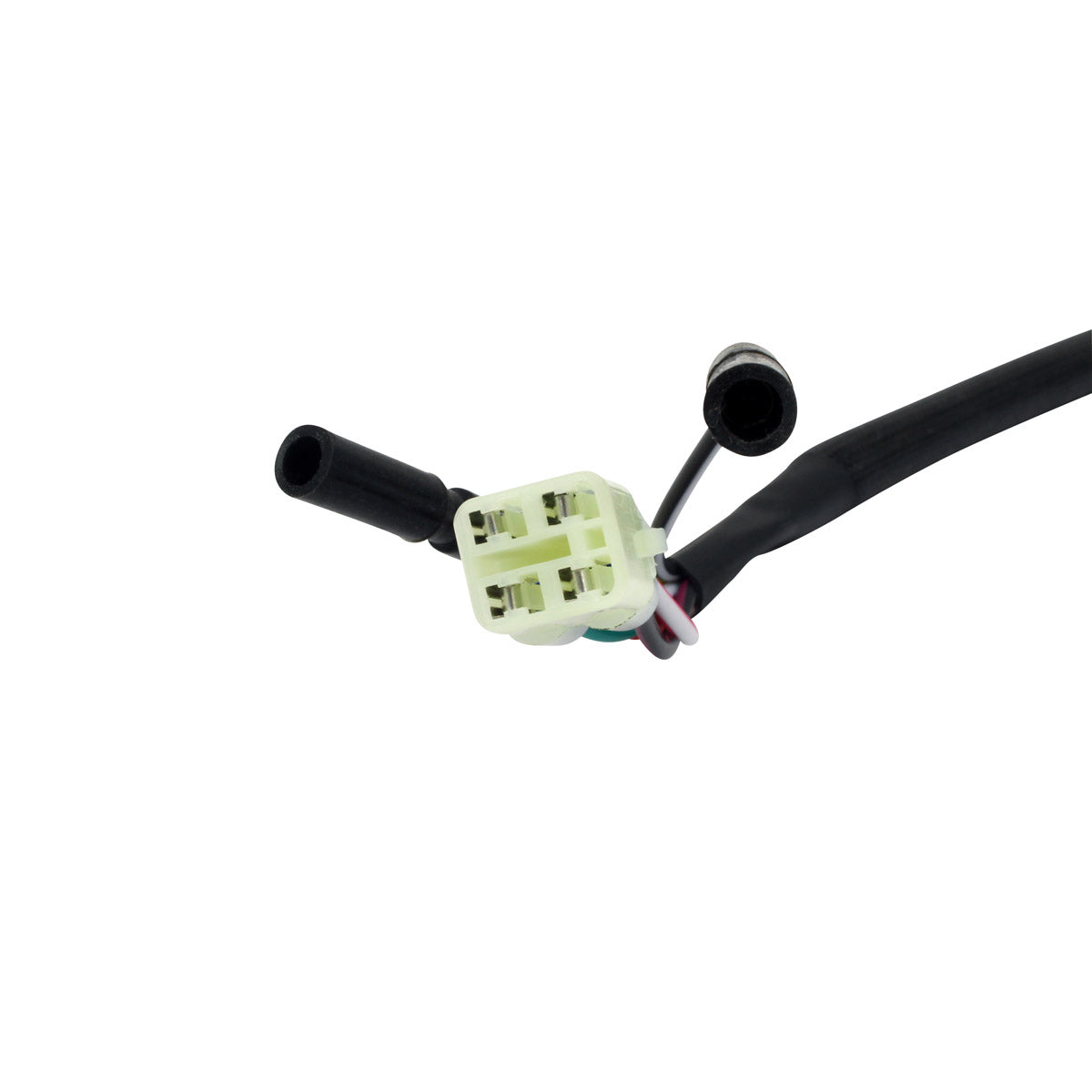

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Interior diameter: 28 mm
Exterior diameter: 59 mm
Thickness: 16 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 400 mm
Length of pickup coil's wire to grommet: 60 mm
Other specifications:
Number of wires: 4
Number of plugs: 1
Number of pins: 4
Number of poles: 6
Wire to wire resistance:
Pickup: Red to Green = 100 ohms +/-20%
Source: Black/Red to Red/White = 35 ohms +/-20%
Interchange Part Nº
Interchange Part Nº
- 50439004000
Installation
Installation
Before installing your new lighting stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010"".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
