Generator Stator for Honda SH 125i 2013-2024 | OEM# 31220-K02-901 / 31220-K1N-D01 / 31220-K29-D81 / 31220-K89-D21

RMSTATOR
SKU: RMS010-108527
In Stock
RMSTATOR

Generator Stator for Honda SH 125i 2013-2024 | OEM# 31220-K02-901 / 31220-K1N-D01 / 31220-K29-D81 / 31220-K89-D21

$142.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
Generator Stator for Honda SH 125i 2013-2024 | OEM# 31220-K02-901 / 31220-K1N-D01 / 31220-K29-D81 / 31220-K89-D21
Generator Stator for Honda SH 125i 2013-2024 | OEM# 31220-K02-901 / 31220-K1N-D01 / 31220-K29-D81 / 31220-K89-D21
$142.89

Details

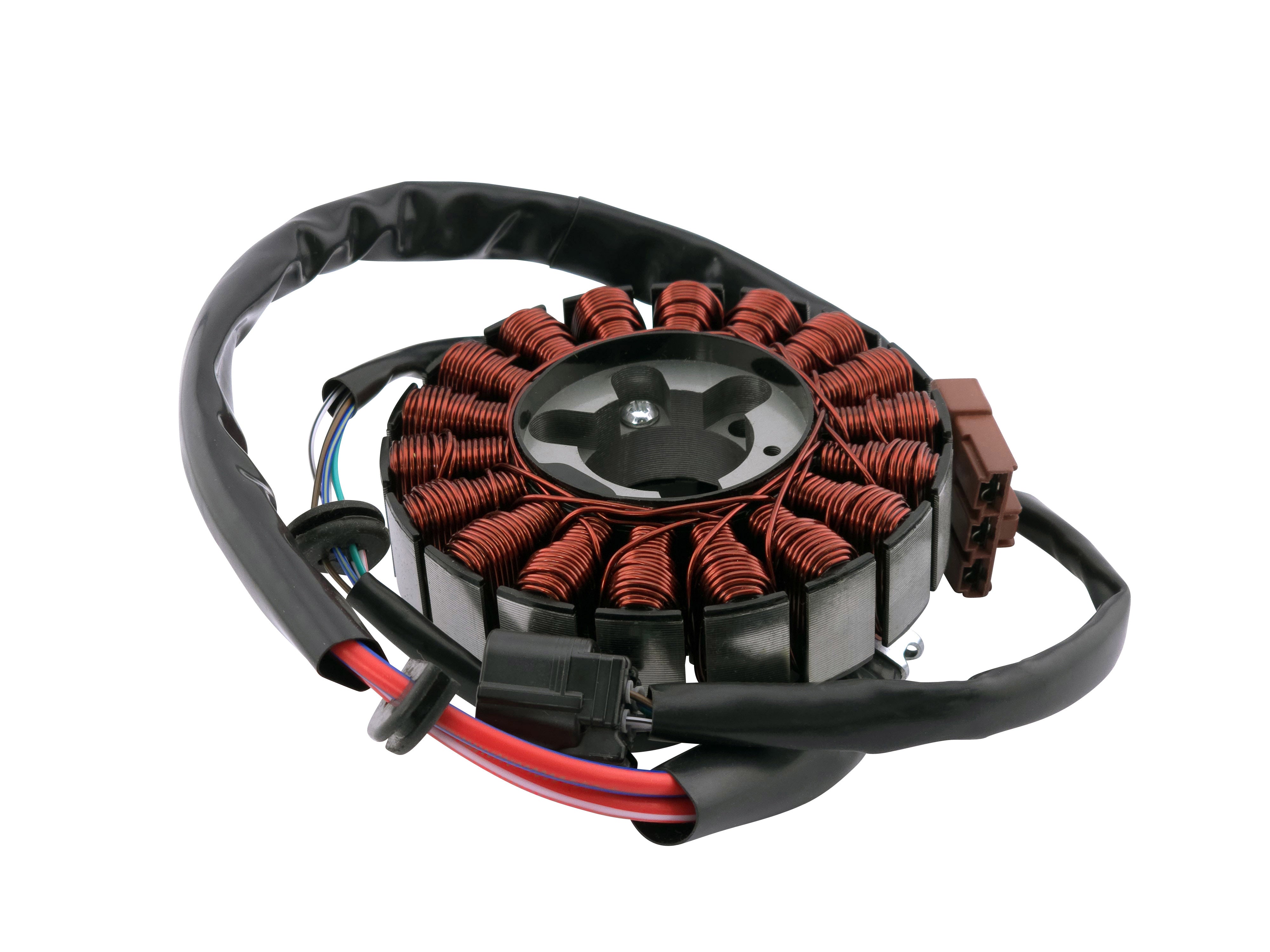

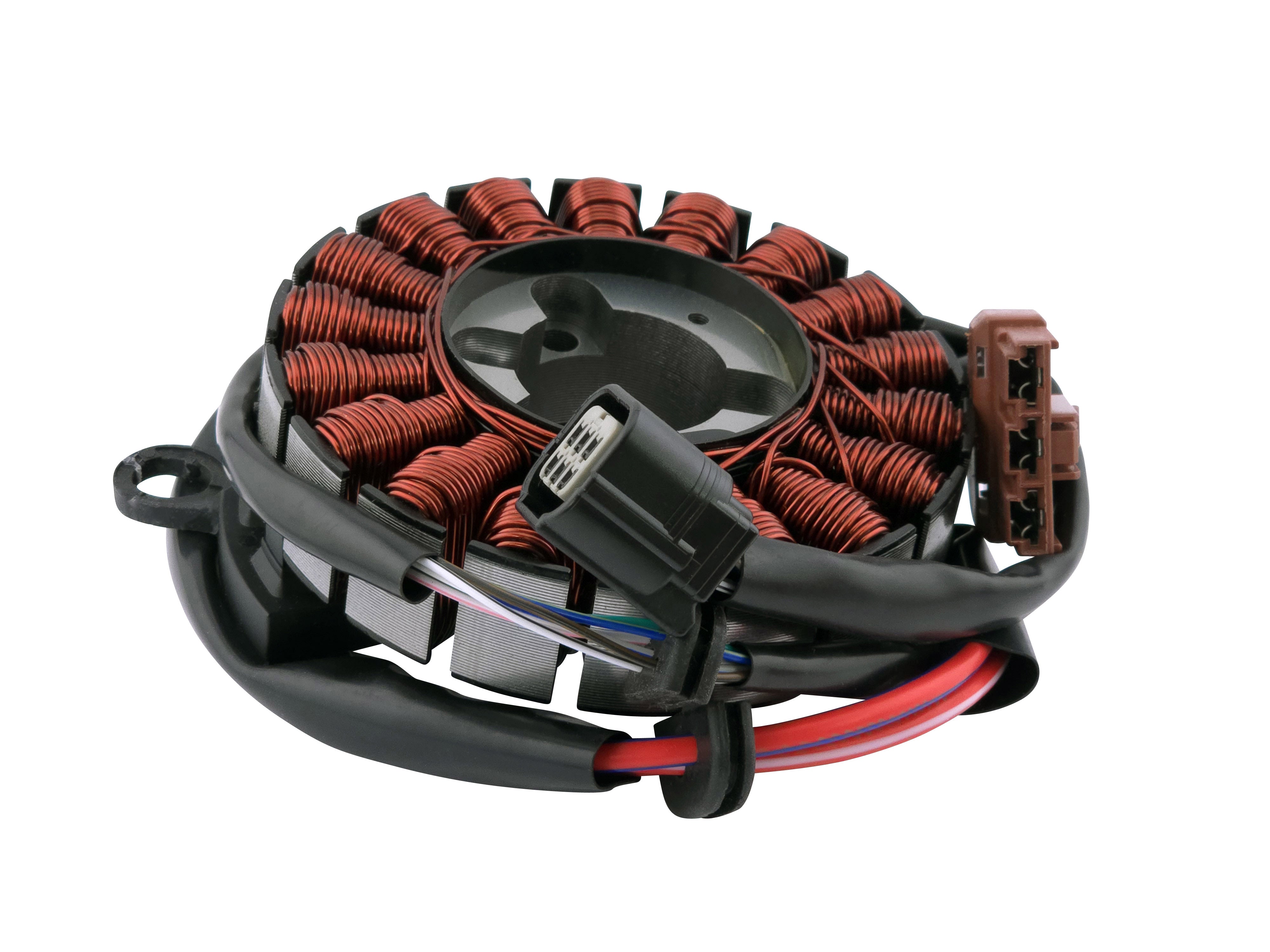

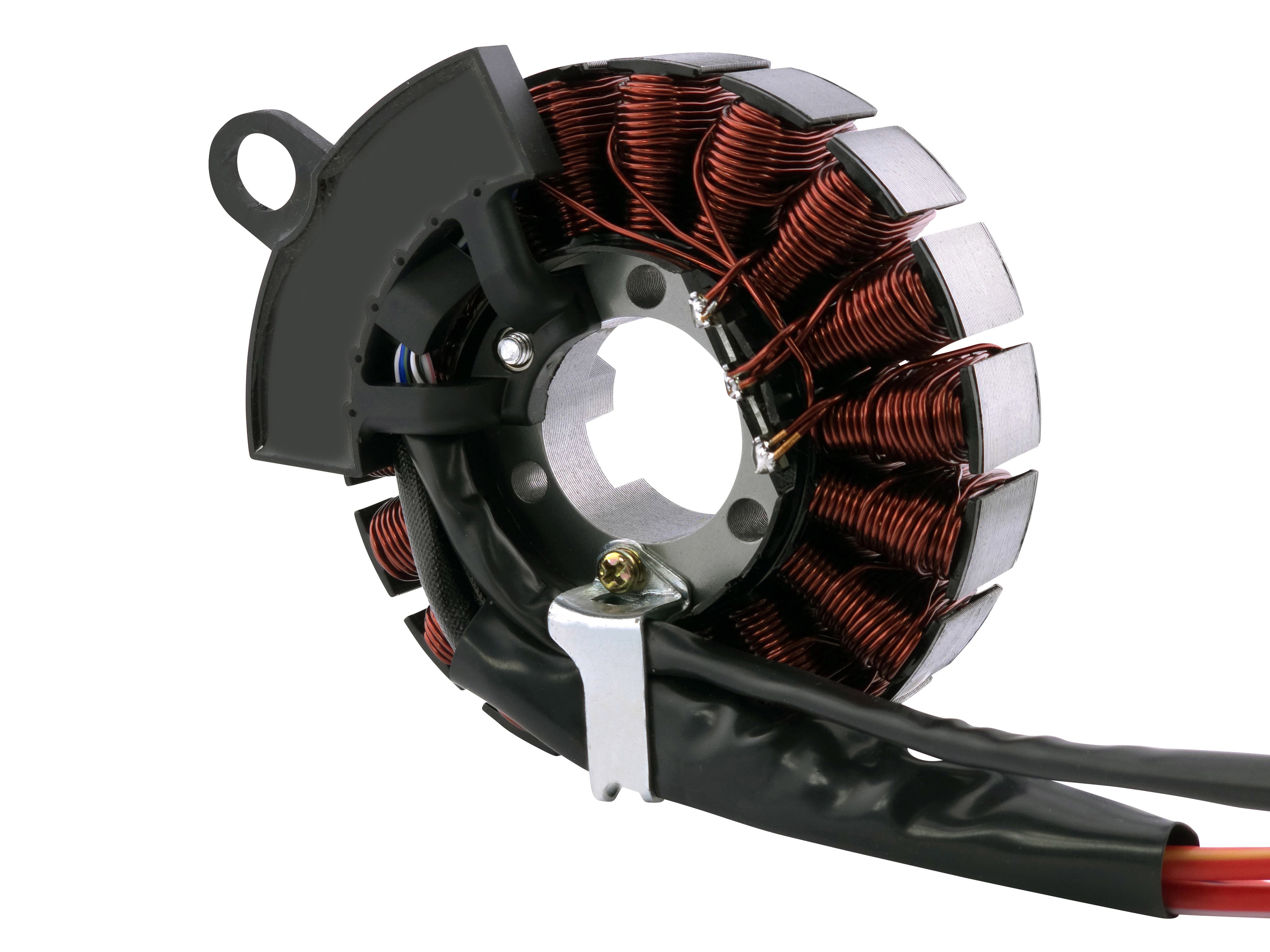

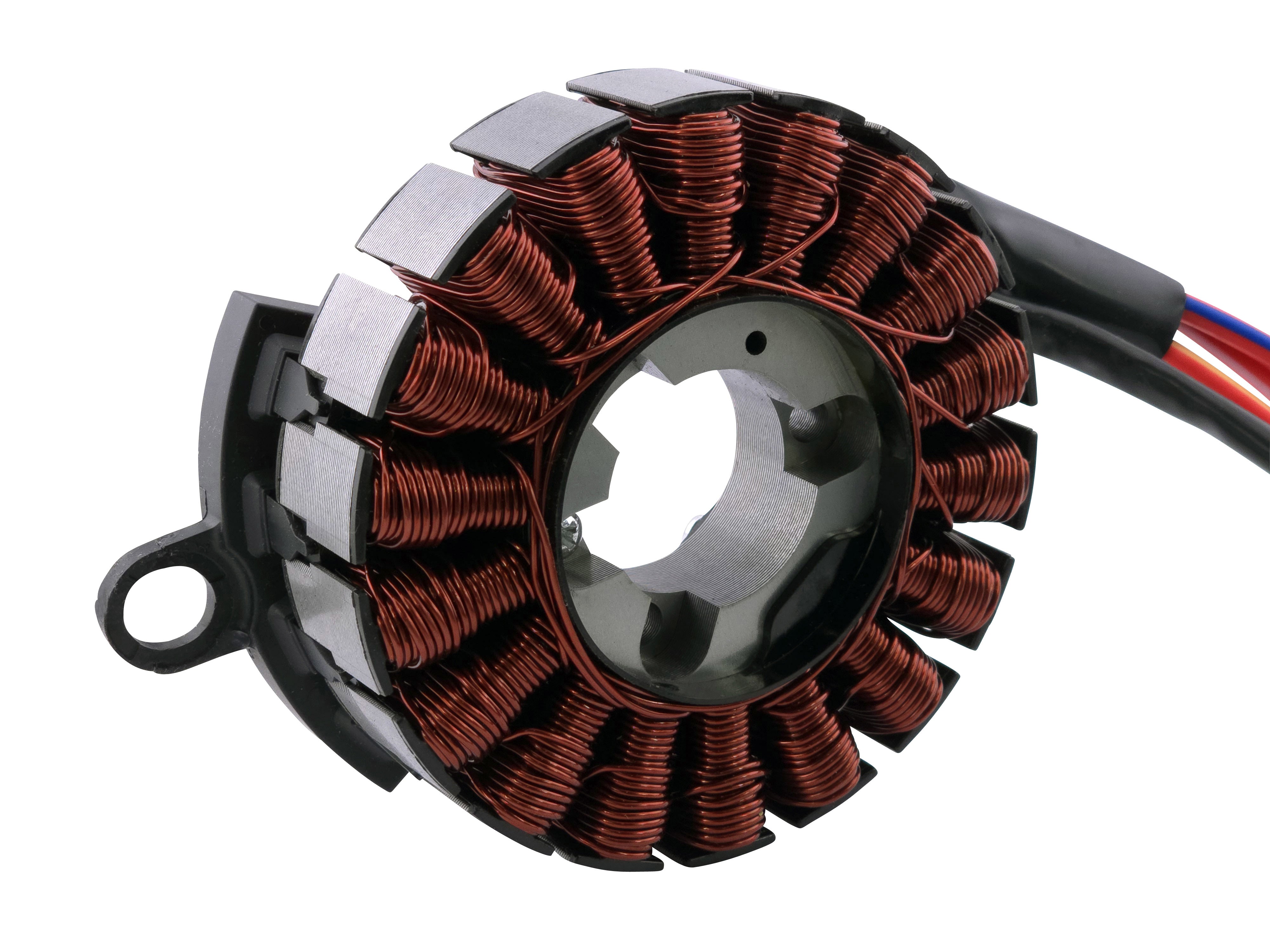

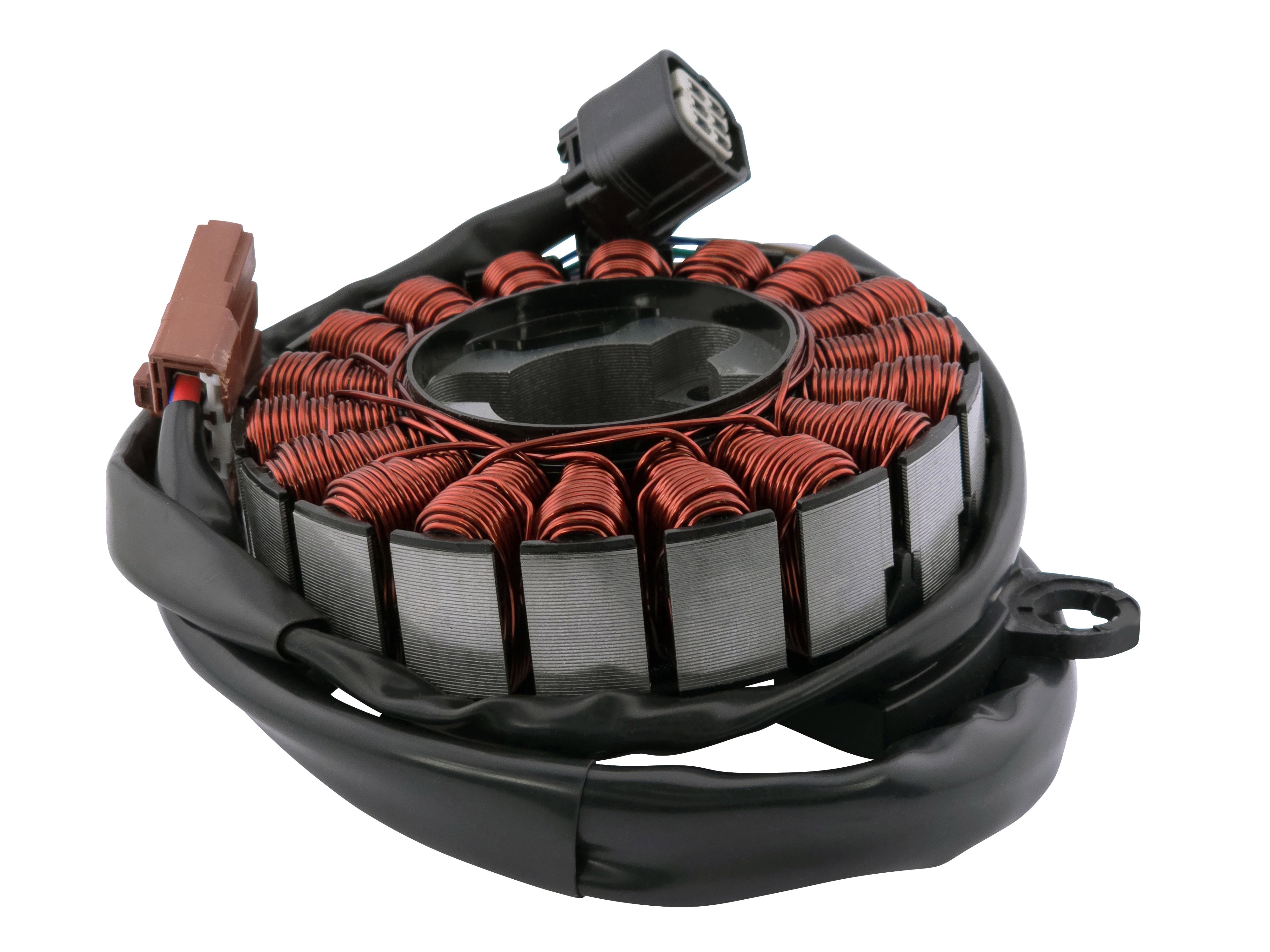

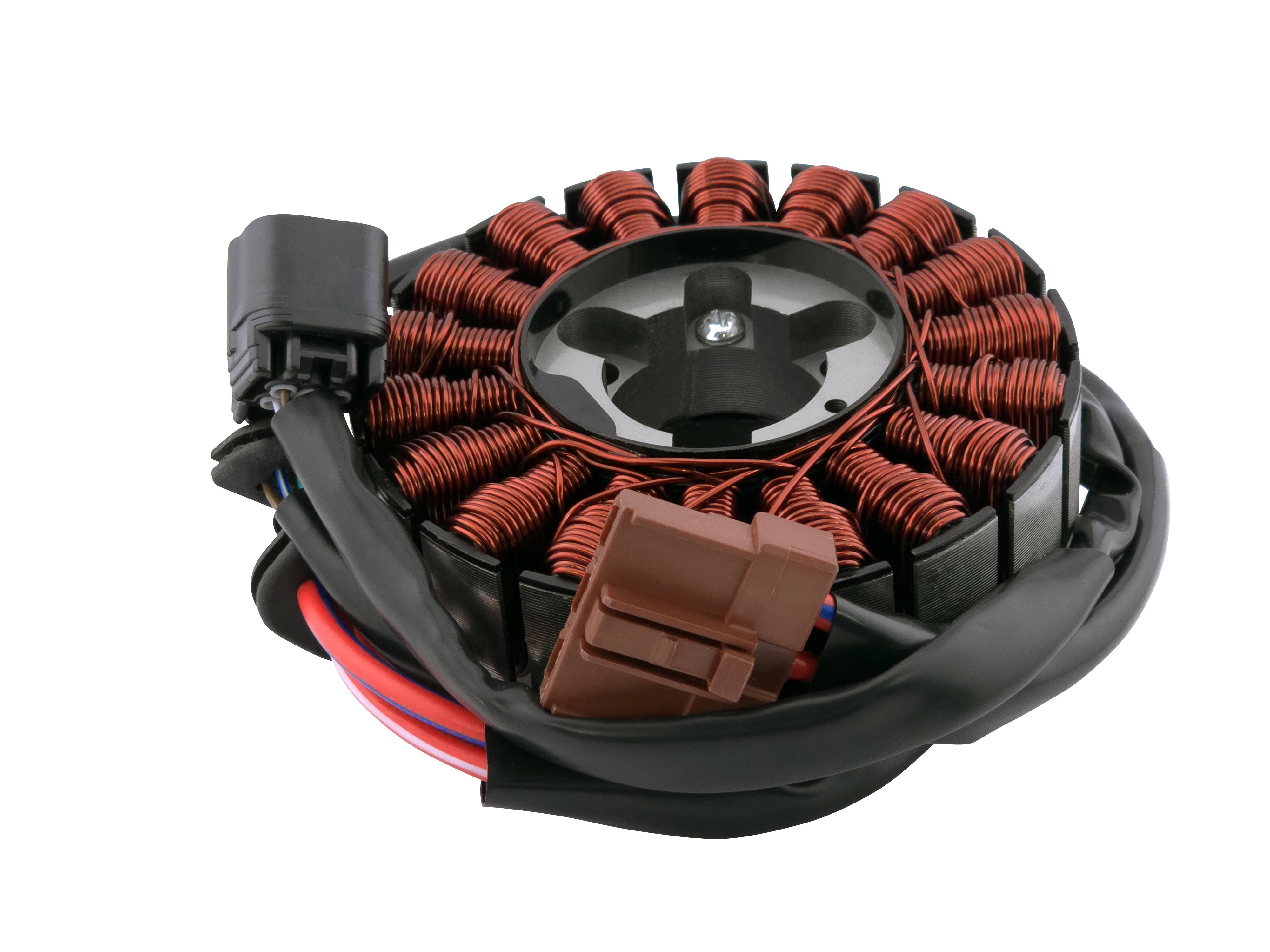

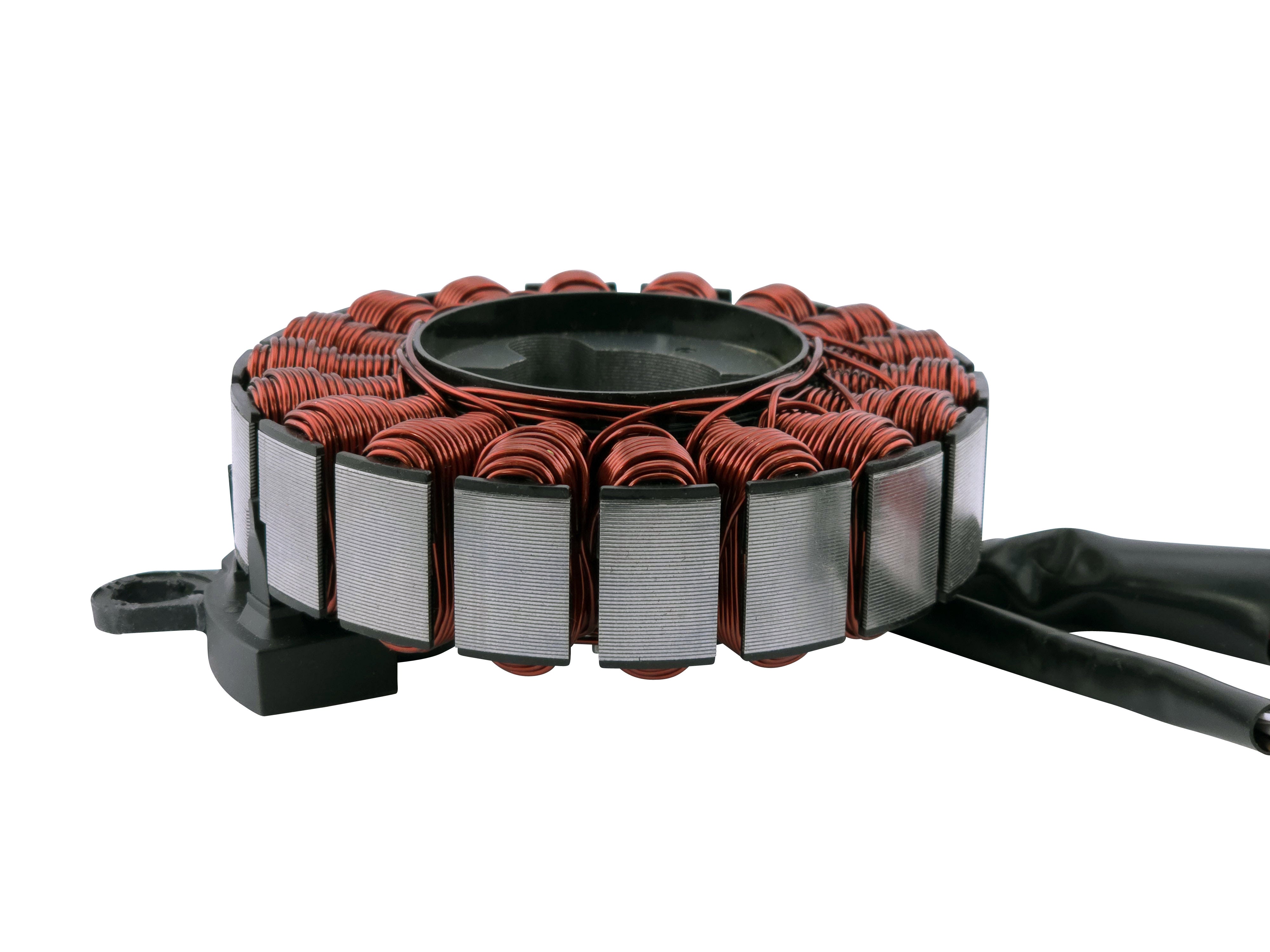

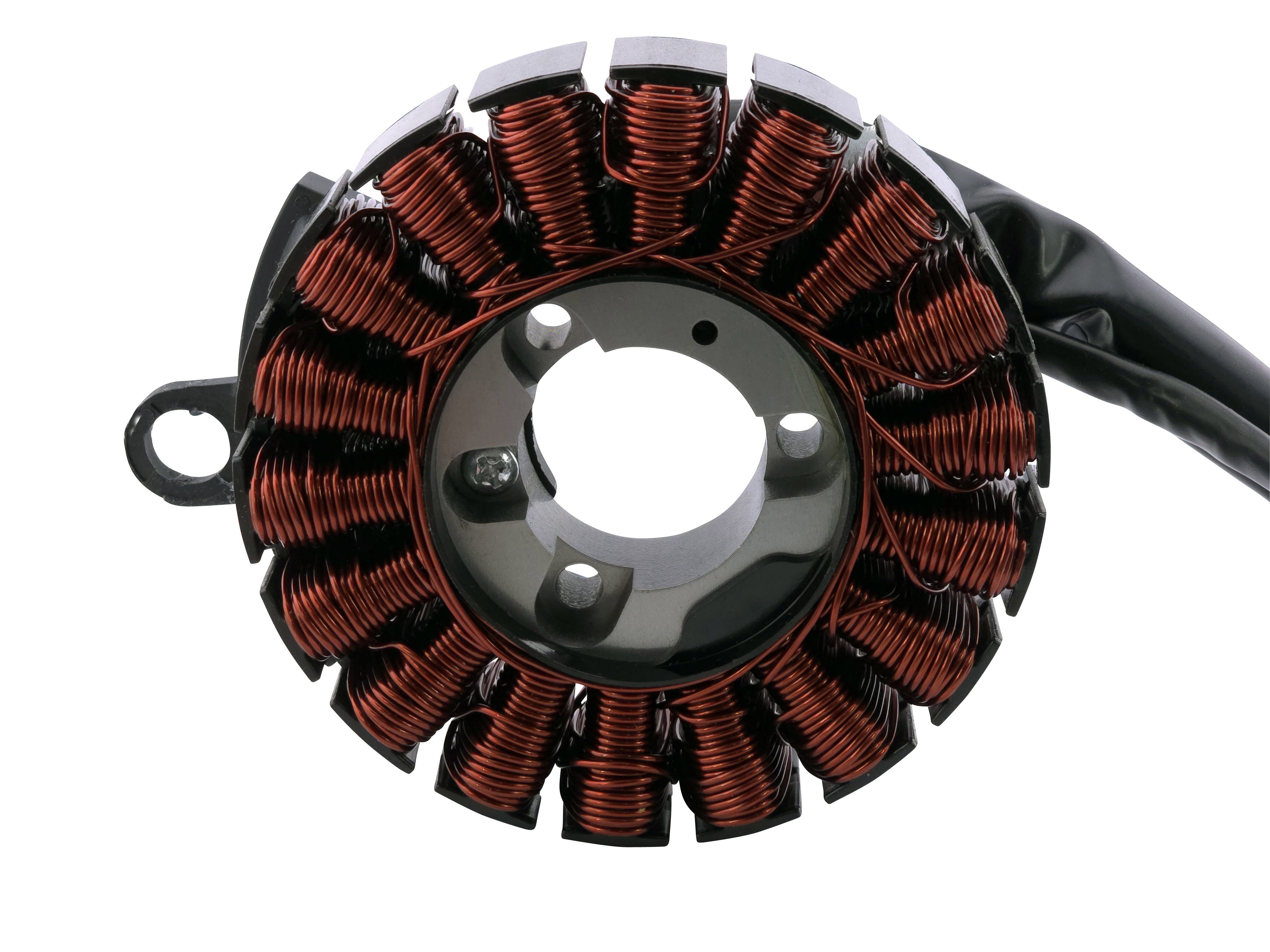

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Crank position sensor included

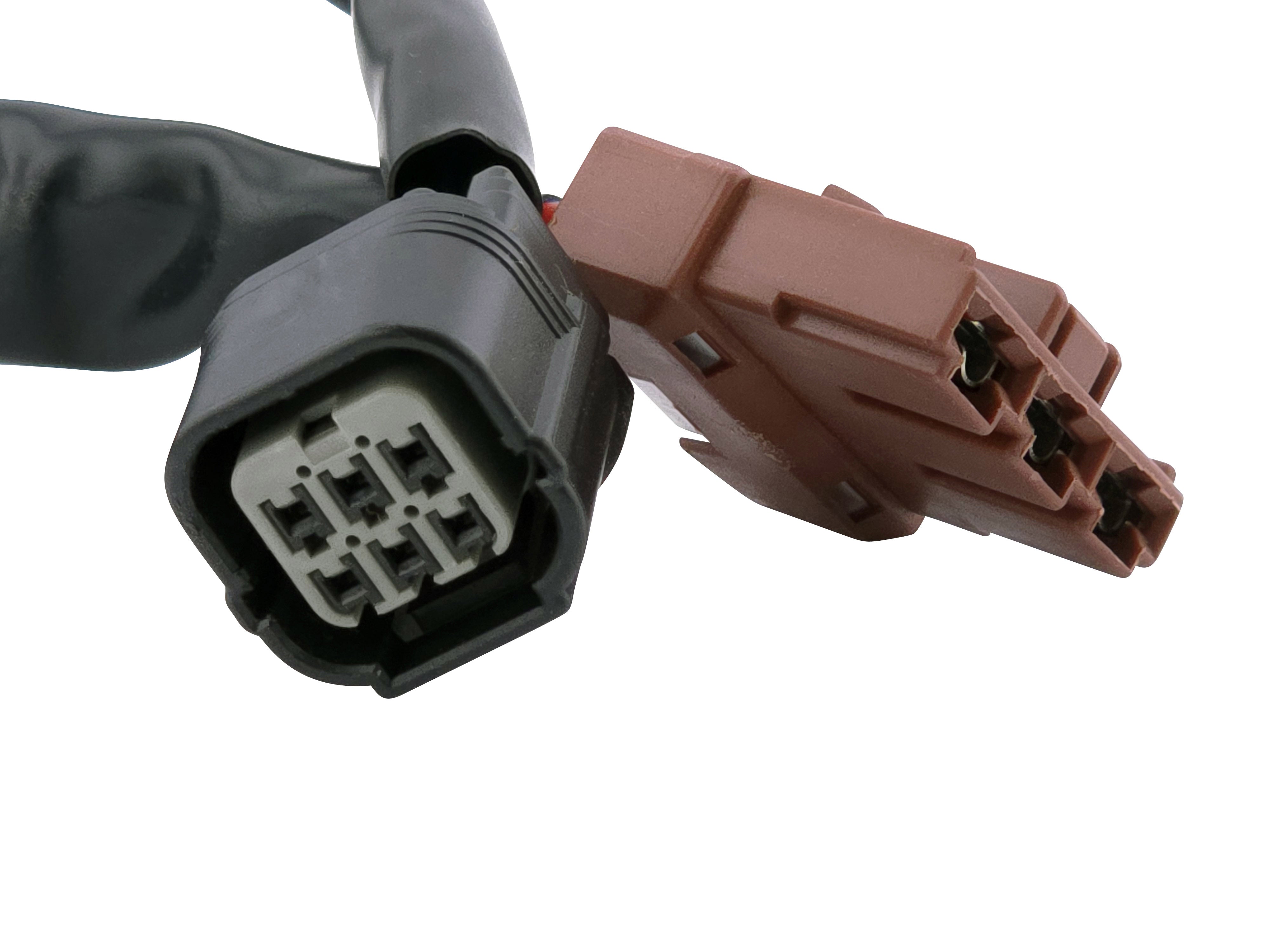

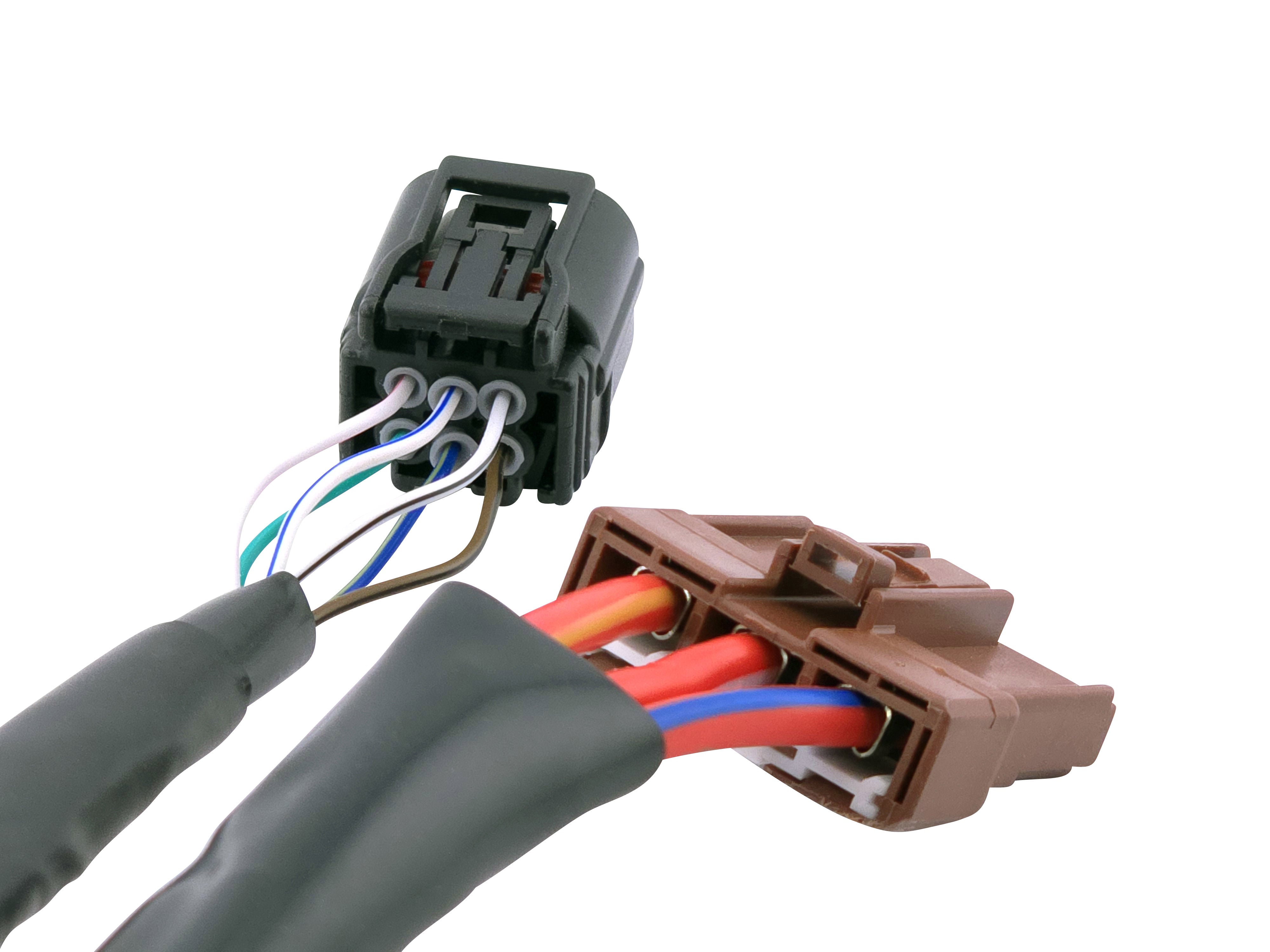

  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Interior diameter: 33 mm
Exterior diameter: 108 mm
Thickness: 21 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 420 mm

Other specifications:
Number of wires: 9
Number of plugs: 2
Number of pins: 9
Number of poles: 18
Wire to wire resistance:
Alternator: Between Red/Yellow, Red/Blue and Red/White = 0.6 ohms +/-20%
Alternator: Red/Yellow, Red/Blue and Red/White to ground = O.L

Interchange Part Nº

  • 31220-K29-D81
  • 31220-K78-V01
  • 31220-K1N-D01
  • 31220-K0R-D01
  • 31220-K89-D21
  • 31220-K02-901

Installation

Before installing your new generator stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
