Stator Coil 2K-3 for KTM 125 EXC Euro 2005-2016 / 200 XC-W 2008-2012 | Husqvarna TE 125 Euro 2012-2016 | # 54839204000

RMSTATOR
SKU: RMS010-108513
Low Stock
RMSTATOR

Stator Coil 2K-3 for KTM 125 EXC Euro 2005-2016 / 200 XC-W 2008-2012 | Husqvarna TE 125 Euro 2012-2016 | # 54839204000

$142.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Please note: There are multiple different stators used on the across KTM motorcycle models.

This part will replace the Kokusan 2K-3 stator and OEM 54839204000.

If your machine uses the OEM 54839104000 please see RM01374.

If your machine uses the OEM 50339004200 please see RMS010-107700 .

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Read more
Stator Coil 2K-3 for KTM 125 / 200 / 250 / 300 EXC | 200 XC-W | 300 XC | Husqvarna TE 125 Euro 2005-2016 | # 4839204000
Stator Coil 2K-3 for KTM 125 EXC Euro 2005-2016 / 200 XC-W 2008-2012 | Husqvarna TE 125 Euro 2012-2016 | # 54839204000
$142.89

Details

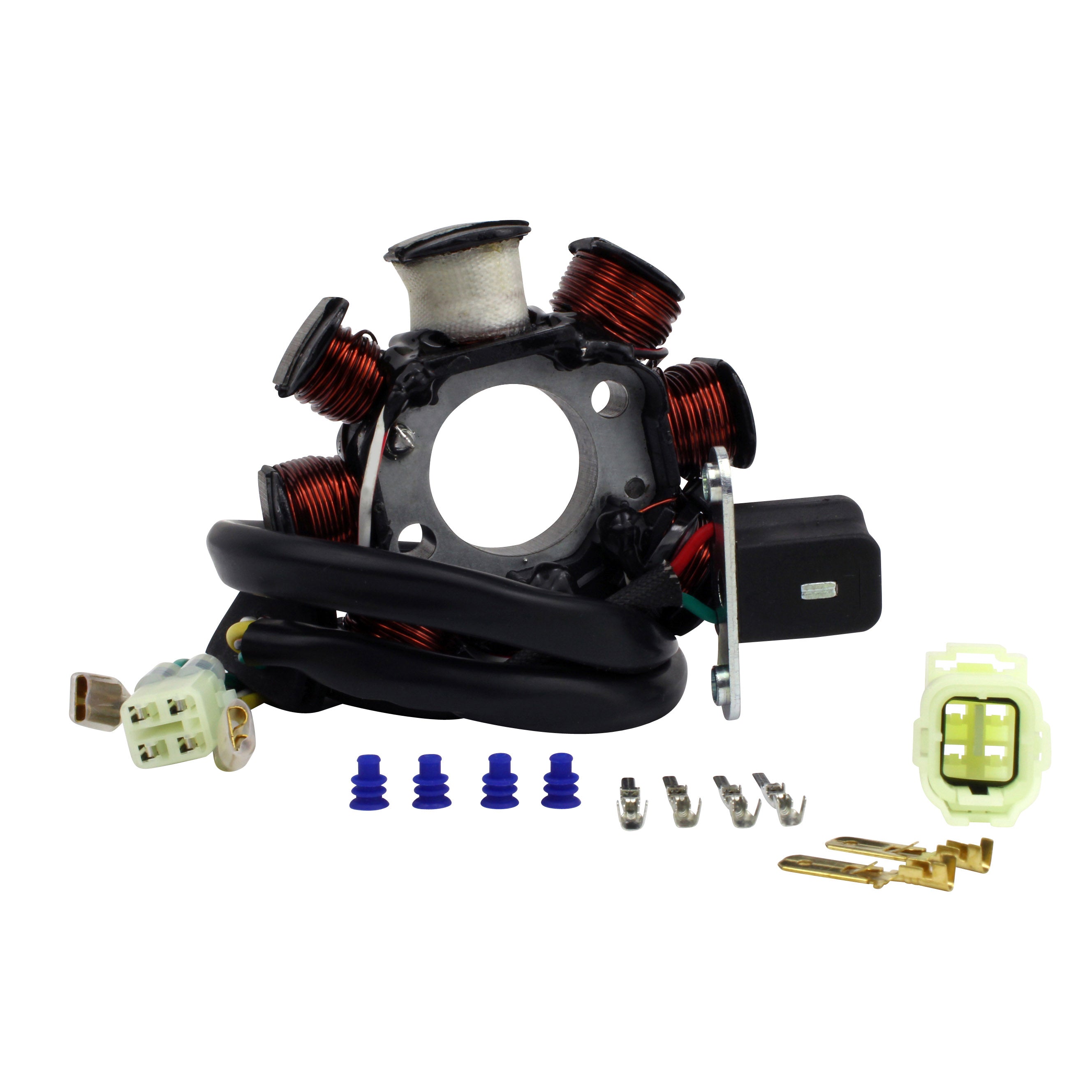

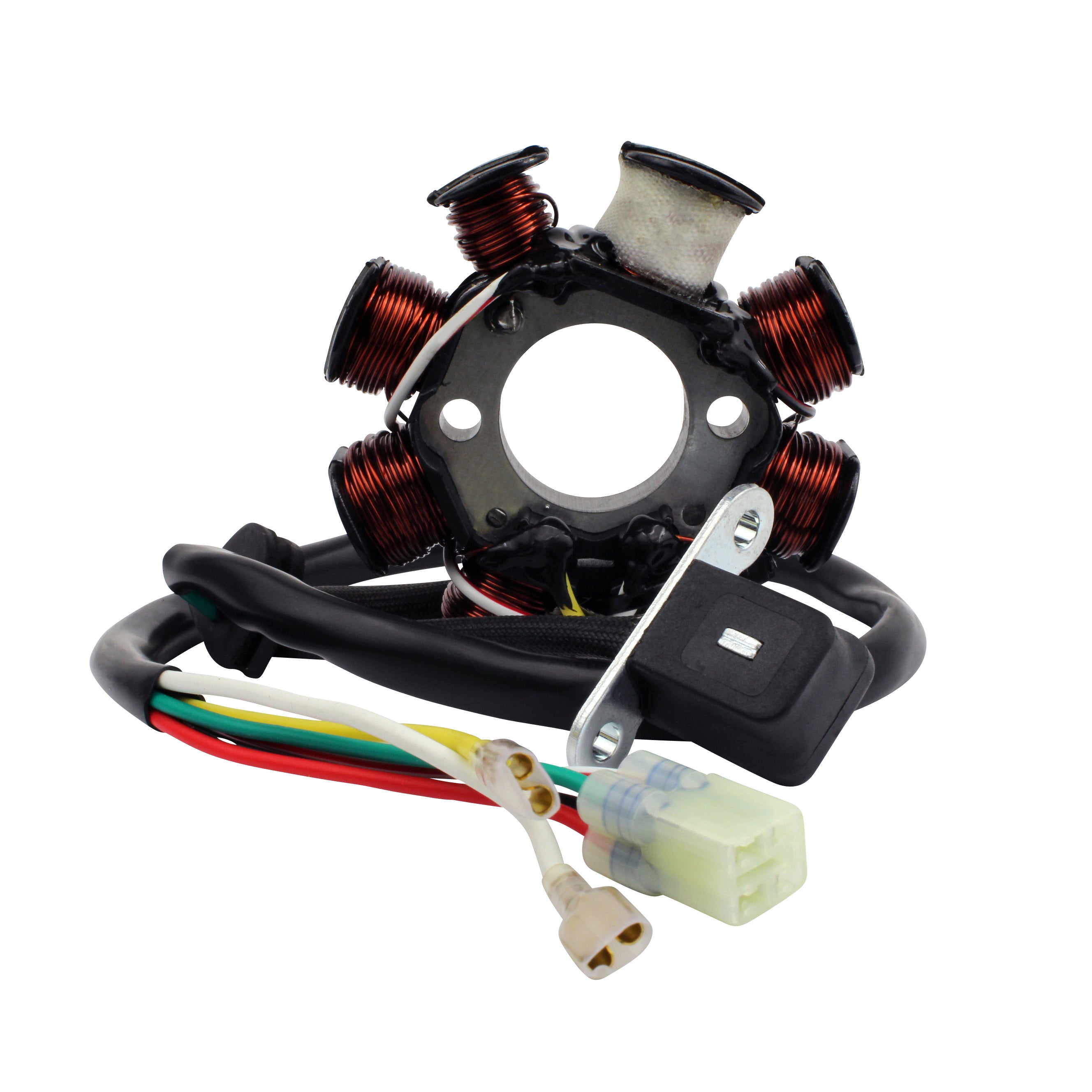

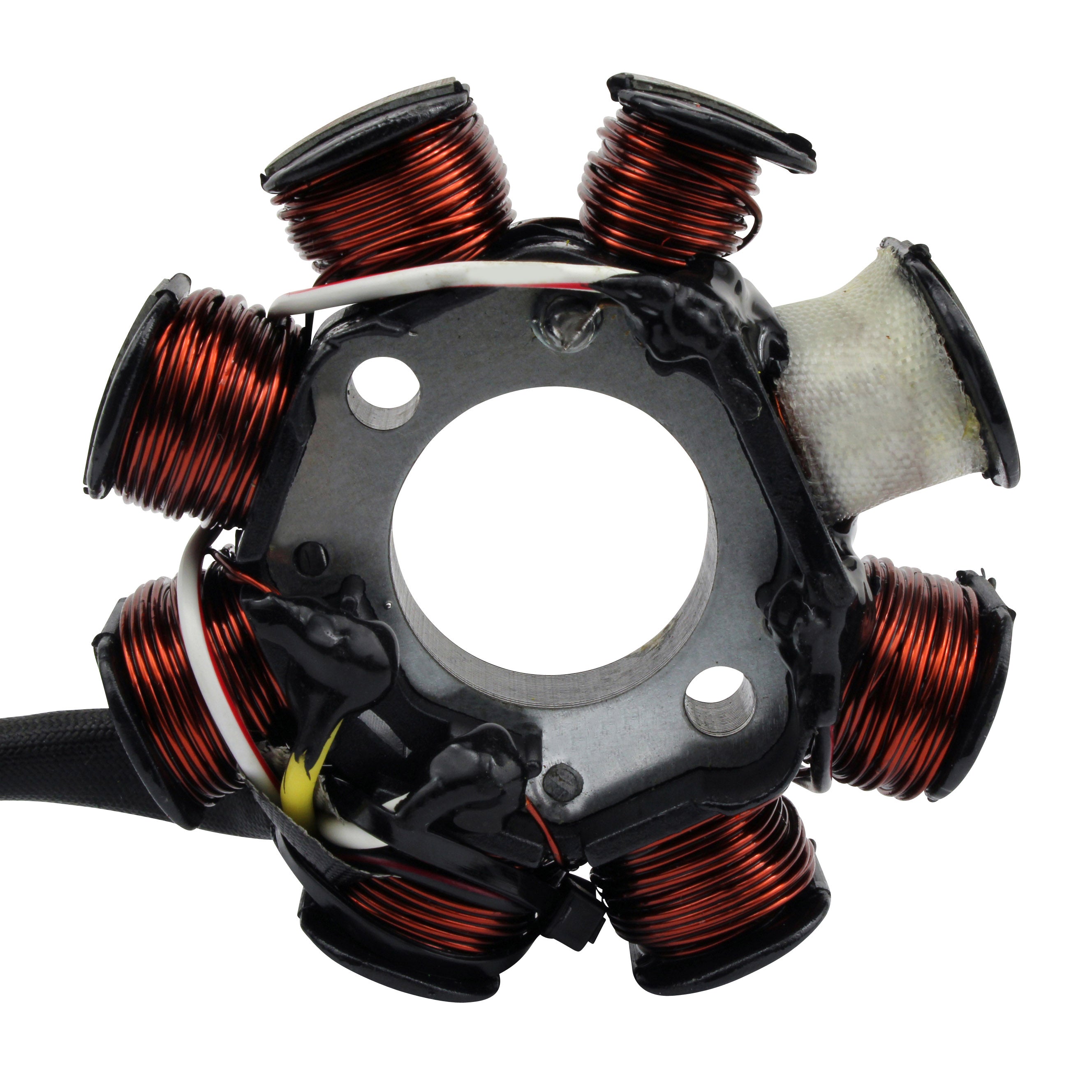

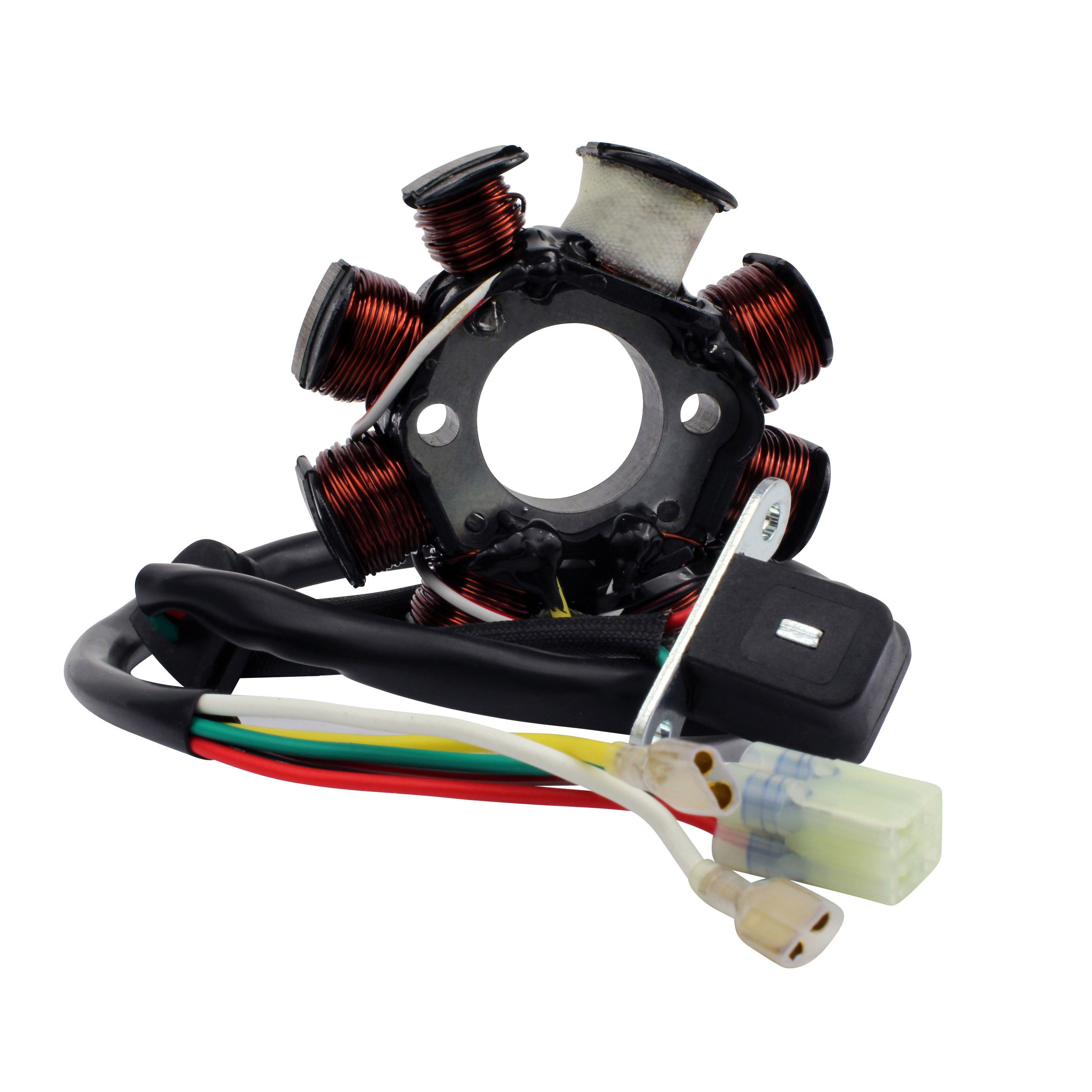

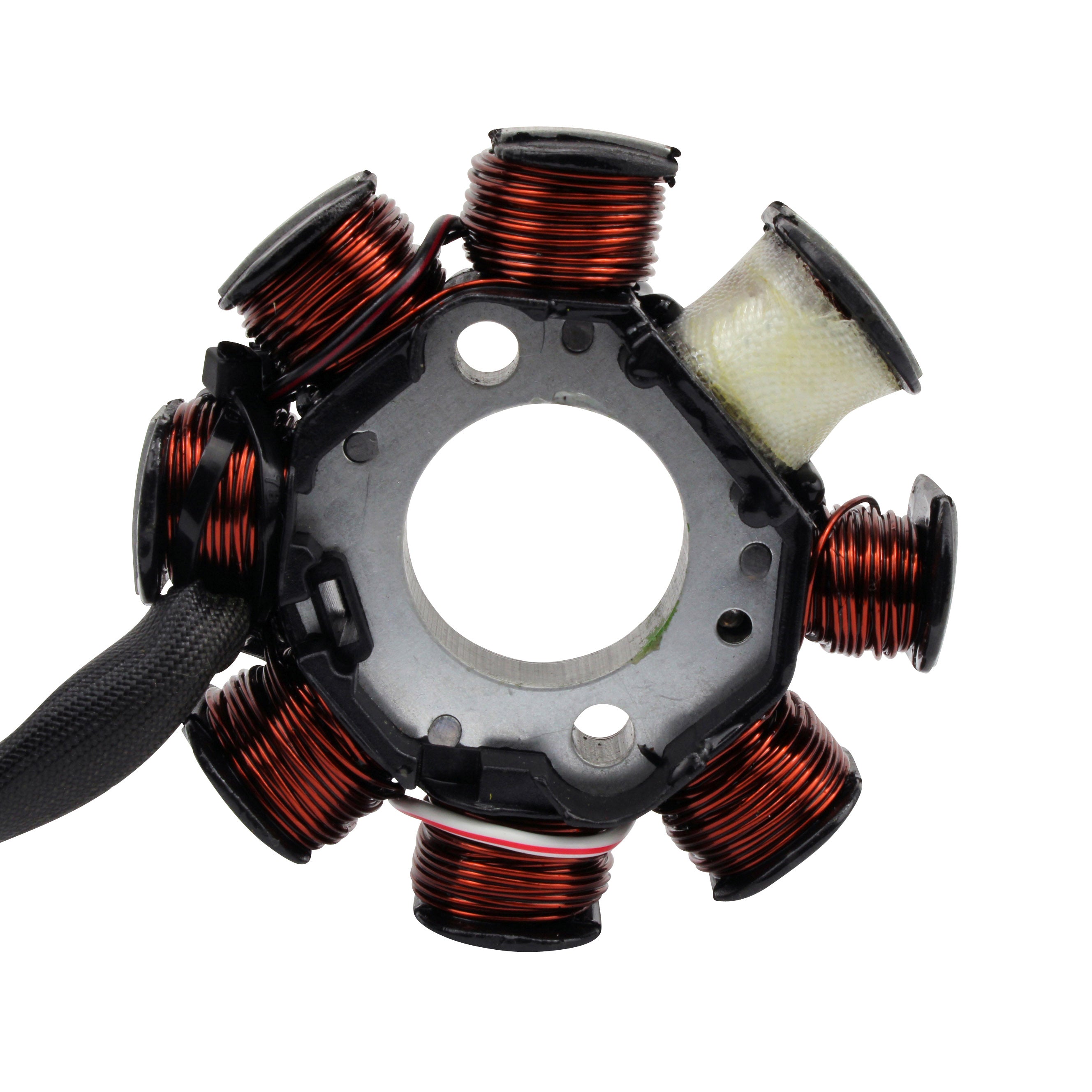

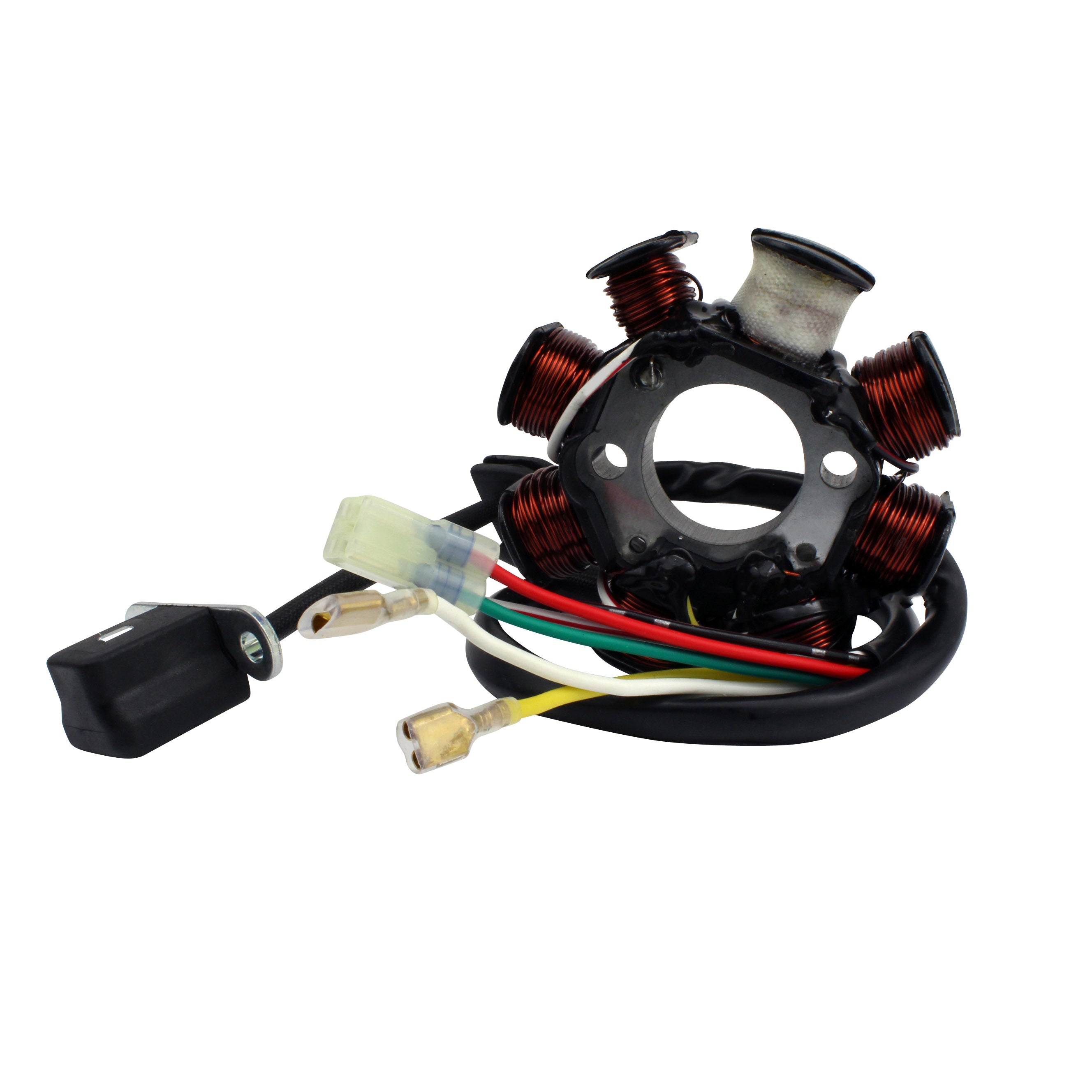

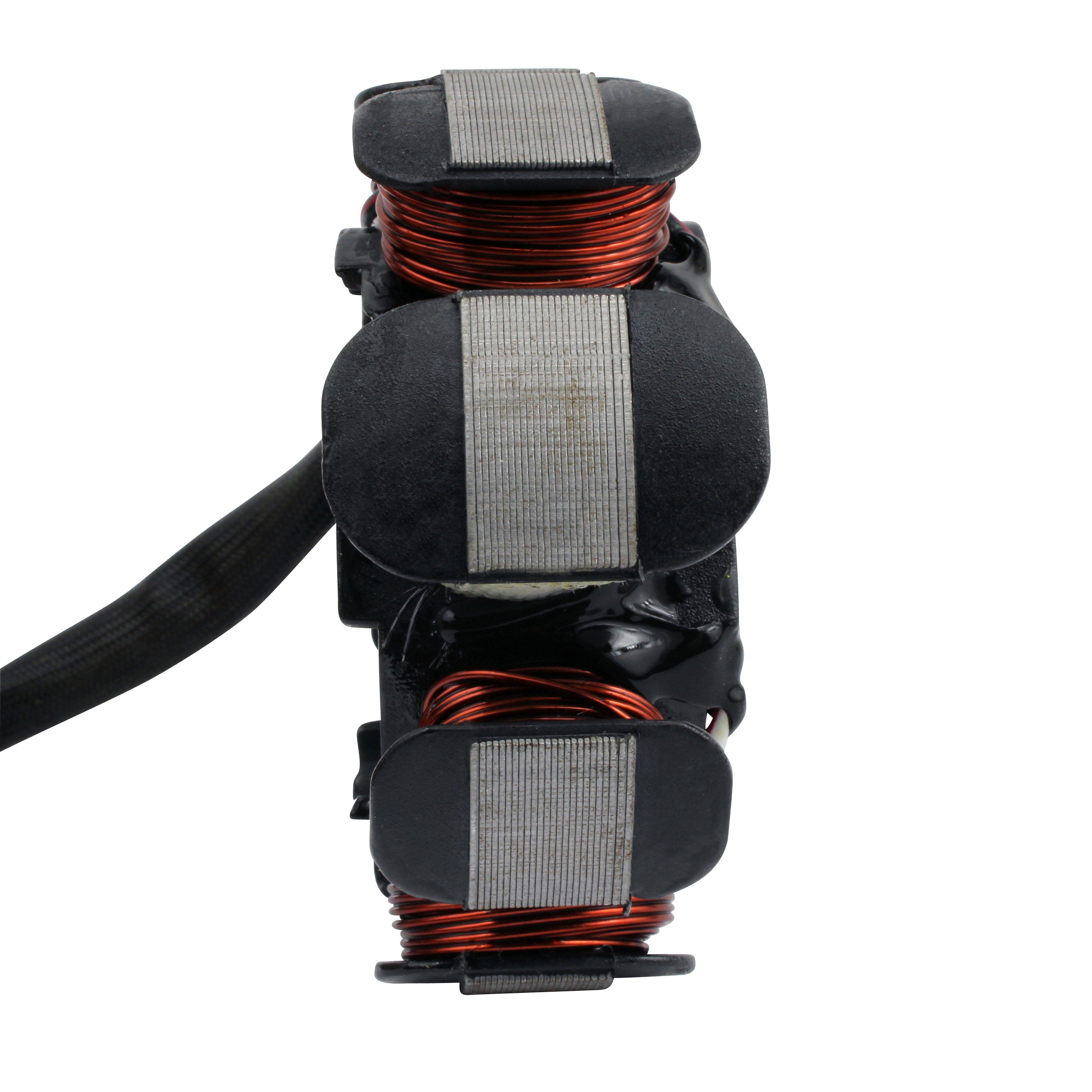

Brand new aftermarket stator

  • Direct replacement to your original unit

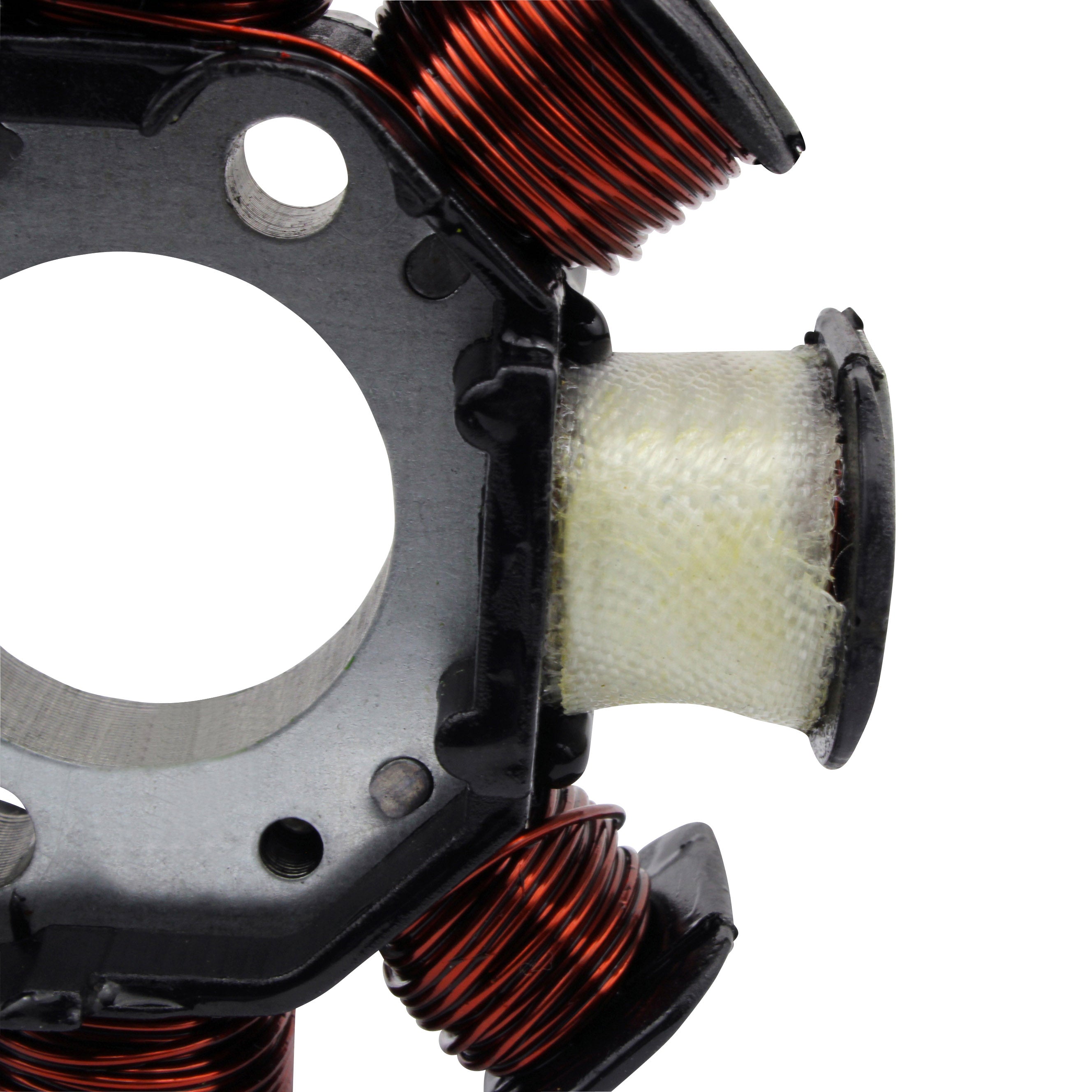

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

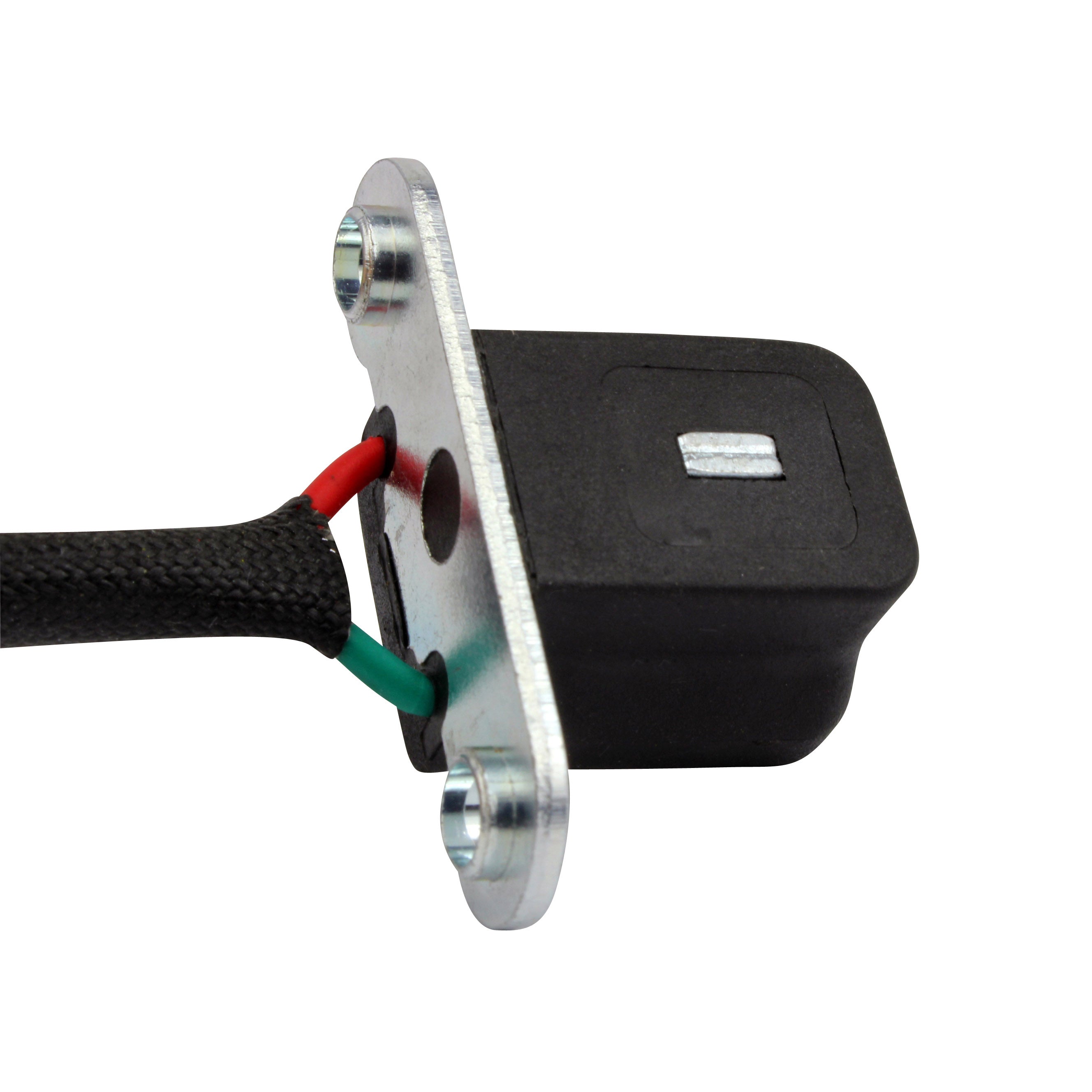

  • Pick up pulsar coil included

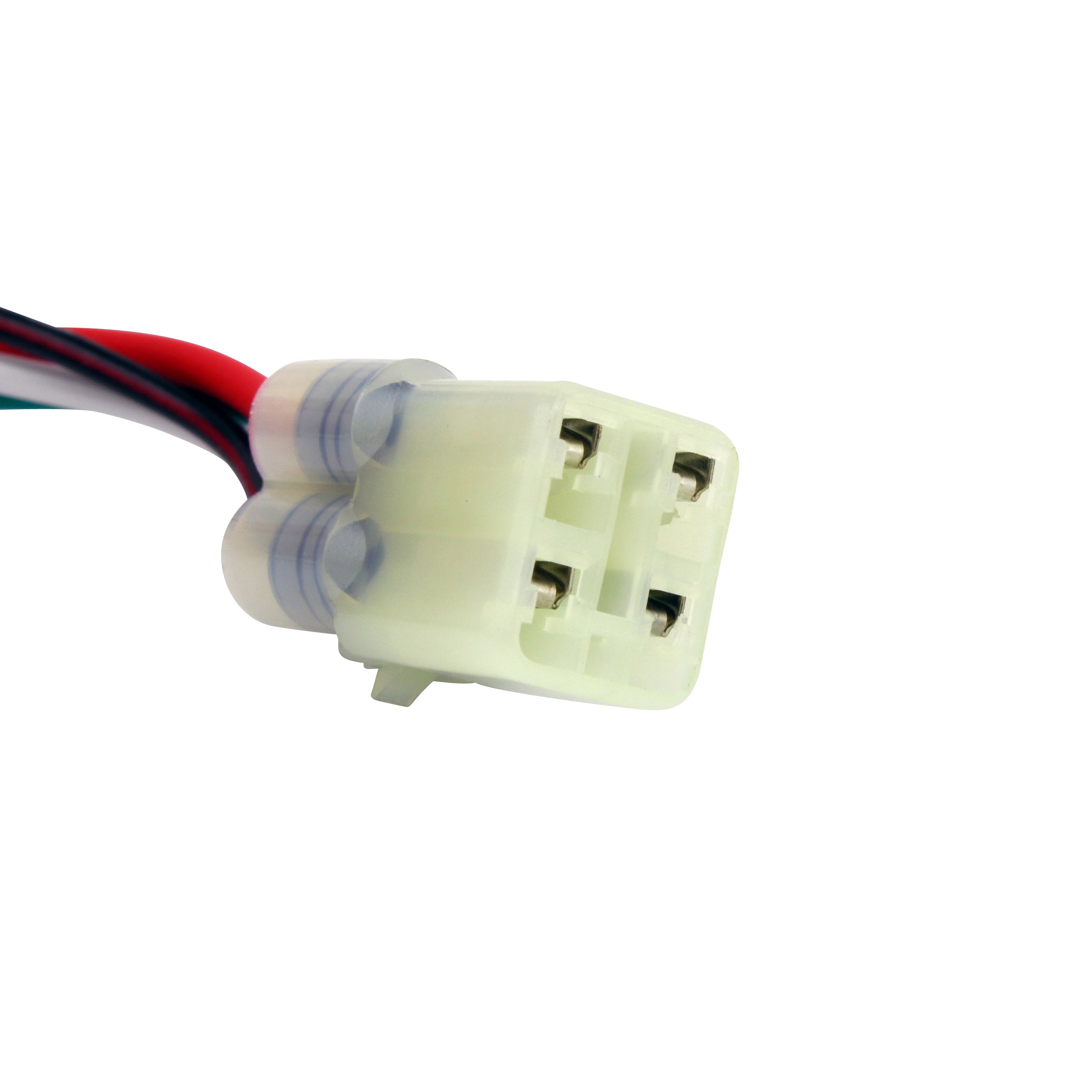

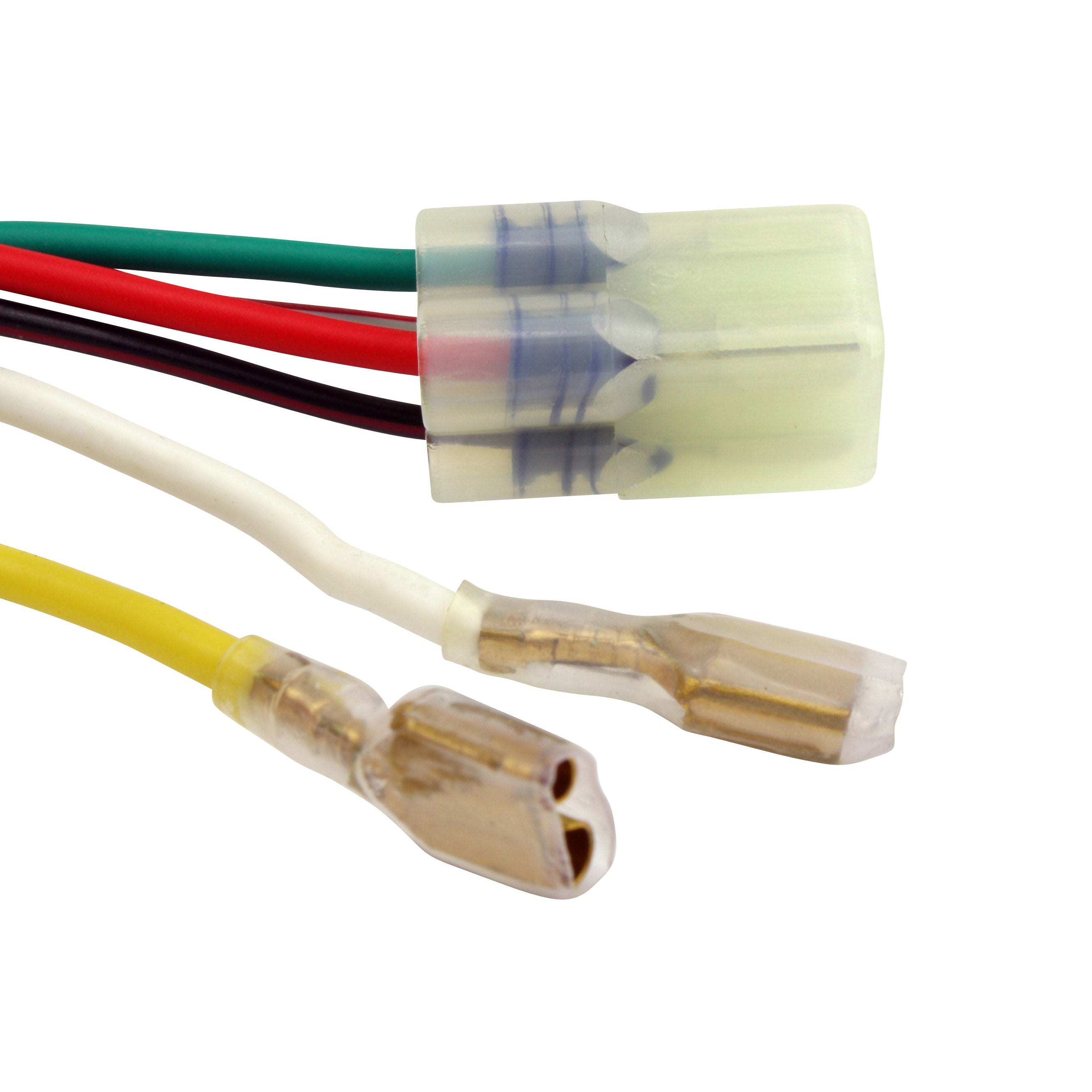

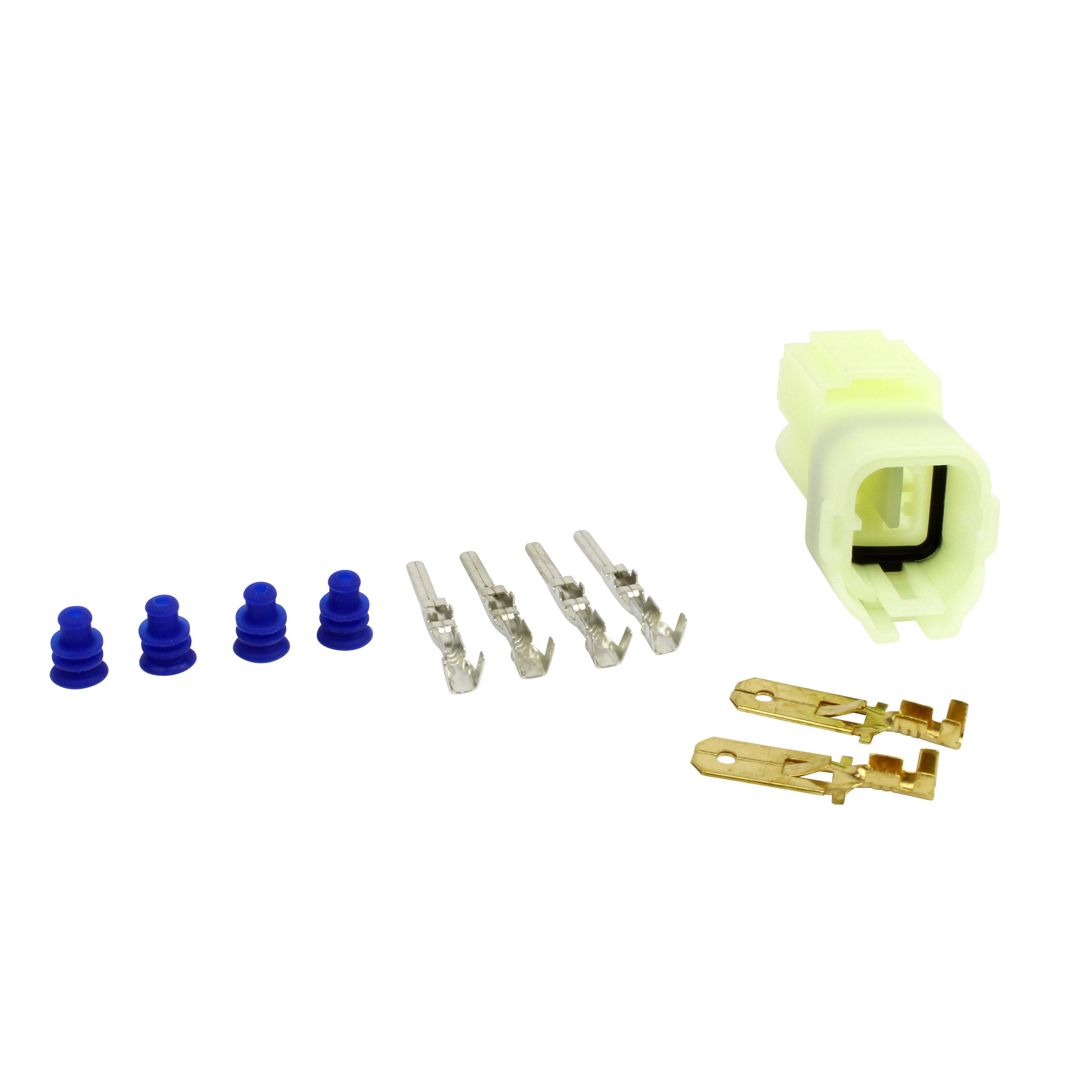

  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Interior diameter: 29 mm
Exterior diameter: 84 mm
Thickness: 13 mm
Length of wires stator to grommet: 70 mm
Length of wires grommet to plug: 420 mm
Length of pickup coil's wire to grommet: 45 mm

Other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 6
Number of poles: 8
Wire to wire resistance:
Alternator: White to Yellow = 0.4 ohms +-20%
Pickup: Red to Green = 101.7 ohms +-20%
Source: Black/Red to Red/White = 15.1 ohms +-20%

Interchange Part Nº

  • 54839204000

Installation

Before installing your new stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
