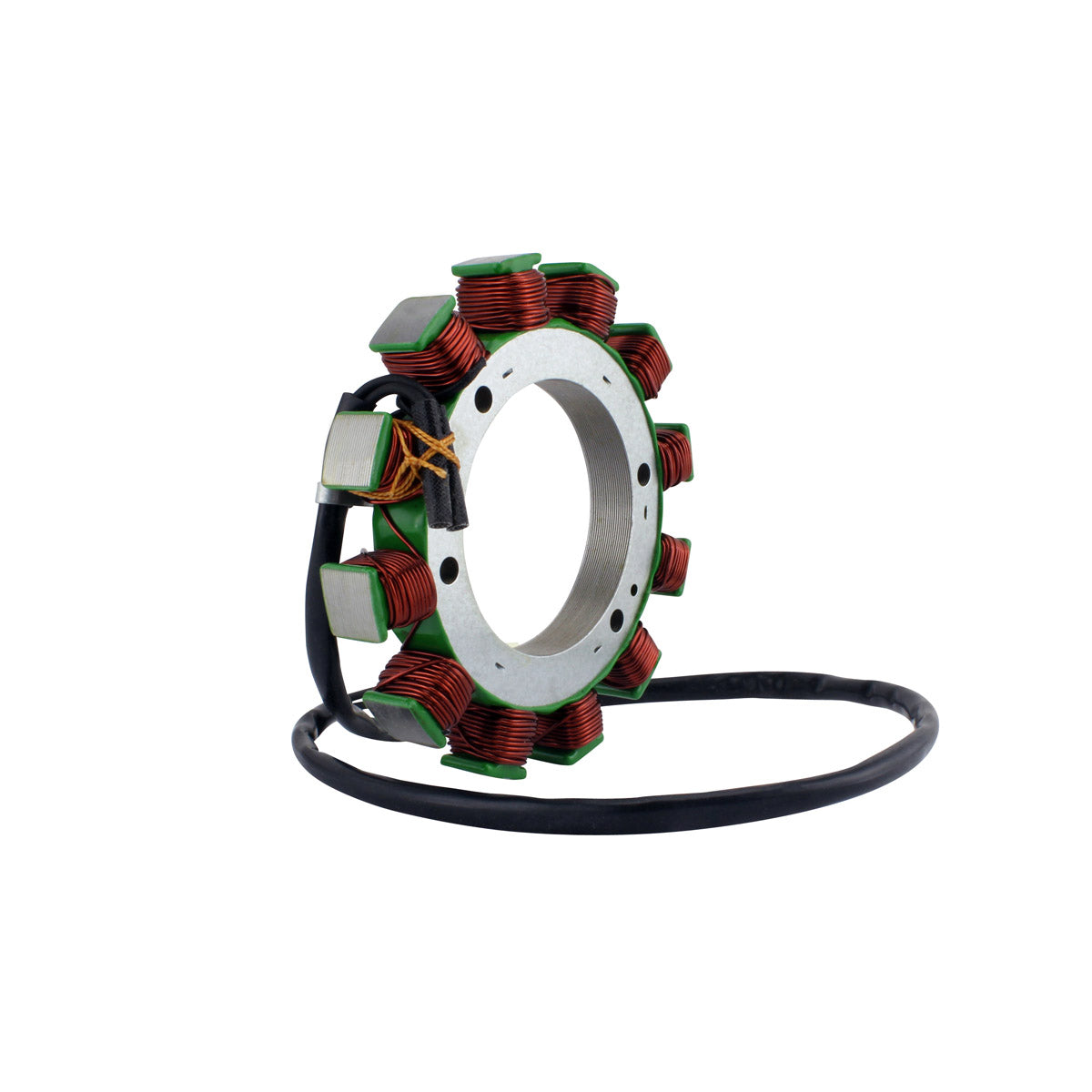

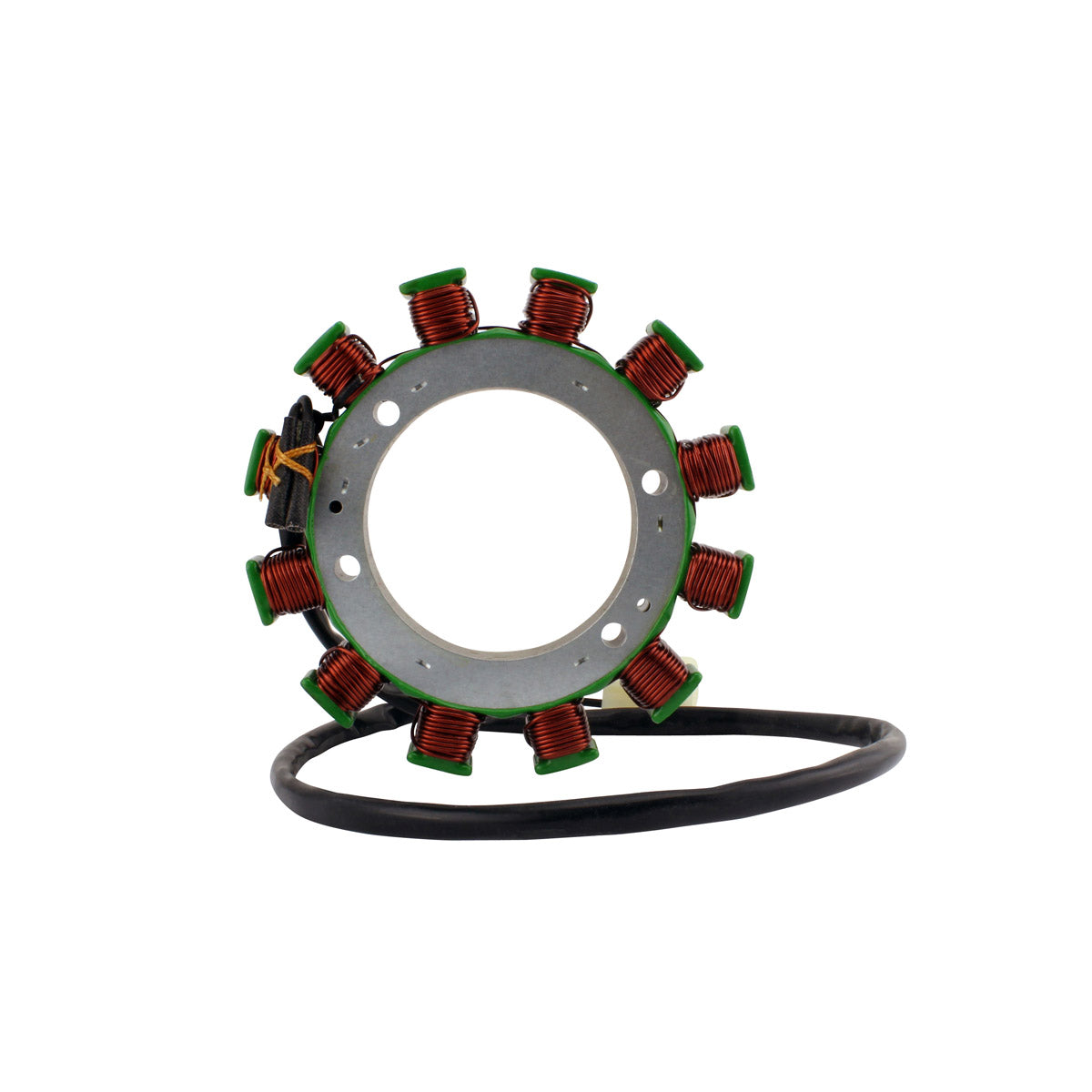

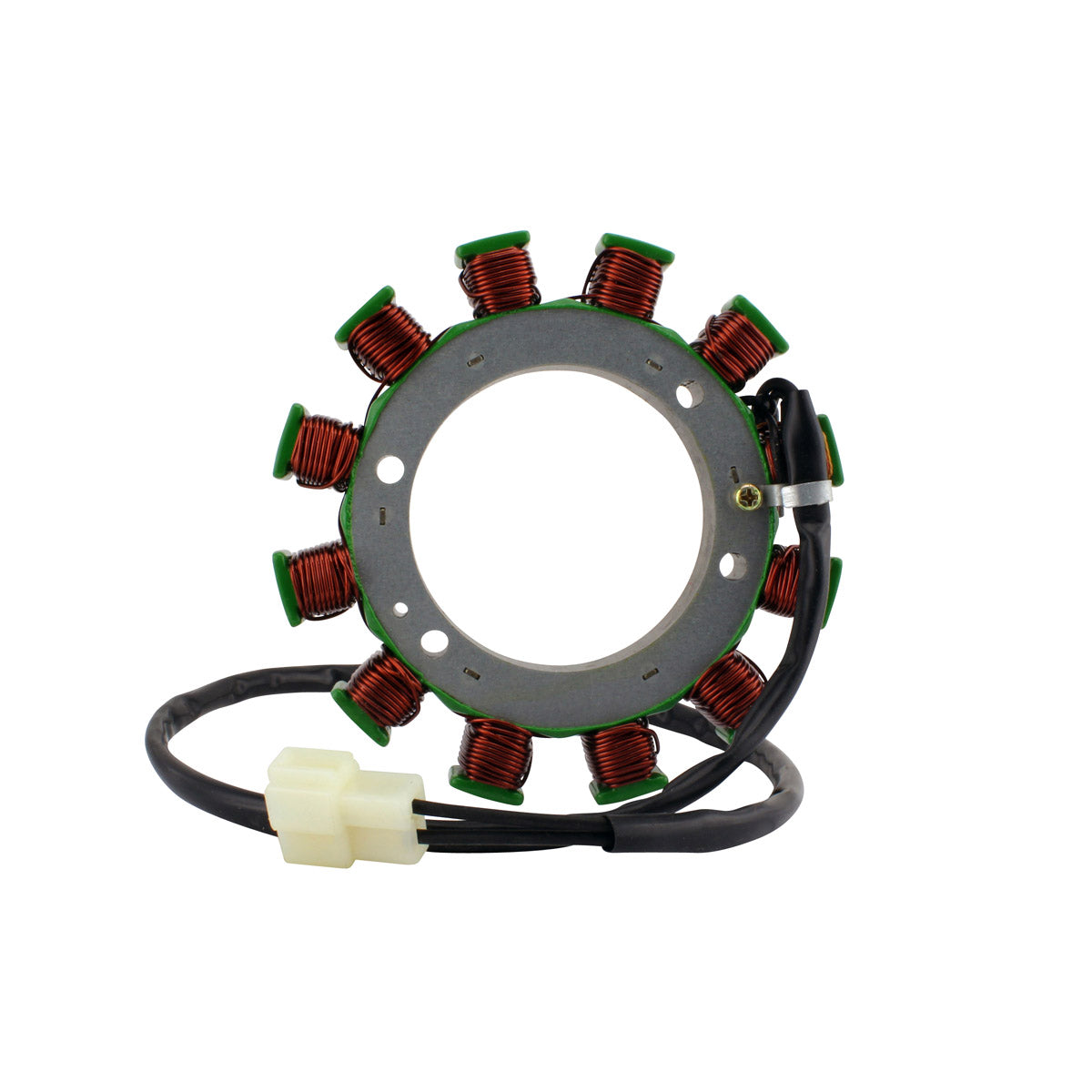

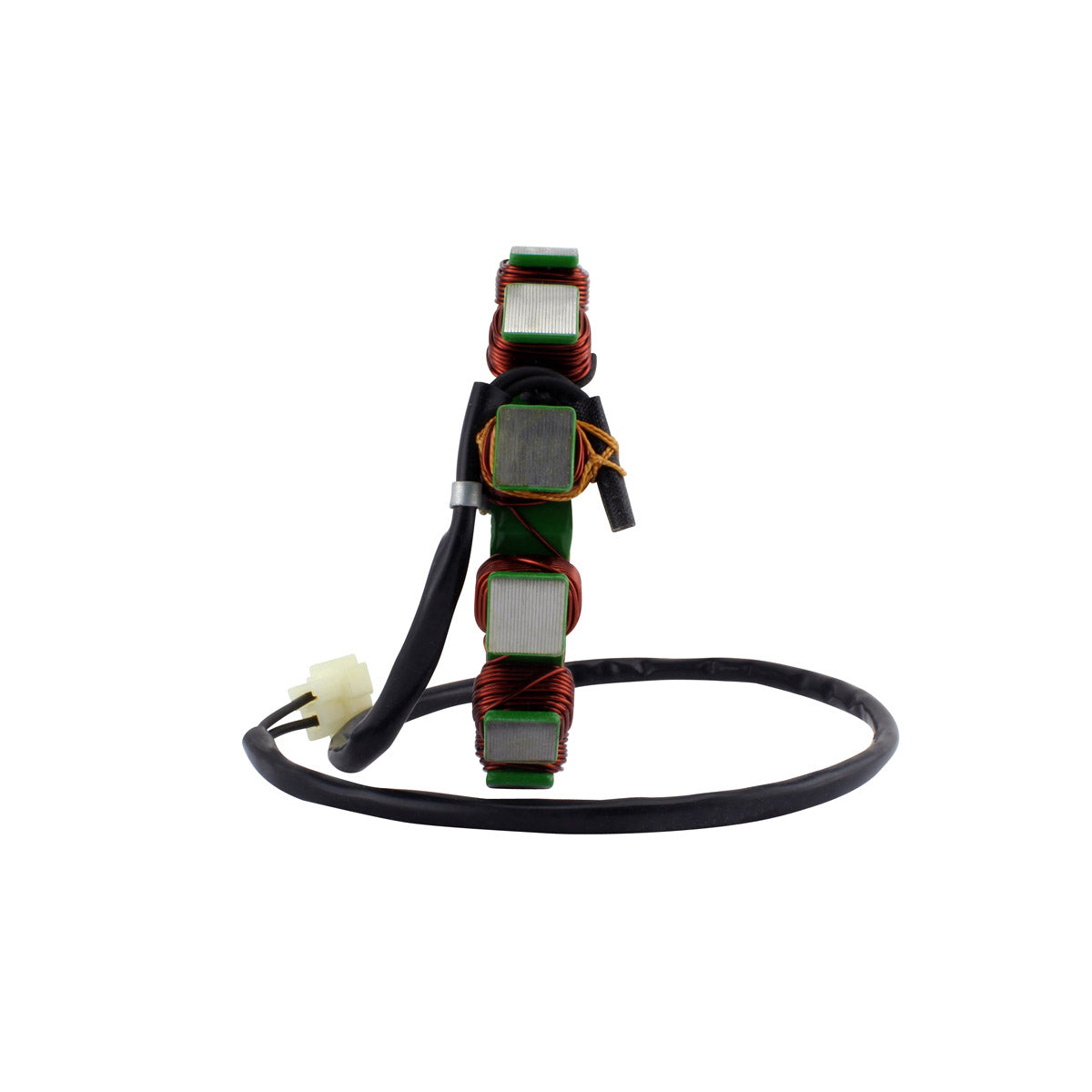

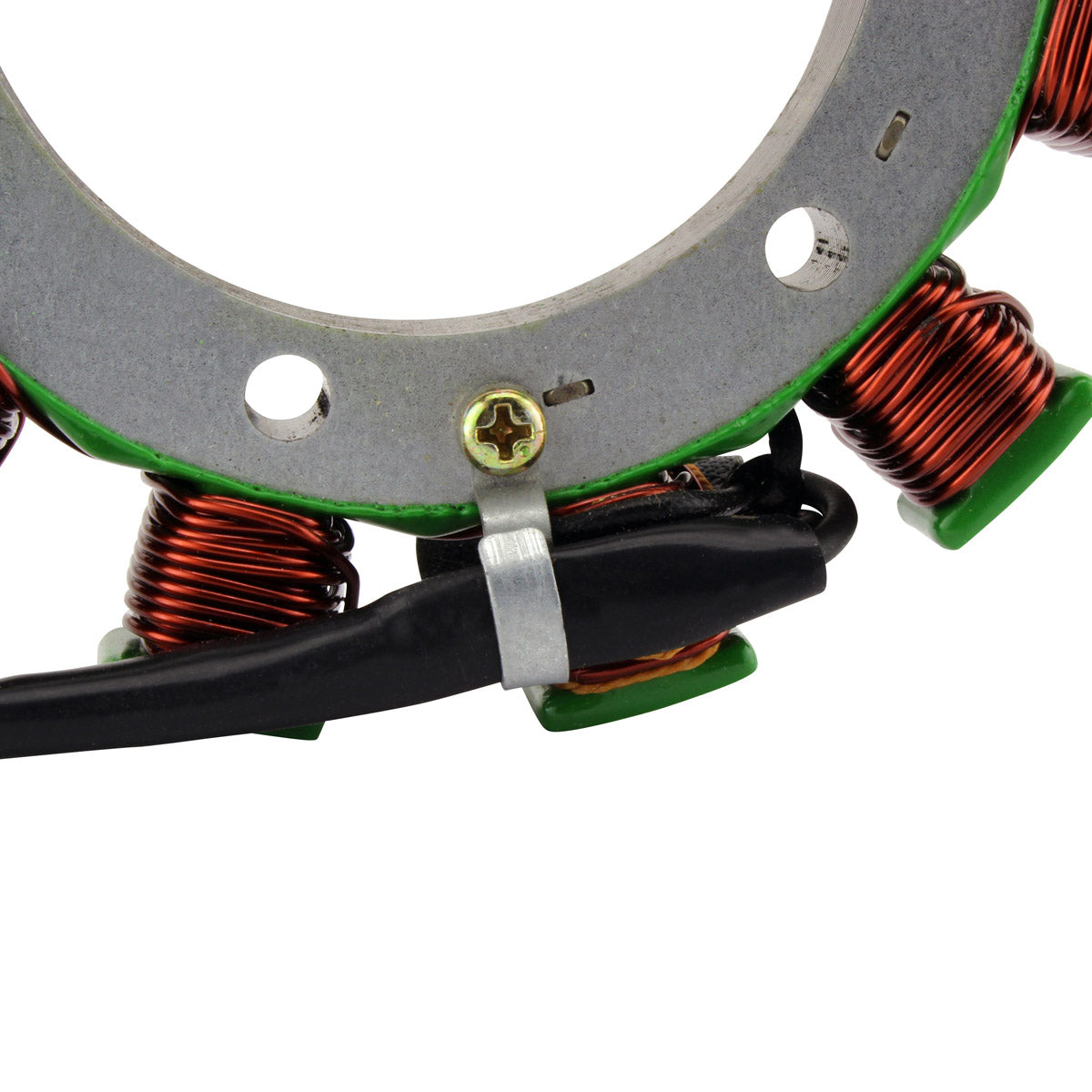

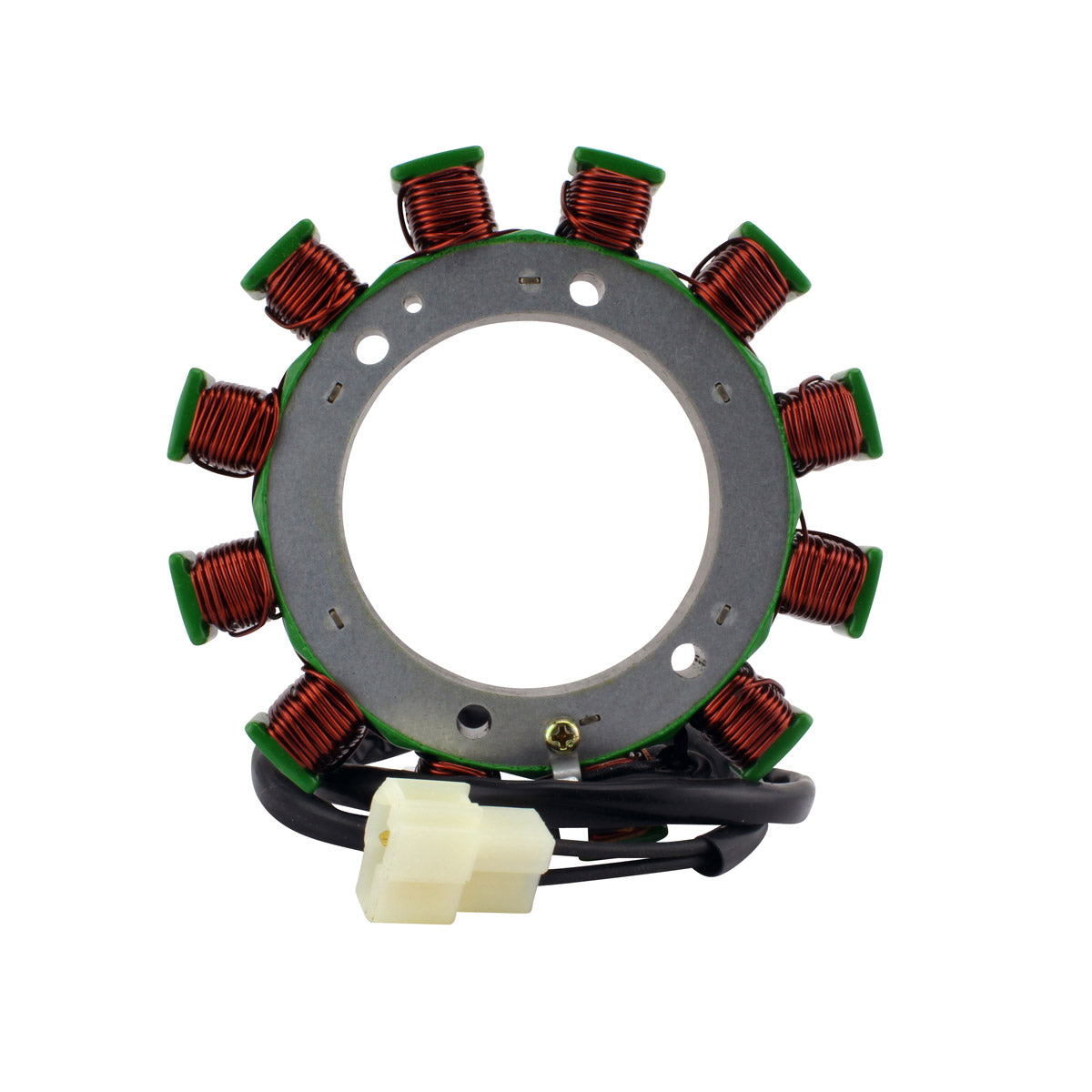

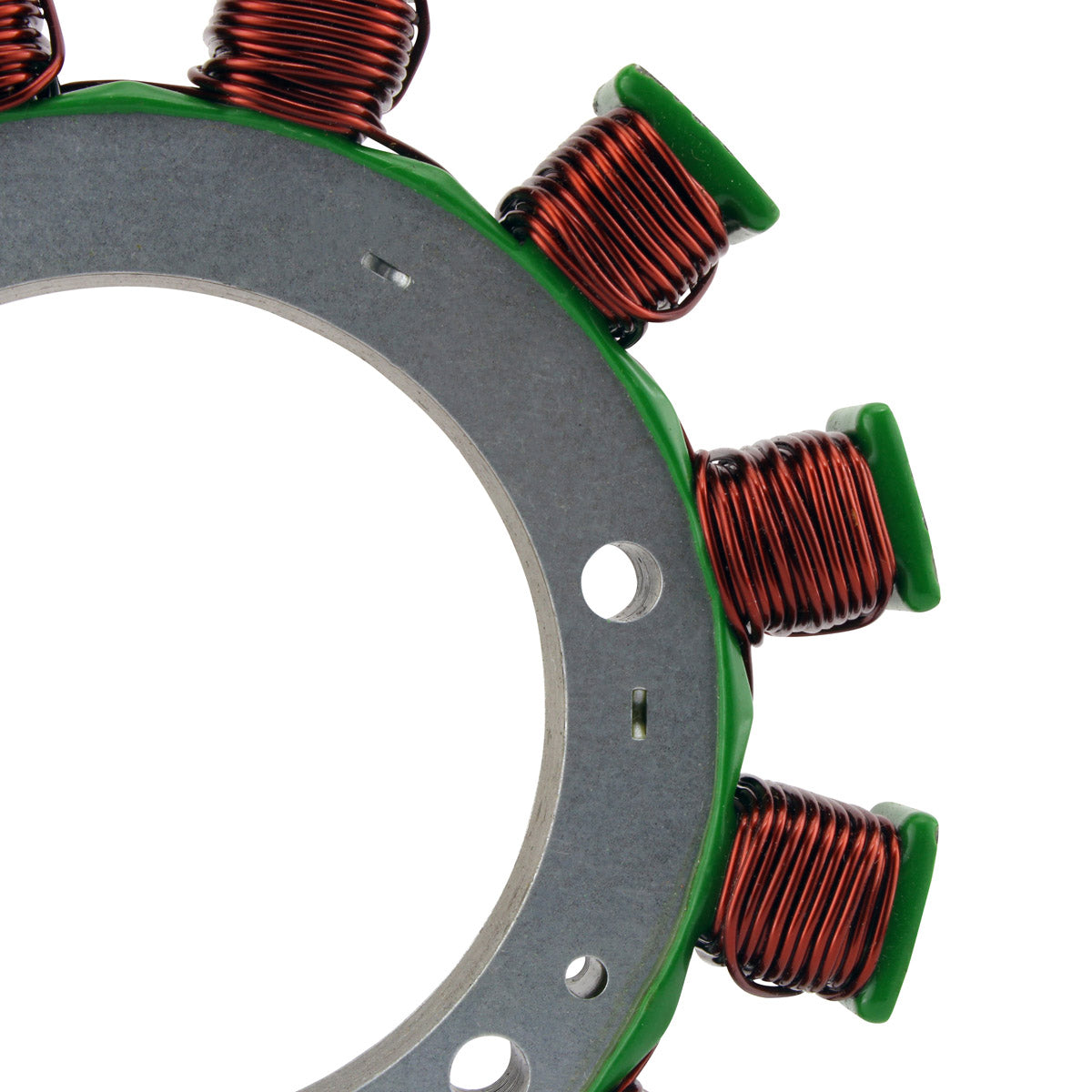

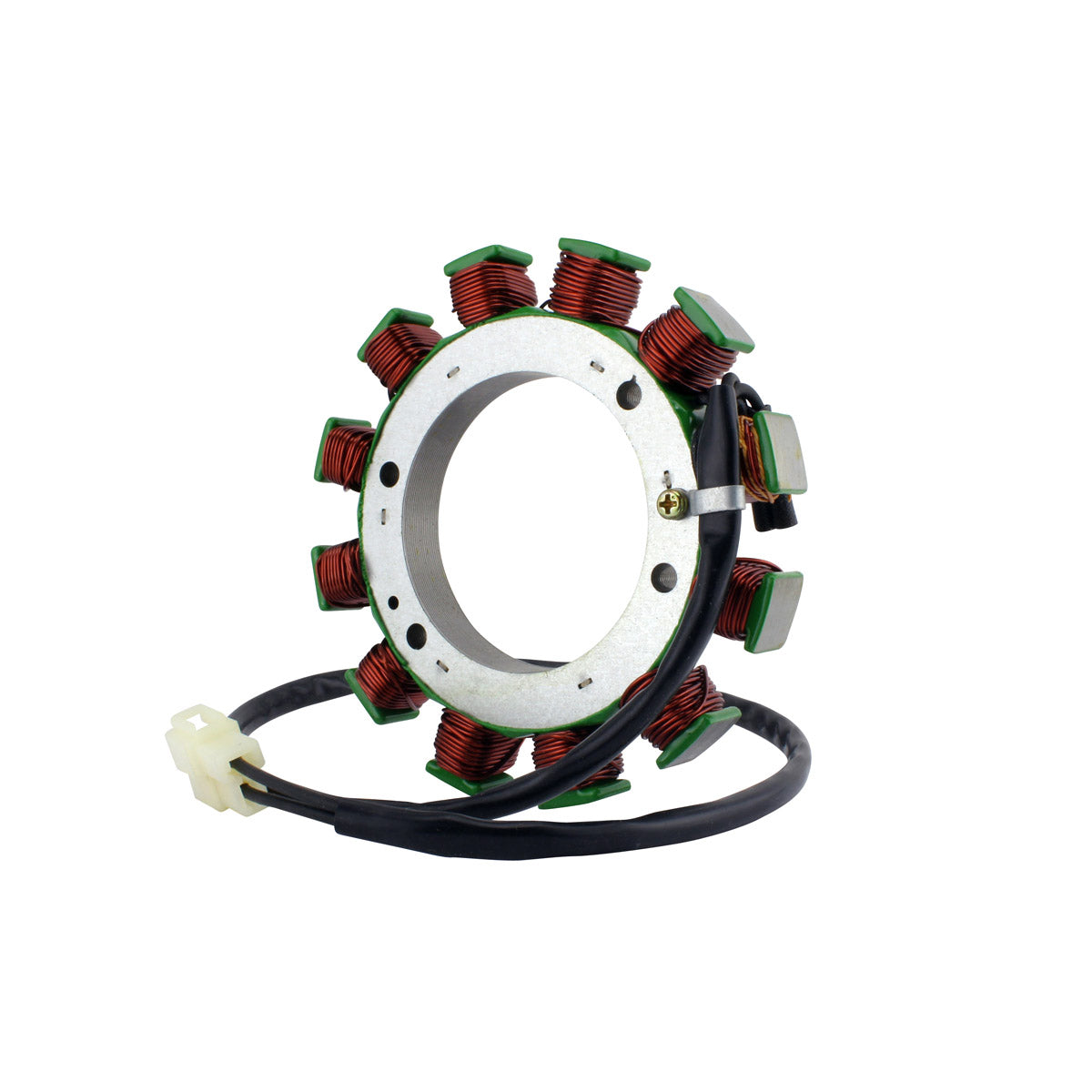

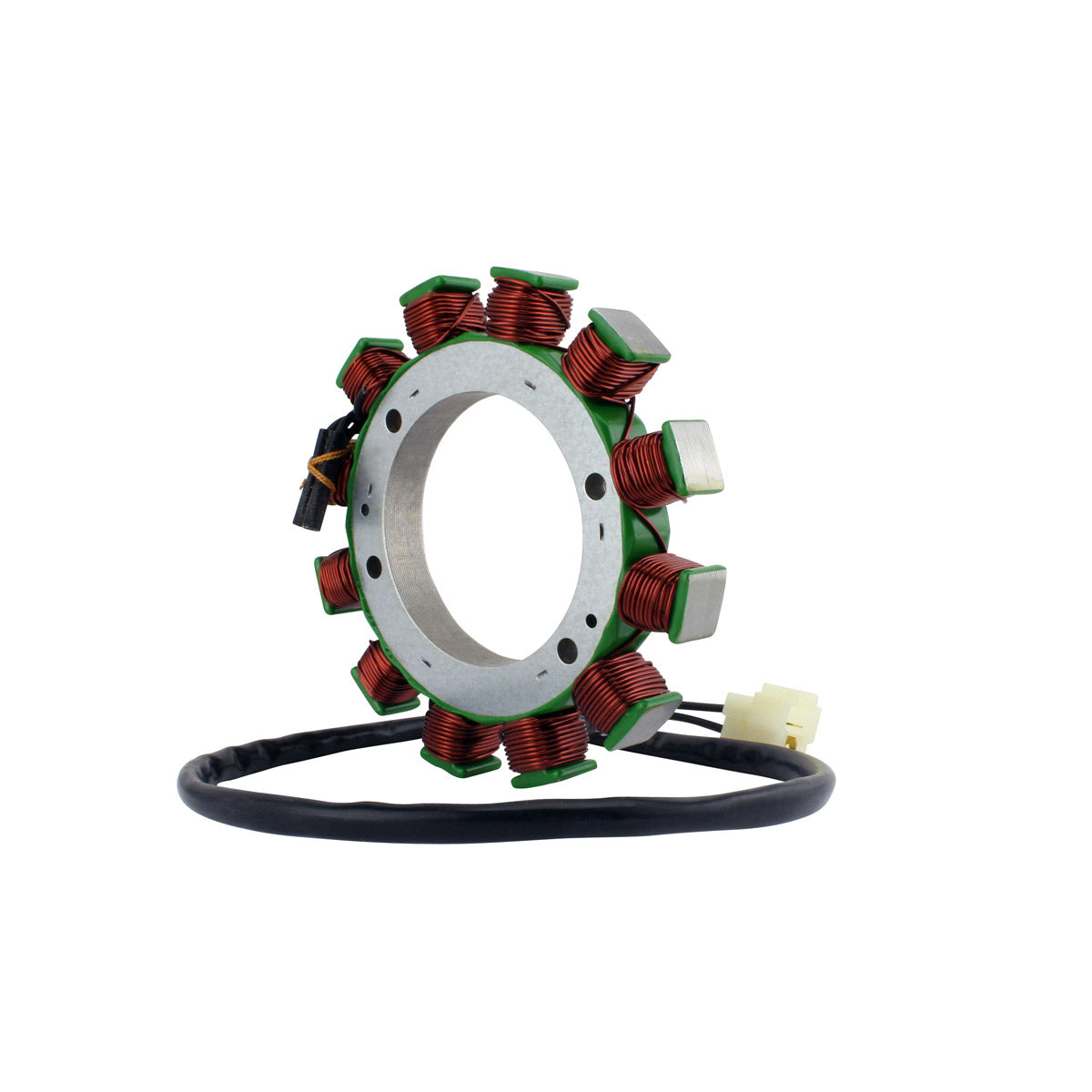

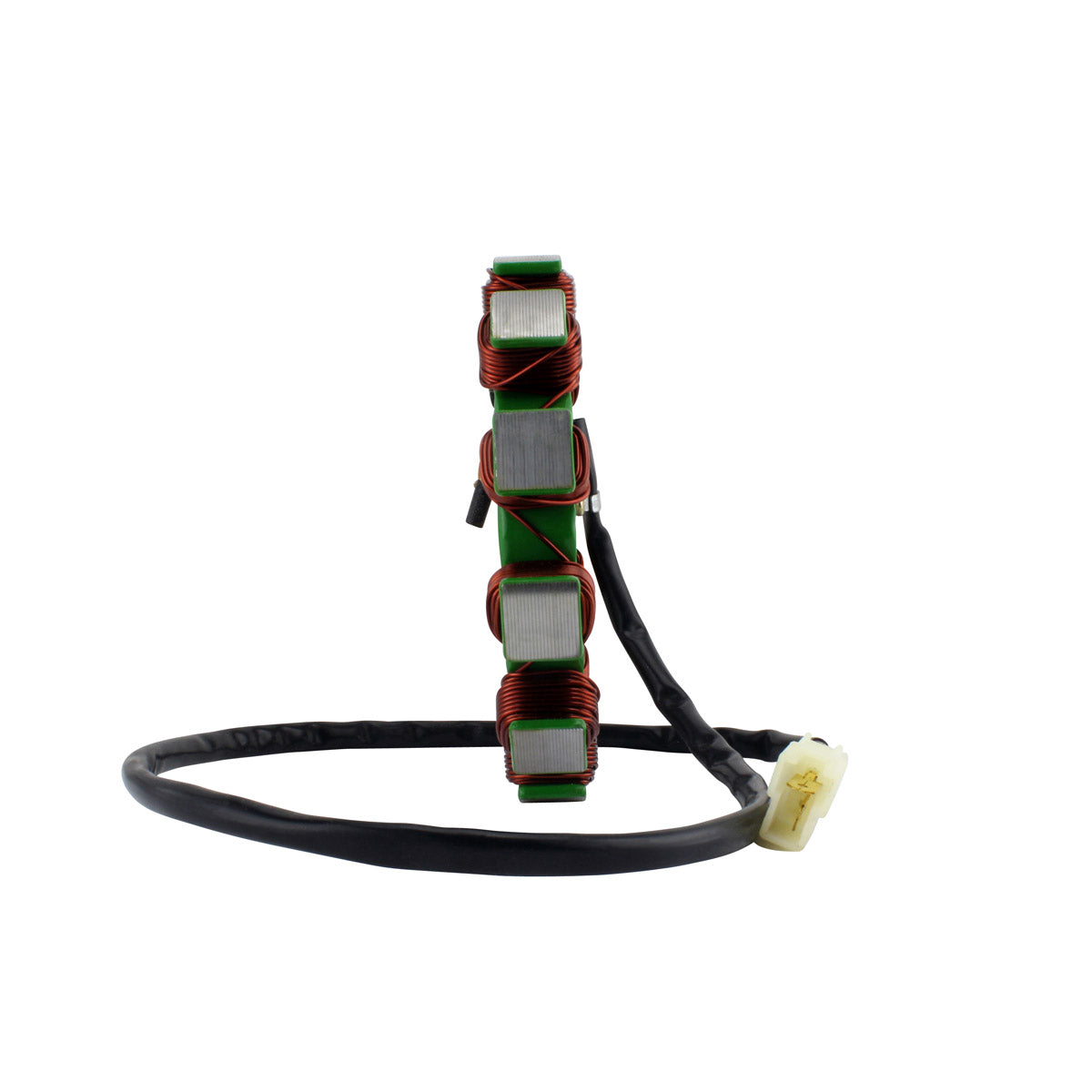

Stator for Kawasaki KAF 620 Mule 2500 / 2510 / 2520 1993-2000 OEM Repl.# 59031-2103

RMSTATOR
SKU: RMS010-108102
In Stock
RMSTATOR

Stator for Kawasaki KAF 620 Mule 2500 / 2510 / 2520 1993-2000 OEM Repl.# 59031-2103

$196.89
This product fits your
Close
FITMENT WARNING:
This product does not fit your
Close
This product is ride specific
Close
Shop By Vehicle

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Read more
Stator for Kawasaki KAF 620 Mule 2500 / 2510 / 2520 1993-2000 OEM Repl.# 59031-2103
Stator for Kawasaki KAF 620 Mule 2500 / 2510 / 2520 1993-2000 OEM Repl.# 59031-2103
$196.89

Details

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

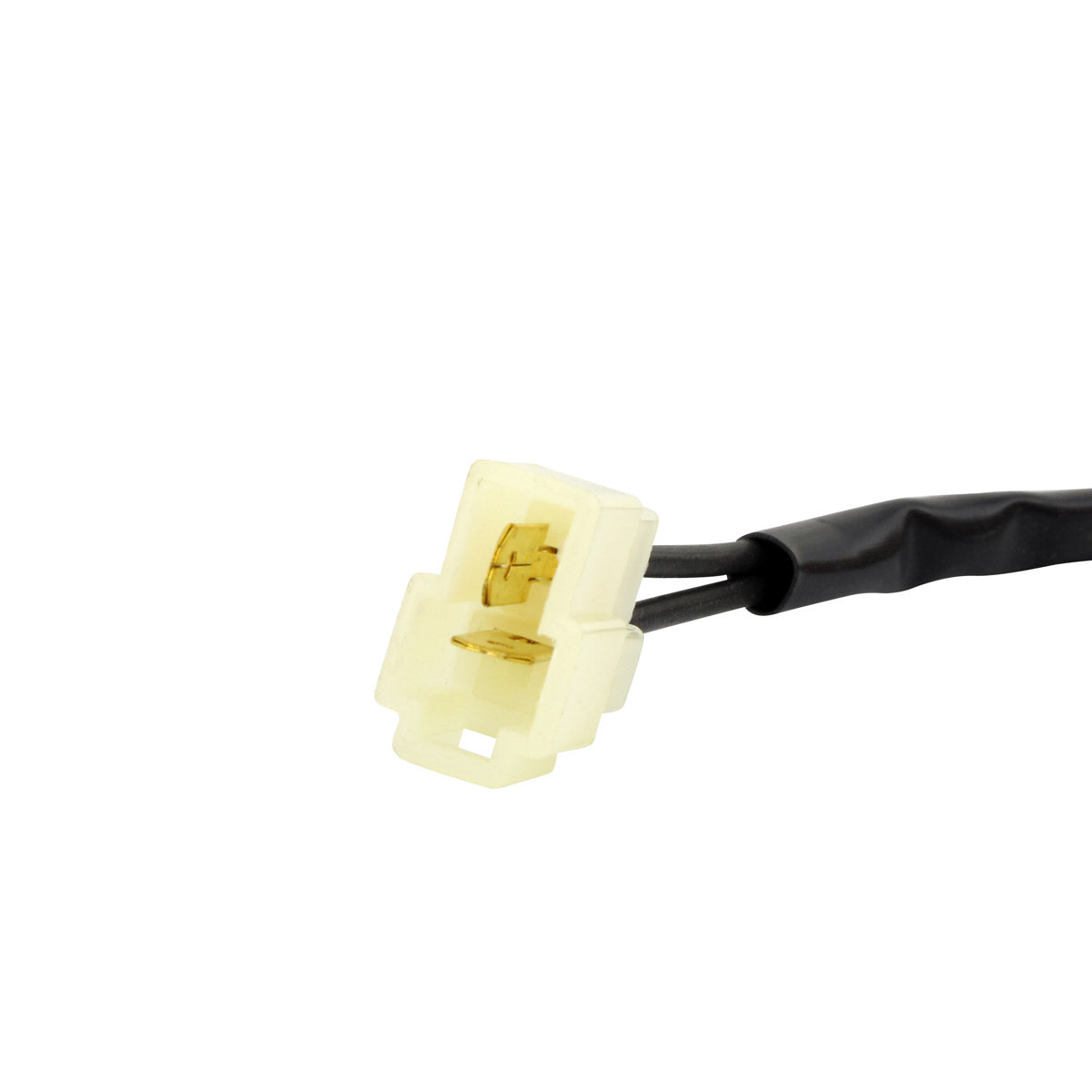

  • Connectors included
  • All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

Dimensions:
Interior diameter: 70 mm
Exterior diameter: 133 mm
Thickness: 15 mm
Length of wires stator to plug: 640 mm

Other specifications:
Number of wires: 2

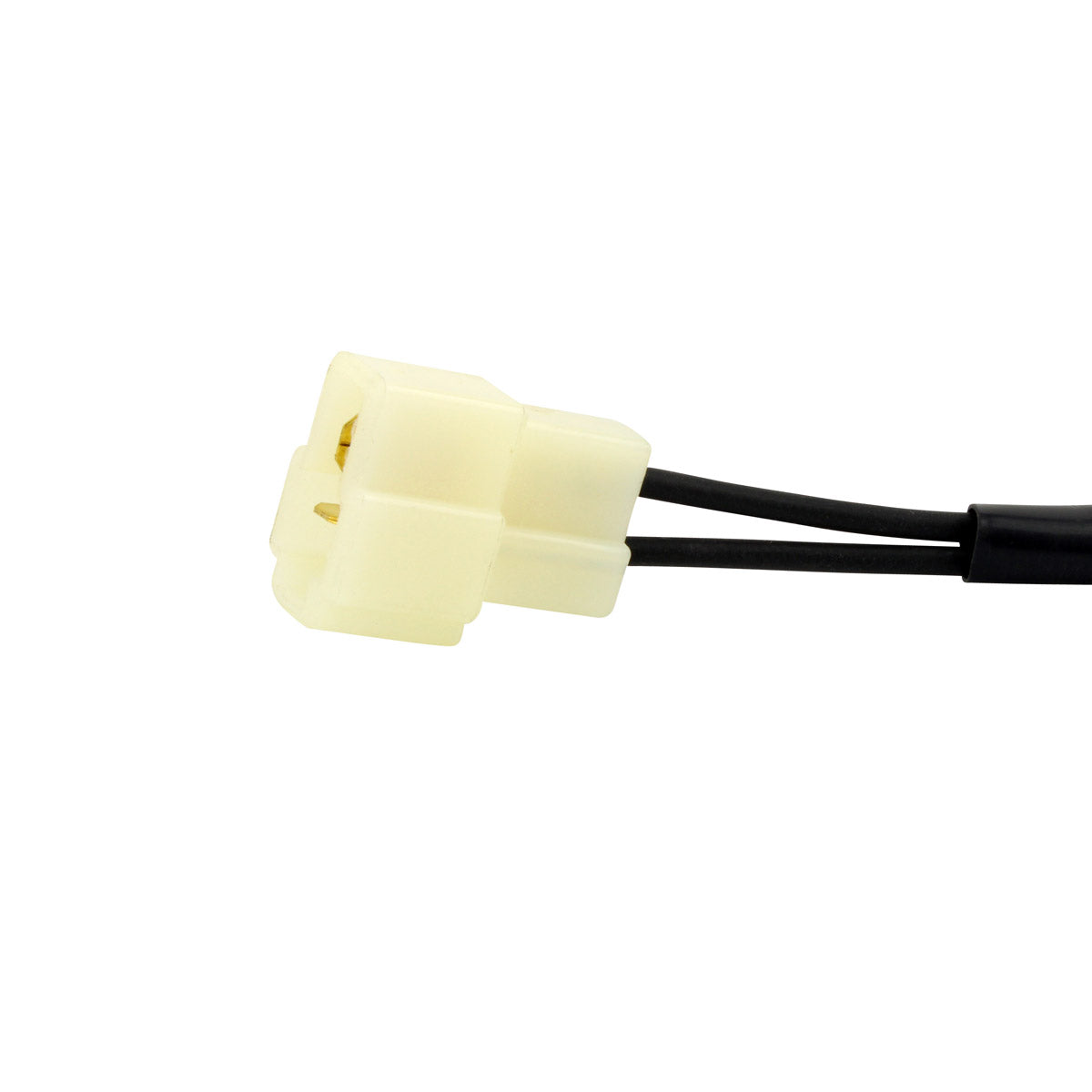

Number of plugs: 1
Number of pins: 2
Number of poles: 12
Wire to wire resistance:
Alternator: Black to Black = 0.4 ohms +-20%

Interchange Part Nº

  • 59031-2103

Installation

Before installing your new stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
