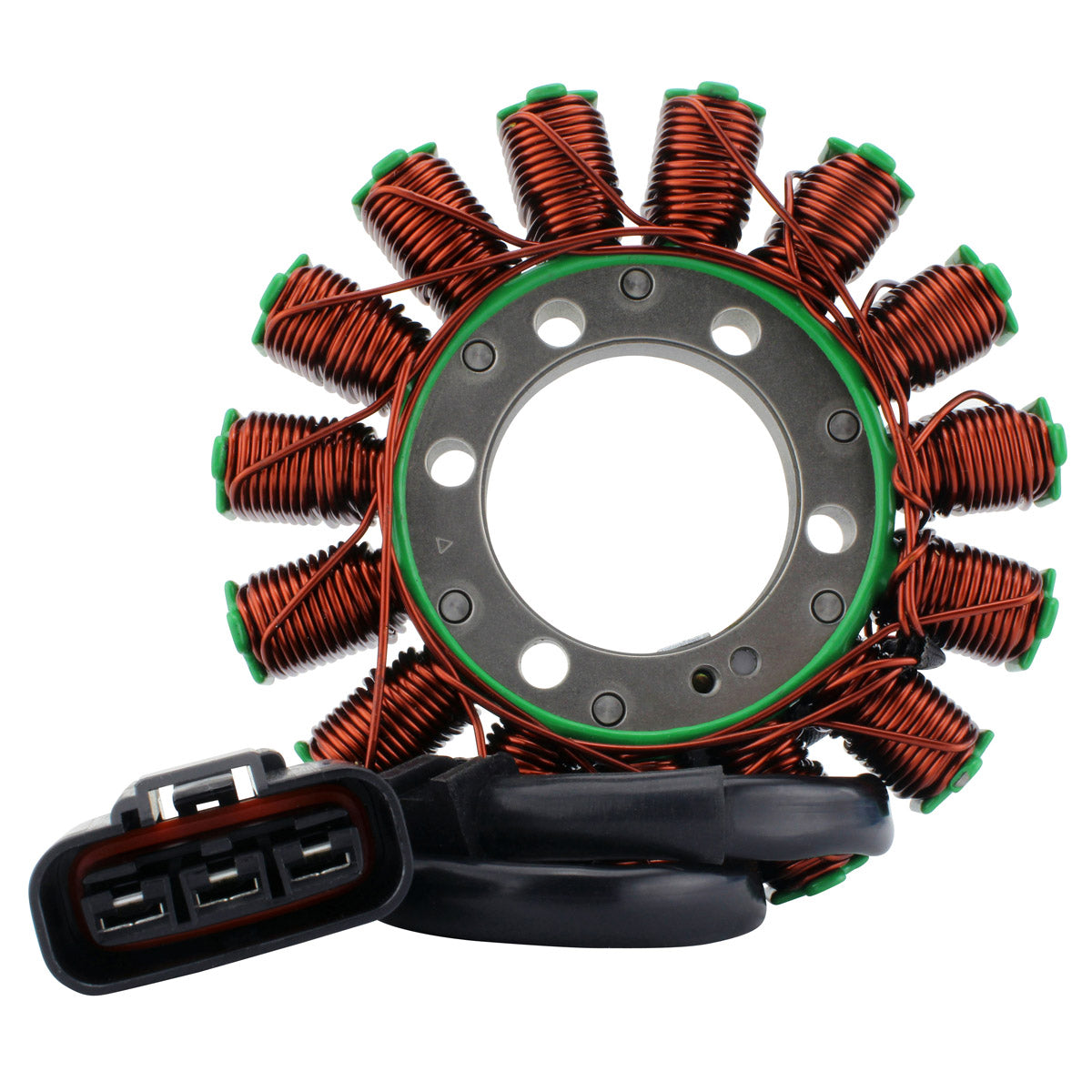

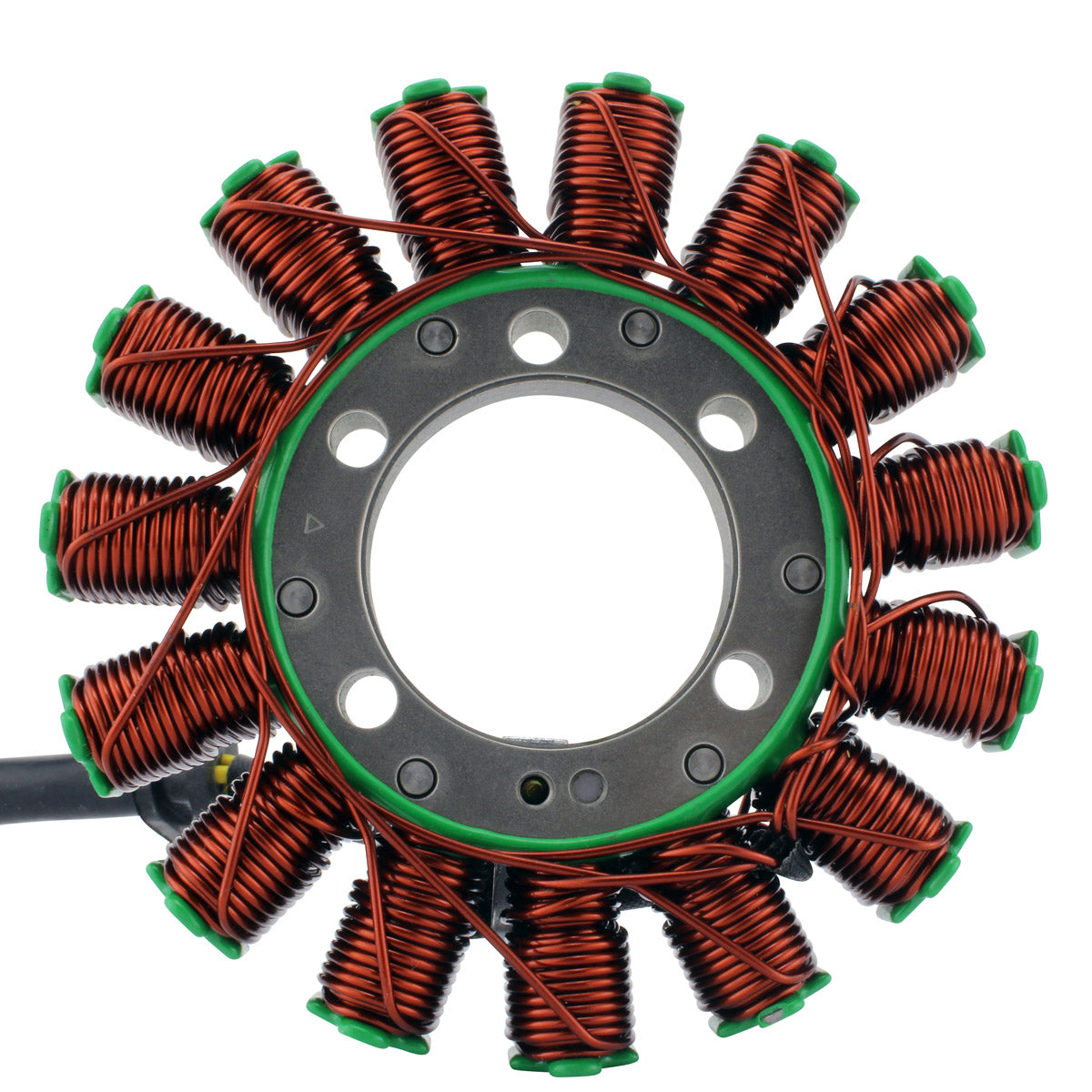

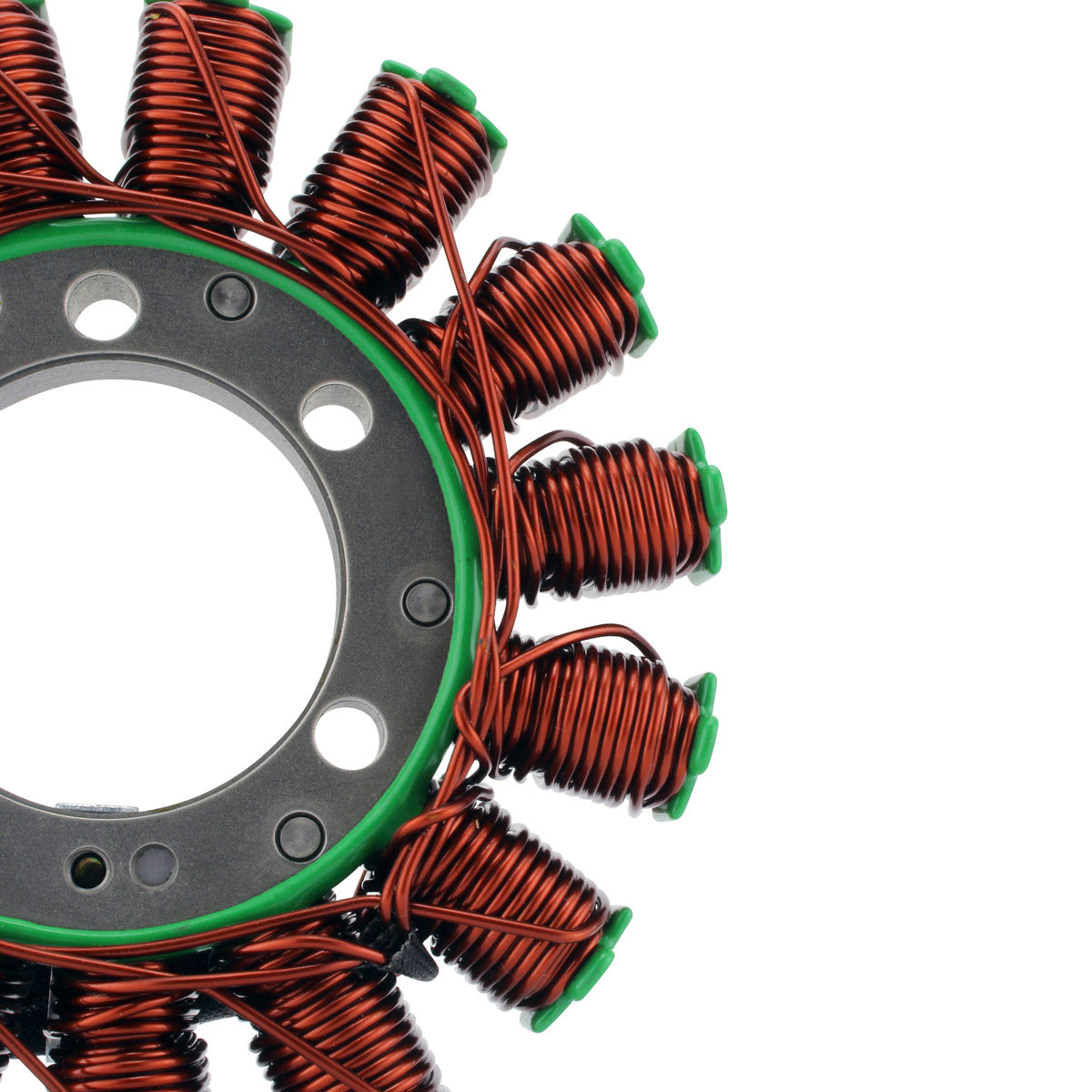

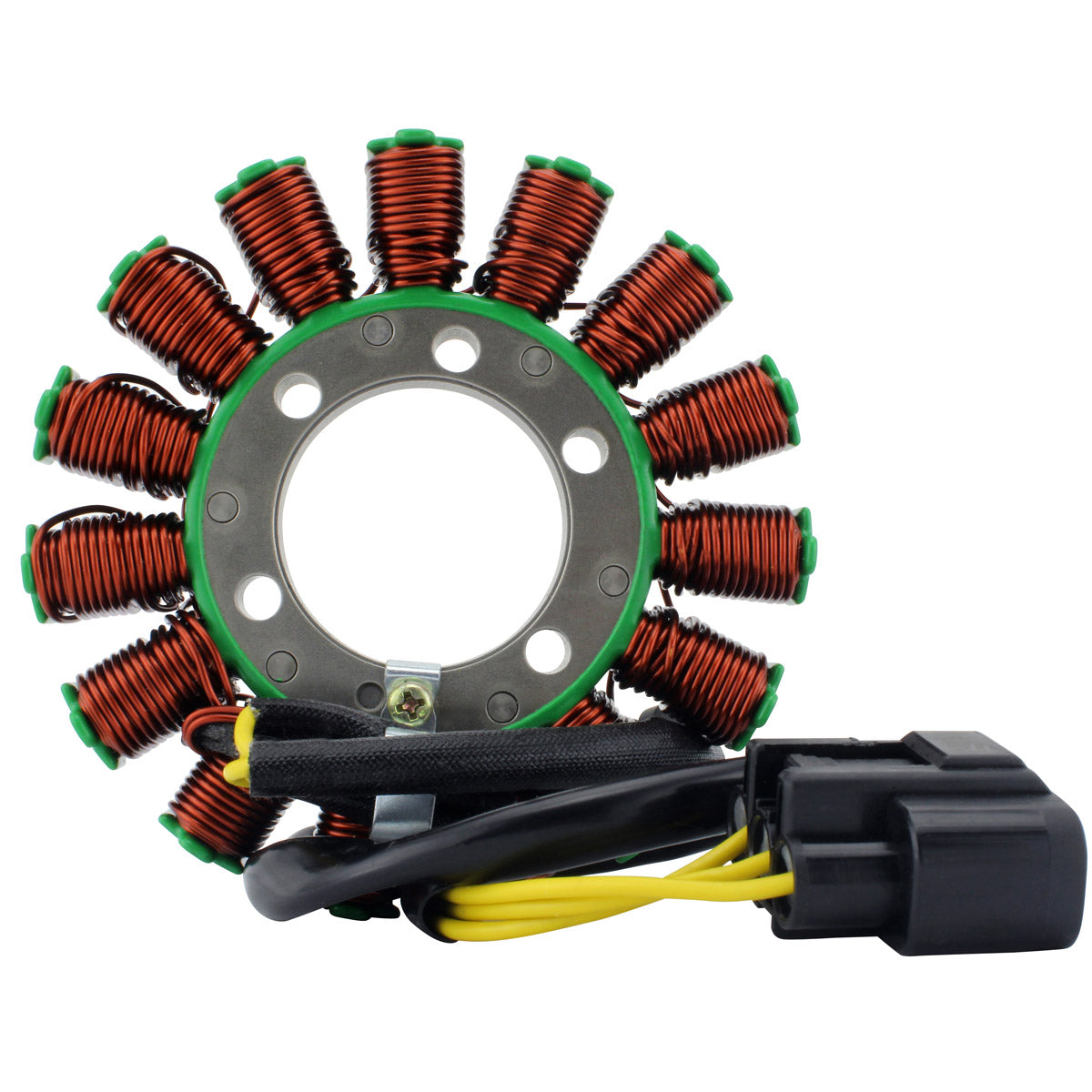

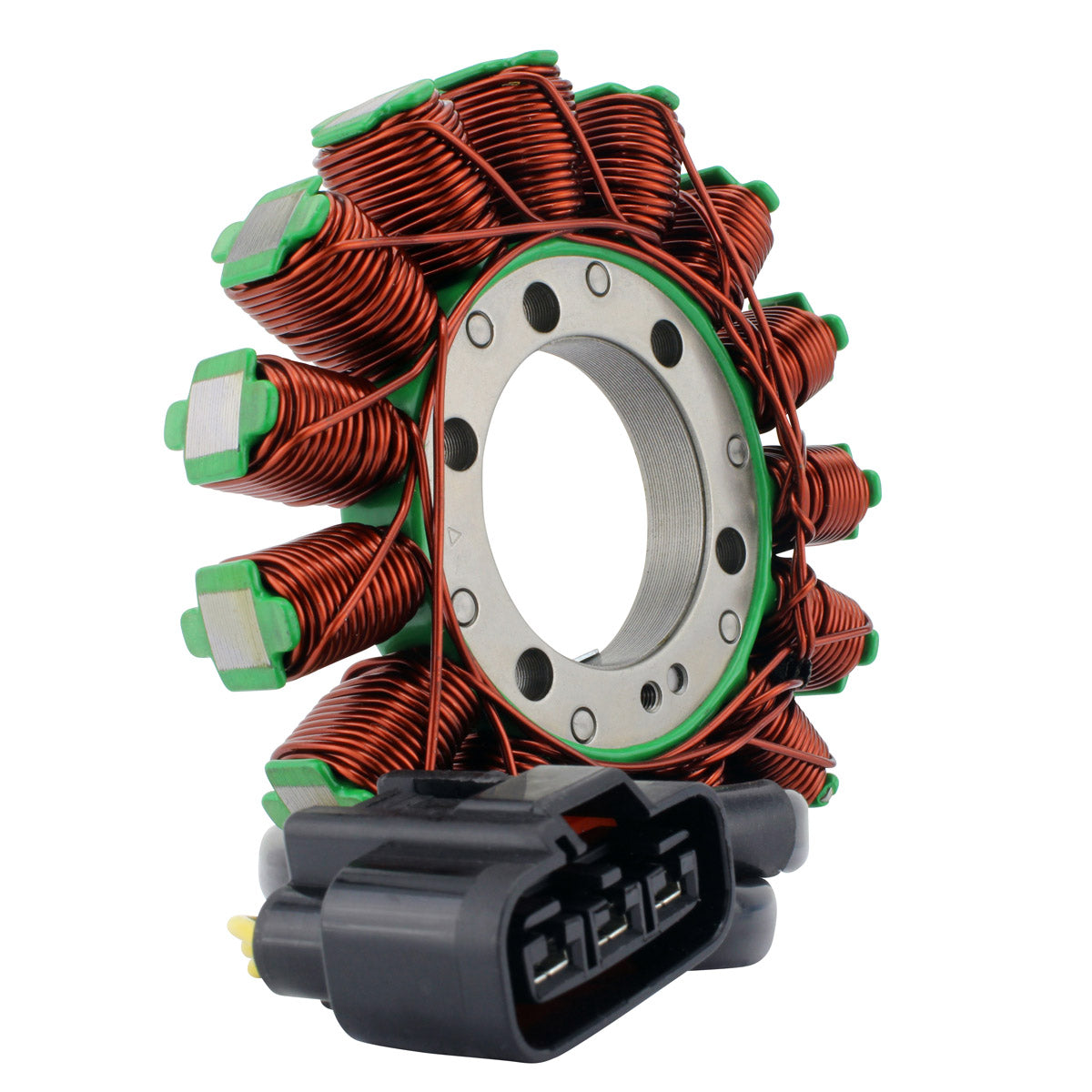

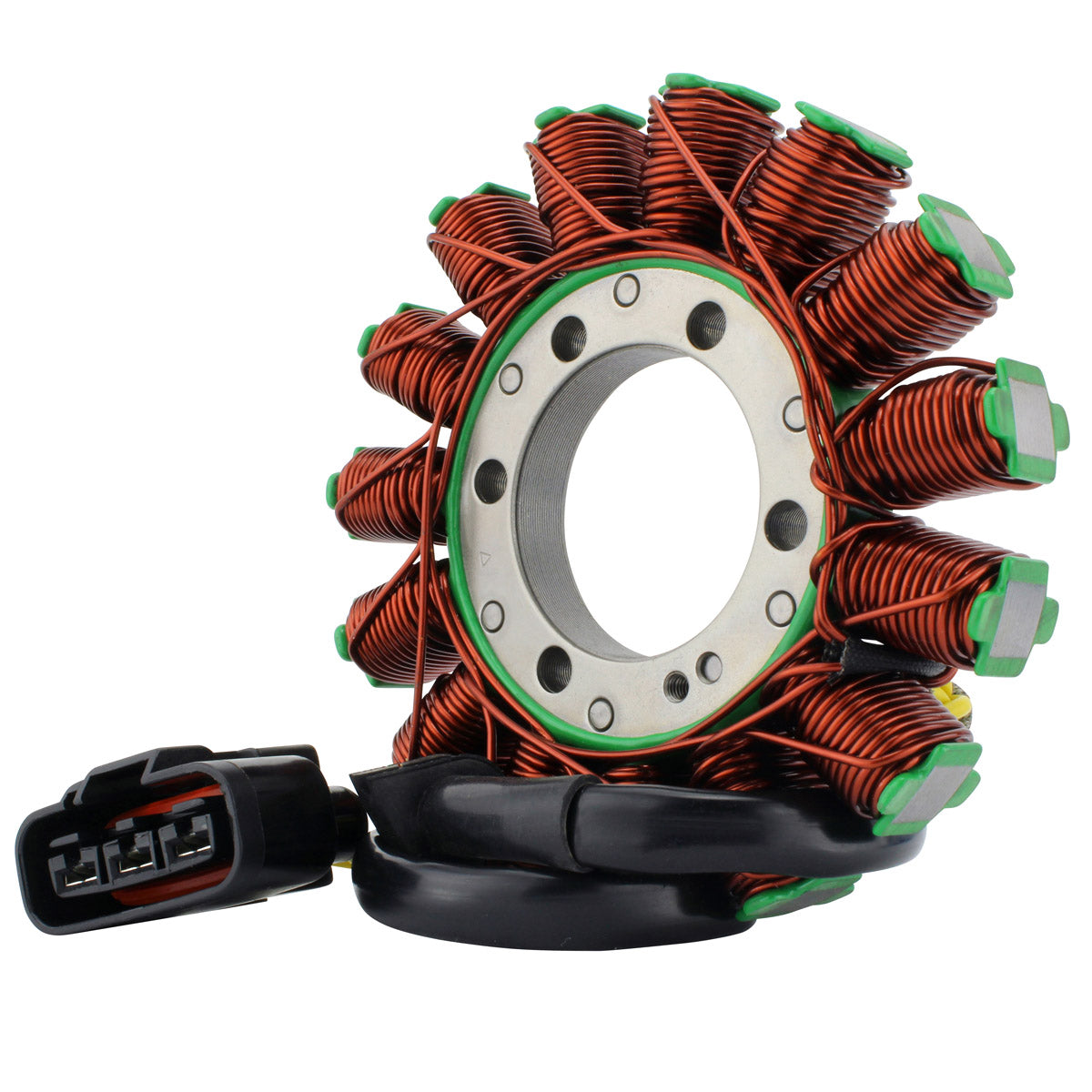

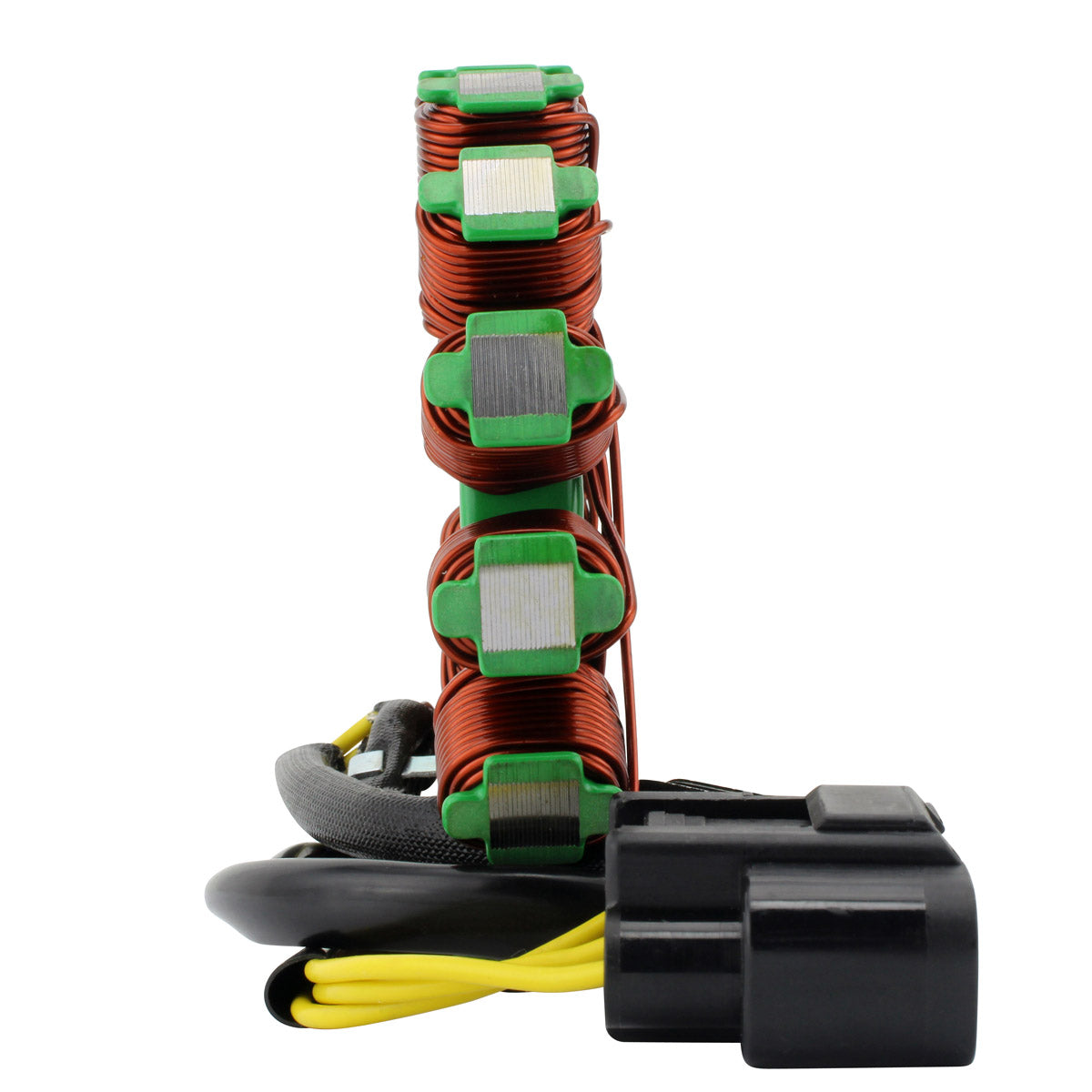

Generator Stator for Honda CBR 600 RR 2013-2025 | OEM # 31120-MJC-D01 | CBR600 CBR600RR ABS
Generator Stator for Honda CBR 600 RR 2013-2025 | OEM # 31120-MJC-D01 | CBR600 CBR600RR ABS
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !





Details
Details

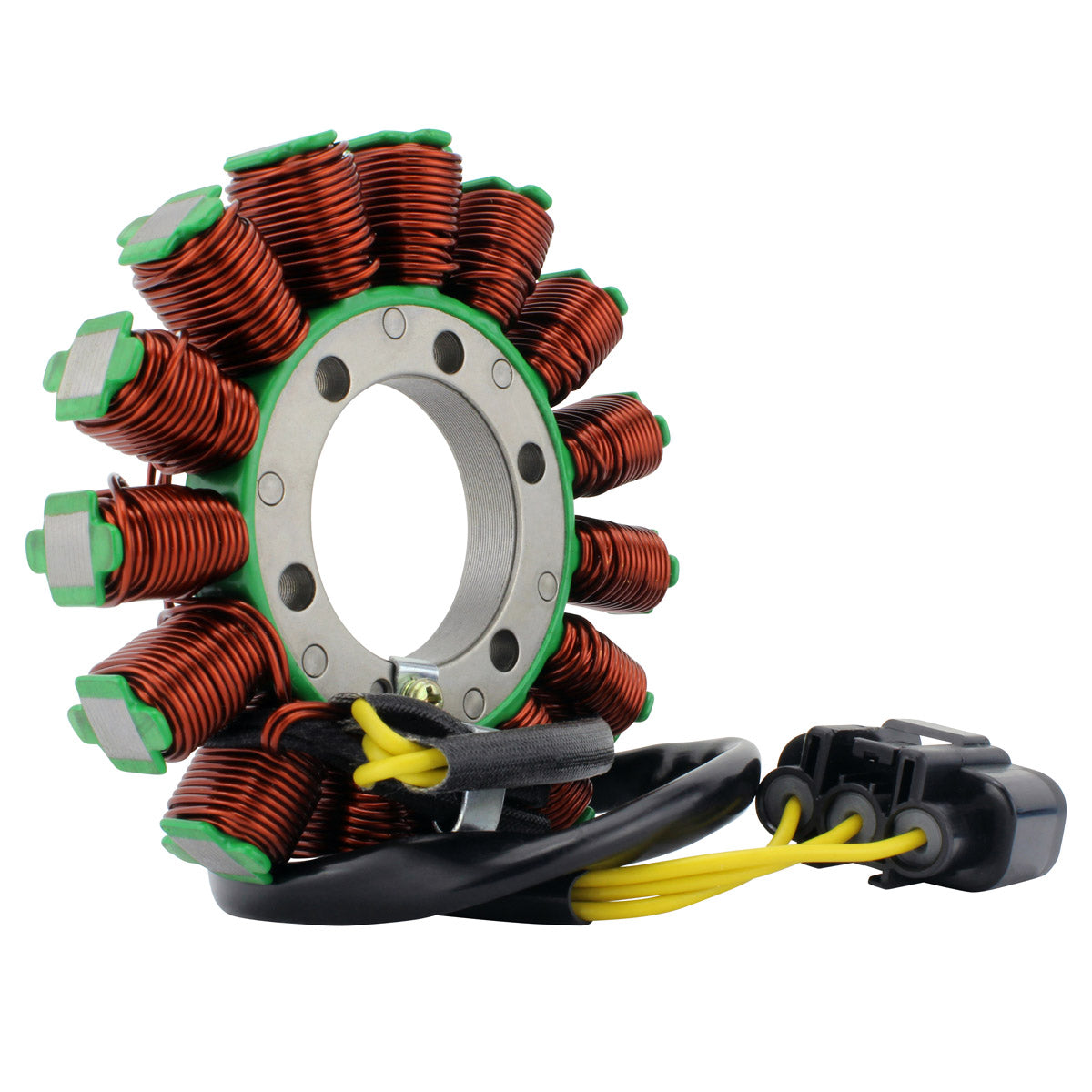

Brand new aftermarket Generator Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

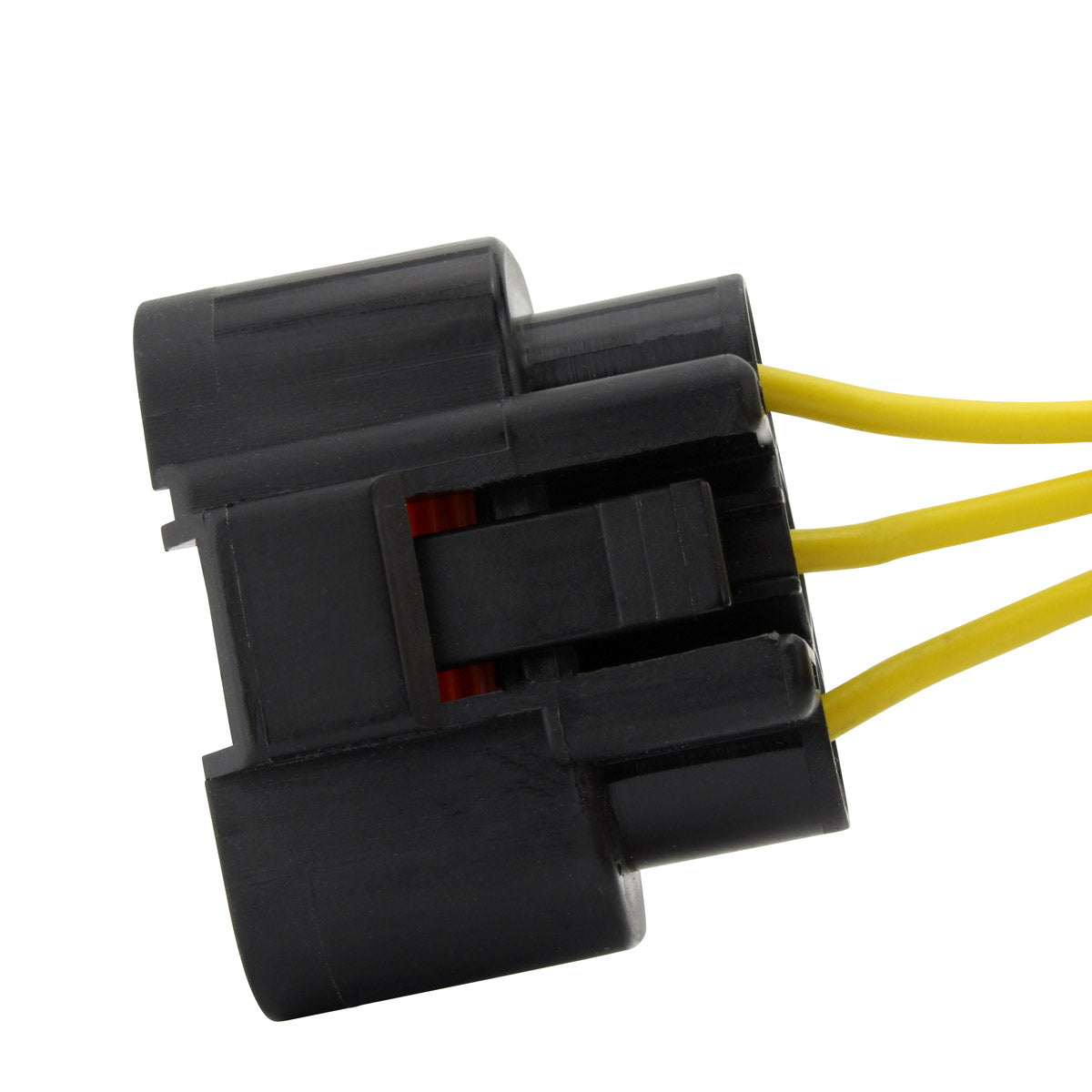

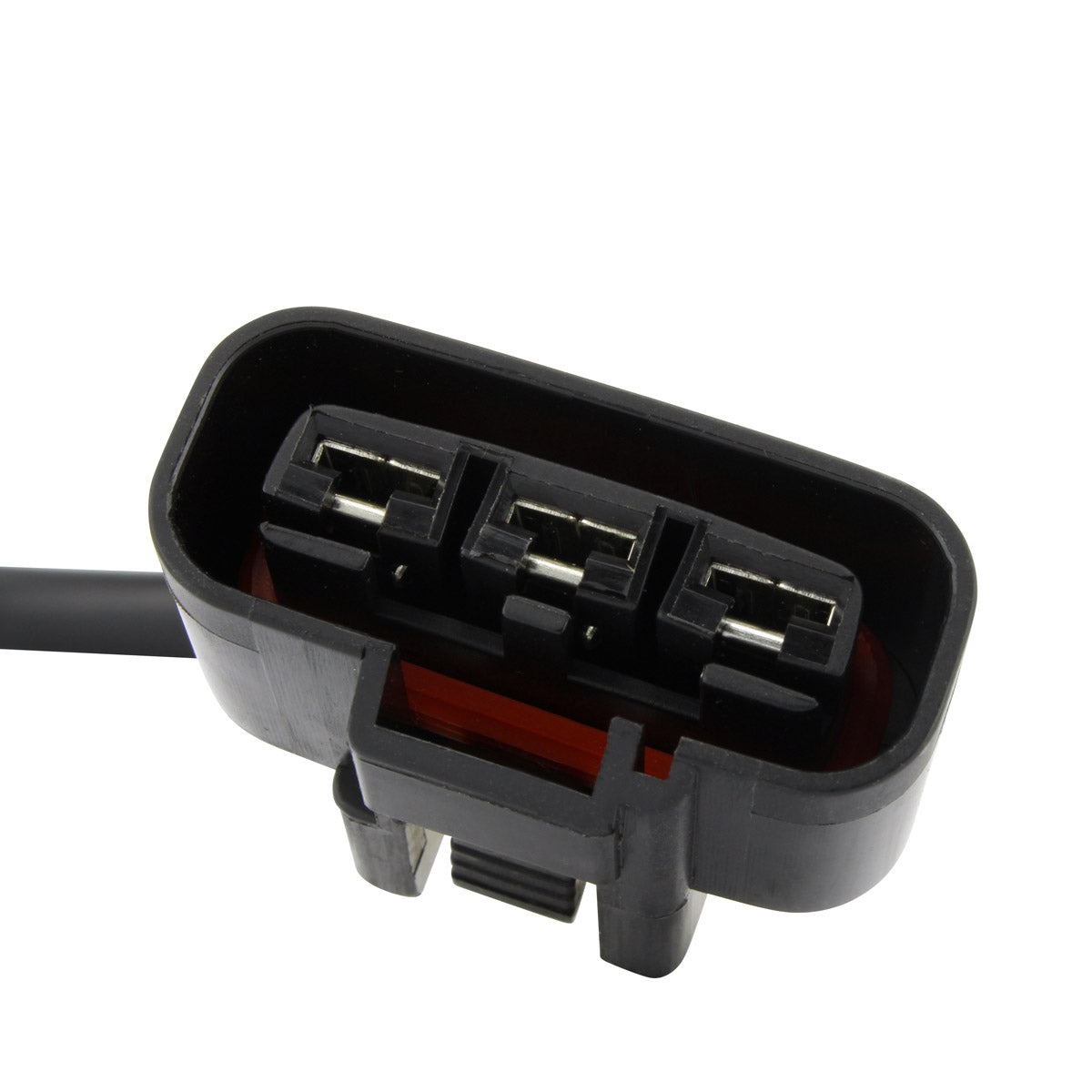

- Connectors included

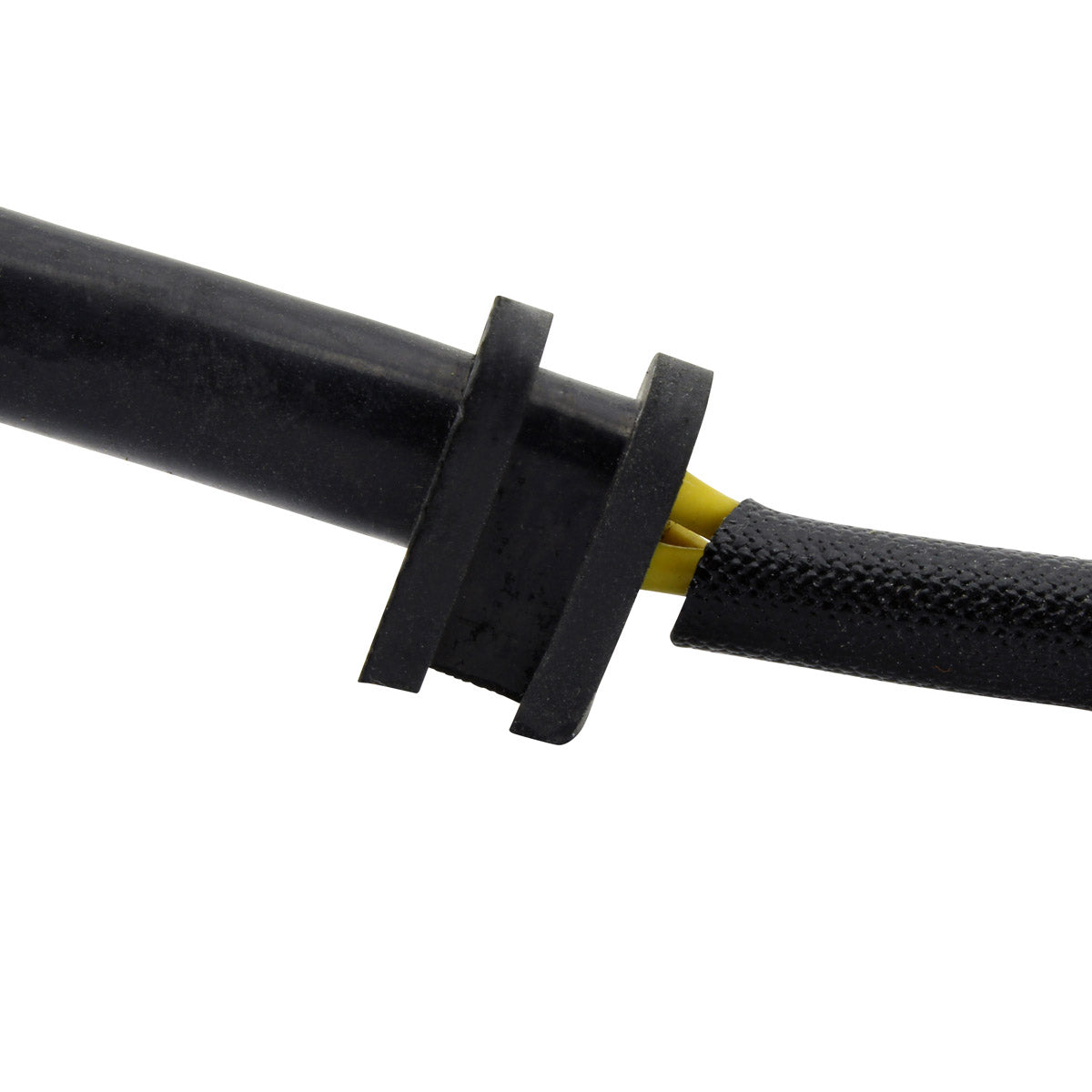

- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications
Specifications
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 12 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 365 mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles : 15
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%
Interchange Part Nº
Interchange Part Nº
- 31120-MJC-D01
Installation
Installation
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
