Stator 480W for Can-Am Outlander 450 / 570 MAX / L 450 / 570 | Renegade 570 | Defender HD5 500 2015-2023 OEM# 420685921

Stator 480W for Can-Am Outlander 450 / 570 MAX / L 450 / 570 | Renegade 570 | Defender HD5 500 2015-2023 OEM# 420685921

Name: Stator 480W for Can-Am Outlander 450 / 570 MAX / L 450 / 570 | Renegade 570 | Defender HD5 500 2015-2023 OEM# 420685921
Brand: RMSTATOR
SKU: RMS010-106349
Price: 174.89 USD
Availability: InStock

RMSTATOR

SKU: RMS010-106349

In Stock

RMSTATOR

Stator 480W for Can-Am Outlander 450 / 570 MAX / L 450 / 570 | Renegade 570 | Defender HD5 500 2015-2023 OEM# 420685921

$174.89

This product fits your

FITMENT WARNING:

This product does not fit your

This product is ride specific

Shop By Vehicle

Please Note: For some Can-Am models, there are several stator configurations available with varying outputs. Please be sure of which OEM and output your machine needs before purchasing. This part will replace OEM 420685921 and has an output of 480 watts.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Stator 480W for Can-Am Outlander 450 / 570 MAX / L 450 / 570 | Renegade 570 | Defender HD5 500 2015-2023 OEM# 420685921

$174.89

Details

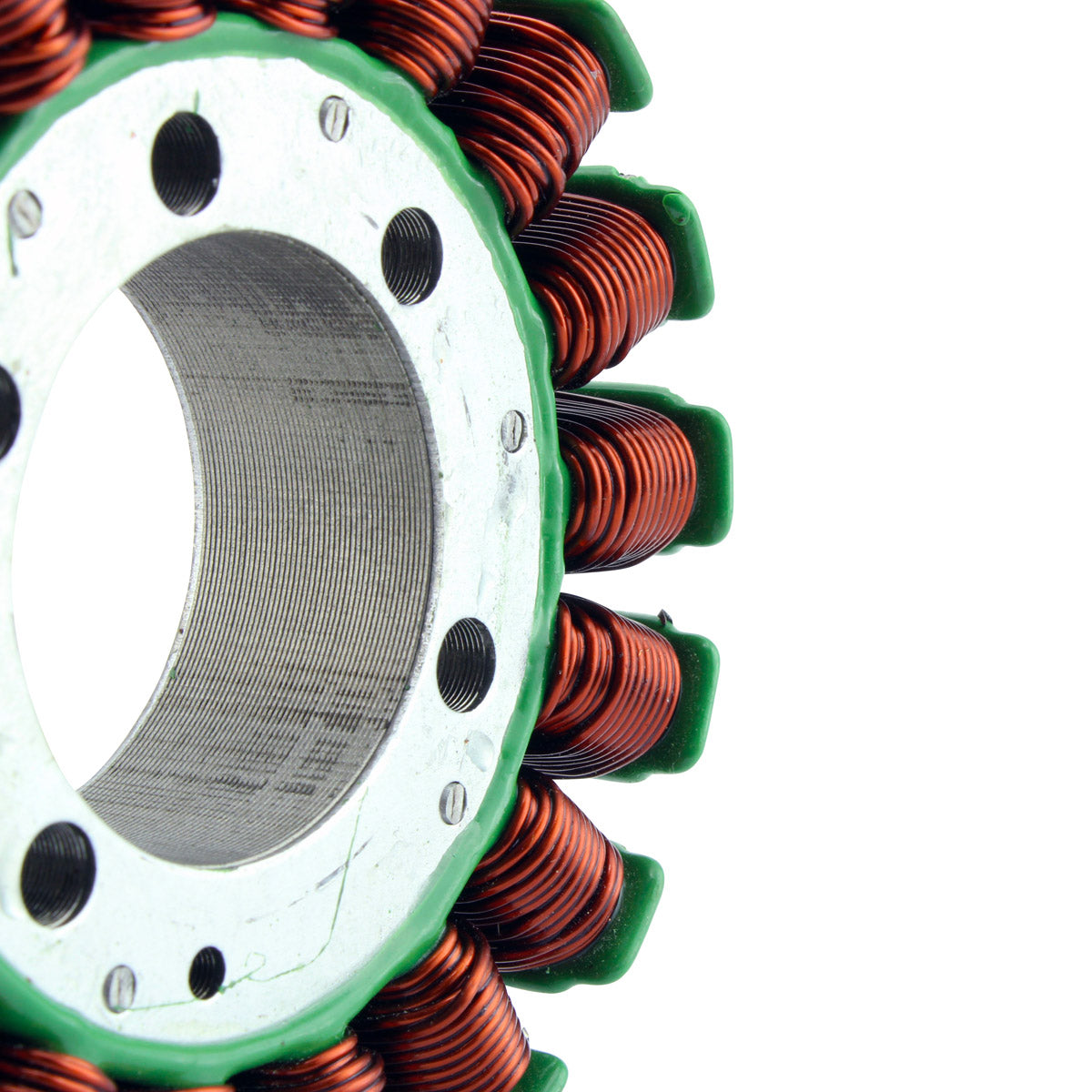

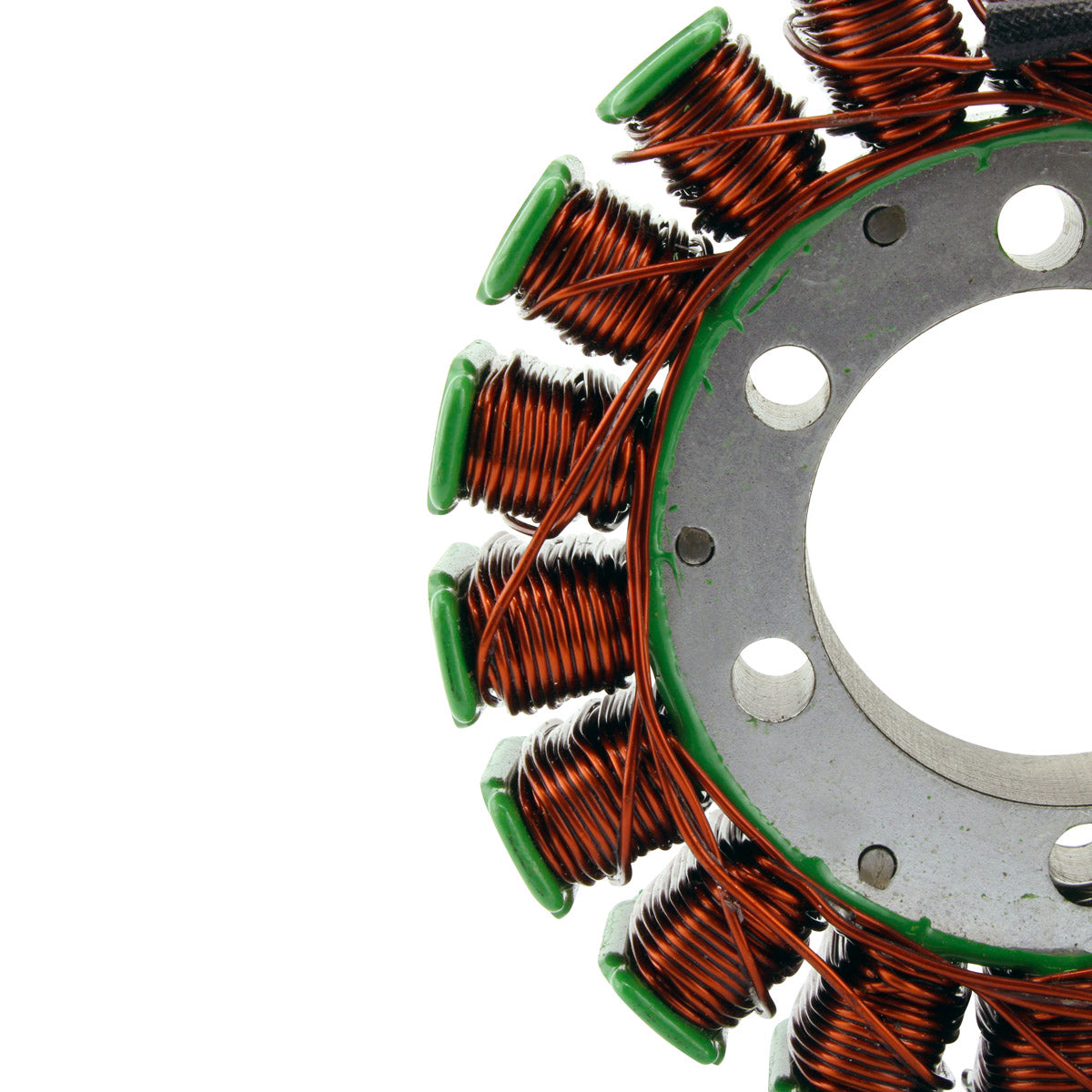

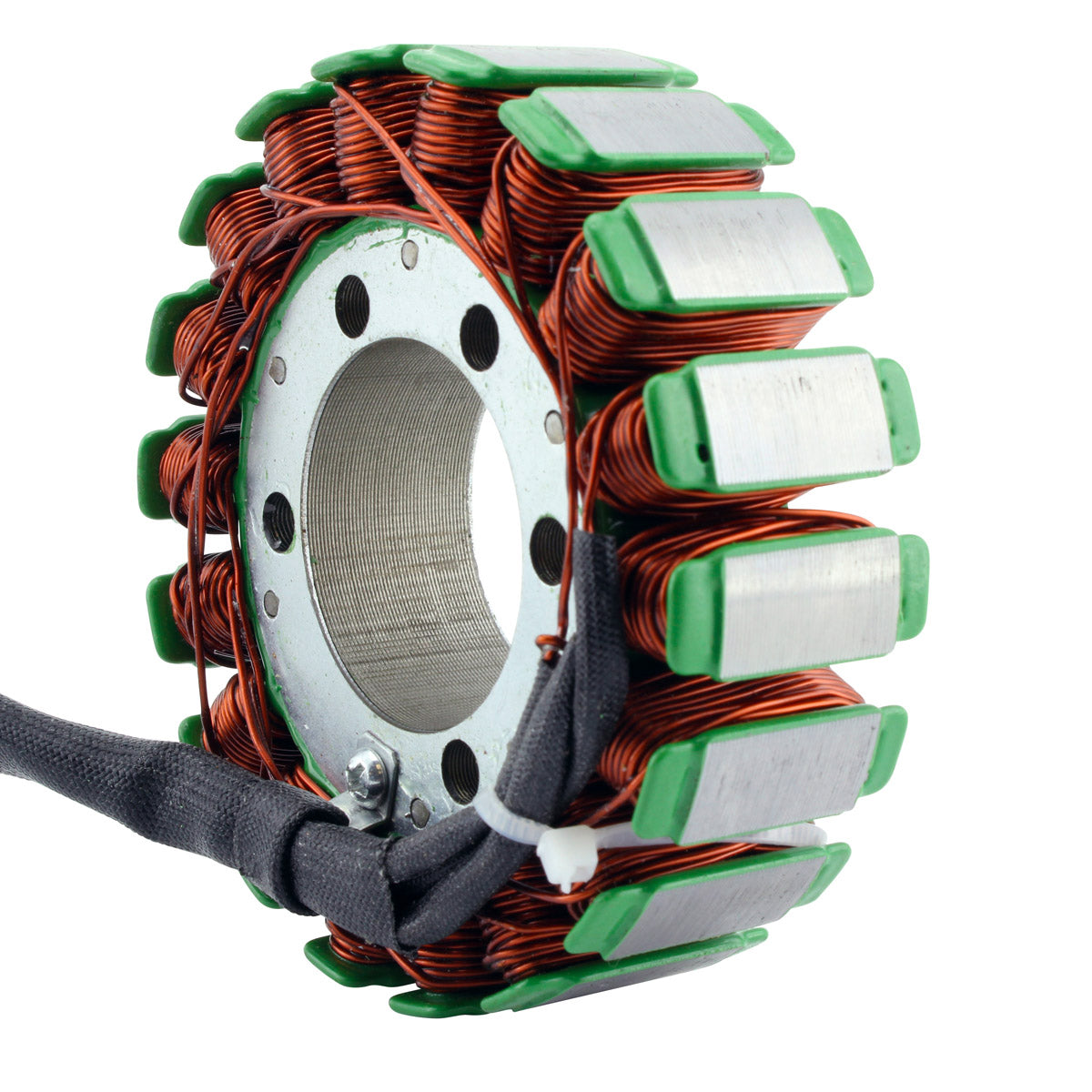

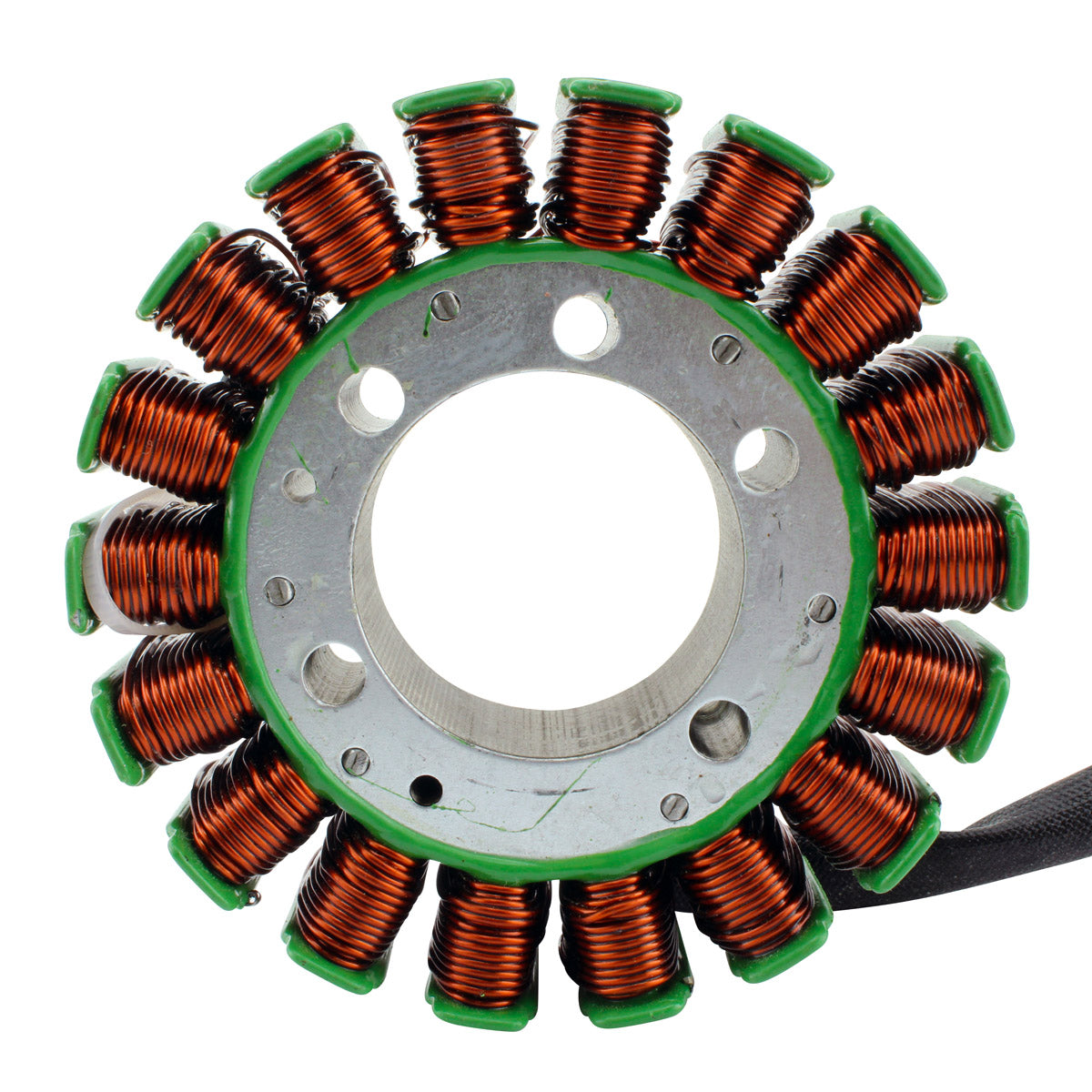

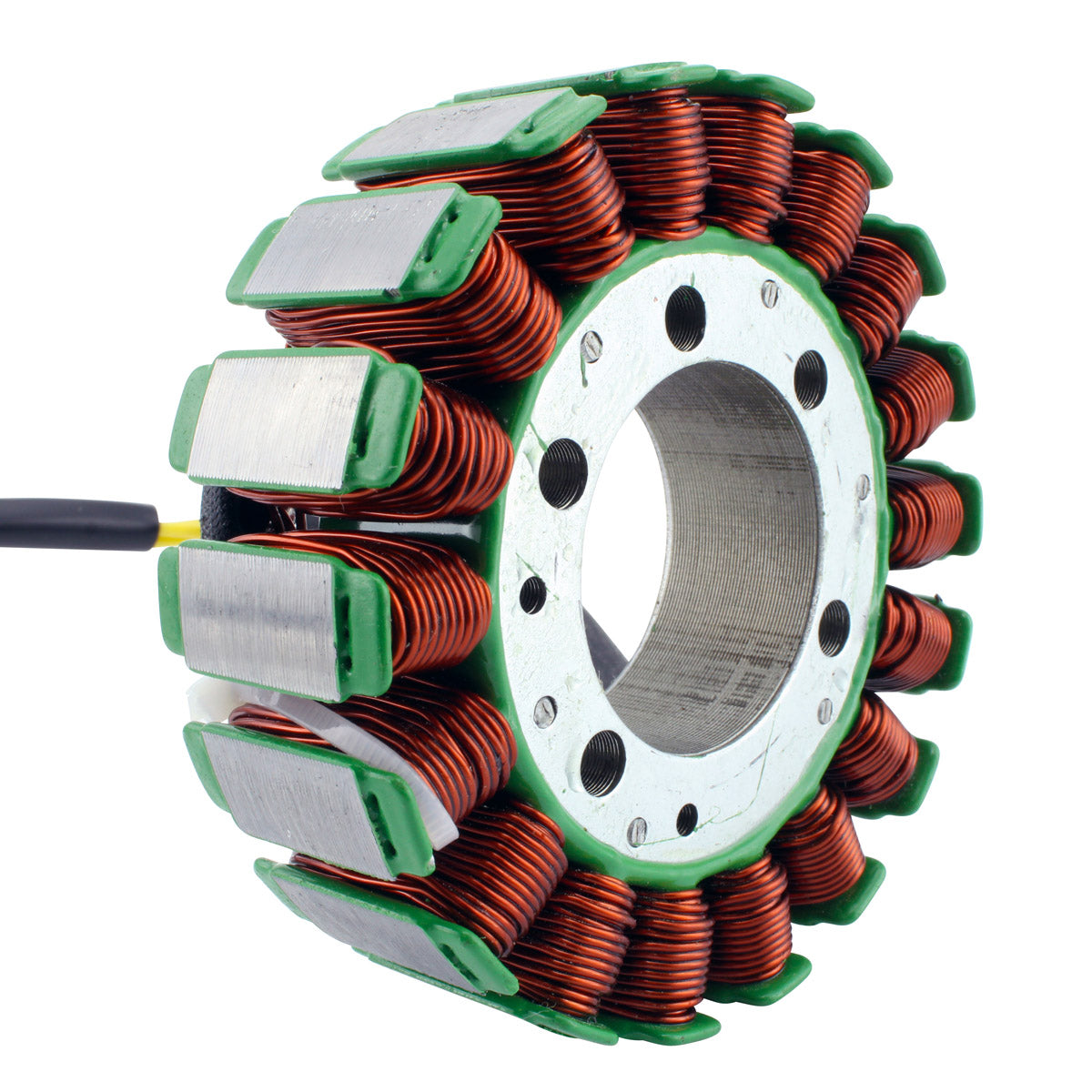

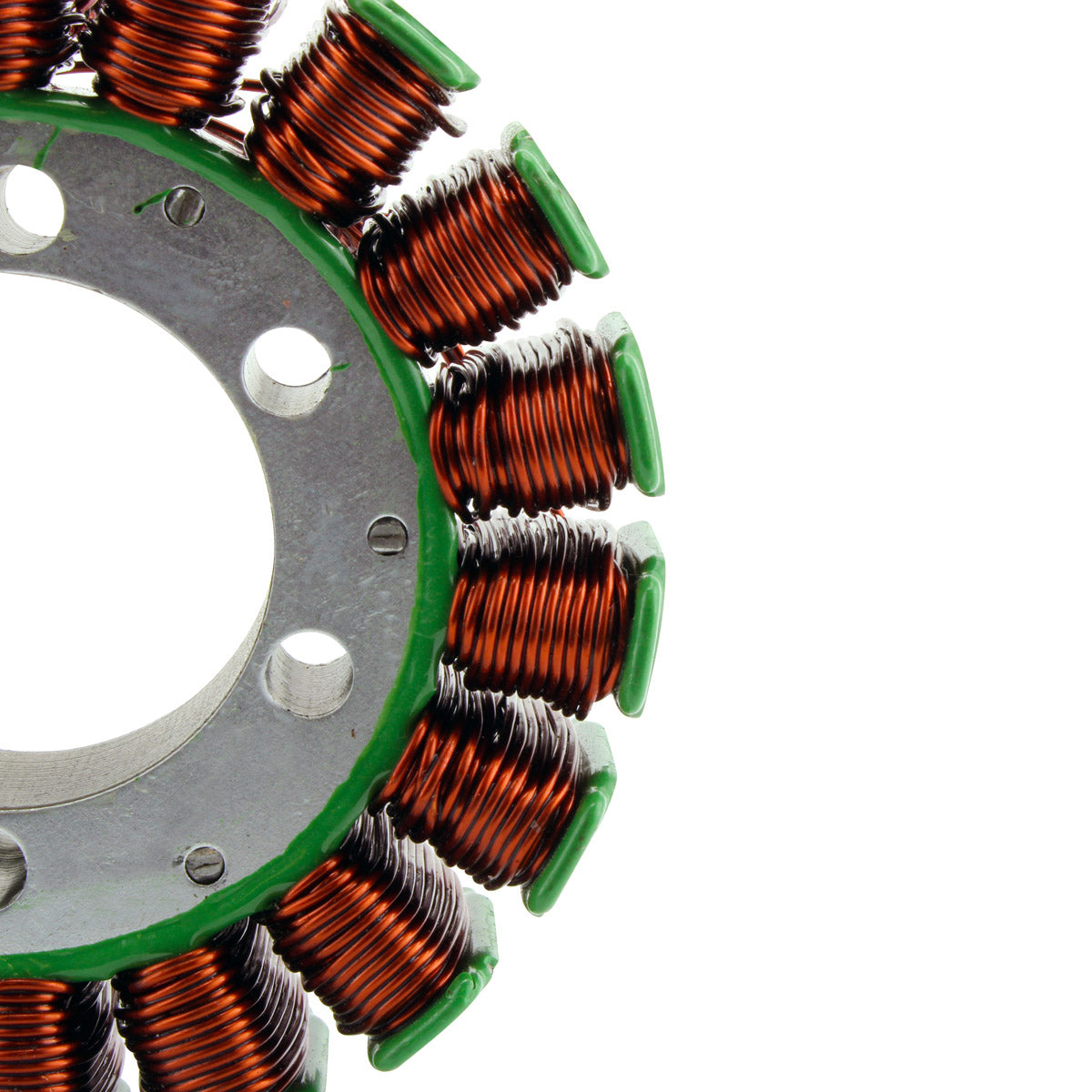

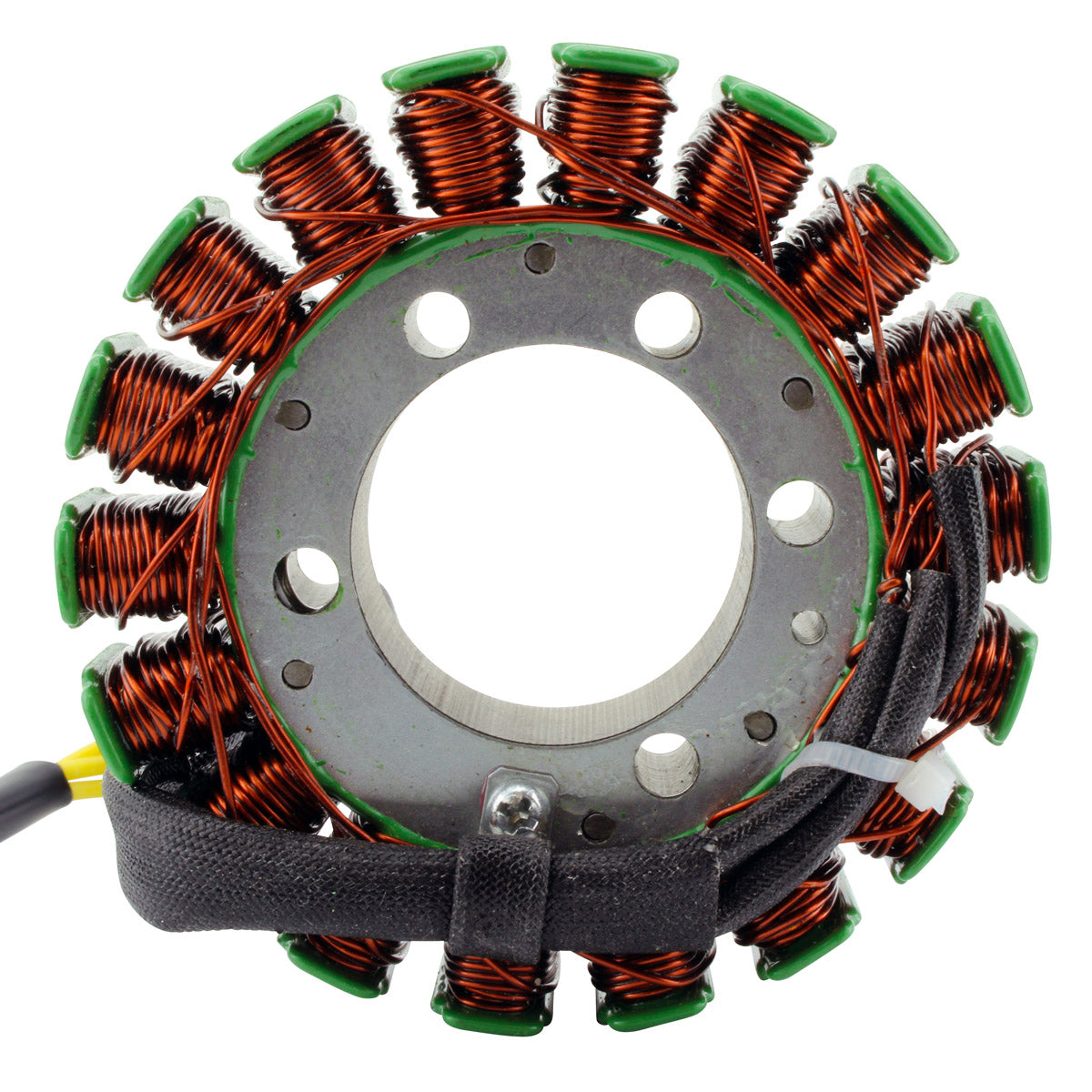

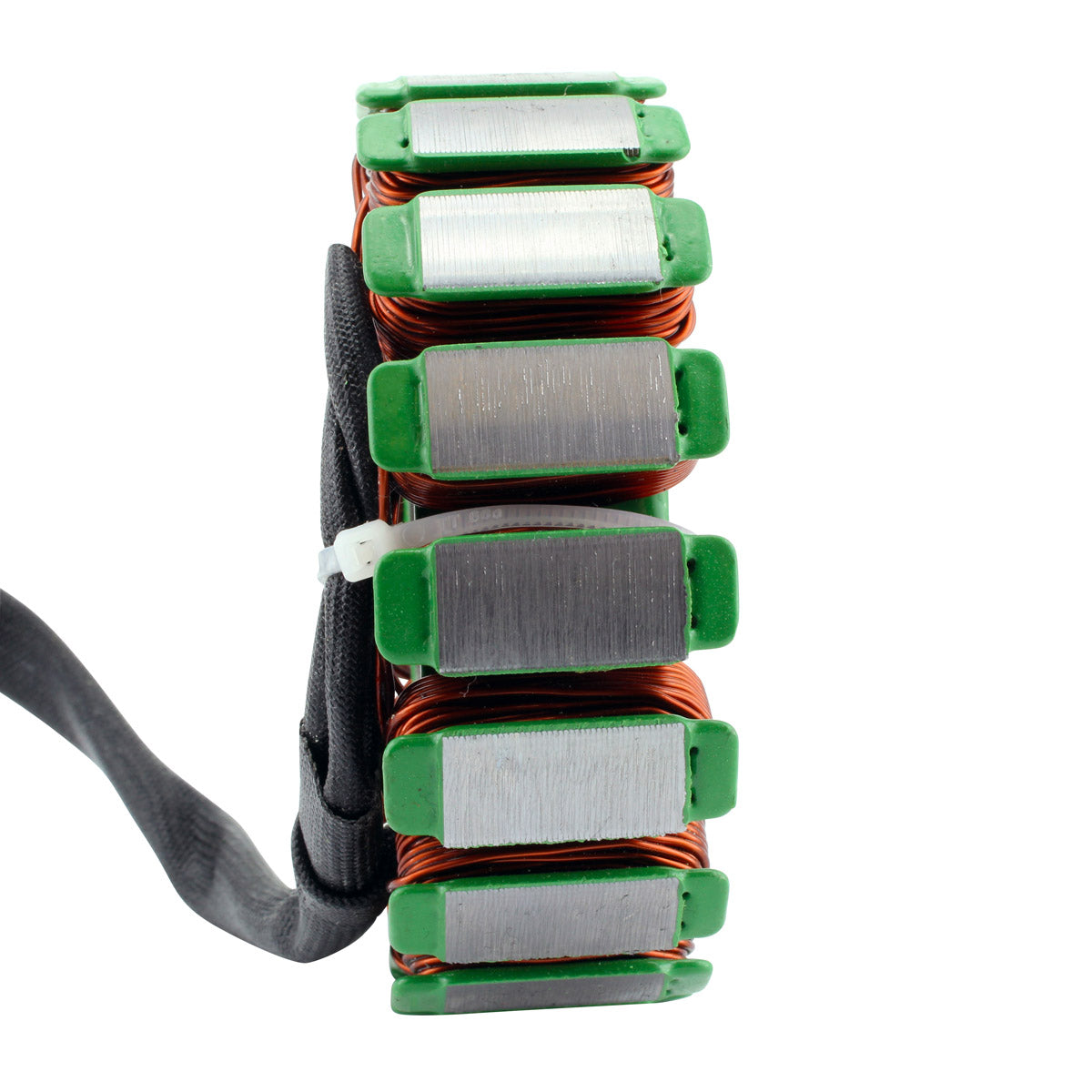

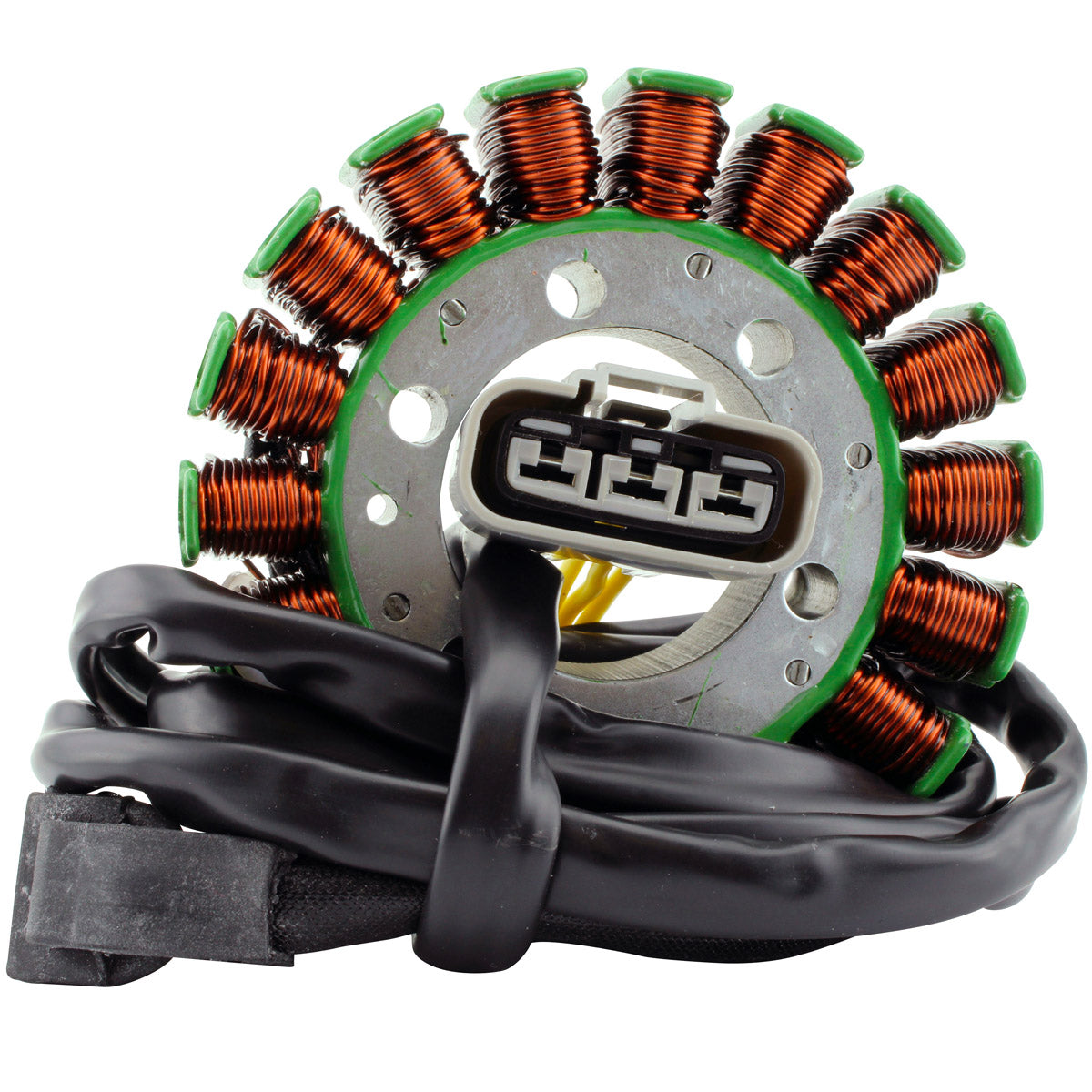

Brand new aftermarket 480W Stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

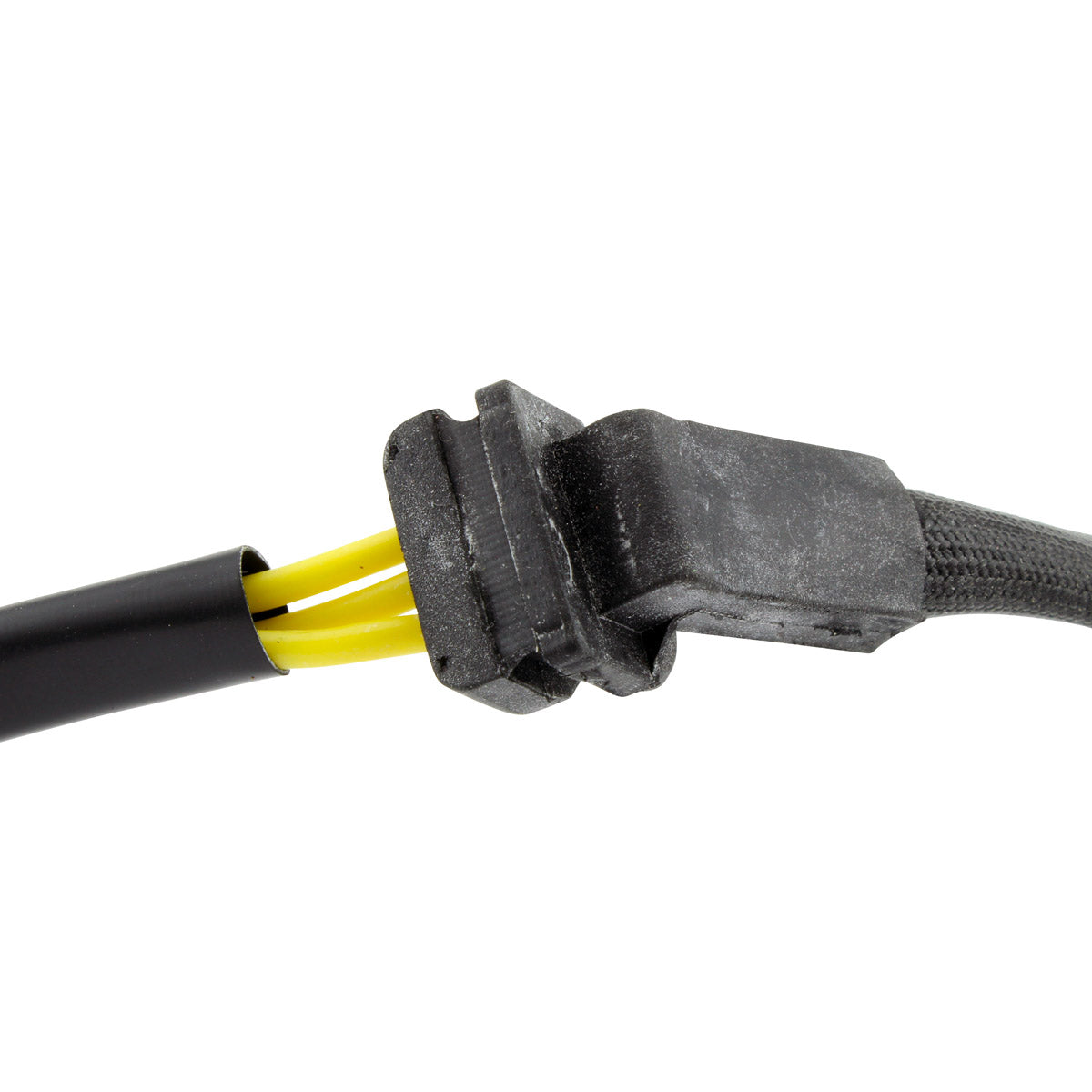

Connectors included
Rubber grommet included
All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 24 mm

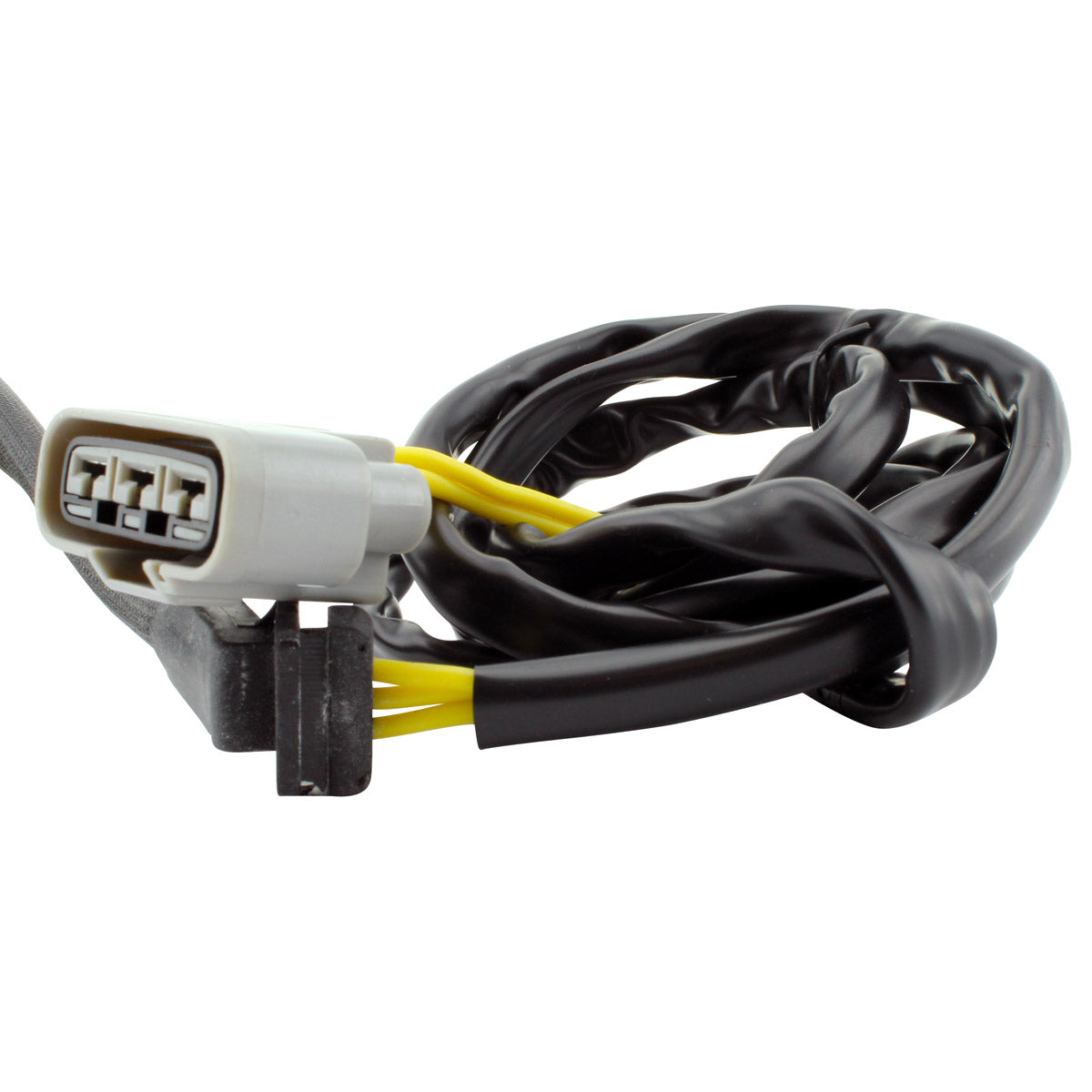

Length of wires stator to grommet : 155 mm
Length of wires grommet to plug : 1420 mm

Other specifications :
Number of wires : 3
Number of plugs : 1

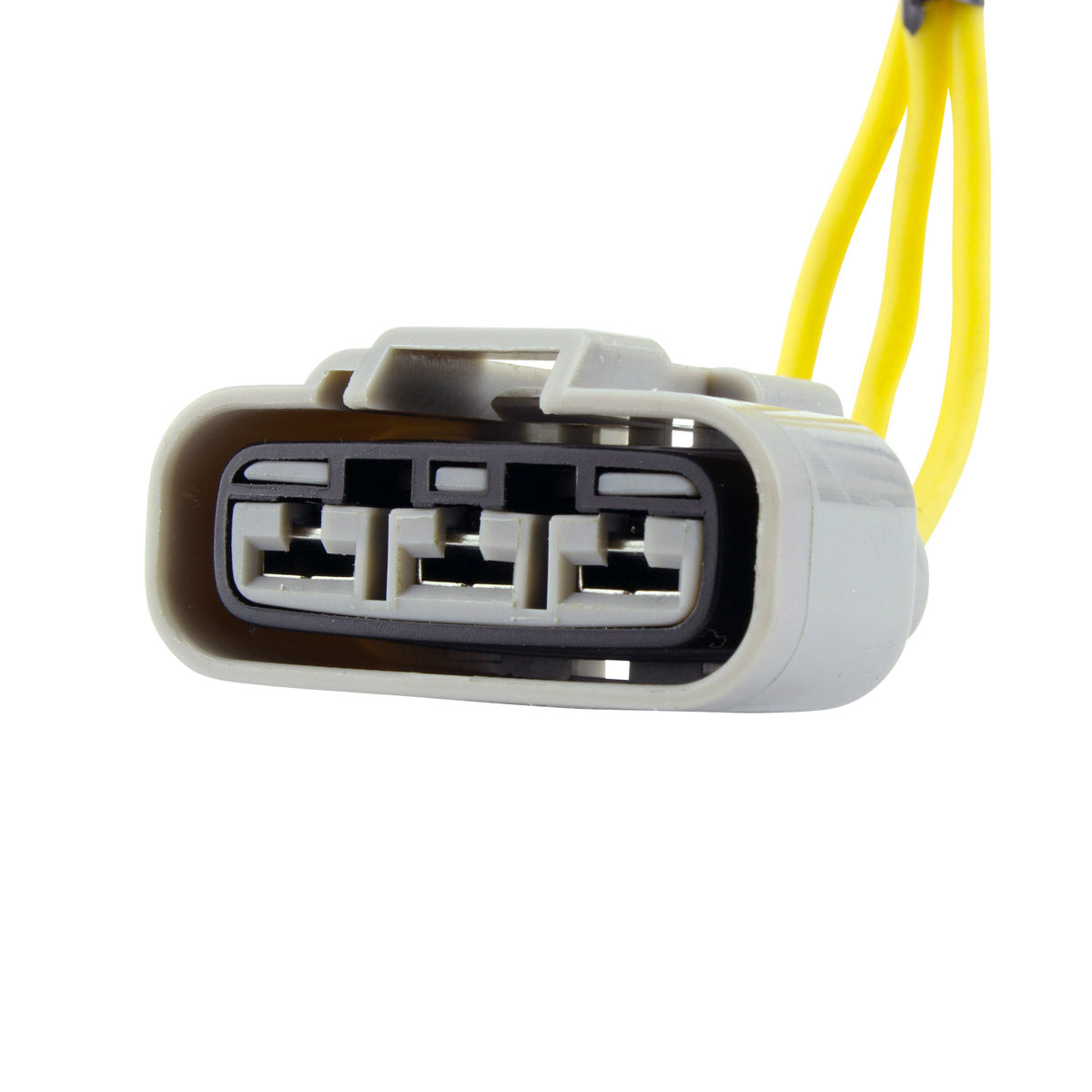

Number of pins : 3
Number of poles : 18

Alternator :Yellow to Yellow = 0.7 ohms +-20%

Interchange Part Nº

420685921

Installation

Before installing your new stator

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
