Stator Generator for Yamaha FZS 600 Fazer 1998-2004

Stator Generator for Yamaha FZS 600 Fazer 1998-2004

Name: Stator Generator for Yamaha FZS 600 Fazer 1998-2004
Brand: RMSTATOR
SKU: RMS010-104668
Price: 185.89 USD
Availability: OutOfStock

RMSTATOR

SKU: RMS010-104668

Out of stock

RMSTATOR

Stator Generator for Yamaha FZS 600 Fazer 1998-2004

$185.89

Sold out

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt, charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

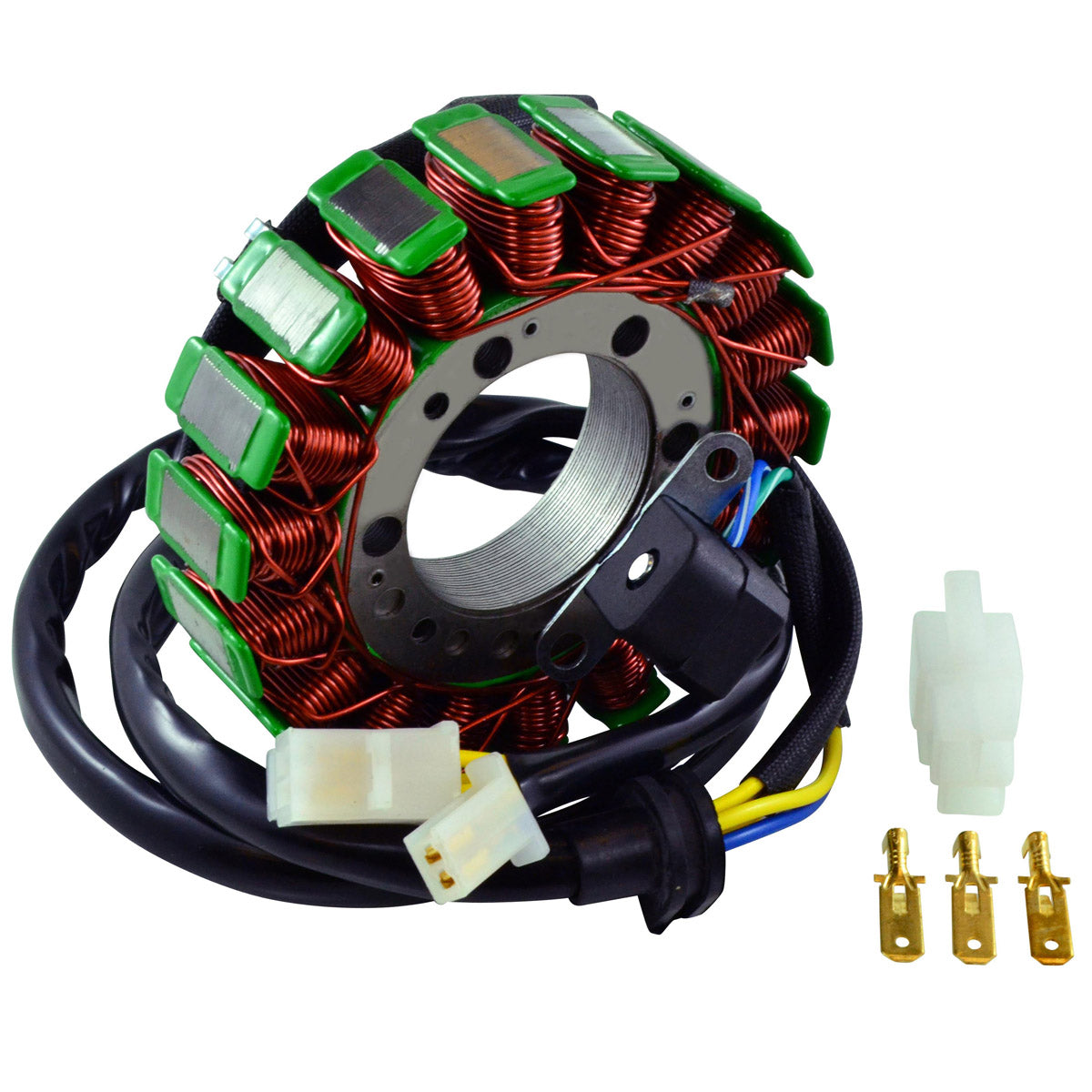

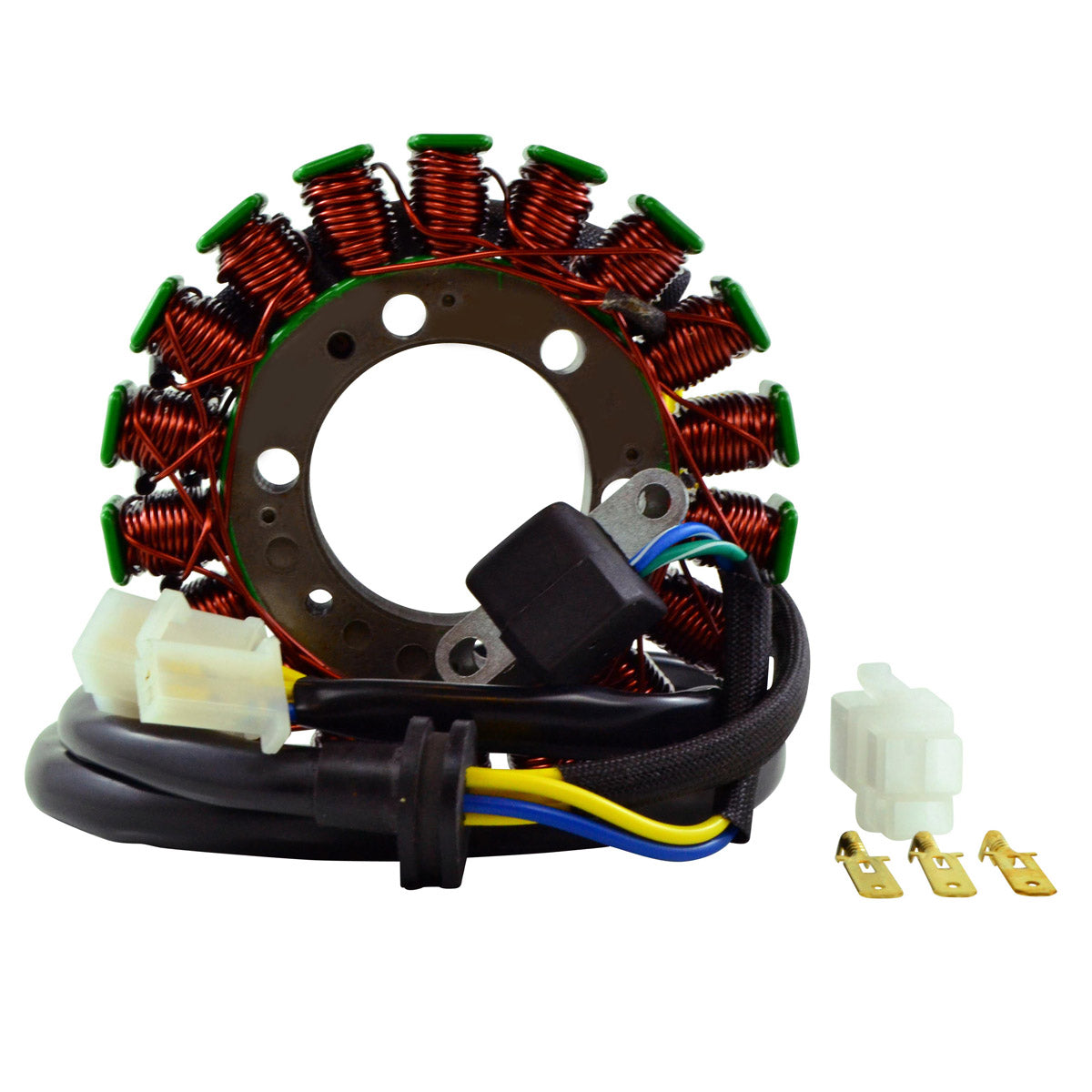

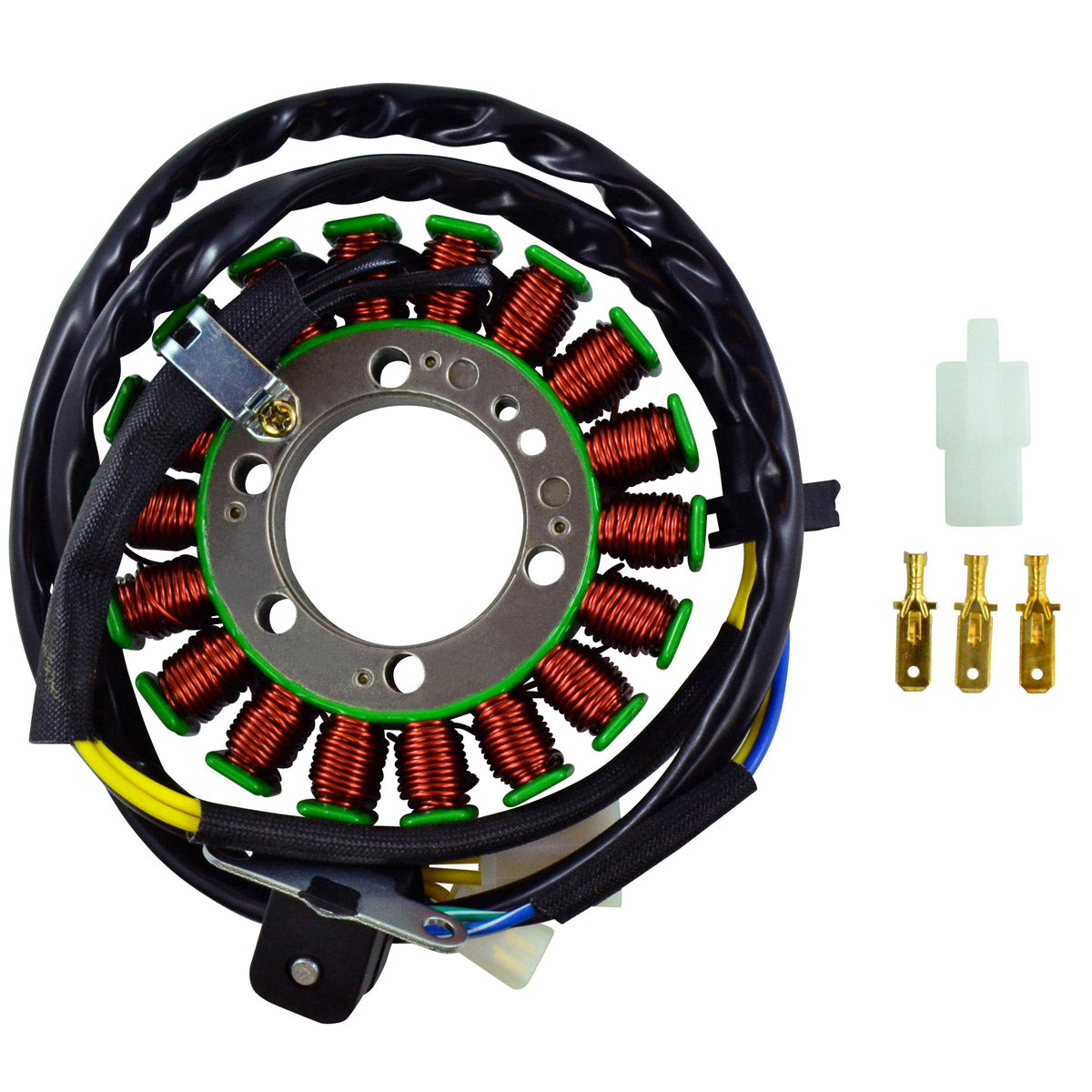

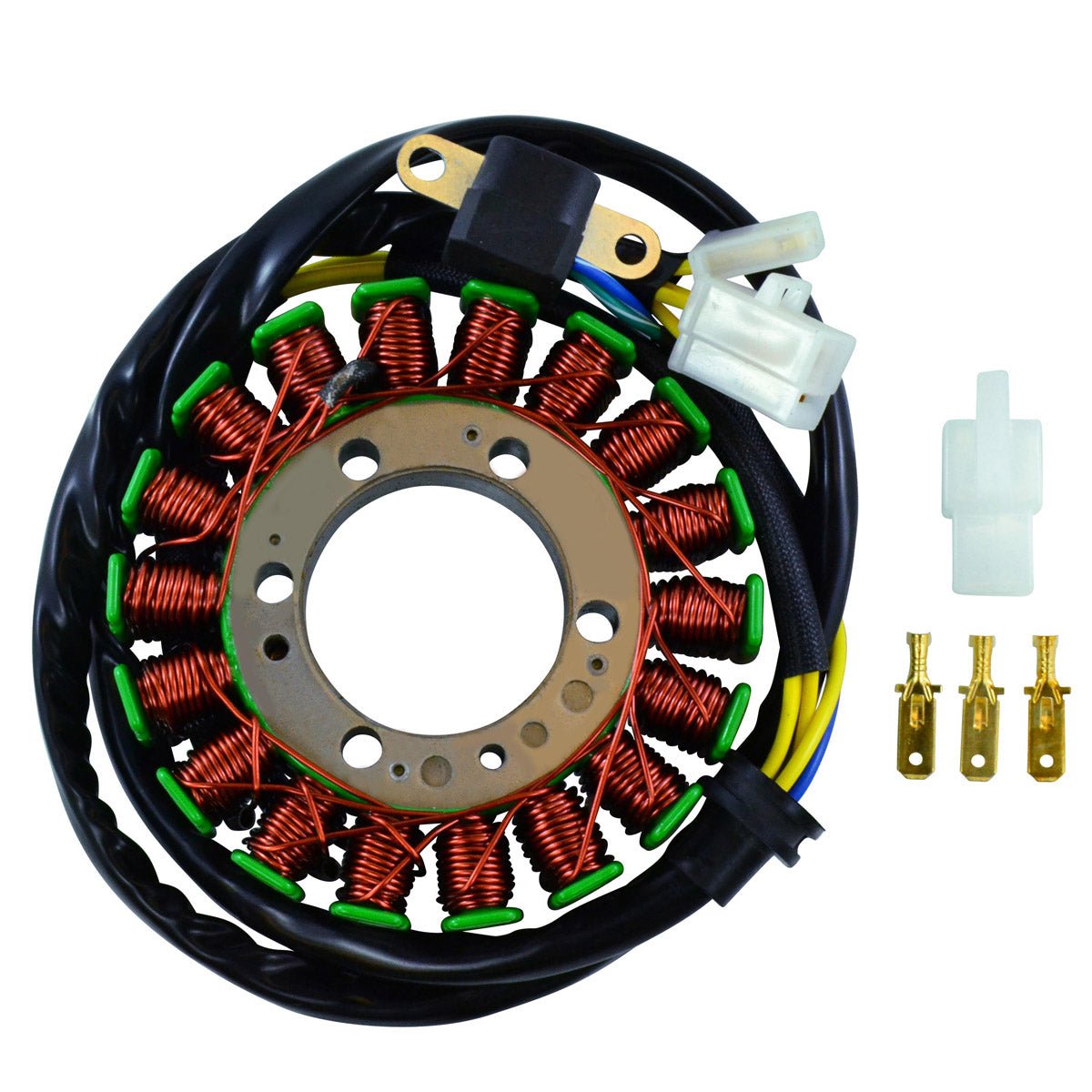

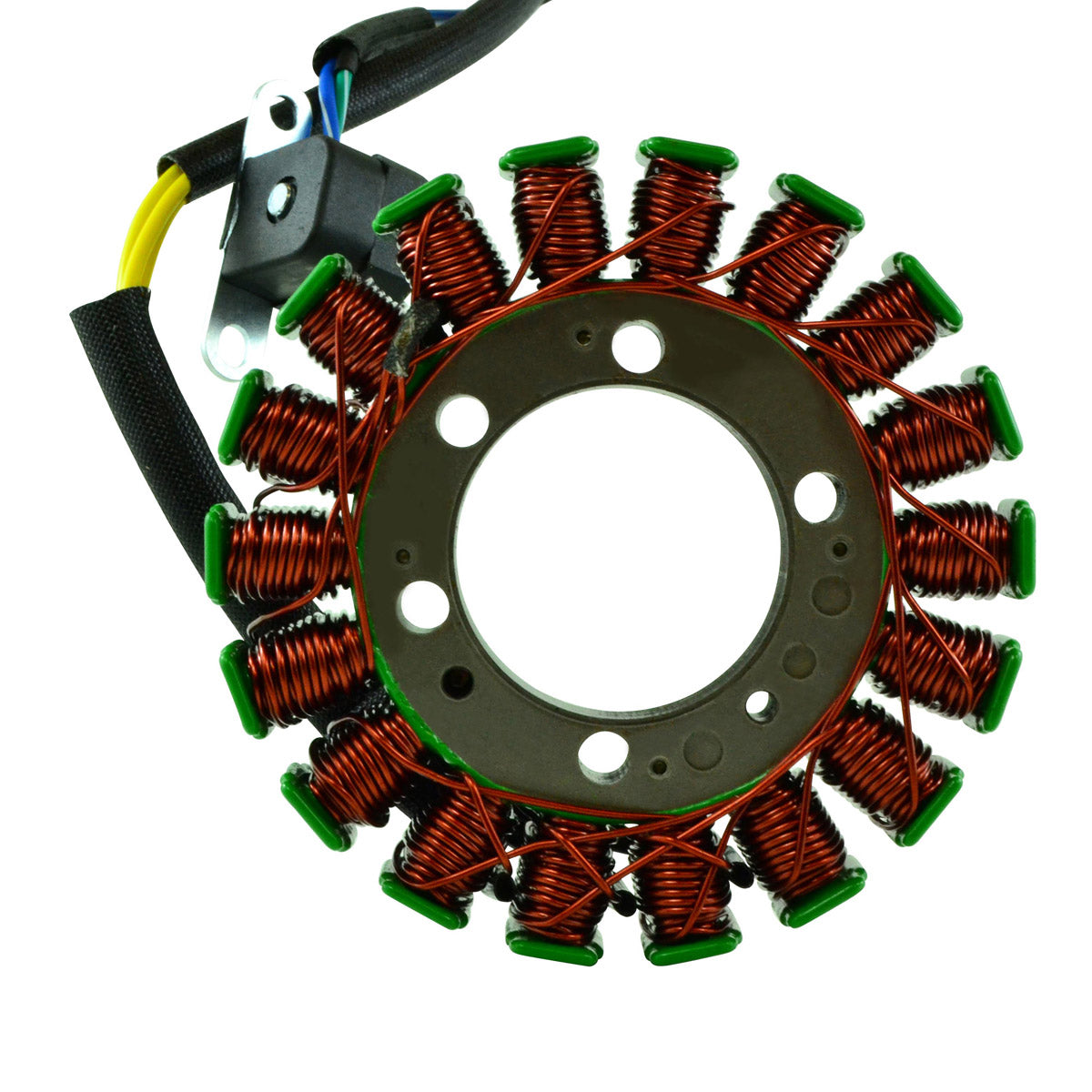

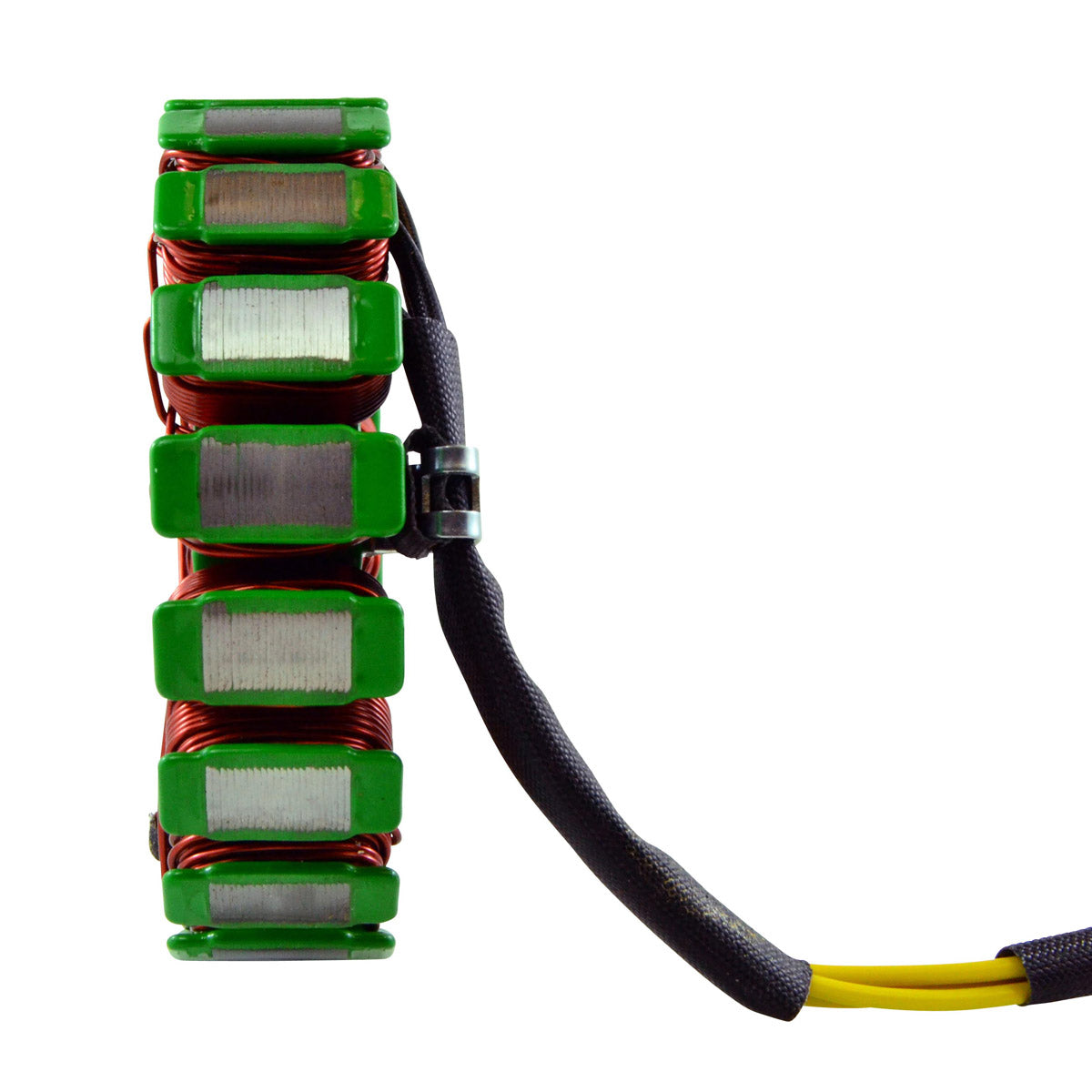

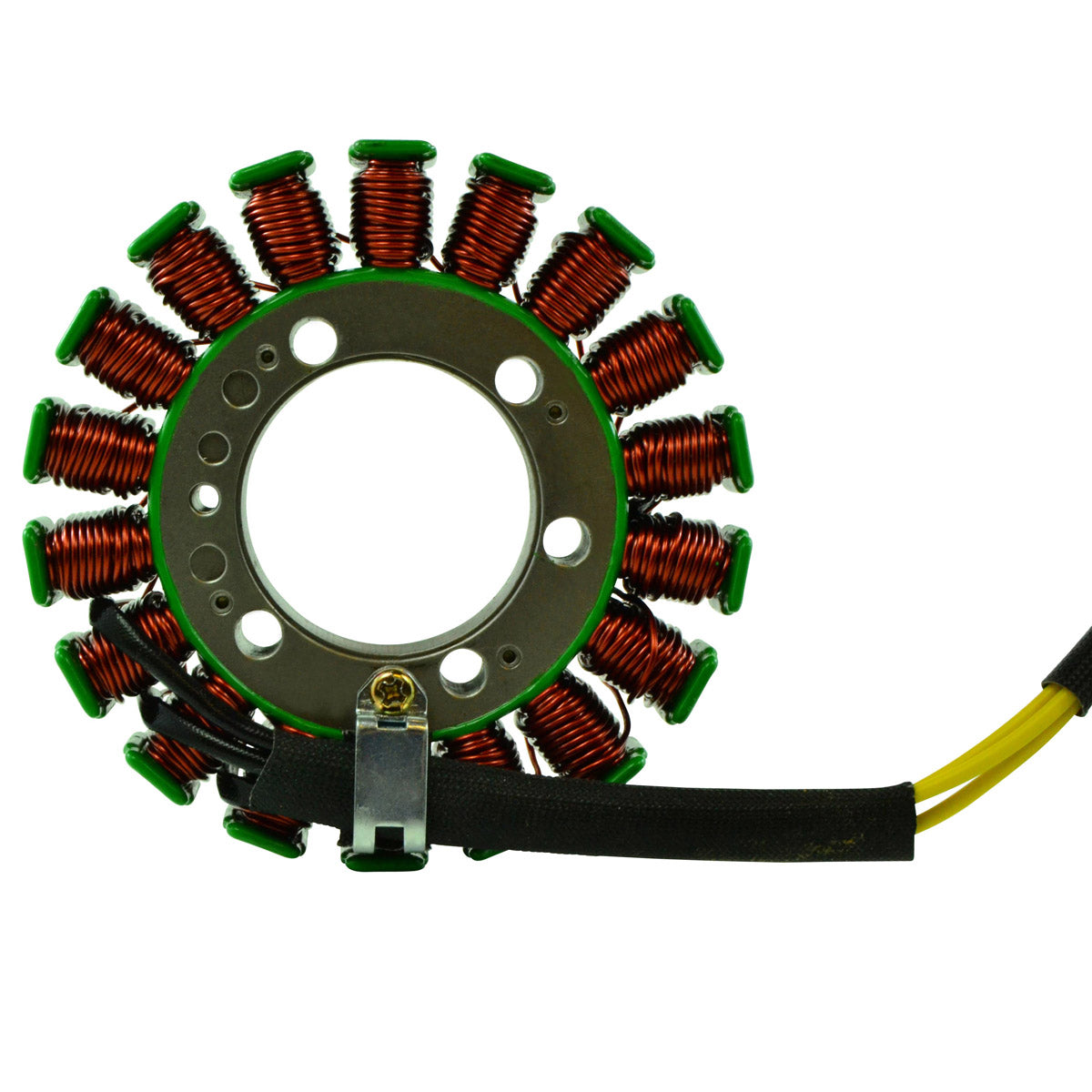

Brand new aftermarket Stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius.

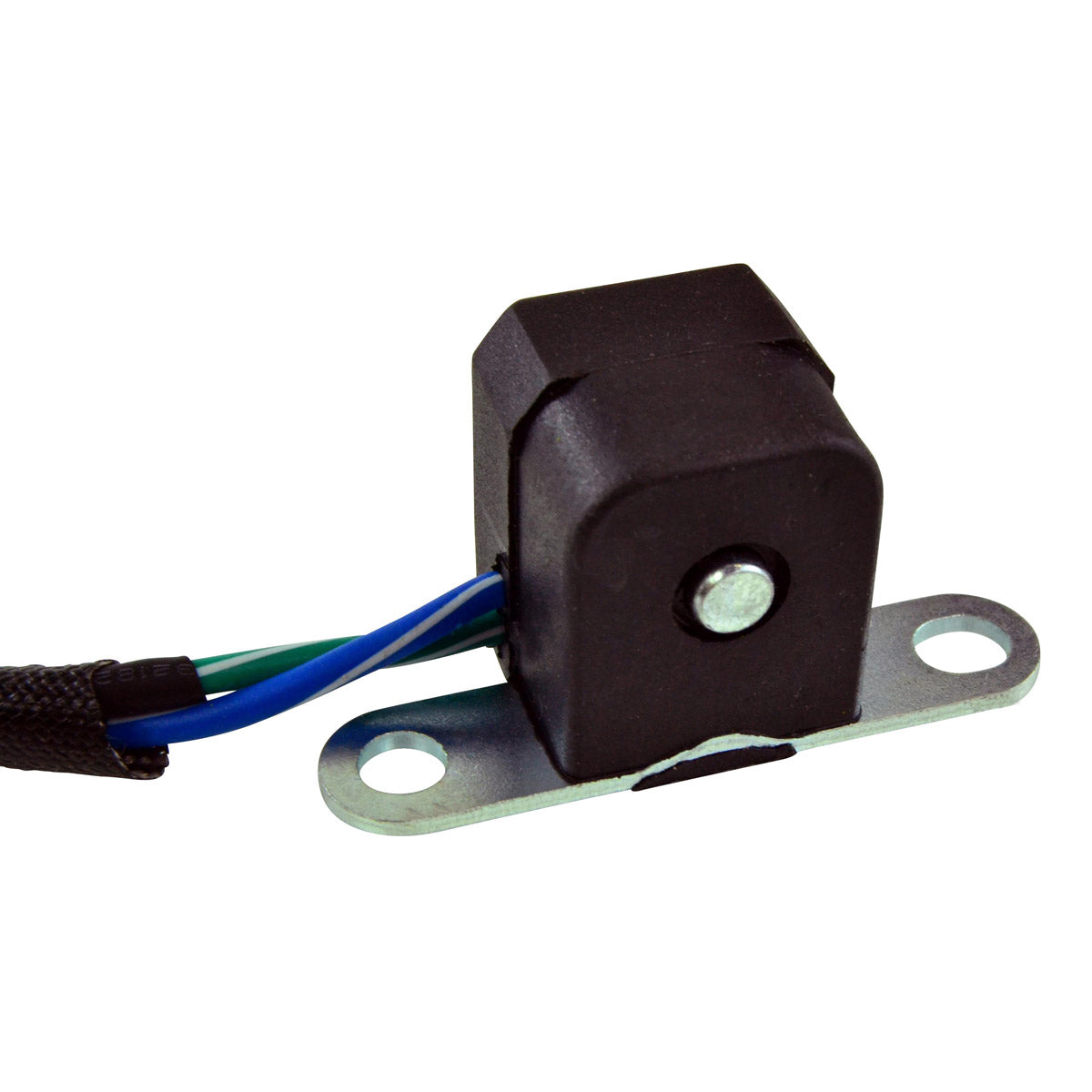

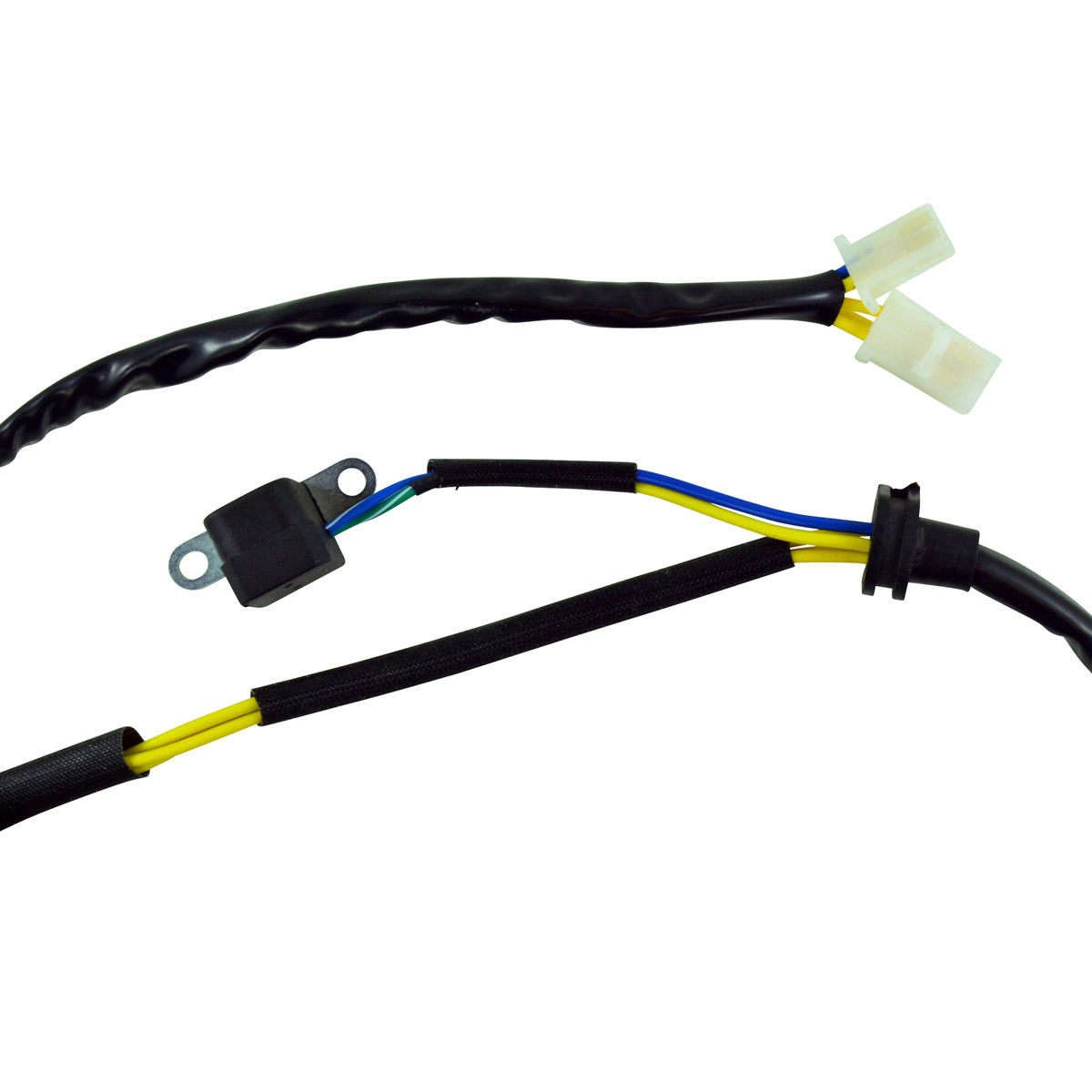

Pick up pulsar coil included

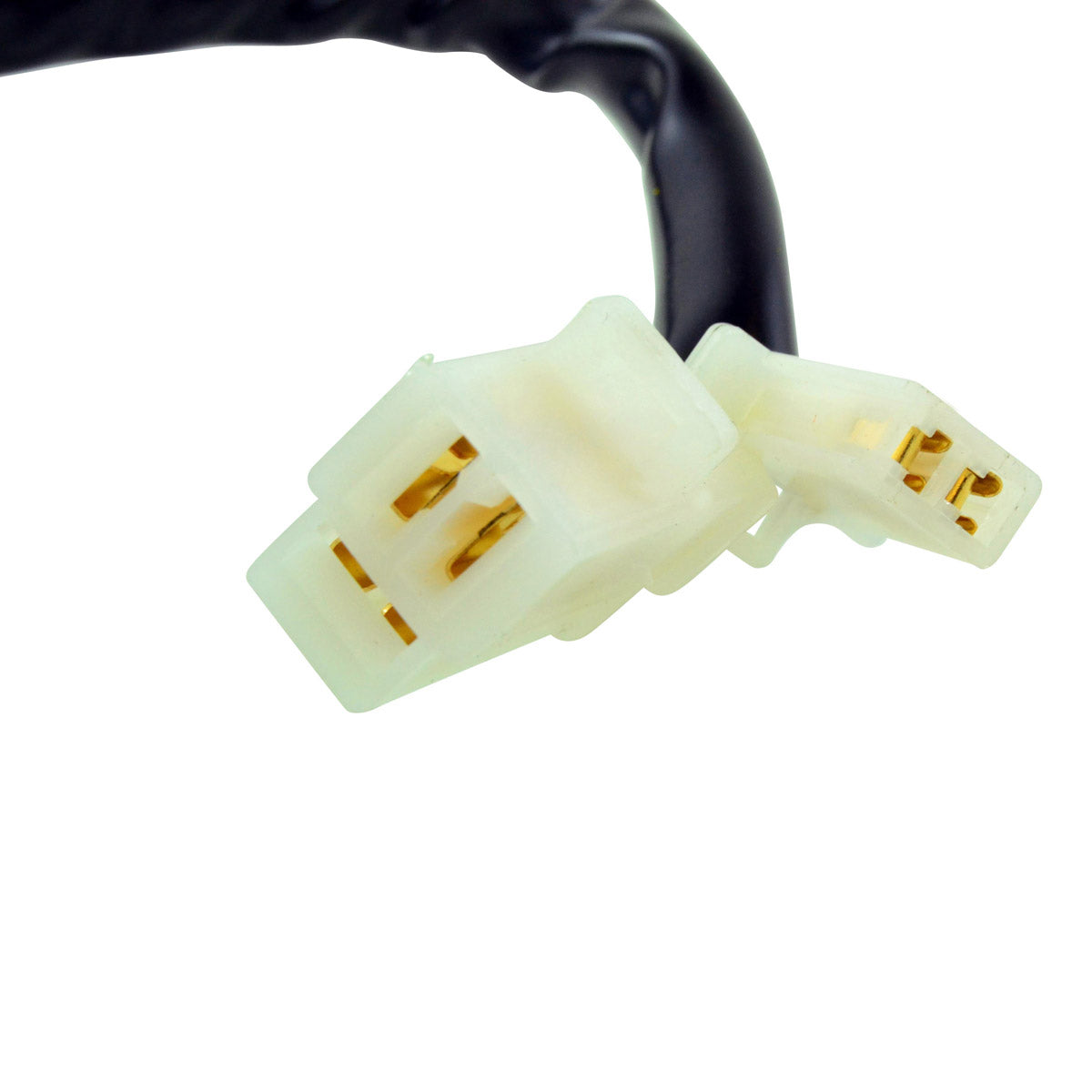

Connector included

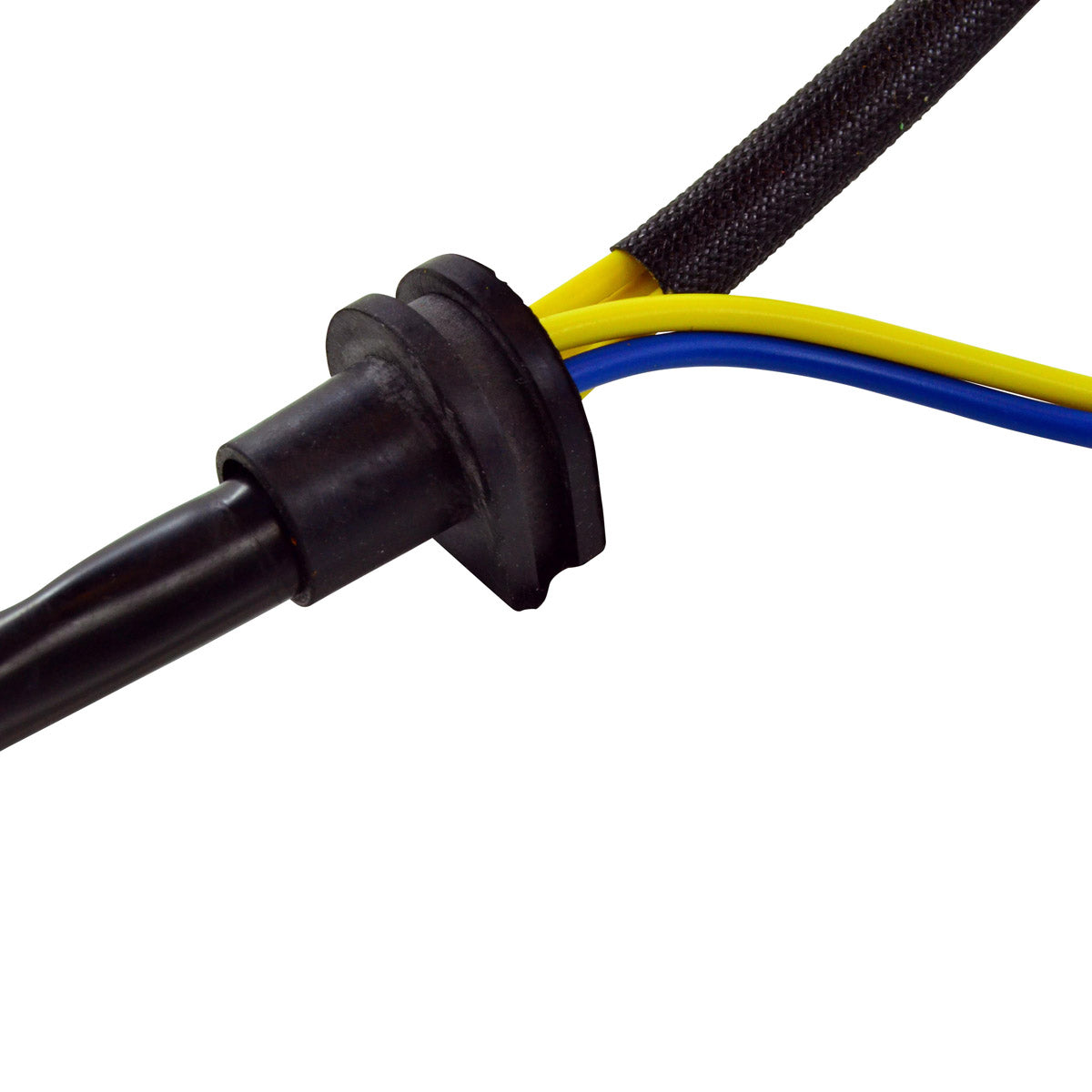

Rubber grommet included
All products shipped are tested

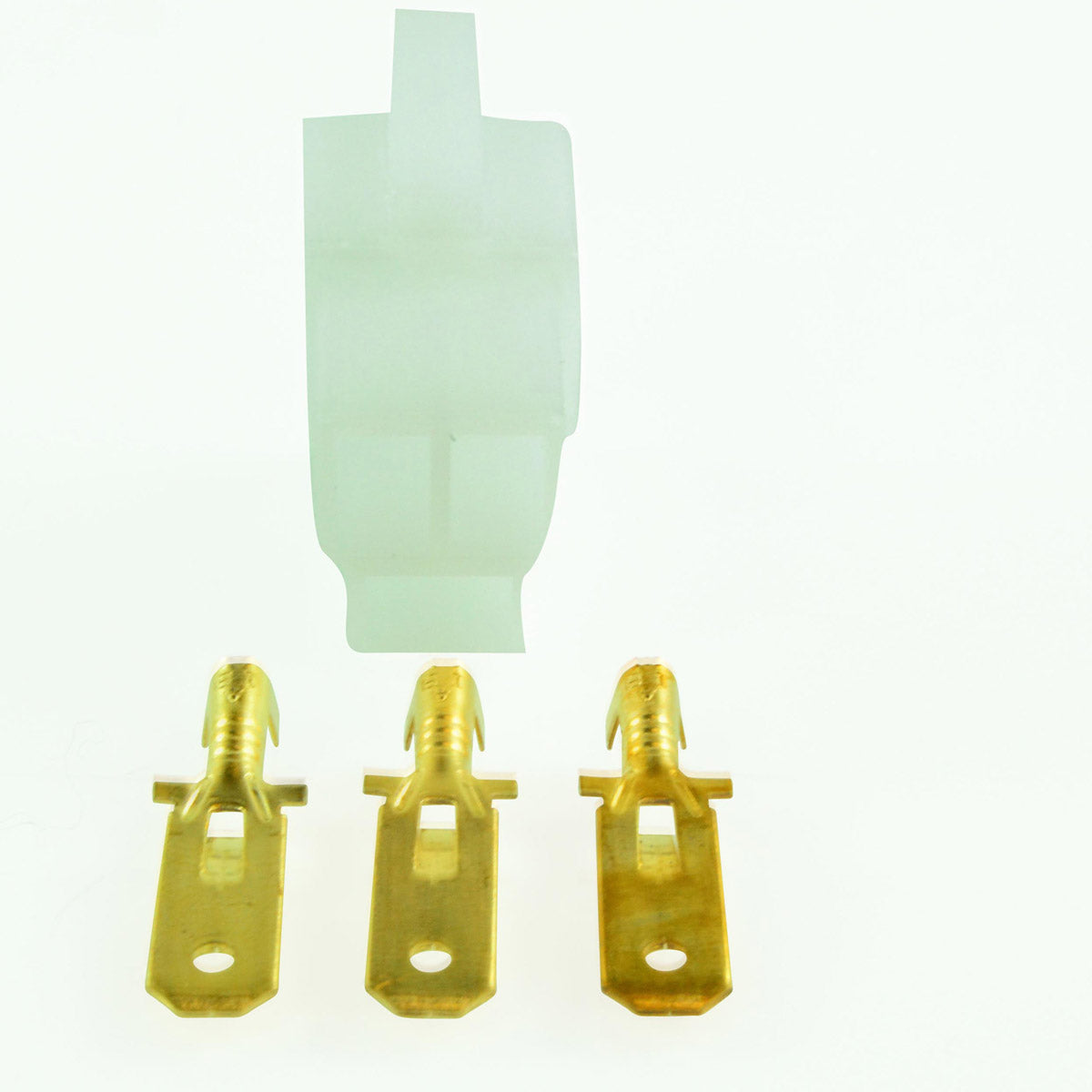

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 18 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 740 mm
Length of pickup coil's wire to grommet : 50 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +-20%
Pickup : Blue to Yellow = 550 ohms +-20%
Alternator to ground = O.L

Interchange Part Nº

4YR-81410-01-00
4YR-81410-00-00

Installation

Before installing your new Stator

Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
