Voltage Regulator for Sea-Doo 1500 GTX 4-TEC / 215 RXP / Speedster 200 2002-2007 | 278001969 / 278001581 / 15-110A
RMSTATOR
SKU: RM30Y06
In Stock
RMSTATOR
Voltage Regulator for Sea-Doo 1500 GTX 4-TEC / 215 RXP / Speedster 200 2002-2007 | 278001969 / 278001581 / 15-110A
Close
FITMENT WARNING:
Close
Close
Shop By Vehicle
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Read more

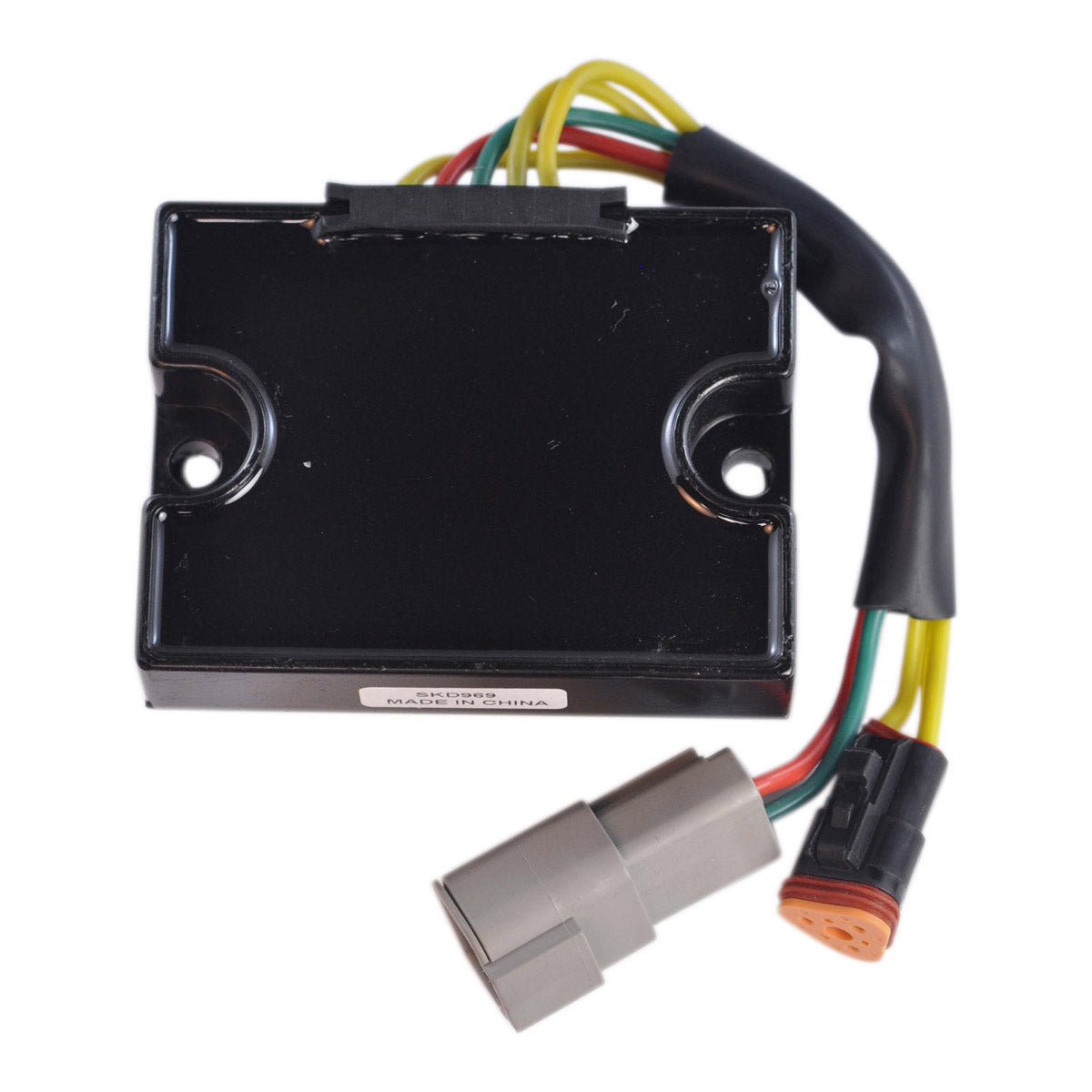

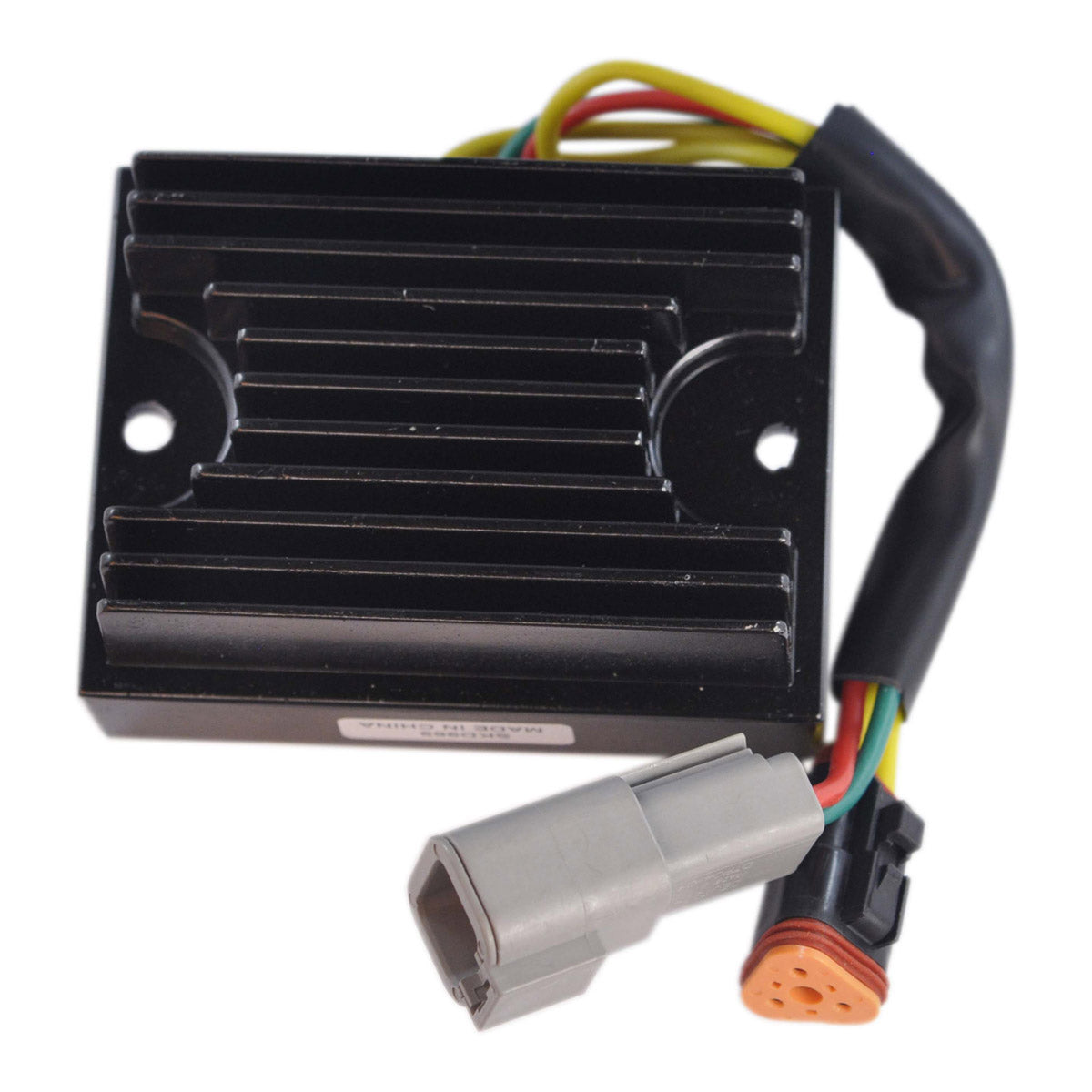

Voltage Regulator for Sea-Doo 1500 GTX 4-TEC / 215 RXP / Speedster 200 2002-2007 | 278001969 / 278001581 / 15-110A
Details
Details
Brand new aftermarket improved voltage regulator rectifier
- AC regulator rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- The Quality exceeds the OEM equipment

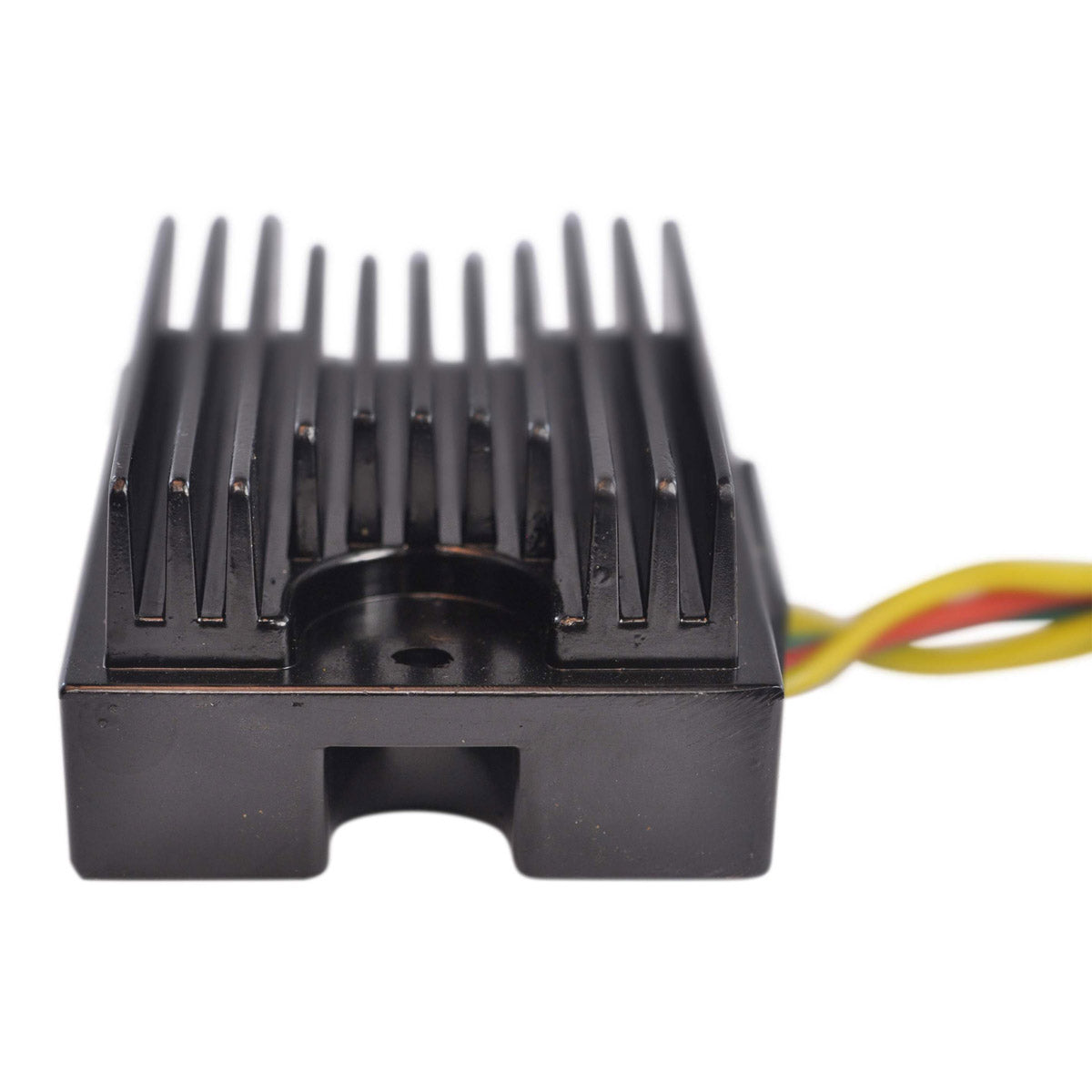

- Improved heat sink and charging capabilities
- Higher grade of electric components
- All products shipped are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Specifications
Specifications
Dimensions:
Width: 95 mm
Length: 75 mm
Height: 42 mm
Fixation holes center to center: 83 mm
Wires length: 280 mm
Other specifications:

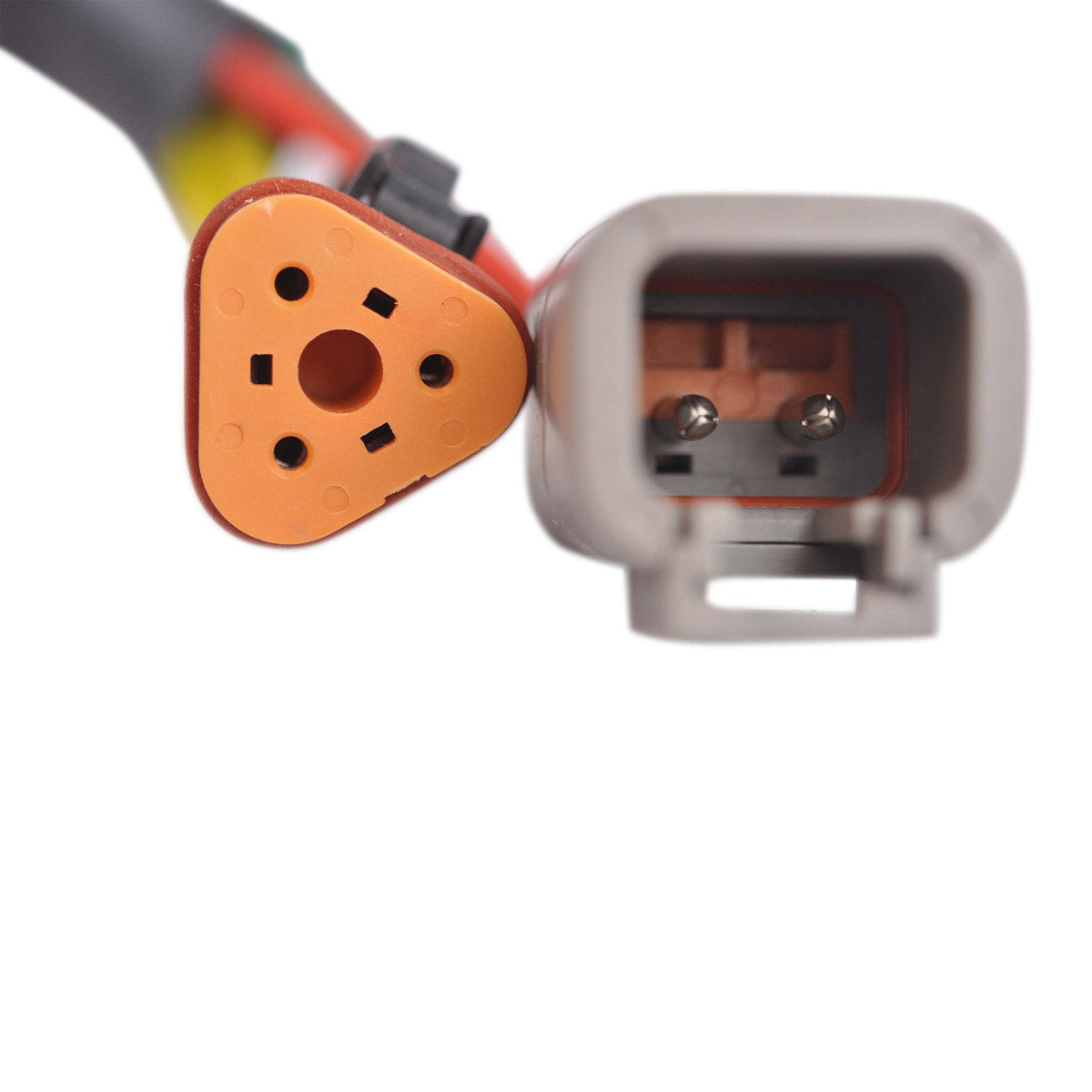

Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20⁰C to 85⁰C
Interchange Part Nº
Interchange Part Nº
- 278001969
- 278001581
- 15-110A
Installation
Installation
Before installing your new Voltage Regulator Rectifier:
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
