Voltage Regulator for Sea-Doo 780 GTX / GSX | 951 GTX / RX 1998-2006 | Can-Am DS 650 2000-2002 | # 278001241 278001554

Voltage Regulator for Sea-Doo 780 GTX / GSX | 951 GTX / RX 1998-2006 | Can-Am DS 650 2000-2002 | # 278001241 278001554

Name: Voltage Regulator for Sea-Doo 780 GTX / GSX | 951 GTX / RX 1998-2006 | Can-Am DS 650 2000-2002 | # 278001241 278001554
Brand: RMSTATOR
SKU: RM30Y05
Price: 86.89 USD
Availability: InStock

RMSTATOR

SKU: RM30Y05

In Stock

RMSTATOR

Voltage Regulator for Sea-Doo 780 GTX / GSX | 951 GTX / RX 1998-2006 | Can-Am DS 650 2000-2002 | # 278001241 278001554

$86.89

This product fits your

Close

FITMENT WARNING:

This product does not fit your

Close

This product is ride specific

Close

Shop By Vehicle

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Brand new voltage regulator rectifier

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required
Higher grade of electric components.
Improved heat sink and charging capabilities
The quality exceeds the OEM equipment
All products shipped are tested

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications

Dimensions :
Width : 70mm
Length : 96mm
Height: 37mm
Fixation holes center to center : 80mm
Wires length: 110mm

Other specifications :

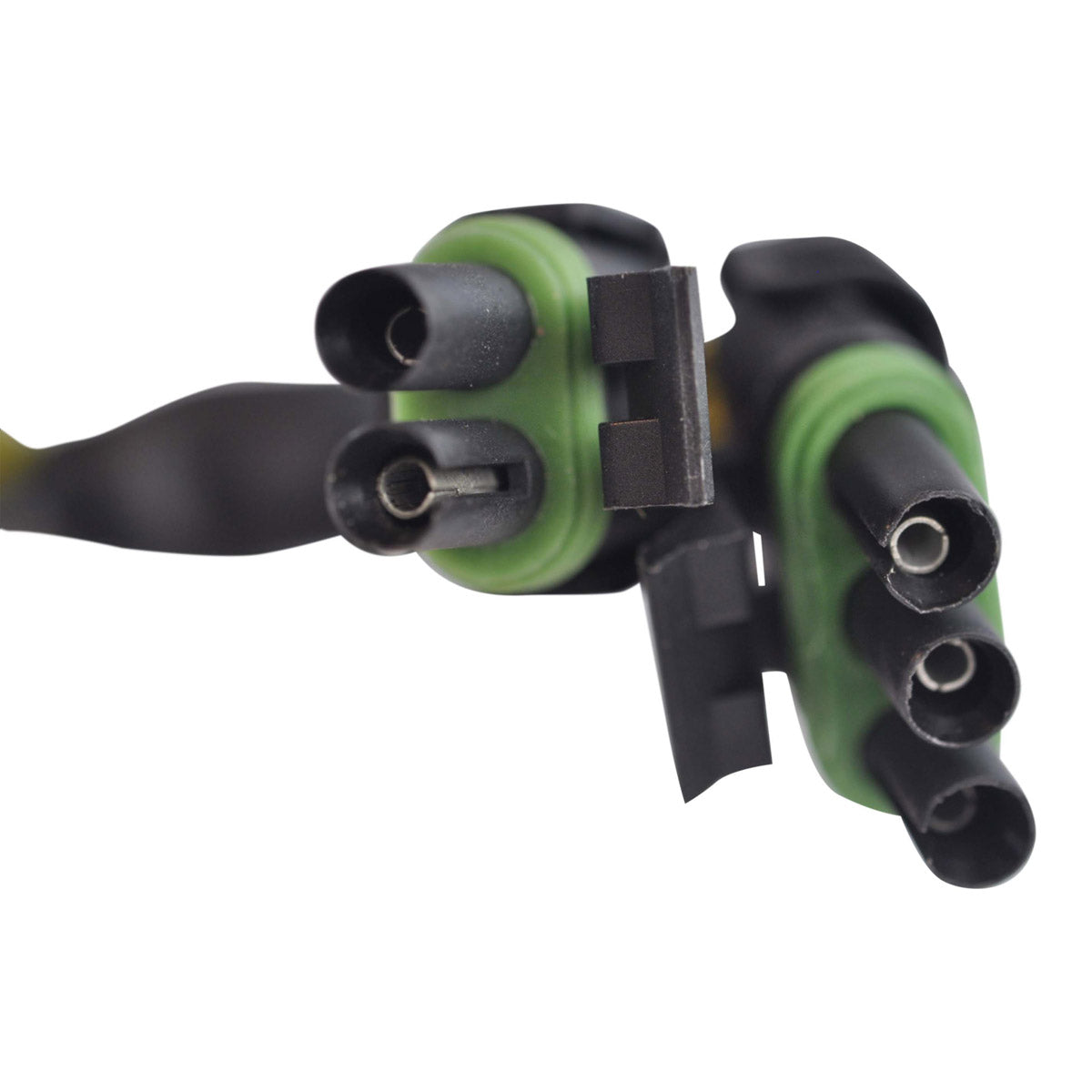

Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20⁰ to 85⁰

Interchange Part Nº

278001241
278001554

Installation

Before installing your new voltage regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
